Resistors Ohm’s Law and Combinations of resistors

Electric Charge w Electric charge is a fundamental property of some of the particles that make up matter, especially (but not only) electrons and protons w It comes in two varieties n n Positive (protons have positive charge) Negative (electrons have negative charge) w Charge is measured in units called Coulombs n n A Coulomb is a rather large amount of charge A proton has a charge 1. 602 10 -19 C

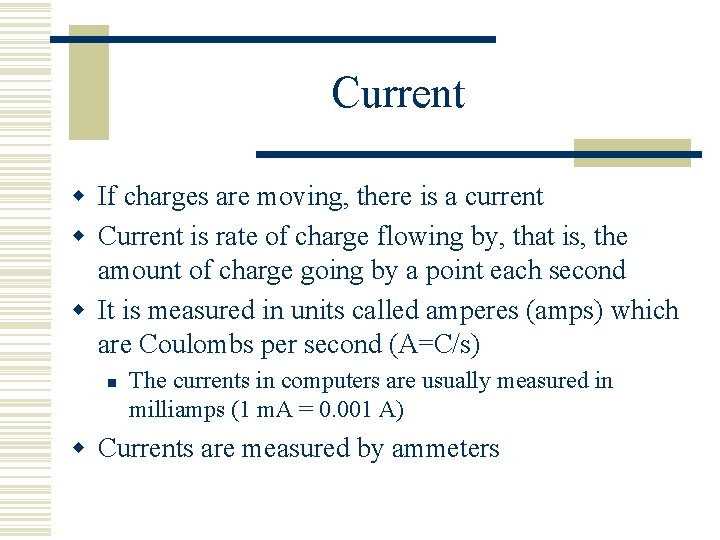

Current w If charges are moving, there is a current w Current is rate of charge flowing by, that is, the amount of charge going by a point each second w It is measured in units called amperes (amps) which are Coulombs per second (A=C/s) n The currents in computers are usually measured in milliamps (1 m. A = 0. 001 A) w Currents are measured by ammeters

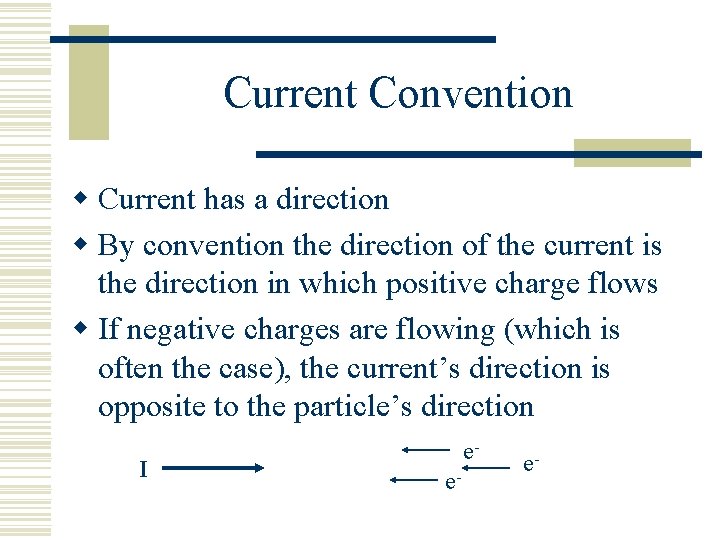

Current Convention w Current has a direction w By convention the direction of the current is the direction in which positive charge flows w If negative charges are flowing (which is often the case), the current’s direction is opposite to the particle’s direction I ee- e-

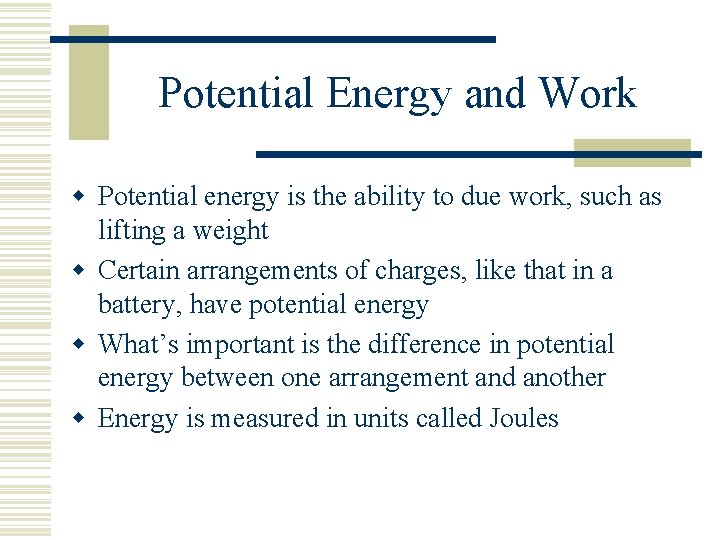

Potential Energy and Work w Potential energy is the ability to due work, such as lifting a weight w Certain arrangements of charges, like that in a battery, have potential energy w What’s important is the difference in potential energy between one arrangement and another w Energy is measured in units called Joules

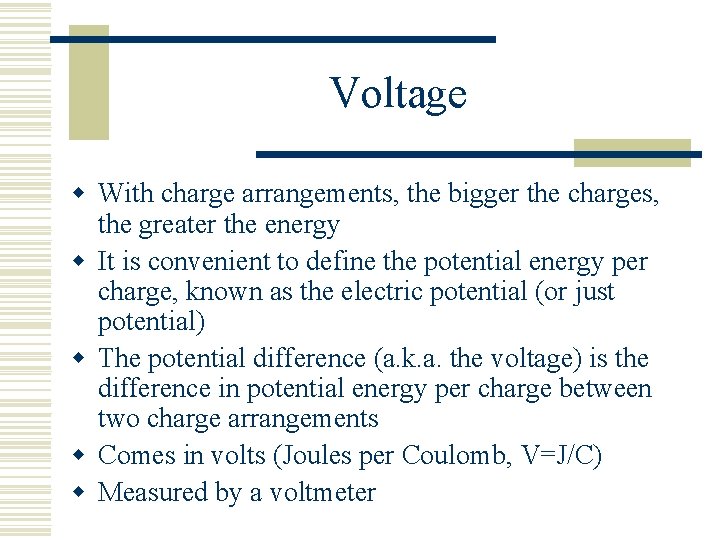

Voltage w With charge arrangements, the bigger the charges, the greater the energy w It is convenient to define the potential energy per charge, known as the electric potential (or just potential) w The potential difference (a. k. a. the voltage) is the difference in potential energy per charge between two charge arrangements w Comes in volts (Joules per Coulomb, V=J/C) w Measured by a voltmeter

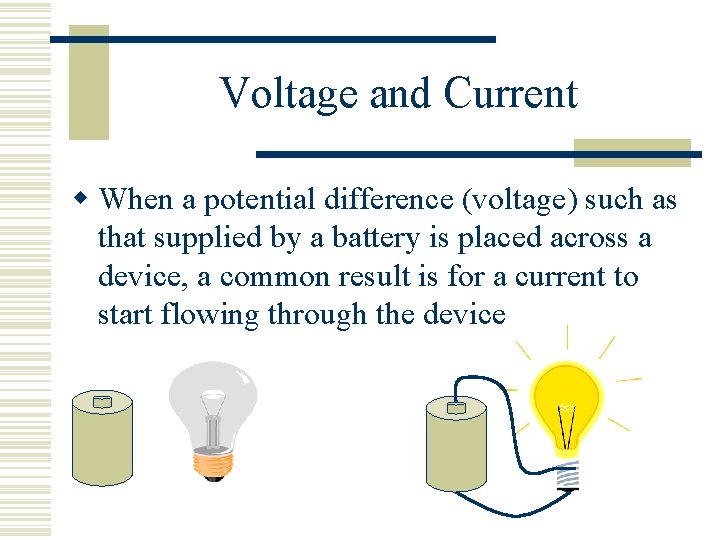

Voltage and Current w When a potential difference (voltage) such as that supplied by a battery is placed across a device, a common result is for a current to start flowing through the device

Resistance w The ratio of voltage to current is known as resistance R = V I w Indicates whether it takes a lot of work (high resistance) or a little bit of work (low resistance) to move charges w Comes in ohms ( ) w Measured by ohmmeter

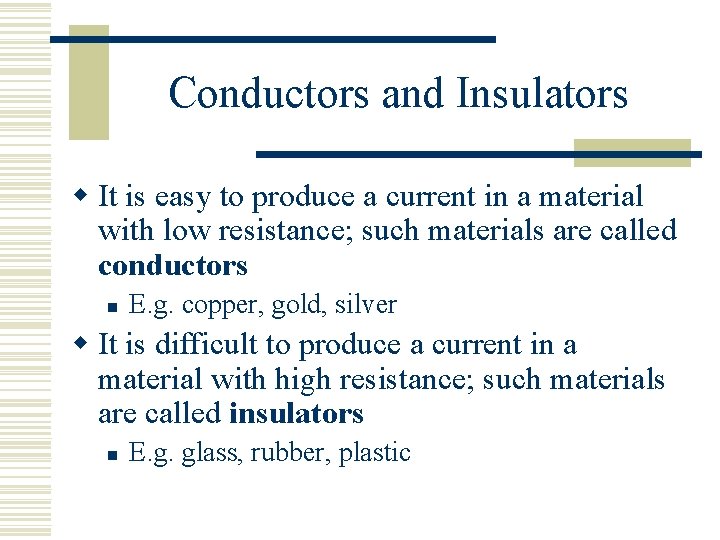

Conductors and Insulators w It is easy to produce a current in a material with low resistance; such materials are called conductors n E. g. copper, gold, silver w It is difficult to produce a current in a material with high resistance; such materials are called insulators n E. g. glass, rubber, plastic

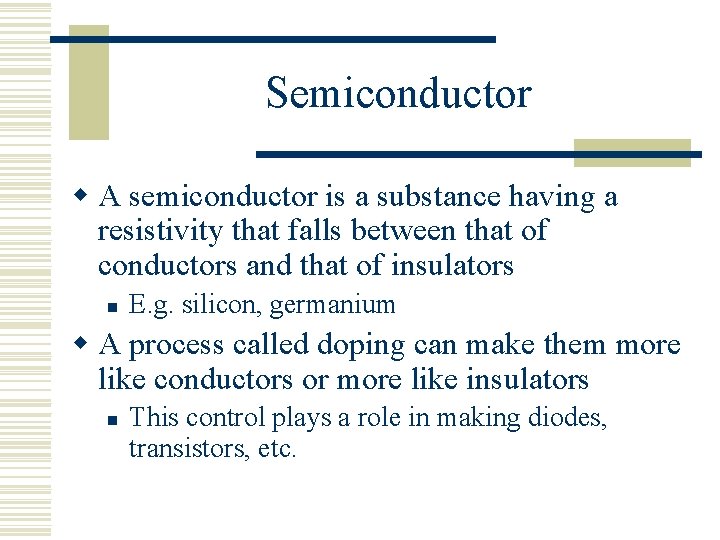

Semiconductor w A semiconductor is a substance having a resistivity that falls between that of conductors and that of insulators n E. g. silicon, germanium w A process called doping can make them more like conductors or more like insulators n This control plays a role in making diodes, transistors, etc.

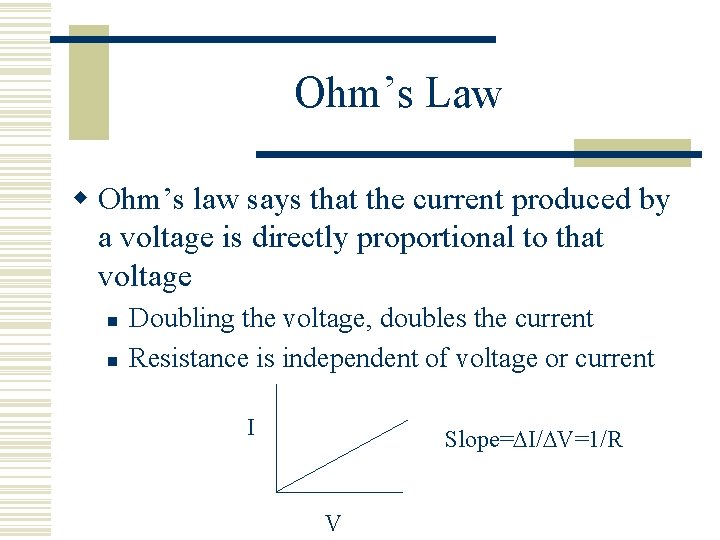

Ohm’s Law w Ohm’s law says that the current produced by a voltage is directly proportional to that voltage n n Doubling the voltage, doubles the current Resistance is independent of voltage or current I Slope= I/ V=1/R V

Ohmic w Ohm’s law is an empirical observation n Meaning that it is something we notice tends to be true, rather than something that must be true Ohm’s law is not always obeyed. For example, it is not true for diodes or transistors A device which does obey Ohm’s law is said to “ohmic”

Resistor w A resistor is an Ohmic device, the sole purpose of which is to provide resistance n By providing resistance, they lower voltage or limit current

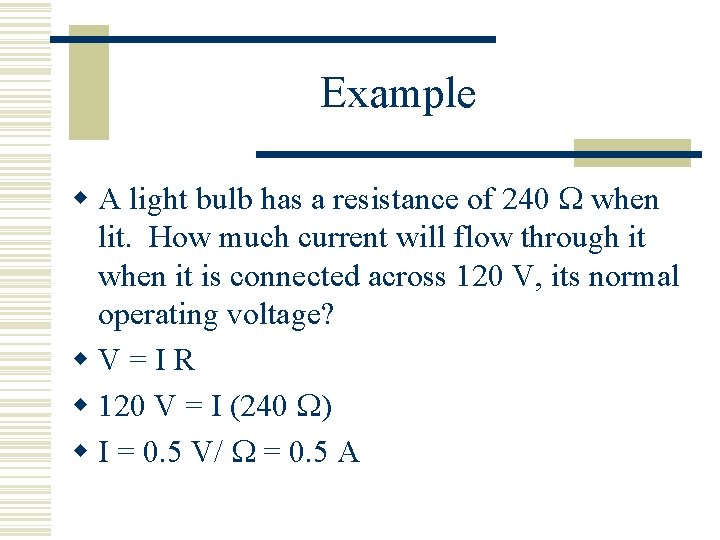

Example w A light bulb has a resistance of 240 when lit. How much current will flow through it when it is connected across 120 V, its normal operating voltage? w. V=IR w 120 V = I (240 ) w I = 0. 5 V/ = 0. 5 A

Series w Two resistors are in series if a charge passing through the first resistor must pass through the second resistor w It has no where else to go

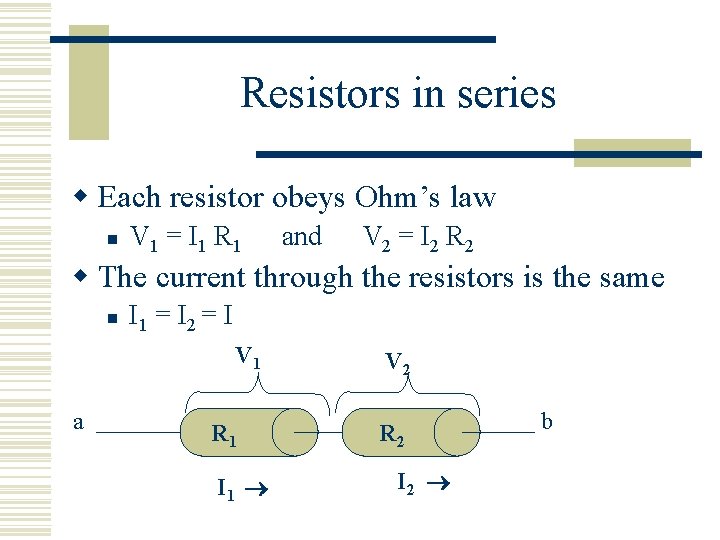

Resistors in series w Each resistor obeys Ohm’s law n V 1 = I 1 R 1 and V 2 = I 2 R 2 w The current through the resistors is the same n I 1 = I 2 = I V 1 a R 1 I 1 V 2 R 2 I 2 b

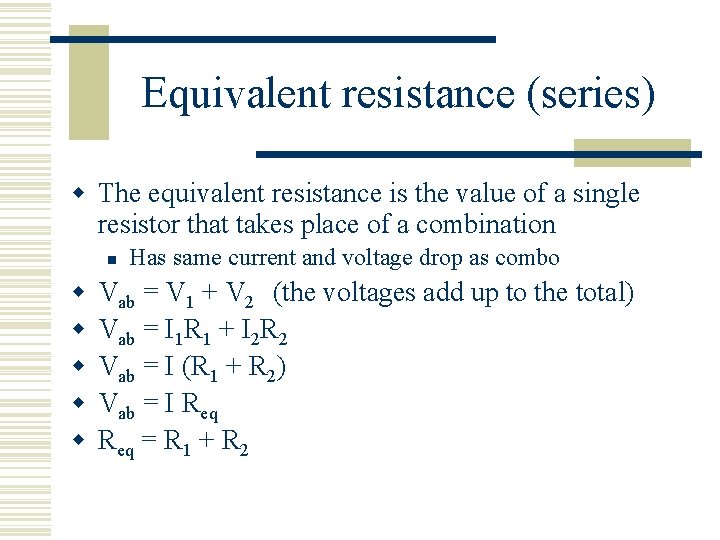

Equivalent resistance (series) w The equivalent resistance is the value of a single resistor that takes place of a combination n w w w Has same current and voltage drop as combo Vab = V 1 + V 2 (the voltages add up to the total) Vab = I 1 R 1 + I 2 R 2 Vab = I (R 1 + R 2) Vab = I Req = R 1 + R 2

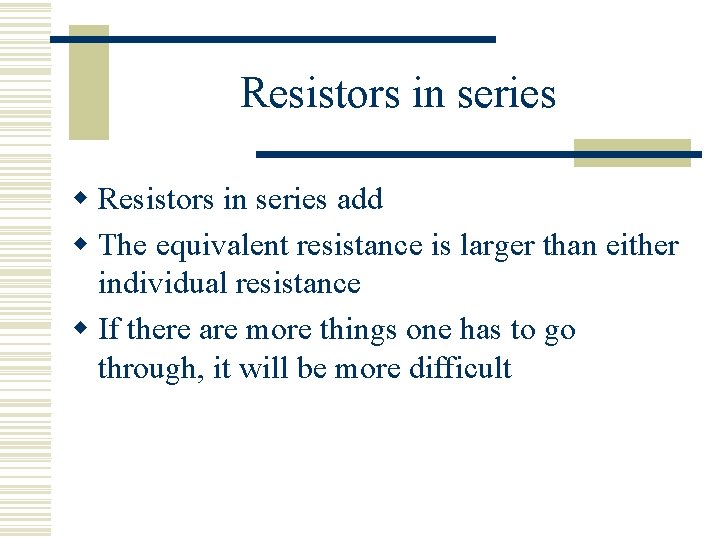

Resistors in series w Resistors in series add w The equivalent resistance is larger than either individual resistance w If there are more things one has to go through, it will be more difficult

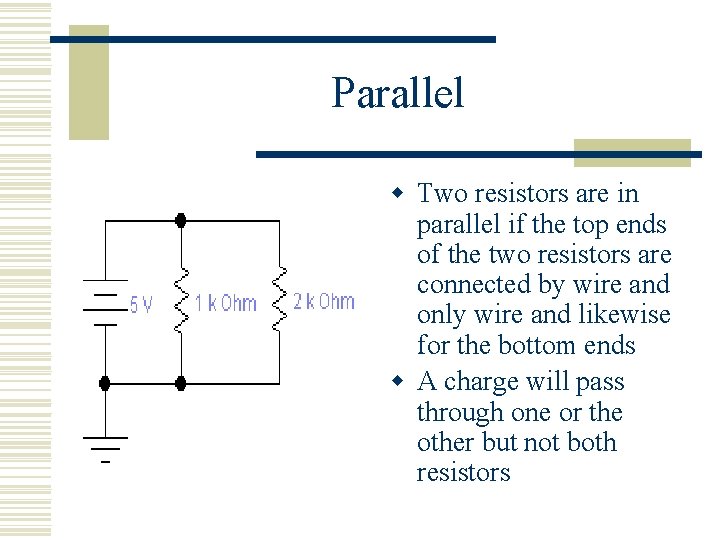

Parallel w Two resistors are in parallel if the top ends of the two resistors are connected by wire and only wire and likewise for the bottom ends w A charge will pass through one or the other but not both resistors

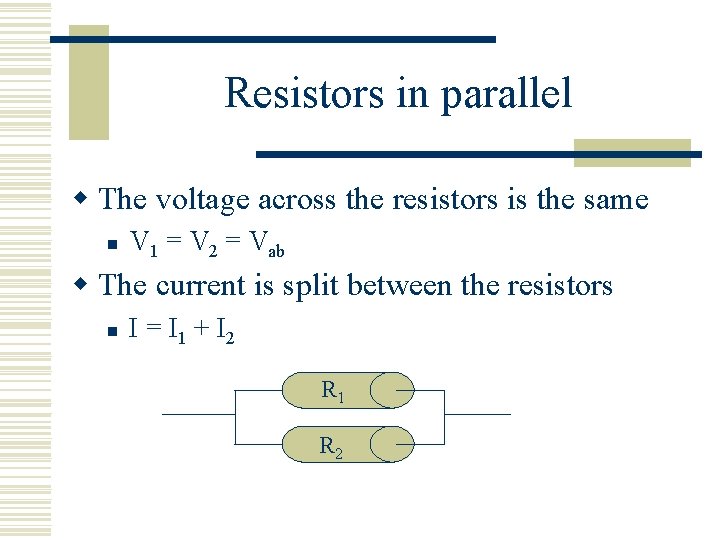

Resistors in parallel w The voltage across the resistors is the same n V 1 = V 2 = Vab w The current is split between the resistors n I = I 1 + I 2 R 1 R 2

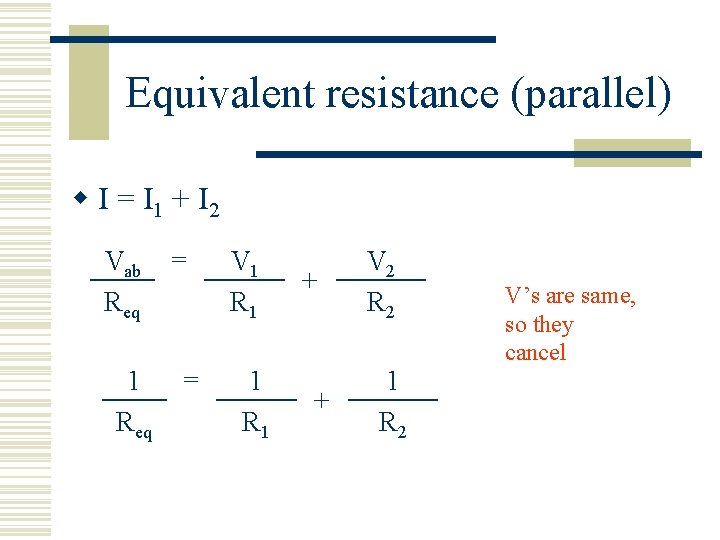

Equivalent resistance (parallel) w I = I 1 + I 2 Vab Req 1 Req = = V 1 R 1 + + V 2 R 2 1 R 2 V’s are same, so they cancel

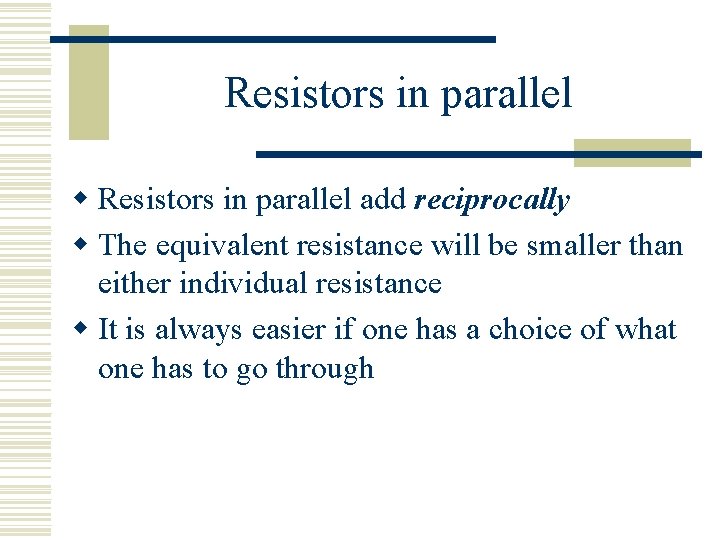

Resistors in parallel w Resistors in parallel add reciprocally w The equivalent resistance will be smaller than either individual resistance w It is always easier if one has a choice of what one has to go through

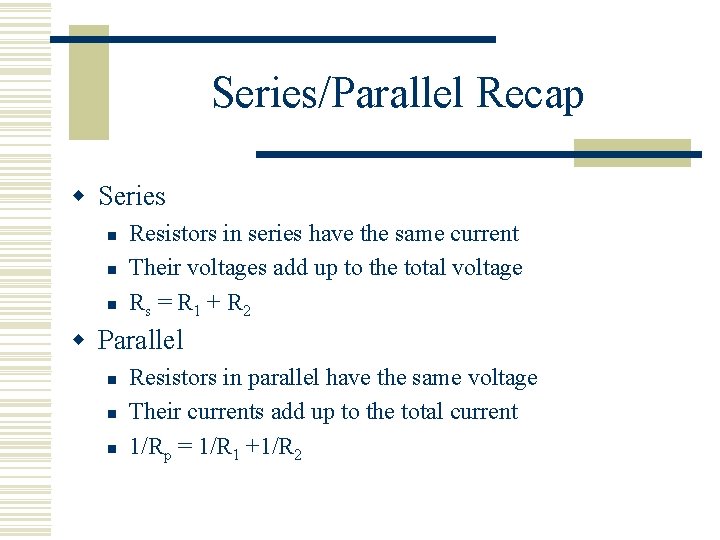

Series/Parallel Recap w Series n n n Resistors in series have the same current Their voltages add up to the total voltage Rs = R 1 + R 2 w Parallel n n n Resistors in parallel have the same voltage Their currents add up to the total current 1/Rp = 1/R 1 +1/R 2

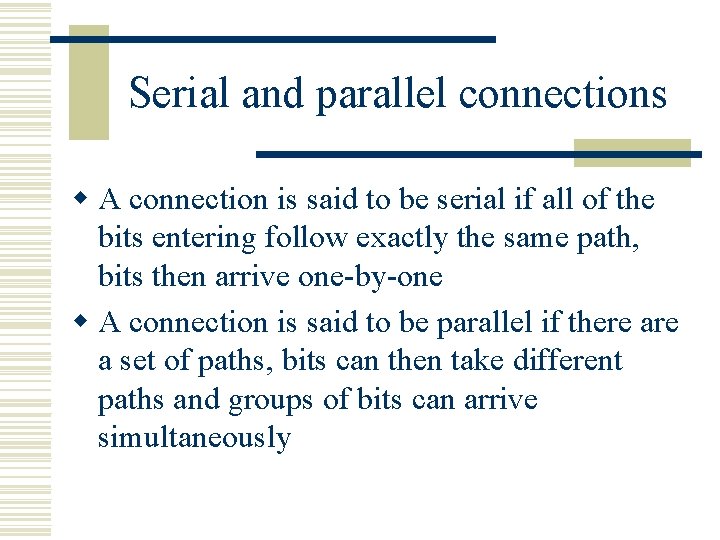

Serial and parallel connections w A connection is said to be serial if all of the bits entering follow exactly the same path, bits then arrive one-by-one w A connection is said to be parallel if there a set of paths, bits can then take different paths and groups of bits can arrive simultaneously

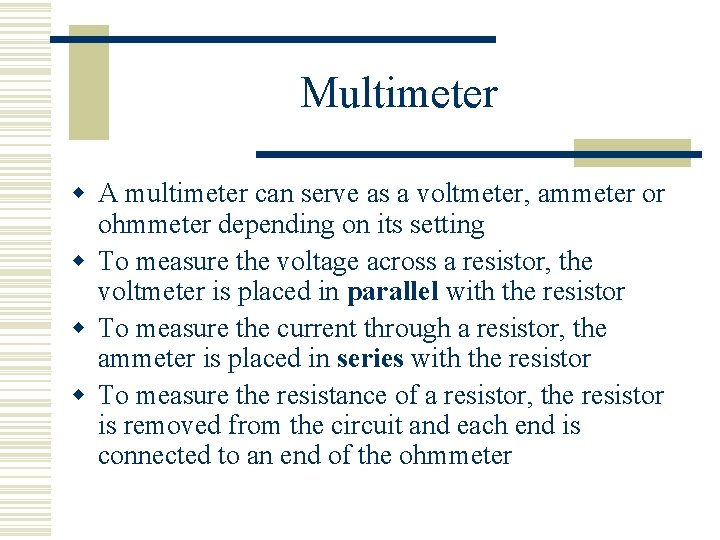

Multimeter w A multimeter can serve as a voltmeter, ammeter or ohmmeter depending on its setting w To measure the voltage across a resistor, the voltmeter is placed in parallel with the resistor w To measure the current through a resistor, the ammeter is placed in series with the resistor w To measure the resistance of a resistor, the resistor is removed from the circuit and each end is connected to an end of the ohmmeter

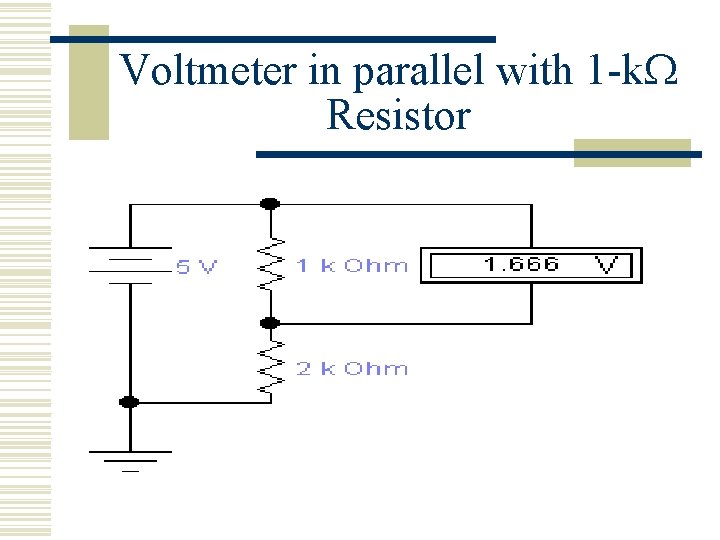

Voltmeter in parallel with 1 -k Resistor

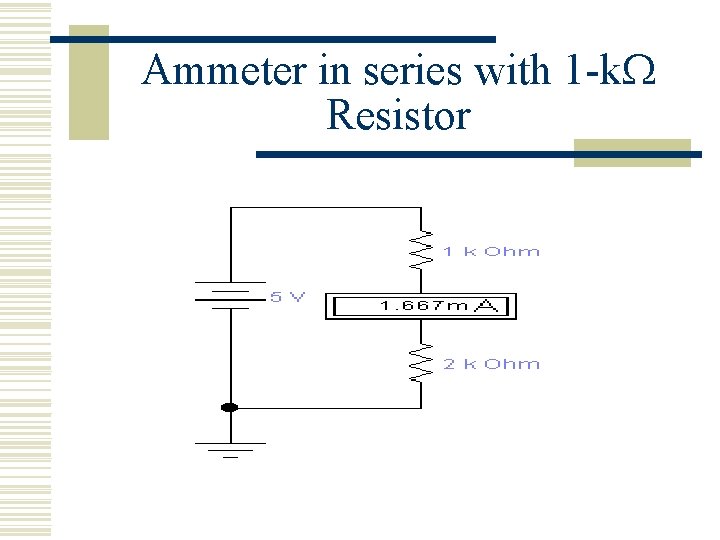

Ammeter in series with 1 -k Resistor

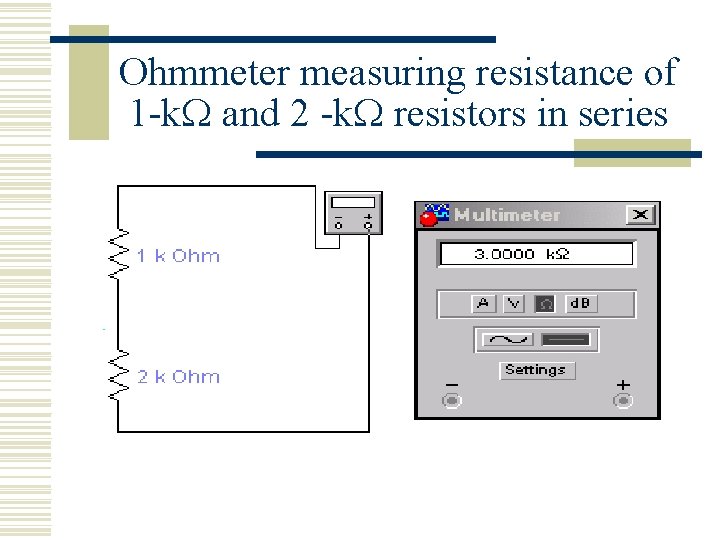

Ohmmeter measuring resistance of 1 -k and 2 -k resistors in series

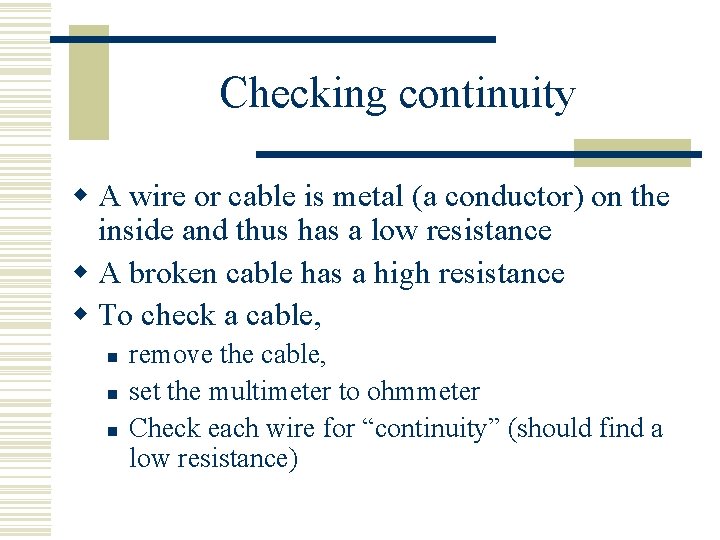

Checking continuity w A wire or cable is metal (a conductor) on the inside and thus has a low resistance w A broken cable has a high resistance w To check a cable, n n n remove the cable, set the multimeter to ohmmeter Check each wire for “continuity” (should find a low resistance)

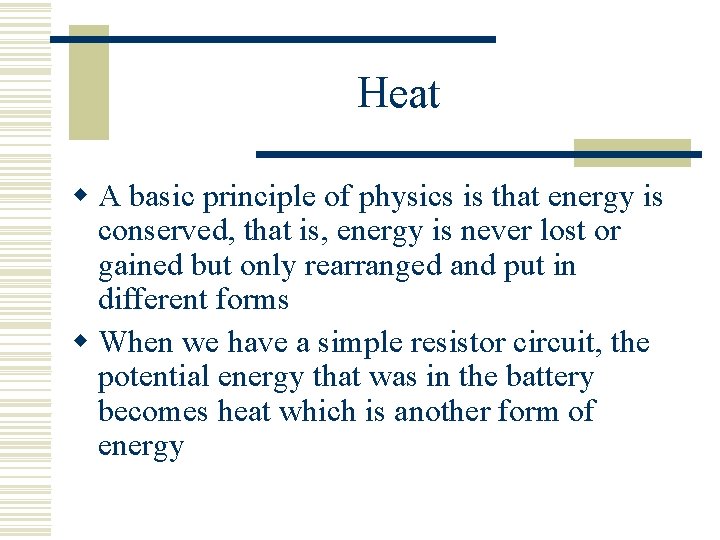

Heat w A basic principle of physics is that energy is conserved, that is, energy is never lost or gained but only rearranged and put in different forms w When we have a simple resistor circuit, the potential energy that was in the battery becomes heat which is another form of energy

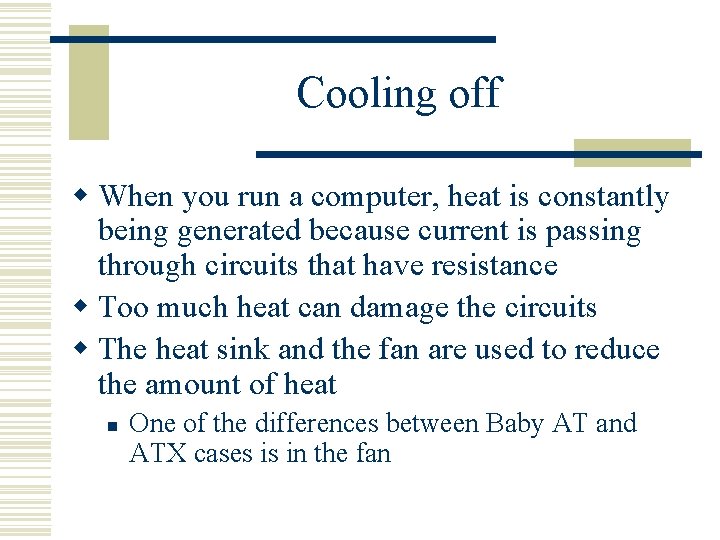

Cooling off w When you run a computer, heat is constantly being generated because current is passing through circuits that have resistance w Too much heat can damage the circuits w The heat sink and the fan are used to reduce the amount of heat n One of the differences between Baby AT and ATX cases is in the fan
