Resistant Materials Revision Quiz

1 Resistant Materials Revision Quiz Match the manufactured board with the explanation A B C D E

2 Resistant Materials Revision Quiz Which wood would normally be used to make this product? a. Scots Pine b. Cedar c. Parana Pine d. Mahogany

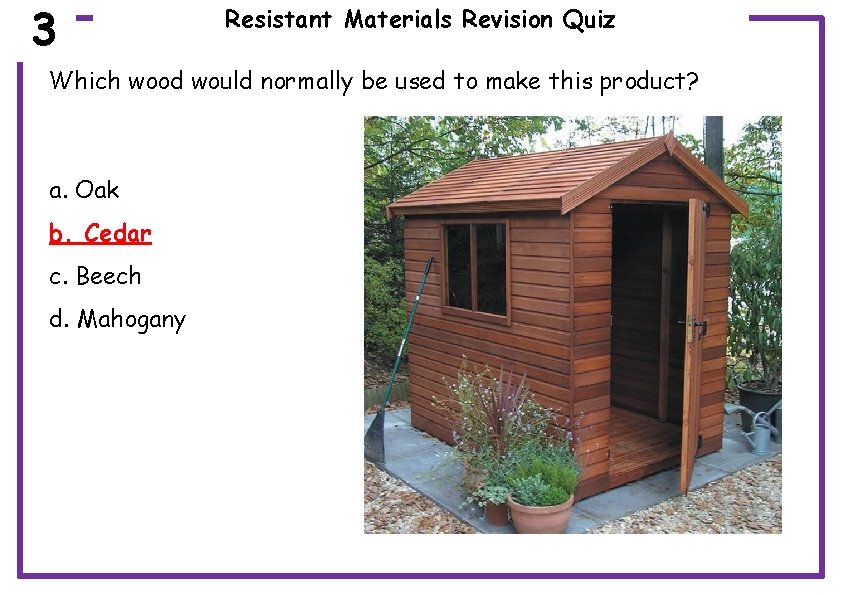

3 Resistant Materials Revision Quiz Which wood would normally be used to make this product? a. Oak b. Cedar c. Beech d. Mahogany

4 Resistant Materials Revision Quiz Which wood would normally be used to make this product? a. Oak b. Cedar c. Beech d. Mahogany

5 Resistant Materials Revision Quiz Which wood would normally be used to make this product? a. Ash b. Cedar c. Beech d. Mahogany

6 Resistant Materials Revision Quiz Which wood would normally be used to make this product? a. Scots Pine b. Cedar c. Parana Pine d. Mahogany

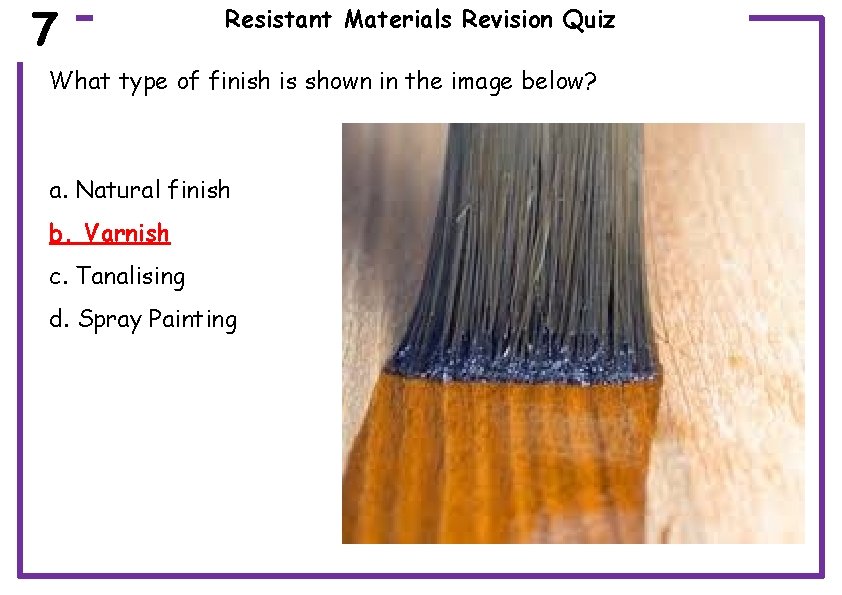

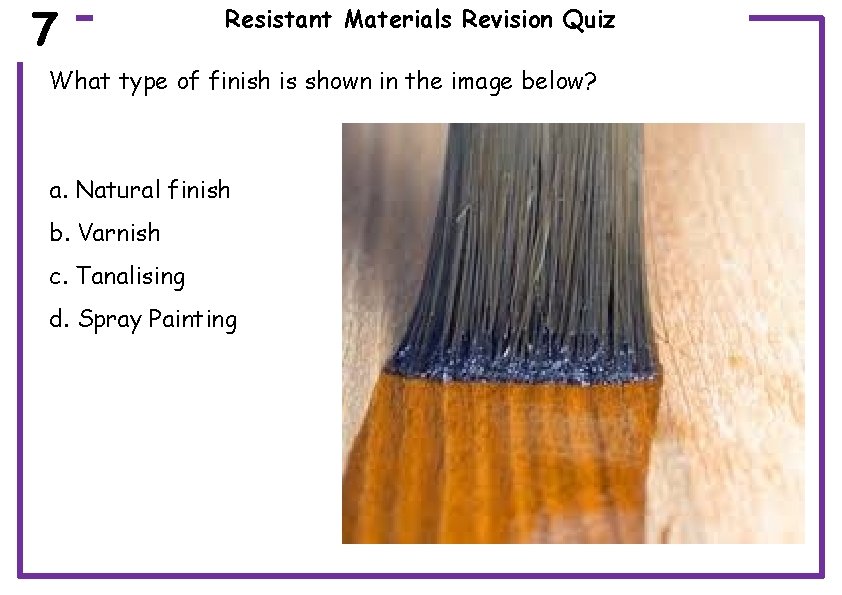

7 Resistant Materials Revision Quiz What type of finish is shown in the image below? a. Natural finish b. Varnish c. Tanalising d. Spray Painting

8 Resistant Materials Revision Quiz What type of finish is shown in the image below? a. Wax polish b. Varnish c. Plastic coating d. Spray Painting

9 Resistant Materials Revision Quiz What type of finish is shown in the image below? a. Anodising b. Painting c. Enamelling d. Chrome plating

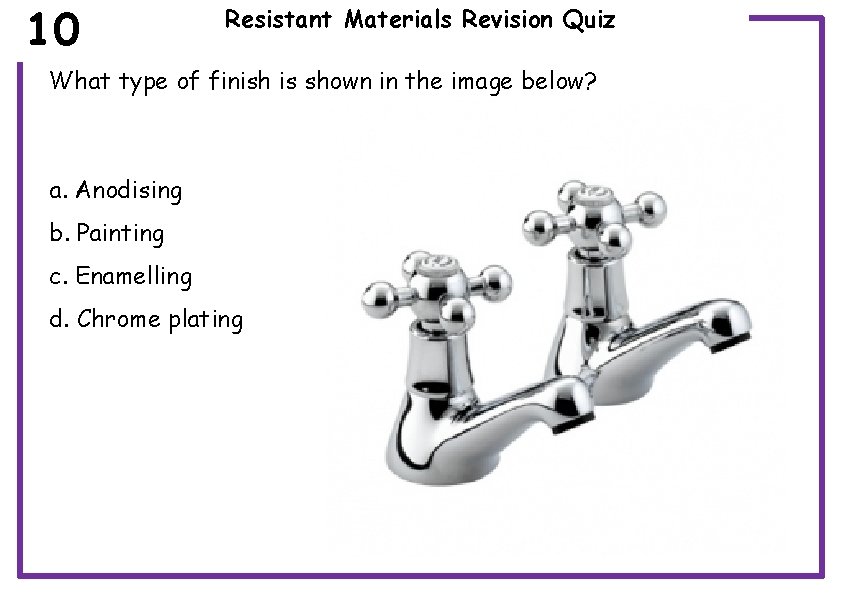

10 Resistant Materials Revision Quiz What type of finish is shown in the image below? a. Anodising b. Painting c. Enamelling d. Chrome plating

Resistant Materials Revision Quiz – Part 2

11 Resistant Materials Revision Quiz What type of finish is shown in the image below? a. Natural finish b. Varnish c. Chrome plating d. Spray painting

12 Resistant Materials Revision Quiz Which is the most suitable adhesive for rapid modelling in card? a. PVA b. Contact adhesive c. Tensol d. Hot melt glue (glue gun)

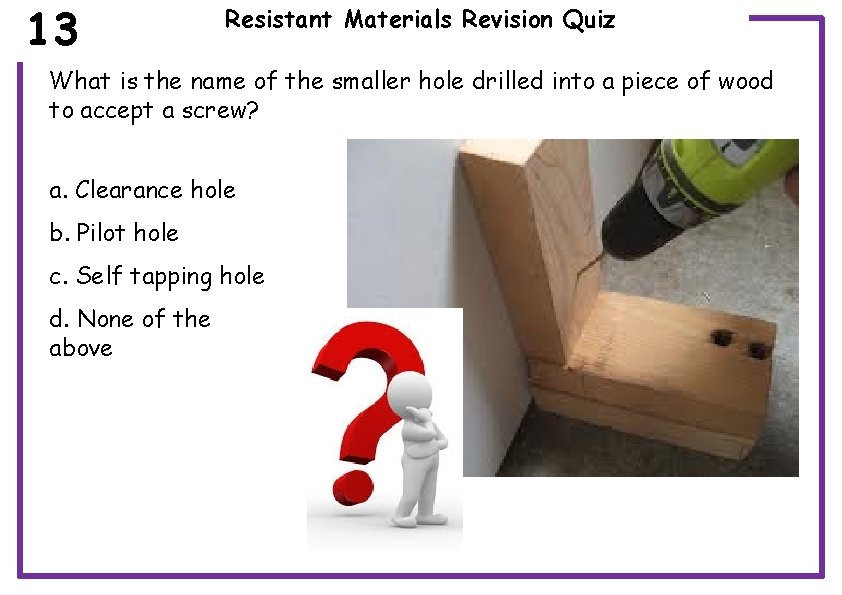

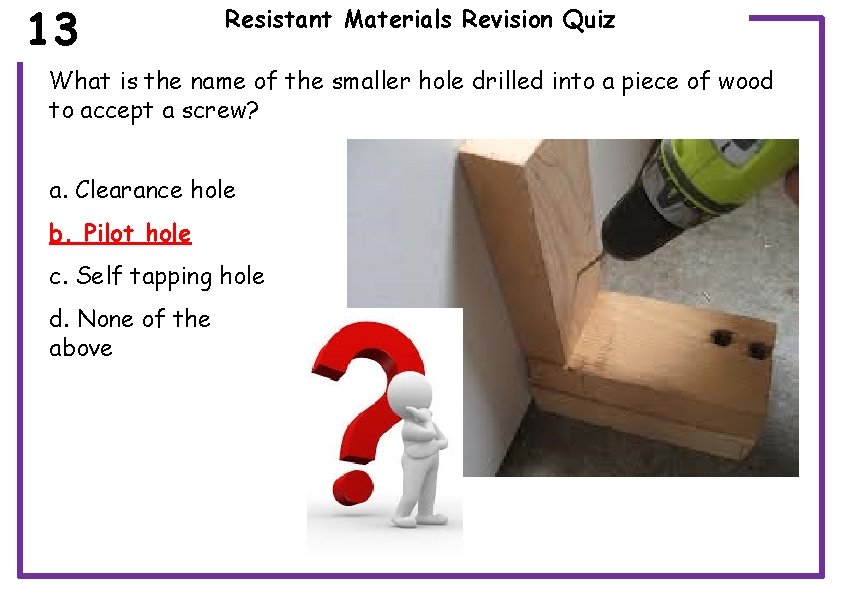

13 Resistant Materials Revision Quiz What is the name of the smaller hole drilled into a piece of wood to accept a screw? a. Clearance hole b. Pilot hole c. Self tapping hole d. None of the above

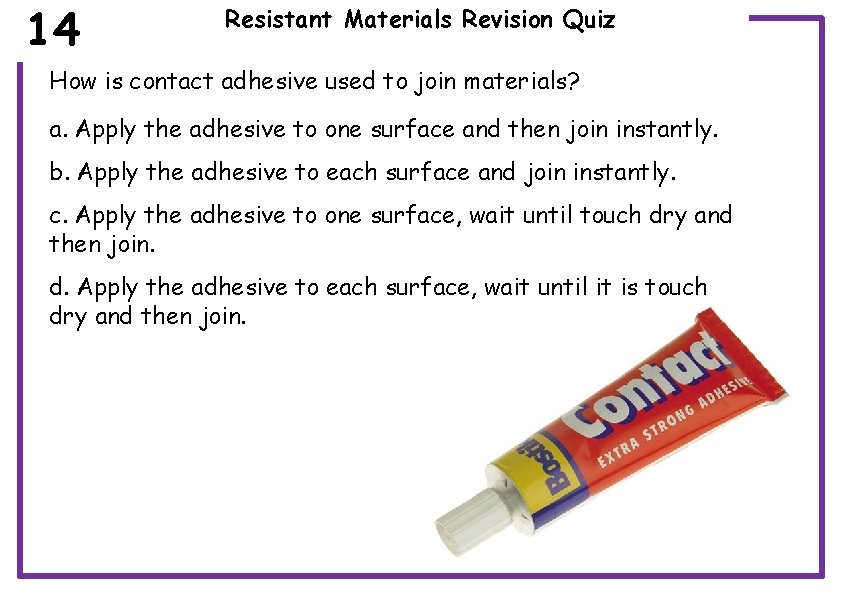

14 Resistant Materials Revision Quiz How is contact adhesive used to join materials? a. Apply the adhesive to one surface and then join instantly. b. Apply the adhesive to each surface and join instantly. c. Apply the adhesive to one surface, wait until touch dry and then join. d. Apply the adhesive to each surface, wait until it is touch dry and then join.

15 Resistant Materials Revision Quiz Which is the most suitable adhesive for joining wood to metal? a. PVA b. Contact Adhesive c. Tensol d. Hot melt glue (glue gun) e. Araldite (Epoxy resin)

16 Resistant Materials Revision Quiz What is the name of the wood joint in the image? a. Dovetail joint b. Mitre joint c. Finger joint d. Butt joint

17 Resistant Materials Revision Quiz Which is the most suitable adhesive for joining plastic to plastic? a. PVA b. Contact Adhesive c. Tensol d. Hot melt glue (glue gun)

18 Resistant Materials Revision Quiz Which metal would normally used to make this product? a. Iron b. Mild Steel c. Aluminium d. Stainless Steel

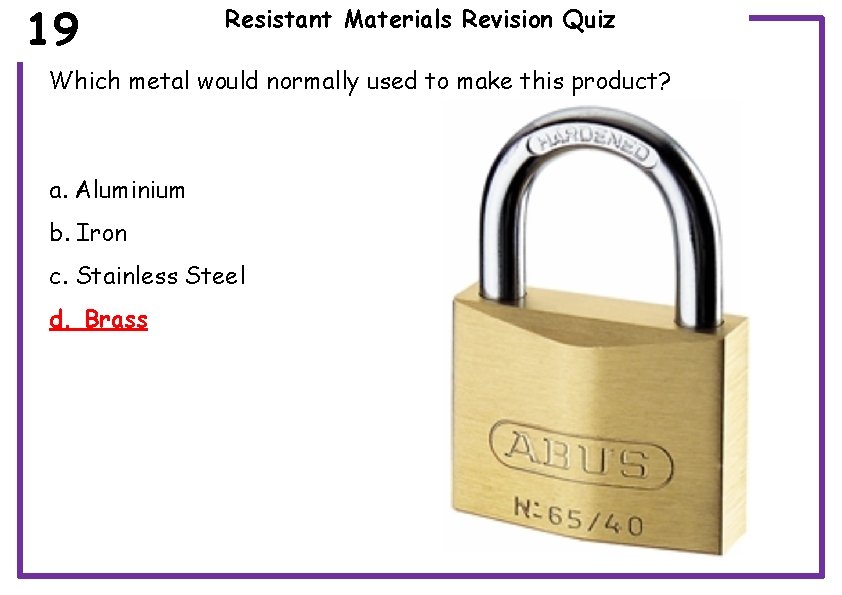

19 Resistant Materials Revision Quiz Which metal would normally used to make this product? a. Aluminium b. Iron c. Stainless Steel d. Brass

20 Resistant Materials Revision Quiz Which metal would normally used to make this product? a. Brass b. Stainless Steel c. Aluminium d. Iron

21 Resistant Materials Revision Quiz Which metal would normally used to make this product (Blacksmiths Anvil)? a. Tool Steel b. Mild Steel c. Stainless Steel d. Iron

22 Resistant Materials Revision Quiz Which plastic would normally be used to make this product? a. Melamine Formaldehyde b. LDPE c. Urea Formaldehyde d. GRP

23 Resistant Materials Revision Quiz Which plastic would normally be used to make this product? a. LDPE b. HDPE c. Urea Formaldehyde d. Acrylic

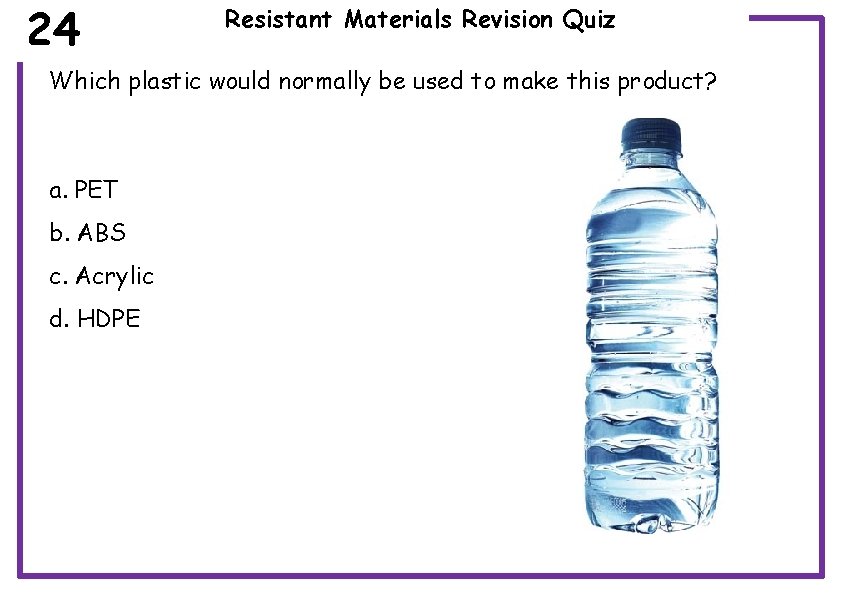

24 Resistant Materials Revision Quiz Which plastic would normally be used to make this product? a. PET b. ABS c. Acrylic d. HDPE

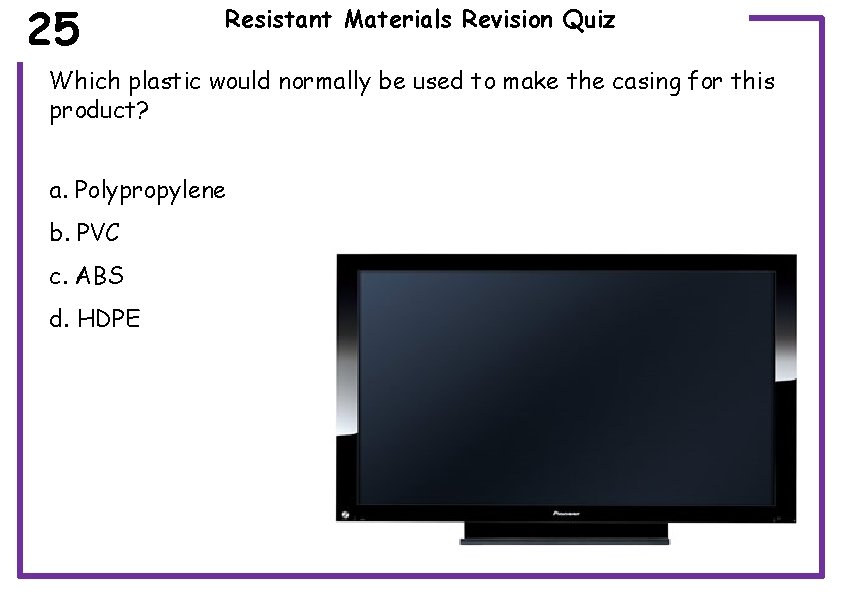

25 Resistant Materials Revision Quiz Which plastic would normally be used to make the casing for this product? a. Polypropylene b. PVC c. ABS d. HDPE

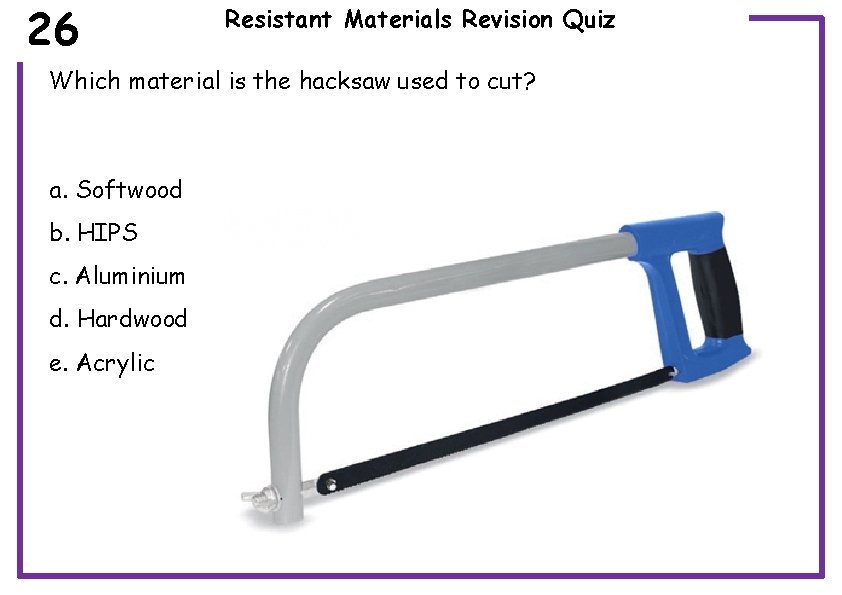

26 Resistant Materials Revision Quiz Which material is the hacksaw used to cut? a. Softwood b. HIPS c. Aluminium d. Hardwood e. Acrylic

27 Resistant Materials Revision Quiz What does the hazard sign below mean? a. Corrosive b. Causes severe burns c. Poisonous/Toxic d. Beware pirates about

28 Resistant Materials Revision Quiz If you are entering a building site which sign is applicable when working with hot/sharp materials a. b. e. c. d. f.

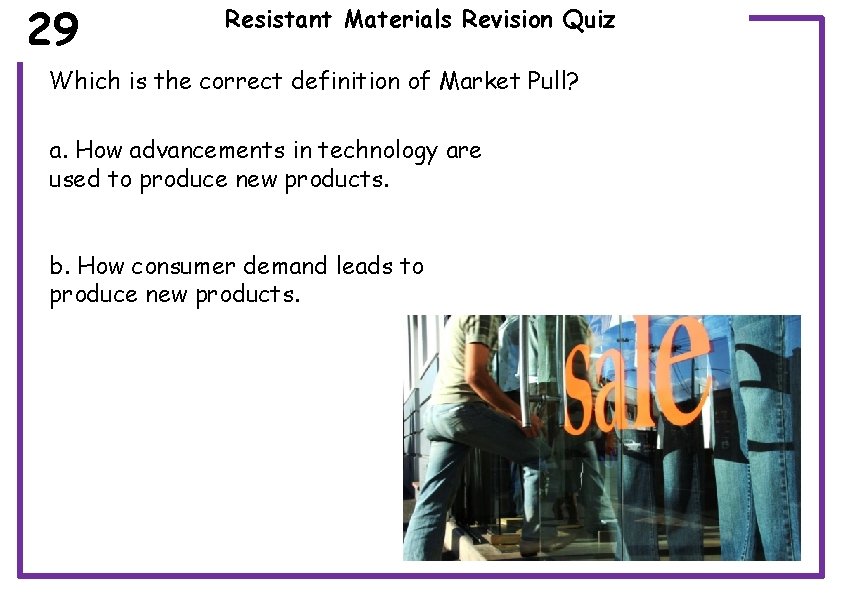

29 Resistant Materials Revision Quiz Which is the correct definition of Market Pull? a. How advancements in technology are used to produce new products. b. How consumer demand leads to produce new products.

30 Resistant Materials Revision Quiz What kind of tree is this below in the image? a. Coniferous b. Oak c. Deciduous d. Softwood e. Hardwood

31 Resistant Materials Revision Quiz What type of production is applied to the paper clip? a. Batch b. One off c. Continuous d. Mass

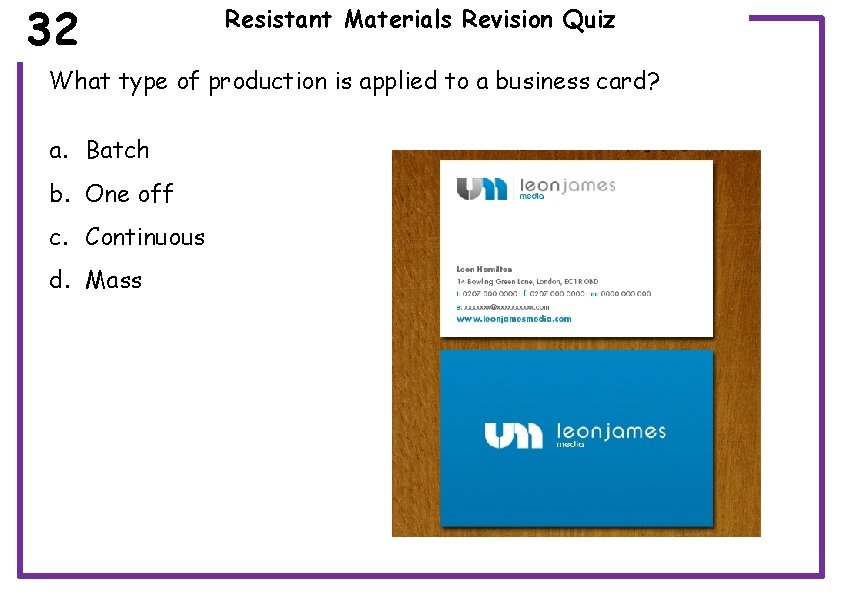

32 Resistant Materials Revision Quiz What type of production is applied to a business card? a. Batch b. One off c. Continuous d. Mass

33 Resistant Materials Revision Quiz Which wood joint is this? a. Dovetail joint b. Lap joint c. Butt joint d. Housing joint

34 Resistant Materials Revision Quiz What does sustainability mean? a. Sustainability means that any waste wood from a workshop is thrown into a bin and sent off to an incinerator. b. Sustainability means that when you produce a product it will create a lasting negative effect on the environment. c. Sustainability is something that is capable of being continued with minimal long-term effect on the environment. d. Sustainability is creating a large carbon emissions output.

35 Resistant Materials Revision Quiz Which flowchart symbol below represents a decision or question? a. b. c. d.

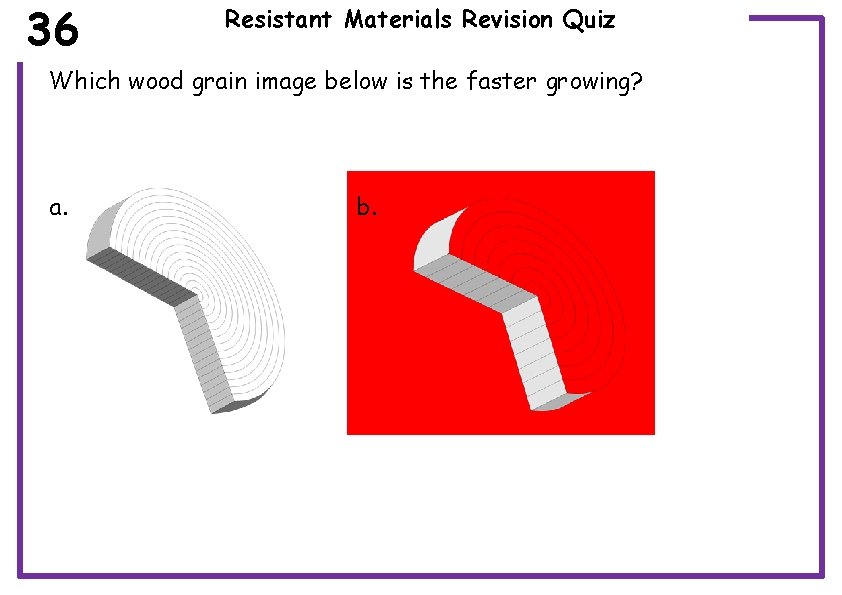

36 Resistant Materials Revision Quiz Which wood grain image below is the faster growing? a. b.

37 Resistant Materials Revision Quiz Which metal is magnetic? a. Ferrous b. Non-Ferrous

38 Resistant Materials Revision Quiz Which plastic can you reheat and reshape after it has been moulded into a specific shape? a. Thermoplastic b. Thermosetting plastic

39 Resistant Materials Revision Quiz What is another name for Araldite? a. b. c. d. e. Tensol Acrylic Epoxy Resin Poly Vinyl Acetate PVC

40 Resistant Materials Revision Quiz What is the correct name for this tool part? a. b. c. d. Parting tool Centre drill Countersink Drill bit

Resistant Materials Revision Quiz ANSWERS

1 Quiz – Match the manufactured board with the explanation - Answers!! E D A B C MDF - Plywood E - D Hardboard - A Chipboard - B Blockboard - C
