Resilient Routing Reconfiguration Ye Wang, Hao Wang*, Ajay Mahimkar+, Richard Alimi, Yin Zhang+, Lili Qiu+, Yang Richard Yang * Google + University of Texas at Austin Yale University ACM SIGCOMM 2010, New Delhi, India September 2, 2010

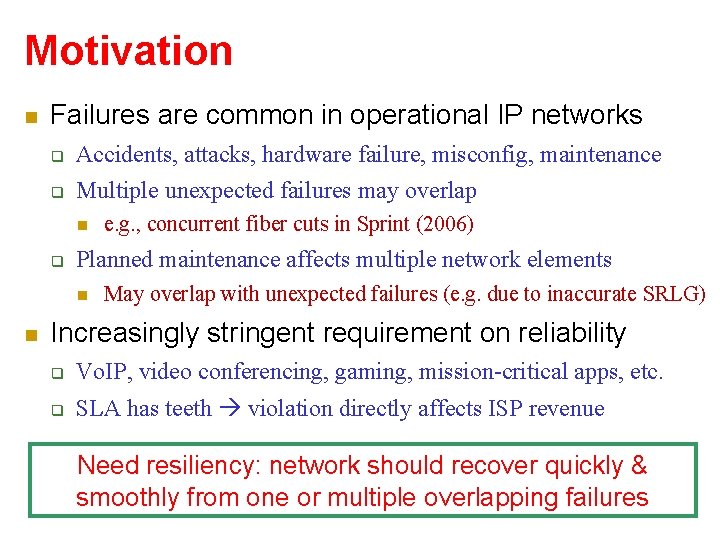

Motivation Failures are common in operational IP networks Accidents, attacks, hardware failure, misconfig, maintenance Multiple unexpected failures may overlap Planned maintenance affects multiple network elements e. g. , concurrent fiber cuts in Sprint (2006) May overlap with unexpected failures (e. g. due to inaccurate SRLG) Increasingly stringent requirement on reliability Vo. IP, video conferencing, gaming, mission-critical apps, etc. SLA has teeth violation directly affects ISP revenue Need resiliency: network should recover quickly & smoothly from one or multiple overlapping failures

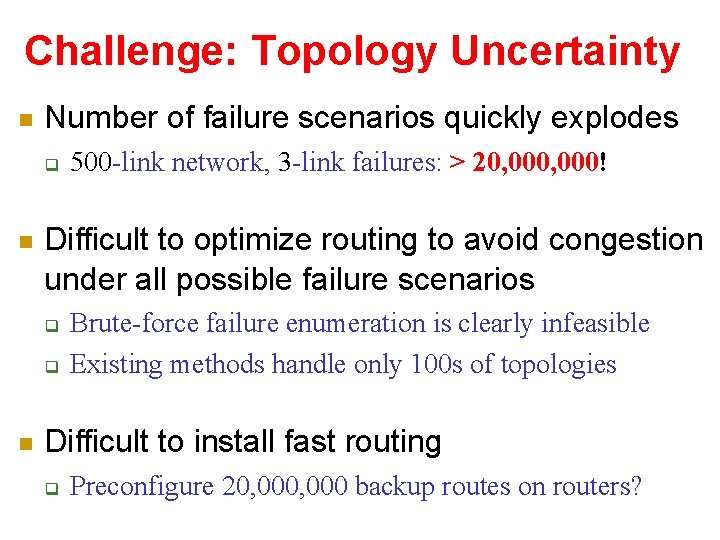

Challenge: Topology Uncertainty Number of failure scenarios quickly explodes Difficult to optimize routing to avoid congestion under all possible failure scenarios 500 -link network, 3 -link failures: > 20, 000! Brute-force failure enumeration is clearly infeasible Existing methods handle only 100 s of topologies Difficult to install fast routing Preconfigure 20, 000 backup routes on routers?

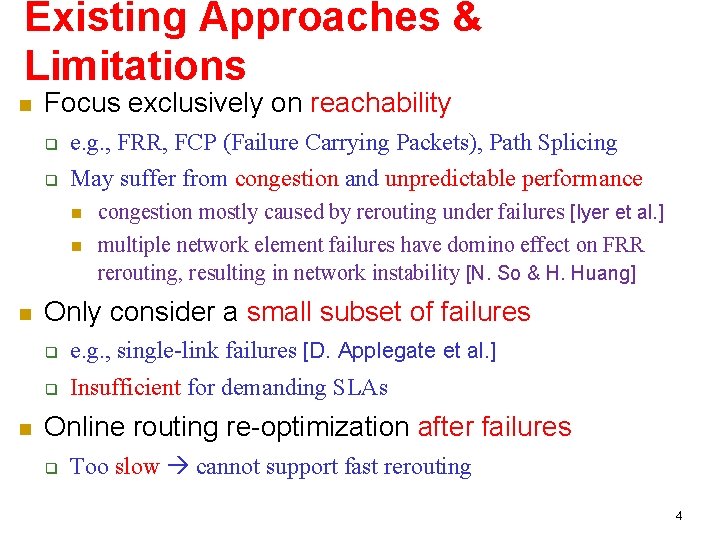

Existing Approaches & Limitations Focus exclusively on reachability e. g. , FRR, FCP (Failure Carrying Packets), Path Splicing May suffer from congestion and unpredictable performance congestion mostly caused by rerouting under failures [Iyer et al. ] multiple network element failures have domino effect on FRR rerouting, resulting in network instability [N. So & H. Huang] Only consider a small subset of failures e. g. , single-link failures [D. Applegate et al. ] Insufficient for demanding SLAs Online routing re-optimization after failures Too slow cannot support fast rerouting 4

R 3: Resilient Routing Reconfiguration A novel link-based routing protection scheme requiring no enumeration of failure scenarios provably congestion-free for all up-to-F link failures efficient w. r. t. router processing/storage overhead flexible in supporting diverse practical requirements

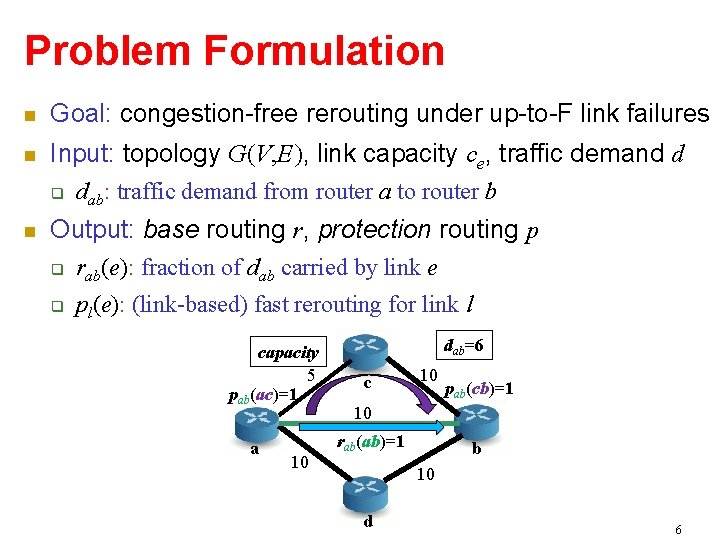

Problem Formulation Goal: congestion-free rerouting under up-to-F link failures Input: topology G(V, E), link capacity ce, traffic demand d dab: traffic demand from router a to router b Output: base routing r, protection routing p rab(e): fraction of dab carried by link e pl(e): (link-based) fast rerouting for link l capacity 5 pab(ac)=1 a 10 dab=6 c 10 pab(cb)=1 10 rab(ab)=1 b 10 d 6

From Topology Uncertainty to Traffic Uncertainty Instead of optimizing for original traffic demand on all possible topologies under failures R 3 optimizes protection routing for a set of traffic demands on the original topology Rerouting virtual demand set captures the effect of failures on amount of rerouted traffic Protection routing on original topology can be easily reconfigured for use after failure occurs 7

Rerouting Virtual Demand Set Failure scenario (f) rerouted traffic (x) load/capacity 4/5 c 4/10 2/10 a 0/10 b Failure scenario Rerouted traffic Upper bound of rerouted traffic ac fails xac = 4 xac ≤ 5 (cac) ab fails xab = 2 xab ≤ 10 (cab) d rerouted traffic xl after link l fails = base load on l given r (r is congestion-free xl ≤ cl) Rerouted traffic under all possible up-to-F-link failure scenarios (independ of r): XF = { x | 0 ≤ xl ≤ cl, Σ(xl/cl) ≤ F } (convex combination) 8

R 3 Overview Offline precomputation Plan (r, p) together for original demand d plus rerouting virtual demand x on original topology G(V, E) to minimize congestion p may “use” links that will later fail Online reconfiguration Convert and use p for fast rerouting after failures 9

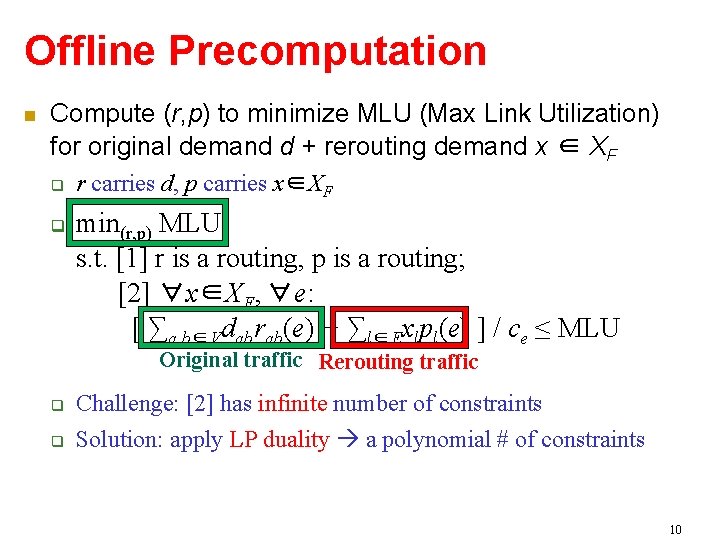

Offline Precomputation Compute (r, p) to minimize MLU (Max Link Utilization) for original demand d + rerouting demand x ∈ XF r carries d, p carries x∈XF min(r, p) MLU s. t. [1] r is a routing, p is a routing; [2] ∀x∈XF, ∀e: [ ∑a, b∈Vdabrab(e) + ∑l∈Exlpl(e) ] / ce ≤ MLU Original traffic Rerouting traffic Challenge: [2] has infinite number of constraints Solution: apply LP duality a polynomial # of constraints 10

Online Reconfiguration Step 1: Fast rerouting after ac fails: Precomputed p for ac: pac(ac)=1/3, pac(ab)=1/3, pac(ad)=1/3 ac fails fast reroute using pac pac(ac) equivalent to a rescaled pac: ξac(ac)=0, ξac(ab)=1/2, ξac(ad)=1/2 link l fails ξl(e)=pl(e)/(1 -pl(l)) pξacac(e) 1/3 0 c 1 2/3 1/2 1/3 a 1/3 1/2 1/3 d b 11

Online Reconfiguration (Cont. ) Step 2: Reconfigure p after failure of ac Current p for ab: pab(ac)=1/2, pab(ad)=1/2 ac fails 1/2 need to be “detoured” using ξac pab(ac)=0, pab(ad)=3/4, pab(ab)=1/4 link l fails ∀l’, pl’(e) = pl’(e)+pl’(l) ξl(e) pab(e) 0 1/2 c 1/2 0 1/4 0 a b 3/4 1/2 3/4 Apply detour ξac on every protection routing (for other links) that is using ac d 12

R 3 Guarantees Sufficient condition for congestion-free if ∃(r, p) s. t. MLU ≤ 1 under d+XF no congestion under any failure involving up to F links Necessary condition under single link failure if there exists a protection routing guarantees no congestion under any single-link failure scenario ∃(r, p) s. t. MLU ≤ 1 under d+X 1 Adding superset of rerouted traffic to original demand is not so wasteful Open problem: is R 3 optimal for >1 link failures? R 3 online reconfiguration is order independent of multiple failures 13

R 3 Extensions Fixed base routing Trade-off between no-failure and failure protection Associate different protection levels to traffic with different priorities Realistic failure scenarios Add envelope γ(≥ 1) to bound end-to-end path delay Prioritized traffic protection Add penalty envelope β(≥ 1) to bound no-failure performance Trade-off between MLU and end-to-end delay r can be given (e. g. , as an outcome of OSPF) Shared Risk Link Group, Maintenance Link Group Traffic variations Optimize (r, p) for d ∈ D + x ∈ XF 14

Evaluation Methodology Network Topology Abilene, US-ISP (Po. P-level) Level-3, SBC, and UUNet GT-ITM Traffic Demand Real: Rocketfuel: Synthetic: Real: Synthetic: Abilene, US-ISP gravity model Failure Scenarios Abilene: US-ISP: all failure scenarios with up to 3 physical links maintenance events (6 months) + all 1 -link, 2 -link failures + ~1100 sampled 3 -link failures Enumeration only needed for evaluation, not for R 3 15

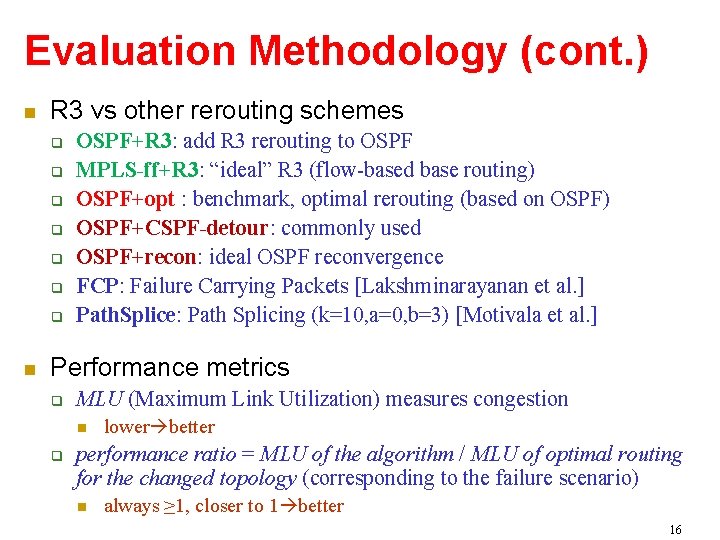

Evaluation Methodology (cont. ) R 3 vs other rerouting schemes OSPF+R 3: add R 3 rerouting to OSPF MPLS-ff+R 3: “ideal” R 3 (flow-based base routing) OSPF+opt : benchmark, optimal rerouting (based on OSPF) OSPF+CSPF-detour: commonly used OSPF+recon: ideal OSPF reconvergence FCP: Failure Carrying Packets [Lakshminarayanan et al. ] Path. Splice: Path Splicing (k=10, a=0, b=3) [Motivala et al. ] Performance metrics MLU (Maximum Link Utilization) measures congestion lower better performance ratio = MLU of the algorithm / MLU of optimal routing for the changed topology (corresponding to the failure scenario) always ≥ 1, closer to 1 better 16

US-ISP Single Failure R 3 achieves near-optimal performance (R 3); R 3 out-performs other schemes significantly. 17

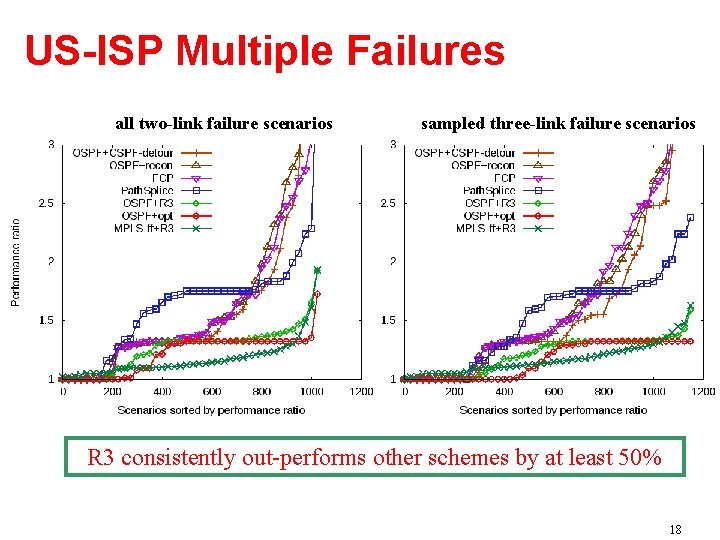

US-ISP Multiple Failures all two-link failure scenarios sampled three-link failure scenarios R 3 consistently out-performs other schemes by at least 50% 18

US-ISP No Failure: Penalty Envelope R 3 near optimal under no failures with 10% penalty envelope 19

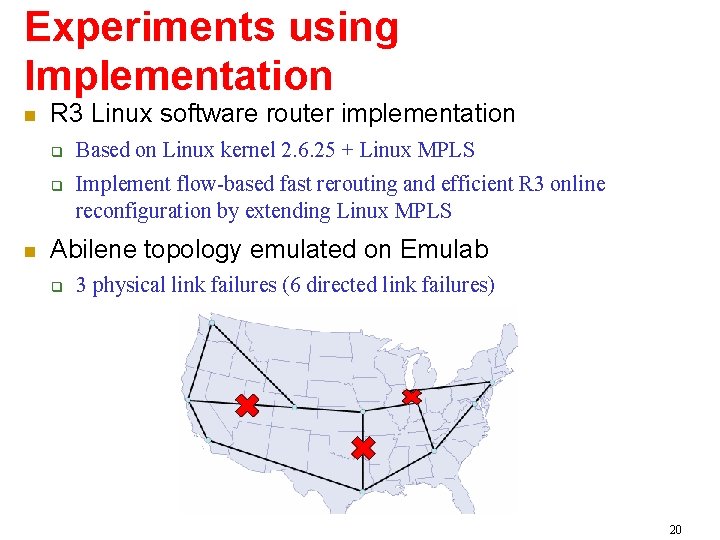

Experiments using Implementation R 3 Linux software router implementation Based on Linux kernel 2. 6. 25 + Linux MPLS Implement flow-based fast rerouting and efficient R 3 online reconfiguration by extending Linux MPLS Abilene topology emulated on Emulab 3 physical link failures (6 directed link failures) 20

R 3 vs OSPF-recon: Link Utilization R 3 out-performs OSPF+recon by a factor of ~3 21

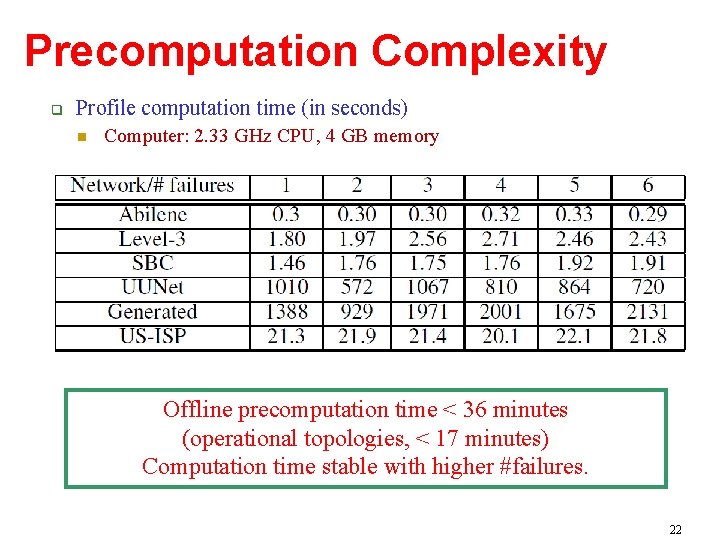

Precomputation Complexity Profile computation time (in seconds) Computer: 2. 33 GHz CPU, 4 GB memory Offline precomputation time < 36 minutes (operational topologies, < 17 minutes) Computation time stable with higher #failures. 22

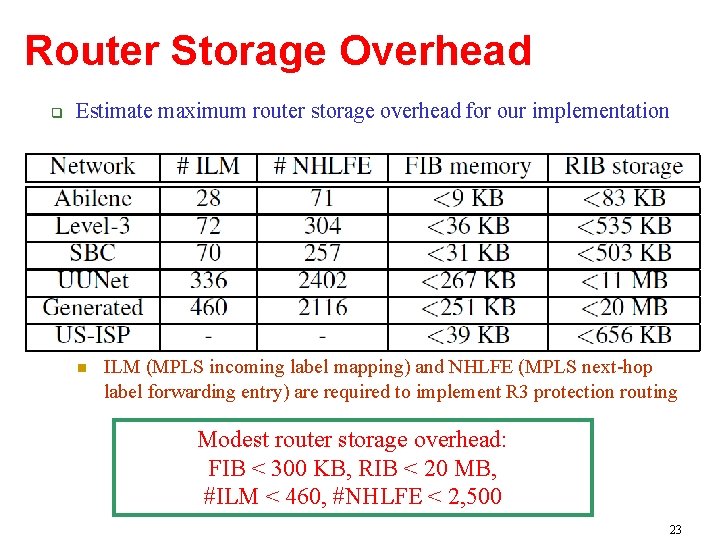

Router Storage Overhead Estimate maximum router storage overhead for our implementation ILM (MPLS incoming label mapping) and NHLFE (MPLS next-hop label forwarding entry) are required to implement R 3 protection routing Modest router storage overhead: FIB < 300 KB, RIB < 20 MB, #ILM < 460, #NHLFE < 2, 500 23

Conclusions R 3: Resilient Routing Reconfiguration Flexible extensions to support practical requirements Trace-driven simulation Provably congestion-free guarantee under multiple failures Key idea: convert topology uncertainty to traffic uncertainty offline precomputation + online reconfiguration R 3 near optimal (>50% better than existing approaches) Linux implementation Feasibility and efficiency of R 3 in real networks 24

Thank you!

Backup Slides 26

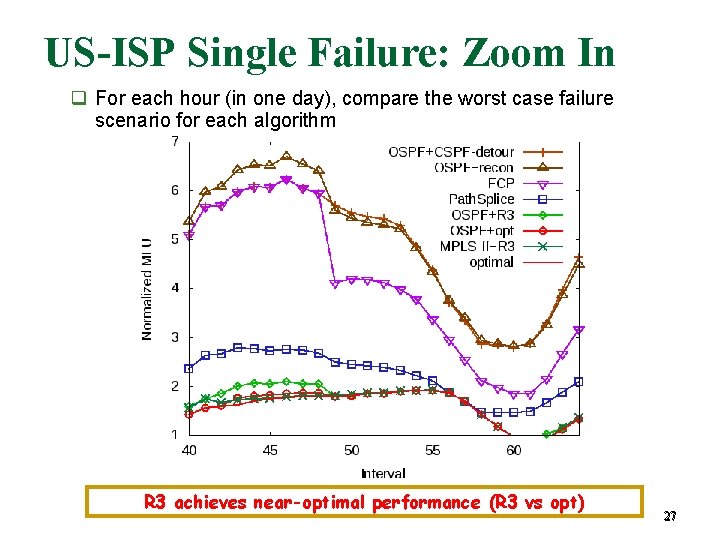

US-ISP Single Failure: Zoom In For each hour (in one day), compare the worst case failure scenario for each algorithm R 3 achieves near-optimal performance (R 3 vs opt) 27

Level-3 Multiple Failures Left: all two-failure scenarios; Right: sampled three-failure scenarios R 3 out-performs other schemes by >50% 28

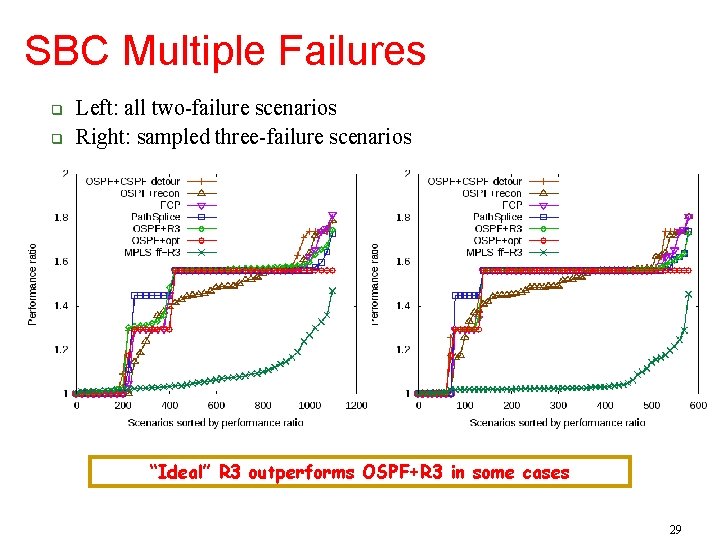

SBC Multiple Failures Left: all two-failure scenarios Right: sampled three-failure scenarios “Ideal” R 3 outperforms OSPF+R 3 in some cases 29

Robustness on Base Routing OSPFInv. Cap: link weight is inverse proportional to bandwidth OSPF: optimized link weights Left: single failure; Right: two failures A better base routing can lead to better routing protection 30

Flow RTT (Denver-Los Angeles) R 3 implementation achieves smooth routing protection 31

R 3: OD pair throughput Traffic demand is carried by R 3 under multiple link failure scenarios 32

R 3: Link Utilization Bottleneck link load is controlled under 0. 37 using R 3 33

Offline Precomputation Solution [C 2] contains infinite number of constraints due to x Consider maximum “extra” load on link e caused by x πe(l) λe Σl∈Exlpl(e) ≤ UB, if there exists multipliers πe(l) and λe (LP duality): Convert [C 2] to polynomial number of constraints: & constraints on πe(l) and λe 34

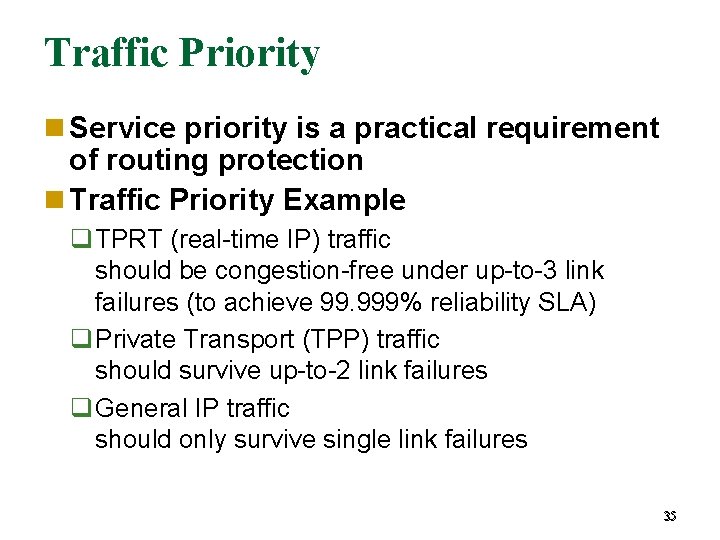

Traffic Priority Service priority is a practical requirement of routing protection Traffic Priority Example TPRT (real-time IP) traffic should be congestion-free under up-to-3 link failures (to achieve 99. 999% reliability SLA) Private Transport (TPP) traffic should survive up-to-2 link failures General IP traffic should only survive single link failures 35

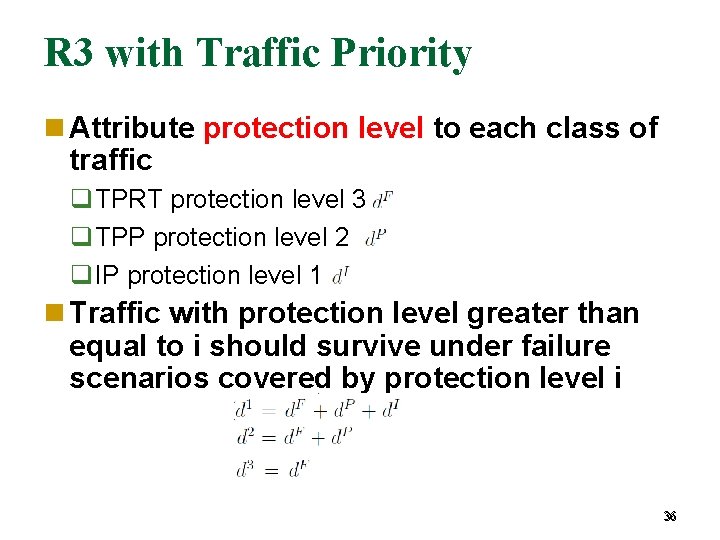

R 3 with Traffic Priority Attribute protection level to each class of traffic TPRT protection level 3 TPP protection level 2 IP protection level 1 Traffic with protection level greater than equal to i should survive under failure scenarios covered by protection level i 36

R 3 with Traffic Priority Algorithm Precomputation with Traffic Priority Consider protection for each protection level i Guarantee each class of traffic has no congestion under the failure scenarios covered by its protection level 37

R 3 with Traffic Priority Simulation Routing Protection Simulation Basic R 3 vs R 3 with Traffic Priority Methodology US-ISP: a large tier-1 operational network topology hourly Po. P-level TMs for a tier-1 ISP (1 week in 2007) extract IPFR and PNT traffic from traffic traces, subtract IPFR and PNT from total traffic and treat the remaining as general IP Protection levels: TPRT: up-to-4 link failures TPP: up-to-2 link failures IP: single link failures Failure scenarios: enumerated all single link failures 100 worst cases of 2 link failures 100 worst cases of 4 link failures 38

Traffic Protection Priority IP: up-to-1 failure protection; TPP: up-to-2 failure protection; TPRT: up-to-4 failure protection Left: single failure; Righttop: worst two failures; Rightbottom: worst four failures R 3 respects different traffic protection priorities 39

Linux Implementation MPLS-ff software router Based on Linux kernel 2. 6. 25 + Linux MPLS Implement flow-based routing for efficient R 3 online reconfiguration Extend MPLS FWD (forward) data structure to enable per hop traffic splitting for each flow Failure detection and response Detection using Ethernet monitoring in kernel Notification using ICMP 42 flooding In operational networks, detection can be conservative (for SLRG, MLG) Requires reachability under failures Rerouting traffic by MPLS-ff label stacking Online reconfiguration of traffic splitting ratios (locally at each router) 40

MPLS-ff R 3 uses flow-based traffic splitting (for each OD pair) e. g. pnewy wash(chic hous)=0. 2 means link chic hous will carry 20% traffic originally carried by newy wash when newy wash fails Current MPLS routers only support path-based traffic splitting Traffic load on equal-cost LSPs is proportional to requested bandwidth by each LSP Juniper J-, M-, T- series and Cisco 7200, 7500, 12000 series e. g. multiple paths from newy to wash can be setup to protect link newy wash 41

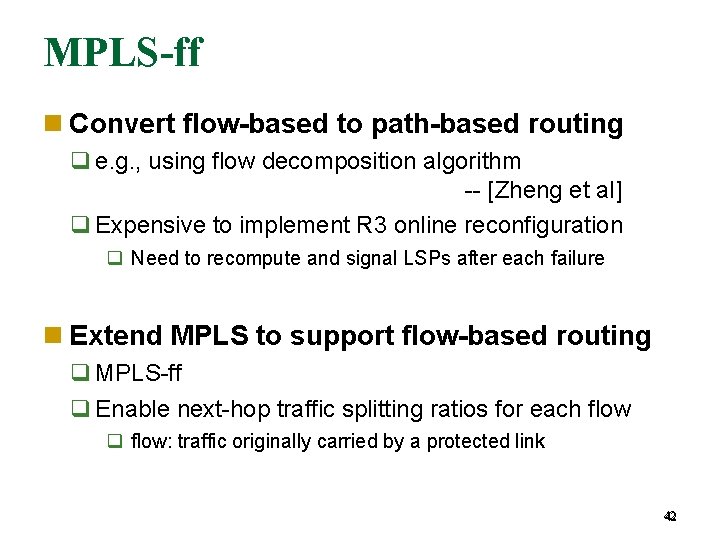

MPLS-ff Convert flow-based to path-based routing e. g. , using flow decomposition algorithm -- [Zheng et al] Expensive to implement R 3 online reconfiguration Need to recompute and signal LSPs after each failure Extend MPLS to support flow-based routing MPLS-ff Enable next-hop traffic splitting ratios for each flow: traffic originally carried by a protected link 42

MPLS-ff MPLS FWD data structure Extended to support multiple Next Hop Label Forwarding Entry (NHLFEs) One NHLFE specifying one neighbor One Next-hop Splitting Ratio for each NHLFE Label 200 FWD: NHLFE R 2: 50% NHLFE R 3: 50% NHLFE R 4: 0% R 2 R 3 R 1 R 4 43

MPLS-ff Implement Next-hop Splitting Ratio router i, next-hop j, protected link (a, b): Packet hashing Same hash value for packets in the same TCP flow Independent hash values on different routers for any particular TCP flow Hash = f(src, dst, src. Port, dst. Port) FWD to j if 40<Hash<64 i j all packets from i: 40<Hash<64! (skewed hash value distribution) Hash of (packet flow fields + router id) 44

Failure Response Failure Detection and Notification detection: Ethernet monitoring in Linux kernel notification: ICMP 42 flood Failure Response MPLS-ff label stacking Protection Routing Update R 3 online reconfiguration requires a local copy of p on each router 45

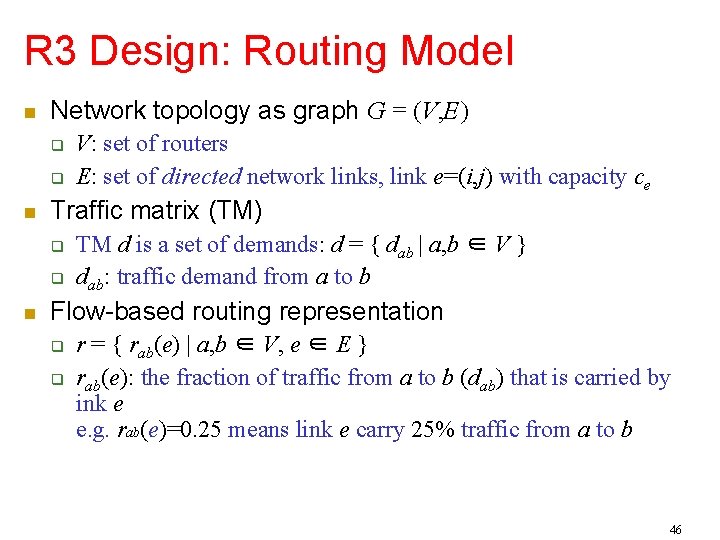

R 3 Design: Routing Model Network topology as graph G = (V, E) Traffic matrix (TM) V: set of routers E: set of directed network links, link e=(i, j) with capacity ce TM d is a set of demands: d = { dab | a, b ∈ V } dab: traffic demand from a to b Flow-based routing representation r = { rab(e) | a, b ∈ V, e ∈ E } rab(e): the fraction of traffic from a to b (dab) that is carried by ink e e. g. rab(e)=0. 25 means link e carry 25% traffic from a to b 46

Intuition behind R 3 Plan rerouting on the single original topology Avoid enumeration of topologies (failure scenarios) Compute (r, p) to gurantee congestion-free Not real traffic demand! for d + x∈XF on G Puzzles Add rerouted traffic before it appears Topology with links that will fail! XF = { x | 0 ≤ xl ≤ cl, Σ(xl/cl) ≤ F } superset of rerouted traffic under failures Use network resource that will disappear Protection routing p uses links that will fail By doing two counter-intuitive things, R 3 achieves: • Congestion-free under multiple link failures w/o enumeration of failure scenarios • Optimal for single link failure • Fast rerouting 47

Online Reconfiguration Step 1: Fast rerouting after ac fails: Precomputed p for link ac: pac(ac)=0. 4, pac(ab)=0. 3, pac(ad)=0. 3 ac fails 0. 4 need to be carried by ab and ad pac: ac 0, ab 0. 5, ad 0. 5 a locally rescales pac and activates fast rerouting Efficiently implemented by extending MPLS label stacking Fast rerouting load/capacity 4 -4/5 pac(e) 0. 4 0 c 0. 6 1 0. 3 0. 5 a 0. 3 0. 5 d 2+4/10 2+2/10 b 0. 3 0. 5 c a 0/10 0+2/10 b 0/10 0+2/10 d 48
