Research. Channel: Think Forward. Think Success. Michael Wellings, Director, Engineering 9/19/05 Philadelphia
Important Information • In Philadelphia, you can't put pretzels in bags based on an Act of 1760. Think Forward. Think Research. Channel
• Reporter: Where did you get the name, "The Italian Stallion"? Rocky: Oh I made that up one night while I was eating dinner Think Forward. Think Research. Channel
Topics of Discussion HD Network Update • i. HDTV Applications Current state of i. HDTV system Planned Software Enhancements • Scheduled Demos System design Audio Video • What is HD / HDV Think Forward. Think Research. Channel
i. HDTV Explained • i. HD 1500 • i. HD 270 • HD to the Desktop Think Forward. Think Research. Channel
i. HDTV Explained • i. HD 1500 • Uncompressed SMPTE 292 M 4: 2: 2 • Data rate total approx 1. 5 gbps • Requires: high-end HD capture cards PCI Express PCs Windows XP (at the current time) Think Forward. Think Research. Channel
i. HDTV Explained • i. HD 270 (first introduced aug 99) • • Sony HDCamtm compression SDTI data format 270 mbps AJA Xena I/O Requires: AJA Xena-HD capture cards Dual Processor P 4 Windows XP (at the current time) Sony HDCam Hardware encoder/decoder Think Forward. Think Research. Channel

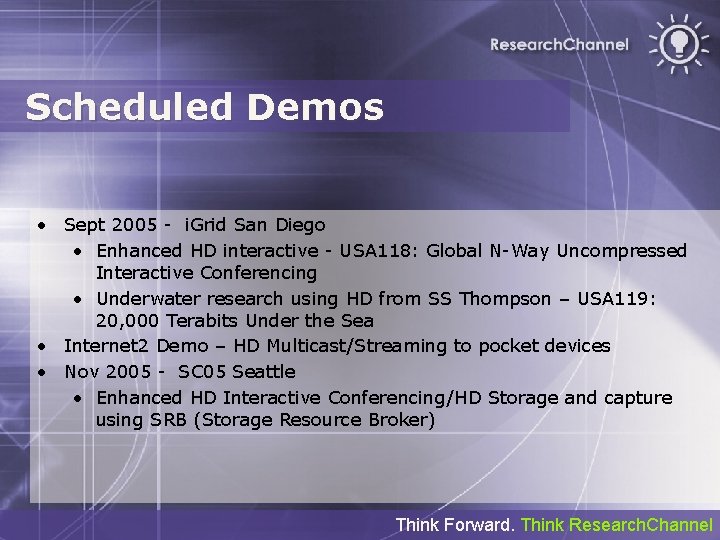

Scheduled Demos • Sept 2005 - i. Grid San Diego • Enhanced HD interactive - USA 118: Global N-Way Uncompressed Interactive Conferencing • Underwater research using HD from SS Thompson – USA 119: 20, 000 Terabits Under the Sea • Internet 2 Demo – HD Multicast/Streaming to pocket devices • Nov 2005 - SC 05 Seattle • Enhanced HD Interactive Conferencing/HD Storage and capture using SRB (Storage Resource Broker) Think Forward. Think Research. Channel
i. GRID 2005 San Diego • USA 118: Global N-Way Interactive HD • USA 119: 20, 000 Terabits under the sea Think Forward. Think Research. Channel
i. GRID 05 – USA 118 • Sept 2005 - i. Grid San Diego • Enhanced HD interactive - USA 118: Global NWay Uncompressed Interactive Conferencing • Remote sites: 1. 2. 3. 4. 5. 6. University of Washington - Seattle WIDE - Tokyo University of Wisconsin - Madison University of Michigan SURFnet - Amsterdam AARnet - Goldcoast Think Forward. Think Research. Channel
i. GRID 05 – USA 118 • Sept 2005 - i. Grid San Diego • Remote site equipment: 2 RX i. HD 1500 Hosts (multicast from i. GRID) 1 TX i. HD 1500 Client • Central site equipment: 6 RX i. HD 1500 Clients 2 TX i. HD 1500 Hosts (Multicast) Evertz HD Video Tile Generator Multichannel mix-minus audio system Think Forward. Think Research. Channel
i. GRID 05 – USA 118 • i. HD 500 – first demonstrated at SC 04 • Real-time HD communication: Australia and Seattle > Pittsburgh @ 1. 5 gbps each direction • Relatively High latency (1500 ms RT) 500 ms hardware/software one-way 250 ms network delay one-way Think Forward. Think Research. Channel
Think Forward. Think Research. Channel

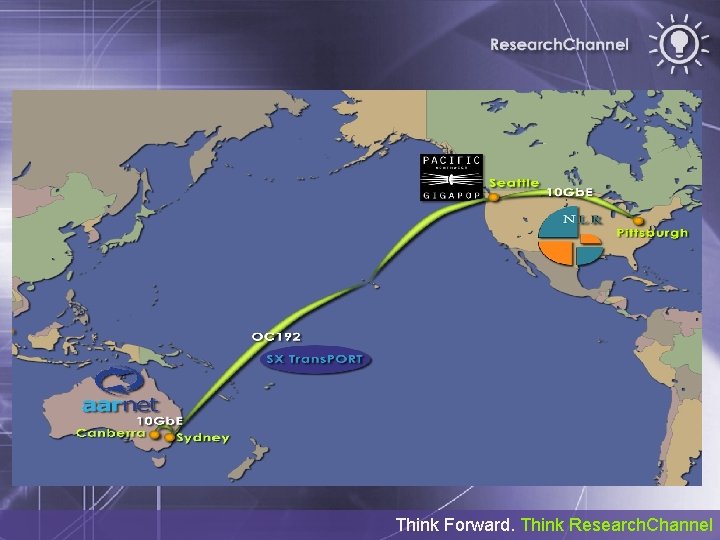

i. GRID USA 118 Network Diagram Think Forward. Think Research. Channel
i. GRID USA 118 Think Forward. Think Research. Channel
i. GRID USA 118 Think Forward. Think Research. Channel
i. GRID Audio Engineering Jamie Alls Manager, Video Engineering jalls@cac. washington. edu SMVTT @ University of Washington Think Forward. Think Research. Channel
i. GRID Audio Engineering For more information: Jamie Alls • Manager, Video Engineering • SMVTT University of Washington Think Forward. Think Research. Channel
i. GRID 05 – USA 119 • Sept 2005 - i. Grid San Diego • First ever live HD/ip from a ship at sea to viewers on shore • Ku-Band equipment upgrade to Sea. Tel antenna • Careful RF engineering to design satellite Link. Budget • Real-time MPEG-2 MP@HL encoding • Ip gateway • Satellite modem 20 mbps Think Forward. Think Research. Channel
Think Forward. Think Research. Channel
i. GRID USA 119 Think Forward. Think Research. Channel

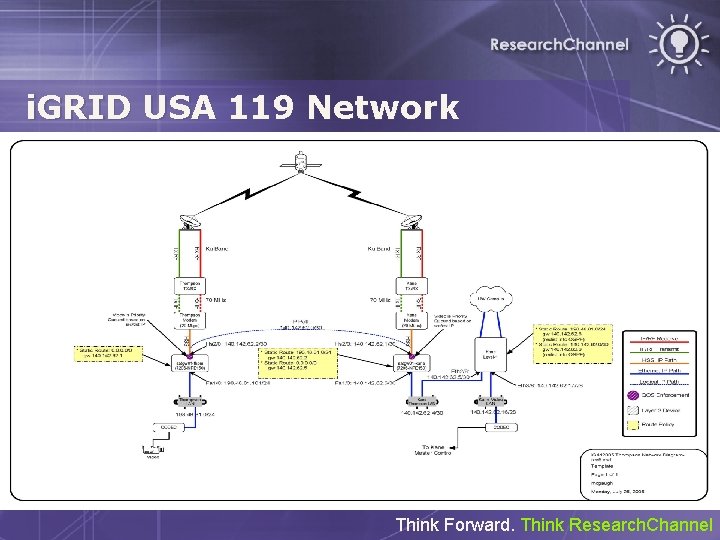

i. GRID USA 119 Network Think Forward. Think Research. Channel

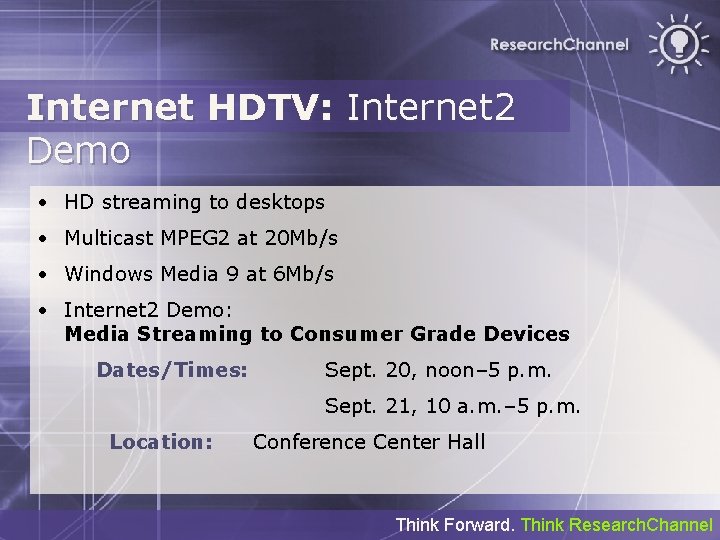

Internet HDTV: Internet 2 Demo • HD streaming to desktops • Multicast MPEG 2 at 20 Mb/s • Windows Media 9 at 6 Mb/s • Internet 2 Demo: Media Streaming to Consumer Grade Devices Dates/Times: Sept. 20, noon– 5 p. m. Sept. 21, 10 a. m. – 5 p. m. Location: Conference Center Hall Think Forward. Think Research. Channel
Software Challenges • i. HD 1500 Enhancements: • • • tile display generated in software Audio mixing in software Audio mix-minus in software Video switching in software Possible Linux implementation Think Forward. Think Research. Channel

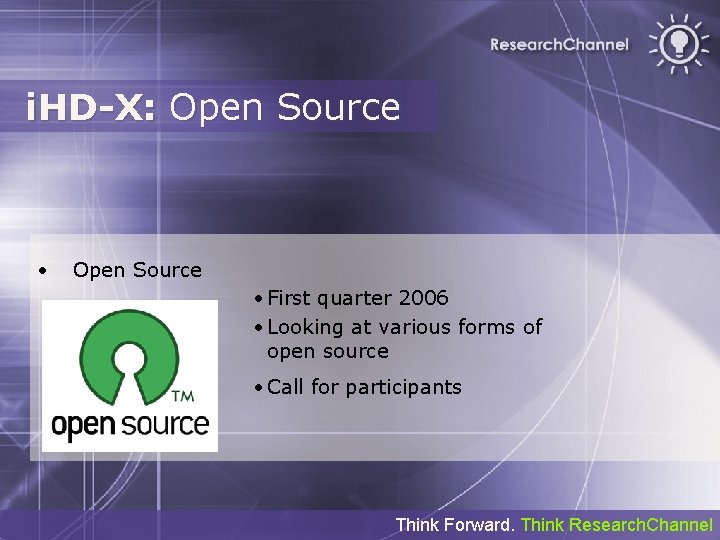

i. HD-X: Open Source • First quarter 2006 • Looking at various forms of open source • Call for participants Think Forward. Think Research. Channel
• • Research. Channel announced today that its i. HDTV™ suite of software will be available as open source in first quarter 2006. i. HDTV™ consists of software modules that capture, packetize and transport high-definition video in various formats over Internet protocol (IP) networks, with the goal of providing wider access to HD content. Developed with the University of Washington, i. HDTV™ was first demonstrated at the National Association of Broadcasters annual meeting in 2000. The software suite has since been expanded to enable and expedite efficient streaming with data at rates of up to 1. 5 Gb/s, which is sufficient to transfer uncompressed 1080 i high-definition video. The i. HDTV™ code is designed to require minimum overhead to achieve low latency. Its modular design can easily support new devices and flexible modes of operation, and the code is highly configurable. “Open-sourcing our code will enable us to put together a talented group of partners worldwide. I expect great advancements in this technology with this new, collaborative group, ”says Michael Wellings, director of engineering, Research. Channel envisions extensions to the current software that will scale the video images and tile several images together in a single display. These and other enhancements will create a package of services that will enable high-quality, low-latency, interactive HD collaborative environments. These environments might include interactions between people, or even between people and instruments, such as in remote-sensing applications. Think Forward. Think Research. Channel

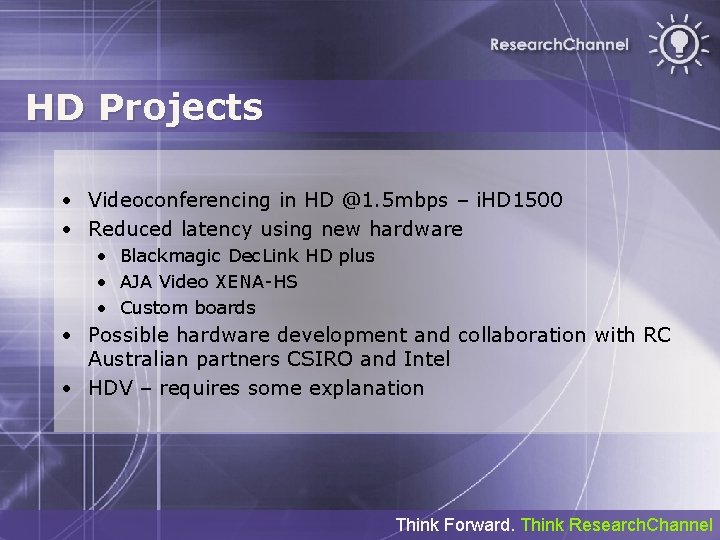

HD Projects • Videoconferencing in HD @1. 5 mbps – i. HD 1500 • Reduced latency using new hardware • Blackmagic Dec. Link HD plus • AJA Video XENA-HS • Custom boards • Possible hardware development and collaboration with RC Australian partners CSIRO and Intel • HDV – requires some explanation Think Forward. Think Research. Channel
High Definition Video to the Desktop • FORMATS • MPEG 2 MP@HL • PLAYERS • WM 9 -HD@720 p • VLC (subject to license issues) • WM 9/10 • REAL 10 • H. 264, ACV, MPEG-4 • Real. Player • Quick. Time • HDV • VLC Think Forward. Think Research. Channel
i. HD 1500 application • SMPTE 292 M/ip • 1. 5 gbps • 1080 -60 i HD video with multiplexed audio • Research. Channel partner Intel PCE-Express 3. 4 GHz Xeon platforms • Research. Channel partner AJA Video Systems supplied initial round of Xena-HD capture boards Think Forward. Think Research. Channel

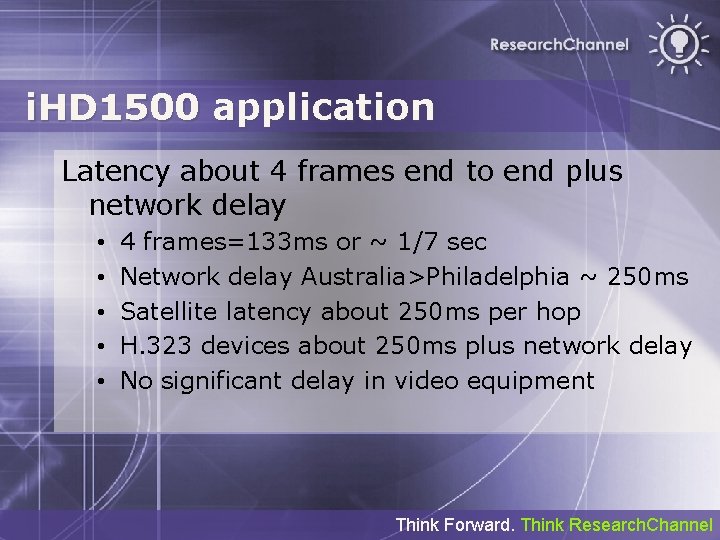

i. HD 1500 application Latency about 4 frames end to end plus network delay • • • 4 frames=133 ms or ~ 1/7 sec Network delay Australia>Philadelphia ~ 250 ms Satellite latency about 250 ms per hop H. 323 devices about 250 ms plus network delay No significant delay in video equipment Think Forward. Think Research. Channel

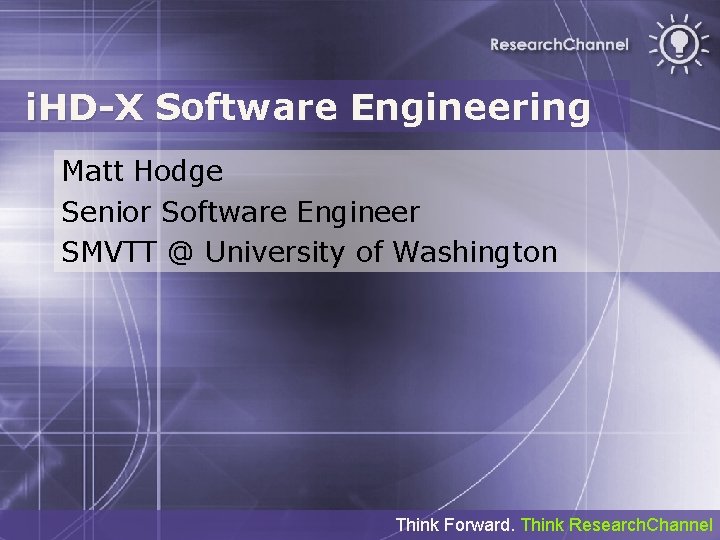

i. HD-X Software Engineering Matt Hodge Senior Software Engineer SMVTT @ University of Washington Think Forward. Think Research. Channel
HD related (and some unrelated) applications • • • i. HD 1500, i. HD 270 netspew mptest: dupacklicate: tcprotolyze Platform issues Think Forward. Think Research. Channel
HD related (and some unrelated) applications • General hardware issues and limitations • A/V I/O card issues • The future Think Forward. Think Research. Channel
i. HD 1500 Development • i. HD 1500, i. HD 270 • Hdsdi and sd-sdi streaming • Includes SDTI – Sony HDCam embedded Think Forward. Think Research. Channel

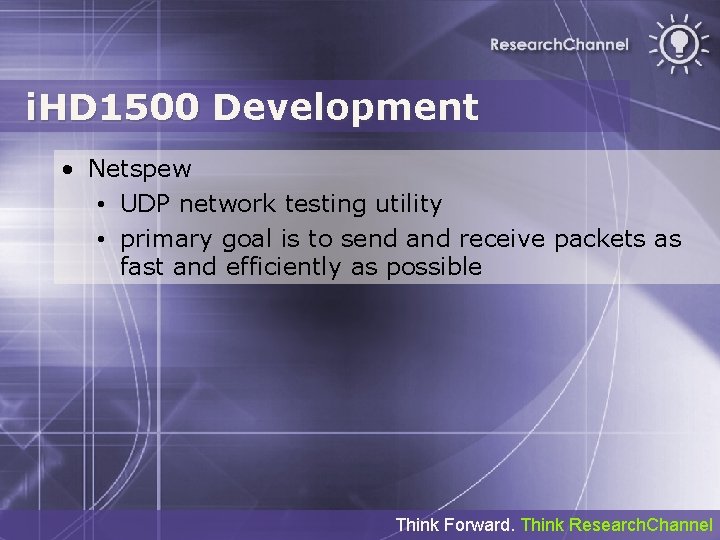

i. HD 1500 Development • Netspew • UDP network testing utility • primary goal is to send and receive packets as fast and efficiently as possible Think Forward. Think Research. Channel
i. HD 1500 Development • Mediapump. Test • MPEG-2 Streaming • Uses Optibase Mediapump board • New hardware i/o board needed Think Forward. Think Research. Channel

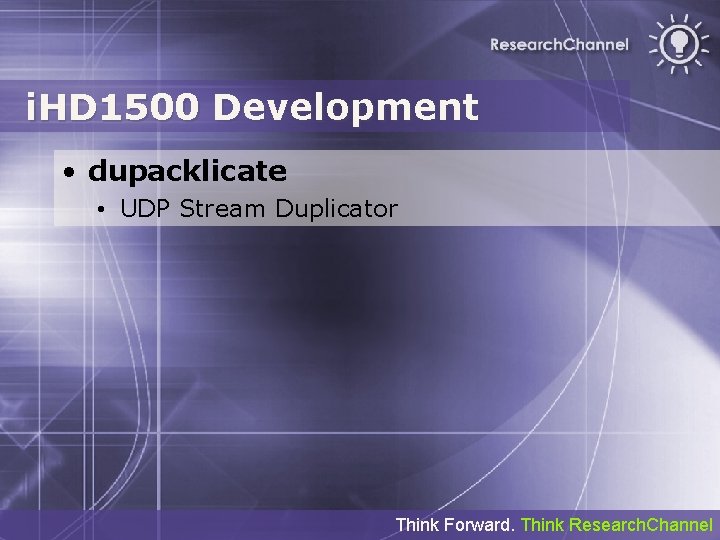

i. HD 1500 Development • dupacklicate • UDP Stream Duplicator Think Forward. Think Research. Channel
i. HD 1500 Development • tcprotolyze • TCP Protocol Analyzer Think Forward. Think Research. Channel
i. HD 1500 Development • Platform issues • Windows vs Linux • A/V I/O card issues • Driver sets • SDK • Documentation Think Forward. Think Research. Channel
i. HD 1500 Development The Future Software tile display software audio switching/mixing software video switching Think Forward. Think Research. Channel
i. HD 1500 Development For more information: Matt Hodge • Senior Software Engineer • SMVTT University of Washington Think Forward. Think Research. Channel
HD – The State of the industry • HDV format grows up • Sony HVR-Z 1 U • 1/3” 16: 9 • DV, DVCam • HDV • MPEG 2 MP@H-14 • Does not quite • Create 24 p properly Think Forward. Think Research. Channel
HD – The State of the industry • JVC GY-HD 100 • 3 1/3 inch CCD 1280 x 720 16: 9 • 720 p with interchangeable lenses • Will not shoot 1080 • Shipping this summer for about $10, 000 • Manufactures 720 60 p from 24 p capture • Sony’s 50 mb long GOP (15) professional product Think Forward. Think Research. Channel
HD – The State of the industry • • HDCam-SR 880 mbps record Assume near future release of 1080 p/60 recording (3 gbps) XD-Cam (DVD recording) Long GOP (15) MPEG-2 36 -72 mbps Think Forward. Think Research. Channel
HDV • • • JVC GR-HD 1 1 CCD 1. 2 million pixel 4: 3 800 K pixel in HD mode 16: 9 Will not function as realtime live HD camera MPEG 4: 2: 0 GOP of 6 Think Forward. Think Research. Channel
HDV • • • SONY HVR-Z 1 U 3 chip with spatial offset achieves 1440 x 1080 – HDV spec 16: 9 native Good optical front end/ccd block MPEG 4: 2: 0 profile with GOP of 15 Think Forward. Think Research. Channel

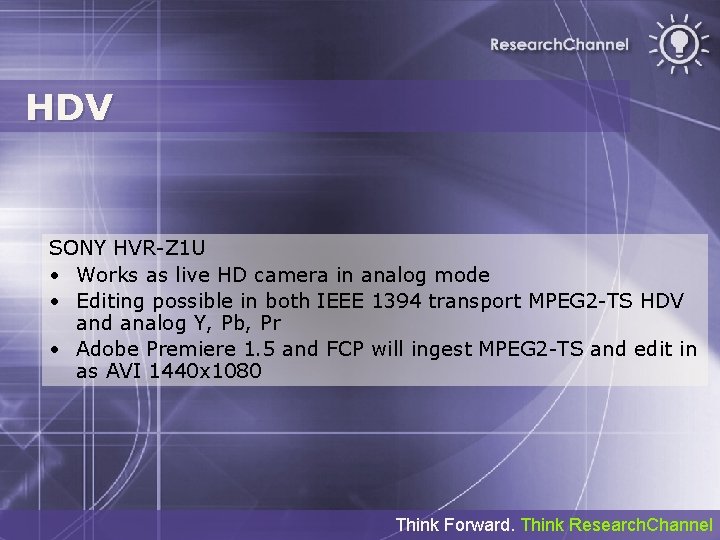

HDV SONY HVR-Z 1 U • Works as live HD camera in analog mode • Editing possible in both IEEE 1394 transport MPEG 2 -TS HDV and analog Y, Pb, Pr • Adobe Premiere 1. 5 and FCP will ingest MPEG 2 -TS and edit in as AVI 1440 x 1080 Think Forward. Think Research. Channel
HDV Performance Multiburst Think Forward. Think Research. Channel
Preliminary bandwidth comparison between HDCAM/SR, XDCAM-HD and HDV 24 MHz 30 MHz HD CAM-SR HDCAM 10 MHz 20 MHz 30 MHz Think Forward. Think Research. Channel
For More Information • www. researchchannel. org • inquires: info@researchchannel. org Michael Wellings Director, Engineering wellings@researchchannel. org Think Forward. Think Research. Channel
