Requirements in Software Development Feasibility and Planning Requirements

Requirements in Software Development Feasibility and Planning Requirements All process models include a requirements activity Design Implementation Operation and Maintenance

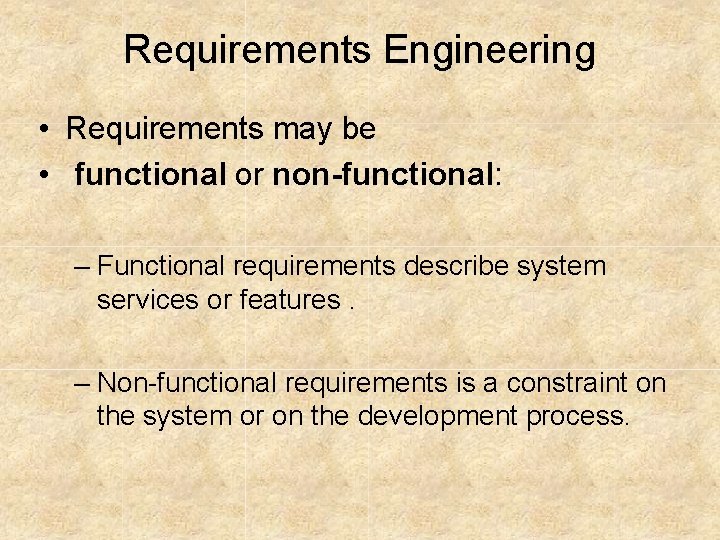

Requirements Engineering • Requirements may be • functional or non-functional: – Functional requirements describe system services or features. – Non-functional requirements is a constraint on the system or on the development process.

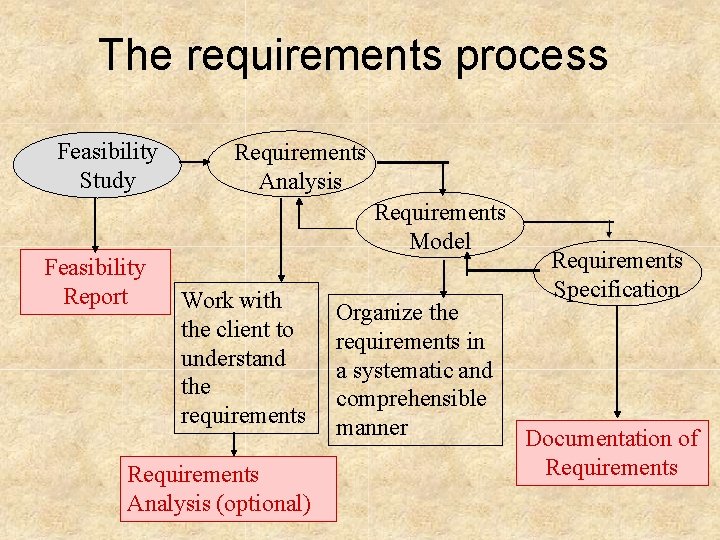

The requirements process Feasibility Study Feasibility Report Requirements Analysis Requirements Model Work with the client to understand the requirements Requirements Analysis (optional) Organize the requirements in a systematic and comprehensible manner Requirements Specification Documentation of Requirements

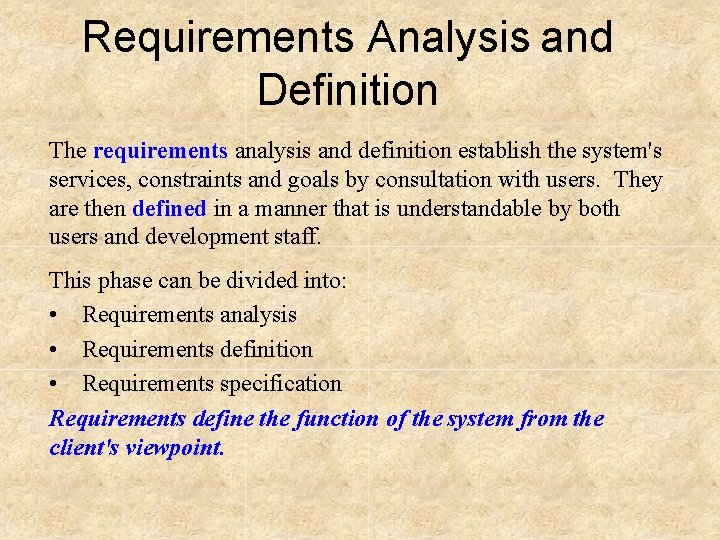

Requirements Analysis and Definition The requirements analysis and definition establish the system's services, constraints and goals by consultation with users. They are then defined in a manner that is understandable by both users and development staff. This phase can be divided into: • Requirements analysis • Requirements definition • Requirements specification Requirements define the function of the system from the client's viewpoint.

Goals during the requirements phase • Understand the requirements in detail (analysis). • Describe the requirements in a manner that is clear to the client. Ensure that the client understands the description of the requirements and their implications. • Describe the requirements in a manner that is clear to the people who will design and implement the system. The Requirements Documentation is the defining document that describes the goals of the system that is being built. It may form a legal contract between client and software developers.

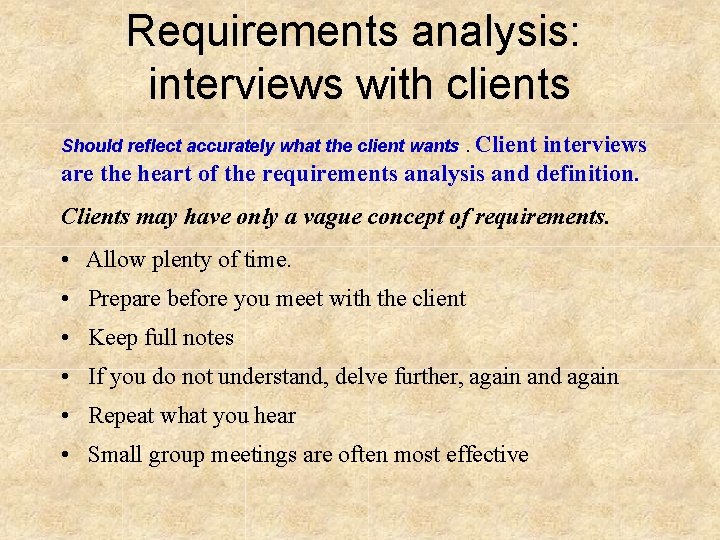

Requirements analysis: interviews with clients Should reflect accurately what the client wants. Client interviews are the heart of the requirements analysis and definition. Clients may have only a vague concept of requirements. • Allow plenty of time. • Prepare before you meet with the client • Keep full notes • If you do not understand, delve further, again and again • Repeat what you hear • Small group meetings are often most effective

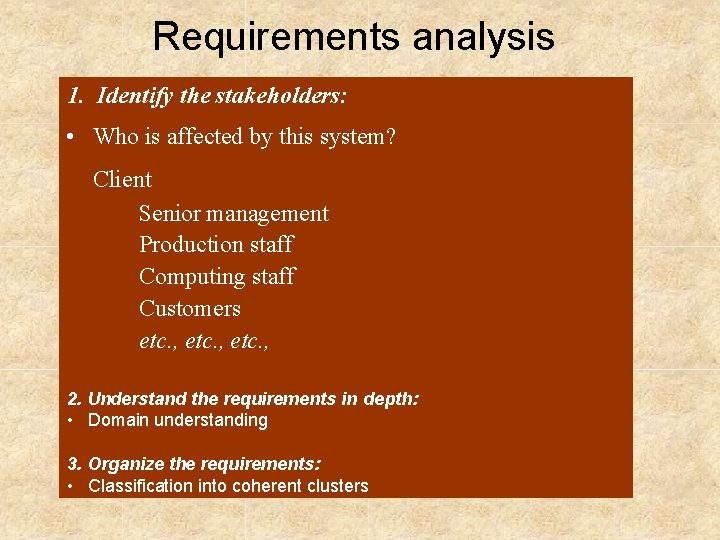

Requirements analysis 1. Identify the stakeholders: • Who is affected by this system? Client Senior management Production staff Computing staff Customers etc. , 2. Understand the requirements in depth: • Domain understanding 3. Organize the requirements: • Classification into coherent clusters

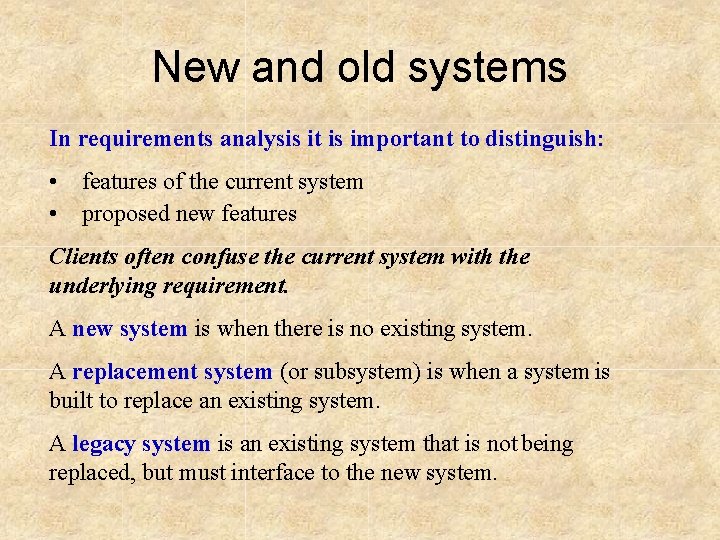

New and old systems In requirements analysis it is important to distinguish: • features of the current system • proposed new features Clients often confuse the current system with the underlying requirement. A new system is when there is no existing system. A replacement system (or subsystem) is when a system is built to replace an existing system. A legacy system is an existing system that is not being replaced, but must interface to the new system.

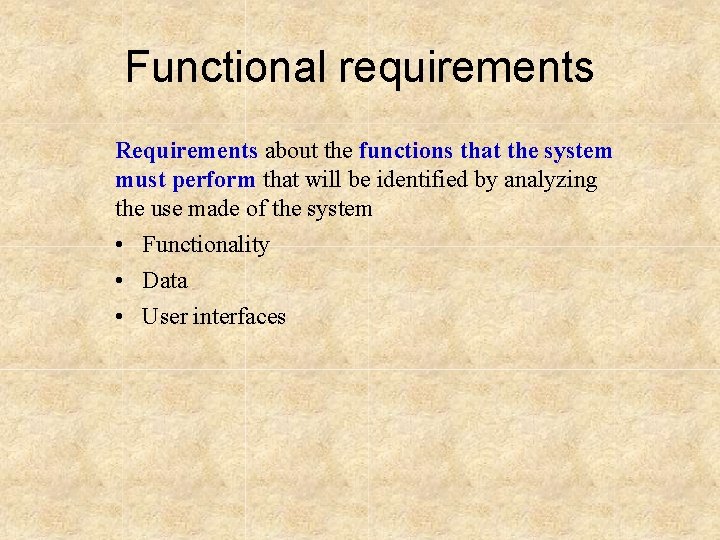

Functional requirements Requirements about the functions that the system must perform that will be identified by analyzing the use made of the system • Functionality • Data • User interfaces

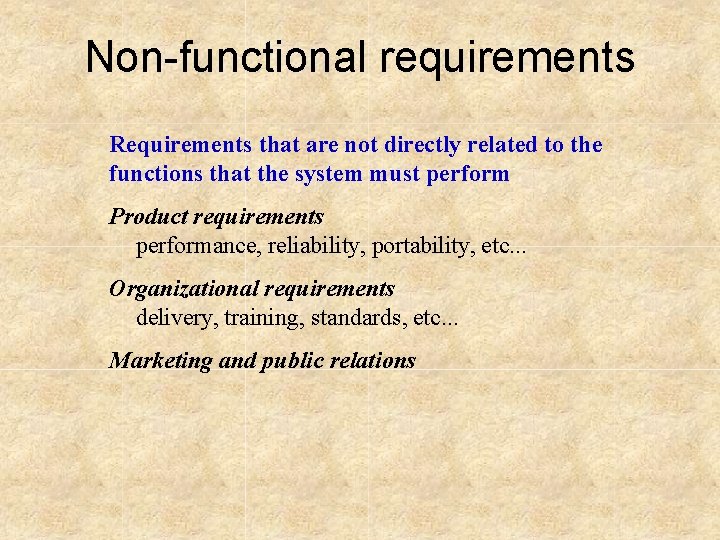

Non-functional requirements Requirements that are not directly related to the functions that the system must perform Product requirements performance, reliability, portability, etc. . . Organizational requirements delivery, training, standards, etc. . . Marketing and public relations

Example of non-functional requirements Example: Library of Congress Repository Use systems that the client's staff are familiar with: • Hardware and software systems (IBM/Unix) • Database systems (Oracle) • Programming languages (C and C++) Recognize that the client is a federal library: • Regulations covering government contracting • Importance of developing a system that will be respected by other major libraries

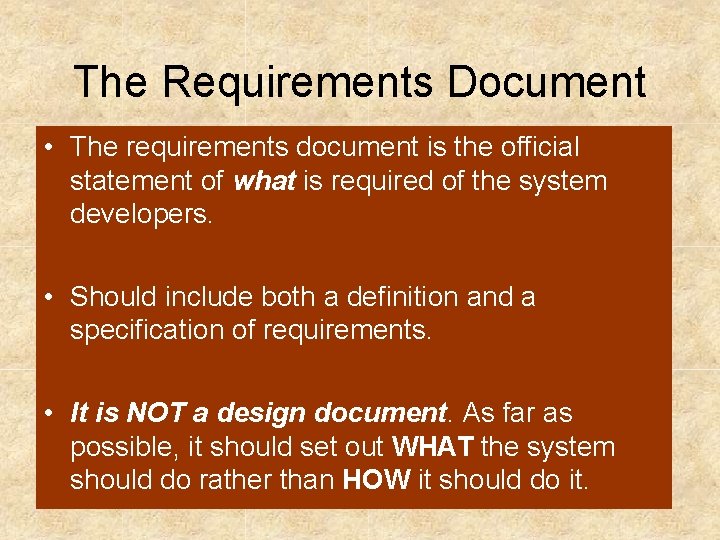

The Requirements Document • The requirements document is the official statement of what is required of the system developers. • Should include both a definition and a specification of requirements. • It is NOT a design document. As far as possible, it should set out WHAT the system should do rather than HOW it should do it.

Requirements Document Requirements • • • Specify external system behavior. Specify implementation constraints. Easy to change. Serve as reference tool for maintenance. Record forethought about the life cycle of the system i. e. , predict changes. • Characterize responses to unexpected events.

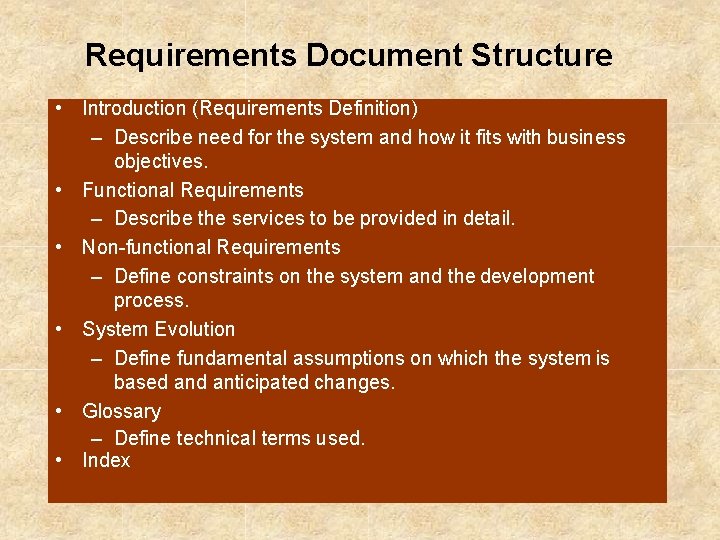

Requirements Document Structure • Introduction (Requirements Definition) – Describe need for the system and how it fits with business objectives. • Functional Requirements – Describe the services to be provided in detail. • Non-functional Requirements – Define constraints on the system and the development process. • System Evolution – Define fundamental assumptions on which the system is based anticipated changes. • Glossary – Define technical terms used. • Index

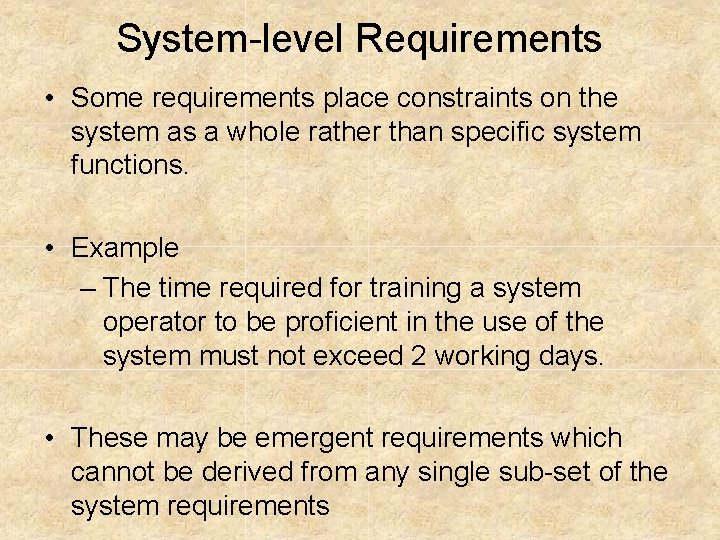

System-level Requirements • Some requirements place constraints on the system as a whole rather than specific system functions. • Example – The time required for training a system operator to be proficient in the use of the system must not exceed 2 working days. • These may be emergent requirements which cannot be derived from any single sub-set of the system requirements

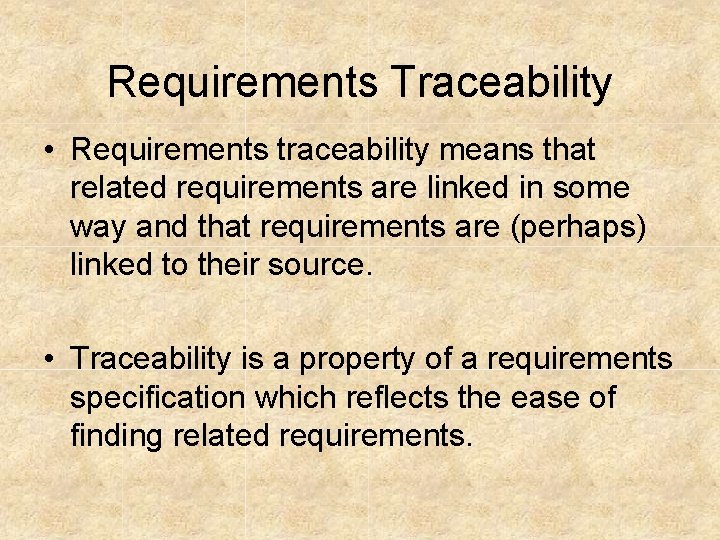

Requirements Traceability • Requirements traceability means that related requirements are linked in some way and that requirements are (perhaps) linked to their source. • Traceability is a property of a requirements specification which reflects the ease of finding related requirements.

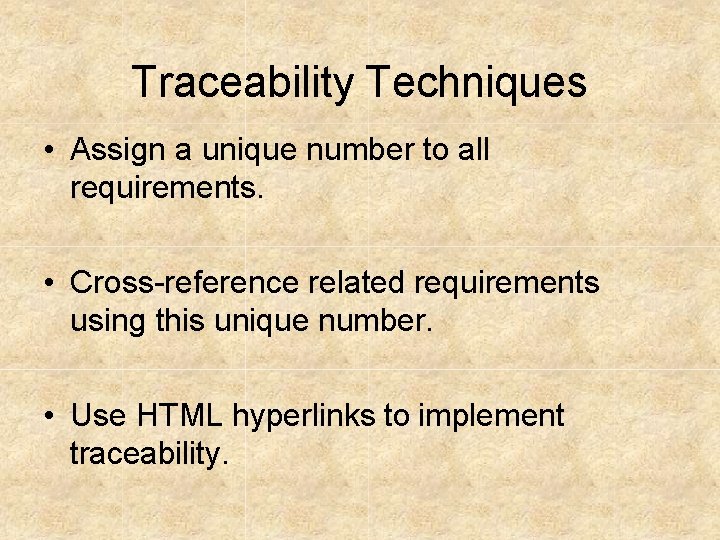

Traceability Techniques • Assign a unique number to all requirements. • Cross-reference related requirements using this unique number. • Use HTML hyperlinks to implement traceability.

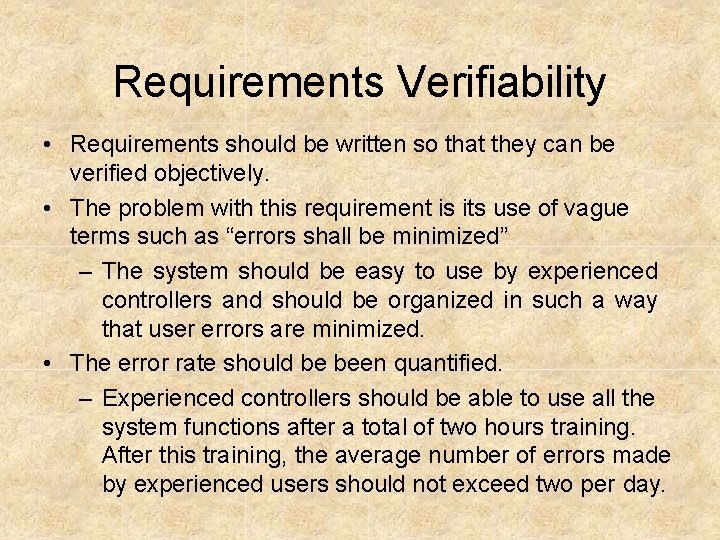

Requirements Verifiability • Requirements should be written so that they can be verified objectively. • The problem with this requirement is its use of vague terms such as “errors shall be minimized” – The system should be easy to use by experienced controllers and should be organized in such a way that user errors are minimized. • The error rate should be been quantified. – Experienced controllers should be able to use all the system functions after a total of two hours training. After this training, the average number of errors made by experienced users should not exceed two per day.

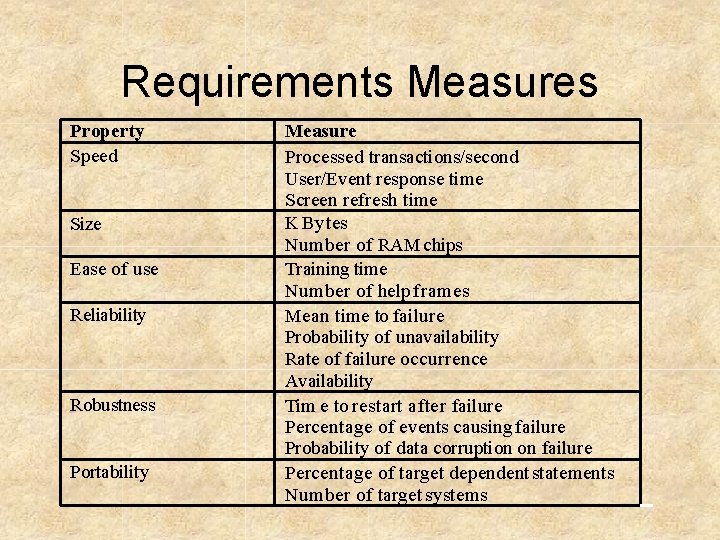

Requirements Measures Property Speed Size Ease of use Reliability Robustness Portability Measure Processed transactions/second User/Event response time Screen refresh time K By tes Number of RAM chips Training time Number of help frames Mean time to failure Probability of unavailability Rate of failure occurrence Availability Tim e to restart after failure Percentage of events causing failure Probability of data corruption on failure Percentage of target dependent statements Number of target systems

Requirements Validation • Concerned with demonstrating that the requirements define the system that the customer really wants. • Requirements error costs are high so validation is very important. – Fixing a requirements error after delivery may cost up to 100 times the cost of fixing an implementation error. • Prototyping is an important technique of requirements validation.

Requirements Checking • Validity: Does the system provide the functions which best support the customer’s needs? • Consistency: Are there any requirements conflicts? • Completeness: Are all functions required by the customer included? • Realism: Can the requirements be implemented given available budget and technology?

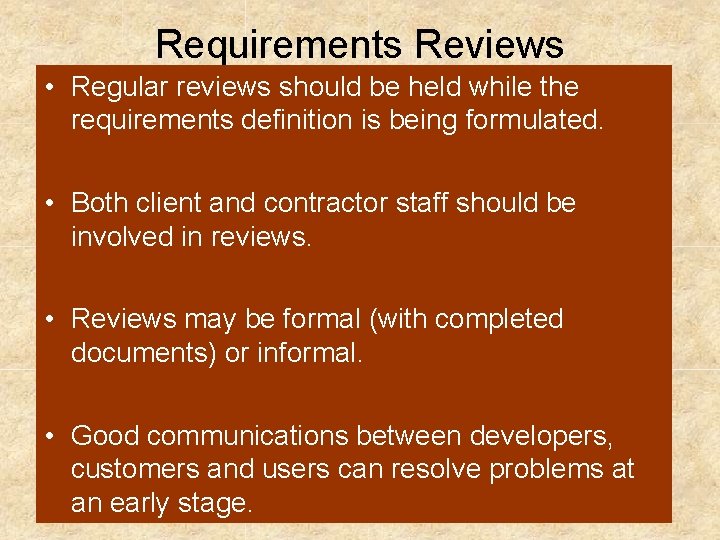

Requirements Reviews • Regular reviews should be held while the requirements definition is being formulated. • Both client and contractor staff should be involved in reviews. • Reviews may be formal (with completed documents) or informal. • Good communications between developers, customers and users can resolve problems at an early stage.

End of lecture
