Reputation Management in Gridbased Virtual Organisations Benjamin Aziz

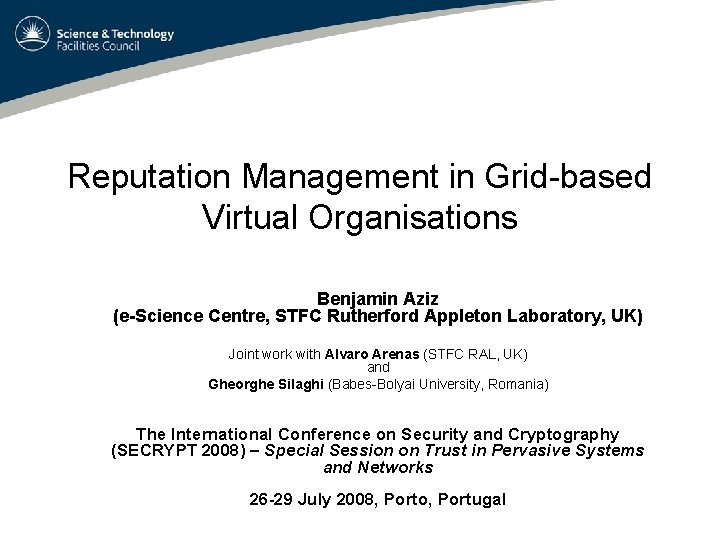

Reputation Management in Grid-based Virtual Organisations Benjamin Aziz (e-Science Centre, STFC Rutherford Appleton Laboratory, UK) Joint work with Alvaro Arenas (STFC RAL, UK) and Gheorghe Silaghi (Babes-Bolyai University, Romania) The International Conference on Security and Cryptography (SECRYPT 2008) – Special Session on Trust in Pervasive Systems and Networks 26 -29 July 2008, Porto, Portugal

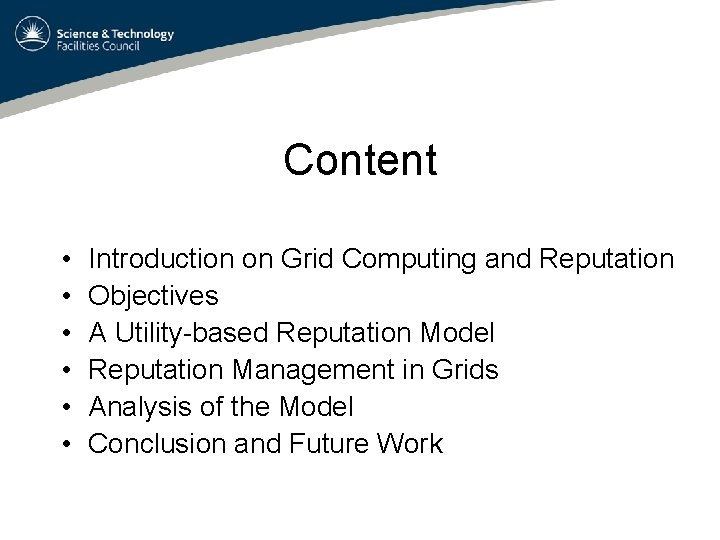

Content • • • Introduction on Grid Computing and Reputation Objectives A Utility-based Reputation Model Reputation Management in Grids Analysis of the Model Conclusion and Future Work

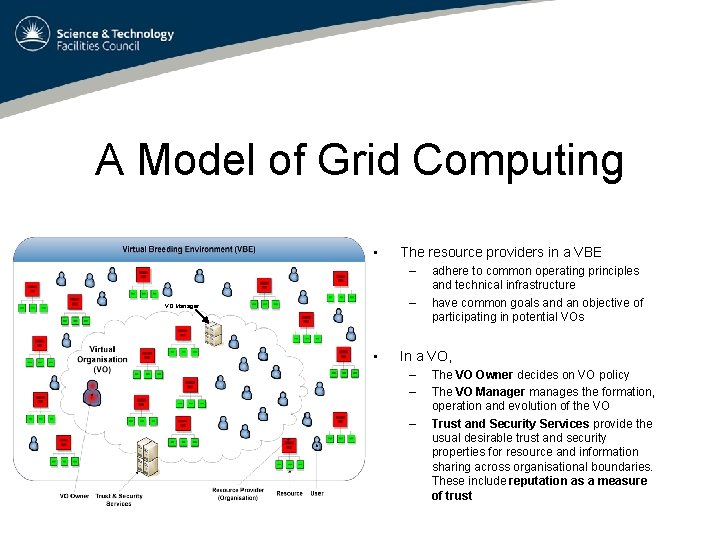

A Model of Grid Computing • The resource providers in a VBE – – VO Manager • adhere to common operating principles and technical infrastructure have common goals and an objective of participating in potential VOs In a VO, – – – The VO Owner decides on VO policy The VO Manager manages the formation, operation and evolution of the VO Trust and Security Services provide the usual desirable trust and security properties for resource and information sharing across organisational boundaries. These include reputation as a measure of trust

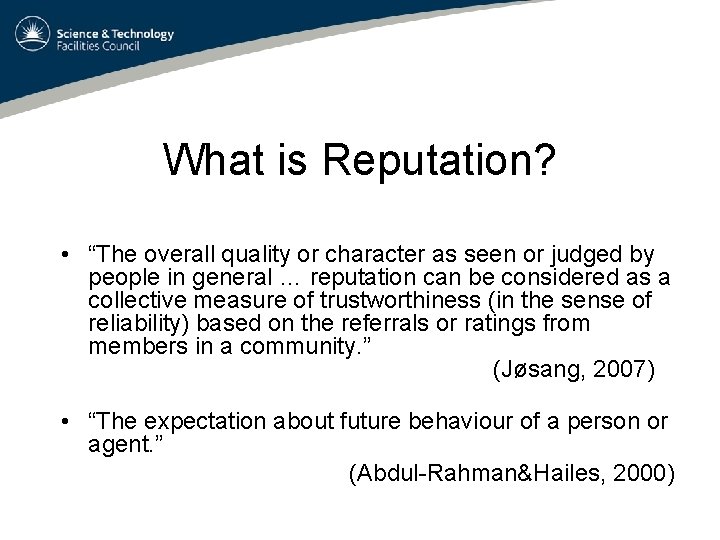

What is Reputation? • “The overall quality or character as seen or judged by people in general … reputation can be considered as a collective measure of trustworthiness (in the sense of reliability) based on the referrals or ratings from members in a community. ” (Jøsang, 2007) • “The expectation about future behaviour of a person or agent. ” (Abdul-Rahman&Hailes, 2000)

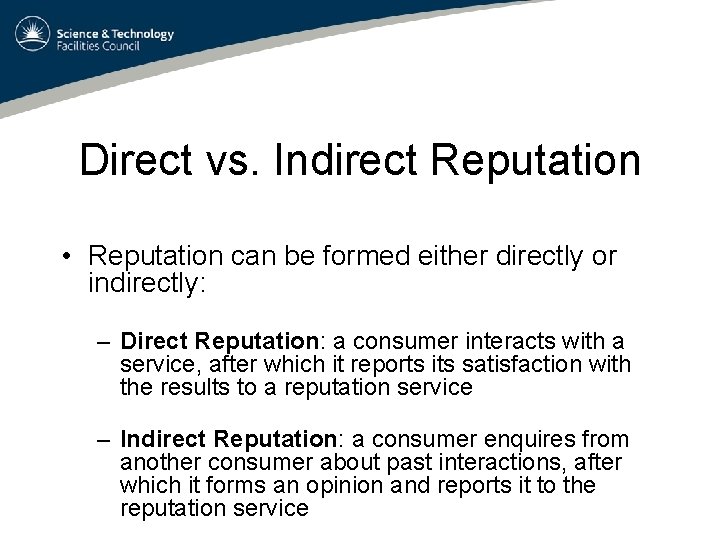

Direct vs. Indirect Reputation • Reputation can be formed either directly or indirectly: – Direct Reputation: a consumer interacts with a service, after which it reports its satisfaction with the results to a reputation service – Indirect Reputation: a consumer enquires from another consumer about past interactions, after which it forms an opinion and reports it to the reputation service

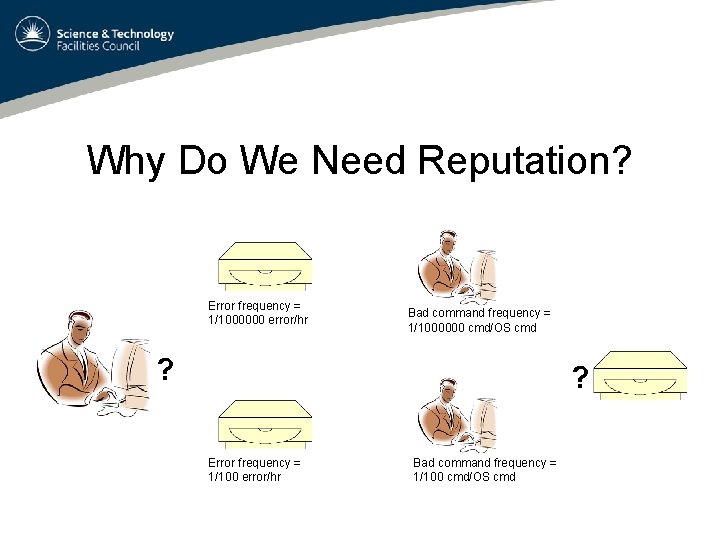

Why Do We Need Reputation? Error frequency = 1/1000000 error/hr Bad command frequency = 1/1000000 cmd/OS cmd ? ? Error frequency = 1/100 error/hr Bad command frequency = 1/100 cmd/OS cmd

Objectives • Design a reputation management system for Grid-based VOs • The system can qualify both users and resource providers • The system can provide reputation management in contexts like – Fine-grained access and usage control of Grid resources – Resource brokering for setting-up VOs • Capable of running as both in centralised and decentralised modes

A Utility-based Reputation Model • The model is based on the concepts of Consumers, Entities, Organisations and VOs • Entities have issues of interest to be monitored – Example: Qo. S levels and acceptable usage policies for services • Consumers have expectations about issues of interest related to entities they interact with – Example: SLA between services and their clients

A Utility-based Reputation Model • A utility function reflects the satisfaction (value in [1, 0]) consumers perceive from consuming an entity – models the traditional client feedback needed to build reputation and can be either provided by the consumer or taken from a library • For example, for a variable x and its value v returned by some service: utility(x, v) = 1 if v SLA(x) utility(x, v) = v/SLA(x) otherwise • The environment provides a trusted third party monitoring service that supplies events about entity-consumer interaction results/performance

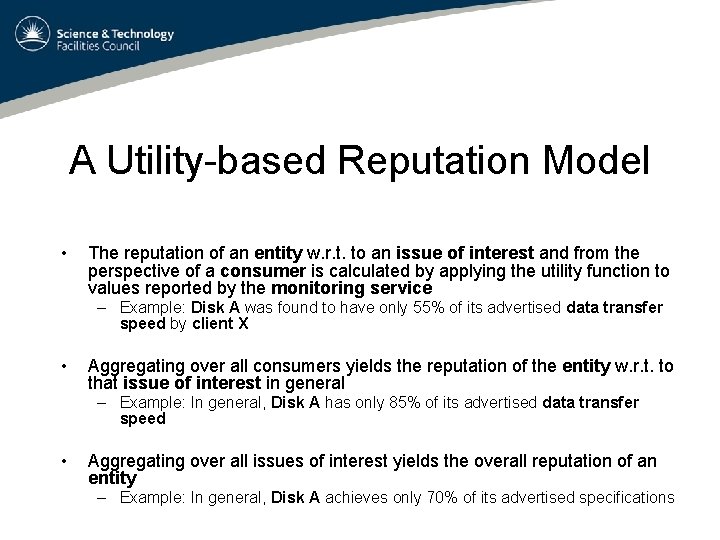

A Utility-based Reputation Model • The reputation of an entity w. r. t. to an issue of interest and from the perspective of a consumer is calculated by applying the utility function to values reported by the monitoring service – Example: Disk A was found to have only 55% of its advertised data transfer speed by client X • Aggregating over all consumers yields the reputation of the entity w. r. t. to that issue of interest in general – Example: In general, Disk A has only 85% of its advertised data transfer speed • Aggregating over all issues of interest yields the overall reputation of an entity – Example: In general, Disk A achieves only 70% of its advertised specifications

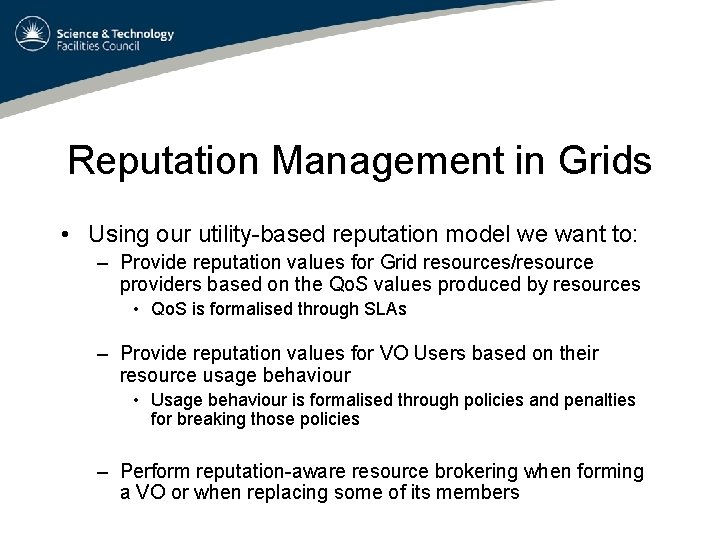

Reputation Management in Grids • Using our utility-based reputation model we want to: – Provide reputation values for Grid resources/resource providers based on the Qo. S values produced by resources • Qo. S is formalised through SLAs – Provide reputation values for VO Users based on their resource usage behaviour • Usage behaviour is formalised through policies and penalties for breaking those policies – Perform reputation-aware resource brokering when forming a VO or when replacing some of its members

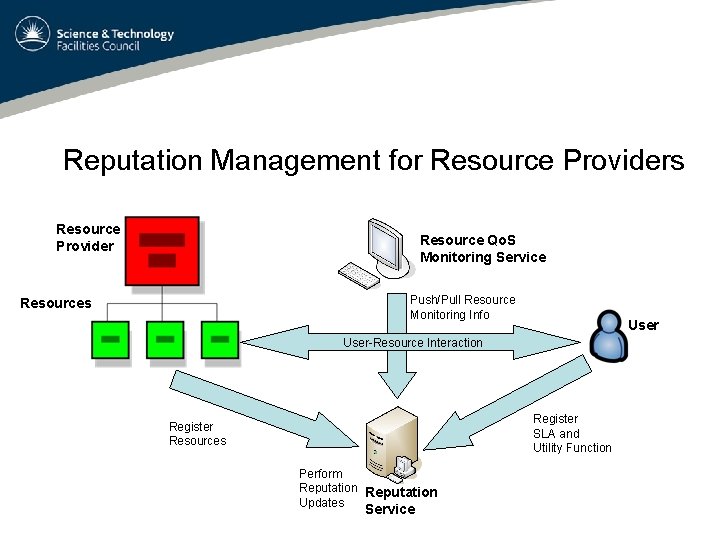

Reputation Management for Resource Providers Resource Provider Resource Qo. S Monitoring Service Push/Pull Resource Monitoring Info Resources User-Resource Interaction Register SLA and Utility Function Register Resources Perform Reputation Updates Service

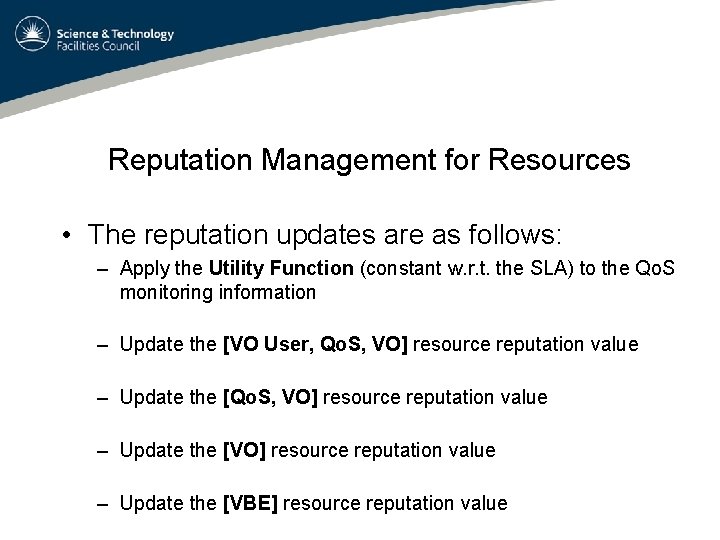

Reputation Management for Resources • The reputation updates are as follows: – Apply the Utility Function (constant w. r. t. the SLA) to the Qo. S monitoring information – Update the [VO User, Qo. S, VO] resource reputation value – Update the [VO] resource reputation value – Update the [VBE] resource reputation value

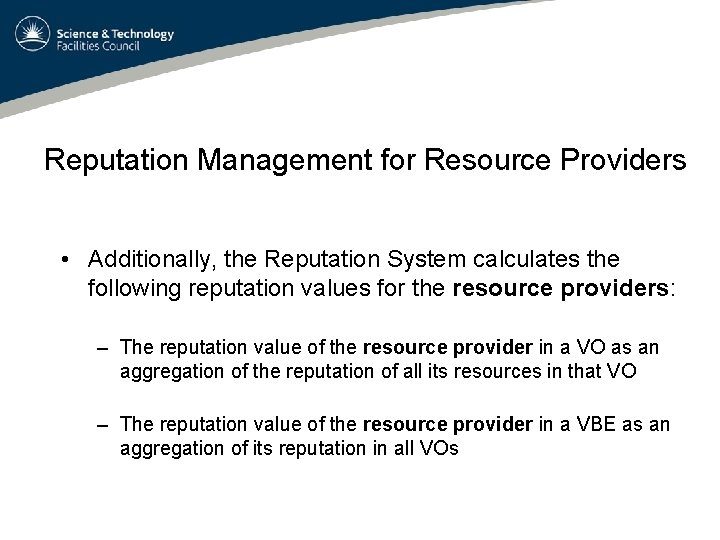

Reputation Management for Resource Providers • Additionally, the Reputation System calculates the following reputation values for the resource providers: – The reputation value of the resource provider in a VO as an aggregation of the reputation of all its resources in that VO – The reputation value of the resource provider in a VBE as an aggregation of its reputation in all VOs

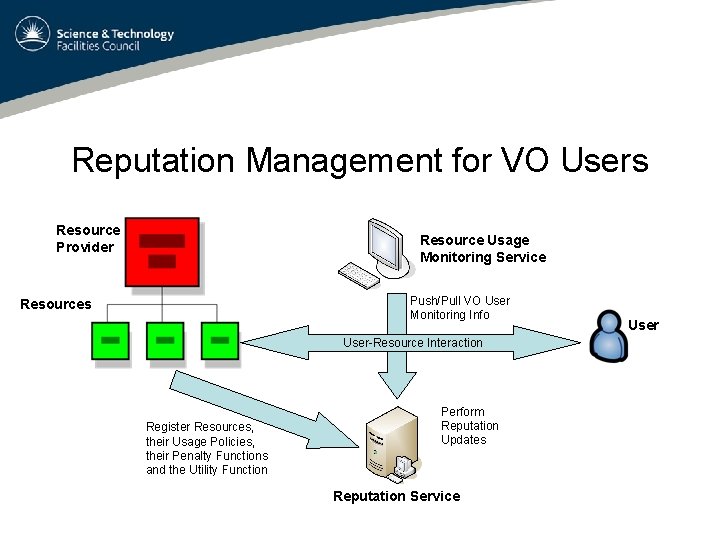

Reputation Management for VO Users Resource Provider Resource Usage Monitoring Service Push/Pull VO User Monitoring Info Resources User-Resource Interaction Register Resources, their Usage Policies, their Penalty Functions and the Utility Function Perform Reputation Updates Reputation Service User

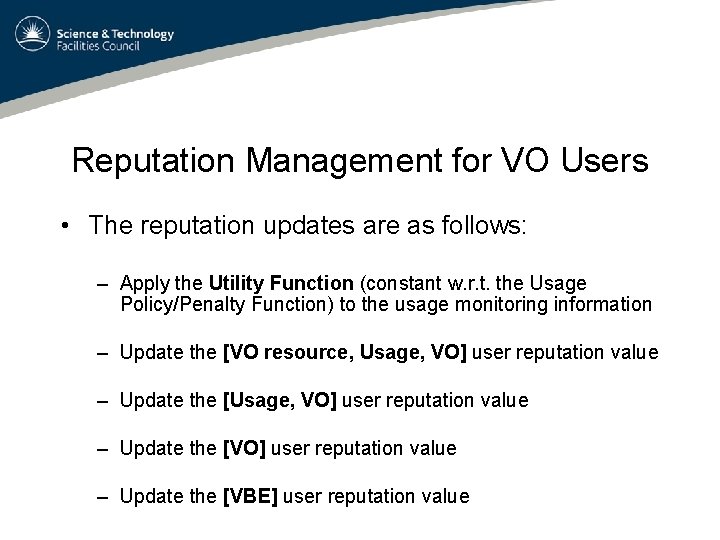

Reputation Management for VO Users • The reputation updates are as follows: – Apply the Utility Function (constant w. r. t. the Usage Policy/Penalty Function) to the usage monitoring information – Update the [VO resource, Usage, VO] user reputation value – Update the [VO] user reputation value – Update the [VBE] user reputation value

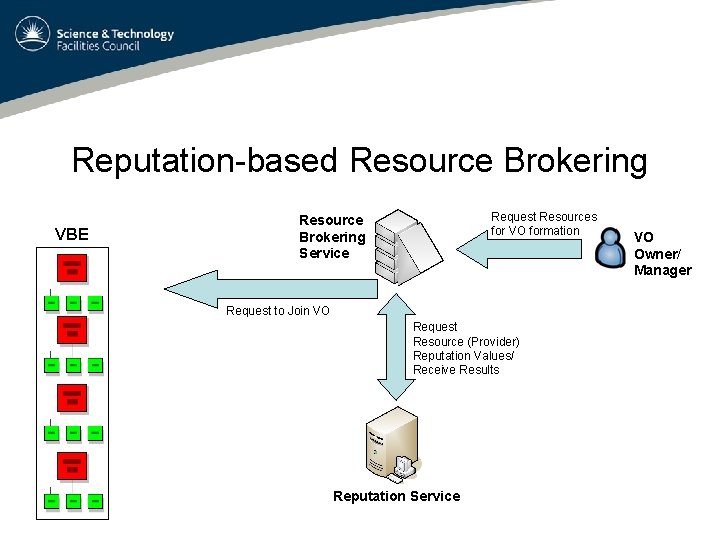

Reputation-based Resource Brokering VBE Request Resources for VO formation Resource Brokering Service Request to Join VO Request Resource (Provider) Reputation Values/ Receive Results Reputation Service VO Owner/ Manager

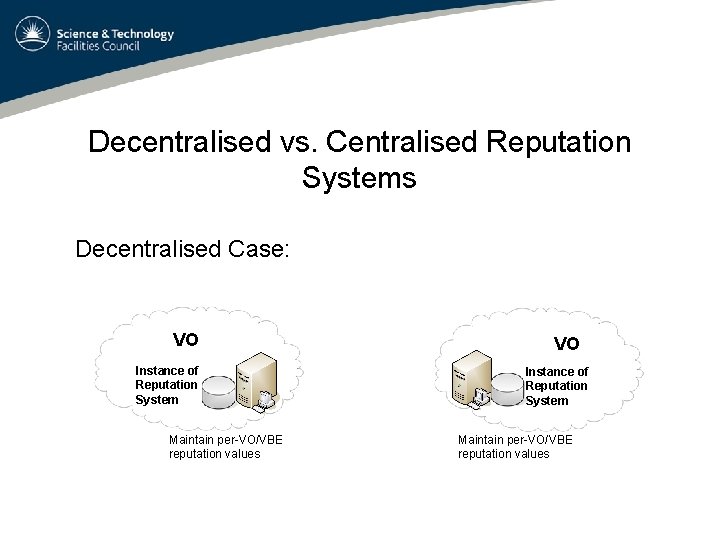

Decentralised vs. Centralised Reputation Systems Decentralised Case: VO Instance of Reputation System Maintain per-VO/VBE reputation values

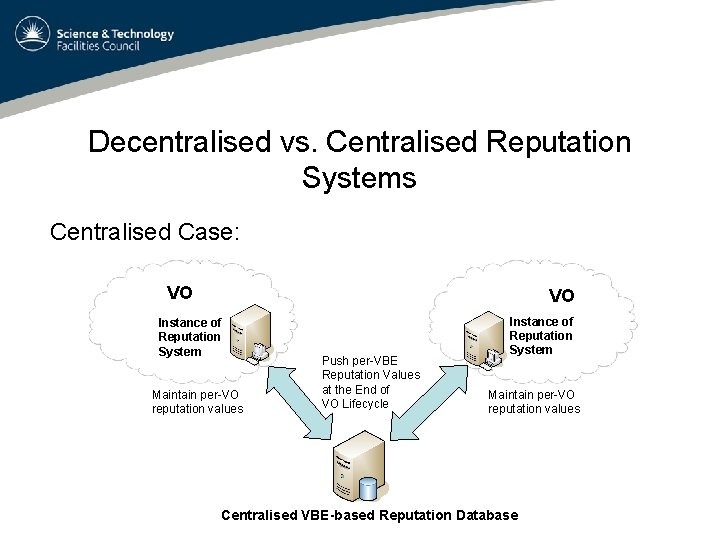

Decentralised vs. Centralised Reputation Systems Centralised Case: VO VO Instance of Reputation System Maintain per-VO reputation values Push per-VBE Reputation Values at the End of VO Lifecycle Instance of Reputation System Maintain per-VO reputation values Centralised VBE-based Reputation Database

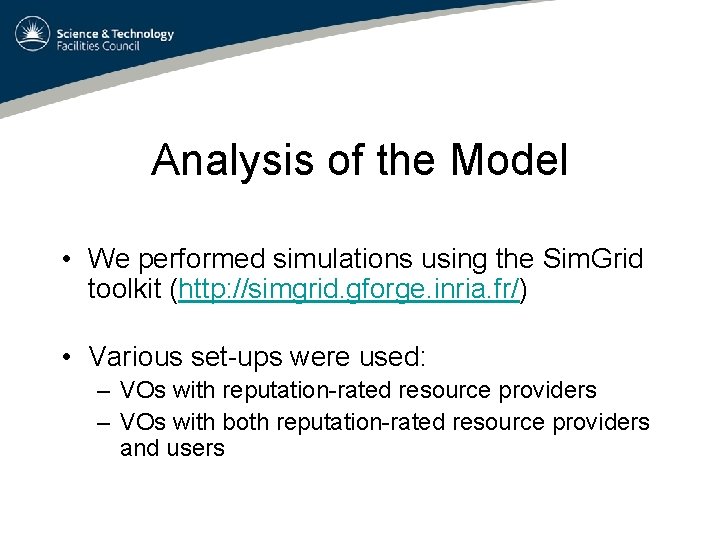

Analysis of the Model • We performed simulations using the Sim. Grid toolkit (http: //simgrid. gforge. inria. fr/) • Various set-ups were used: – VOs with reputation-rated resource providers – VOs with both reputation-rated resource providers and users

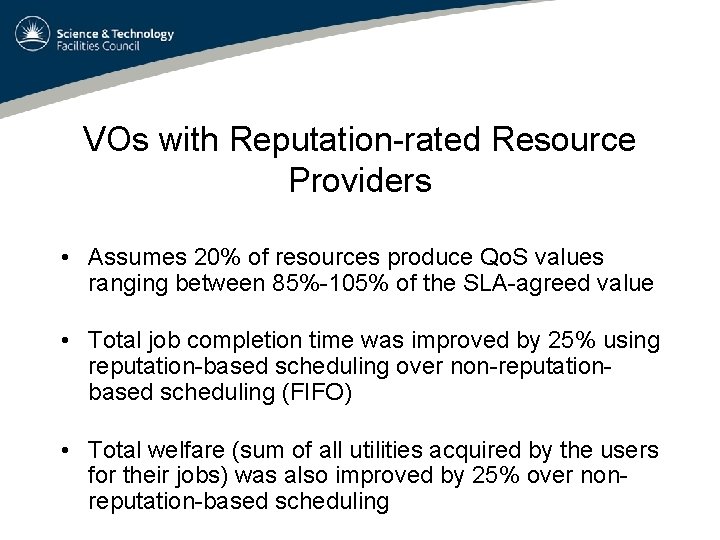

VOs with Reputation-rated Resource Providers • Assumes 20% of resources produce Qo. S values ranging between 85%-105% of the SLA-agreed value • Total job completion time was improved by 25% using reputation-based scheduling over non-reputationbased scheduling (FIFO) • Total welfare (sum of all utilities acquired by the users for their jobs) was also improved by 25% over nonreputation-based scheduling

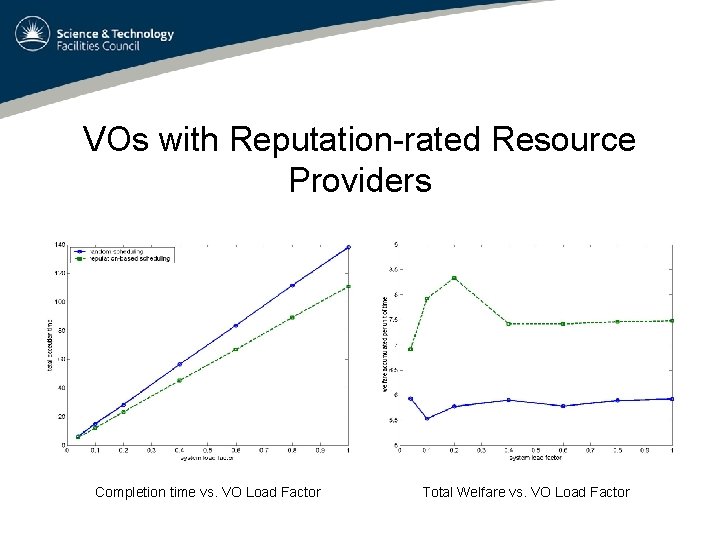

VOs with Reputation-rated Resource Providers Completion time vs. VO Load Factor Total Welfare vs. VO Load Factor

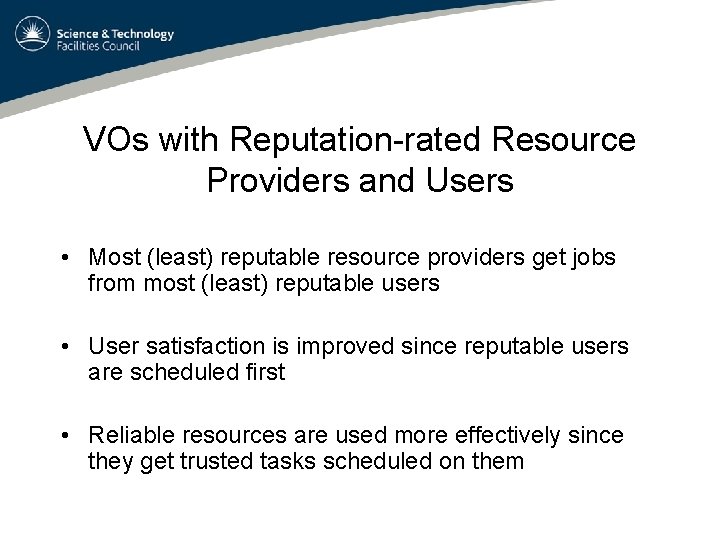

VOs with Reputation-rated Resource Providers and Users • Most (least) reputable resource providers get jobs from most (least) reputable users • User satisfaction is improved since reputable users are scheduled first • Reliable resources are used more effectively since they get trusted tasks scheduled on them

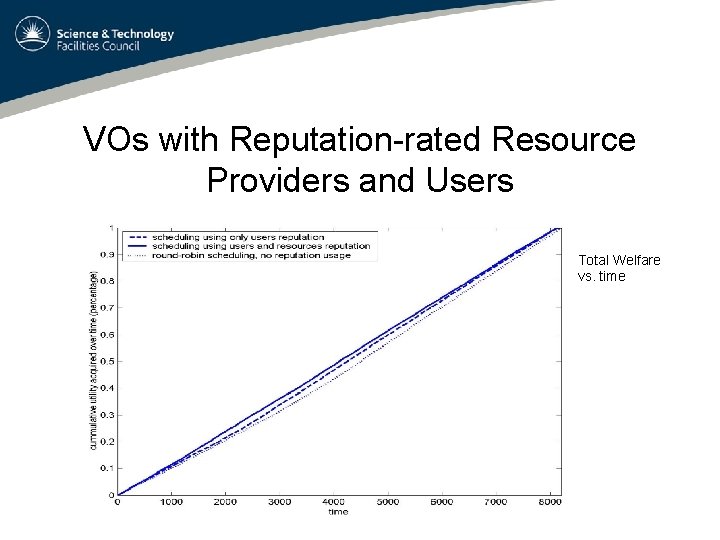

VOs with Reputation-rated Resource Providers and Users Total Welfare vs. time

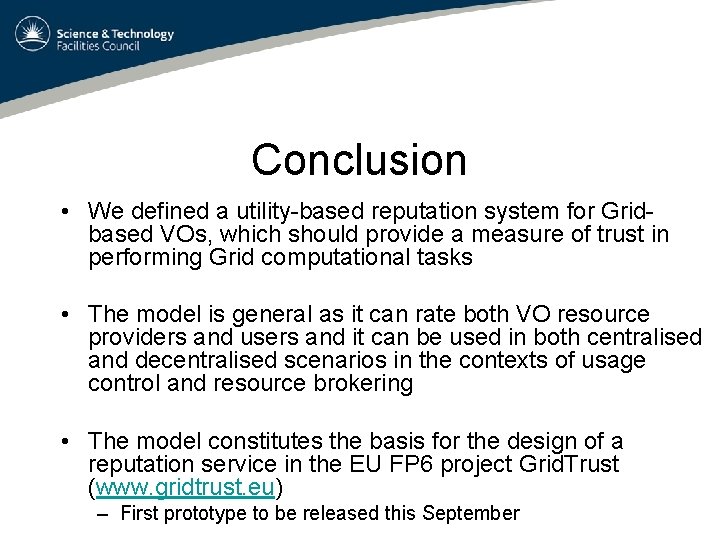

Conclusion • We defined a utility-based reputation system for Gridbased VOs, which should provide a measure of trust in performing Grid computational tasks • The model is general as it can rate both VO resource providers and users and it can be used in both centralised and decentralised scenarios in the contexts of usage control and resource brokering • The model constitutes the basis for the design of a reputation service in the EU FP 6 project Grid. Trust (www. gridtrust. eu) – First prototype to be released this September

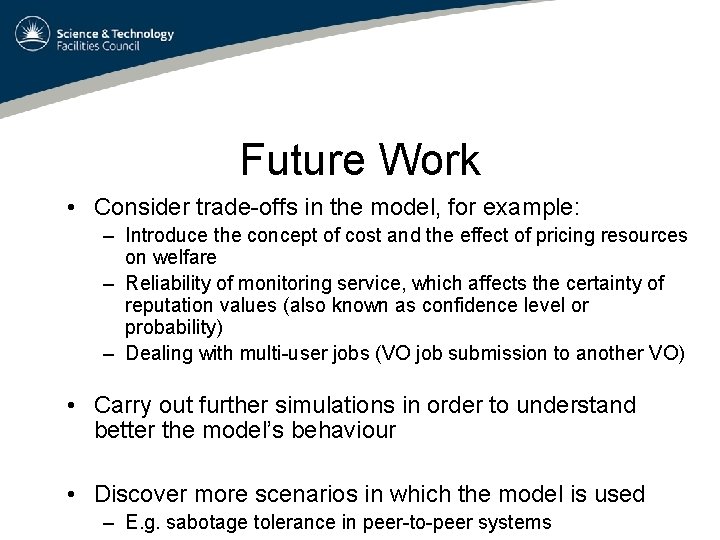

Future Work • Consider trade-offs in the model, for example: – Introduce the concept of cost and the effect of pricing resources on welfare – Reliability of monitoring service, which affects the certainty of reputation values (also known as confidence level or probability) – Dealing with multi-user jobs (VO job submission to another VO) • Carry out further simulations in order to understand better the model’s behaviour • Discover more scenarios in which the model is used – E. g. sabotage tolerance in peer-to-peer systems

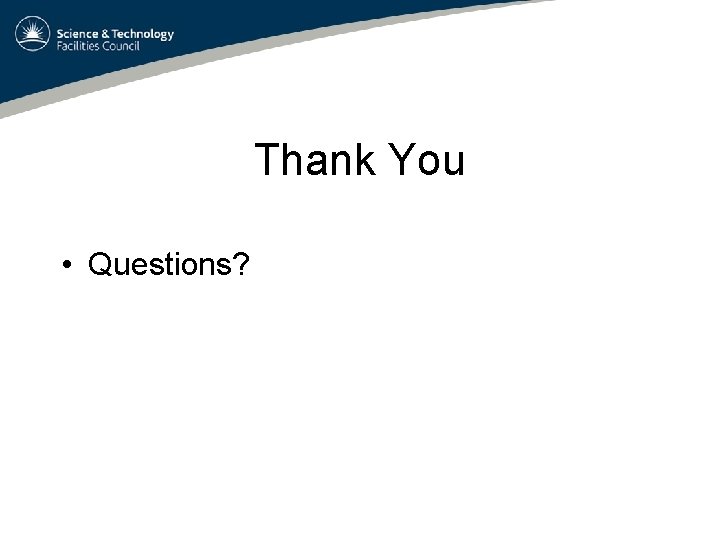

Thank You • Questions?
