Reprogramming Cellular Behavior with RNA Controllers Responsive to Endogenous Proteins Stephanie J. Culler, Kevin G. Hoff, Christina D. Smolke SCIENCE Nov. 2010 Presented by: Andrew Yang and Tina Stutzman 3/2/2011

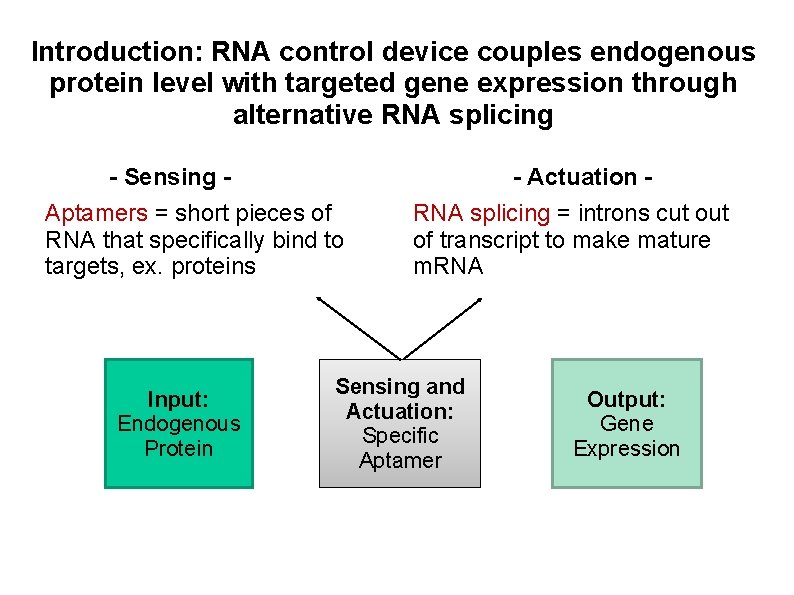

Introduction: RNA control device couples endogenous protein level with targeted gene expression through alternative RNA splicing - Sensing Aptamers = short pieces of RNA that specifically bind to targets, ex. proteins Input: Endogenous Protein - Actuation RNA splicing = introns cut of transcript to make mature m. RNA Sensing and Actuation: Specific Aptamer Output: Gene Expression

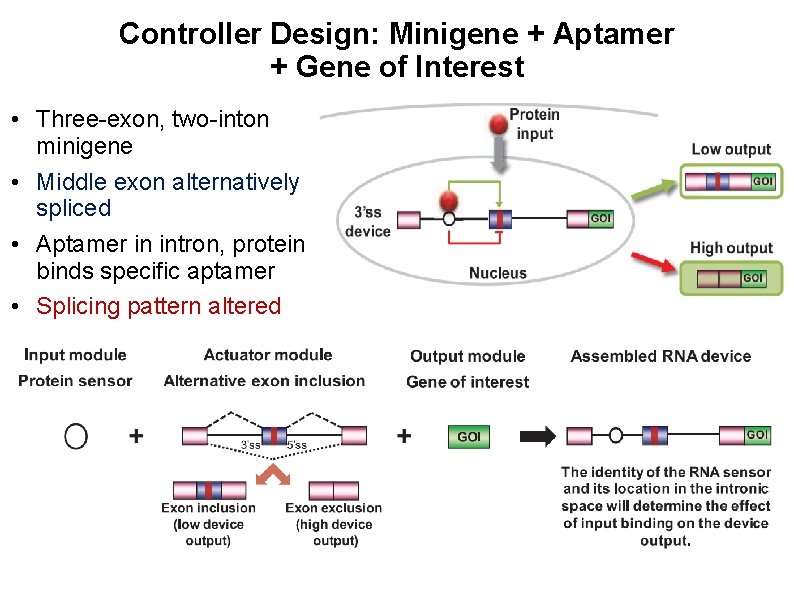

Controller Design: Minigene + Aptamer + Gene of Interest • Three-exon, two-inton minigene • Middle exon alternatively spliced • Aptamer in intron, protein binds specific aptamer • Splicing pattern altered

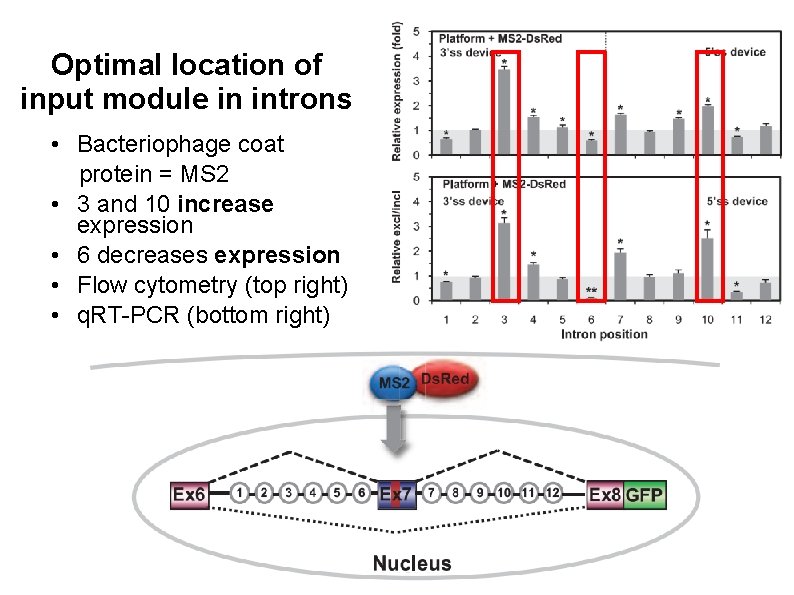

Optimal location of input module in introns • Bacteriophage coat protein = MS 2 • 3 and 10 increase expression • 6 decreases expression • Flow cytometry (top right) • q. RT-PCR (bottom right)

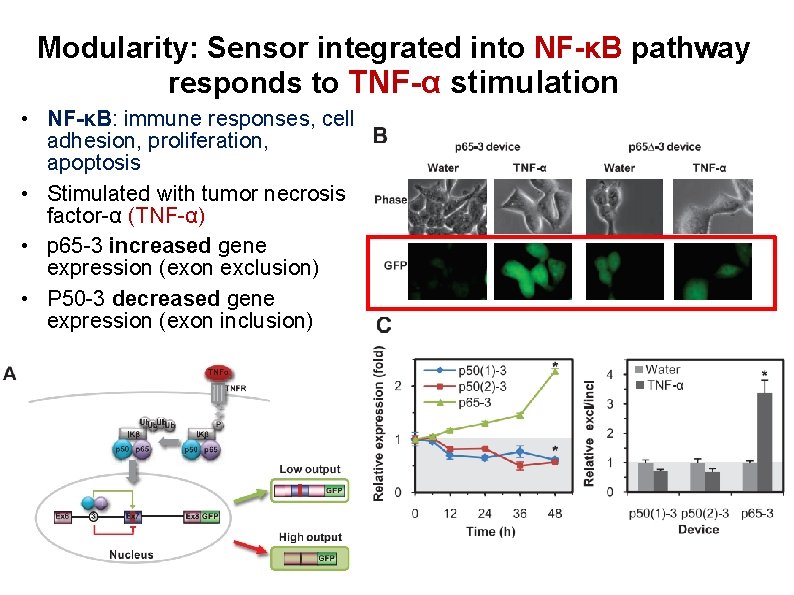

Modularity: Sensor integrated into NF-κB pathway responds to TNF-α stimulation • NF-κB: immune responses, cell adhesion, proliferation, apoptosis • Stimulated with tumor necrosis factor-α (TNF-α) • p 65 -3 increased gene expression (exon exclusion) • P 50 -3 decreased gene expression (exon inclusion)

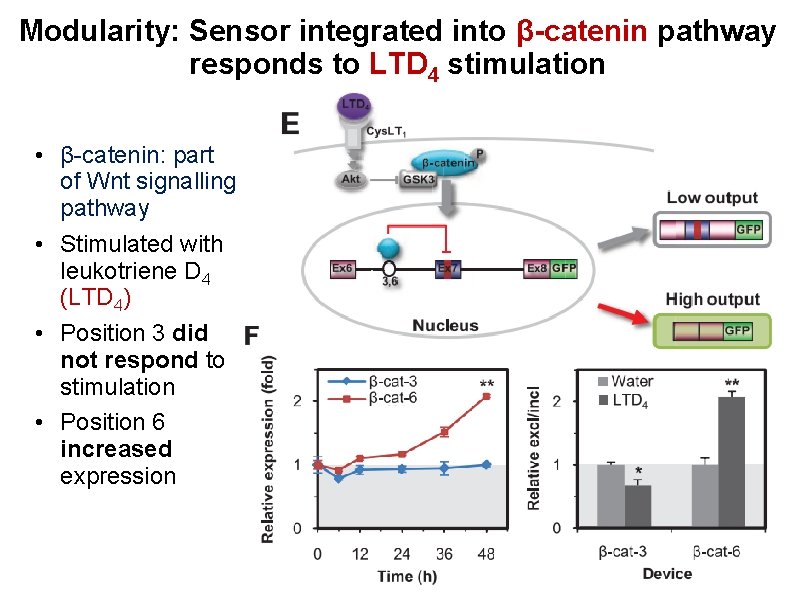

Modularity: Sensor integrated into β-catenin pathway responds to LTD 4 stimulation • β-catenin: part of Wnt signalling pathway • Stimulated with leukotriene D 4 (LTD 4) • Position 3 did not respond to stimulation • Position 6 increased expression

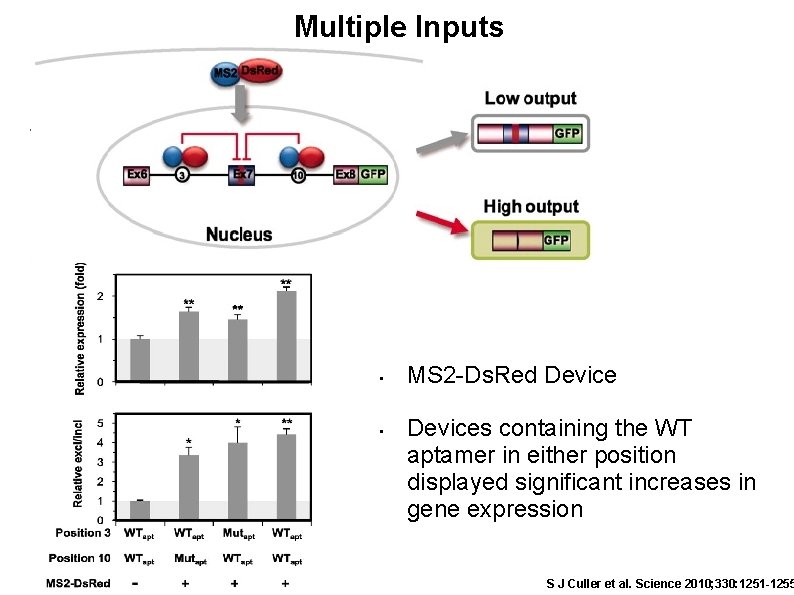

Multiple Inputs • • MS 2 -Ds. Red Devices containing the WT aptamer in either position displayed significant increases in gene expression S J Culler et al. Science 2010; 330: 1251 -1255

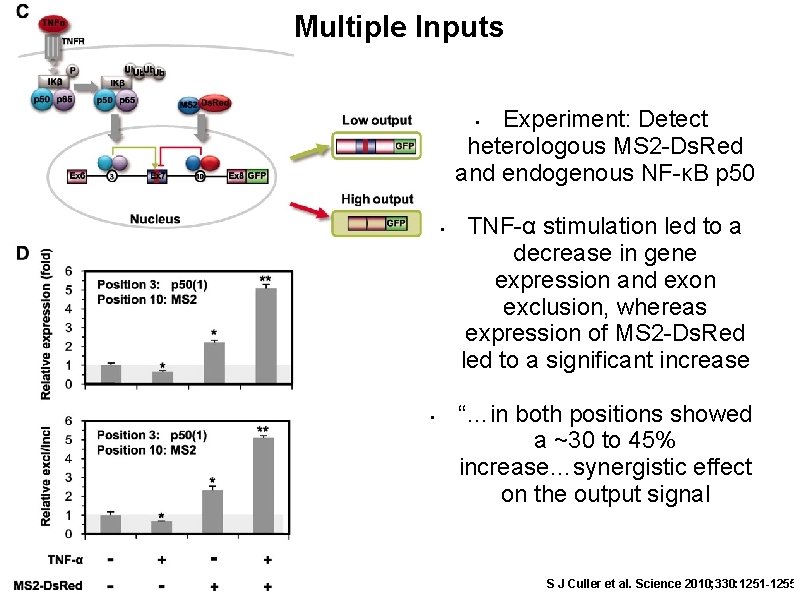

Multiple Inputs Experiment: Detect heterologous MS 2 -Ds. Red and endogenous NF-κB p 50 • • • TNF-α stimulation led to a decrease in gene expression and exon exclusion, whereas expression of MS 2 -Ds. Red led to a significant increase “…in both positions showed a ~30 to 45% increase…synergistic effect on the output signal S J Culler et al. Science 2010; 330: 1251 -1255

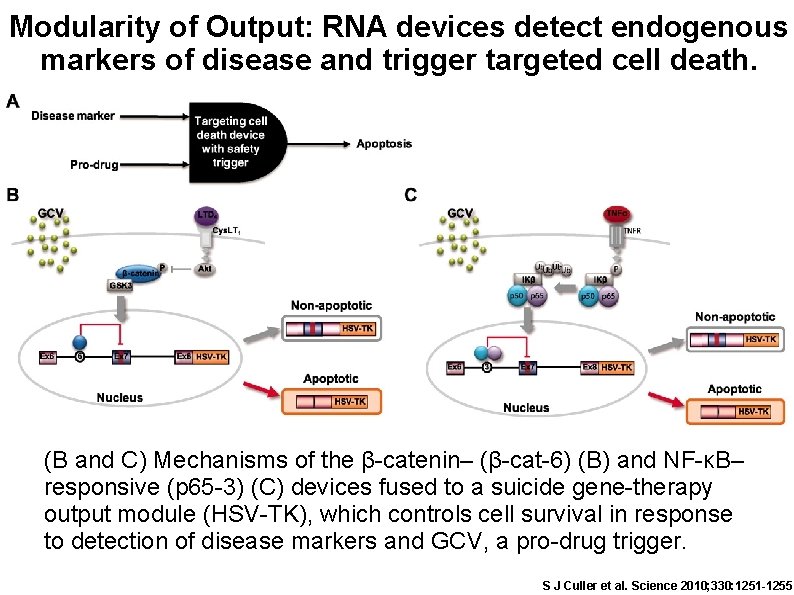

Modularity of Output: RNA devices detect endogenous markers of disease and trigger targeted cell death. (B and C) Mechanisms of the β-catenin– (β-cat-6) (B) and NF-κB– responsive (p 65 -3) (C) devices fused to a suicide gene-therapy output module (HSV-TK), which controls cell survival in response to detection of disease markers and GCV, a pro-drug trigger. S J Culler et al. Science 2010; 330: 1251 -1255

Modularity of Output: RNA devices detect endogenous markers of disease and trigger targeted cell death. (D) Dose-response curves of cellsurvival percentages for the β-catenin– and NF-κB– responsive devices fused to HSV-TK indicate a decrease in cell survival S J Culler et al. Science 2010; 330: 1251 -1255

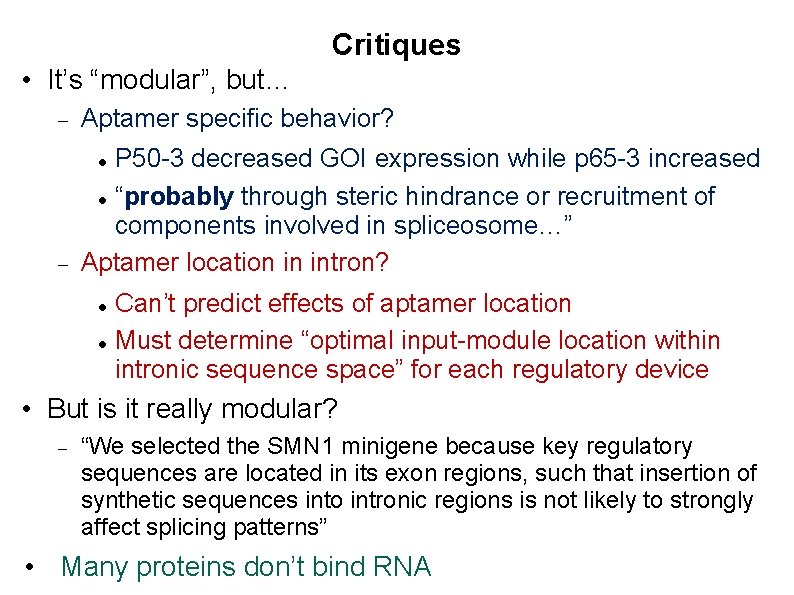

Critiques • It’s “modular”, but… Aptamer specific behavior? P 50 -3 decreased GOI expression while p 65 -3 increased “probably through steric hindrance or recruitment of components involved in spliceosome…” Aptamer location in intron? Can’t predict effects of aptamer location Must determine “optimal input-module location within intronic sequence space” for each regulatory device • But is it really modular? “We selected the SMN 1 minigene because key regulatory sequences are located in its exon regions, such that insertion of synthetic sequences into intronic regions is not likely to strongly affect splicing patterns” • Many proteins don’t bind RNA

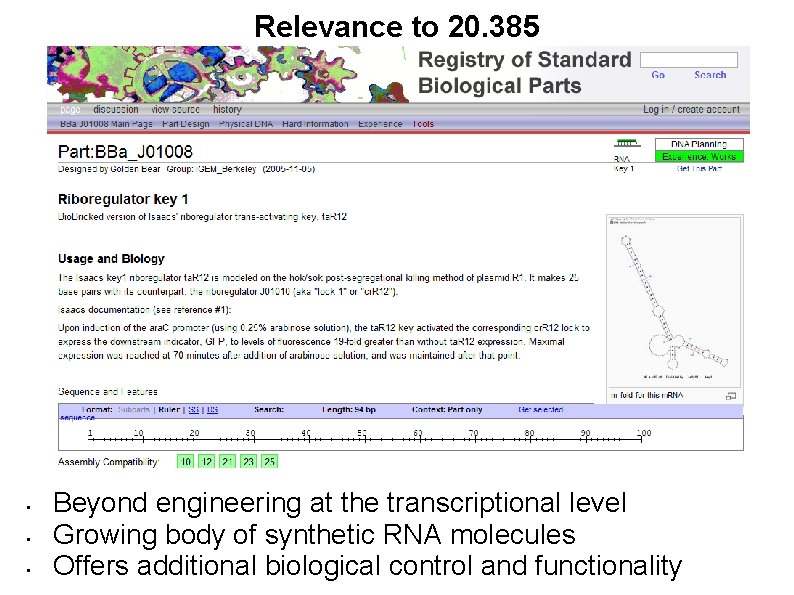

Relevance to 20. 385 • • • Beyond engineering at the transcriptional level Growing body of synthetic RNA molecules Offers additional biological control and functionality

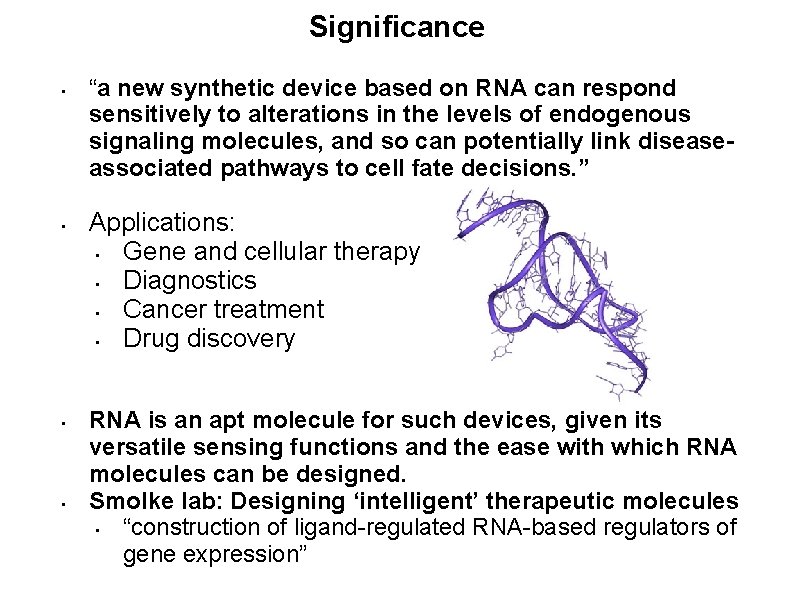

Significance • • “a new synthetic device based on RNA can respond sensitively to alterations in the levels of endogenous signaling molecules, and so can potentially link diseaseassociated pathways to cell fate decisions. ” Applications: • Gene and cellular therapy • Diagnostics • Cancer treatment • Drug discovery RNA is an apt molecule for such devices, given its versatile sensing functions and the ease with which RNA molecules can be designed. Smolke lab: Designing ‘intelligent’ therapeutic molecules • “construction of ligand-regulated RNA-based regulators of gene expression”

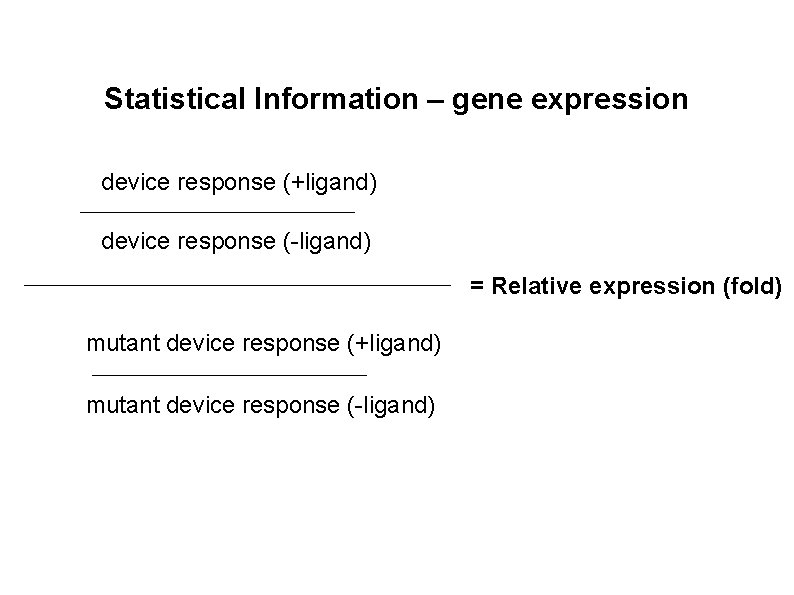

Statistical Information – gene expression device response (+ligand) device response (-ligand) = Relative expression (fold) mutant device response (+ligand) mutant device response (-ligand)

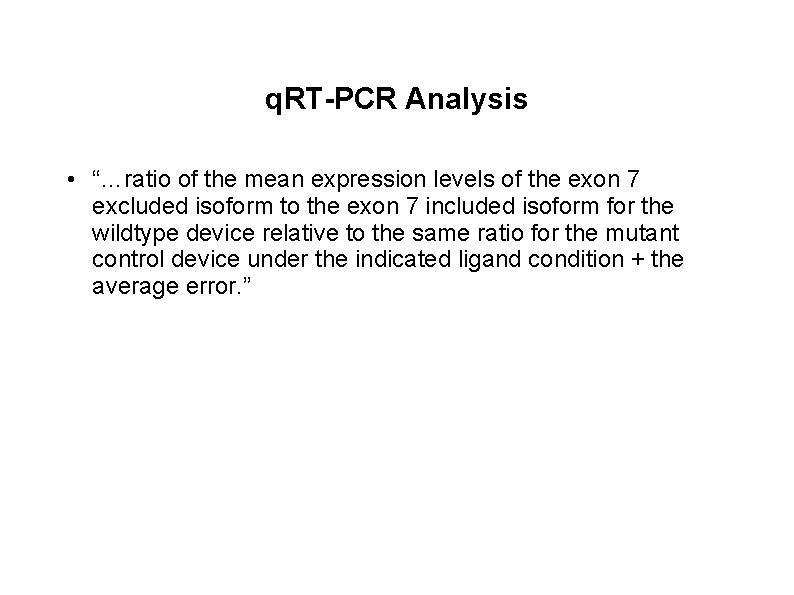

q. RT-PCR Analysis • “…ratio of the mean expression levels of the exon 7 excluded isoform to the exon 7 included isoform for the wildtype device relative to the same ratio for the mutant control device under the indicated ligand condition + the average error. ”
