Representing the Immune Epitope Database in OWL Jason A. Greenbaum 1, Randi Vita 1, Laura Zarebski 1, Hussein Emami 2, Alessandro Sette 1, Alan Ruttenberg 3, and Bjoern Peters 1 1 La Jolla Institute for Allergy and Immunology 2 Science Applications International Corporation 3 Science Commons

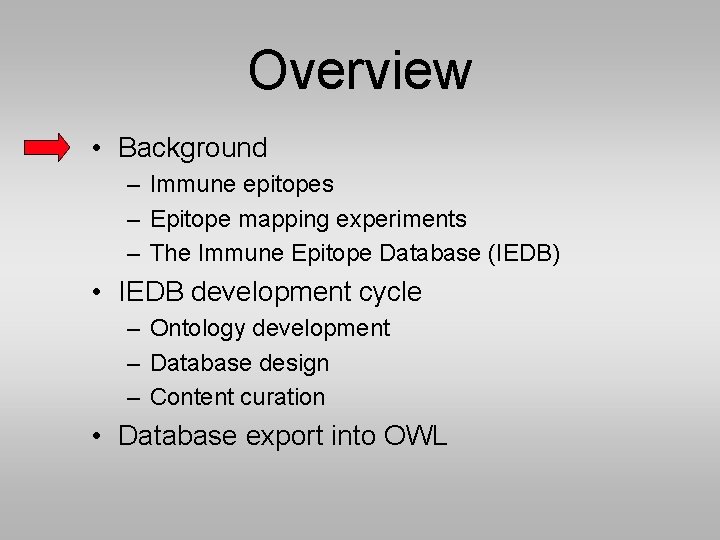

Overview • Background – Immune epitopes – Epitope mapping experiments – The Immune Epitope Database (IEDB) • IEDB development cycle – Ontology development – Database design – Content curation • Database export into OWL

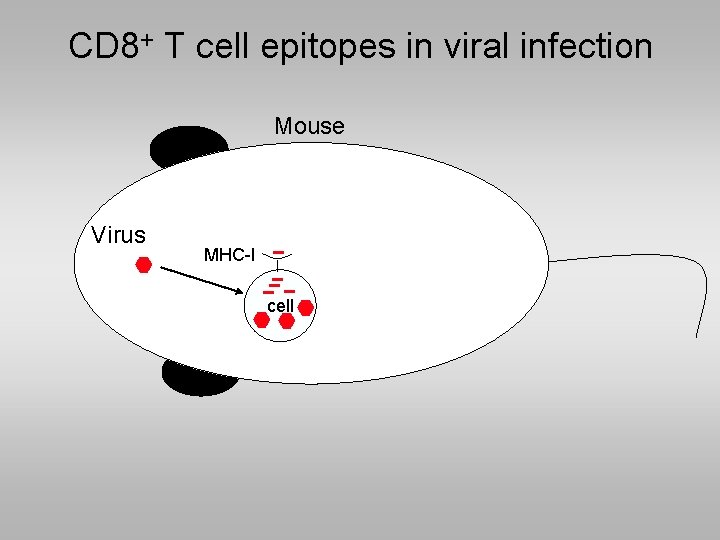

CD 8+ T cell epitopes in viral infection Mouse Virus MHC-I cell

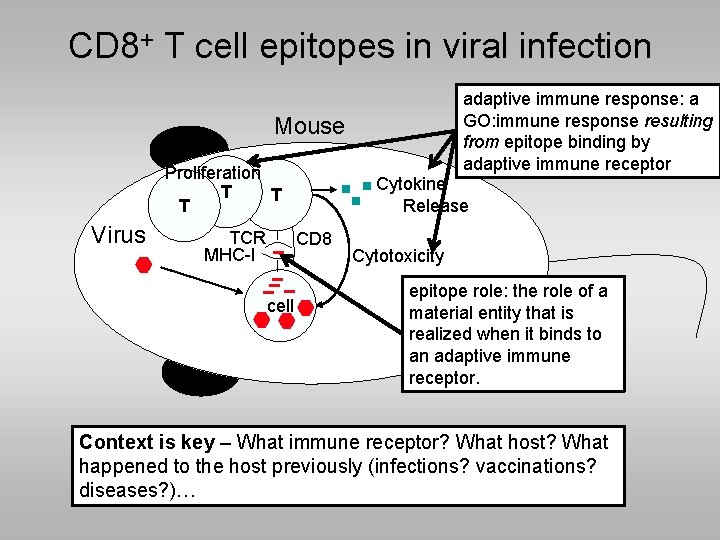

CD 8+ T cell epitopes in viral infection adaptive immune response: a GO: immune response resulting from epitope binding by adaptive immune receptor Mouse Proliferation T T T Virus TCR MHC-I Cytokine Release CD 8 cell Cytotoxicity epitope role: the role of a material entity that is realized when it binds to an adaptive immune receptor. Context is key – What immune receptor? What host? What happened to the host previously (infections? vaccinations? diseases? )…

Entities in a epitope mapping experiment • Processes – Administering substance in vivo – Take sample from organism T T – Perform ELISPOT assay – Transform data • Material entities APC • Data items – Cell – spot count – Organism – spot forming cells per million – Peptide • Roles and Functions – Immunogen – Antigen 42 SFC/10^6 – Antigen presenting cell – Effector cell

The Immune Epitope Database (IEDB) Goal: To catalog and make accessible immune epitope characterizing experiments Epitope discovery Literature curation contract submission IEDB www. immuneepitope. org 10 full time curators Content >6, 500 journal articles >50, 000 epitopes >300, 000 experiments Completed: • 98% infectious disease • 95% allergy Next: autoimmunity (25%)

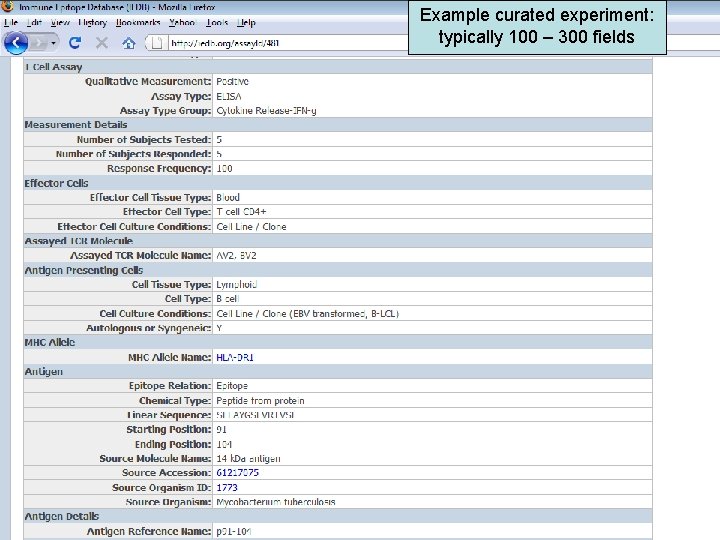

Example curated experiment: typically 100 – 300 fields

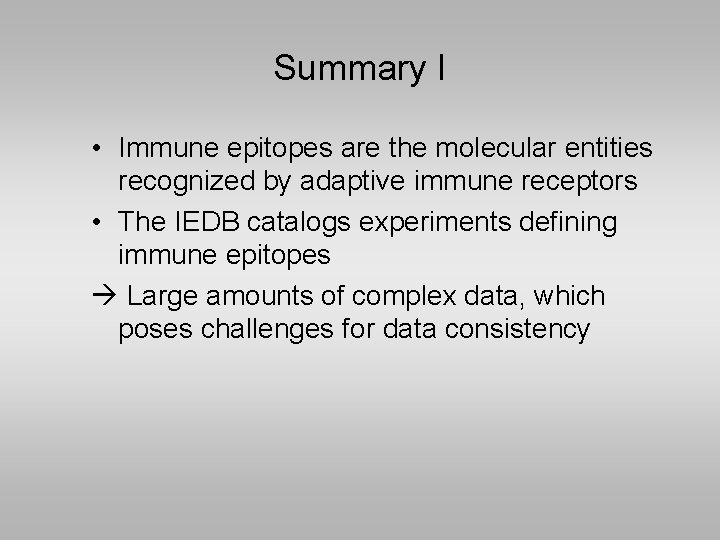

Summary I • Immune epitopes are the molecular entities recognized by adaptive immune receptors • The IEDB catalogs experiments defining immune epitopes Large amounts of complex data, which poses challenges for data consistency

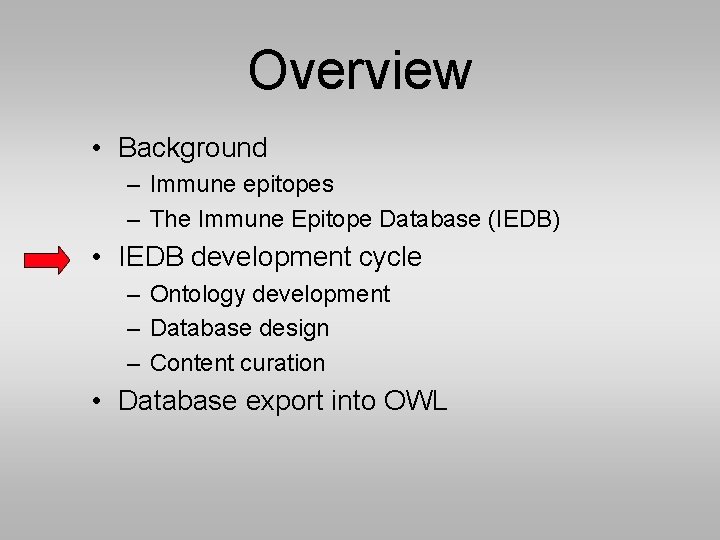

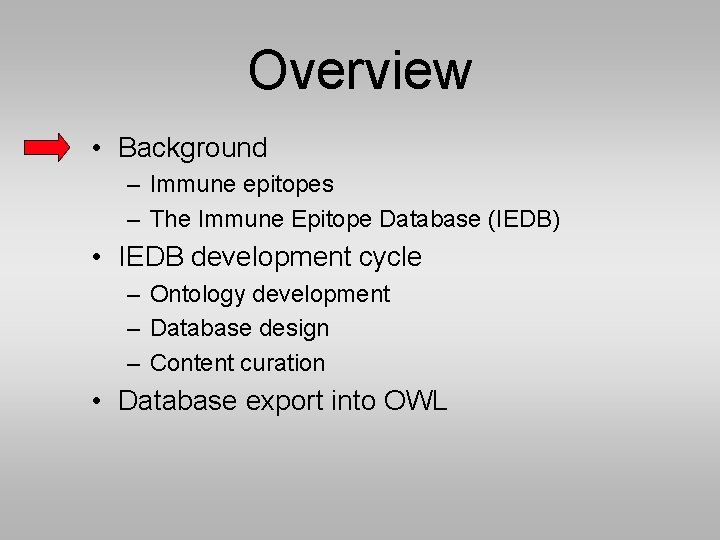

Overview • Background – Immune epitopes – The Immune Epitope Database (IEDB) • IEDB development cycle – Ontology development – Database design – Content curation • Database export into OWL

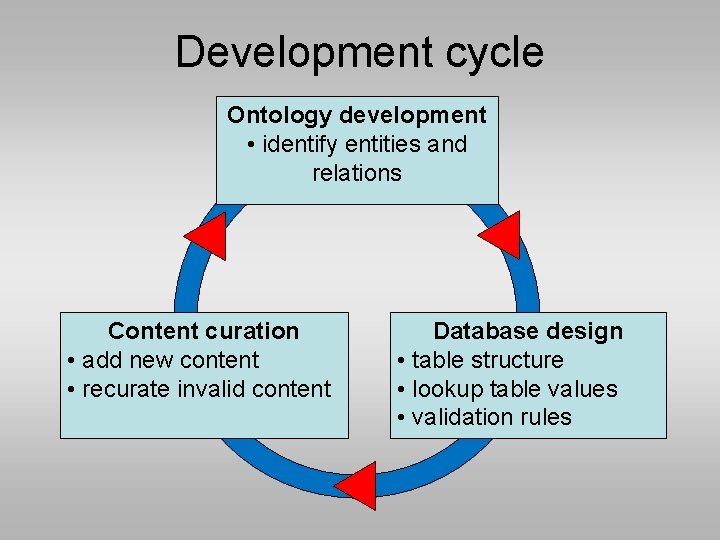

Development cycle Ontology development • identify entities and relations Content curation • add new content • recurate invalid content Database design • table structure • lookup table values • validation rules

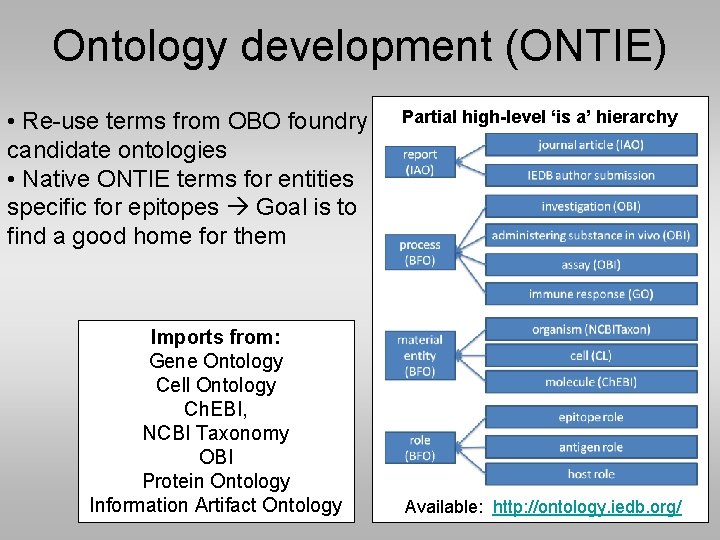

Ontology development (ONTIE) • Re-use terms from OBO foundry candidate ontologies • Native ONTIE terms for entities specific for epitopes Goal is to find a good home for them Imports from: Gene Ontology Cell Ontology Ch. EBI, NCBI Taxonomy OBI Protein Ontology Information Artifact Ontology Partial high-level ‘is a’ hierarchy Available: http: //ontology. iedb. org/

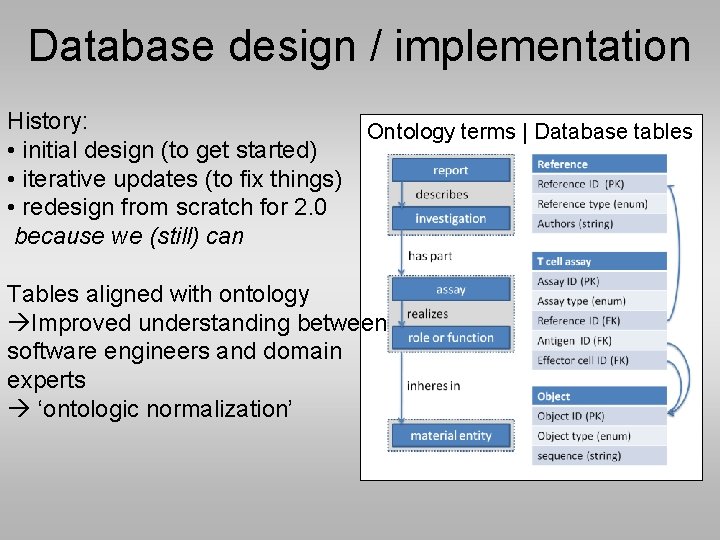

Database design / implementation History: • initial design (to get started) • iterative updates (to fix things) • redesign from scratch for 2. 0 because we (still) can Ontology terms | Database tables Tables aligned with ontology Improved understanding between software engineers and domain experts ‘ontologic normalization’

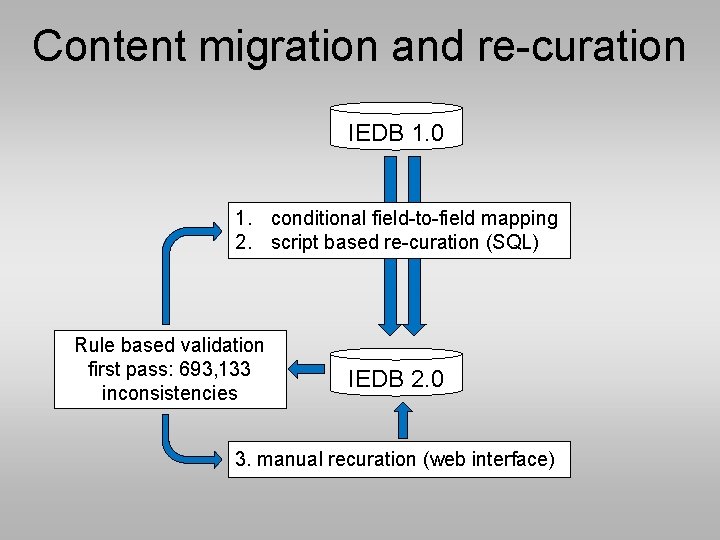

Content migration and re-curation IEDB 1. 0 1. conditional field-to-field mapping 2. script based re-curation (SQL) Rule based validation first pass: 693, 133 inconsistencies IEDB 2. 0 3. manual recuration (web interface)

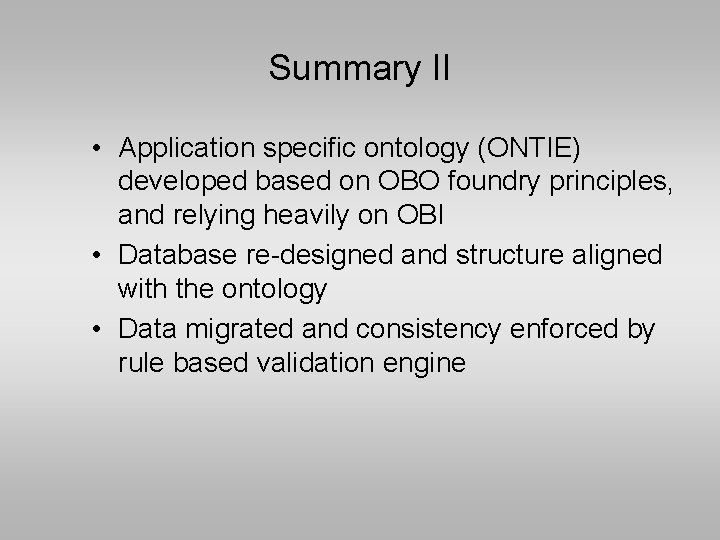

Summary II • Application specific ontology (ONTIE) developed based on OBO foundry principles, and relying heavily on OBI • Database re-designed and structure aligned with the ontology • Data migrated and consistency enforced by rule based validation engine

Overview • Background – Immune epitopes – The Immune Epitope Database (IEDB) • IEDB development cycle – Ontology development – Database design – Content curation • Database export into OWL

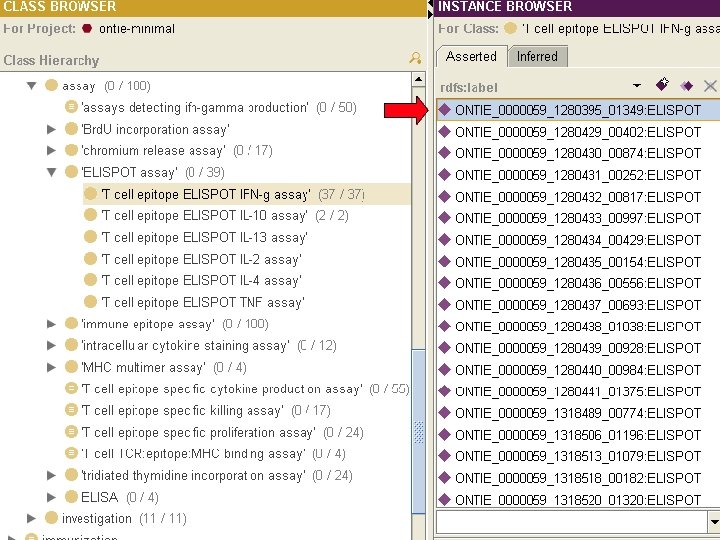

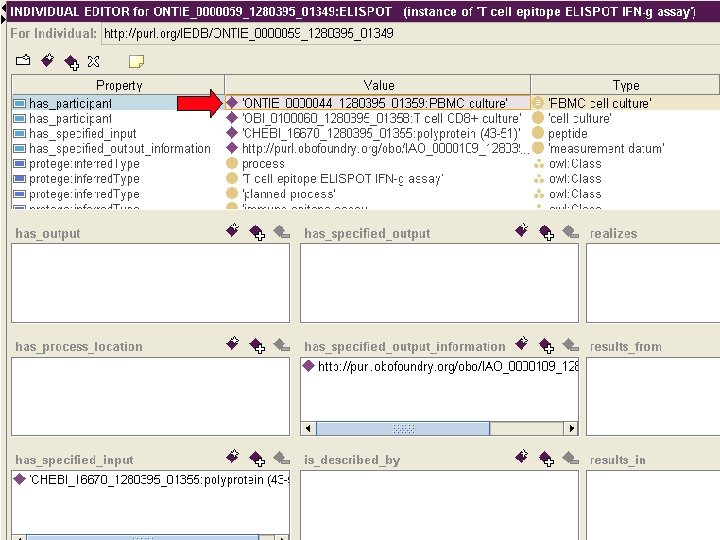

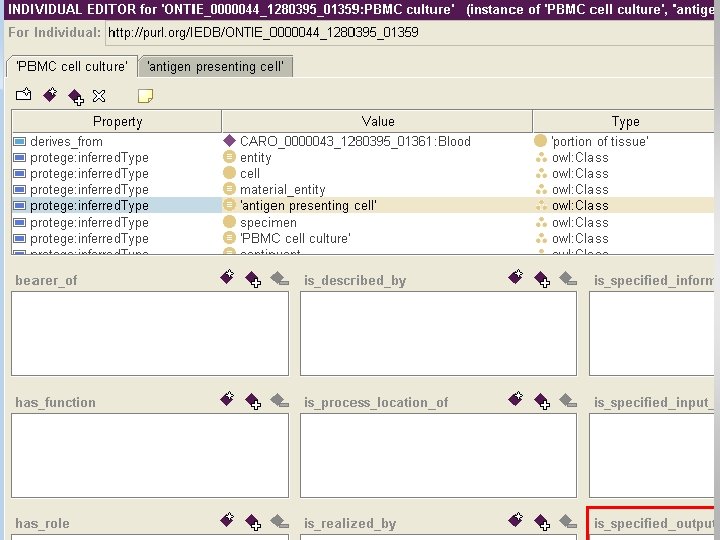

Database export into OWL Subset of IEDB 2. 0

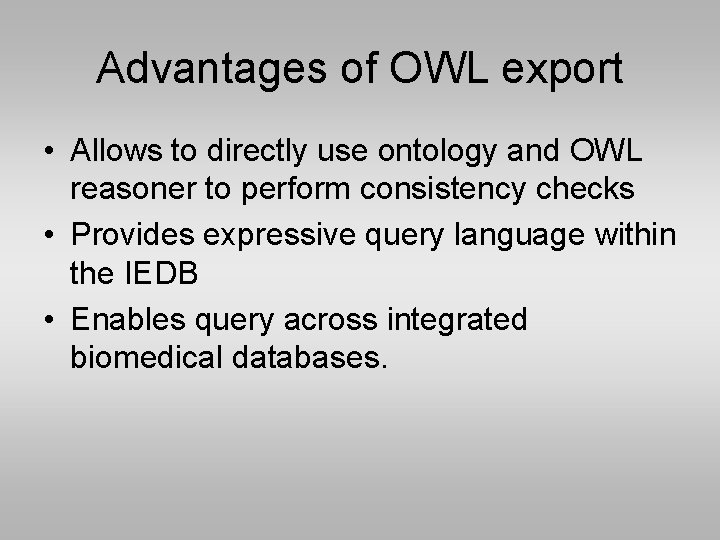

Advantages of OWL export • Allows to directly use ontology and OWL reasoner to perform consistency checks • Provides expressive query language within the IEDB • Enables query across integrated biomedical databases.

Future Work • Provide IEDB in triple store / access through SPARQL queries • Complete ontology development and OWL export for all data in the IEDB • Overcome technical challenges (Pellet takes 1 minute to classify 100 assays; 300, 000 in IEDB…) • Overcome ontological challenges (cells, peptides, negative data, …)

THANKS! OBI Consortium - http: //obi-ontology. org Alan Ruttenberg – Science Commons IEDB Team - www. iedb. org La Jolla Institute for Allergy & Immunology SAIC • Scott Stewart • Tom Carolan • Hussein Emami San Diego Supercomputer Center • Phil Bourne • Julia Ponomarenko • Zhanyang Zhu Technical University of Denmark • Ole Lund • Morten Nielsen University of Copenhagen • Søren Buus
