Report da Conferenza IAEA 2014 G. Calabrò Unità Tecnica Fusione, ENEA C. R. Frascati, Italy Sommario: • Numeri di “orals” per nazione • Commenti su Overview di FTU • Resoconto su lavoro con ASIPP su Snowflake su EAST • G. Altri Lavori su snowflake presenti a FEC, conferenza 25 th IAEA St. Petersburg 2014, OV/5 -4 Pucella 1
“Orals” per Nazione G. Pucella 25 th IAEA FEC, St. Petersburg 2014, OV/5 -4 2
Contributi alla IAEA – FEC 2014 q q q Pucella G (Presented by G. Calabrò, “Overview of the FTU results”, OV/5 -4 Mazzitelli G. , “Thermal loads on FTU actively cooled liquid lithium limiter”, EX/P 2 -46 Sozzi C. , “Experiments on magneto-hydrodynamics instabilities with ECH/ECCD in FTU using a minimal real-time control system”, EX/P 2 -47 Carnevale D. , ”Runaway electron control in FTU”, EX/P 2 -48 Causa F. , “Cherenkov emission provides detailed picture of non-thermal electron dynamics in the presence of magnetic islands”, EX/P 2 -49 q Esposito B. , “On the measurements of the threshold electric field for runaway electron generation in FTU”, EX/P 2 -50 q Granucci G. , “Experiments and modelling on FTU tokamak for EC assisted plasma start-up studies in ITER-like configuration”, EX/P 2 -51 q q q Mazzotta C. , “Peaked density profiles due to neon injection on FTU”, EX/P 2 -52 Botrugno A. , “Driving m/n=2/1 tearing instability by neon injection in FTU plasma”, EX/P 2 -53 Nowak S. , “(N)TM onset by central EC power deposition in FTU and TCV tokamaks”, EX/P 2 -54 Spizzo G. , “Density limit studies in the tokamak and the reversed-field pinch”, EX/P 1 -42 Calabrò G. “EAST Snowflake Experiments: scenario development and edge simulations”, EX/P 3 -4 G. Pucella 25 th IAEA FEC, St. Petersburg 2014, OV/5 -4 3
Oral Overview FTU: commenti q Due domande ricevute: § Quali sono i “campi errori” introdotti nella sperimentazione di breakdown assistito con ECRH § Si può pensare a Sonda Cherenchov su ITER q Mia impressione in generale buona come reazione all’intervento, avanzate richieste di collaborazione. G. Pucella 25 th IAEA FEC, St. Petersburg 2014, OV/5 -4 4
Mio contributo ad IAEA su EAST q “Heat and particle loads” su PFC sono tra i punti da risolvere per il disegno di un reattore. Si studiano “alternative magnetic configuration” per risolverli, tra questi la configurazione magnetica “snowflake divertor”. Original Theory TCV NSTX DIII-D EAST ? SF divertor: secondorder null ( BP 0): – Increases poloidal flux expansion – Multiple strike points G. Pucella EAST No divertor coils (unlike DIII-D and NSTX) Only 12 indipendent PF coils to form SF, considerable fewer than in TCV 25 th IAEA FEC, St. Petersburg 2014, OV/5 -4 5
Risultati presentati q First SF experiments performed on EAST in summer 2014: IP=250 k. A, BT= 1. 8 T, q 95=8, =1. 9, ohmic and with NBI=0. 4 MW: Increase of connection length of 30% and flux expansion of factor 4 with respect to SN configuration ® First observation of possible heat flux reduction in L-mode (to be further investigated) ® G. Pucella 25 th IAEA FEC, St. Petersburg 2014, OV/5 -4 6
Risultati presentati q Plasma current could be futher increaded up to 500 k. A q Next experiments (May – July 2015) devoted to test QSF version of ISOFLUX shape controller, H-mode discharges at low and high current, x-points distance scan G. Pucella 25 th IAEA FEC, St. Petersburg 2014, OV/5 -4 7
Altri lavori su snowflake alla IAEA 2014 G. Pucella 25 th IAEA FEC, St. Petersburg 2014, OV/5 -4 8
Altri lavori su snowflake alla IAEA 2014 HL 2 M G. Pucella 25 th IAEA FEC, St. Petersburg 2014, OV/5 -4 9
Altri lavori su snowflake alla IAEA 2014 HL 2 M G. Pucella 25 th IAEA FEC, St. Petersburg 2014, OV/5 -4 10
Altri lavori su snowflake alla IAEA 2014 DIII-D G. Pucella 25 th IAEA FEC, St. Petersburg 2014, OV/5 -4 11

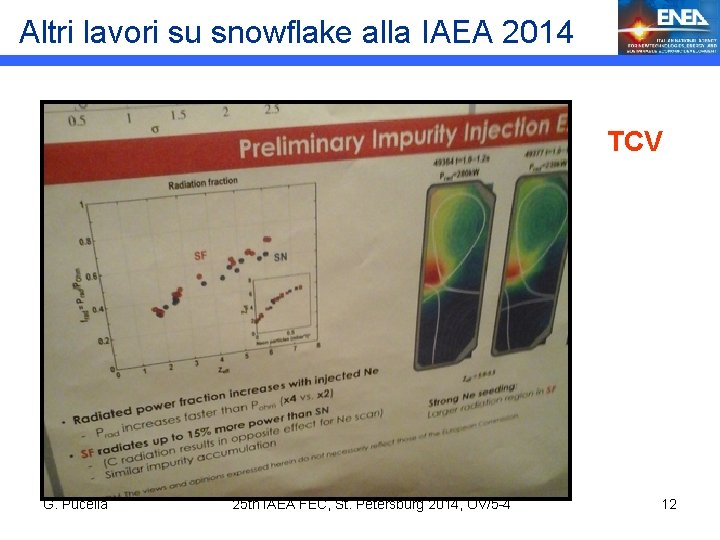

Altri lavori su snowflake alla IAEA 2014 TCV G. Pucella 25 th IAEA FEC, St. Petersburg 2014, OV/5 -4 12
Nota di colore… § University of Texas at Austin: Prof. S. Mahajan, M. Kotschenreuther § “Discussion” sul nome del nostro esperimento al quale avevano pensato anche loro… G. Pucella 25 th IAEA FEC, St. Petersburg 2014, OV/5 -4 13
