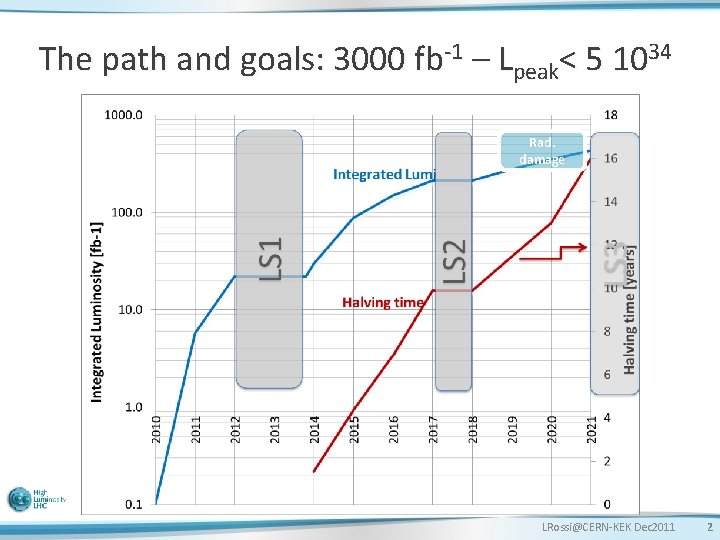

The path and goals: 3000 fb-1 – Lpeak< 5 1034 Rad. damage LRossi@CERN-KEK Dec 2011 2
Tuning of the goal after summer Efficiency is defined as the ratio between the annual luminosity target of 250 fb -1 over the potential luminosity that can be reached with an ideal cycle run time with no stop for 150 days: trun= tlev+tdec+tturn. The turnaround time after a beam dump is taken as 5 hours, tdecay is 3 h while tlev depends on the total beam current LRossi@CERN-KEK Dec 2011 3
Cycle in the HL-LHC run 20 E+34 pile up heat deposition in IR and DS other? LRossi@CERN-KEK Dec 2011 4
Possible evolution toward 3000 fb-1 LRossi@CERN-KEK Dec 2011 5
IR Magnets (triplet, D 1, D 2, MQ 4, …) SC Crab Cavities, IR Collimation LRossi@CERN-KEK Dec 2011 6
Other changes • Cryogenics • During LS 2, a new refrigerator will be installed at P 4, to feed RF cavities and restore IR 5 L • Refrigerator 6. 5 k. W @ 4. 5 K: • 4. 5 k. W + 0. 25 k. W (flash) + 0. 12 k. W (thermal losses line & valve box) + 1. 6 k. W (contingency 33%) • During LS 3 new refrigerators for P 1 -P 5 • Warm compressor installed in surface. Warm gas lines in Pit • Cold boxes installed in underground and surface (if 2 K or 1. 8 K options) • Distribution and transfer lines to equipments (magnets, DFBs, crab-cavities ? , SCL ? , sector powering ? . . . ) LRossi@CERN-KEK Dec 2011 7
Other changes (list not exhaustive…) • R 2 E: whatever needed, see from experience frome next years • P 8 • Removal of EPC and DFBX from tunnel to surface via long SC links rated of 0. 1 -1 GW d. c. LRossi@CERN-KEK Dec 2011 8
LIU – LHC Inj Upgrade (R. Garoby) LS 2 (2018) and LS 3 (2012 -23) • Linac 4 (160 Mev H- vs. 50 Me. V H of Linac 2) Ready by mid 2014 Connected 2015? Reliability, brilliance… • PS Booster upgrade: from 1. 4 Ge. V (800 Gev) to 2 Ge. V to reduce space ahrge at PS injection Intensity gain : +65% Project launched; • SPS reduction of impedence new optics with low t (26 15 Ge. V) new 200 MHz cavities reduction e-clouds by vaccum chamber coating (or scrubbing? ) LRossi@CERN-KEK Dec 2011 9
The HL composition, larger than FP 7 Hi. Lumi Collimation Project Eu. CARD 2 WP 10 on HTS dipoles High Field Magnets R&D Matching section and correctors Beam Diagnostics HE-LHC Studies Hardware Commissioning LRossi@CERN-KEK Dec 2011 10
Budget FP 7 Hi. Lumi and HL-LHC Perfect score 15/15, ALL request to EU granted Estimated cost for the whole HL-LHC over 10 years in M€ (October 2010) LRossi@CERN-KEK Dec 2011 11
3 days Collaboration Meeting at CERN 14 -18 Nov (160 people) Collaboration Board members/invited LRossi@CERN-KEK Dec 2011 12
LRossi@CERN-KEK Dec 2011 13
Staff Hi. Lumi Design Study, with 377 p-m by US Labs and 159 by KEK (Magnets, CC, AP) 163 FTE-y LRossi@CERN-KEK Dec 2011 14
New baseline to follow the new EU strategy for HEP! Goal: HL-LHC approved by 2013 CB of 17 Nov 2011 , message from President of Council, Prof. Spiro: PDR needed in preliminary form by Oct 2012, endorsed by SAC and MAC, approved by CERN Mngt for Council and HEP strategy Group (final step : Council Bruxelles June 2013) Need to fix choice earlier LRossi@CERN-KEK Dec 2011 15
Malta Workshop 14 -16 October 2010 HE-LHC @ 33 Te. V c. o. m Magnet design: very challanging but not impossible. 300 mm inter-beam Multiple powering in the same magnet (and more sectioning for energy) Work for 4 years to assess HTS for 2 X 20 T to open the way to 16. 5 T/beam. Otherwise limit field to 15. 5 T for 2 x 13 Te. V Higher INJ energy is desirable (2 x. SPS) The synchrotron light is not a stopper by operating the beam screen at 60 K. The beam stability looks « easier » than LHC thanks to dumping time. Collimation is possibly not more difficult than HL-LHC. Reaching 2 x 1034 appears reasonable. The big challenge, after main magnet technology, is beam handling for INJ & beam dump: new kicker technology is needed since we cannot make twice more room for LHC kickers. LRossi@CERN-KEK Dec 2011 16
EC - FP 7 Eu. CARD 2 joint research activity • WP 10 : Future Magnets : 2013 -2016. • 5 T HTS Dipole Magnets 40 mm bore Accelerator Quality • To be tested as insert in existing 13 T magnet • KEK and Univ. of Kyoto (and 5 US labs & Univ) declared associate collaborators. Interest in YBCO technology. Beneficiary CERN CEA INPG INFN KIT SOTON UNIGE UT BHTS TUT DTI TOTAL: Total Person. Months Total Sub. Total Personnel contracting Consumable direct costs indirect cost and prototype costs direct costs 120 1, 129, 740 54 321, 278 43 141, 384 39 144, 495 16 94, 224 16 89, 680 12 109, 872 20 131, 580 38 223, 782 8 37, 757 10 66, 687 376 Total Travel direct costs Total direct Material and costs travel indirect costs Toal indirect costs Total EC (direct requested +indirect) funding 677, 844 202, 405 84, 830 86, 697 100, 800 79, 815 65, 923 78, 948 304, 344 22, 654 46, 681 - 800, 000 160, 000 12, 000 130, 000 80, 000 40, 000 50, 000 150, 000 20, 000 71, 000 20, 000 8, 000 14, 000 10, 000 4, 000 8, 000 4, 000 12, 000 6, 000 522, 600 12, 000 86, 400 32, 400 34, 800 7, 200 - 2, 000, 740 501, 278 161, 384 288, 495 184, 224 139, 680 163, 872 189, 580 377, 782 49, 757 92, 687 1, 200, 444 202, 405 96, 830 173, 097 100, 800 79, 815 98, 323 113, 748 304, 344 29, 854 46, 681 3, 201, 183 703, 683 258, 214 461, 592 285, 024 219, 495 262, 195 303, 328 682, 126 79, 612 139, 368 346, 385 315, 805 101, 672 181, 752 116, 061 87, 998 103, 239 119, 435 238, 003 31, 347 58, 393 2, 490, 479 1, 750, 942 - 1, 492, 000 167, 000 695, 400 4, 149, 479 2, 446, 342 6, 595, 820 1, 700, 091 LRossi@CERN-KEK Dec 2011 17
What is the possibile for HE-LHC? US basic programs and LARP R&D EU FP 6 -CARE-NED US 16 T small dipole 2005 LARP 11 T long quad Eu. CARD R&D 2010 HE-LHC preliminary study Eu. CARD 13 T large dipole+ 18 T small insert US 13 T Quads FP 7 -Hi. Lumi US Nb. Sn-HTS development 2015 Eu. CARD 2 full bore dipole HTS 15 -20 T R&D dipole models and prototypes 2020 HTS for HE-LHC: yes. or. no 15 -20 T dip final proto & Industrialization 2025 Industry contracts, start constrution Final delivery Magnets HE -LHC 2030 2035 HE-LHC start-up LRossi@CERN-KEK Dec 2011 18
Hi. Lumi (and HE) LHC : the best use of the (renovated) existing infrastructure LHe. C ? LRossi@CERN-KEK Dec 2011 19
