TARGET OF LEARNING 1. Student comprehend benefit installation of film glass 2. Student know the way of chosening film glass 3. Student can do procedure installation of film glass better 2 Teknologi dan Rekayasa

PERCEPTION GLASS FILM 1. Installing Glass Film will make car cabin temperature earn remain to be cold Perception Glass Film 2. Protected from yg heat though moment parked by esplanade in the day time 3 Teknologi dan Rekayasa

PERCEPTION GLASS FILM 60 -70% heat come from panel ( car body) Fact 30 -40% HEAT FROM GLASS 60 -70% heat enter from front glass (winshield) 4 Teknologi dan Rekayasa

FUNGTION OF GLASS FILM Comfort, weaken heat which enter from balmier glass so that Privacy, chasing people outside in order not to easy to see into car cabin Efficiency, more economize fuel because performance of kompresor A / c to degrade lighter cabin temperature and performa of machine more energetic moment of kompresor do not work because cabin have reached optimum temperature Healthy, Film glass can refuse ultra violet ray and of Infra-Red endangering to health of husk 5 Teknologi dan Rekayasa

GLASS FILM TYPES 1. UVT (Ultraviolet Transmittance), GLASS FILM TYPES 2. VLT (Visible Light Transmittance) 3. IRR (Infra Red Reflectance/Rejected) 4. TSER (Total Solar Energy Rejected) 6 Teknologi dan Rekayasa

GLASS FILM TYPES 1. UVT (Ultraviolet Transmittance) 1. Ultraviolet is light of yg can make : q barst Husk interior / break q car interior colour fade ( fading) q can cause husk cancer Smaller % UVT progressively goodness, in general film glass of branded can refuse UV 99% ( UVT = 1% or UVR = 99%) 7 Teknologi dan Rekayasa

GLASS FILM TYPES 2. VLT (Visible Light Transmittance) Dark Percentage of VLT designate the level of late light through film glass. VLT relate to percentage of darkness of film glass 8 Teknologi dan Rekayasa

GLASS FILM TYPES As reference among VLT with level darkness of KF 1. VLT 70%, darkness of film glass 1015% 2. VLT 60%, darkness of film glass 1520% 3. VLT 35 -40%, darkness of film glass 3040% 4. VLT 20%, darkness of film glass 5560% 5. VLT 10%, darkness of film glass 70% 6. VLT 5%, darkness of film glass 80% 9 Teknologi dan Rekayasa

GLASS FILM TYPES IRR (Infra Red Reflectance/Rejected) 1. Infra-Red is hot radiasi which brought by sunlight 2. ever greater of spec % IRR progressively goodness. 10 Teknologi dan Rekayasa

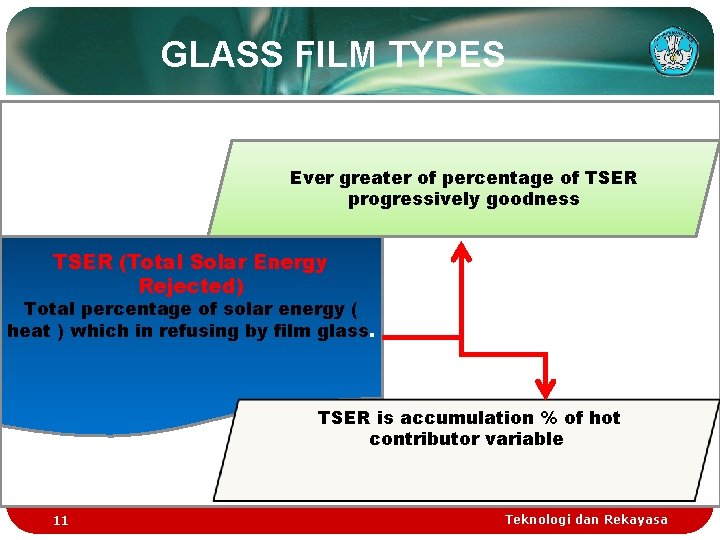

GLASS FILM TYPES Ever greater of percentage of TSER progressively goodness TSER (Total Solar Energy Rejected) Total percentage of solar energy ( heat ) which in refusing by film glass. TSER is accumulation % of hot contributor variable 11 Teknologi dan Rekayasa

GLASS FILM TYPES TABLES OF the SPECIFICATION OF GLASS FILM 12 Teknologi dan Rekayasa

GLASS FILM TYPES 13 Teknologi dan Rekayasa

CLEANING EQUIPMENT tissue paper Plas Chamois Spon 14 Teknologi dan Rekayasa

PREPARATION SURFACE OF GLASS ITS WAY 1. Glass take bath with water 2. Rub slow and labour unidirectionally 3. Drying 15 Cleaning surface of glass of : v Dirt v Oil / grease MEASUREMENT 1. Wide Measure of glass 2. Make mal 3. Crosscut of film glass with cutter 4. Install according to procedure Teknologi dan Rekayasa

INSTALLING GLASS FILM required appliances : q Cutter q Ruler q Spidol q Kape Plastic q Clean Dust-Cloth. 16 Teknologi dan Rekayasa

INSTALLING GLASS FILM Workmanship step 1 q open coat at film glass. q Do slowly. q Started at the end of film glass, followed on the other hand. 17 2 Don'T open the overall of film glaze, new start to patch. This such in order not to happened distension of air Teknologi dan Rekayasa

INSTALLING GLASS FILM 4 3 coat douche stick on film glass with shampoo 18 use plastic kape Kape good for watering down to smooth down coat 5 ascertainin g there no water nor air Teknologi dan Rekayasa

INSTALLING GLASS FILM 6 Then mop with clean cloth 19 Teknologi dan Rekayasa
