Renewable Energy: The Potential of Biomass - Sustainability, Rural Environment and Enterprise Professor Adrian Mc. Donald University of Leeds with contributions by Dr Keith Pitcher, First Renewables University of Leeds

This presentation will be placed on the School of Geography Web Site www. geog. leeds. ac. uk University of Leeds

The Content l A Reminder about A Levels l Drivers and Policy for Renewables – World – Europe – UK – Local l Arbre The Project University of Leeds

Just One Mark More l Most of you will have a mark between 45 and 67. l Although it varies from year to year, 45 might make an ‘E’ and 67 an ‘A’. l Thus 66 is a ‘B’, as is 66. 9 and 66. 99 l So only about 5 marks is the width of a grade!!!! l So 20% of you here only need one more mark for a higher grade. University of Leeds

The Drivers l Climate Change and Global Warming l Kyoto Commitments l 20% CO 2 reduction by 2010 l Limited Options: – Transport or Power – Onshore wind, Offshore wind, Biofuel University of Leeds

Renewable Energy Development in Europe The driving forces in Europe are: l World-wide concerns about CO 2 levels, post Kyoto l Desire to increase the share of indigenous energy fuels l Desire to reduce the fossil fuel use, especially imports l Need to use surplus land effectively l Need to promote clean and efficient energy technologies l Need to bring employment into rural agricultural sectors l Wish to see sustainable regional development University of Leeds

European Policies for Renewable Energy l l l European Union White Paper 1998 – need identified to accelerate renewables – doubling of current use of 6% by 2010 – biomass a key role European Directive on Renewable Energy – equiv. to 22. 1% electricity supply by 2010 – adopted by Commission & Parliament, becomes law summer 2001 – national targets (not legally binding), guaranteed access to grids, 4 year period to set up + 7 years to implement harmonisation Strong European drive to double energy Kyoto obligation to reduce basket of greenhouse from renewables, with higher targets later gases University of Leeds

UK Policies for Renewable Energy l l Domestic goal of reducing CO 2 emissions by 20% by 2010 New & Renewable Energy – 10% target by 2010 (50 TWh) – obligation on supply companies – 3 p/k. Wh buyout price – additional support for emerging technologies MAFF National Biomass Energy Strategy & New Rural Development Programme – 125, 000 hectares energy crops target - £ 5 m per year grants for establishment Royal Commission on Environmental Pollution – sustainable energy policy paramount – development. University of energy and environment in parallel of Leeds

Local Drivers l Setaside l Farm Forestry Grants l Sludge Disposal l Non Fossil Fuel Obligation Premiums l Company Diversification University of Leeds

Market Penetration in the EU of Renewable Energies by 2020 using Best Practice Policies 228 Mtoe - 12% of energy supply University of Leeds EC’s TERES report

Percentage Share of Renewable Energy Sources in Gross Inland Energy Consumption In 2000 2% of electricity supply University of Leeds

ARBRE - The Project l A sustainable electricity generator with renewable fuel l Fuelled by forest residues and new willow coppices l The wood produces a clean gas for combined cycle plant l Being built at Eggborough, near Selby, in North Yorkshire l Completion date was expected end 1999 l Completed 2001 – 2002 depends on definition but…. . l 85% FRL, 10 % TPS , 5% Royal Schelde l c. £ 30 m capital invested, with THERMIE and DTI support University of Leeds

Generating Plant Process l l l Wood is delivered as chips, weighed & sampled, offloaded to covered store and dried using waste heat from the plant The chips are gasified and cleaned in the plant The gas is compressed for use in a combined cycle generation set The site will export 8 MW to the local grid, enough for the domestic electricity needs of 33, 000 people 20 direct full time operational jobs are created at site, with similar numbers in the fuel supply chain Local people are represented on the liaison committee University of Leeds

Process Schematic Gas clean up - tar cracker - wet scrubber Gasifier Dryer Store Heat Gas flows Wood fuels Gas turbine Boiler Electricity University of Leeds Steam turbine

Gas Turbine University of Leeds

ARBRE 1 - Eggborough

Short Rotation Coppices l l A new crop for growers SRCs may be planted on different types of soils Plant in spring, cutback in autumn & harvest every 3 yrs Planting density 15, 000 per ha with 6 varieties of willow • Contracts with growers are for 15 years, to match NFFO • Planting grants are obtained from WGS • MAFF have secured supplementary payments to WGS for ARBRE University of Leeds

Environmental Assessment l Mandatory for certain projects, optional for others – (see Do. E Good Practice Guide 1995) l l l Ensures that technical and environmental aspects developed in parallel Need necessary Site selection becoming of increasing importance Scoping agreement with planning authority Reduces likelihood of unfounded objections Builds consensus between interested parties University of Leeds

Short Rotation Coppice Environmental l l Land Use SRC is robust and it can be grown on agricultural land, reclamation sites and old mining spoil heaps that are currently desolate. Digested sewage sludges are applied to improve the nutrient status and over time will improve the soil and regenerate the land. Biodiversity SRC creates a mix of wildlife habitats in the plantations and the headlands. In particular songbirds and warblers are found in high numbers. SRC supports the highest number of invertebrates of all types of woodland. University of Leeds

Wood Fuel Supply - Forestry l Forestry residues come from Forest Enterprise (East England) l Other supplies are being sourced from forests in the Yorkshire region - 3 contracts have been agreed l 12, 000 tonnes of woodchips & 1, 000 tonnes of SRW have been stockpiled l Transportation systems are being examined for bringing wood chips University of Leeds

Wood Fuel Supply - Transportation l The main forestry sources are Kielder, Thetford and North York Moors l Transportation systems are being examined for bringing wood chips: – by road, using back to back journeys – by train l Planning permission has been gained for the construction of a new railhead at Eggborough. Support for funding has been made to the DETR. University of Leeds

Plant Impacts Noise l Emissions l Flares l Landscape l Ash l University of Leeds

Fuel Impacts l Transport l Pests l Carbon Balance l Metals l Monoculture l Leaching l Security l Restoration University of Leeds

Short Rotation Coppice Environmental Benefits l l Land Use SRC can be grown on agricultural land, brownfield/ reclamation sites and old mining spoil heaps that are currently desolate. Digested sewage sludges can be applied to improve the nutrient and organic status which over time will improve the soil and regenerate the land. Biodiversity SRC creates a mix of wildlife habitats in the plantations and the headlands. In particular, songbirds and warblers are found in high numbers. SRC supports the highest number of invertebrates of all types of woodland. University of Leeds

Coppice Planting Rods University of Leeds

SRC Planting University of Leeds

Coppice after 2 weeks University of Leeds

Coppice after 3 months University of Leeds

Coppice harvesting University of Leeds

SRC Harvesting University of Leeds

European Role l l l Clarity and robustness of targets - EC to lead AND police Level the playing field for renewables, viz historic subsidies to other fuels Fuel flexibility is essential Source: Greenpeace University of Leeds

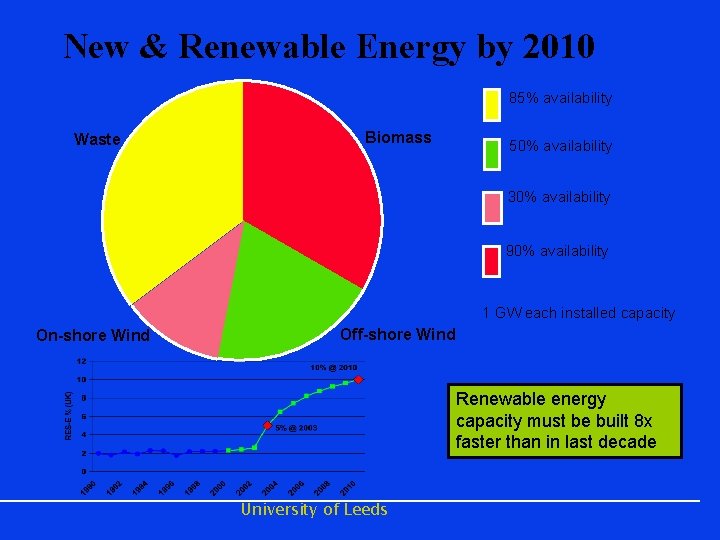

New & Renewable Energy by 2010 85% availability Waste Biomass 50% availability 30% availability 90% availability 1 GW each installed capacity On-shore Wind Off-shore Wind Renewable energy capacity must be built 8 x faster than in last decade University of Leeds

Summary - The Way Forward l l l Key drivers for renewables include: • diversity and security of supply • CO 2 reductions • industrial/agricultural job opportunities 10% from renewables is a credible and achievable target Biomass and offshore wind are key opportunities, with 35 - 40 biomass plants and 10 -20 wind farms needed by 2010 ARBRE is the first commercial biomass example and FRL wish to develop 350 MW plus offshore wind by 2010 The benefits include • clean and sustainable energy with CO 2 reductions • leadership, market scale, profit and job creation University of Leeds

Future Biomass Projects Areas have been identified throughout l l l the UK that can grow SRC Each of the next Second Generation projects will be 35+MW – each requiring 7 - 8000 ha SRC – some will be located in areas that are predominately grassland – each supplying 100, 000 people – each fuelled from mix of willow, forestry and clean wood South Yorkshire and Somerset offer good potential Part of regeneration programmes Develops sustainable local economy Permanent full time jobs – operations + maintenance (20) & fuel (20) – (+ shorter term construction) University of Leeds

Second Generation ARBRE - Layout University of Leeds

Arbre Outline l Gasification Plant producing 8 MW net l Fuelled by coppice or wood residues l Next station 35 – 50 MW l 5 new stations University of Leeds

But BUT University of Leeds

For the moment Project Arbre has been shut down! Kelda group sold First Renewables and the new company seeks profitability immediately. It is expected that it will be reopened on purchase by a more far sighted company. University of Leeds

DETR Environment for Renewables l l l The EU has a binding target to reduce CO 2 levels and renewables have a vital role to play The 10% UK target for renewables demonstrates a national need It is clear that these will be interim targets, with a drive to produce energy in a more sustainable manner Regional targets may be a useful mechanism in translating national need to regional contributions Renewables produce energy in a more dispersed manner and by smaller scale projects compared to fossil fuel generation The planning regime must be consistent and recognise the contributions that individual renewables projects make in achieving overall targets University of Leeds
