Remote Sensing and GIS Application Lecturer Third Year Ruba Yousif Hussain Coordinate Systems and Map Projections There are two types of coordinate systems Geographic Coordinate Systems Projected Coordinate Systems Because the shape of the earth is approximately spherical, locations on the earth's surface are often described in an angular coordinate or geographi cal system, with latitude and longitude specified in degrees (°) , minutes (') , and seconds ("). Unfortunately, the calculation of distances and areas in an angular coordinate system is complex. More significantly, it is impossible to accurately represent the three dimensional surface of the earth on the two dimensional planar surface of a map or image without introducing distortion in one or more of the following elements: shape, size, distance, and direction. Thus, for many purposes the geo graphical coordinates are transformed to a planar, or Cartesian (X-Y) ( Projected coordinate system ) . The result of this transformation process is referred to as a map projection. 2

Remote Sensing and GIS Application Lecturer Third Year Ruba Yousif Hussain Types of Map projections include cylindrical , conic , and azimuthal or planar surfaces. Figure 1 3

Remote Sensing and GIS Application Lecturer Third Year Ruba Yousif Hussain Properties of map pro jection A conformed map pro jection preserves angular relationships, or shapes, within local areas; over large areas, angles and shapes become distorted. An azimuthal (or zenithal) projection preserves absolute directions relative to the central point of projec tion. An equidistant projection preserves equal distances, for some but not all points. scale is constant either for all distances along meridians or for all dis tances from one or two points. An equal-area (or equivalent) projection pre serves equal areas. Important Map projections Universal Transverse Mercator ( UTM ) UTM is an international plane (rectangular) coordinate system developed by the US Army that extends around the world from 84°N to 80°S. The world is divided into 60 zones each covering six degrees longitude. Each zone extends three degrees eastward and three degrees westward from its central meridian. Zones are numbered consecutively west to east from the 180° meridian. Figure 2 shows UTM Grid Zones of the World. 4

Remote Sensing and GIS Application Lecturer Third Year Ruba Yousif Hussain Dadum A datum is a mathematical definition of the three dimensional solid (generally a slightly flattened ellipsoid) used to represent the surface of the earth. The actual planet itself has an irregular shape that does not correspond perfectly to any ellipsoid. As a result, a variety of different datums have been described, some designed to fit the surface well in one particular region and others designed to best ap proximate the planet as a whole. Most of the world has adopted the World Geodetic System of 1984 ( WGS 1984 ) The geoid is defined as the surface of the earth's gravity field , which is approximately the same as mean sea level. It is perpendicular to the direction of gravity pull. Since the mass of the earth is not uniform at all points, and the direction of gravity changes, the shape of the geoid is irregular. To simplify the model, various spheroids or ellipsoids have been devised. A spheroid or ellipsoids is a three dimensional shape created from a two dimensional ellipse. The ellipse is an oval , with a major axis (the longer axis) and a minor axis (the shorter axis). If you rotate the ellipse, the shape of the rotated figure is the spheroid. 5

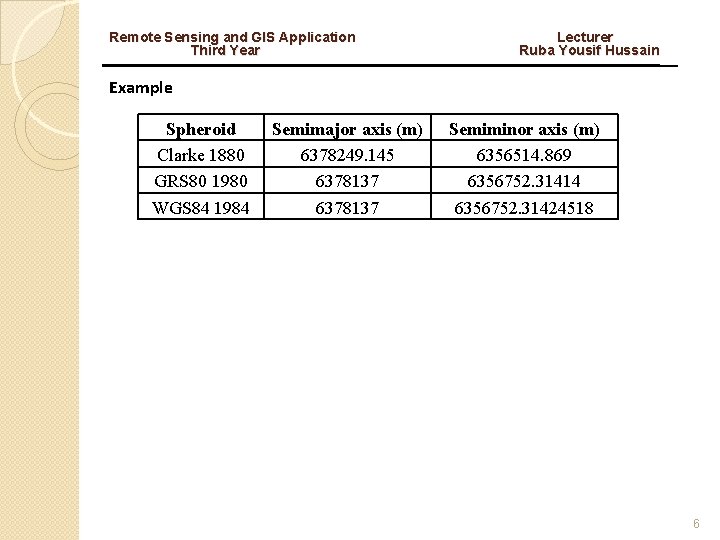

Remote Sensing and GIS Application Lecturer Third Year Ruba Yousif Hussain Example Spheroid Clarke 1880 GRS 80 1980 WGS 84 1984 Semimajor axis (m) 6378249. 145 6378137 Semiminor axis (m) 6356514. 869 6356752. 31414 6356752. 31424518 6

Remote Sensing and GIS Application Lecturer Third Year Ruba Yousif Hussain Figure 2 UTM Grid Zones of the World 7

Remote Sensing and GIS Application Lecturer Third Year Ruba Yousif Hussain Geographic and Map Coordinate Systems in Iraq Spheroid Datum Semimajor axis ( a ) Semiminor axis ( b ) Inverse flattening ( 1 / f ) Eccentricity ( e 2 ) Projection False northing False easting Latitude of origin Central meridian Scale factor Geographic Coordinate System WGS 1984 6378137. 0 m 6356752. 314 m 298. 257 0. 00669438 Map Coordinate System UTM of Zone 38 North 0 m 500000 m 0° 45° 0. 9996 8

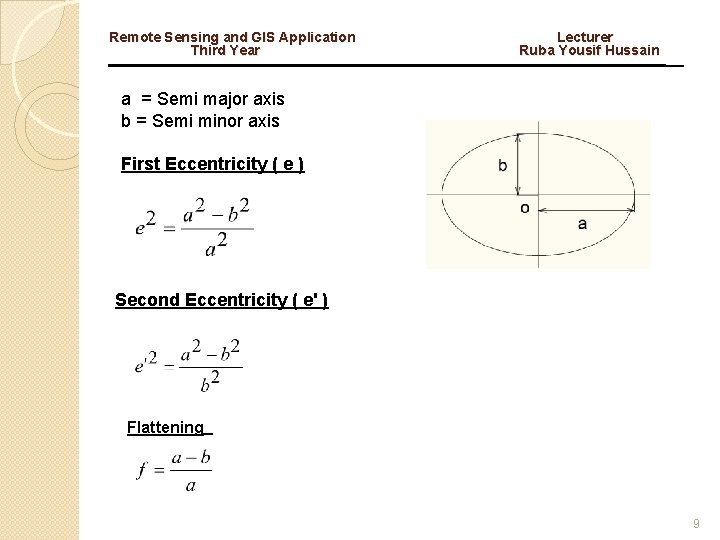

Remote Sensing and GIS Application Lecturer Third Year Ruba Yousif Hussain a = Semi major axis b = Semi minor axis First Eccentricity ( e ) Second Eccentricity ( eʹ ) Flattening 9

Remote Sensing and GIS Application Lecturer Third Year Ruba Yousif Hussain Coordinate Conversion X = ( N + ) cos φ cos λ Y = ( N + H ) cos φ sin λ Z = [ N ( 1 – e 2 ) + h ] sin φ Where φ , λ , h = geodetic latitude , geodetic longitude , and height above ellipsoid. X , Y , Z = Geocentric Coordinates of any point N = radius in the prime vertical of the ellipsoid at a point 10

Remote Sensing and GIS Application Lecturer Third Year Ruba Yousif Hussain Example 1 Given the following major axis and minor axis of the WGS 84 datum, Major axis= 12, 756, 274 m , Minor axis= 12, 713, 504. 628 m. Find the flattening, inverse flattening, first eccentricity, and second eccentricity. Solution , e = 0. 081819191 , eʹ = 0. 082094438 11

Remote Sensing and GIS Application Lecturer Third Year Ruba Yousif Hussain Example 2 Compute the Cartesian coordinates (X, Y, Z) of point A whose geodetic latitude equals 22° , geodetic longitude equals 30° , and geodetic height equals 10 m. Use the WGS 84 ellipsoid whose parameters are: Semi major axis 6378137 m , and Semi minor axis 6356752 m. Solution X = ( N + H ) cos φ cos λ = 5123834. 673 m Y = ( N + H ) cos φ sin λ =2958247. 328 m Z = [ N ( 1 – e ) + h ] sin φ = 2374416. 423 m 12

Remote Sensing and GIS Application Lecturer Third Year Ruba Yousif Hussain Google Maps use a Mercator projection based on the World Geodetic System (WGS) 1984 geographic coordinate system (datum). The coordinates can be founded on Google Maps by 1. Search for an address or the place you want to locate Google Maps. This will open a Google map. 2. Drop a pin. Click on the exact location you'd like coordinates for. 3. Right click on the pin and select "What's here? ". 4. Get your location's latitude and longitude. Problem The geodetic latitude , longitude , and height of a point A are 41° 15ʹ 18. 2106ʺ N , 75° 00ʹ 58. 6127ʺ W , and 312. 391 m , respectively. Using WGS 84 values , what are the geocentric coordinates of the point ? Questions 1. What is map projection in GIS? Answer A map projection is one of many methods used to represent the 3 dimensional surface of the earth or other round body on a 2 dimensional plane in cartography (mapmaking). 2. What are the four types of distortion with map projections? Answer There are four basic characteristics of a map that are distorted to some degree, depending on the map projection used. These characteristics include distance, direction, shape, and area. 13
