REMOTE IOs for Warm Magnet Interlocks RADIATION TEST
- Slides: 18

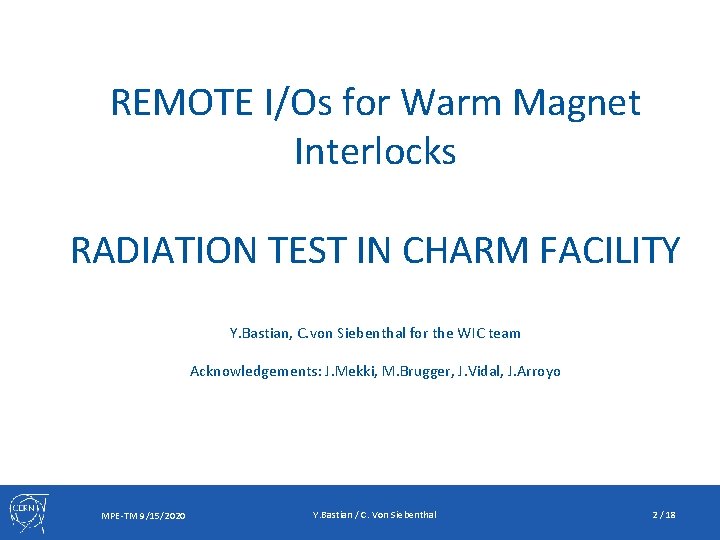

REMOTE I/Os for Warm Magnet Interlocks RADIATION TEST IN CHARM FACILITY Y. Bastian, C. von Siebenthal for the WIC team Acknowledgements: J. Mekki, M. Brugger, J. Vidal, J. Arroyo MPE-TM 9/15/2020 Y. Bastian / C. Von Siebenthal 2 / 18
WIC (Warm magnet Interlock Controller) layout • Standard and generic interlock system for normal conducting magnets based on PLC: Collects inputs from thermo-switches, flow switches and internal PC faults – Allows/inhibits start of power converter and beam operation – MPE-TM 9/15/2020 Y. Bastian / C. Von Siebenthal 3 / 18
WIC (Warm magnet Interlock Controller) layout • Advantages • • Highly reliable system, long lifetime Generic HW and SW components, configured to specific application through Controls Config DB Already 32 PLCs/system in operation throughout the complex Challenges • • Most SIEMENS components are not (or only to a very limited extend) radiation tolerant, few remote I/O modules qualified for ~100 Gy for TL installations (TI 2, TI 8, …) Trade off between installation close to the machine (rad tolerant I/Os) and cabling cost (typically already 2/3 of renovation budget) MPE-TM 9/15/2020 Y. Bastian / C. Von Siebenthal 4 / 18
Aim of radiation test campaign • Architecture for new installations/renovations in the injector complex (e. g. PS) could be greatly simplified/ made cost efficient using a ‘low density’, radiation tolerant remote I/O solution • Easy to install on site/integrate with SIEMENS PLCs/Win. CC • Ideally configurable in order to provide one/few inputs and outputs per connector (magnet) MPE-TM 9/15/2020 PS radiation levels Y. Bastian / C. Von Siebenthal 5 / 18
Module samples under test MURR ELEKTRONIK PHOENIX CONTACT Dimensions : 225 x 63 x 42 mm (DIN rail mounting possible) Dimensions : 185 x 60 x 38 mm (DIN rail mounting possible) 24 VDC power supply Consumption : 200 m. A Consumption : 160 m. A I/O : pin 2 input pin 4 input or output I/O entirely configurable IP 67 MPE-TM 9/15/2020 Y. Bastian / C. Von Siebenthal 6 / 18
Module samples under test - Architecture PC = PHOENIX CONTACT ME = MURR ELEKTRONIK MPE-TM 9/15/2020 Y. Bastian / C. Von Siebenthal 7 / 18
Module samples under test - Crate • Two crates to be tested • 5 PHOENIX and 5 MURR per crate • Independant powered and protected (by fuse) • Remote reset and current measurement for each module Assembled test crates 3 D integration drawings MPE-TM 9/15/2020 Y. Bastian / C. Von Siebenthal 8 / 18
CHARM facility Beam from PS Target Dump CHARM (Cern High energy Accele. Rator Mixed field facility) MPE-TM 9/15/2020 Y. Bastian / C. Von Siebenthal 9 / 18
CHARM facility MPE-TM 9/15/2020 Y. Bastian / C. Von Siebenthal 10 / 18
CHARM facility – fluency map Beam from PS Area for our test equipment (lower exposed area) MPE-TM 9/15/2020 Y. Bastian / C. Von Siebenthal 11 / 18
CHARM facility – Test plan for remote I/Os: Progressive increase of TID over a 10 days period About 450 Gy TID (Gy) Lower density Aluminium target 0. 5 -1 Gy/h < 0. 5 Gy/h 96 Gy Copper target 3 Gy/h 24 Gy 2 MPE-TM 9/15/2020 5 Y. Bastian / C. Von Siebenthal Time (day) 12 / 18
SW implementation • Specific code base developed for radiation test (fast cycling and readback of I/Os for detection of SEUs in both logical states) • Used UNICOS framework for SCADA integration • UNICOS (UNified Industrial Control System) is a CERN-made framework to develop industrial control applications. It deals with the two upper layers of a classical control system: Supervision and Control. MPE-TM 9/15/2020 Y. Bastian / C. Von Siebenthal 13 / 18
SCADA system – System overview MPE-TM 9/15/2020 Y. Bastian / C. Von Siebenthal 14 / 18
SCADA system – Monitoring and Diagnostics Current consumption of channels vs time MPE-TM 9/15/2020 Y. Bastian / C. Von Siebenthal 15 / 18
Status of preparation • • • ANALYSIS HARDWARE CABLING SOFTWARE PLC SOFTWARE PVSS TEST BENCH DRY RUN CHARM TEST DATA ANALYSIS MPE-TM 9/15/2020 : : : : : DONE DONE ON GOING SCHEDULED PENDING Y. Bastian / C. Von Siebenthal 16 / 18
Conclusions Test bed for radiation testing of alternative remote I/O modules nearing completion • Software stack developed based on UNICOS toolbox • Aiming at 2 ~one week test campaigns (June and July/August 2015) • If successful, alternative remote I/O modules would provide interesting option for resource and cost efficient renovation of injector chain • MPE-TM 9/15/2020 Y. Bastian / C. Von Siebenthal 17 / 18
Thanks for your attention! MPE-TM 9/15/2020 Y. Bastian / C. Von Siebenthal 18 / 18
