REMOTE I/O MODULE EXPERT ® TOPS CCC PRODUCTS CO. , LTD. www. topsccc. com TOPS CCC

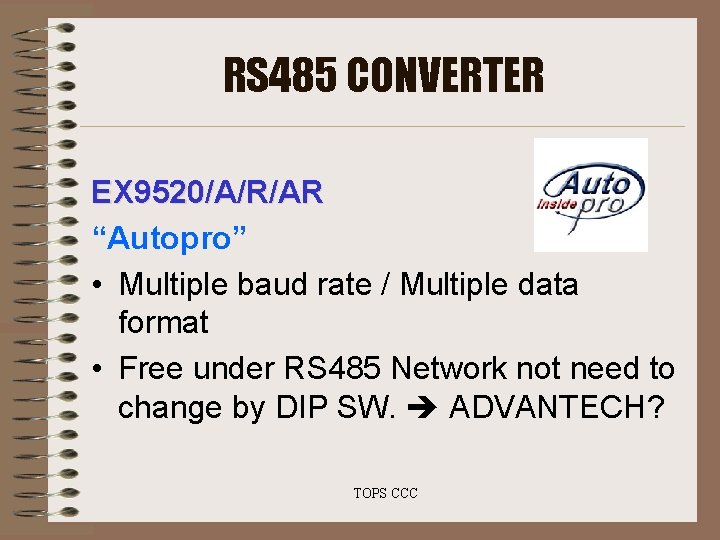

RS 485 CONVERTER EX 9520/A/R/AR “Autopro” • Multiple baud rate / Multiple data format • Free under RS 485 Network not need to change by DIP SW. ADVANTECH? TOPS CCC

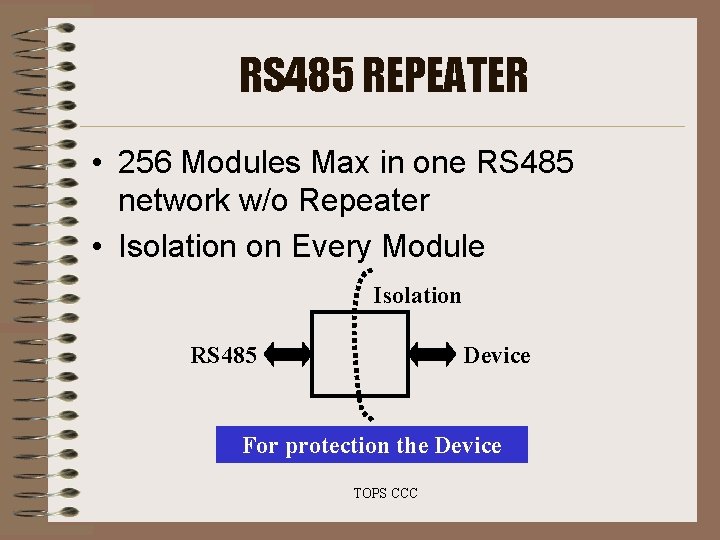

RS 485 REPEATER • 256 Modules Max in one RS 485 network w/o Repeater • Isolation on Every Module Isolation RS 485 Device For protection the Device TOPS CCC

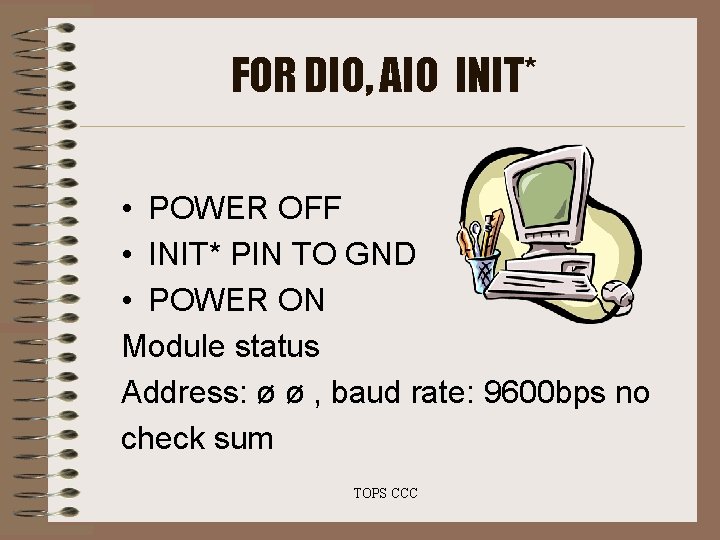

FOR DIO, AIO INIT* • POWER OFF • INIT* PIN TO GND • POWER ON Module status Address: ø ø , baud rate: 9600 bps no check sum TOPS CCC

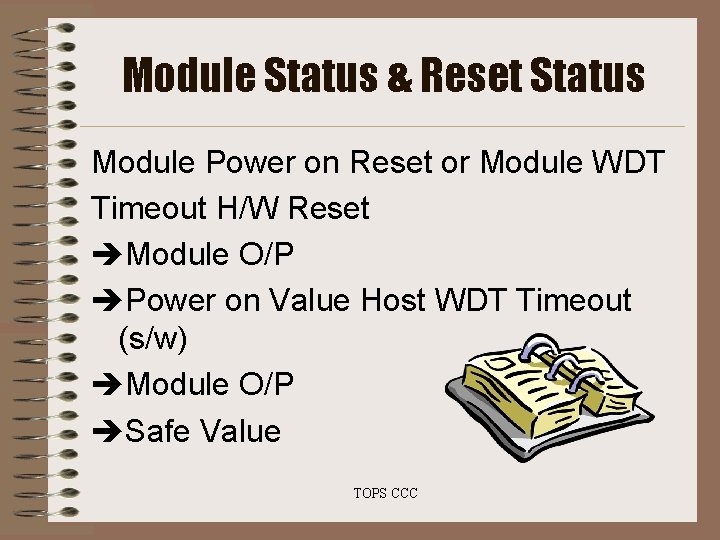

Module Status & Reset Status Module Power on Reset or Module WDT Timeout H/W Reset Module O/P Power on Value Host WDT Timeout (s/w) Module O/P Safe Value TOPS CCC

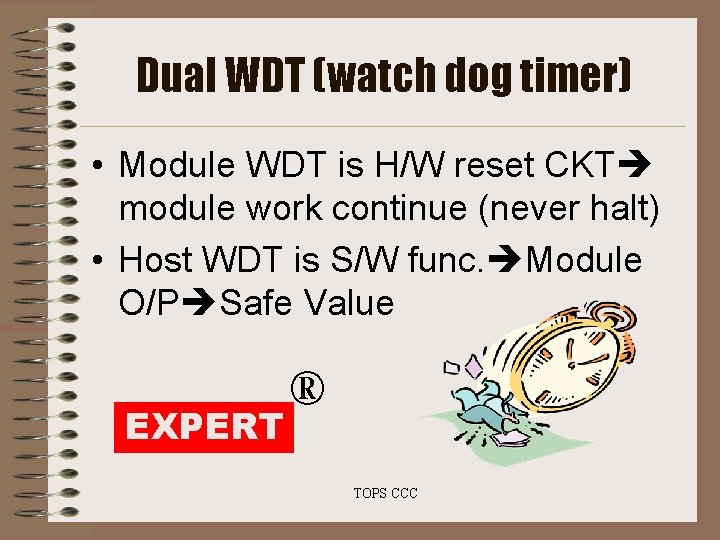

Dual WDT (watch dog timer) • Module WDT is H/W reset CKT module work continue (never halt) • Host WDT is S/W func. Module O/P Safe Value EXPERT ® TOPS CCC

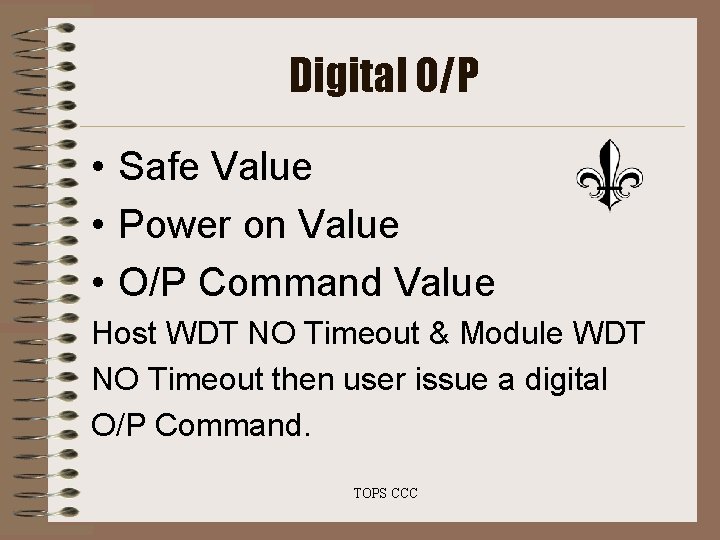

Digital O/P • Safe Value • Power on Value • O/P Command Value Host WDT NO Timeout & Module WDT NO Timeout then user issue a digital O/P Command. TOPS CCC

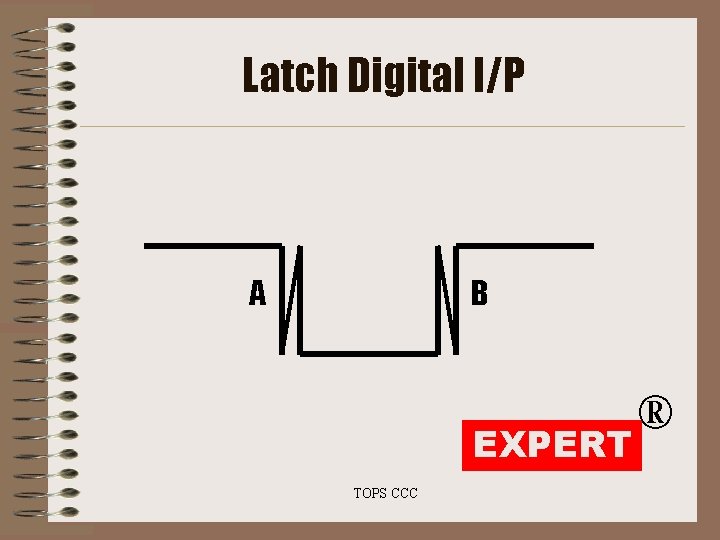

Latch Digital I/P A B EXPERT TOPS CCC ®

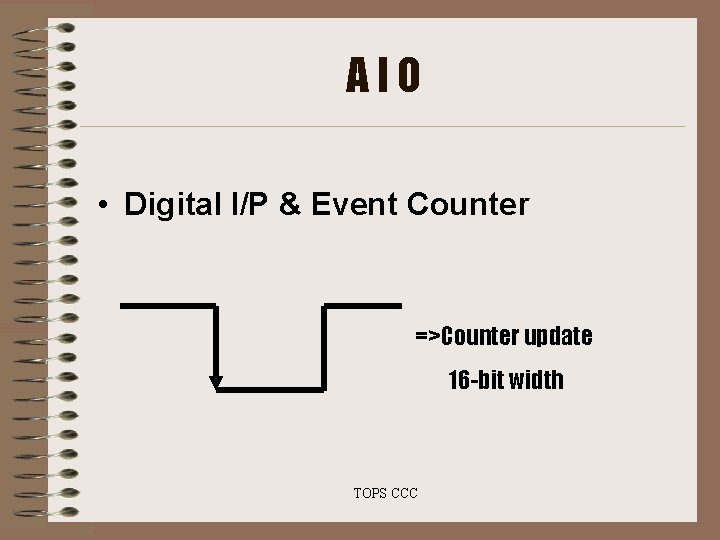

AIO • Digital I/P & Event Counter =>Counter update 16 -bit width TOPS CCC

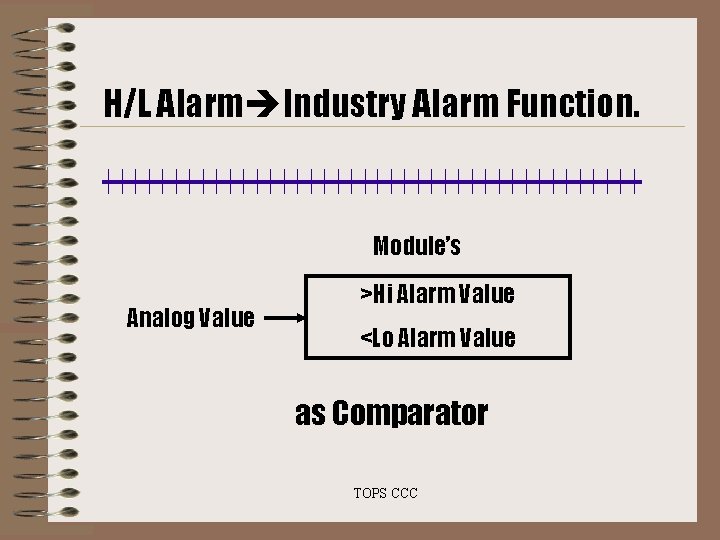

H/L Alarm Industry Alarm Function. Module’s Analog Value >Hi Alarm Value <Lo Alarm Value as Comparator TOPS CCC

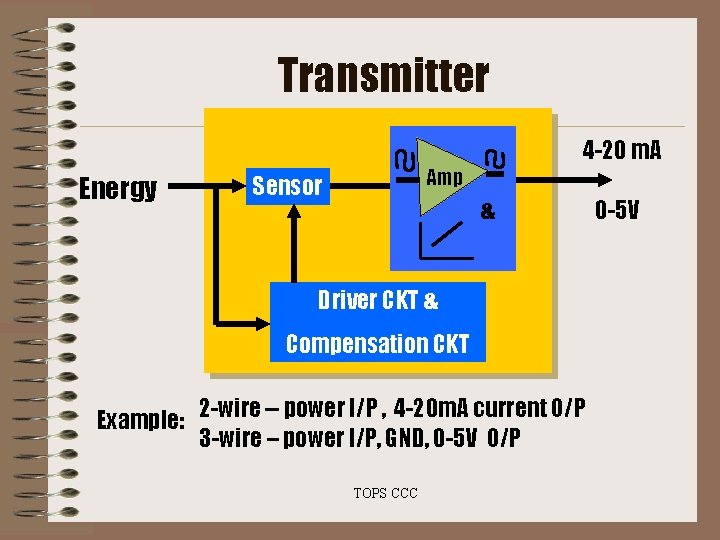

Transmitter 4 -20 m. A Energy Amp Sensor & Driver CKT & Compensation CKT Example: 2 -wire -- power I/P , 4 -20 m. A current O/P 3 -wire – power I/P, GND, 0 -5 V O/P TOPS CCC 0 -5 V

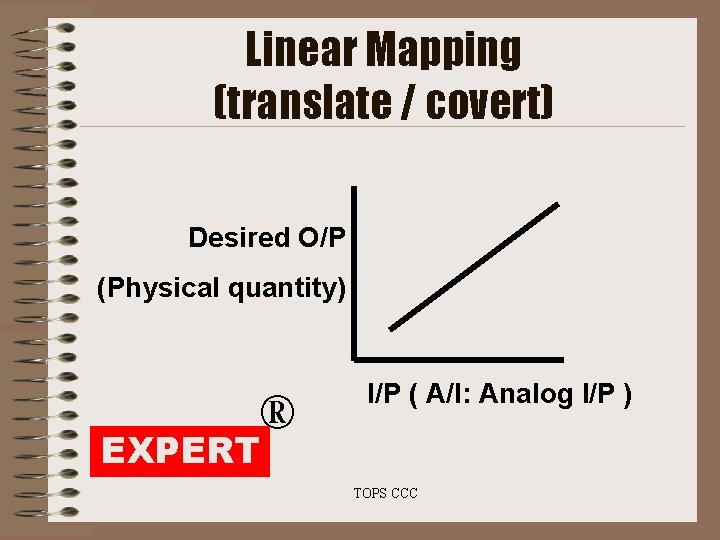

Linear Mapping (translate / covert) Desired O/P (Physical quantity) ® I/P ( A/I: Analog I/P ) EXPERT TOPS CCC

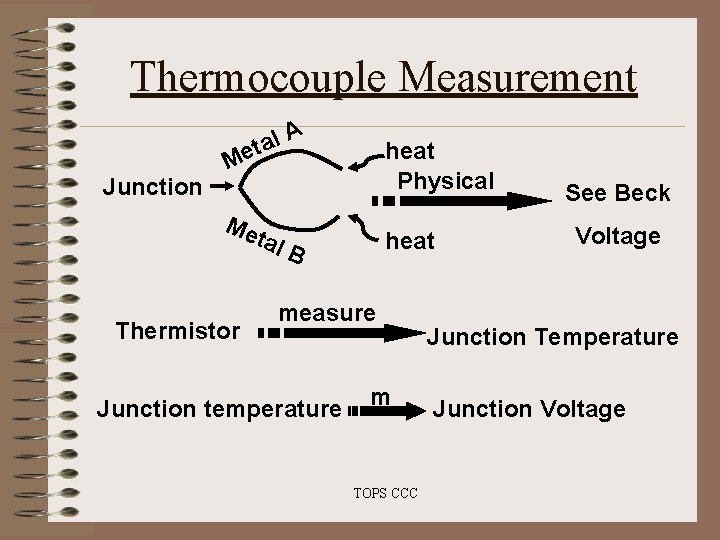

Thermocouple Measurement Junction l. A a t Me Me tal Thermistor heat Physical heat B measure Junction temperature m TOPS CCC See Beck Voltage Junction Temperature Junction Voltage

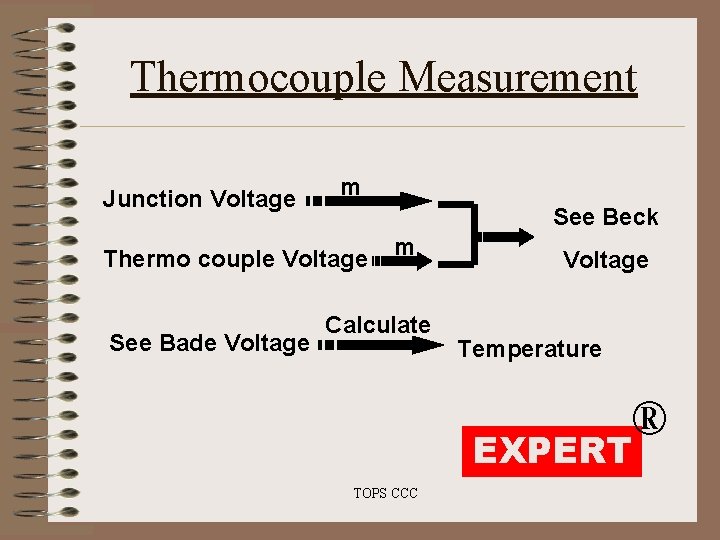

Thermocouple Measurement Junction Voltage m See Beck Thermo couple Voltage See Bade Voltage m Calculate Voltage Temperature ® EXPERT TOPS CCC

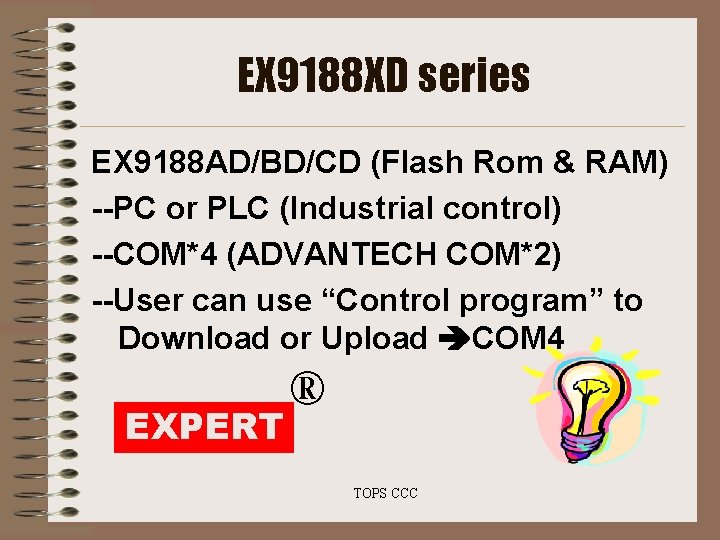

EX 9188 XD series EX 9188 AD/BD/CD (Flash Rom & RAM) --PC or PLC (Industrial control) --COM*4 (ADVANTECH COM*2) --User can use “Control program” to Download or Upload COM 4 EXPERT ® TOPS CCC

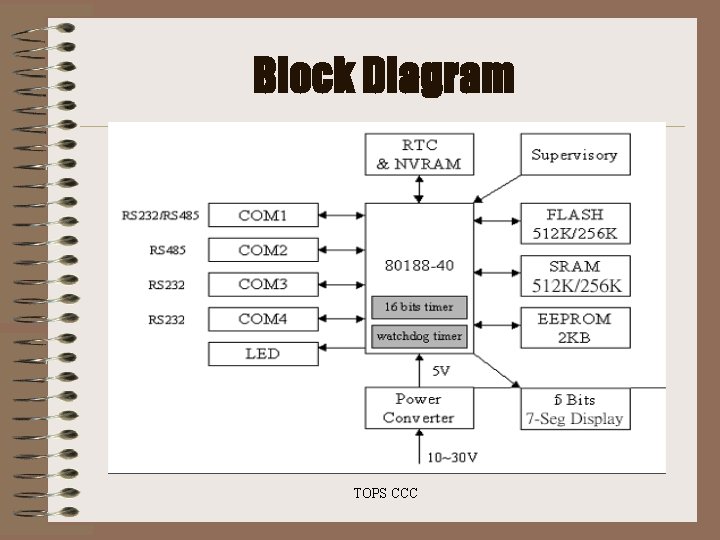

Block Diagram TOPS CCC

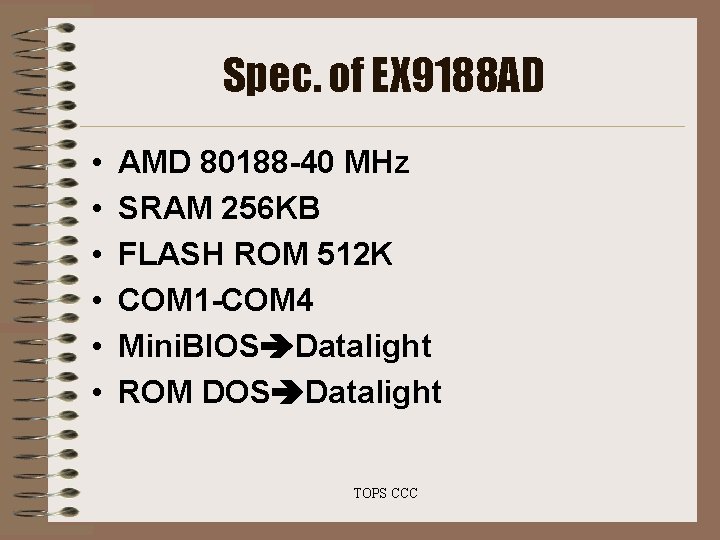

Spec. of EX 9188 AD • • • AMD 80188 -40 MHz SRAM 256 KB FLASH ROM 512 K COM 1 -COM 4 Mini. BIOS Datalight ROM DOS Datalight TOPS CCC

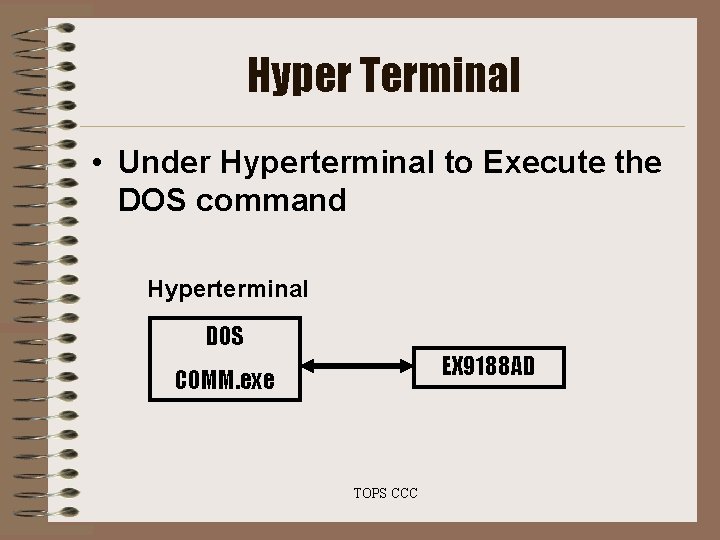

Hyper Terminal • Under Hyperterminal to Execute the DOS command Hyperterminal DOS EX 9188 AD COMM. exe TOPS CCC

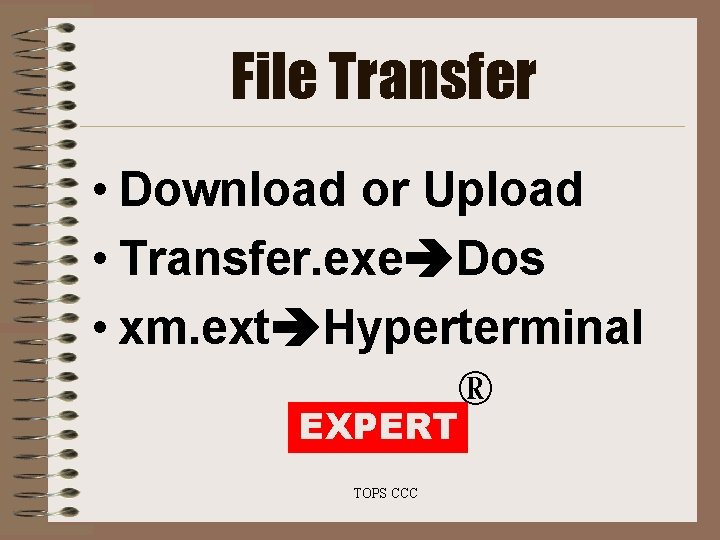

File Transfer • Download or Upload • Transfer. exe Dos • xm. ext Hyperterminal ® EXPERT TOPS CCC

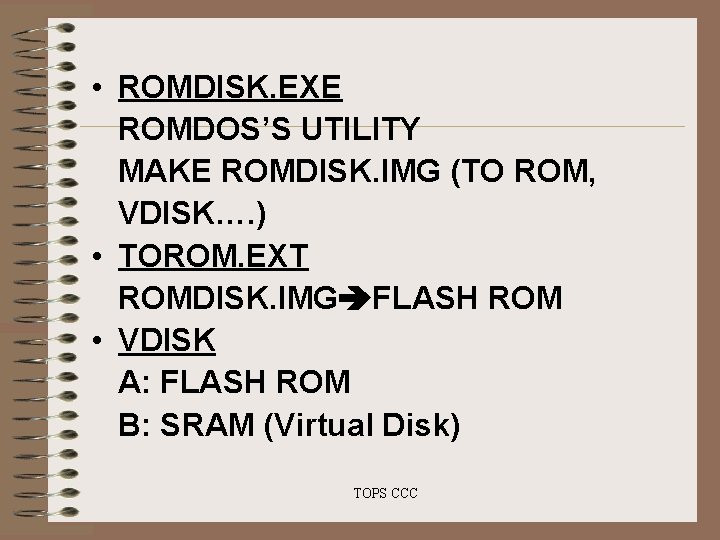

• ROMDISK. EXE ROMDOS’S UTILITY MAKE ROMDISK. IMG (TO ROM, VDISK…. ) • TOROM. EXT ROMDISK. IMG FLASH ROM • VDISK A: FLASH ROM B: SRAM (Virtual Disk) TOPS CCC

9188 Li. B • Li. B (Source code) • DEMO For user application EXPERT TOPS CCC ®

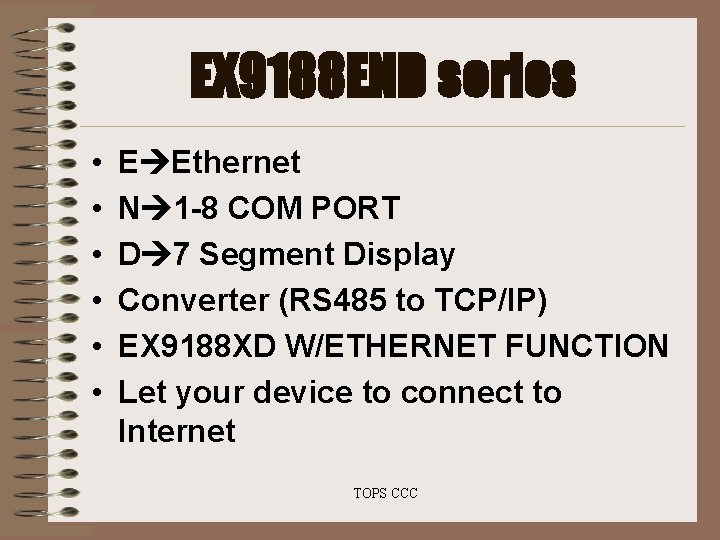

EX 9188 END series • • • E Ethernet N 1 -8 COM PORT D 7 Segment Display Converter (RS 485 to TCP/IP) EX 9188 XD W/ETHERNET FUNCTION Let your device to connect to Internet TOPS CCC

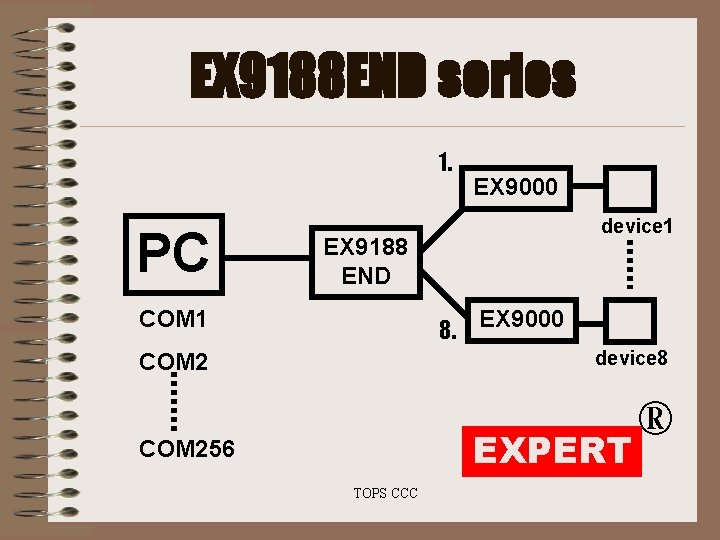

EX 9188 END series 1. PC EX 9000 device 1 EX 9188 END COM 1 8. EX 9000 device 8 COM 2 EXPERT COM 256 TOPS CCC ®

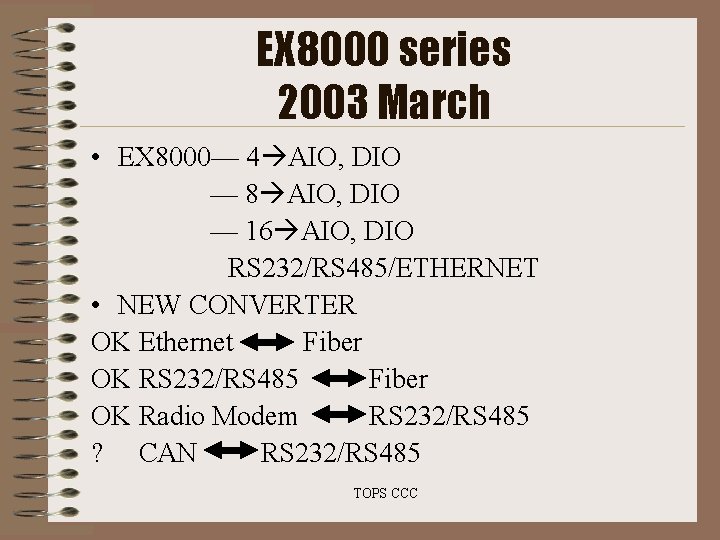

EX 8000 series 2003 March • EX 8000— 4 AIO, DIO — 8 AIO, DIO — 16 AIO, DIO RS 232/RS 485/ETHERNET • NEW CONVERTER OK Ethernet Fiber OK RS 232/RS 485 Fiber OK Radio Modem RS 232/RS 485 ? CAN RS 232/RS 485 TOPS CCC

OEM/ODM Our R&D team is profession on system control for : 1. Valve Control 2. Factory Automation 3. Building/Office Automation 4. Sensing Element Design 5. Electronic-Hydraulic TOPS CCC

THE END. Q&A TIME TOPS CCC
