Remote Detonation System Remote Detonation System RDS System

Remote Detonation System

Remote Detonation System – RDS System Composition o RDS is a Remote Detonation system for use by Armed Forces, Mining, Road Blasting & Building demolitions etc. o Configuration (a) One Master Control Unit (b) Multiple Slave Units o Three Battery Charging Options: (a) Utility Power Adapter (b) Vehicle Power Adapter (c) Solar PV Panel Adapter o o o Communication Media via Land Line and UHF Link Water Proof (IP 67) & robust field Packing It is suitable for use at Plain & Hilly areas, having a range of 5 Km in vegetation area & more than 25 Km at line of site

Remote Detonation System – RDS Basic Configuration MICROWAVE LINK Master Control Unit LAND LINE Slave Unit #1 Slave Unit #6 Slave Unit #2 Slave Unit #7 Slave Unit #3 Slave Unit #8 Slave Unit #4 Slave Unit #9 Slave Unit #5 Slave Unit #10 to #20

Remote Detonation System – RDS Previous Versions 1 st Version : 2008 VHF 2 nd Version : 2010 UHF

Remote Detonation System – RDS Current Versions 2013 -14

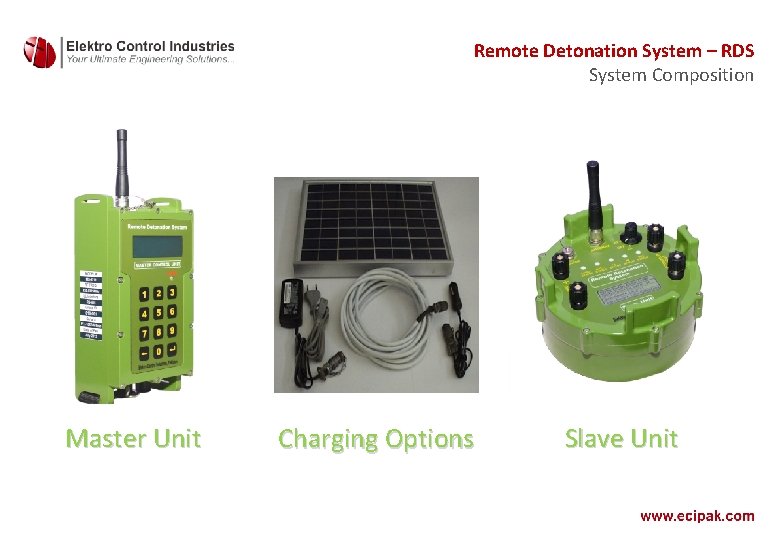

Remote Detonation System – RDS System Composition Master Unit Charging Options Slave Unit

Remote Detonation System – RDS Operational Specifications & Features o Operational Coverage , three to Five Km in vegetation and 25 Km line of sight range o Self Test provisions for both Master & Slave units o Close loop Communication System for Status & Fault monitoring of Slave units o Land line option is provided against RF jamming o Maintenance friendly , User friendly & light weight

Remote Detonation System – RDS Operational Specifications & Features Day & Night Operation Intelligent Battery Charger Message encryption Cancellation of Preprogramed commands Indication of Slave Units Identity and status on Master Control unit o Selection of one, multiple or all slave units simultaneously o System is protected against any accidental operation from other similar groups o o o

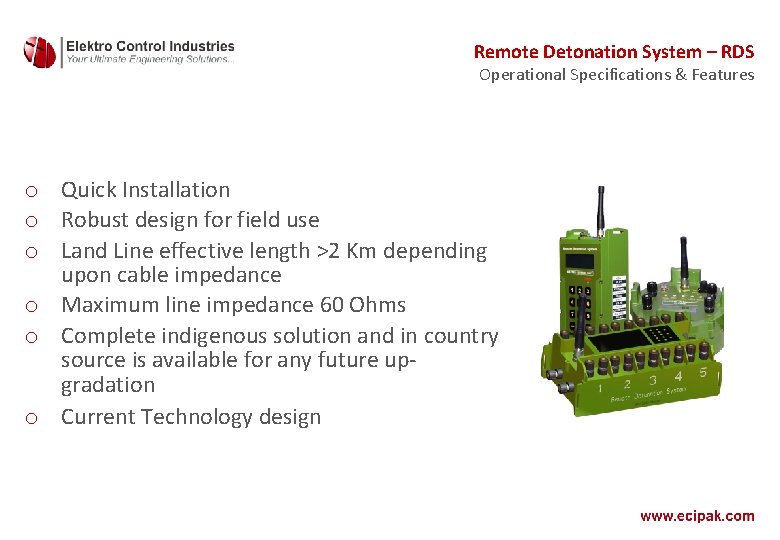

Remote Detonation System – RDS Operational Specifications & Features o Quick Installation o Robust design for field use o Land Line effective length >2 Km depending upon cable impedance o Maximum line impedance 60 Ohms o Complete indigenous solution and in country source is available for any future upgradation o Current Technology design

About ECI Pakistan o A high-tech engineering solutions provider company established in 1998. o Deals in the design, development and integration of customized systems for Defense, Industrial & Commercial sectors. o Focus on quality and a detailed understanding of customer needs. o Experienced, innovative & professionally dedicated multidisciplinary engineering team. o An ISO 9001: 2008 certified company o Excellent back up support o Ambitious

Strengths & Capabilities o o o Offer variety of Engineering solutions User friendly technology Cost effective solutions Future oriented mindset In house Research & Development facilities o Quality Management o Customer maintenance support & follow ups o Current technology workshops o More than 50 professionals o More than 20 years of professional experience Your ideas … We deliver

Our Employees & Environment Our key asset is our team & they enrich ECI o Staff in-house training & grooming o Personal development & spirituality programs o Continuous education support & technical certifications o Employees children education support o Occupational safety & health programs o Clean & healthy working environment o Compliance to all regulations
