Remote Call Station RCS more details Security Systems

Remote Call Station RCS, more details Security Systems 1 ST/PRM 3 -EU | | 12/2/2020 © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

Remote Call Station è Status LED’s No power No connection to remote CST or fault in the connection to the remote CST No network or network fault OK Security Systems 3 ST/PRM 3 -EU | | 12/2/2020 © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

Remote Call Station Power/Error LED No power Power on, CST OK Power on, System Error Power on, CST Error or no network Call station status LED No call Chime or message active Microphone active System status LED System idle Low prio announcement active or reserved Equal or higher prio announcements active or reserved Emergency announcement active, calls possible Security Systems 5 ST/PRM 3 -EU | | 12/2/2020 © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

Remote Call Station CST key function: ry nta gle e m Tog Mo Zone selection Call activation key PTT Acknowledge/Reset Start Stop Switch trigger Fault input BGM source BGM volume control BGM on/off Local BGM source Local BGM volume control Local BGM on/off n me Mo Backup power mode Priority Call macro Tones Recorded message Cancel selection Recall Synchronize time Zone emergency status Zone priority status Switch output Zone active output Volume override output Security Systems 6 Internal | Sales Support Public address | 03 -Apr-07 | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property ST/PRM 3 -EU | | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. rights. We reserve all rights of disposal such as copying and passing on to third parties. y tar gle g o T

Remote Call Station Normal CST functions: è è Priority up to 223 Multiple calls at the same time Emergency CST functions: è è Priority up to 255 Back-up for network controller (All Call speech only) Partial Call: è è Call possible if not all selected zones are available Adding and removing of zones to running calls Security Systems 7 ST/PRM 3 -EU | | 12/2/2020 © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

Remote Call Station CSI and RCS è Control inputs CI 1 & CI 2 CSI System bus RCS Security Systems 8 ST/PRM 3 -EU | | 12/2/2020 © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

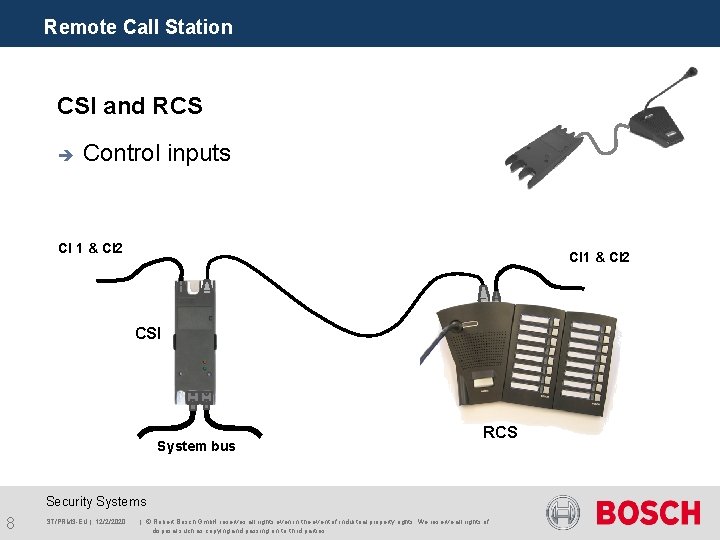

Remote Call Station CSI and RCS è Control inputs CSI System bus connectors RCS CSI CAT 5 connector Power connector + CI 1&2 Security Systems 9 ST/PRM 3 -EU | | 12/2/2020 © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. CAT 5 connector

Remote Call Station CSI and RCS è Control inputs CI 2 CI 1 Resistors 10 k. Ohm 3 1 No supervision 4 Ext. PSU 3 2 1 With supervision Security Systems 10 ST/PRM 3 -EU | | 12/2/2020 © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. 4 2 Ext. PSU

Remote Call Station Cable length CSI -> RCS è Max cable length CSI -> RCS 1 0 0 0 mtr M A X. ! ! è Does not add up to the Praesideo System bus!! Security Systems 11 ST/PRM 3 -EU | | 12/2/2020 © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

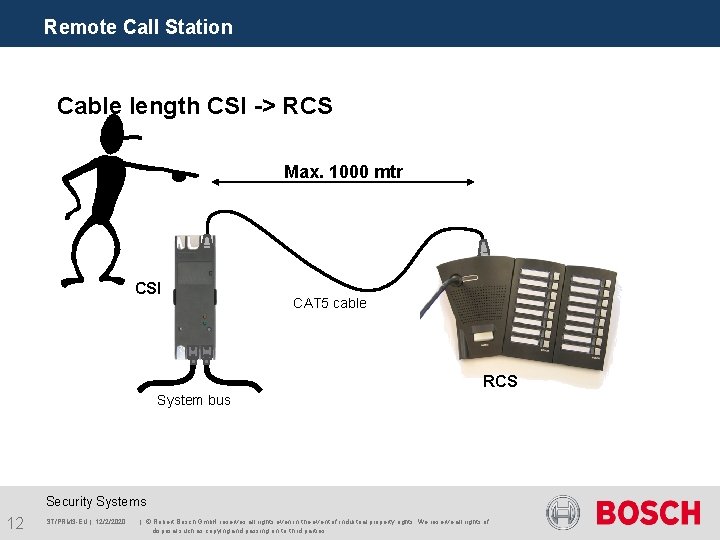

Remote Call Station Cable length CSI -> RCS Max. 1000 mtr CSI CAT 5 cable RCS System bus Security Systems 12 ST/PRM 3 -EU | | 12/2/2020 © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

Remote Call Station CSI and RCS powering è Powered from the system bus è Powered from CSI è Powered from RCS Security Systems 13 ST/PRM 3 -EU | | 12/2/2020 © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

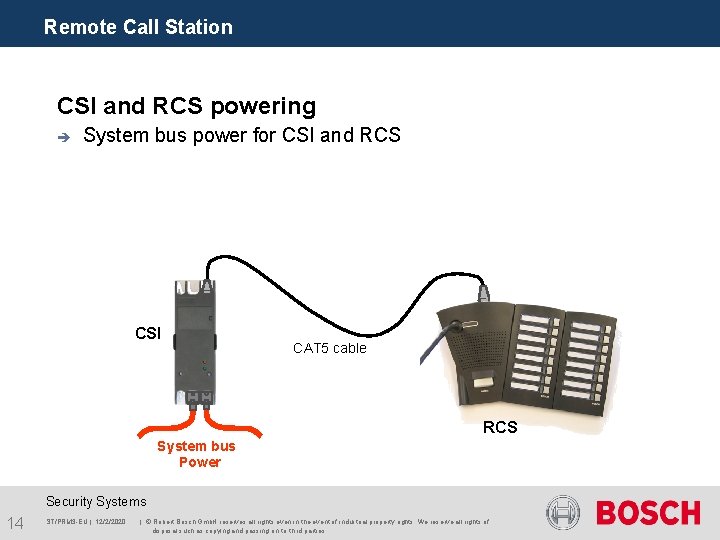

Remote Call Station CSI and RCS powering è System bus power for CSI and RCS CSI CAT 5 cable RCS System bus Power Security Systems 14 ST/PRM 3 -EU | | 12/2/2020 © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

Remote Call Station CSI and RCS powering è System bus power for CSI and RCS POF transducers CSI System Bus RCS CAT 5 PS DC/DC Keypad Power I lim DC/DC Ext. Power Security Systems 15 ST/PRM 3 -EU | | 12/2/2020 © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. PS

Remote Call Station CSI and RCS powering è è System bus power for CSI and RCS External PSU as Back-up for system bus power External PSU CSI CAT 5 cable RCS System bus Power Security Systems 16 ST/PRM 3 -EU | | 12/2/2020 © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

Remote Call Station CSI and RCS powering è è System bus power for CSI and RCS External PSU as Back-up for system bus power POF transducers CSI System Bus RCS CAT 5 PS DC/DC Keypad Power I lim DC/DC Ext. Power PSU Security Systems 17 ST/PRM 3 -EU | | 12/2/2020 © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. PS

Remote Call Station CSI and RCS powering è è System bus power for SCI External power for RCS External PSU RCS CSI CAT 5 cable RCS System bus Power Security Systems 18 ST/PRM 3 -EU | | 12/2/2020 © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

Remote Call Station CSI and RCS powering è è System bus power for SCI External power for RCS POF transducers CSI RCS CAT 5 System Bus PS DC/DC Keypad Power I lim DC/DC Ext. Power PSU Security Systems 19 ST/PRM 3 -EU | | 12/2/2020 © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. PS

Remote Call Station CSI and RCS powering è è System bus power for SCI External power for RCS POF transducers CSI RCS CAT 5 System Bus PS DC/DC Keypad Power I lim DC/DC Ext. Power PSU Security Systems 20 ST/PRM 3 -EU | | 12/2/2020 © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. PS

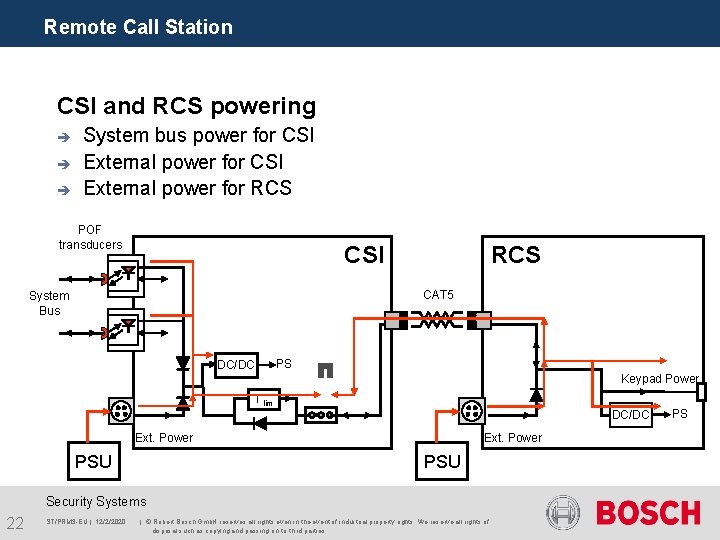

Remote Call Station CSI and RCS powering è è è System bus power for CSI External power for RCS External PSU CSI External PSU RCS CSI System bus Power CAT 5 cable RCS Security Systems 21 ST/PRM 3 -EU | | 12/2/2020 © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

Remote Call Station CSI and RCS powering è è è System bus power for CSI External power for RCS POF transducers CSI RCS CAT 5 System Bus PS DC/DC Keypad Power I lim DC/DC Ext. Power PSU Security Systems 22 ST/PRM 3 -EU | | 12/2/2020 © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. PS

Remote Call Station CSI and RCS powering è Remote Call station CSI settings Jumper X 1 = Gnd Jumper X 2 = Power (+) Options: CST Powerlink (X 1 / X 2 in position 1 -2) No Powerlink (X 1 / X 2 in position 2 -3) Ground Security Systems 24 Service Call Station Powerlink è External PSU ST/PRM 3 -EU | | 12/2/2020 © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. Praesideo System Bus Fault Power Praesideo System Bus

Remote Call Station Cable length CSI -> RCS è Depends on the cable CAT 5, 4 x 2 x 0. 12 mm 2 (26 AWG) 4 x 2 x 0. 2 mm 2 (24 AWG) è CAT 6, 4 x 2 x 0. 25 mm 2 (23 AWG) Others, 4 x 2 x 1. 3 mm 2 (16 AWG) Depends on the load Remote Call Station Number of keypads Security Systems 25 ST/PRM 3 -EU | | 12/2/2020 © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

Remote Call Station Cable length CSI -> RCS è Depends on the cable Cable spec’s: AWG A D R (mm 2) (mm) (Ohm/km) 26 0. 12 0. 4 142 24 0. 20 0. 5 85 22 0. 35 0. 6 49 20 0. 50 0. 8 34 18 0. 80 1. 0 21 16 1. 30 1. 3 13 CAT 5 Security Systems 26 ST/PRM 3 -EU | | 12/2/2020 © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

Remote Call Station Cable length CSI -> RCS è Depends on the load: RCS and the number of keypads Total P (W) RCS 2. 9 Keypads 1 4. 0 2 5. 1 3 6. 2 4 7. 3 5 8. 4 6 9. 5 7 10. 6 8 11. 7 9 12. 8 10 13. 9 11 15. 0 12 16. 1 13 17. 2 14 18. 3 15 19. 4 16 20. 5 Security Systems 27 ST/PRM 3 -EU | | 12/2/2020 © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

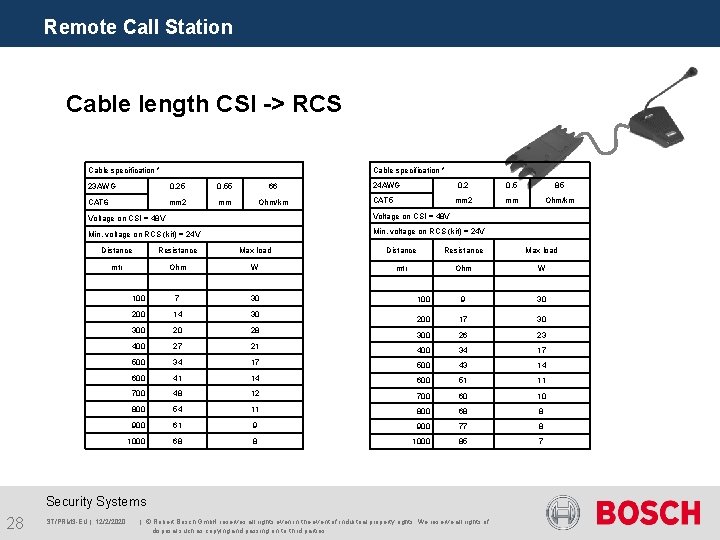

Remote Call Station Cable length CSI -> RCS Cable specification * 23 AWG 0. 25 CAT 6 0. 55 mm 2 66 mm Ohm/km 24 AWG CAT 5 0. 2 0. 5 85 mm 2 mm Ohm/km Voltage on CSI = 48 V Min. voltage on RCS (kit) = 24 V Distance Resistance Max load mtr Ohm W 100 7 30 200 14 30 300 20 28 400 27 21 500 34 17 600 41 14 700 48 800 100 9 30 200 17 30 300 26 23 400 34 17 500 43 14 600 51 11 12 700 60 10 54 11 800 68 8 900 61 9 900 77 8 1000 68 8 1000 85 7 Security Systems 28 ST/PRM 3 -EU | | 12/2/2020 © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

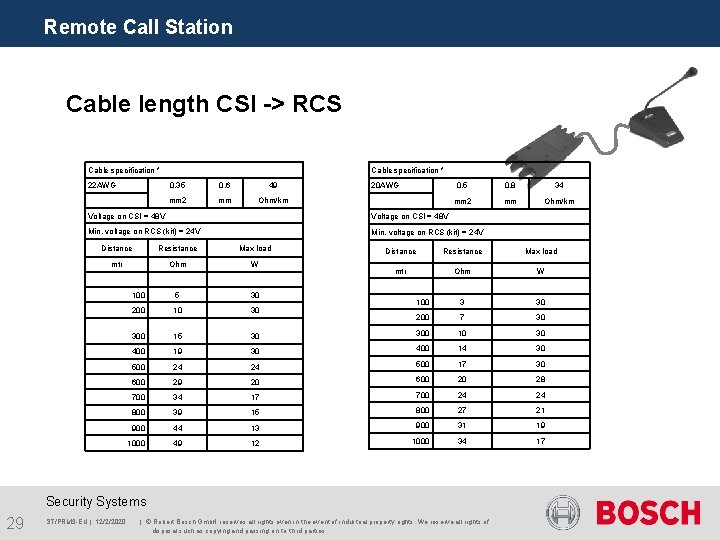

Remote Call Station Cable length CSI -> RCS Cable specification * 22 AWG 0. 35 0. 6 49 mm 2 mm Ohm/km 20 AWG 0. 5 0. 8 34 mm 2 mm Ohm/km Voltage on CSI = 48 V Min. voltage on RCS (kit) = 24 V Distance Resistance Max load mtr Ohm W 100 5 30 200 10 30 Distance Resistance Max load mtr Ohm W 100 3 30 200 7 30 10 30 300 15 30 300 400 19 30 400 14 30 500 24 24 500 17 30 600 29 20 600 20 28 700 34 17 700 24 24 800 39 15 800 27 21 900 44 13 900 31 19 12 1000 34 17 1000 49 Security Systems 29 ST/PRM 3 -EU | | 12/2/2020 © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

Remote Call Station Cable length CSI -> RCS Cable specification * 18 AWG 0. 8 1 mm 21 Ohm/km 16 AWG 1. 3 13 mm 2 mm Ohm/km Voltage on CSI = 48 V Min. voltage on RCS (kit) = 24 V Distance esistance mtr Max load Ohm Distance W Resistance mtr Ohm 100 2 30 200 4 30 300 6 30 400 9 30 500 11 600 W 100 1 30 200 3 30 300 4 30 400 5 30 30 500 7 30 13 30 600 8 30 700 15 30 700 9 30 800 17 30 800 10 30 900 19 30 900 12 30 1000 21 27 1000 13 30 Security Systems 30 Max load ST/PRM 3 -EU | | 12/2/2020 © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.
