Reliable MIX Cascade Networks Through Reputation By Roger

Reliable MIX Cascade Networks Through Reputation By Roger Dingledine and Paul Syverson Presented by Naveen Santhapuri Roopa Raju

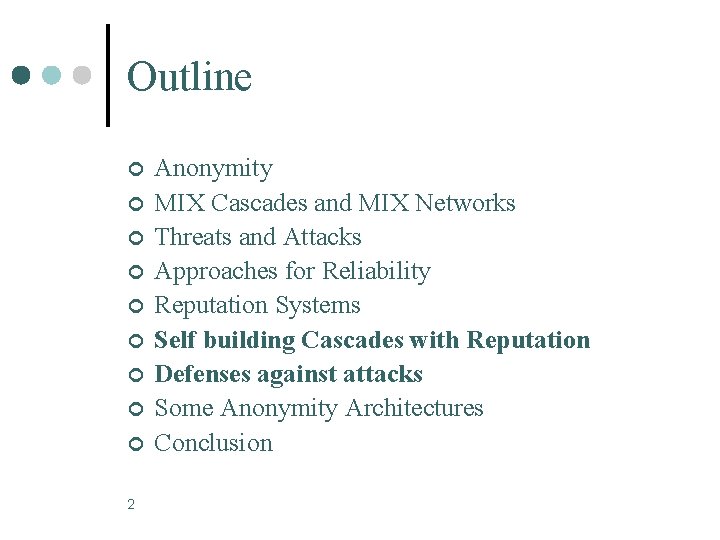

Outline ¢ ¢ ¢ ¢ ¢ 2 Anonymity MIX Cascades and MIX Networks Threats and Attacks Approaches for Reliability Reputation Systems Self building Cascades with Reputation Defenses against attacks Some Anonymity Architectures Conclusion

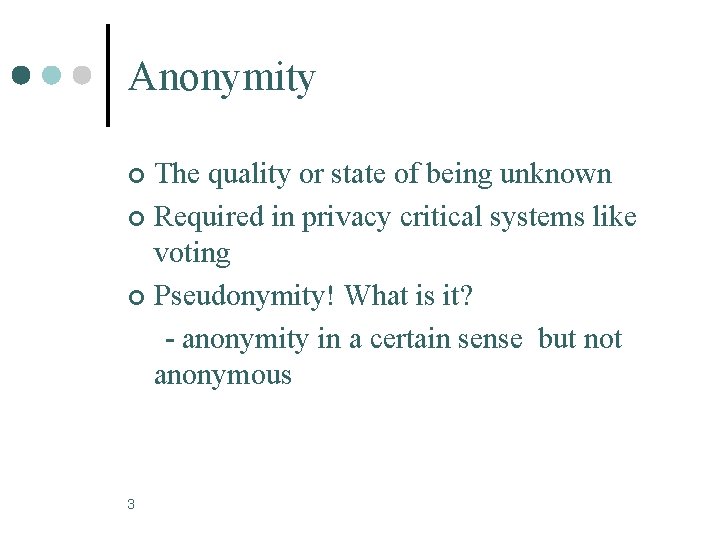

Anonymity The quality or state of being unknown ¢ Required in privacy critical systems like voting ¢ Pseudonymity! What is it? - anonymity in a certain sense but not anonymous ¢ 3

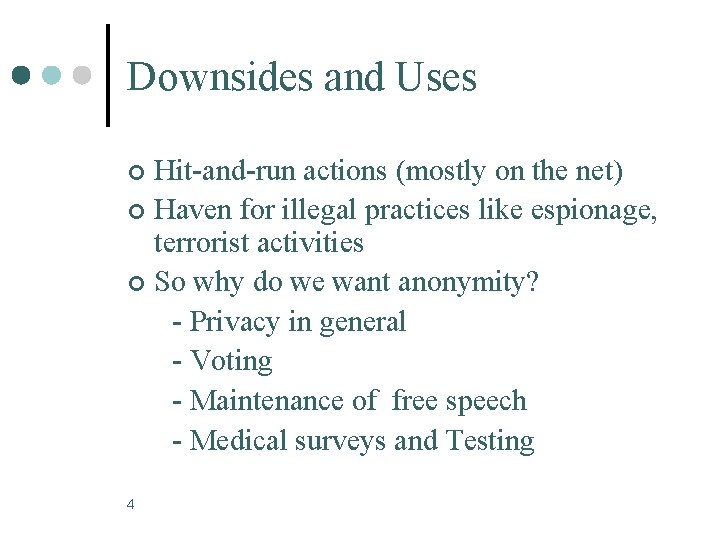

Downsides and Uses Hit-and-run actions (mostly on the net) ¢ Haven for illegal practices like espionage, terrorist activities ¢ So why do we want anonymity? - Privacy in general - Voting - Maintenance of free speech - Medical surveys and Testing ¢ 4

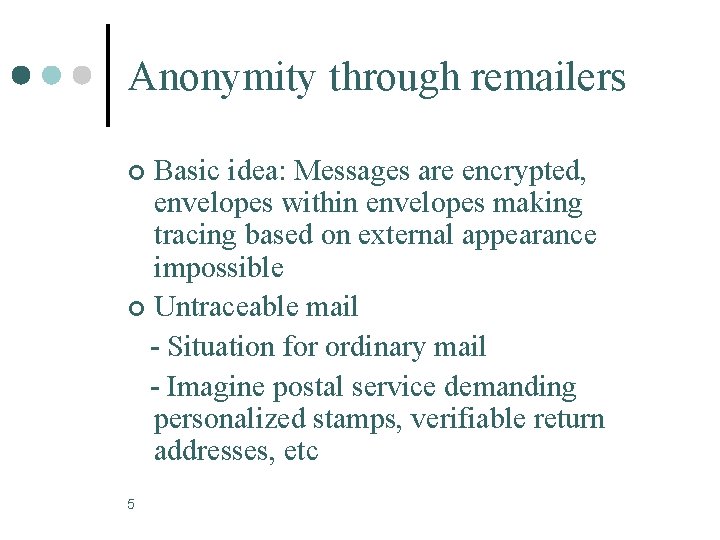

Anonymity through remailers Basic idea: Messages are encrypted, envelopes within envelopes making tracing based on external appearance impossible ¢ Untraceable mail - Situation for ordinary mail - Imagine postal service demanding personalized stamps, verifiable return addresses, etc ¢ 5

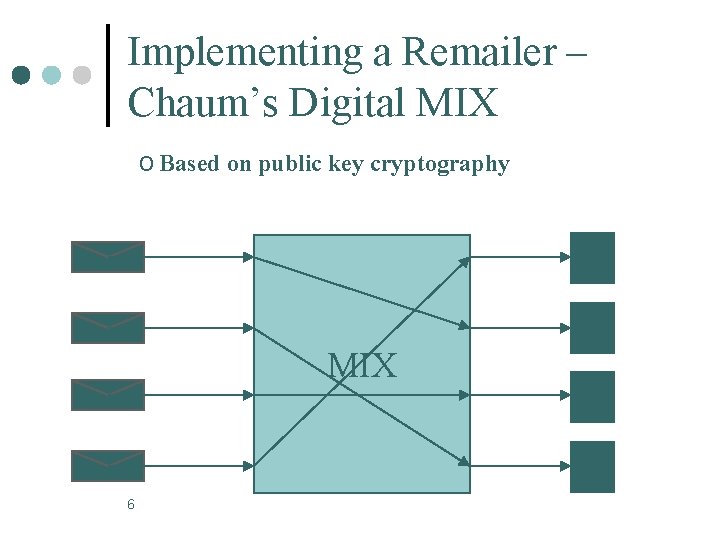

Implementing a Remailer – Chaum’s Digital MIX o Based on public key cryptography MIX 6

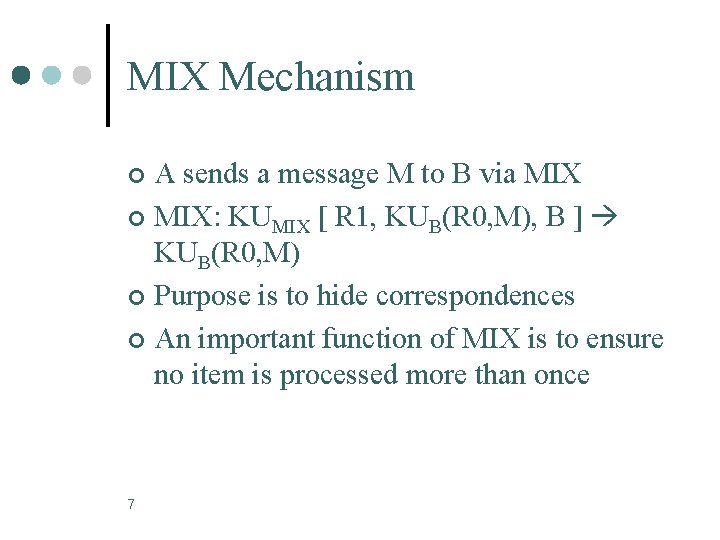

MIX Mechanism A sends a message M to B via MIX ¢ MIX: KUMIX [ R 1, KUB(R 0, M), B ] KUB(R 0, M) ¢ Purpose is to hide correspondences ¢ An important function of MIX is to ensure no item is processed more than once ¢ 7

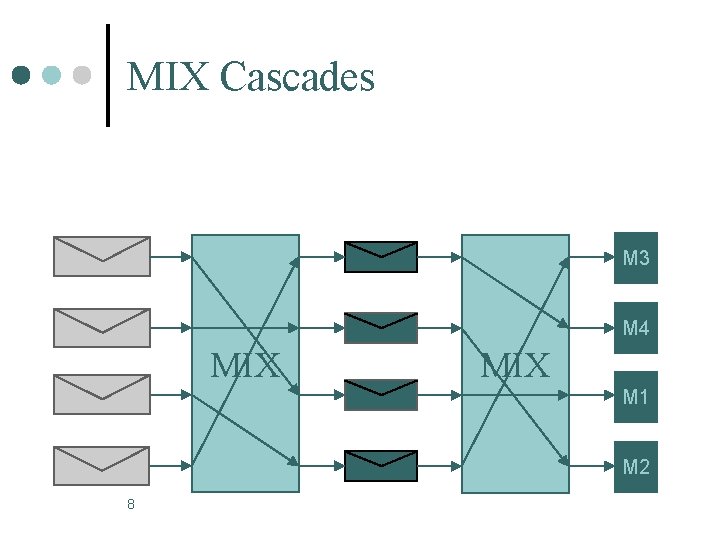

MIX Cascades M 3 M 4 MIX M 1 M 2 8

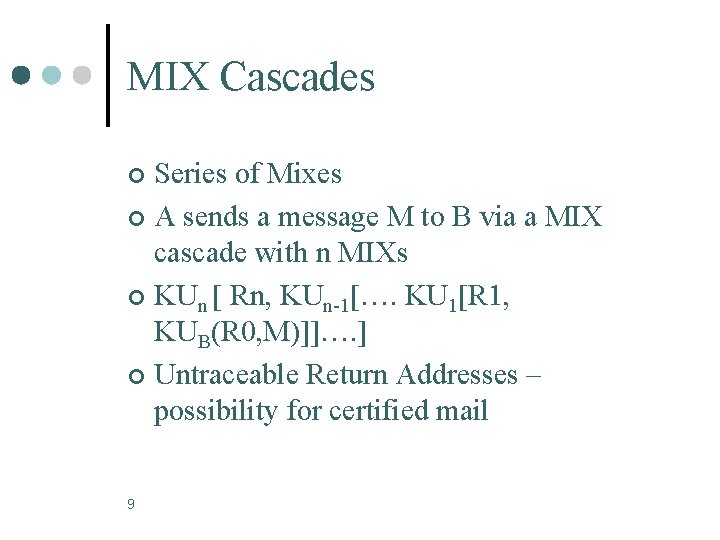

MIX Cascades Series of Mixes ¢ A sends a message M to B via a MIX cascade with n MIXs ¢ KUn [ Rn, KUn-1[…. KU 1[R 1, KUB(R 0, M)]]…. ] ¢ Untraceable Return Addresses – possibility for certified mail ¢ 9

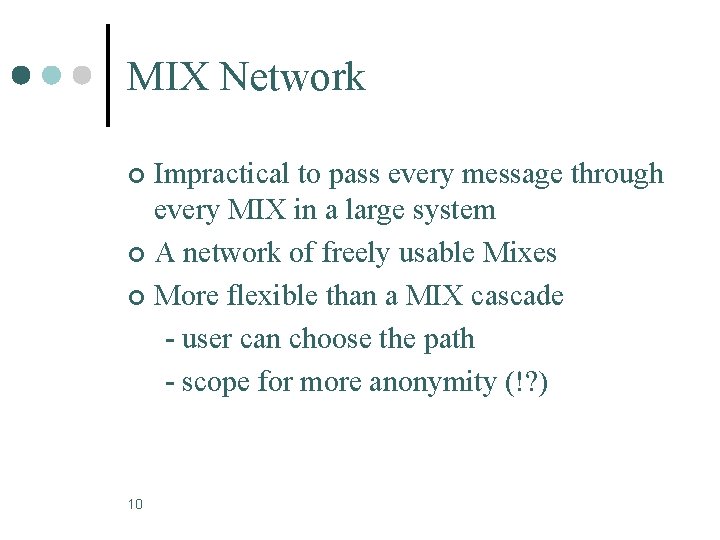

MIX Network Impractical to pass every message through every MIX in a large system ¢ A network of freely usable Mixes ¢ More flexible than a MIX cascade - user can choose the path - scope for more anonymity (!? ) ¢ 10

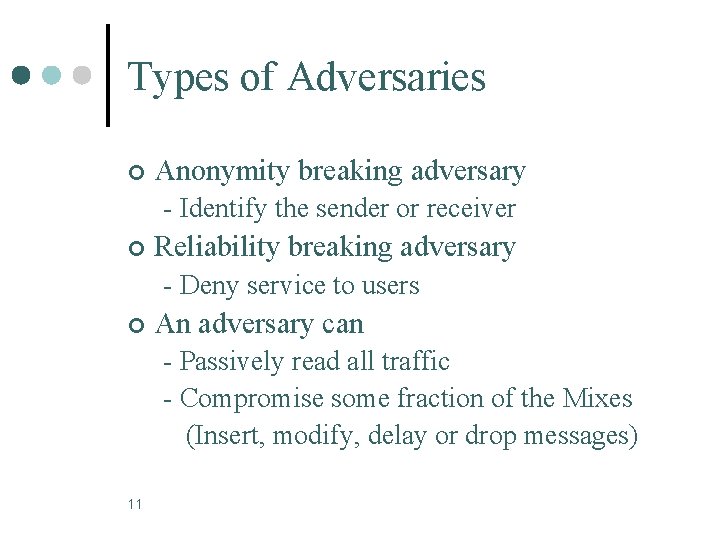

Types of Adversaries ¢ Anonymity breaking adversary - Identify the sender or receiver ¢ Reliability breaking adversary - Deny service to users ¢ An adversary can - Passively read all traffic - Compromise some fraction of the Mixes (Insert, modify, delay or drop messages) 11

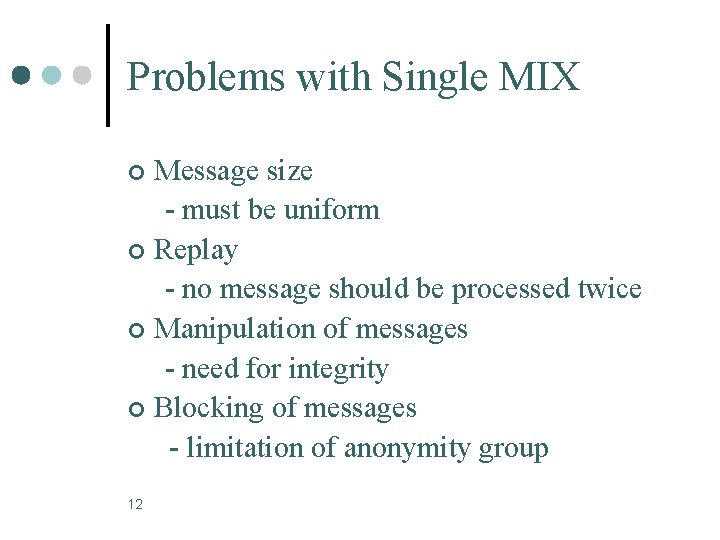

Problems with Single MIX Message size - must be uniform ¢ Replay - no message should be processed twice ¢ Manipulation of messages - need for integrity ¢ Blocking of messages - limitation of anonymity group ¢ 12

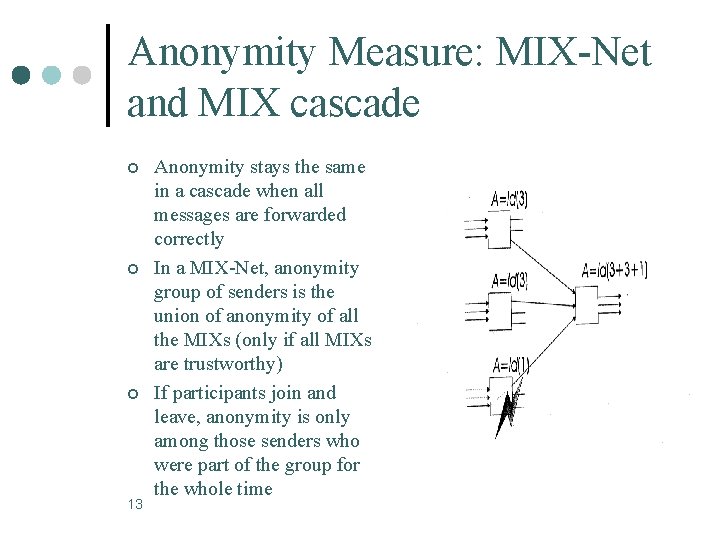

Anonymity Measure: MIX-Net and MIX cascade ¢ ¢ ¢ 13 Anonymity stays the same in a cascade when all messages are forwarded correctly In a MIX-Net, anonymity group of senders is the union of anonymity of all the MIXs (only if all MIXs are trustworthy) If participants join and leave, anonymity is only among those senders who were part of the group for the whole time

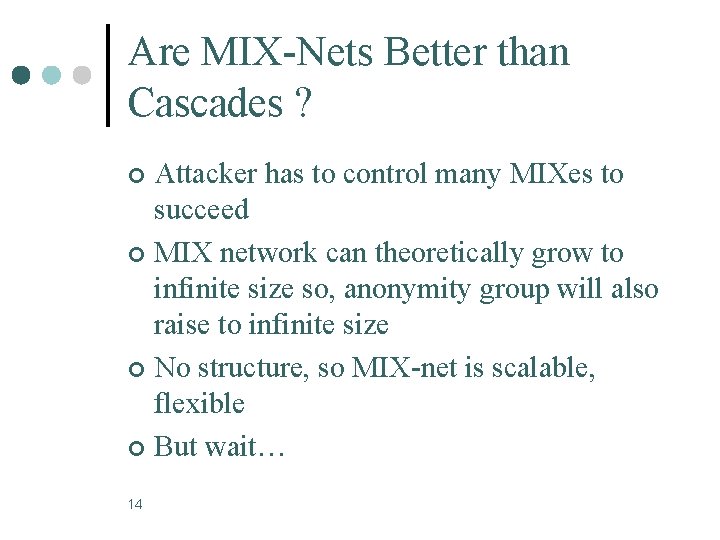

Are MIX-Nets Better than Cascades ? Attacker has to control many MIXes to succeed ¢ MIX network can theoretically grow to infinite size so, anonymity group will also raise to infinite size ¢ No structure, so MIX-net is scalable, flexible ¢ But wait… ¢ 14

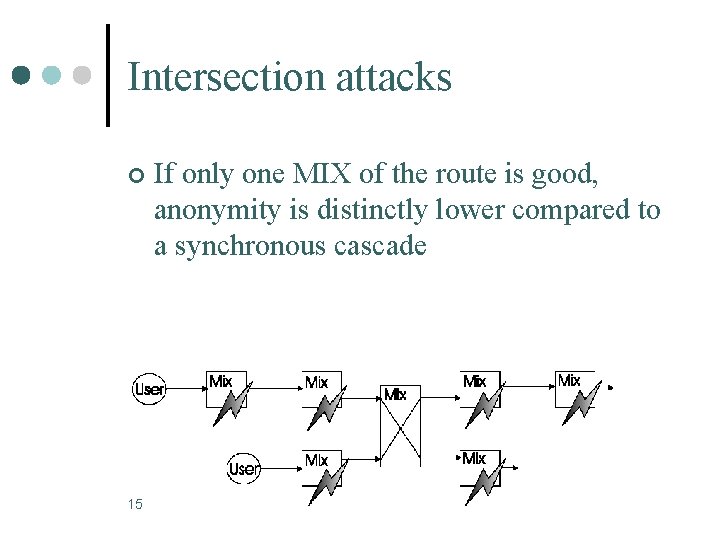

Intersection attacks ¢ 15 If only one MIX of the route is good, anonymity is distinctly lower compared to a synchronous cascade

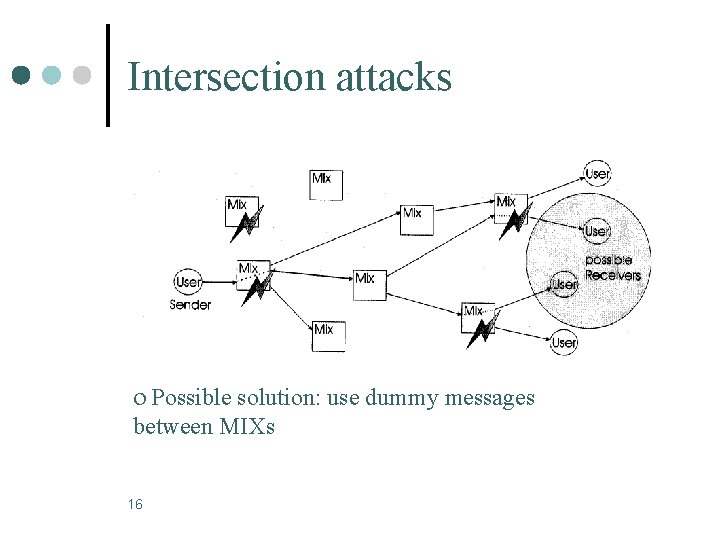

Intersection attacks o Possible solution: use dummy messages between MIXs 16

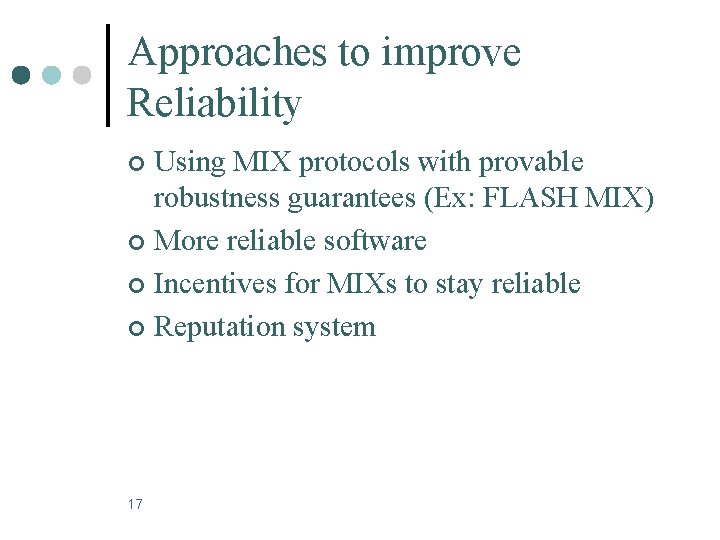

Approaches to improve Reliability Using MIX protocols with provable robustness guarantees (Ex: FLASH MIX) ¢ More reliable software ¢ Incentives for MIXs to stay reliable ¢ Reputation system ¢ 17

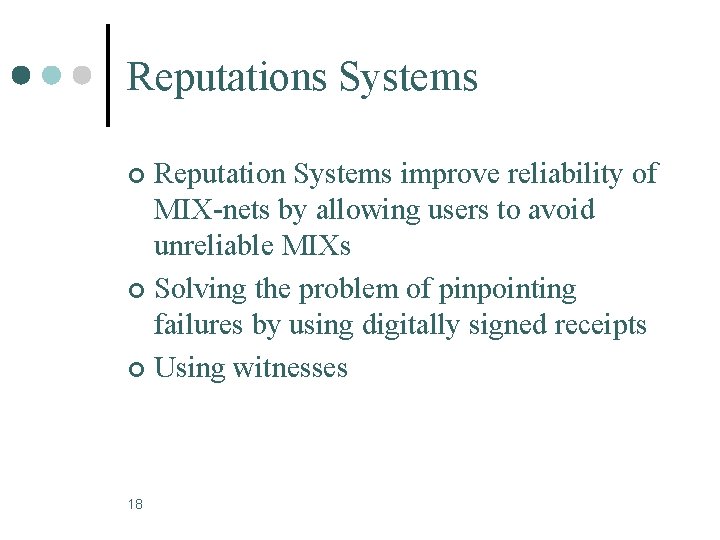

Reputations Systems Reputation Systems improve reliability of MIX-nets by allowing users to avoid unreliable MIXs ¢ Solving the problem of pinpointing failures by using digitally signed receipts ¢ Using witnesses ¢ 18

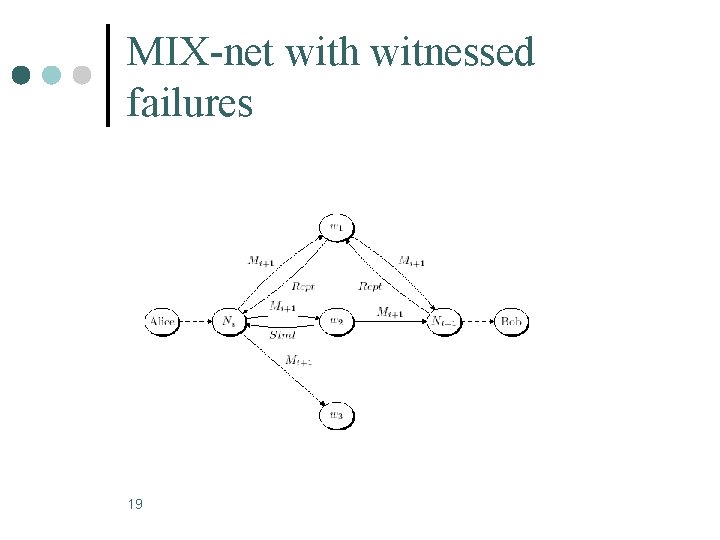

MIX-net with witnessed failures 19

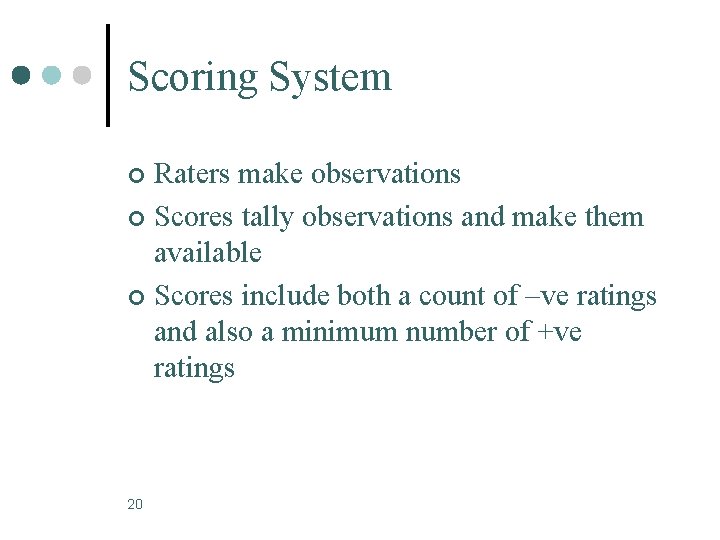

Scoring System Raters make observations ¢ Scores tally observations and make them available ¢ Scores include both a count of –ve ratings and also a minimum number of +ve ratings ¢ 20

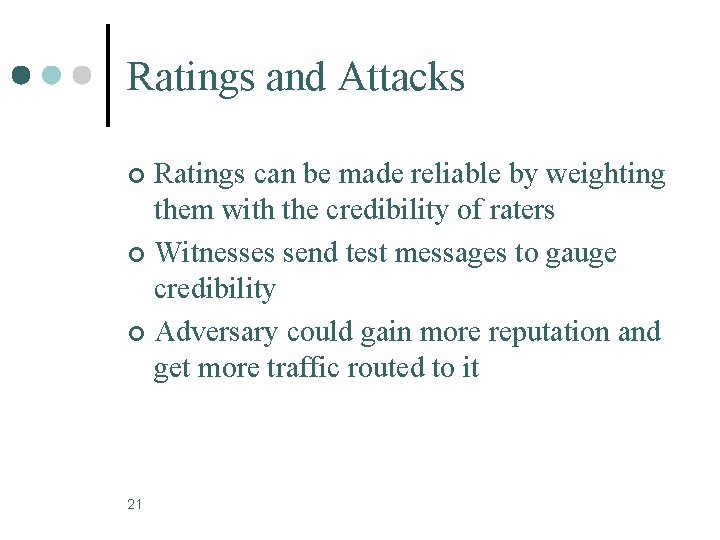

Ratings and Attacks Ratings can be made reliable by weighting them with the credibility of raters ¢ Witnesses send test messages to gauge credibility ¢ Adversary could gain more reputation and get more traffic routed to it ¢ 21

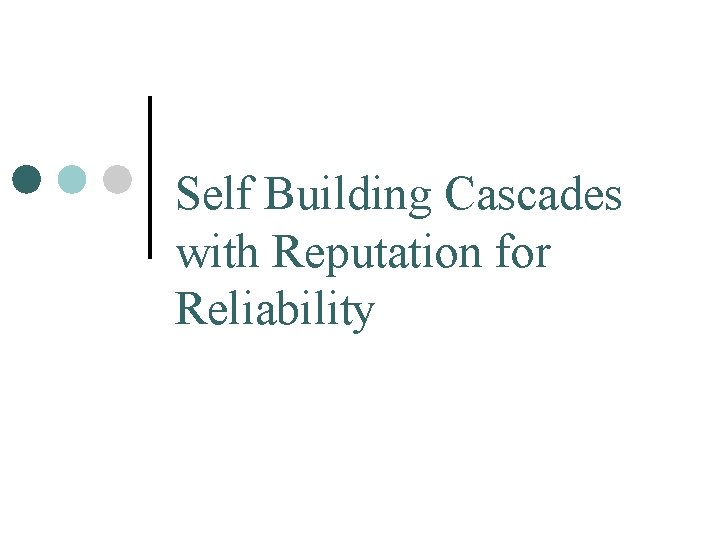

Self Building Cascades with Reputation for Reliability

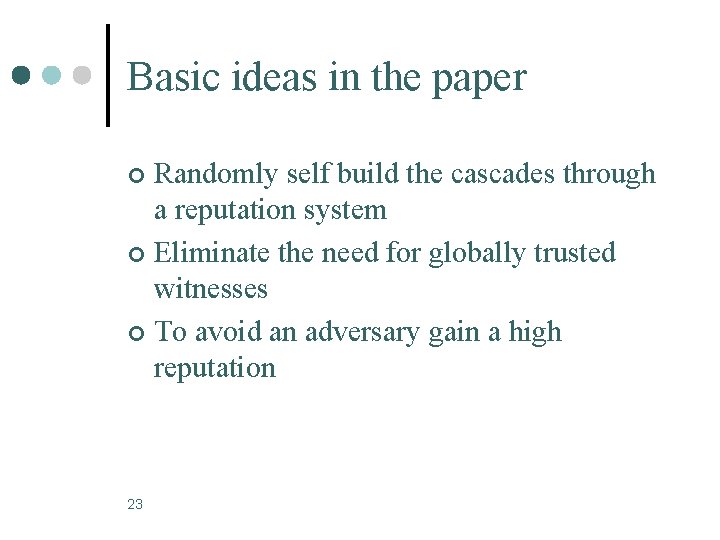

Basic ideas in the paper Randomly self build the cascades through a reputation system ¢ Eliminate the need for globally trusted witnesses ¢ To avoid an adversary gain a high reputation ¢ 23

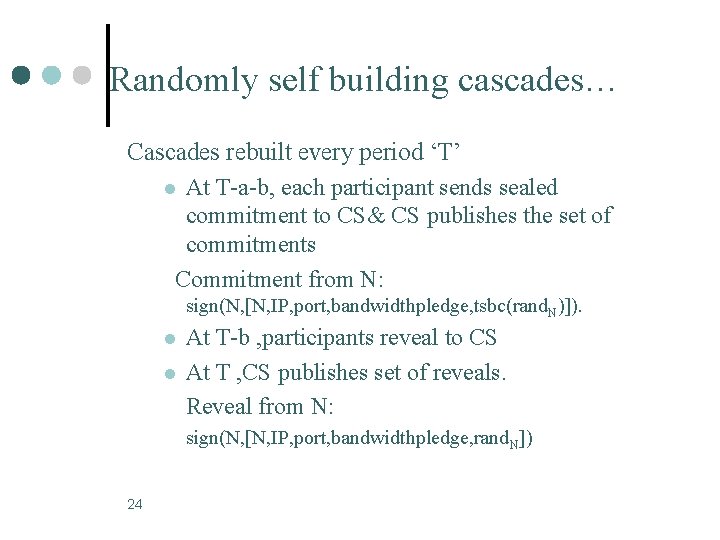

Randomly self building cascades… Cascades rebuilt every period ‘T’ l At T-a-b, each participant sends sealed commitment to CS& CS publishes the set of commitments Commitment from N: sign(N, [N, IP, port, bandwidthpledge, tsbc(rand. N)]). l l At T-b , participants reveal to CS At T , CS publishes set of reveals. Reveal from N: sign(N, [N, IP, port, bandwidthpledge, rand. N]) 24

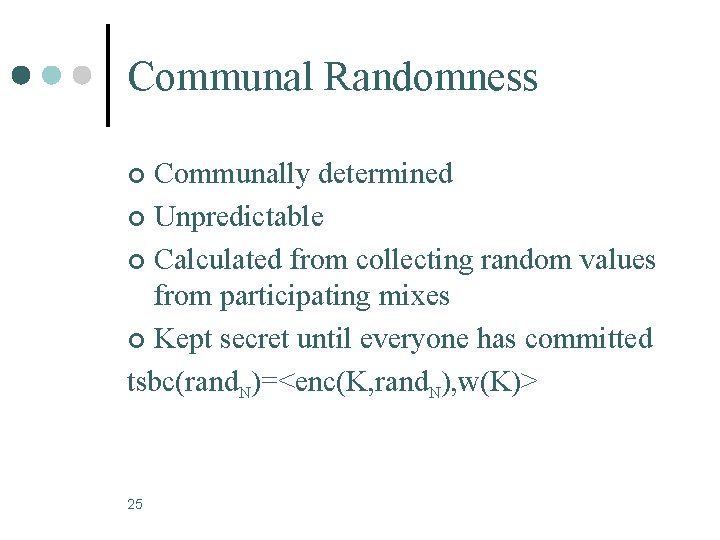

Communal Randomness Communally determined ¢ Unpredictable ¢ Calculated from collecting random values from participating mixes ¢ Kept secret until everyone has committed tsbc(rand. N)=<enc(K, rand. N), w(K)> ¢ 25

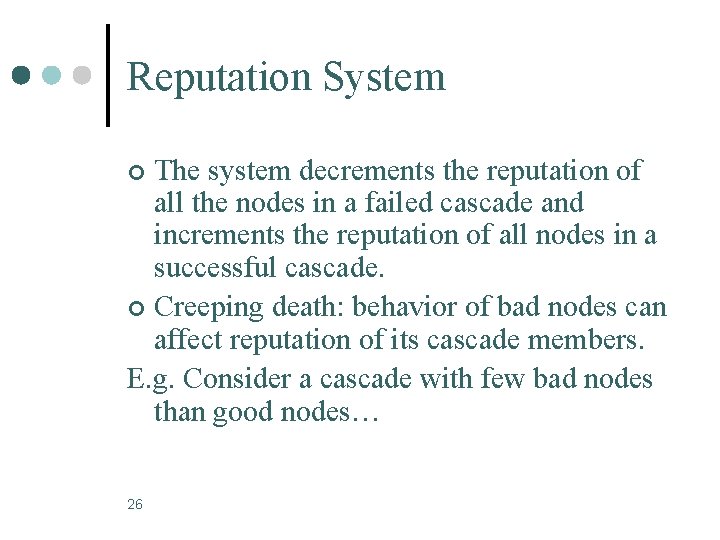

Reputation System The system decrements the reputation of all the nodes in a failed cascade and increments the reputation of all nodes in a successful cascade. ¢ Creeping death: behavior of bad nodes can affect reputation of its cascade members. E. g. Consider a cascade with few bad nodes than good nodes… ¢ 26

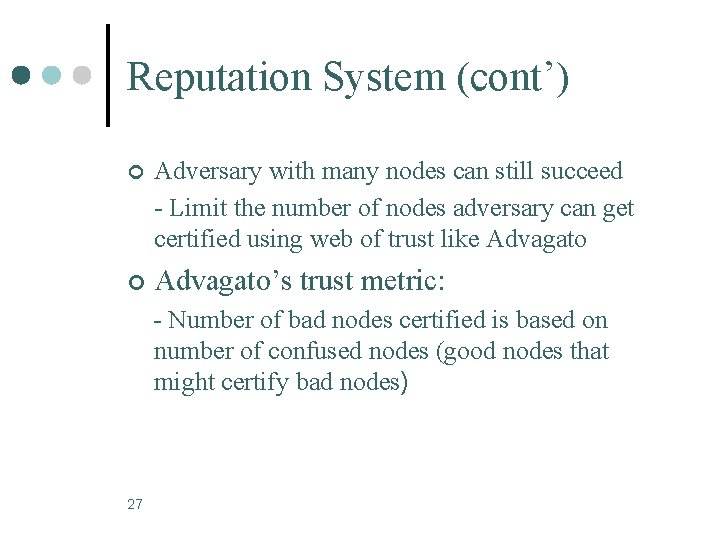

Reputation System (cont’) ¢ Adversary with many nodes can still succeed - Limit the number of nodes adversary can get certified using web of trust like Advagato ¢ Advagato’s trust metric: - Number of bad nodes certified is based on number of confused nodes (good nodes that might certify bad nodes) 27

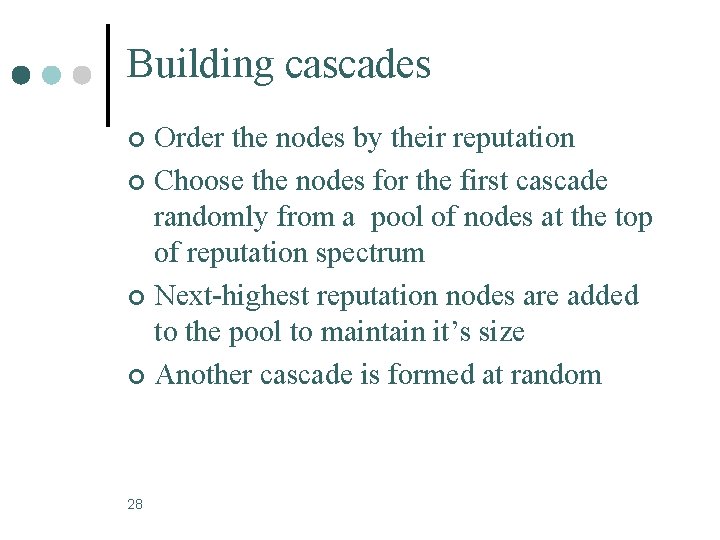

Building cascades Order the nodes by their reputation ¢ Choose the nodes for the first cascade randomly from a pool of nodes at the top of reputation spectrum ¢ Next-highest reputation nodes are added to the pool to maintain it’s size ¢ Another cascade is formed at random ¢ 28

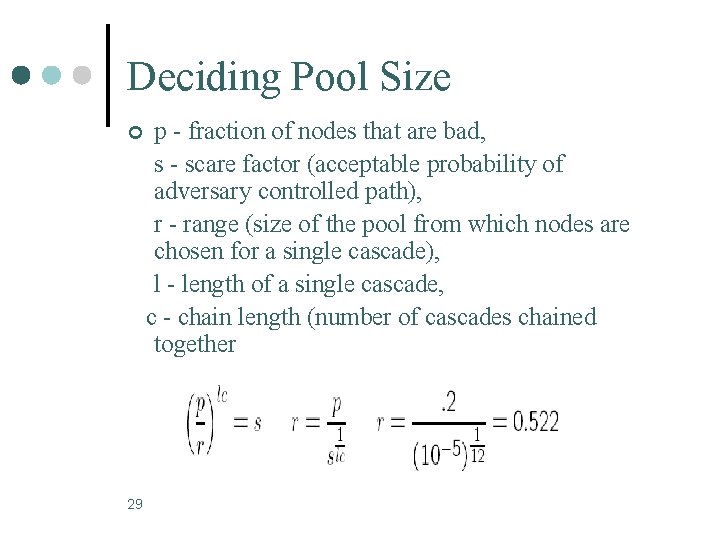

Deciding Pool Size ¢ 29 p - fraction of nodes that are bad, s - scare factor (acceptable probability of adversary controlled path), r - range (size of the pool from which nodes are chosen for a single cascade), l - length of a single cascade, c - chain length (number of cascades chained together

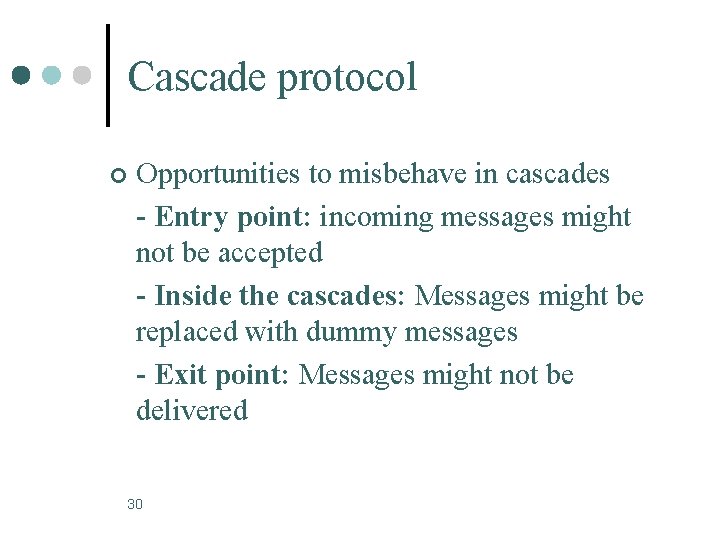

Cascade protocol ¢ Opportunities to misbehave in cascades - Entry point: incoming messages might not be accepted - Inside the cascades: Messages might be replaced with dummy messages - Exit point: Messages might not be delivered 30

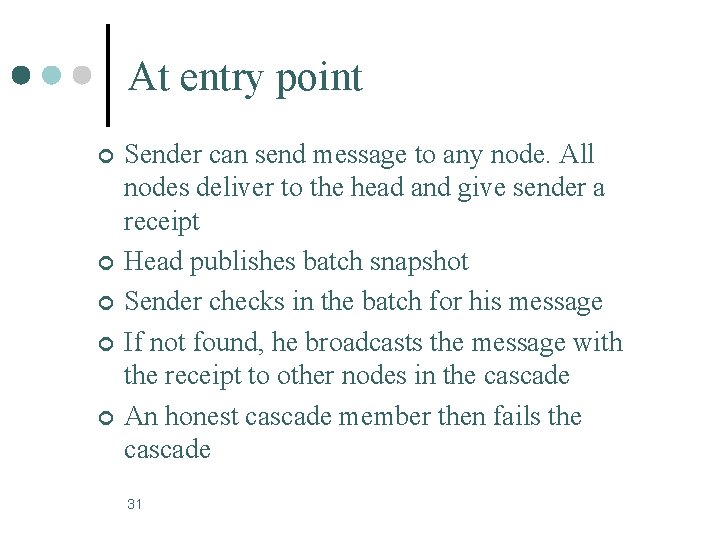

At entry point ¢ ¢ ¢ Sender can send message to any node. All nodes deliver to the head and give sender a receipt Head publishes batch snapshot Sender checks in the batch for his message If not found, he broadcasts the message with the receipt to other nodes in the cascade An honest cascade member then fails the cascade 31

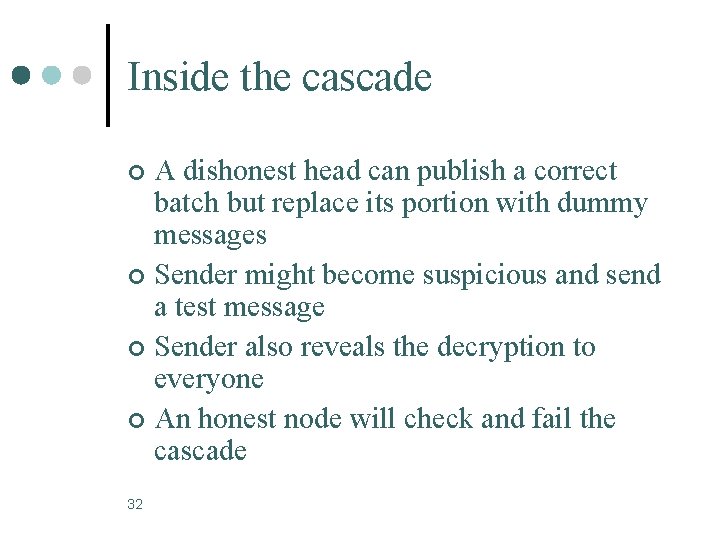

Inside the cascade A dishonest head can publish a correct batch but replace its portion with dummy messages ¢ Sender might become suspicious and send a test message ¢ Sender also reveals the decryption to everyone ¢ An honest node will check and fail the cascade ¢ 32

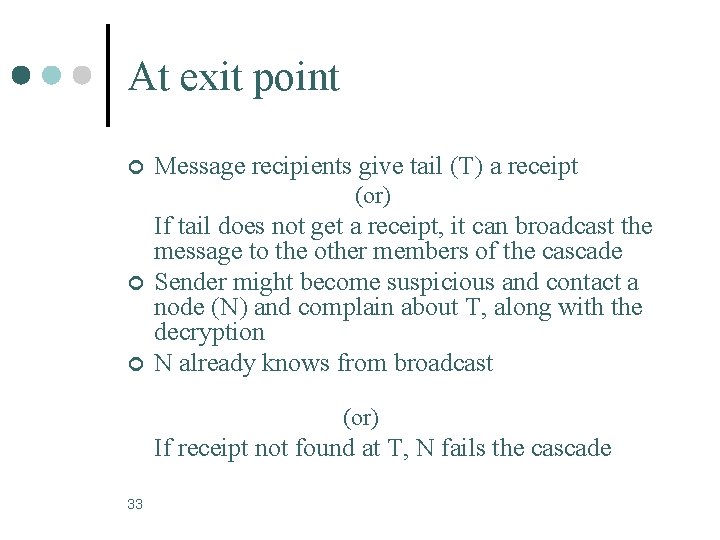

At exit point ¢ Message recipients give tail (T) a receipt (or) ¢ ¢ If tail does not get a receipt, it can broadcast the message to the other members of the cascade Sender might become suspicious and contact a node (N) and complain about T, along with the decryption N already knows from broadcast (or) If receipt not found at T, N fails the cascade 33

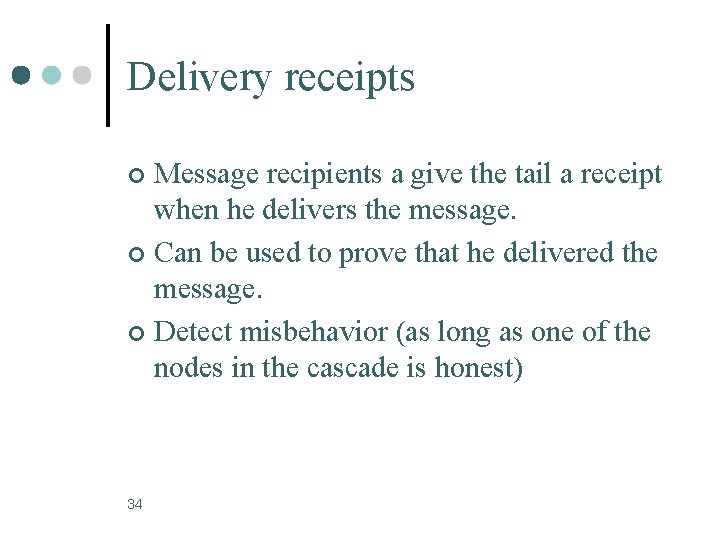

Delivery receipts Message recipients a give the tail a receipt when he delivers the message. ¢ Can be used to prove that he delivered the message. ¢ Detect misbehavior (as long as one of the nodes in the cascade is honest) ¢ 34

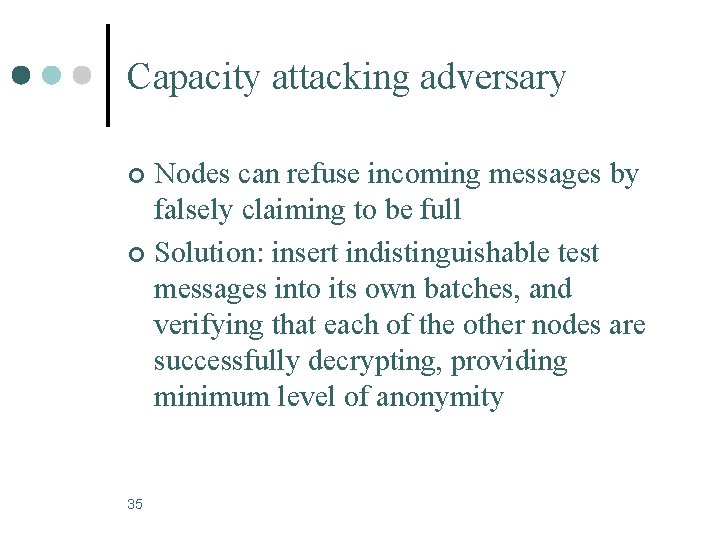

Capacity attacking adversary Nodes can refuse incoming messages by falsely claiming to be full ¢ Solution: insert indistinguishable test messages into its own batches, and verifying that each of the other nodes are successfully decrypting, providing minimum level of anonymity ¢ 35

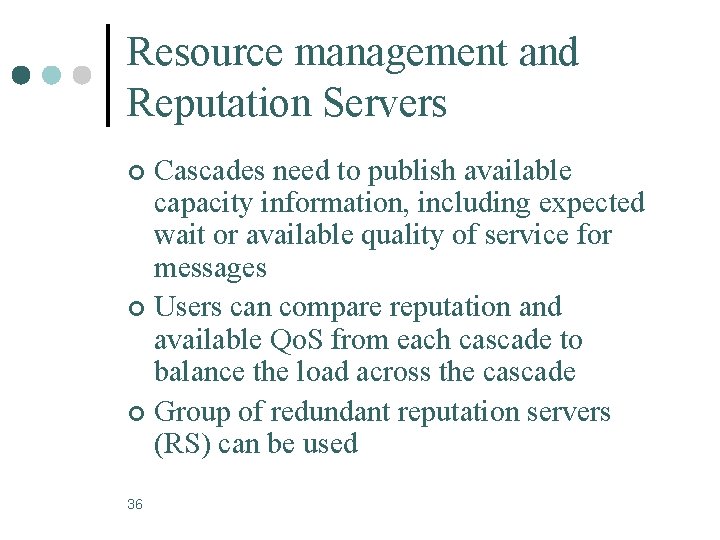

Resource management and Reputation Servers Cascades need to publish available capacity information, including expected wait or available quality of service for messages ¢ Users can compare reputation and available Qo. S from each cascade to balance the load across the cascade ¢ Group of redundant reputation servers (RS) can be used ¢ 36

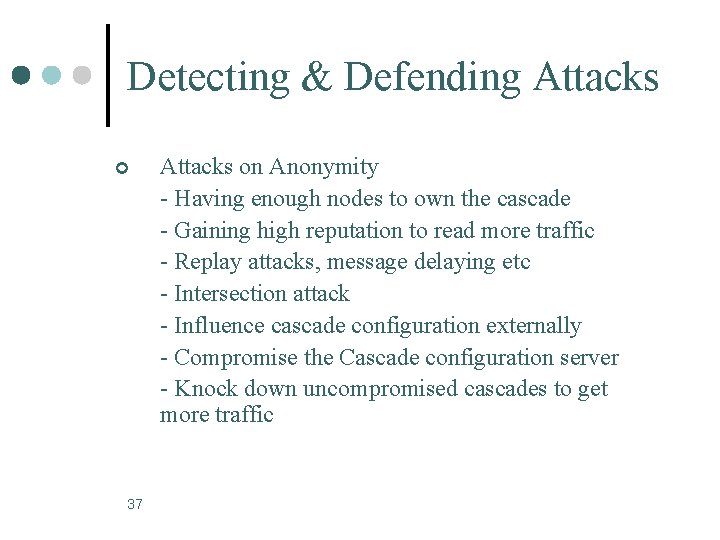

Detecting & Defending Attacks ¢ 37 Attacks on Anonymity - Having enough nodes to own the cascade - Gaining high reputation to read more traffic - Replay attacks, message delaying etc - Intersection attack - Influence cascade configuration externally - Compromise the Cascade configuration server - Knock down uncompromised cascades to get more traffic

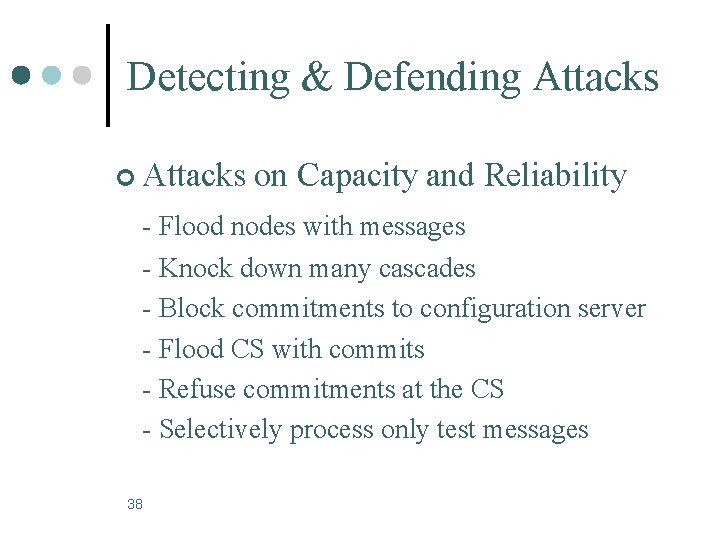

Detecting & Defending Attacks ¢ Attacks on Capacity and Reliability - Flood nodes with messages - Knock down many cascades - Block commitments to configuration server - Flood CS with commits - Refuse commitments at the CS - Selectively process only test messages 38

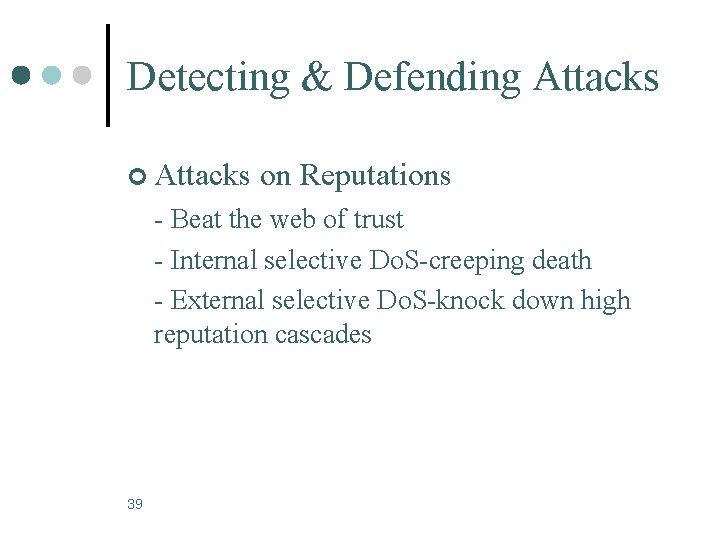

Detecting & Defending Attacks ¢ Attacks on Reputations - Beat the web of trust - Internal selective Do. S-creeping death - External selective Do. S-knock down high reputation cascades 39

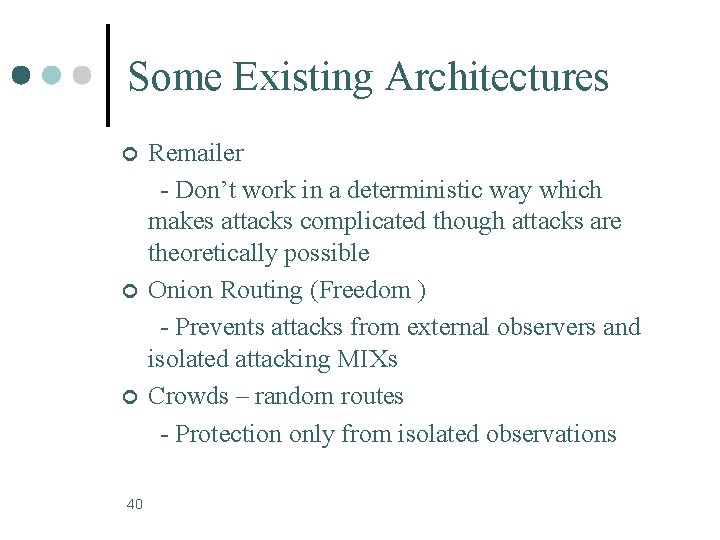

Some Existing Architectures ¢ ¢ ¢ 40 Remailer - Don’t work in a deterministic way which makes attacks complicated though attacks are theoretically possible Onion Routing (Freedom ) - Prevents attacks from external observers and isolated attacking MIXs Crowds – random routes - Protection only from isolated observations

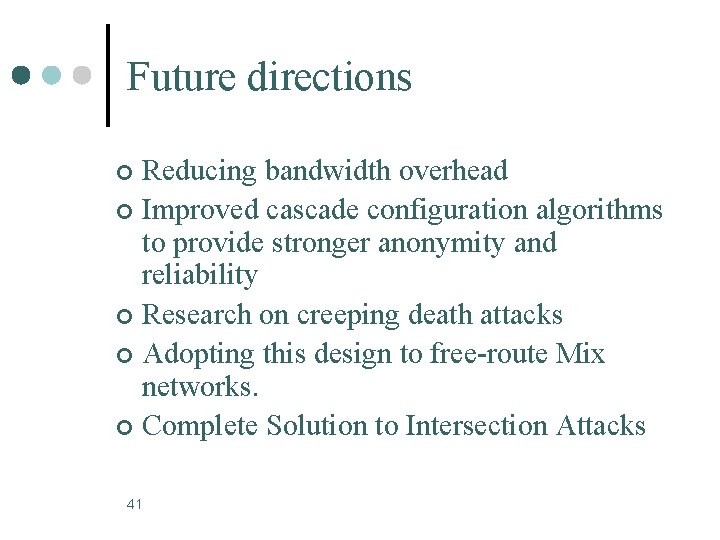

Future directions Reducing bandwidth overhead ¢ Improved cascade configuration algorithms to provide stronger anonymity and reliability ¢ Research on creeping death attacks ¢ Adopting this design to free-route Mix networks. ¢ Complete Solution to Intersection Attacks ¢ 41

Questions? 42
