Reliable ByteStream TCP Outline Connection EstablishmentTermination Sliding Window
Reliable Byte-Stream (TCP) Outline Connection Establishment/Termination Sliding Window Revisited Flow Control Adaptive Timeout Spring 2006 CS 332 1

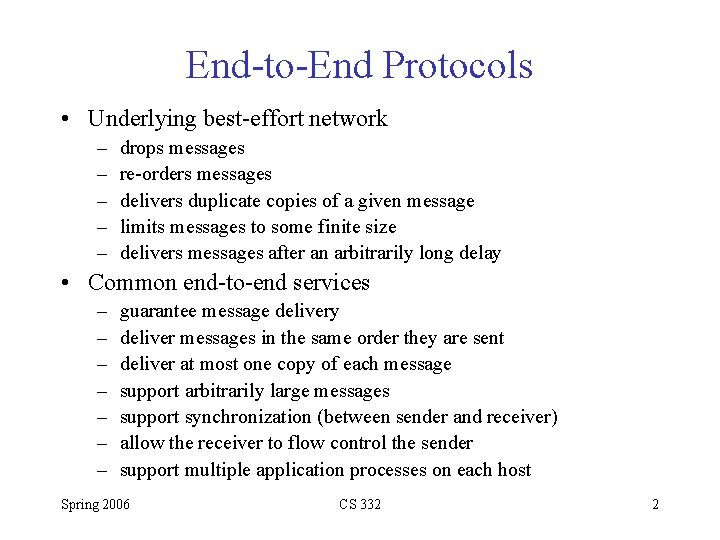

End-to-End Protocols • Underlying best-effort network – – – drops messages re-orders messages delivers duplicate copies of a given message limits messages to some finite size delivers messages after an arbitrarily long delay • Common end-to-end services – – – – guarantee message delivery deliver messages in the same order they are sent deliver at most one copy of each message support arbitrarily large messages support synchronization (between sender and receiver) allow the receiver to flow control the sender support multiple application processes on each host Spring 2006 CS 332 2
Simple Demultiplexer (UDP) • Extends host-to-host service into process-toprocess • Unreliable and unordered datagram service • Adds multiplexing • No flow control • Endpoints identified by ports (why not PID? ) – servers have well-known ports (clients don’t need this) • Often just starting point – see /etc/services on Unix – Implemented as message queue Spring 2006 CS 332 3
Simple Demultiplexer (UDP) • Header format – Note 16 bit port number (so only 64 K ports) – Process really identified via <port, host> pair • Checksum (optional in IPv 4, mandatory in IPv 6) – psuedo header + UDP header + data • Pseudo header: Protocol number Source IP Dest IP UDP length field 0 16 31 Src. Port Dst. Port Checksum Length Data Why? Spring 2006 CS 332 4

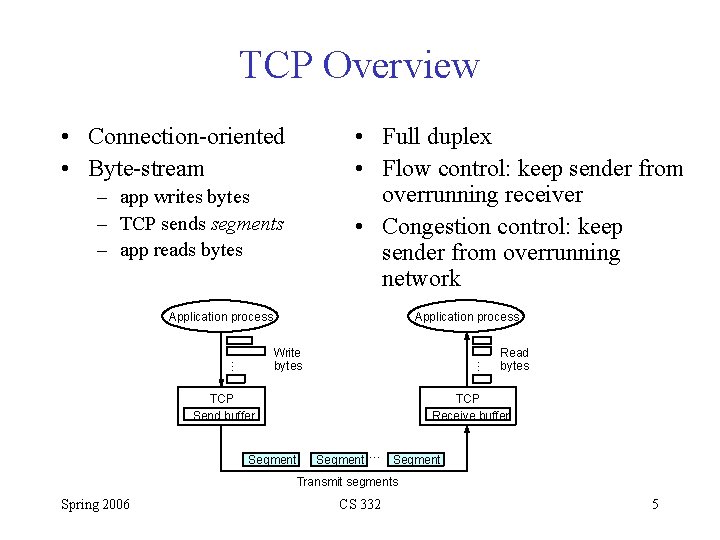

TCP Overview • Connection-oriented • Byte-stream • Full duplex • Flow control: keep sender from overrunning receiver • Congestion control: keep sender from overrunning network – app writes bytes – TCP sends segments – app reads bytes Application process … … Write bytes TCP Send buffer Segment Read bytes TCP Receive buffer Segment … Segment Transmit segments Spring 2006 CS 332 5
Flow Control vs Congestion Control • Flow Control – Prevent sender from overloading receiver – End-to-end issue • Congestion Control – Prevent too much data from being injected into network – Concerned with how hosts and network interact Spring 2006 CS 332 6

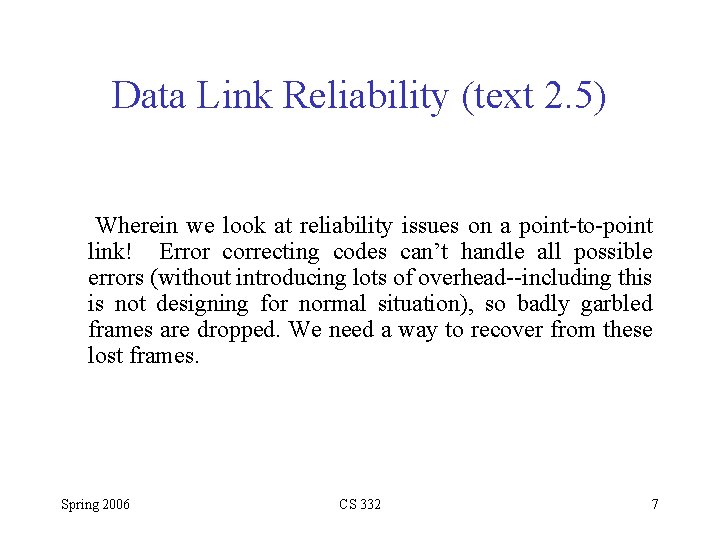

Data Link Reliability (text 2. 5) Wherein we look at reliability issues on a point-to-point link! Error correcting codes can’t handle all possible errors (without introducing lots of overhead--including this is not designing for normal situation), so badly garbled frames are dropped. We need a way to recover from these lost frames. Spring 2006 CS 332 7
Acks and Timeouts • Acknowledgement (ACK) – Small frame sent to peer indicating receipt of frame – No data – Piggybacking • Timeout – If ACK not received within reasonable time, original frame is retransmitted • Automatic Repeat Request (ARQ) – General strategy of using ACKS and timeouts to implement reliable delivery Spring 2006 CS 332 8
Acknowledgements & Timeouts Spring 2006 CS 332 9
Acknowledgements & Timeouts Spring 2006 CS 332 10

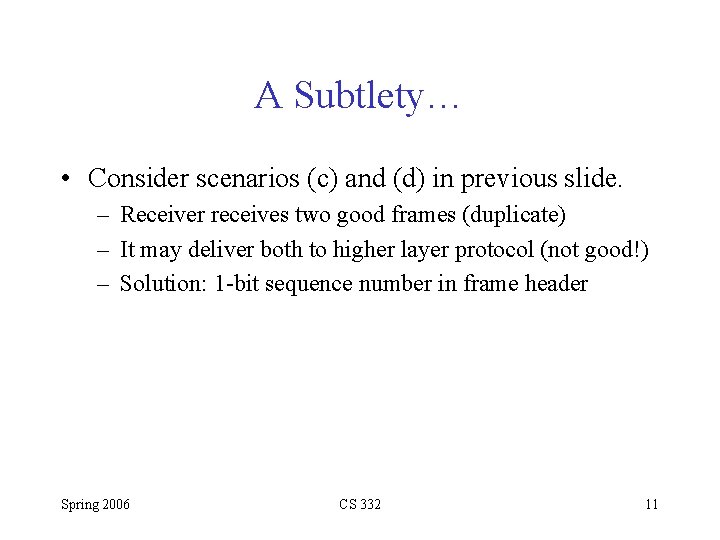

A Subtlety… • Consider scenarios (c) and (d) in previous slide. – Receiver receives two good frames (duplicate) – It may deliver both to higher layer protocol (not good!) – Solution: 1 -bit sequence number in frame header Spring 2006 CS 332 11
Stop-and-Wait Sender Receiver • Problem: keeping the pipe full • Example – 1. 5 Mbps link x 45 ms RTT = 67. 5 Kb (8 KB) – 1 KB frames implies 1/8 th link utilization (Next slide) Spring 2006 CS 332 12

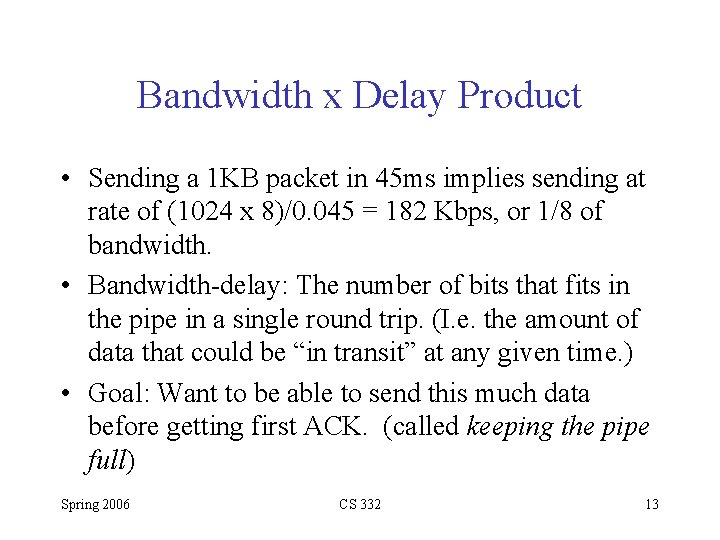

Bandwidth x Delay Product • Sending a 1 KB packet in 45 ms implies sending at rate of (1024 x 8)/0. 045 = 182 Kbps, or 1/8 of bandwidth. • Bandwidth-delay: The number of bits that fits in the pipe in a single round trip. (I. e. the amount of data that could be “in transit” at any given time. ) • Goal: Want to be able to send this much data before getting first ACK. (called keeping the pipe full) Spring 2006 CS 332 13
Sliding Window • Allow multiple outstanding (un-ACKed) frames • Upper bound on un-ACKed frames, called window … Receiver … Time Sender Spring 2006 CS 332 14
Sliding Window: Sender • Assign sequence number to each frame (Seq. Num) • Maintain three state variables: – send window size (SWS) – last acknowledgment received (LAR) – last frame sent (LFS) • Maintain invariant: LFS - LAR ≤ SWS £ SWS … … LAR LFS • Advance LAR when ACK arrives • Buffer up to SWS frames (must be prepared to retransmit frames until they are ACKed) Spring 2006 CS 332 15
Sliding Window: Receiver • Maintain three state variables – receive window size (RWS) (upper bound on # out-of-order frames) – largest frame acceptable (LFA) (sequence # of) – last frame received (LFR) • Maintain invariant: LFA - LFR ≤ RWS £ RWS … … LFR LFA • Frame Seq. Num arrives: – if LFR < Seq. Num ≤ LFA accept – if Seq. Num ≤ LFR or Seq. Num > LFA discard • Send cumulative ACKs Spring 2006 CS 332 16

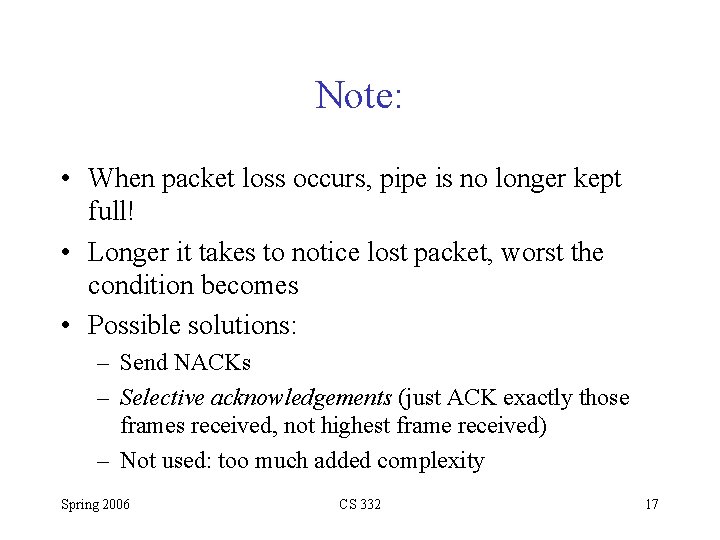

Note: • When packet loss occurs, pipe is no longer kept full! • Longer it takes to notice lost packet, worst the condition becomes • Possible solutions: – Send NACKs – Selective acknowledgements (just ACK exactly those frames received, not highest frame received) – Not used: too much added complexity Spring 2006 CS 332 17
Sequence Number Space • Seq. Num field is finite; sequence numbers wrap around • Sequence number space must be larger then number of outstanding frames (I. e. stop-and-wait had 2 # space) – I. e. if sequence number space is of size 8 (say 0. . 7), and number of outstanding frames is allowed to be 10, then sender can send sequence numbers 0, 1, 2, 3, 4, 5, 6, 7, 0, 1 all at once. Now if receiver sends back an ACK with sequence number 1, which packet 1 is it ACKing? Spring 2006 CS 332 18

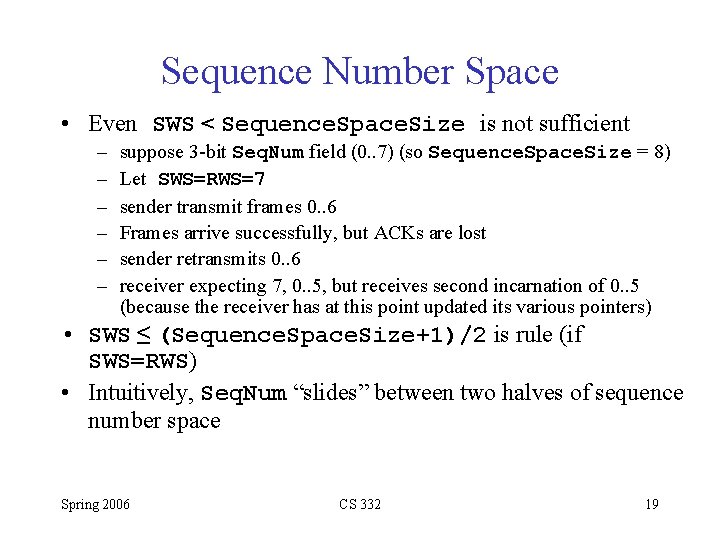

Sequence Number Space • Even SWS < Sequence. Space. Size is not sufficient – – – suppose 3 -bit Seq. Num field (0. . 7) (so Sequence. Space. Size = 8) Let SWS=RWS=7 sender transmit frames 0. . 6 Frames arrive successfully, but ACKs are lost sender retransmits 0. . 6 receiver expecting 7, 0. . 5, but receives second incarnation of 0. . 5 (because the receiver has at this point updated its various pointers) • SWS ≤ (Sequence. Space. Size+1)/2 is rule (if SWS=RWS) • Intuitively, Seq. Num “slides” between two halves of sequence number space Spring 2006 CS 332 19
Easy to overlook… • Relationship between window size and sequence number space depends on assumption that frames are not reordered in transit (easy to assume on point-to-point link). Spring 2006 CS 332 20
Back to Chapter 5… Spring 2006 CS 332 21
Data Link Versus Transport • Transport potentially connects many different hosts – need explicit connection establishment and termination • Transport has potentially different RTT (over different routes and at different times, even on scale of minutes) – need adaptive timeout mechanism • Transport has potentially long delay in network – need to be prepared for arrival of very old packets • Transport has potentially different capacity at destination – need to accommodate different node capacity • Transport has potentially different network capacity – need to be prepared for network congestion Spring 2006 CS 332 22
The “End-to-End” Argument • Consider TCP vs X. 25 • TCP: Consider underlying IP network unreliable and use sliding window to provide end-to-end inorder reliable delivery • X. 25: Use sliding window within network on hopby-hop basis (which should guarantee end-to-end). Several problems with this: – No guarantee that added hop preserves service – In link from A to B to C, no guarantee that B behaves perfectly (nodes known to introduce errors and mix packet order) Spring 2006 CS 332 23
End-to-End • “A function should not be provided in the lower levels of the system unless it can be completely and correctly implemented at that level” • Does allow for functions to be incompletely provided at lower levels for optimization – E. g. detecting and retransmitting single corrupt packet across one hop preferable to retransmitting entire file end-to-end. • See reading assignment on class homework page Spring 2006 CS 332 24
Segment Format Spring 2006 CS 332 25

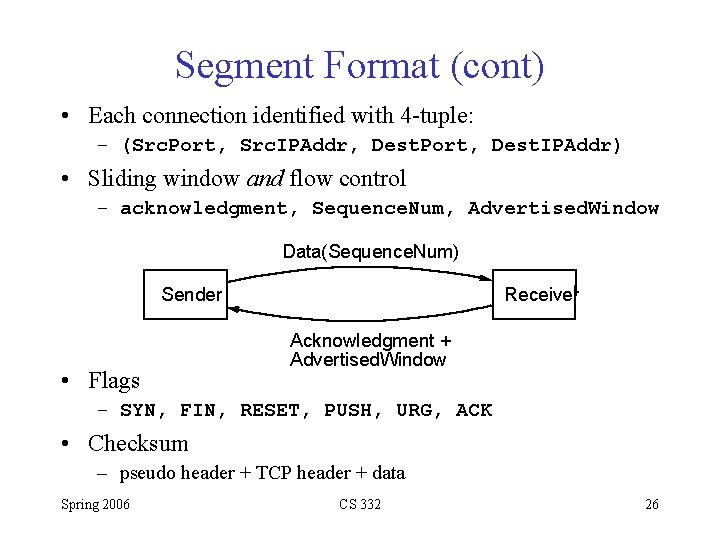

Segment Format (cont) • Each connection identified with 4 -tuple: – (Src. Port, Src. IPAddr, Dest. Port, Dest. IPAddr) • Sliding window and flow control – acknowledgment, Sequence. Num, Advertised. Window Data(Sequence. Num) Sender • Flags Receiver Acknowledgment + Advertised. Window – SYN, FIN, RESET, PUSH, URG, ACK • Checksum – pseudo header + TCP header + data Spring 2006 CS 332 26

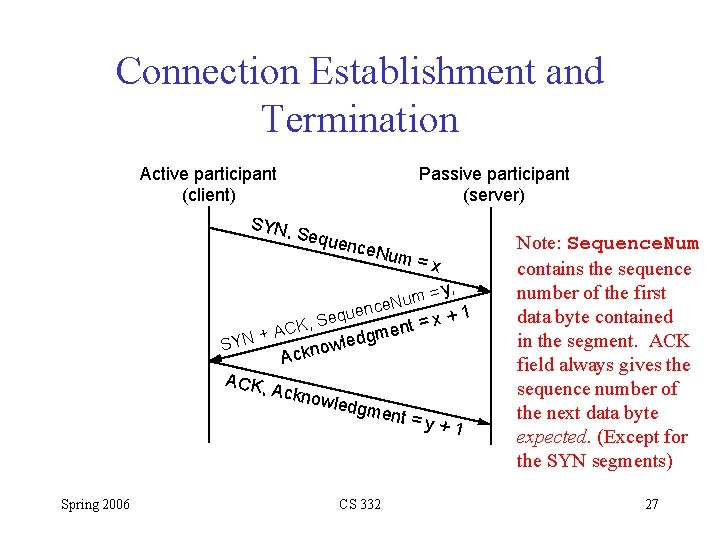

Connection Establishment and Termination Active participant (client) Passive participant (server) SYN, Sequ ence. N K, AC + N Y S ACK, Spring 2006 um = x = y, m u nce. N e u q x+1 Se o Ackno en m g d e wl wledg ment CS 332 t= =y+1 Note: Sequence. Num contains the sequence number of the first data byte contained in the segment. ACK field always gives the sequence number of the next data byte expected. (Except for the SYN segments) 27
State Transition Diagram CLOSED Active open/SYN Passive open Close Opening connection LISTEN SYN_RCVD SYN/SYN + ACK Send/SYN SYN/SYN + ACK Close/FIN SYN + ACK/ACK FIN_WAIT_1 ACK FIN_WAIT_2 CLOSE_WAIT FIN/ACK AC K + FI N /A C K FIN/ACK Spring 2006 event/action ESTABLISHED Close/FIN Closing connection SYN_SENT Close/FIN CLOSING ACK Timeout after two segment lifetimes TIME_WAIT CS 332 LAST_ACK CLOSED 28
Sliding Window Revisited Sending application Receiving application TCP Last. Byte. Written Last. Byte. Acked Last. Byte. Sent • Sending side – Last. Byte. Acked ≤ Last. Byte. Sent – Last. Byte. Sent ≤ Last. Byte. Written – buffer bytes between Last. Byte. Acked and Last. Byte. Written Spring 2006 Last. Byte. Read Next. Byte. Expected Last. Byte. Rcvd • Receiving side – Last. Byte. Read < Next. Byte. Expected – Next. Byte. Expected ≤ Last. Byte. Rcvd +1 – buffer bytes between Last. Byte. Read and Last. Byte. Rcvd CS 332 29
Flow Control • Send buffer size: Max. Send. Buffer • Receive buffer size: Max. Rcv. Buffer • Receiving side – Last. Byte. Rcvd - Last. Byte. Read ≤ Max. Rcv. Buffer – Advertised. Window = Max. Rcv. Buffer - (Last. Byte. Rcvd Last. Byte. Read) • Sending side – Last. Byte. Sent - Last. Byte. Acked ≤ Advertised. Window – Effective. Window = Advertised. Window - (Last. Byte. Sent Last. Byte. Acked) – Last. Byte. Written - Last. Byte. Acked ≤ Max. Send. Buffer – block sender if (Last. Byte. Written - Last. Byte. Acked) + y > Max. Sender. Buffer Spring 2006 CS 332 30
Flow Control • Always send ACK in response to arriving data segment – This response contains latest Acknowledge and Advertised. Window fields even if they haven’t changed • Problem: How does the sending side know when the advertised window is no longer 0? – It can’t get this info, since receiver only sends window advertisements in response to received packets, and sender can’t send anything because it believes the window size is zero. • Solution: Persist when Advertised. Window = 0 – Periodically send a probe segment with one byte of data. Although most won’t be accepted, they trigger responses, and eventually one will come back with a nonzero advertised window. Spring 2006 CS 332 31
Protection Against Wrap Around • 32 -bit Sequence. Num Bandwidth T 1 (1. 5 Mbps) Ethernet (10 Mbps) T 3 (45 Mbps) FDDI (100 Mbps) STS-3 (155 Mbps) STS-12 (622 Mbps) STS-24 (1. 2 Gbps) Spring 2006 Time Until Wrap Around 6. 4 hours 57 minutes 13 minutes 6 minutes 4 minutes 55 seconds 28 seconds CS 332 32

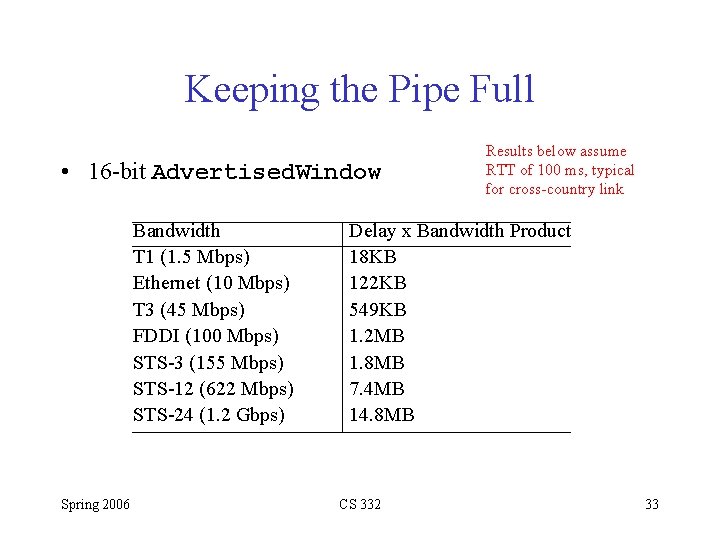

Keeping the Pipe Full • 16 -bit Advertised. Window Bandwidth T 1 (1. 5 Mbps) Ethernet (10 Mbps) T 3 (45 Mbps) FDDI (100 Mbps) STS-3 (155 Mbps) STS-12 (622 Mbps) STS-24 (1. 2 Gbps) Spring 2006 Results below assume RTT of 100 ms, typical for cross-country link Delay x Bandwidth Product 18 KB 122 KB 549 KB 1. 2 MB 1. 8 MB 7. 4 MB 14. 8 MB CS 332 33
TCP Extensions • Implemented as header options • Store timestamp in outgoing segments • Extend sequence space with 32 -bit timestamp: PAWS (Protection Against Wrapped Sequence Numbers) • Shift (scale) advertised window Spring 2006 CS 332 34
Adaptive Retransmission (Original Algorithm) • Measure Sample. RTT for each segment/ACK pair • Compute weighted average of RTT - a between 0. 8 and 0. 9 (recommended value 0. 9) – Note a in this range has a strong smoothing effect • Set timeout based on Est. RTT – Time. Out = 2 x Est. RTT (rather conservative) Spring 2006 CS 332 35
Karn/Partridge Algorithm Sender Receiver Sample. R TT inal Retr miss ansm Receiver Orig trans ion Sample. R TT Orig Sender issio n ACK inal t rans miss ion ACK Retr ansm issio n • Problem: ACK doesn’t acknowledge a transmission (it acks a receive) Why? • Do not sample RTT when retransmitting • Double timeout after each retransmission (exponential backoff) Spring 2006 CS 332 36
A Problem • Problem with both these approaches: they can’t keep up with wide RTT fluctuations, thus causing unnecessary retransmissions • When the network is already loaded, unnecessary retransmissions add to the network load (as Stevens notes, “It is the network equivalent of pouring gasoline on a fire”) • What’s needed: keep track of the variance in RTT measurements AND use smooth RTT estimator. Spring 2006 CS 332 37

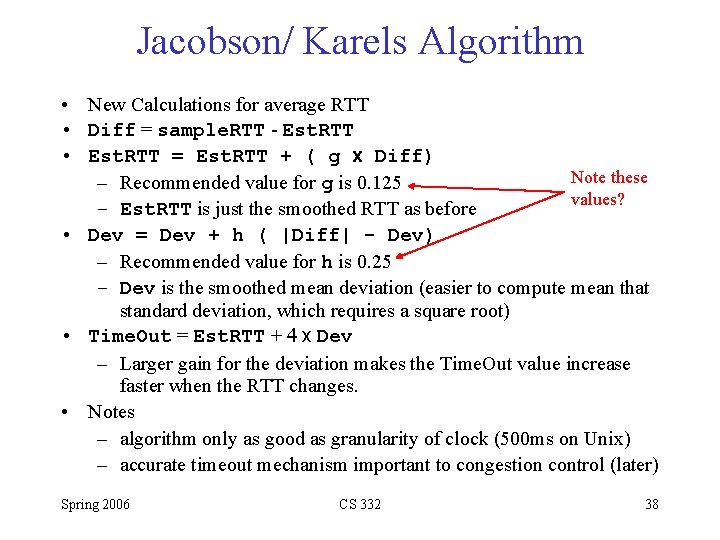

Jacobson/ Karels Algorithm • New Calculations for average RTT • Diff = sample. RTT - Est. RTT • Est. RTT = Est. RTT + ( g x Diff) Note these – Recommended value for g is 0. 125 values? – Est. RTT is just the smoothed RTT as before • Dev = Dev + h ( |Diff| - Dev) – Recommended value for h is 0. 25 – Dev is the smoothed mean deviation (easier to compute mean that standard deviation, which requires a square root) • Time. Out = Est. RTT + 4 x Dev – Larger gain for the deviation makes the Time. Out value increase faster when the RTT changes. • Notes – algorithm only as good as granularity of clock (500 ms on Unix) – accurate timeout mechanism important to congestion control (later) Spring 2006 CS 332 38
TCP Interactive Data Flow • Material here is from TCP/IP Illustrated, Vol. 1 • Study by Caceres, et. al. (1991) : – On a packet count basis, about half of all TCP segments contain bulk data (ftp, email, Usenet news) – Half contain interactive data (telnet, rlogin) – On byte count basis, ratio is around 90% bulk transfer, 10% interactive. – Bulk data tends to be full size (normally 512 bytes of data), interactive is much smaller (90% of telnet and rlogin packets carry less than 10 bytes of data). Spring 2006 CS 332 39
Rlogin and Telnet • • Surprisingly, each interactive keystroke typically generates a packet (as opposed to a line generating a packet). Moreover, a single rlogin keystroke can generate 4 segments (though usually 3) i. Interactive keystroke from client ii. ACK of keystroke from server (typically piggybacked in echo of data byte) see next slide iii. Echo of data byte from server iv. ACK of echoed byte from client Spring 2006 CS 332 40
Delayed ACKs • Normally, TCP does not send an ACK the instant it receives data. Instead, it delays the ACK, hoping to have data going in other direction on which it can piggyback the ACK. • Most implementations use a 200 ms delay (delays ACK up to 200 ms before sending the ACK by itself) • This is why in previous slide, ACK would normally piggyback with the echoed character Spring 2006 CS 332 41

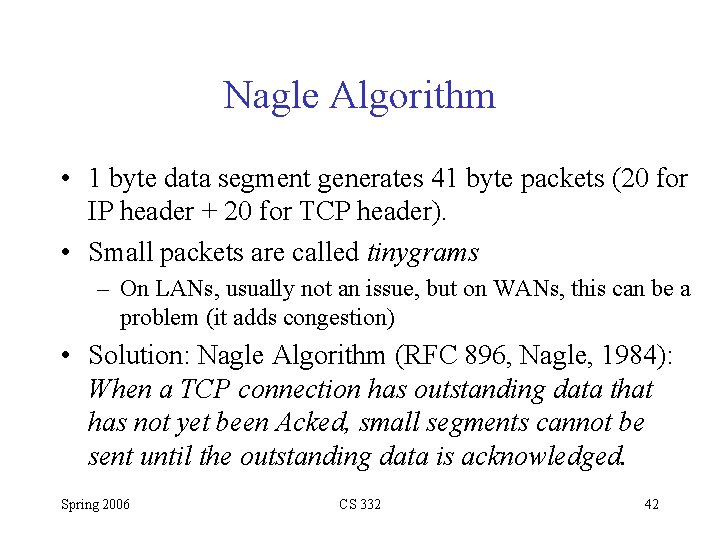

Nagle Algorithm • 1 byte data segment generates 41 byte packets (20 for IP header + 20 for TCP header). • Small packets are called tinygrams – On LANs, usually not an issue, but on WANs, this can be a problem (it adds congestion) • Solution: Nagle Algorithm (RFC 896, Nagle, 1984): When a TCP connection has outstanding data that has not yet been Acked, small segments cannot be sent until the outstanding data is acknowledged. Spring 2006 CS 332 42
Nagle Algorithm (continued) • Nagle is self-clocking: the faster the ACKs come back, the faster the data is sent. But on slow WAN, where tinygrams can be a problem, fewer segments are sent. – Ex. On LAN, time for single byte to be sent, ACKed and echoed is around 16 ms. To generate data at this rate, you need to be typing around 60 characters per second (so on LAN you don’t kick in Nagle) – On WAN, you’ll often kick in Nagle Spring 2006 CS 332 43
Disabling the Nagle Algorithm • Why would you want to? – X Window system: small messages (mouse movements) need to be delivered without delay – Typing one of the terminals special function keys during interactive login • Function keys normally generate multiple bytes of data, beginning with ASCII escape character. If TCP gets data a byte at a time, it can potentially send first byte and then hold the rest of the characters. The server wouldn’t generate the ACK until it received the rest of the command, so Nagle would kick in, meaning rest of bytes not sent for 200 ms, which can be a noticeable delay. • With sockets API, the TCP_NODELAY option disables Nagle • Host Requirements RFCs (1122, 1123) specify that there must be a way for an app to disable Nagle on an individual TCP connection. Spring 2006 CS 332 44
TCP Teardown Spring 2006 CS 332 45
