Reliability of Weld Microstructure Property Calculations Comfort A

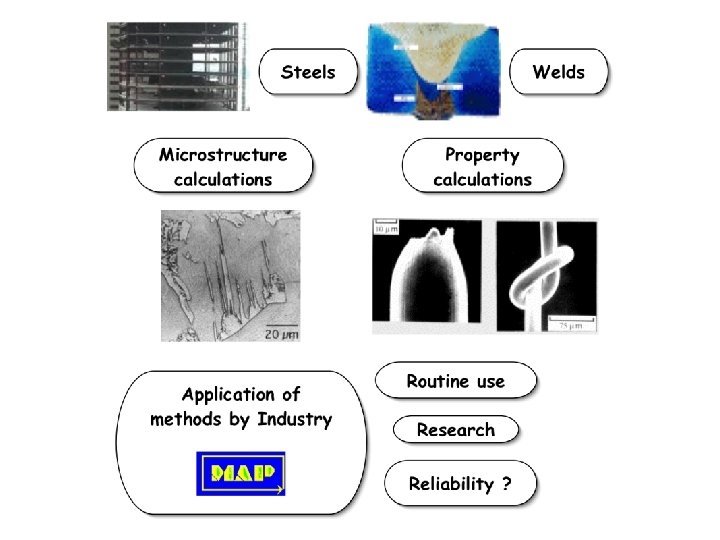

Reliability of Weld Microstructure & Property Calculations Comfort A. Adams Lecture, 2004
Are experiments necessary when designing welding alloys?
Fe Ru Os Hs 6 d 2 s
tallest building in the world earthquakes

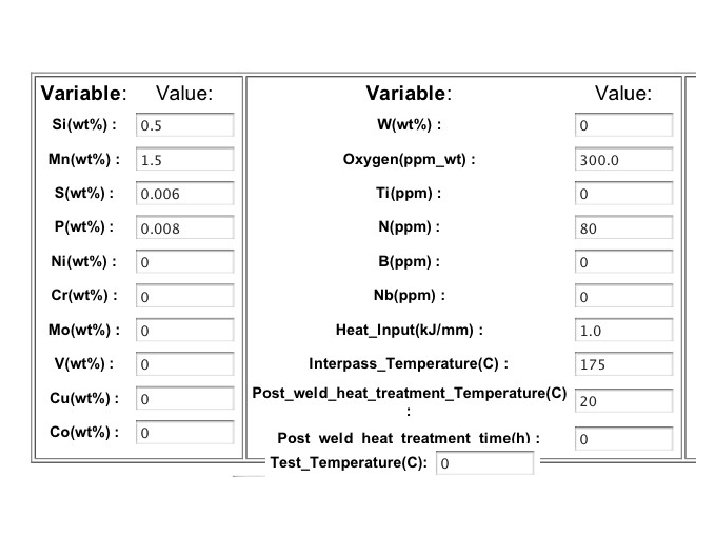

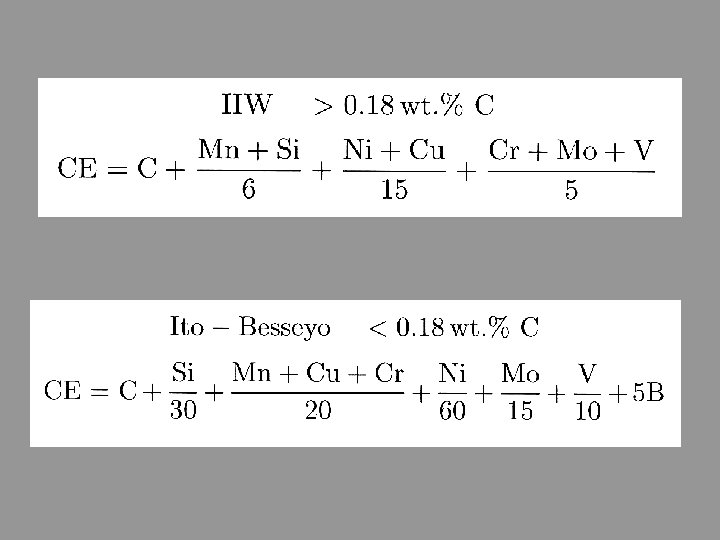

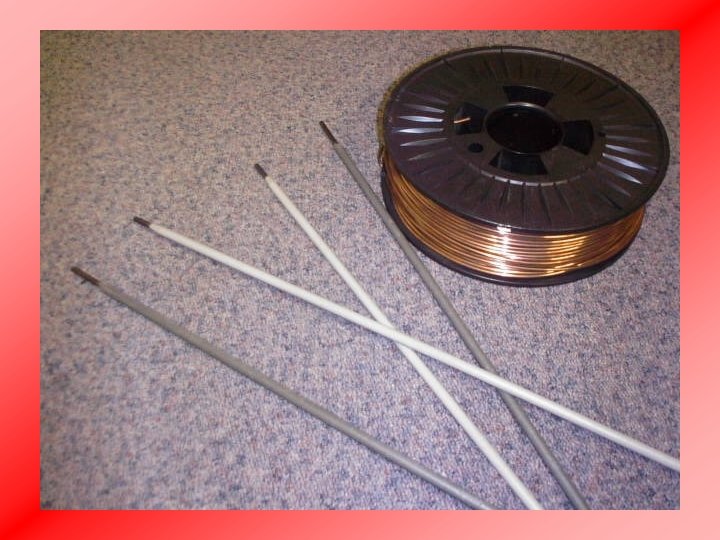

Variables • • • C, Mn, Si, Ni, Cr, Mo, V, Co, B, N, O…. . Thermomechanical processing of steel Welding consumable Welding parameters Subsequent heat treatment

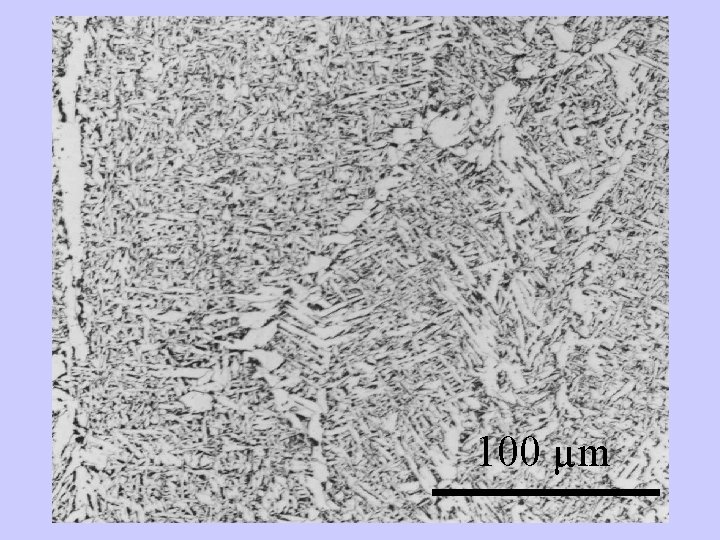

100 µm
Barrite, 1982 20 µm

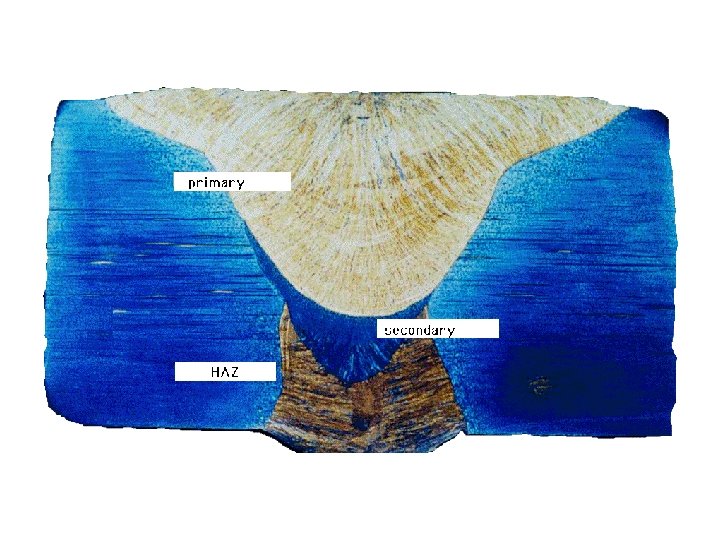

Manual Metal Arc Weld 180 Amps 34 Volts 4 mm/s 200 °C interpass

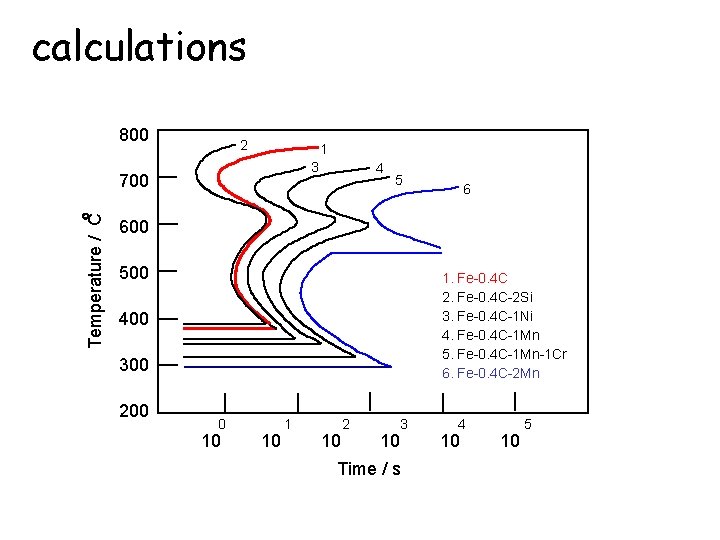

calculations 800 2 1 3 Temperature / C 700 4 5 6 600 500 1. Fe-0. 4 C 2. Fe-0. 4 C-2 Si 3. Fe-0. 4 C-1 Ni 4. Fe-0. 4 C-1 Mn 5. Fe-0. 4 C-1 Mn-1 Cr 6. Fe-0. 4 C-2 Mn 400 300 200 0 10 10 1 10 2 3 10 Time / s 4 10 10 5
Barrite, 1982

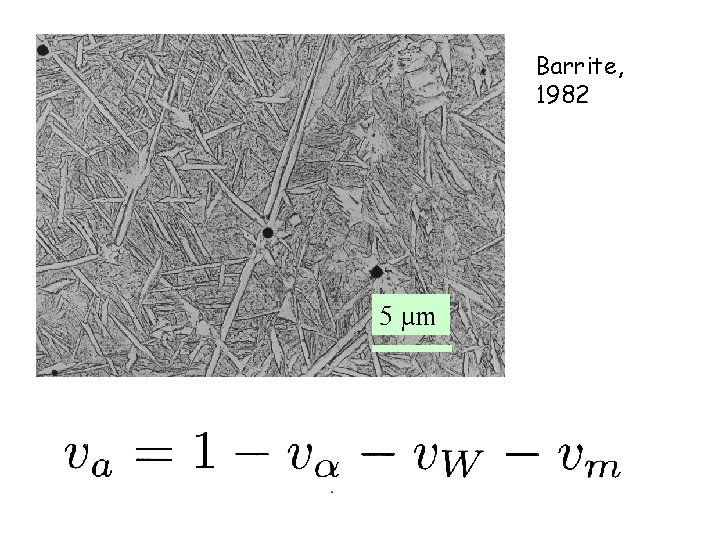

Barrite, 1982 5 µm

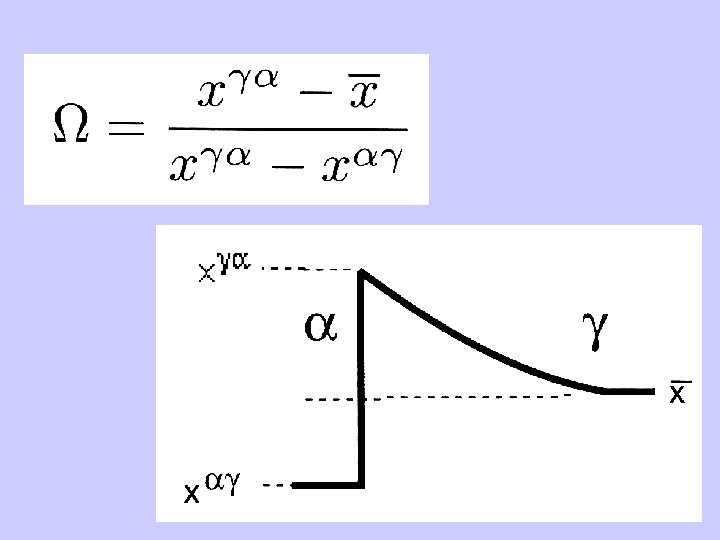

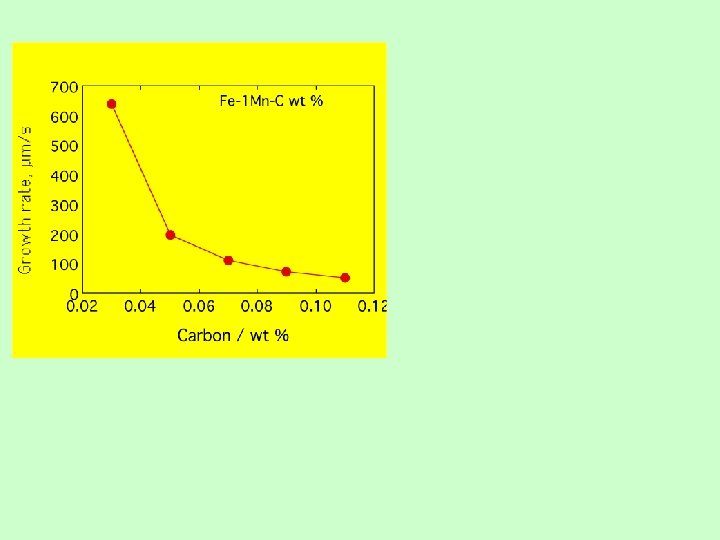

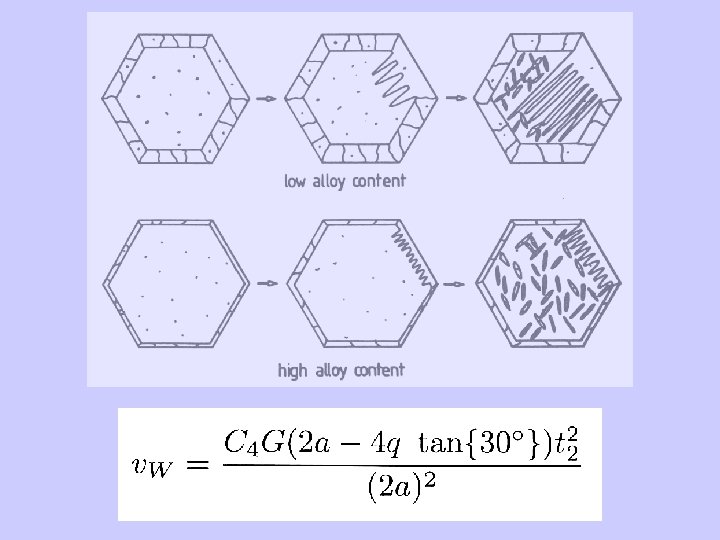

Fe-1 Mn-C wt % manual metal arc welds 1. 0 Volume fraction 0. 8 Allotriomorphic 0. 6 Widmanstatten 0. 4 0. 2 0. 03 Acicular 0. 05 0. 07 Carbon / wt % 0. 09 0. 11

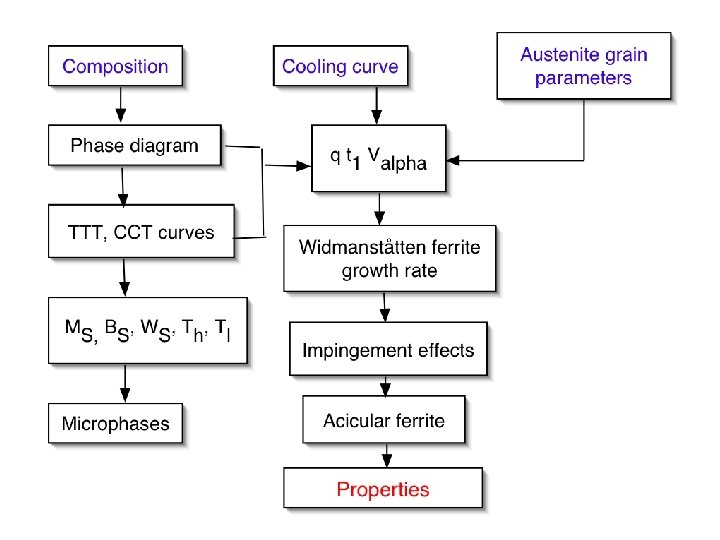

Bhadeshia & Svensson
Young & Bhadeshia, 1994
Bhadeshia & Svensson

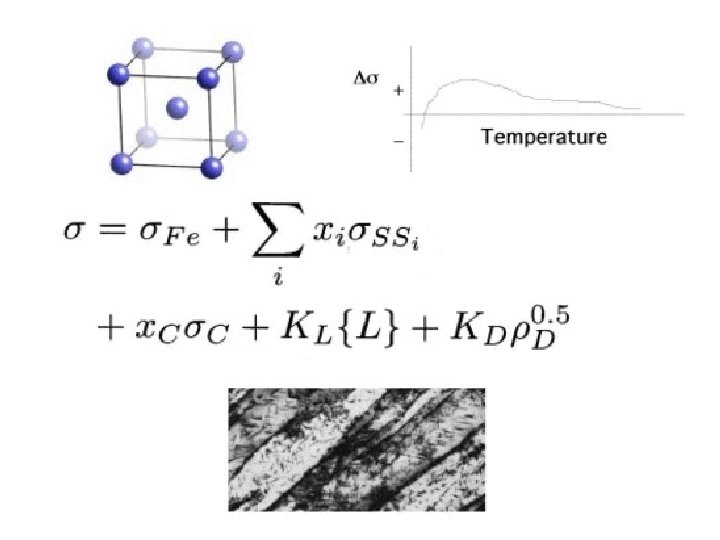

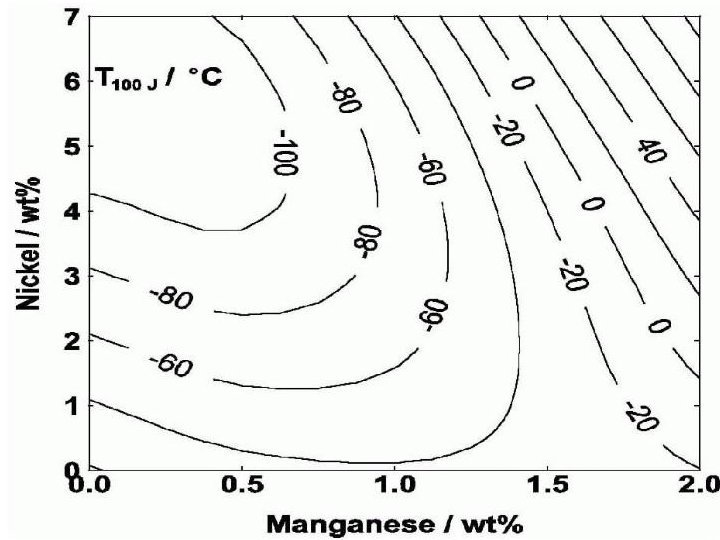

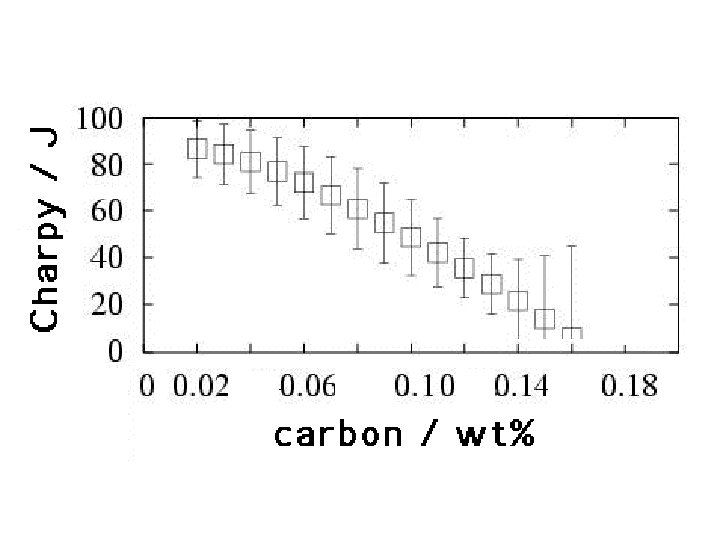

Charpy fatigue tensile critical stress intensity corrosion

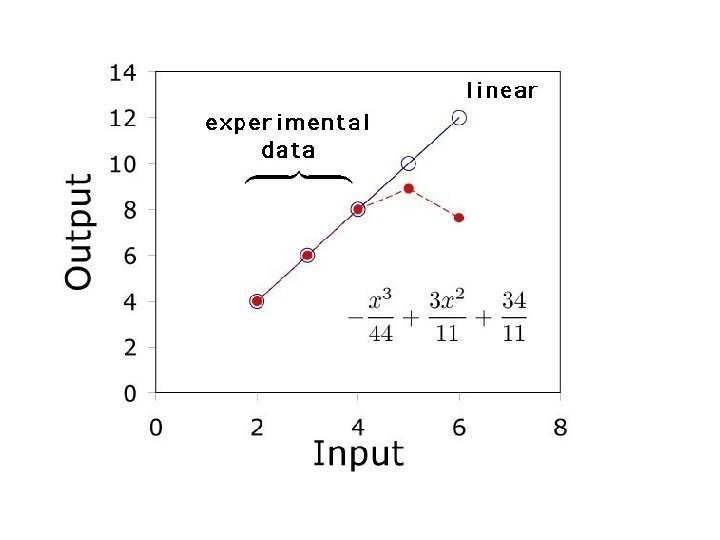

non-linear functions
y A B x
Cole & Bhadeshia, 1999
Cool, 1996
Cool, 1996
As-welded 600 °C 700 °C 650 °C Cool, 1996

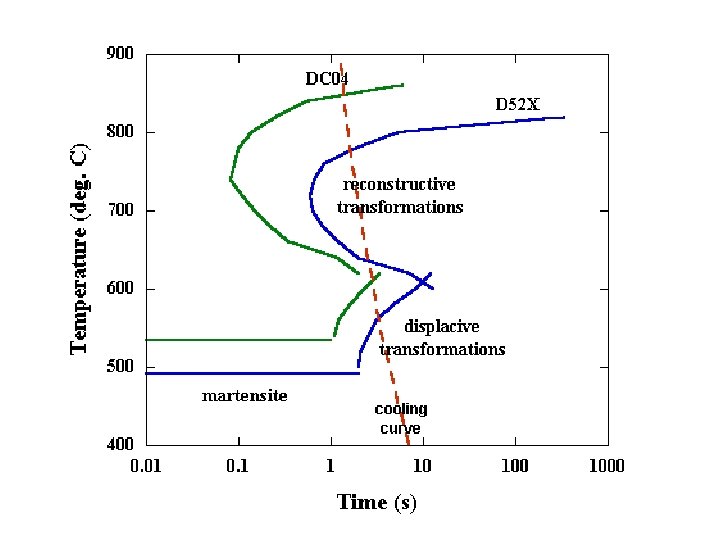

Weld Shape - Spot Weld Power = 1. 0 k. W Walsh et al. 2002 Power = 2. 5 k. W Power = 1. 4 k. W 2 mm 0. 15 s 0. 65 s 0. 165 s 1. 15 s 0. 18 s 1. 65 s 0. 195 s 2. 15 s 0. 21 s 2. 65 s 0. 225 s 1. 65 s 0. 15 s
Walsh et al. 2002
Weld Shape - Stitch Weld at 2. 26 k. W Laser Output Laser beam Fusion Zone Laser beam Keyhole Walsh et al. 2002
SPOT WELD 38. 3 J/mm; 1 k. J 2. 15 s; 325 HV STITCH WELD 39. 4 J/mm; 1. 4 k. J 10 mm/s; 165 HV 50 mm

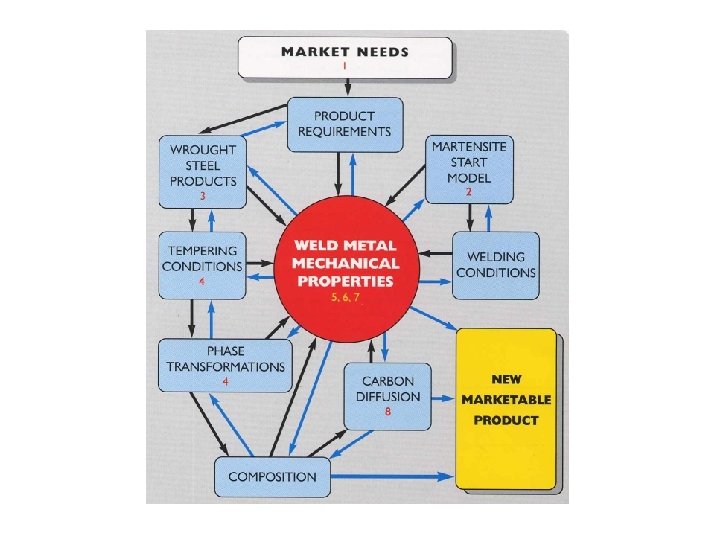

Are experiments necessary when designing welding alloys?
www. msm. cam. ac. uk/phase-trans
- Slides: 52
