Release Management for the UBS Data Warehouse Project

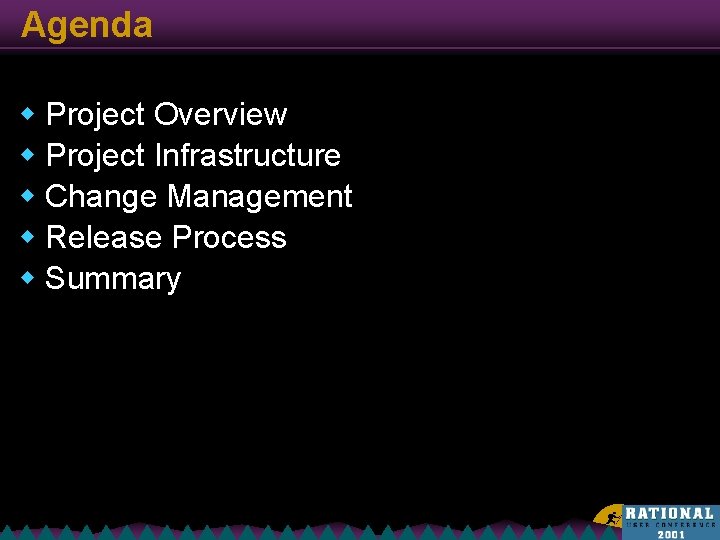

Agenda w Project Overview w Project Infrastructure w Change Management w Release Process w Summary

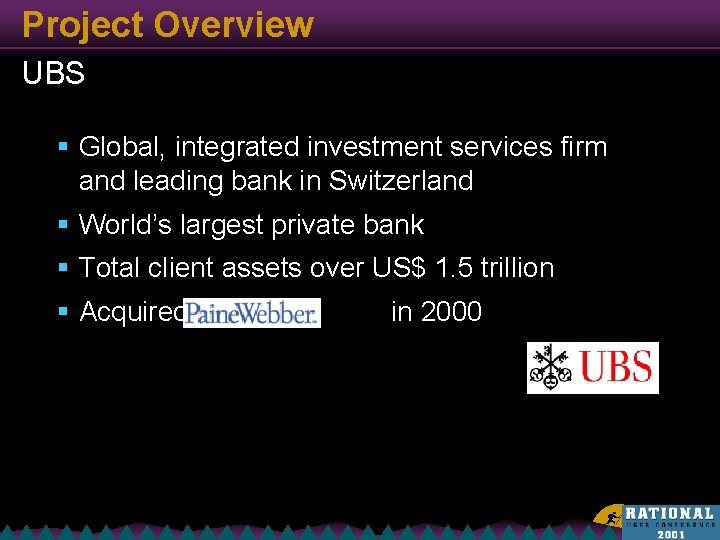

Project Overview UBS § Global, integrated investment services firm and leading bank in Switzerland § World’s largest private bank § Total client assets over US$ 1. 5 trillion § Acquired in 2000

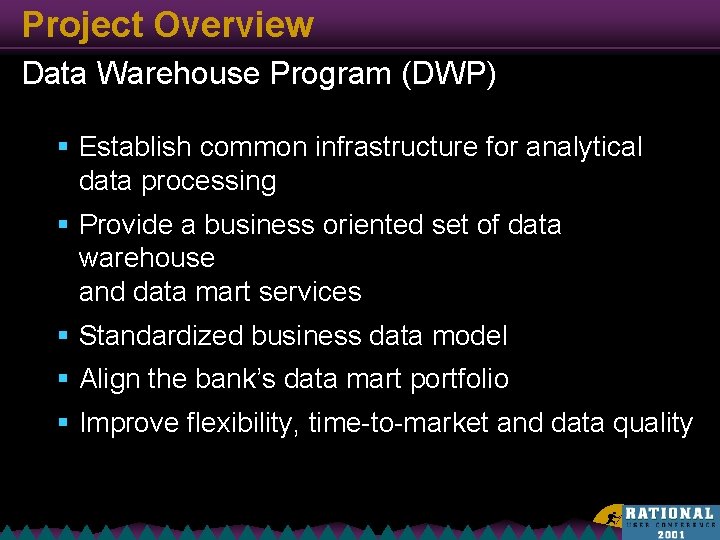

Project Overview Data Warehouse Program (DWP) § Establish common infrastructure for analytical data processing § Provide a business oriented set of data warehouse and data mart services § Standardized business data model § Align the bank’s data mart portfolio § Improve flexibility, time-to-market and data quality

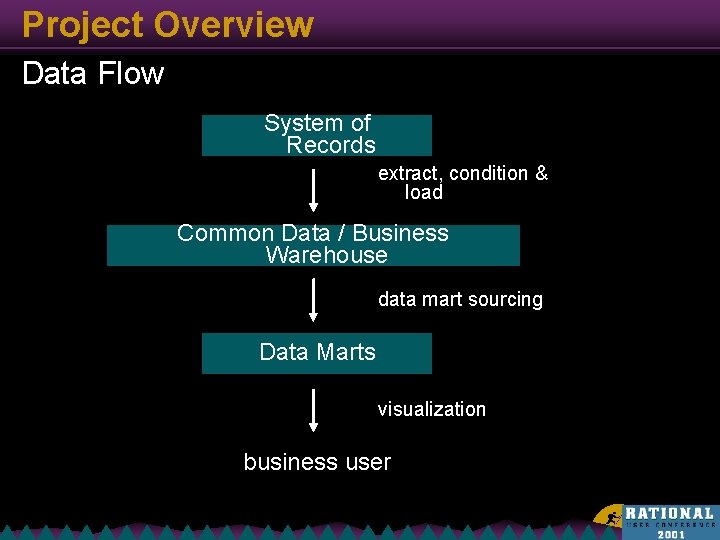

Project Overview Data Flow System of Records extract, condition & load Common Data / Business Warehouse data mart sourcing Data Marts visualization business user

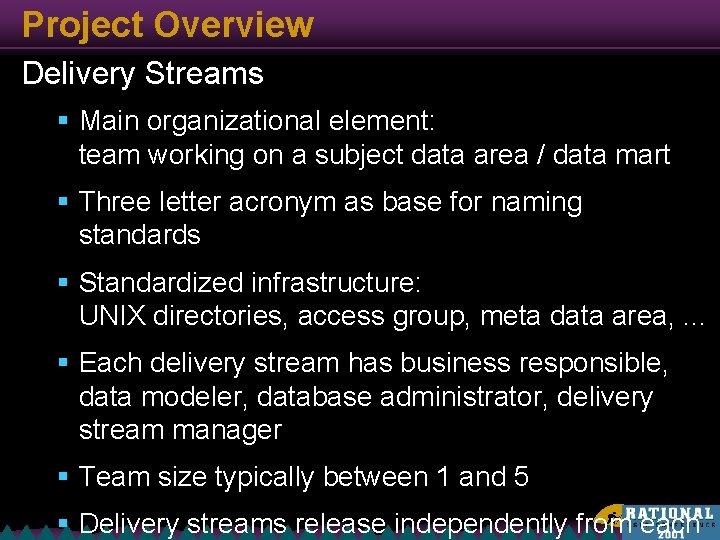

Project Overview Delivery Streams § Main organizational element: team working on a subject data area / data mart § Three letter acronym as base for naming standards § Standardized infrastructure: UNIX directories, access group, meta data area, . . . § Each delivery stream has business responsible, data modeler, database administrator, delivery stream manager § Team size typically between 1 and 5 § Delivery streams release independently from each

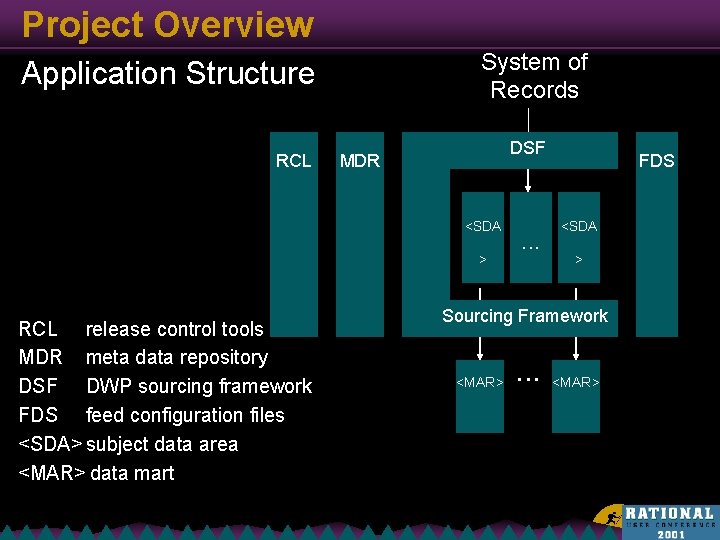

Project Overview System of Records Application Structure RCL DSF MDR <SDA > RCL release control tools MDR meta data repository DSF DWP sourcing framework FDS feed configuration files <SDA> subject data area <MAR> data mart . . . FDS <SDA > Sourcing Framework <MAR> . . . <MAR>

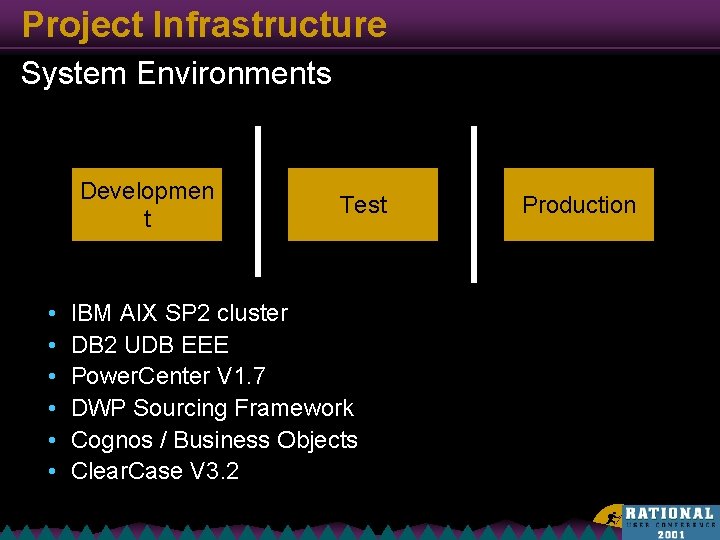

Project Infrastructure System Environments Developmen t • • • Test IBM AIX SP 2 cluster DB 2 UDB EEE Power. Center V 1. 7 DWP Sourcing Framework Cognos / Business Objects Clear. Case V 3. 2 Production

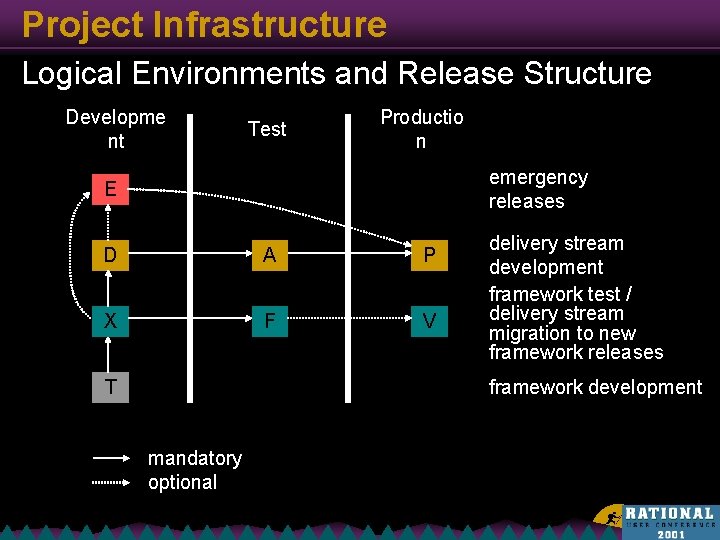

Project Infrastructure Logical Environments and Release Structure Developme nt Test Productio n emergency releases E D A P X F V T delivery stream development framework test / delivery stream migration to new framework releases framework development mandatory optional

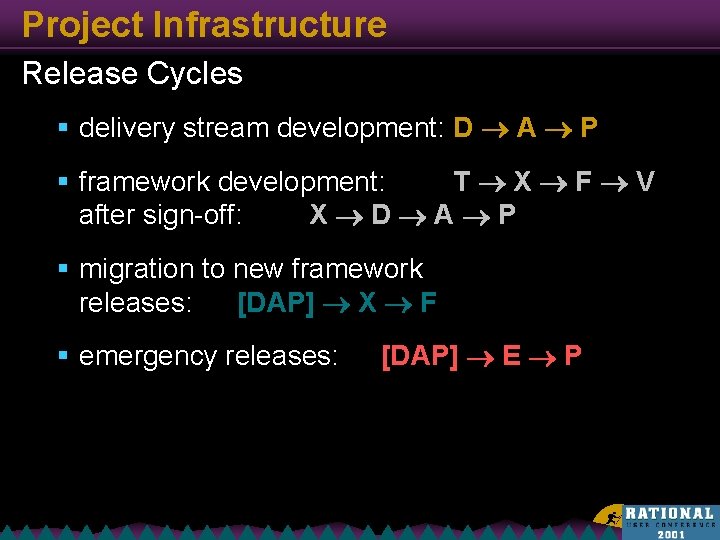

Project Infrastructure Release Cycles § delivery stream development: D A P § framework development: T X F V after sign-off: X D A P § migration to new framework releases: [DAP] X F § emergency releases: [DAP] E P

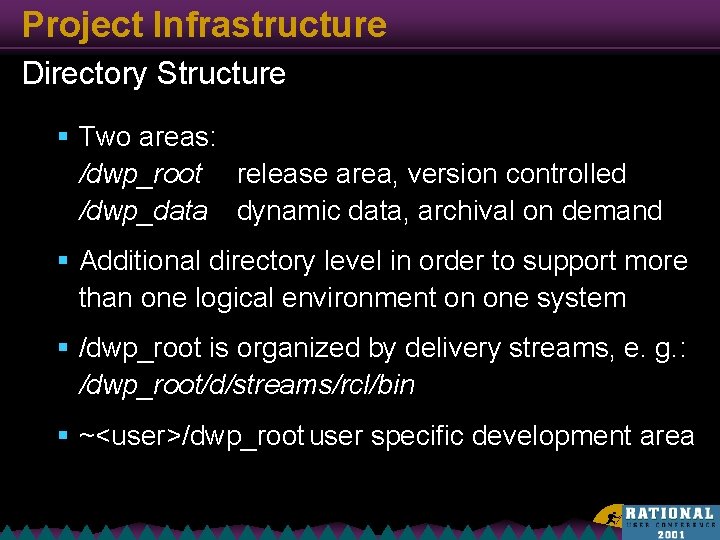

Project Infrastructure Directory Structure § Two areas: /dwp_root release area, version controlled /dwp_data dynamic data, archival on demand § Additional directory level in order to support more than one logical environment on one system § /dwp_root is organized by delivery streams, e. g. : /dwp_root/d/streams/rcl/bin § ~<user>/dwp_root user specific development area

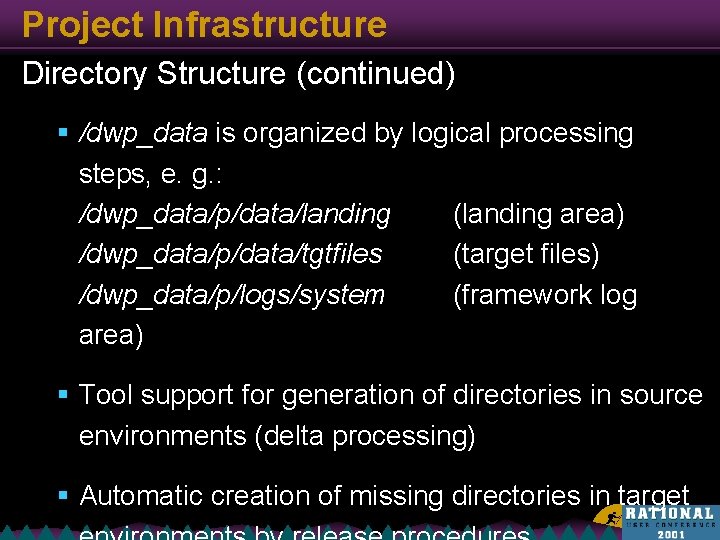

Project Infrastructure Directory Structure (continued) § /dwp_data is organized by logical processing steps, e. g. : /dwp_data/p/data/landing (landing area) /dwp_data/p/data/tgtfiles (target files) /dwp_data/p/logs/system (framework log area) § Tool support for generation of directories in source environments (delta processing) § Automatic creation of missing directories in target

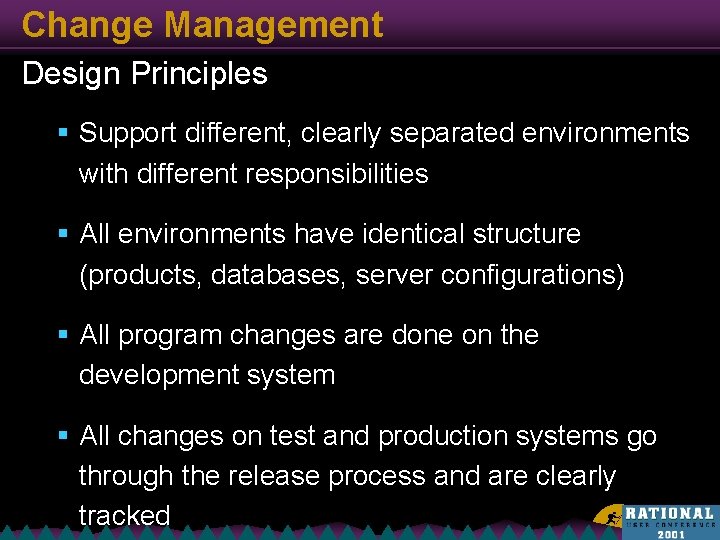

Change Management Design Principles § Support different, clearly separated environments with different responsibilities § All environments have identical structure (products, databases, server configurations) § All program changes are done on the development system § All changes on test and production systems go through the release process and are clearly tracked

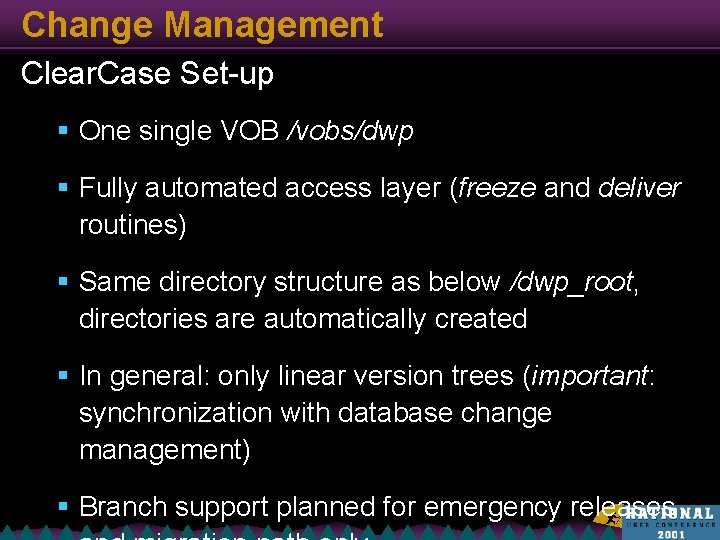

Change Management Clear. Case Set-up § One single VOB /vobs/dwp § Fully automated access layer (freeze and deliver routines) § Same directory structure as below /dwp_root, directories are automatically created § In general: only linear version trees (important: synchronization with database change management) § Branch support planned for emergency releases

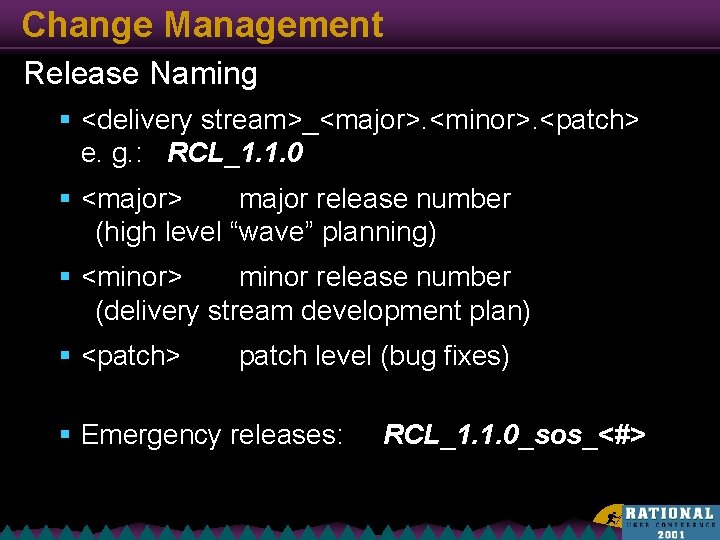

Change Management Release Naming § <delivery stream>_<major>. <minor>. <patch> e. g. : RCL_1. 1. 0 § <major> major release number (high level “wave” planning) § <minor> minor release number (delivery stream development plan) § <patch> patch level (bug fixes) § Emergency releases: RCL_1. 1. 0_sos_<#>

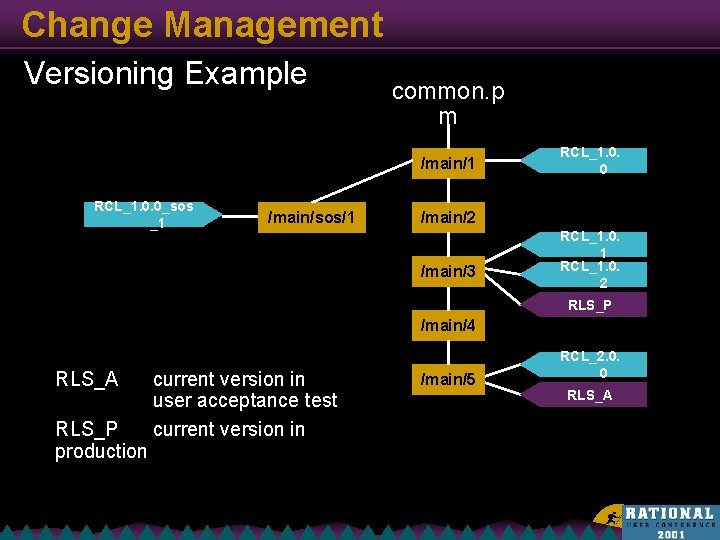

Change Management Versioning Example common. p m /main/1 RCL_1. 0. 0_sos _1 /main/sos/1 RCL_1. 0. 0 /main/2 /main/3 RCL_1. 0. 1 RCL_1. 0. 2 RLS_P /main/4 RLS_A RLS_P production current version in user acceptance test current version in /main/5 RCL_2. 0. 0 RLS_A

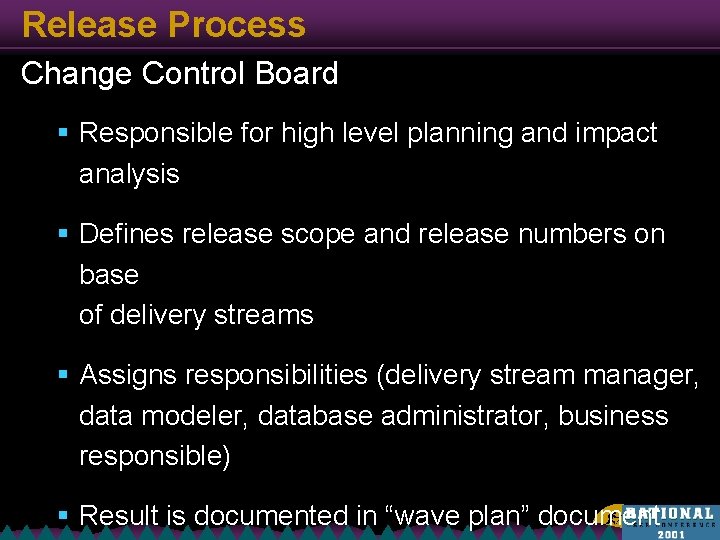

Release Process Change Control Board § Responsible for high level planning and impact analysis § Defines release scope and release numbers on base of delivery streams § Assigns responsibilities (delivery stream manager, data modeler, database administrator, business responsible) § Result is documented in “wave plan” document

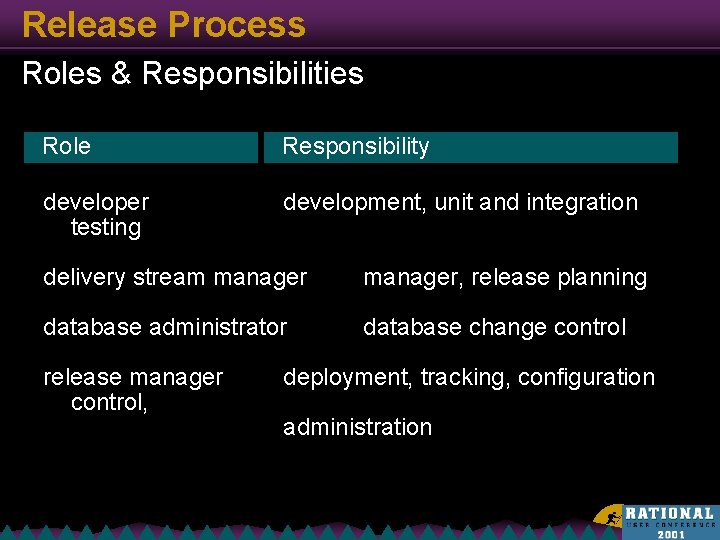

Release Process Roles & Responsibilities Role Responsibility developer testing development, unit and integration delivery stream manager, release planning database administrator database change control release manager control, deployment, tracking, configuration administration

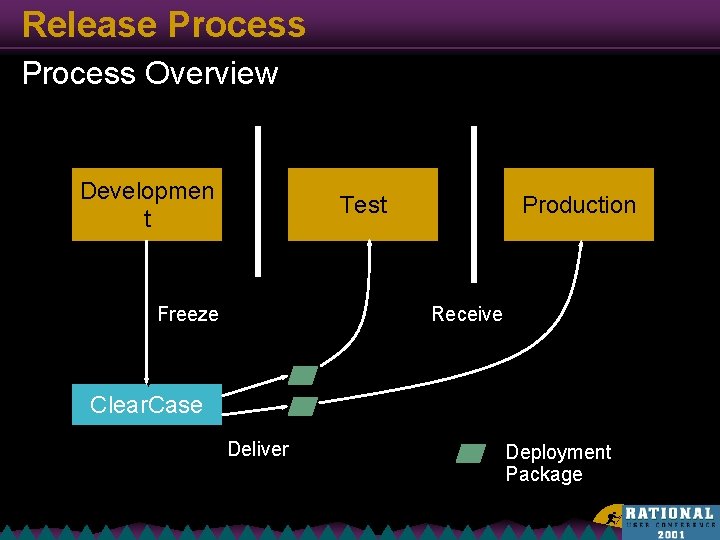

Release Process Overview Developmen t Test Freeze Production Receive Clear. Case Deliver Deployment Package

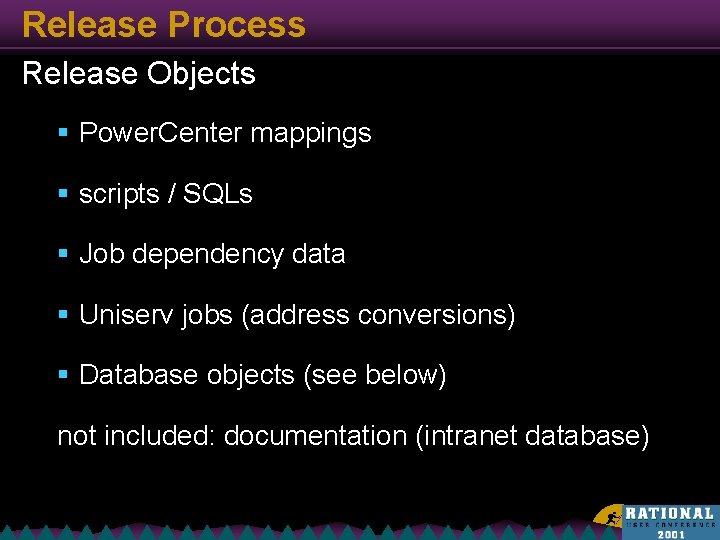

Release Process Release Objects § Power. Center mappings § scripts / SQLs § Job dependency data § Uniserv jobs (address conversions) § Database objects (see below) not included: documentation (intranet database)

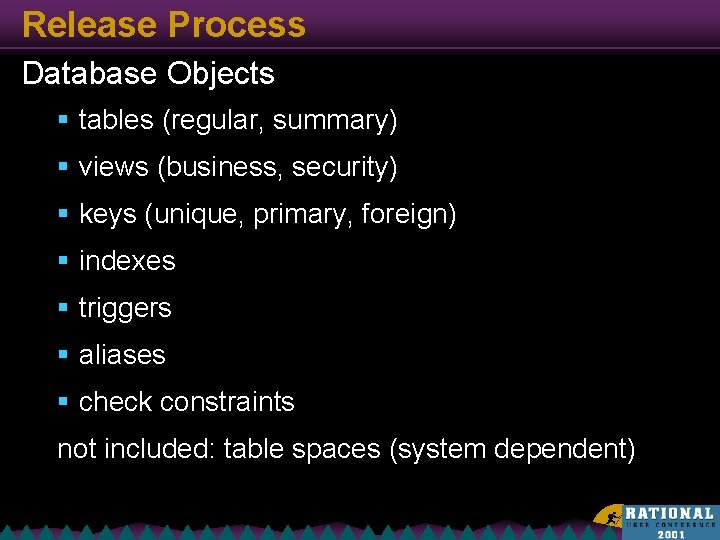

Release Process Database Objects § tables (regular, summary) § views (business, security) § keys (unique, primary, foreign) § indexes § triggers § aliases § check constraints not included: table spaces (system dependent)

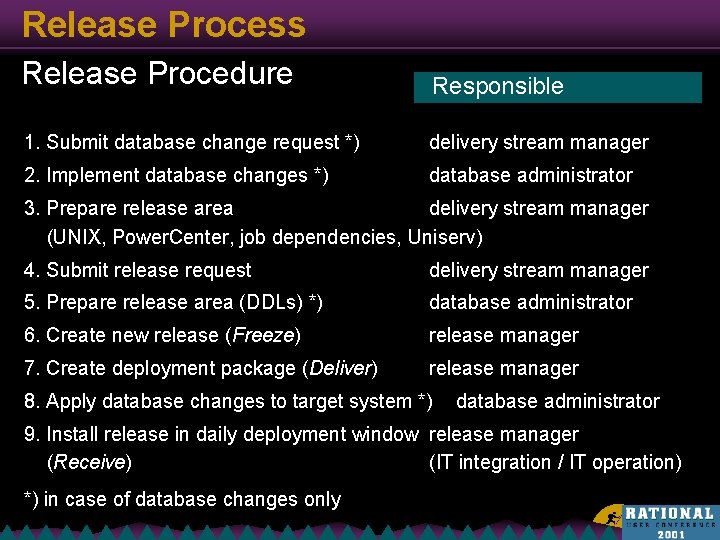

Release Process Release Procedure Responsible 1. Submit database change request *) delivery stream manager 2. Implement database changes *) database administrator 3. Prepare release area delivery stream manager (UNIX, Power. Center, job dependencies, Uniserv) 4. Submit release request delivery stream manager 5. Prepare release area (DDLs) *) database administrator 6. Create new release (Freeze) release manager 7. Create deployment package (Deliver) release manager 8. Apply database changes to target system *) database administrator 9. Install release in daily deployment window release manager (Receive) (IT integration / IT operation) *) in case of database changes only

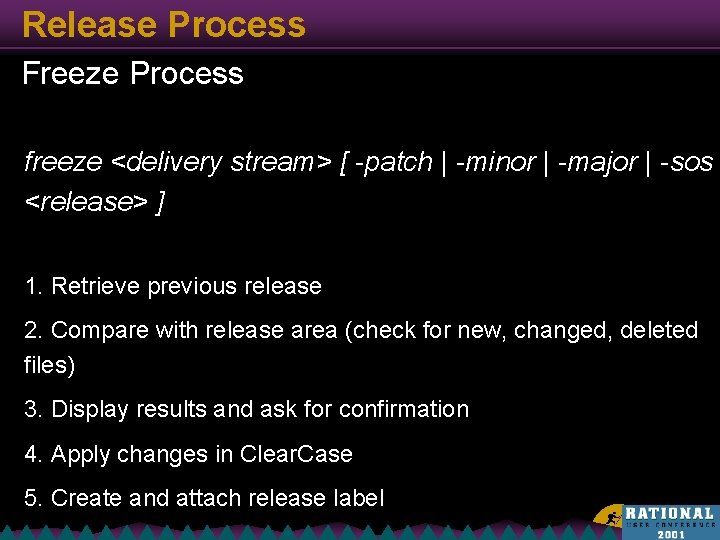

Release Process Freeze Process freeze <delivery stream> [ -patch | -minor | -major | -sos <release> ] 1. Retrieve previous release 2. Compare with release area (check for new, changed, deleted files) 3. Display results and ask for confirmation 4. Apply changes in Clear. Case 5. Create and attach release label

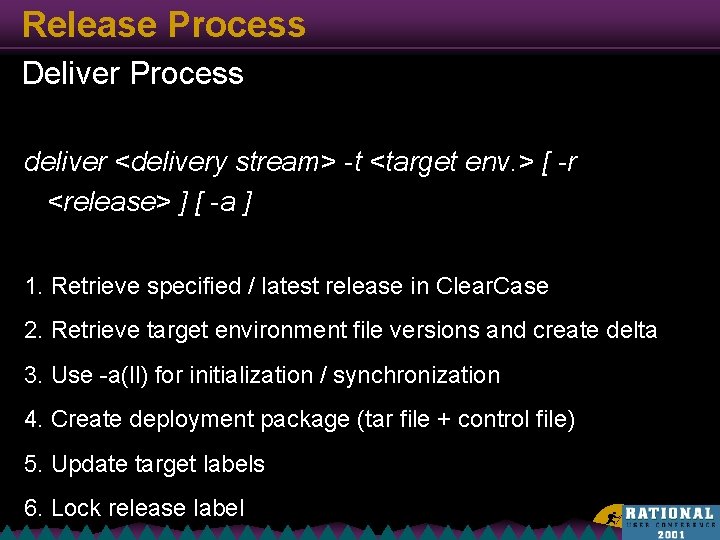

Release Process Deliver Process deliver <delivery stream> -t <target env. > [ -r <release> ] [ -a ] 1. Retrieve specified / latest release in Clear. Case 2. Retrieve target environment file versions and create delta 3. Use -a(ll) for initialization / synchronization 4. Create deployment package (tar file + control file) 5. Update target labels 6. Lock release label

Release Process Receive Process receive 1. Check hand-over area for pending releases 2. Remote copy deployment package to target system 3. Install it 4. Standardized post-installation steps: e. g. access permissions 5. Delivery stream defined post-installation steps (Post. Install. ksh file): e. g. for non-standard path names, generators, setuid bits

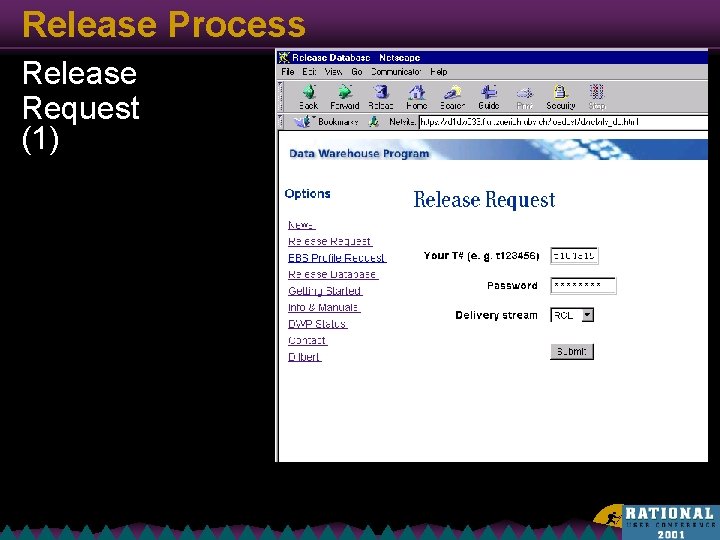

Release Process Release Request (1)

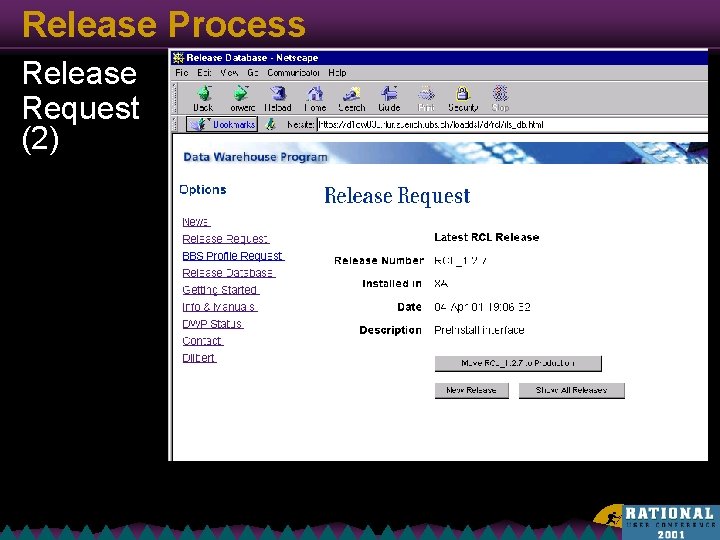

Release Process Release Request (2)

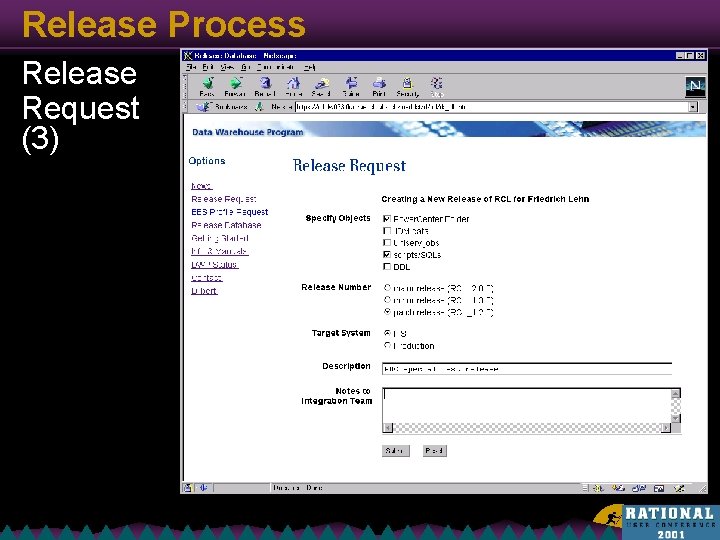

Release Process Release Request (3)

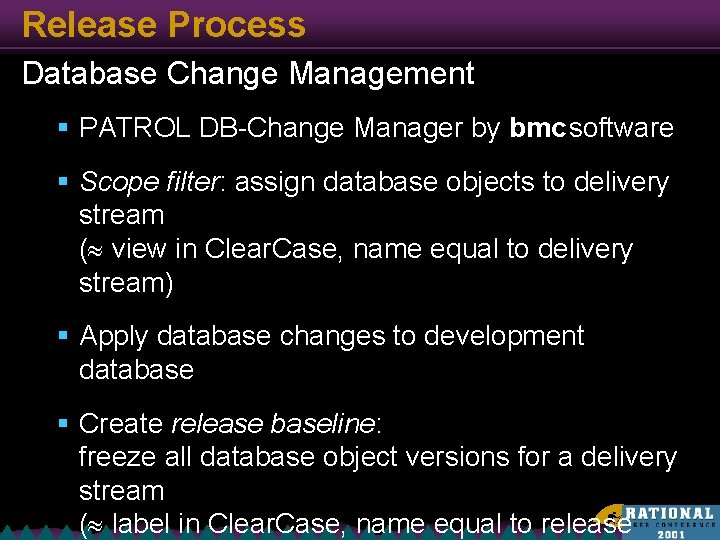

Release Process Database Change Management § PATROL DB-Change Manager by bmc software § Scope filter: assign database objects to delivery stream ( view in Clear. Case, name equal to delivery stream) § Apply database changes to development database § Create release baseline: freeze all database object versions for a delivery stream ( label in Clear. Case, name equal to release

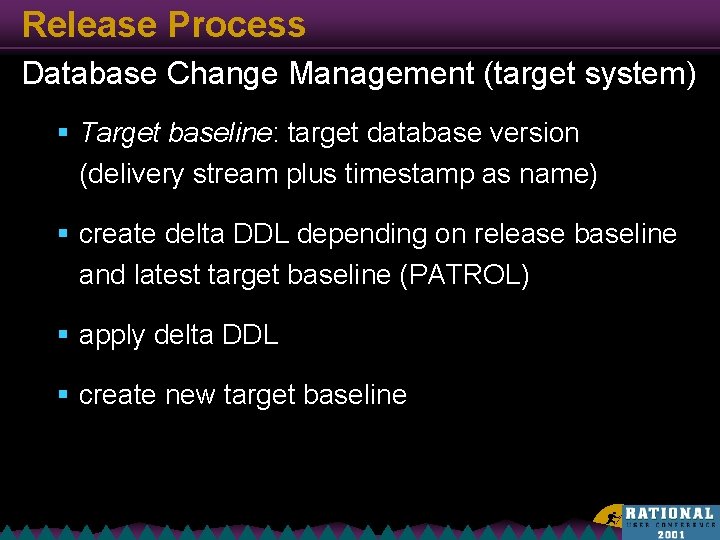

Release Process Database Change Management (target system) § Target baseline: target database version (delivery stream plus timestamp as name) § create delta DDL depending on release baseline and latest target baseline (PATROL) § apply delta DDL § create new target baseline

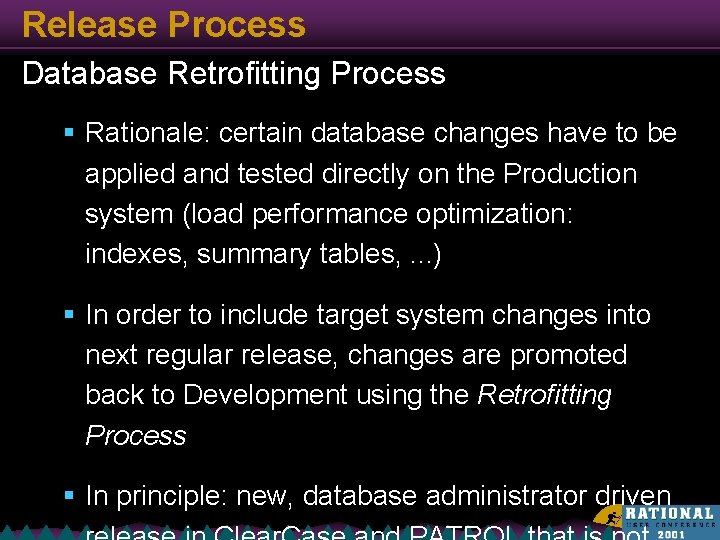

Release Process Database Retrofitting Process § Rationale: certain database changes have to be applied and tested directly on the Production system (load performance optimization: indexes, summary tables, . . . ) § In order to include target system changes into next regular release, changes are promoted back to Development using the Retrofitting Process § In principle: new, database administrator driven

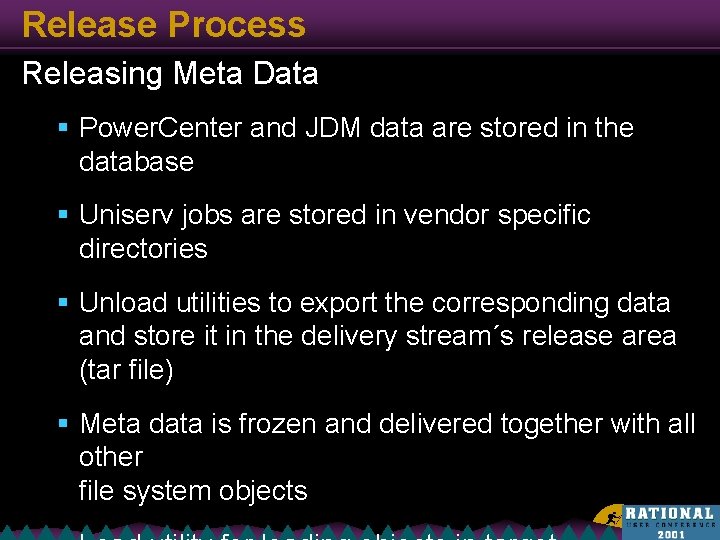

Release Process Releasing Meta Data § Power. Center and JDM data are stored in the database § Uniserv jobs are stored in vendor specific directories § Unload utilities to export the corresponding data and store it in the delivery stream´s release area (tar file) § Meta data is frozen and delivered together with all other file system objects

Release Process Release Databas e

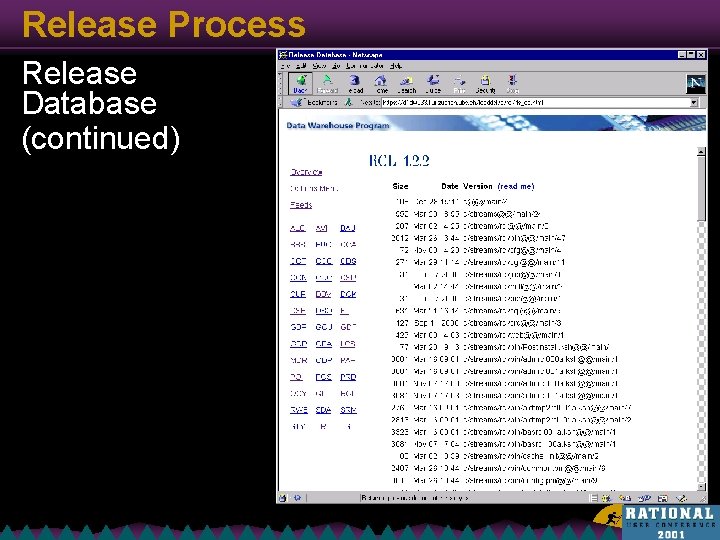

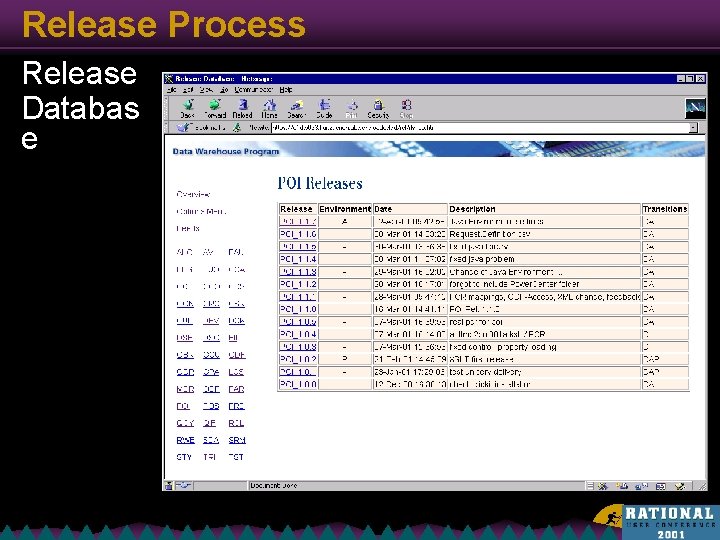

Release Process Release Database (continued)

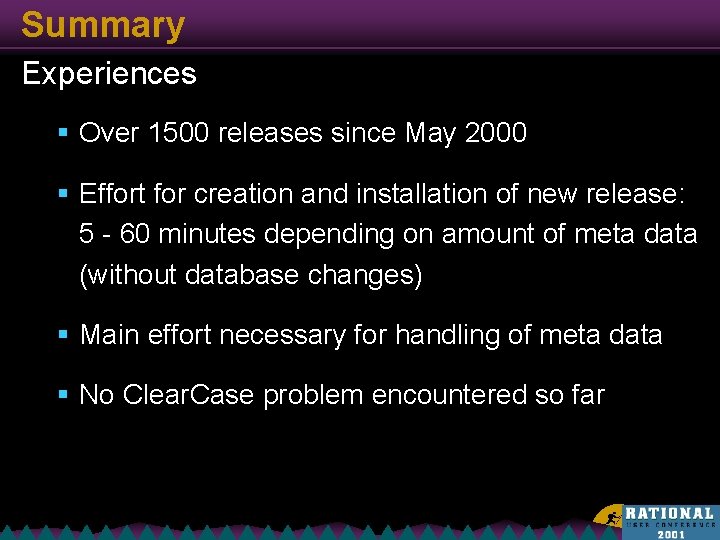

Summary Experiences § Over 1500 releases since May 2000 § Effort for creation and installation of new release: 5 - 60 minutes depending on amount of meta data (without database changes) § Main effort necessary for handling of meta data § No Clear. Case problem encountered so far

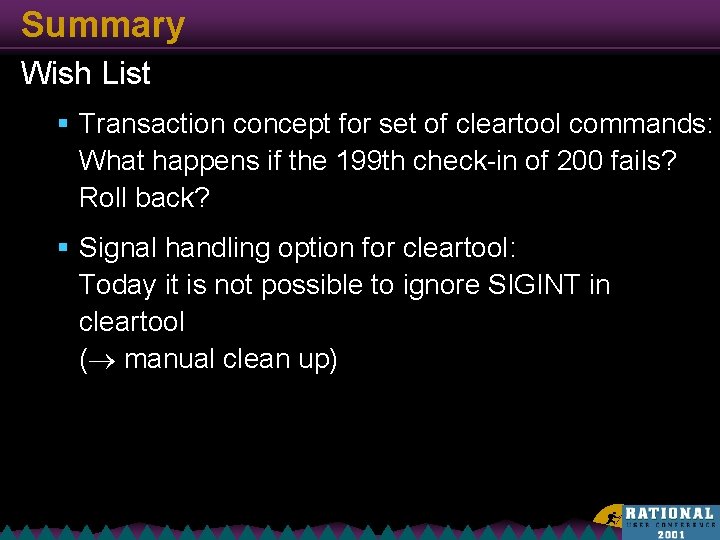

Summary Wish List § Transaction concept for set of cleartool commands: What happens if the 199 th check-in of 200 fails? Roll back? § Signal handling option for cleartool: Today it is not possible to ignore SIGINT in cleartool ( manual clean up)

Questions?
