Relay & Devices Corporation. MOSFET Relay G 3 VM　New Product Promotion Book S-VSON The world smallest class new MOS relay NEW 　　　　　G 3 VM-31 QR Oct. 2016 OER C&C Relay Division CONFIDENTIAL

Product introduction Relay & Devices Corporation. *New series for MOS FET relay, S-VSON, 1 a/SPST-NO the world smallest class MOS FET relays. *1. 5 A continuous load current with the amazing small size *This is going to help customer smaller PCB design *This can be used at High ambient temperature condition, from -40 to 110 deg. C CONFIDENTIAL

What’s new? Relay & Devices Corporation. Achieved “World’s smallest class package”. VSON (existing) Small & Low profile by 2 -stack chip on chip structure (LED & PDA) S-VSON* (NEW) Further small mounting area by 3 -stack chip on chip (LED & PDA & MOSFET) structure LED PDA MOSFET *Small but high dielectric strength. 500 V/min (Between input & output) CONFIDENTIAL

Target application Relay & Devices Corporation. Main target application is ATE Automated Test Equipment Others Test & Equipment, Data loggers CONFIDENTIAL

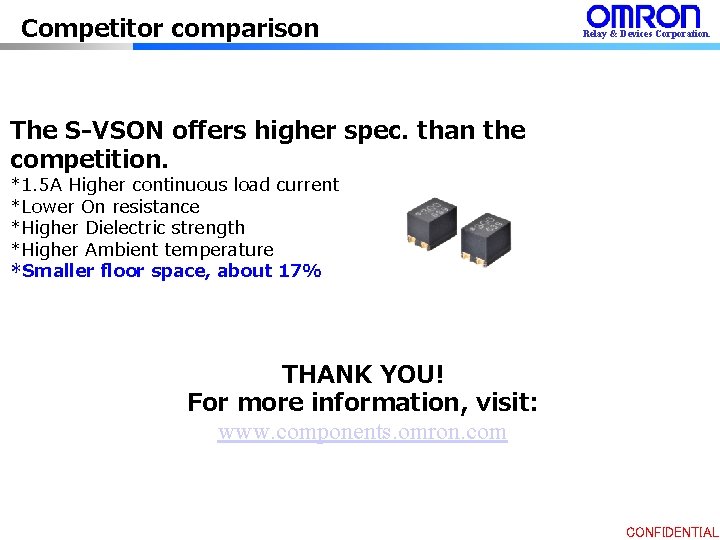

Competitor comparison Relay & Devices Corporation. The S-VSON offers higher spec. than the competition. *1. 5 A Higher continuous load current *Lower On resistance *Higher Dielectric strength *Higher Ambient temperature *Smaller floor space, about 17% THANK YOU! For more information, visit: www. components. omron. com CONFIDENTIAL
