Reinforcement Learning Sungwook Yoon Based in part on

Reinforcement Learning Sungwook Yoon * Based in part on slides by Alan Fern and Daniel Weld 1

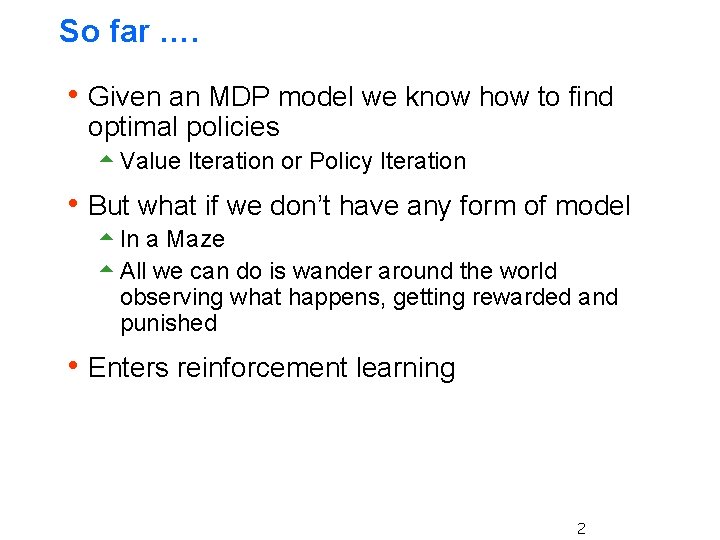

So far …. h Given an MDP model we know how to find optimal policies 5 Value Iteration or Policy Iteration h But what if we don’t have any form of model 5 In a Maze 5 All we can do is wander around the world observing what happens, getting rewarded and punished h Enters reinforcement learning 2

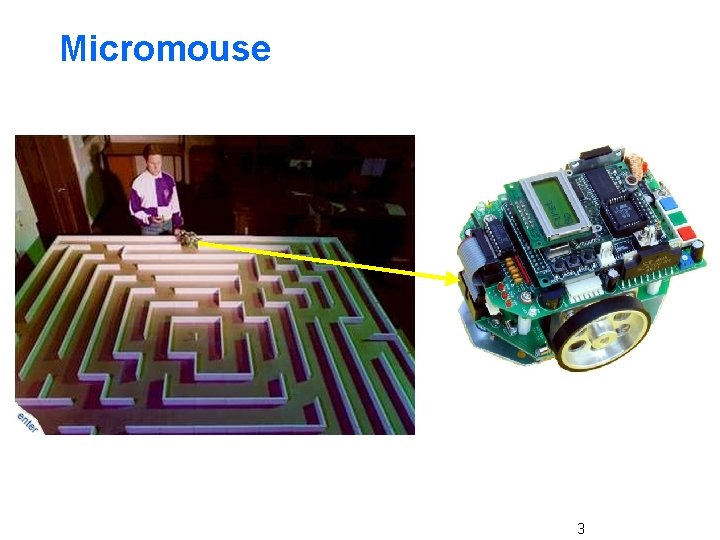

Micromouse 3

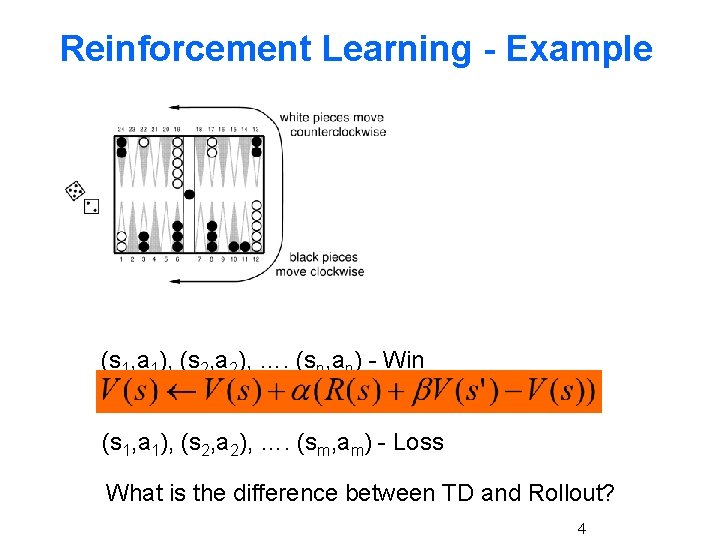

Reinforcement Learning - Example (s 1, a 1), (s 2, a 2), …. (sn, an) - Win (s 1, a 1), (s 2, a 2), …. (sm, am) - Loss What is the difference between TD and Rollout? 4

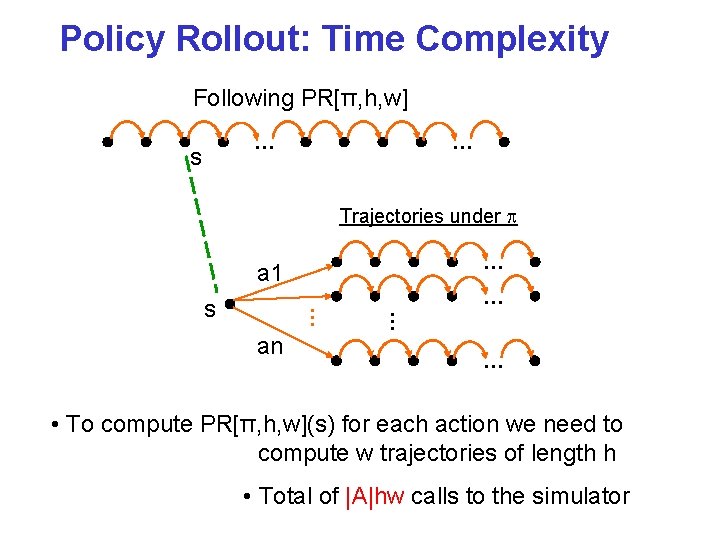

Policy Rollout: Time Complexity Following PR[π, h, w] … s … Trajectories under … a 1 … an … … s … • To compute PR[π, h, w](s) for each action we need to compute w trajectories of length h • Total of |A|hw calls to the simulator

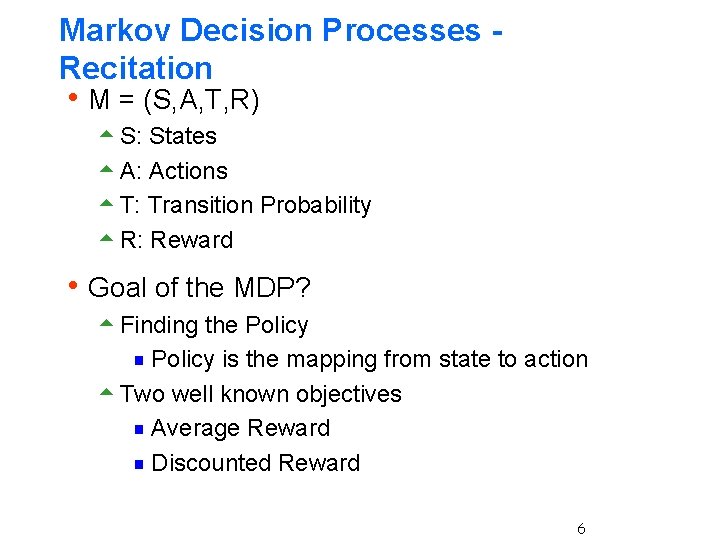

Markov Decision Processes Recitation h M = (S, A, T, R) 5 S: States 5 A: Actions 5 T: Transition Probability 5 R: Reward h Goal of the MDP? 5 Finding the Policy g Policy is the mapping from state to action 5 Two well known objectives g Average Reward g Discounted Reward 6

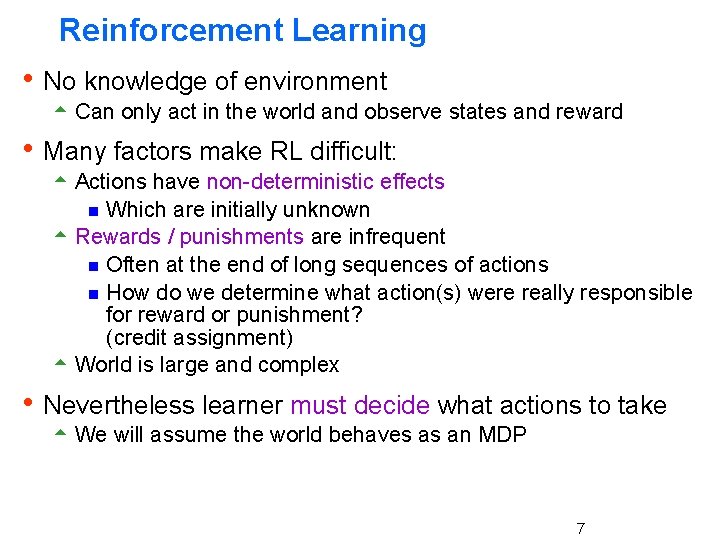

Reinforcement Learning h No knowledge of environment 5 Can only act in the world and observe states and reward h Many factors make RL difficult: 5 Actions have non-deterministic effects g Which are initially unknown 5 Rewards / punishments are infrequent g Often at the end of long sequences of actions g How do we determine what action(s) were really responsible for reward or punishment? (credit assignment) 5 World is large and complex h Nevertheless learner must decide what actions to take 5 We will assume the world behaves as an MDP 7

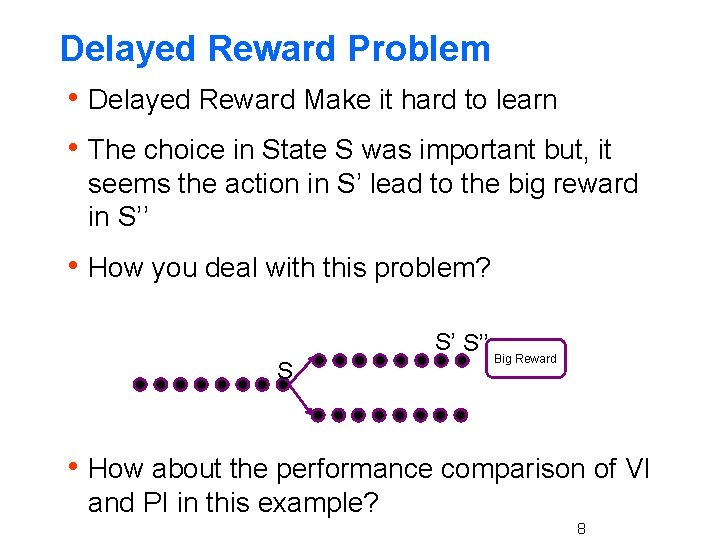

Delayed Reward Problem h Delayed Reward Make it hard to learn h The choice in State S was important but, it seems the action in S’ lead to the big reward in S’’ h How you deal with this problem? S’ S’’ S Big Reward h How about the performance comparison of VI and PI in this example? 8

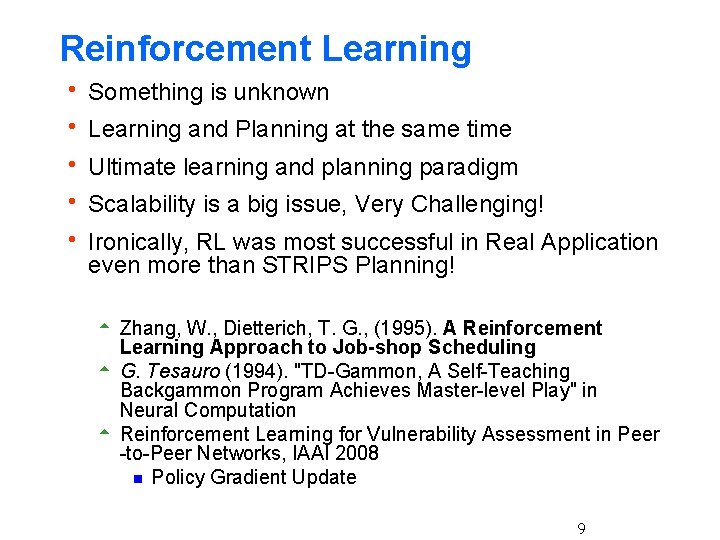

Reinforcement Learning h Something is unknown h Learning and Planning at the same time h Ultimate learning and planning paradigm h Scalability is a big issue, Very Challenging! h Ironically, RL was most successful in Real Application even more than STRIPS Planning! 5 Zhang, W. , Dietterich, T. G. , (1995). A Reinforcement Learning Approach to Job-shop Scheduling 5 G. Tesauro (1994). "TD-Gammon, A Self-Teaching Backgammon Program Achieves Master-level Play" in Neural Computation 5 Reinforcement Learning for Vulnerability Assessment in Peer -to-Peer Networks, IAAI 2008 g Policy Gradient Update 9

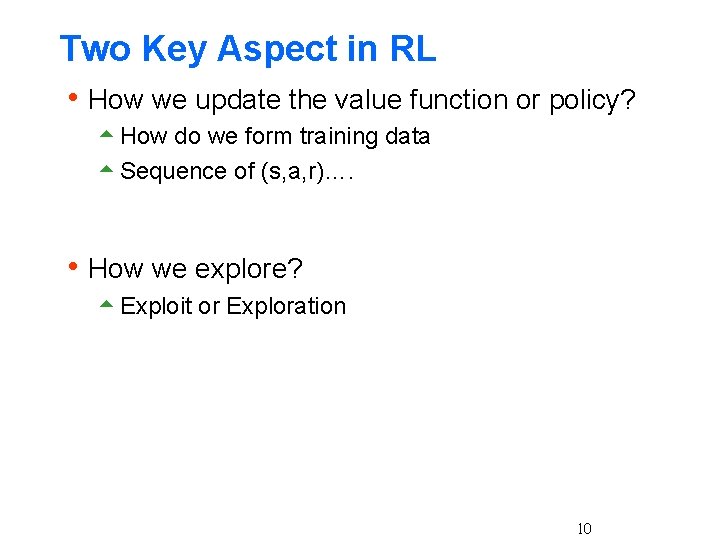

Two Key Aspect in RL h How we update the value function or policy? 5 How do we form training data 5 Sequence of (s, a, r)…. h How we explore? 5 Exploit or Exploration 10

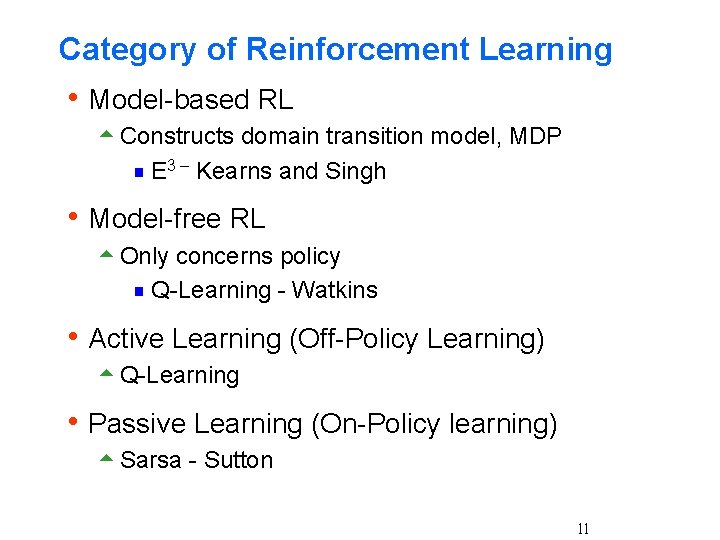

Category of Reinforcement Learning h Model-based RL 5 Constructs domain transition model, MDP 3 – Kearns and Singh g E h Model-free RL 5 Only concerns policy g Q-Learning - Watkins h Active Learning (Off-Policy Learning) 5 Q-Learning h Passive Learning (On-Policy learning) 5 Sarsa - Sutton 11

Passive RL ”If you study hard, you will be blessed” “what is the value of studying hard? ” “You will learn from RL”

Policy Evaluation h Remember the formula? h Can we do that with RL? 5 What is missing? 5 What needs to be done? h What do we do after policy evaluation? 5 Policy Update 13

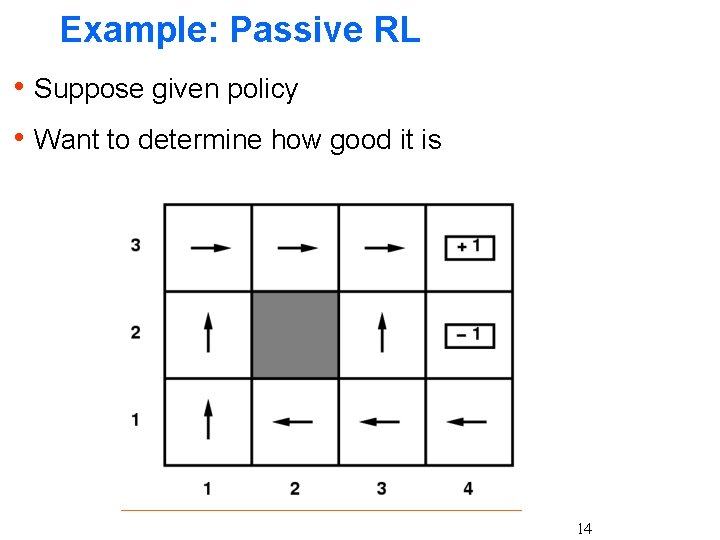

Example: Passive RL h Suppose given policy h Want to determine how good it is 14

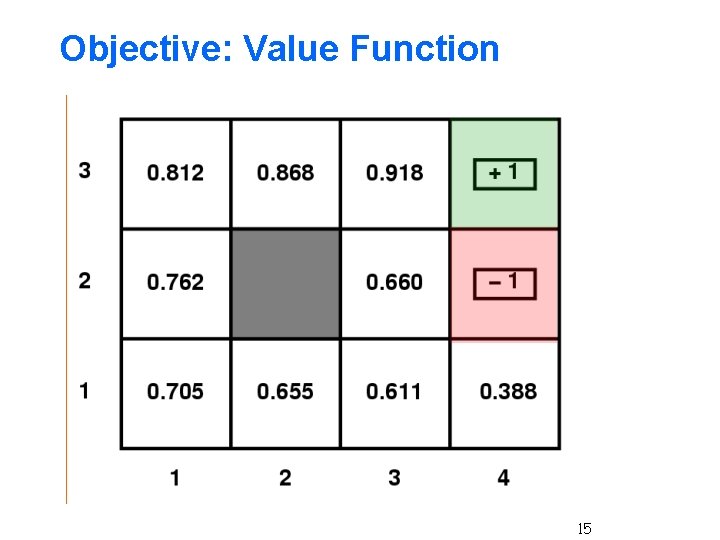

Objective: Value Function 15

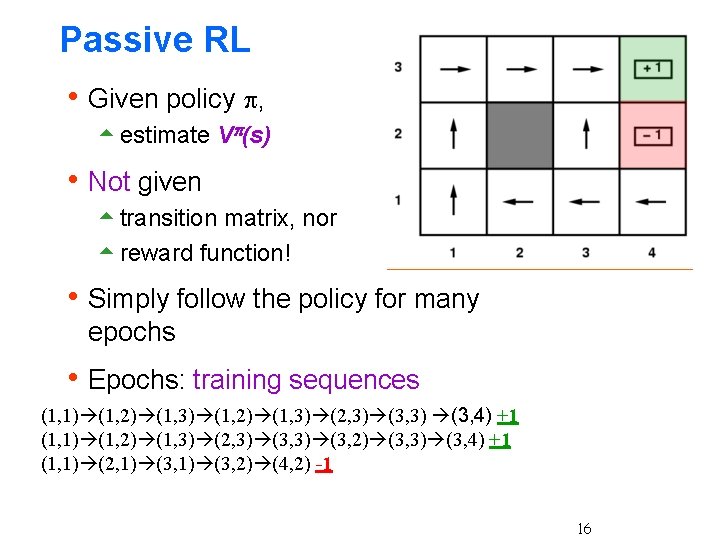

Passive RL h Given policy , 5 estimate V (s) h Not given 5 transition matrix, nor 5 reward function! h Simply follow the policy for many epochs h Epochs: training sequences (1, 1) (1, 2) (1, 3) (2, 3) (3, 4) +1 (1, 1) (1, 2) (1, 3) (2, 3) (3, 2) (3, 3) (3, 4) +1 (1, 1) (2, 1) (3, 2) (4, 2) -1 16

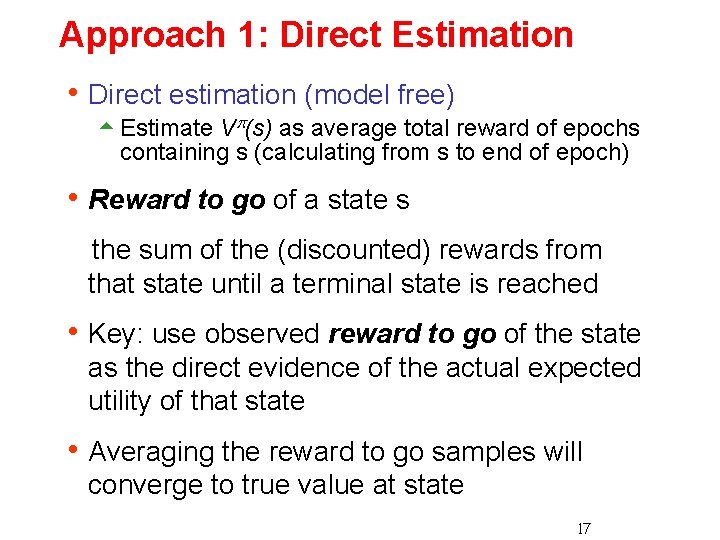

Approach 1: Direct Estimation h Direct estimation (model free) 5 Estimate V (s) as average total reward of epochs containing s (calculating from s to end of epoch) h Reward to go of a state s the sum of the (discounted) rewards from that state until a terminal state is reached h Key: use observed reward to go of the state as the direct evidence of the actual expected utility of that state h Averaging the reward to go samples will converge to true value at state 17

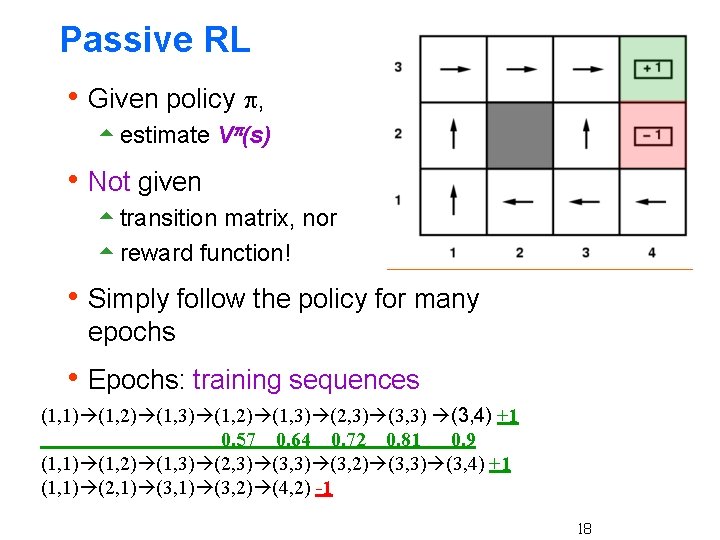

Passive RL h Given policy , 5 estimate V (s) h Not given 5 transition matrix, nor 5 reward function! h Simply follow the policy for many epochs h Epochs: training sequences (1, 1) (1, 2) (1, 3) (2, 3) (3, 4) +1 0. 57 0. 64 0. 72 0. 81 0. 9 (1, 1) (1, 2) (1, 3) (2, 3) (3, 2) (3, 3) (3, 4) +1 (1, 1) (2, 1) (3, 2) (4, 2) -1 18

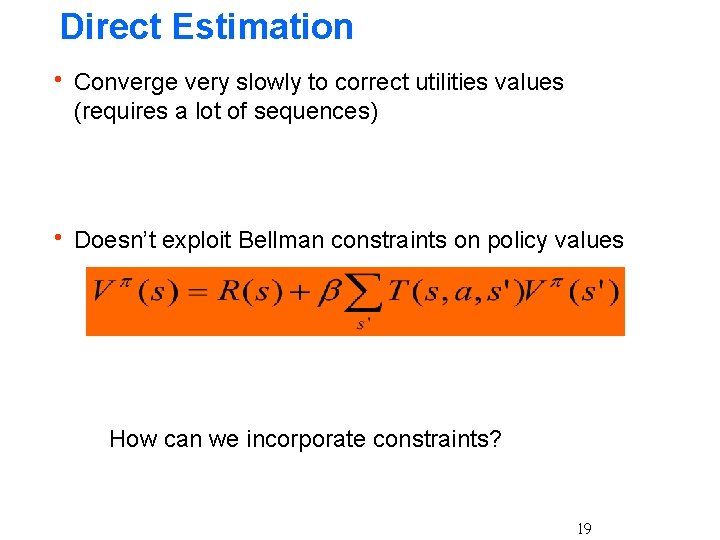

Direct Estimation h Converge very slowly to correct utilities values (requires a lot of sequences) h Doesn’t exploit Bellman constraints on policy values How can we incorporate constraints? 19

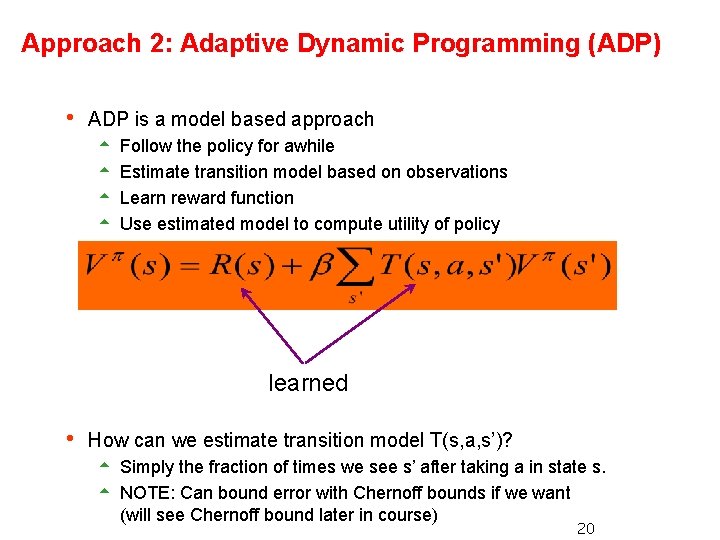

Approach 2: Adaptive Dynamic Programming (ADP) h ADP is a model based approach 5 Follow the policy for awhile 5 Estimate transition model based on observations 5 Learn reward function 5 Use estimated model to compute utility of policy learned h How can we estimate transition model T(s, a, s’)? 5 Simply the fraction of times we see s’ after taking a in state s. 5 NOTE: Can bound error with Chernoff bounds if we want (will see Chernoff bound later in course) 20

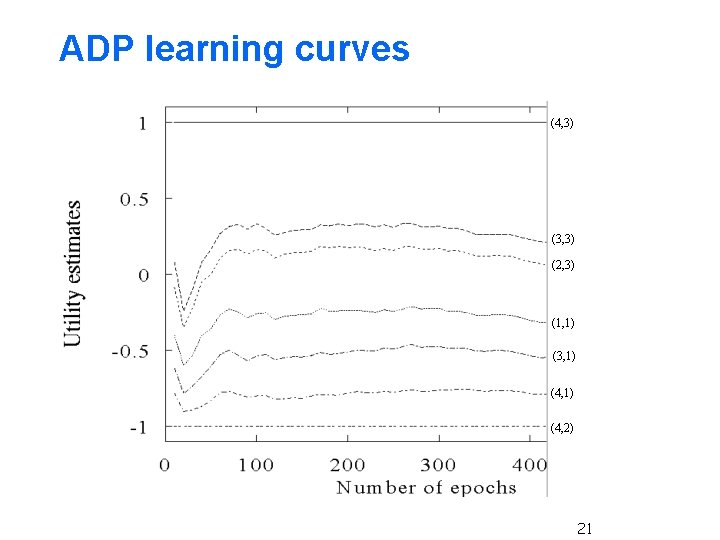

ADP learning curves (4, 3) (3, 3) (2, 3) (1, 1) (3, 1) (4, 2) 21

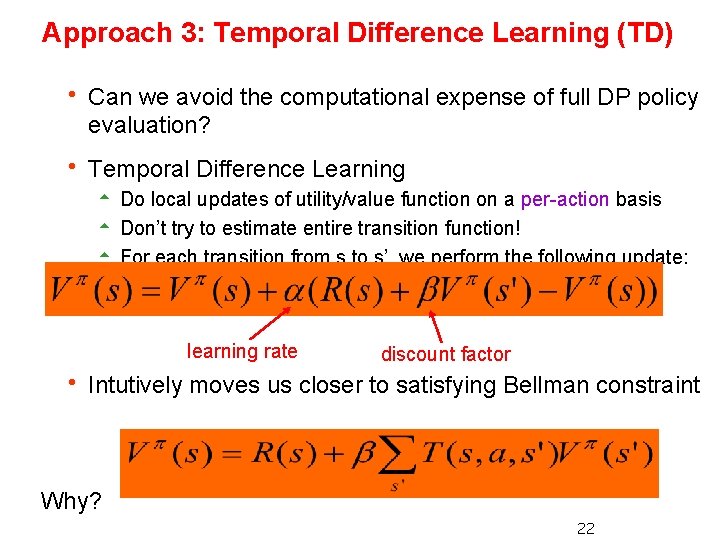

Approach 3: Temporal Difference Learning (TD) h Can we avoid the computational expense of full DP policy evaluation? h Temporal Difference Learning 5 Do local updates of utility/value function on a per-action basis 5 Don’t try to estimate entire transition function! 5 For each transition from s to s’, we perform the following update: learning rate discount factor h Intutively moves us closer to satisfying Bellman constraint Why? 22

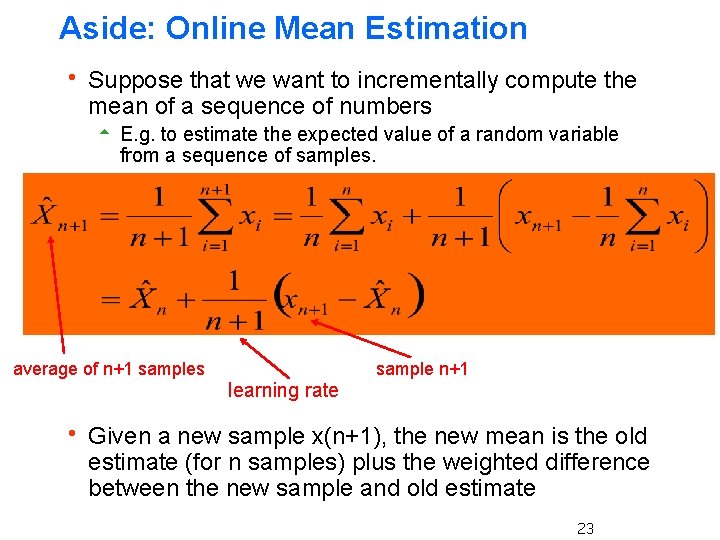

Aside: Online Mean Estimation h Suppose that we want to incrementally compute the mean of a sequence of numbers 5 E. g. to estimate the expected value of a random variable from a sequence of samples. average of n+1 samples learning rate sample n+1 h Given a new sample x(n+1), the new mean is the old estimate (for n samples) plus the weighted difference between the new sample and old estimate 23

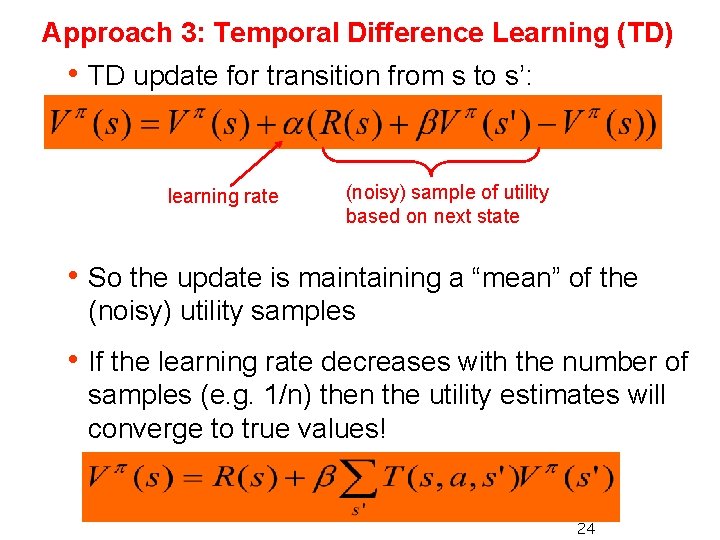

Approach 3: Temporal Difference Learning (TD) h TD update for transition from s to s’: learning rate (noisy) sample of utility based on next state h So the update is maintaining a “mean” of the (noisy) utility samples h If the learning rate decreases with the number of samples (e. g. 1/n) then the utility estimates will converge to true values! 24

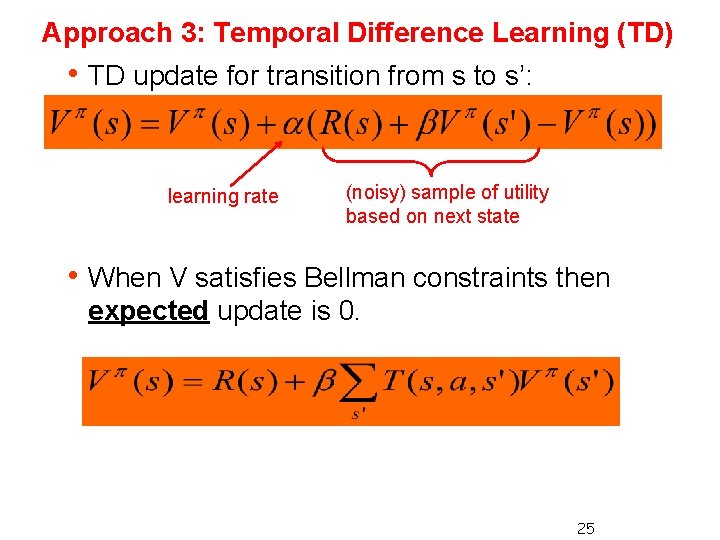

Approach 3: Temporal Difference Learning (TD) h TD update for transition from s to s’: learning rate (noisy) sample of utility based on next state h When V satisfies Bellman constraints then expected update is 0. 25

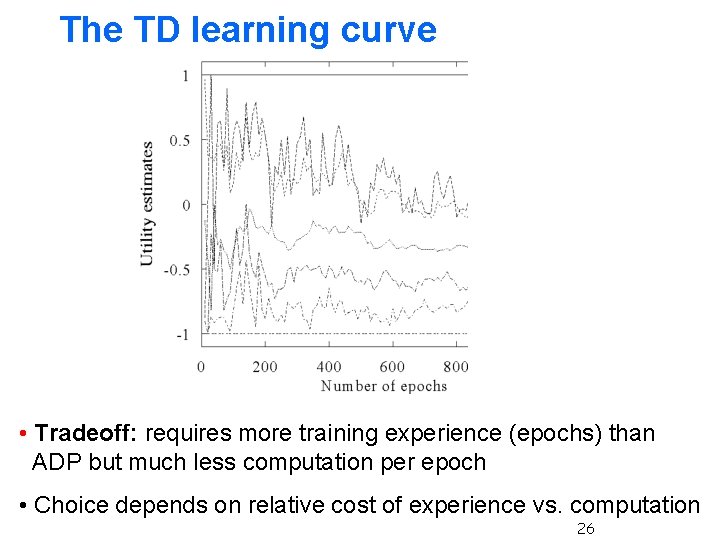

The TD learning curve • Tradeoff: requires more training experience (epochs) than ADP but much less computation per epoch • Choice depends on relative cost of experience vs. computation 26

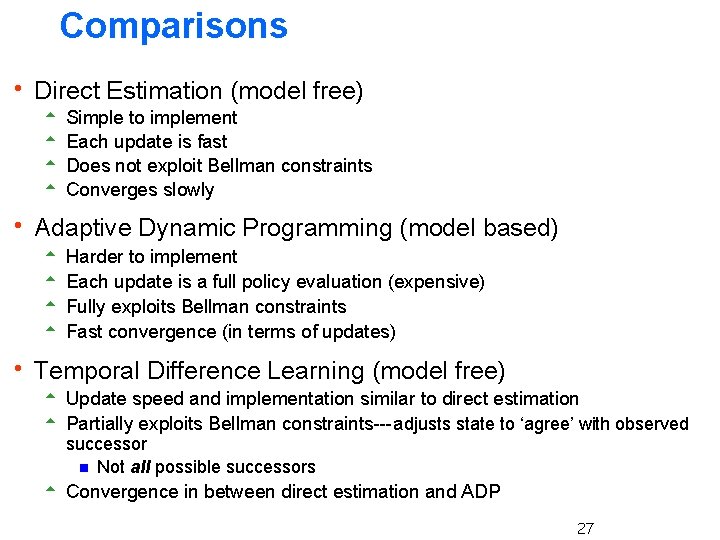

Comparisons h Direct Estimation (model free) 5 5 Simple to implement Each update is fast Does not exploit Bellman constraints Converges slowly h Adaptive Dynamic Programming (model based) 5 Harder to implement 5 Each update is a full policy evaluation (expensive) 5 Fully exploits Bellman constraints 5 Fast convergence (in terms of updates) h Temporal Difference Learning (model free) 5 Update speed and implementation similar to direct estimation 5 Partially exploits Bellman constraints---adjusts state to ‘agree’ with observed successor g Not all possible successors 5 Convergence in between direct estimation and ADP 27

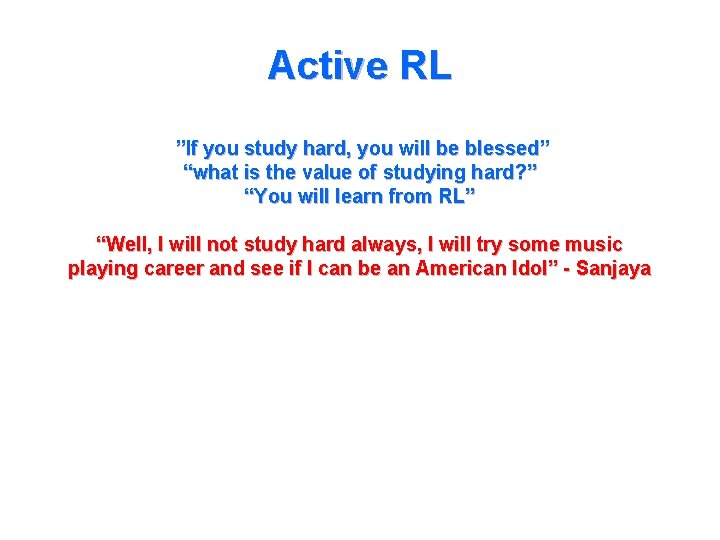

Active RL ”If you study hard, you will be blessed” “what is the value of studying hard? ” “You will learn from RL” “Well, I will not study hard always, I will try some music playing career and see if I can be an American Idol” - Sanjaya

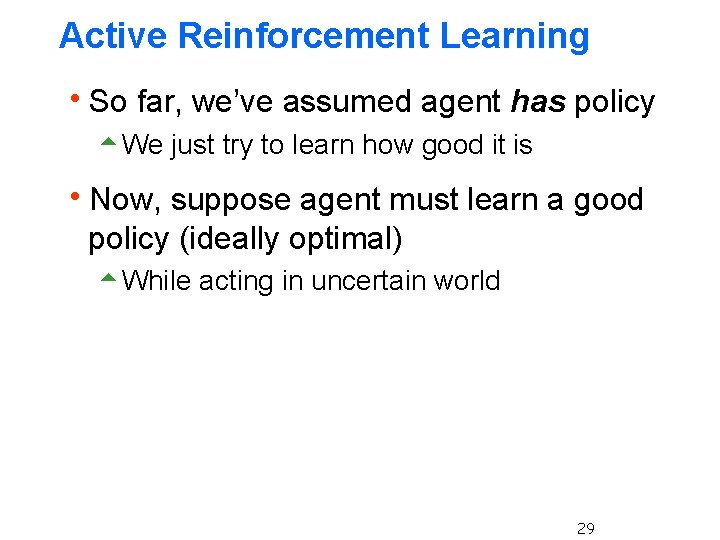

Active Reinforcement Learning h. So far, we’ve assumed agent has policy 5 We just try to learn how good it is h. Now, suppose agent must learn a good policy (ideally optimal) 5 While acting in uncertain world 29

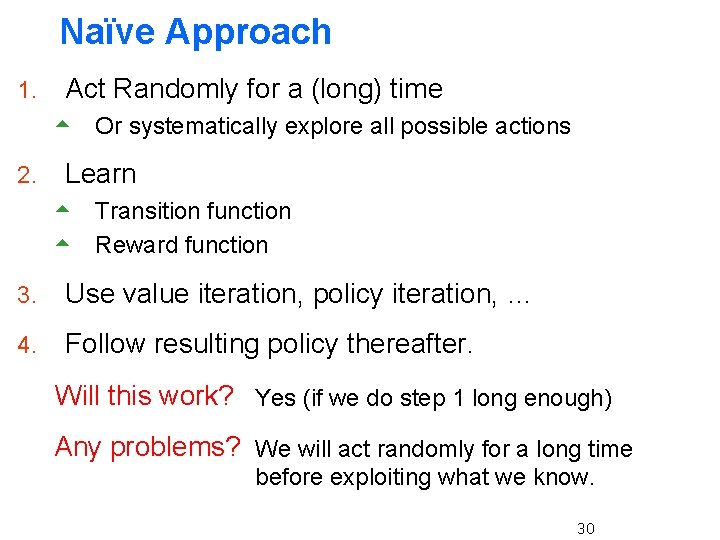

Naïve Approach 1. Act Randomly for a (long) time 5 2. Or systematically explore all possible actions Learn Transition function 5 Reward function 5 3. Use value iteration, policy iteration, … 4. Follow resulting policy thereafter. Will this work? Yes (if we do step 1 long enough) Any problems? We will act randomly for a long time before exploiting what we know. 30

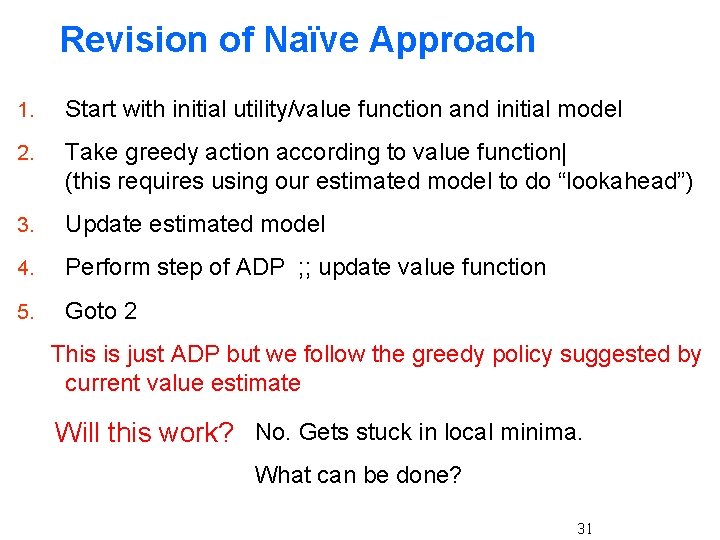

Revision of Naïve Approach 1. Start with initial utility/value function and initial model 2. Take greedy action according to value function| (this requires using our estimated model to do “lookahead”) 3. Update estimated model 4. Perform step of ADP ; ; update value function 5. Goto 2 This is just ADP but we follow the greedy policy suggested by current value estimate Will this work? No. Gets stuck in local minima. What can be done? 31

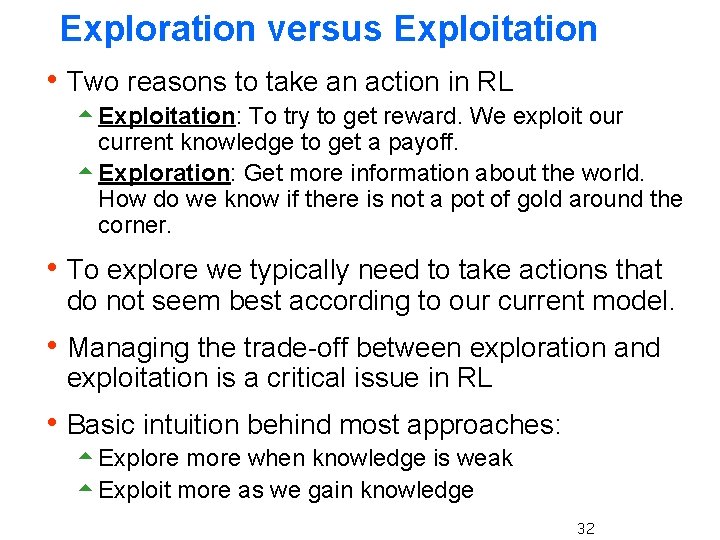

Exploration versus Exploitation h Two reasons to take an action in RL 5 Exploitation: To try to get reward. We exploit our current knowledge to get a payoff. 5 Exploration: Get more information about the world. How do we know if there is not a pot of gold around the corner. h To explore we typically need to take actions that do not seem best according to our current model. h Managing the trade-off between exploration and exploitation is a critical issue in RL h Basic intuition behind most approaches: 5 Explore more when knowledge is weak 5 Exploit more as we gain knowledge 32

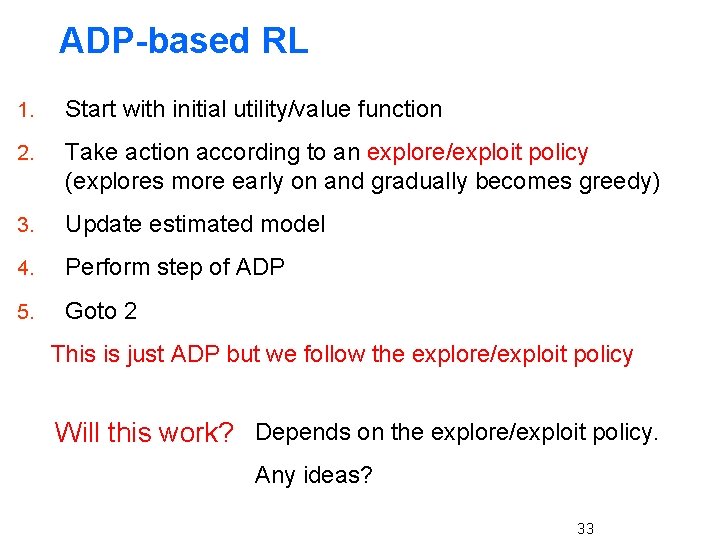

ADP-based RL 1. Start with initial utility/value function 2. Take action according to an explore/exploit policy (explores more early on and gradually becomes greedy) 3. Update estimated model 4. Perform step of ADP 5. Goto 2 This is just ADP but we follow the explore/exploit policy Will this work? Depends on the explore/exploit policy. Any ideas? 33

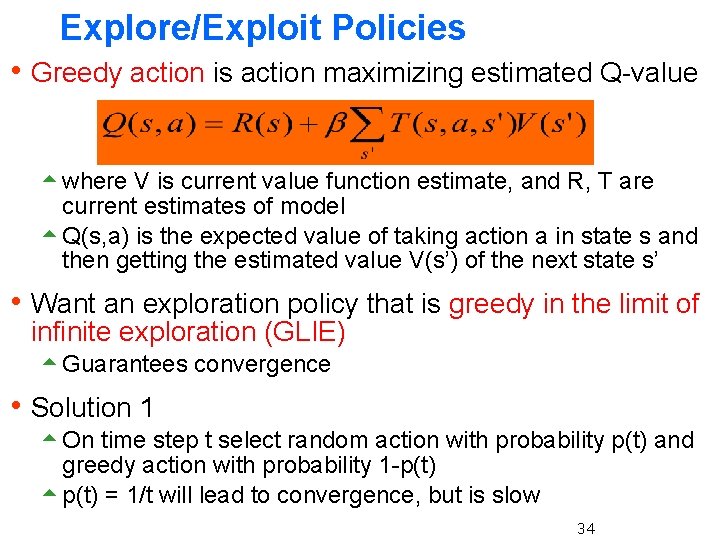

Explore/Exploit Policies h Greedy action is action maximizing estimated Q-value 5 where V is current value function estimate, and R, T are current estimates of model 5 Q(s, a) is the expected value of taking action a in state s and then getting the estimated value V(s’) of the next state s’ h Want an exploration policy that is greedy in the limit of infinite exploration (GLIE) 5 Guarantees convergence h Solution 1 5 On time step t select random action with probability p(t) and greedy action with probability 1 -p(t) 5 p(t) = 1/t will lead to convergence, but is slow 34

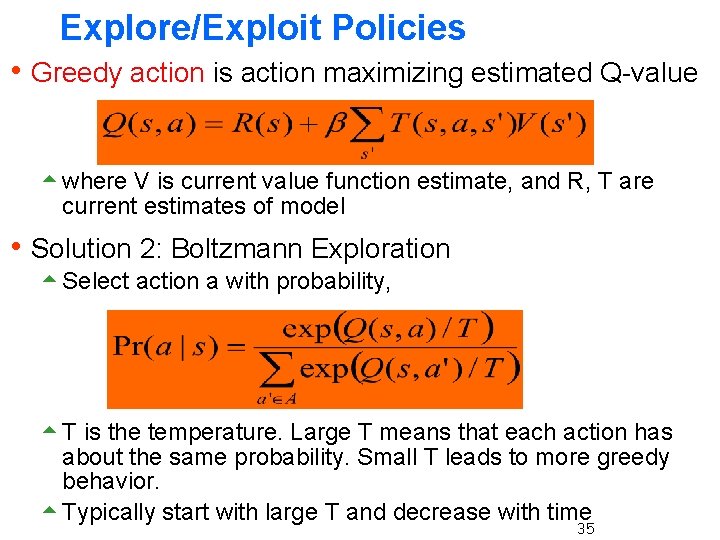

Explore/Exploit Policies h Greedy action is action maximizing estimated Q-value 5 where V is current value function estimate, and R, T are current estimates of model h Solution 2: Boltzmann Exploration 5 Select action a with probability, 5 T is the temperature. Large T means that each action has about the same probability. Small T leads to more greedy behavior. 5 Typically start with large T and decrease with time 35

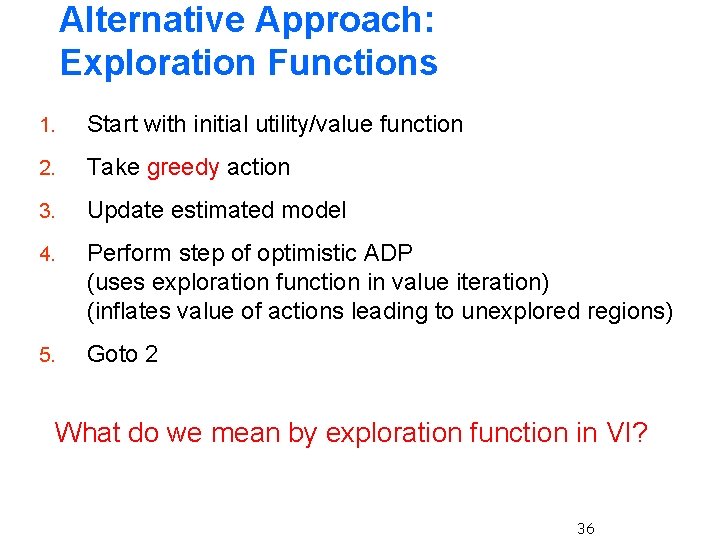

Alternative Approach: Exploration Functions 1. Start with initial utility/value function 2. Take greedy action 3. Update estimated model 4. Perform step of optimistic ADP (uses exploration function in value iteration) (inflates value of actions leading to unexplored regions) 5. Goto 2 What do we mean by exploration function in VI? 36

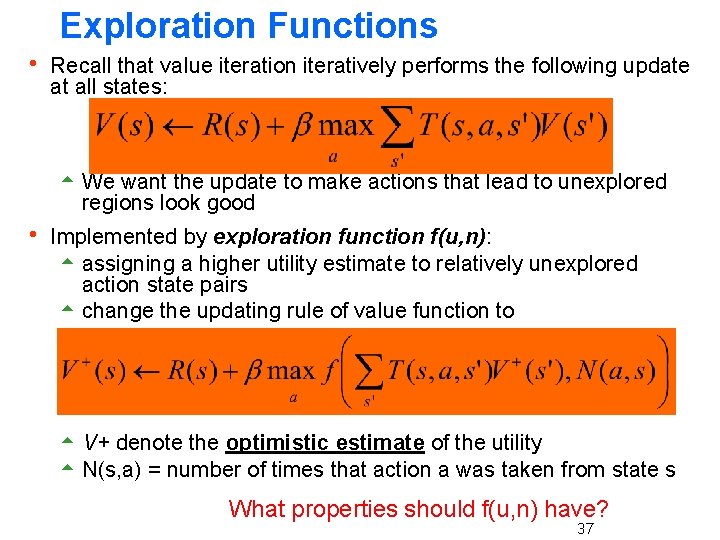

Exploration Functions h Recall that value iteration iteratively performs the following update at all states: 5 We want the update to make actions that lead to unexplored regions look good h Implemented by exploration function f(u, n): 5 assigning a higher utility estimate to relatively unexplored action state pairs 5 change the updating rule of value function to 5 V+ denote the optimistic estimate of the utility 5 N(s, a) = number of times that action a was taken from state s What properties should f(u, n) have? 37

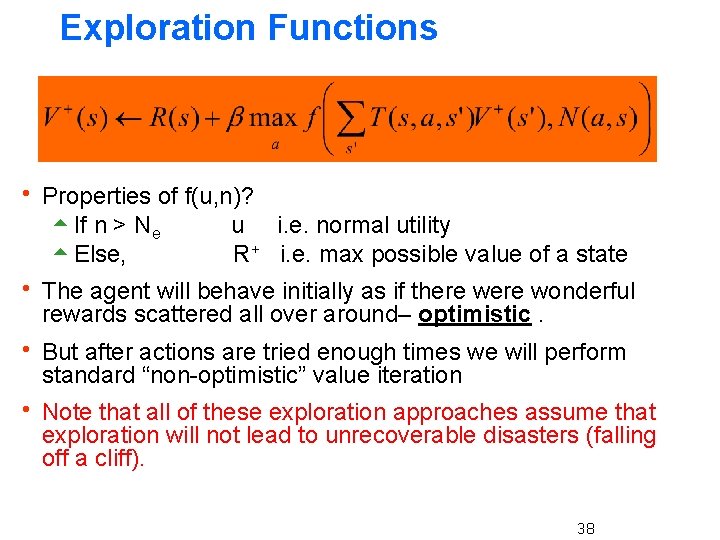

Exploration Functions h Properties of f(u, n)? 5 If n > Ne u i. e. normal utility 5 Else, R+ i. e. max possible value of a state h The agent will behave initially as if there wonderful rewards scattered all over around– optimistic. h But after actions are tried enough times we will perform standard “non-optimistic” value iteration h Note that all of these exploration approaches assume that exploration will not lead to unrecoverable disasters (falling off a cliff). 38

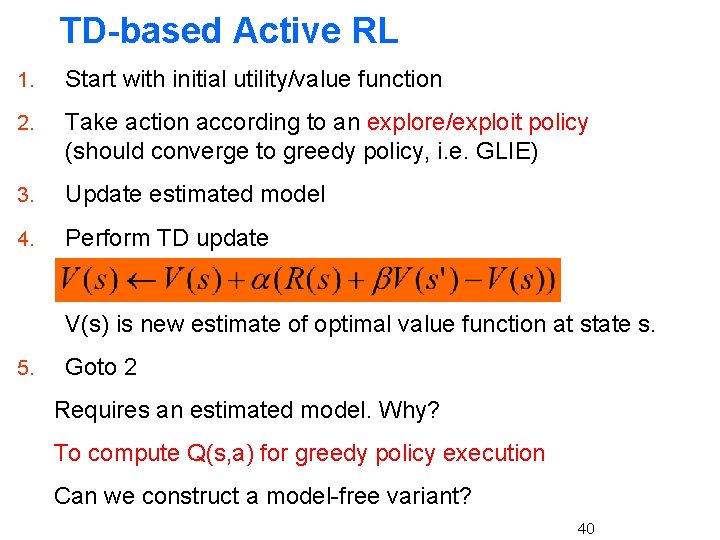

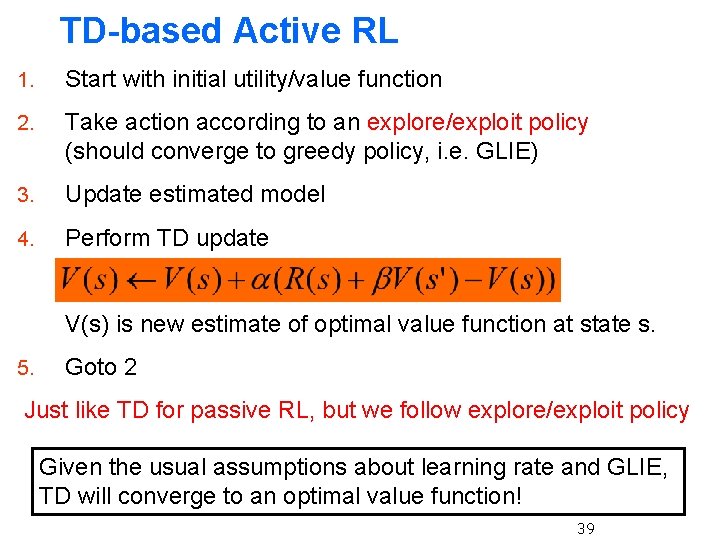

TD-based Active RL 1. Start with initial utility/value function 2. Take action according to an explore/exploit policy (should converge to greedy policy, i. e. GLIE) 3. Update estimated model 4. Perform TD update V(s) is new estimate of optimal value function at state s. 5. Goto 2 Just like TD for passive RL, but we follow explore/exploit policy Given the usual assumptions about learning rate and GLIE, TD will converge to an optimal value function! 39

TD-based Active RL 1. Start with initial utility/value function 2. Take action according to an explore/exploit policy (should converge to greedy policy, i. e. GLIE) 3. Update estimated model 4. Perform TD update V(s) is new estimate of optimal value function at state s. 5. Goto 2 Requires an estimated model. Why? To compute Q(s, a) for greedy policy execution Can we construct a model-free variant? 40

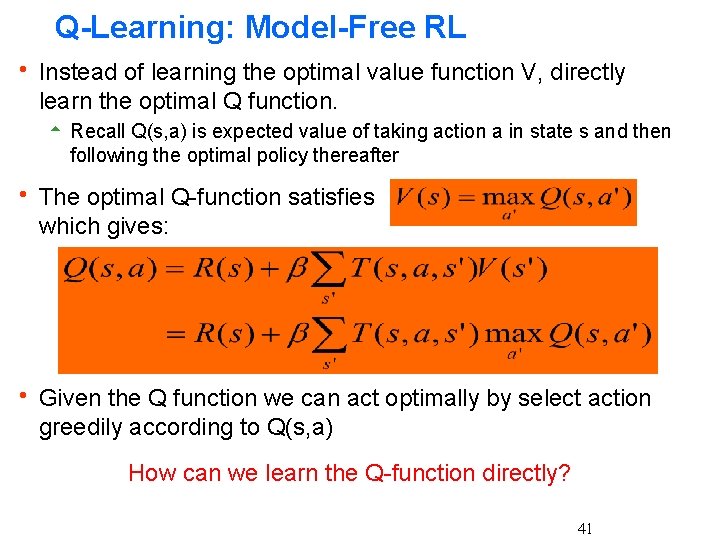

Q-Learning: Model-Free RL h Instead of learning the optimal value function V, directly learn the optimal Q function. 5 Recall Q(s, a) is expected value of taking action a in state s and then following the optimal policy thereafter h The optimal Q-function satisfies which gives: h Given the Q function we can act optimally by select action greedily according to Q(s, a) How can we learn the Q-function directly? 41

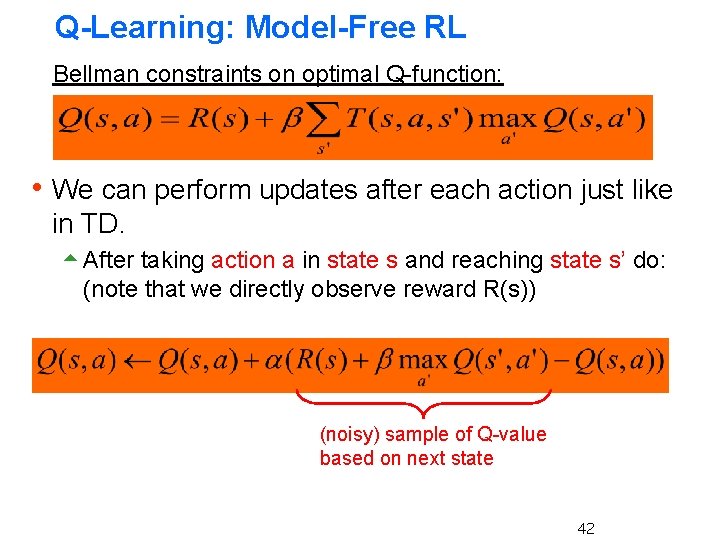

Q-Learning: Model-Free RL Bellman constraints on optimal Q-function: h We can perform updates after each action just like in TD. 5 After taking action a in state s and reaching state s’ do: (note that we directly observe reward R(s)) (noisy) sample of Q-value based on next state 42

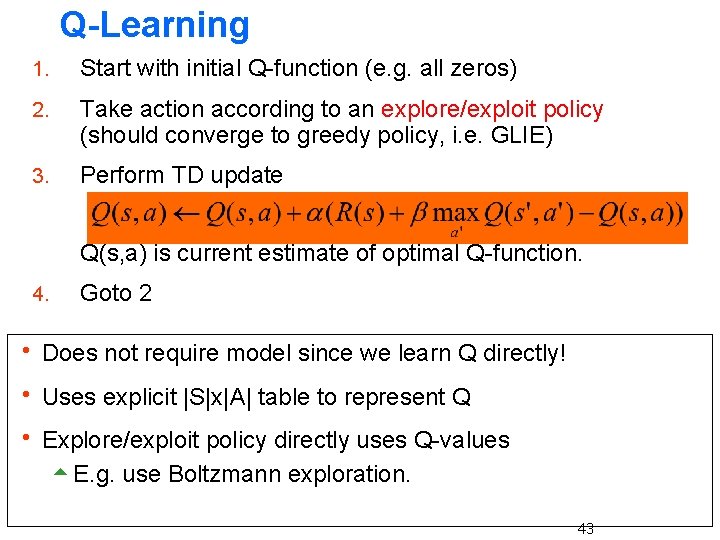

Q-Learning 1. Start with initial Q-function (e. g. all zeros) 2. Take action according to an explore/exploit policy (should converge to greedy policy, i. e. GLIE) 3. Perform TD update Q(s, a) is current estimate of optimal Q-function. 4. Goto 2 h Does not require model since we learn Q directly! h Uses explicit |S|x|A| table to represent Q h Explore/exploit policy directly uses Q-values 5 E. g. use Boltzmann exploration. 43

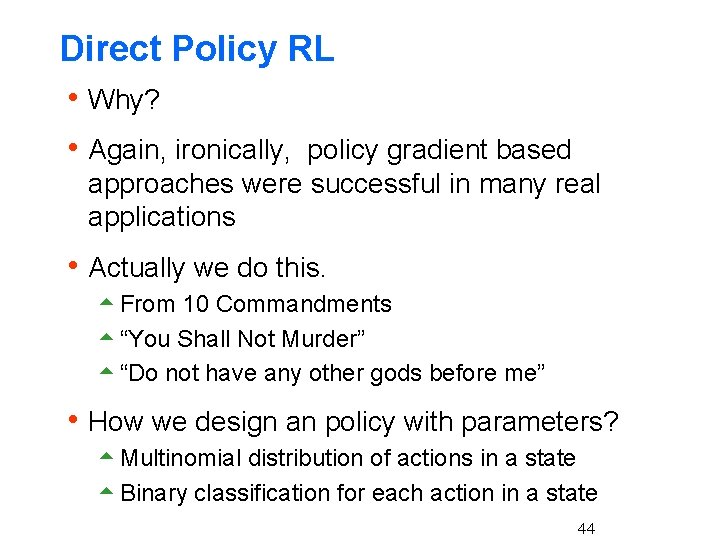

Direct Policy RL h Why? h Again, ironically, policy gradient based approaches were successful in many real applications h Actually we do this. 5 From 10 Commandments 5 “You Shall Not Murder” 5 “Do not have any other gods before me” h How we design an policy with parameters? 5 Multinomial distribution of actions in a state 5 Binary classification for each action in a state 44

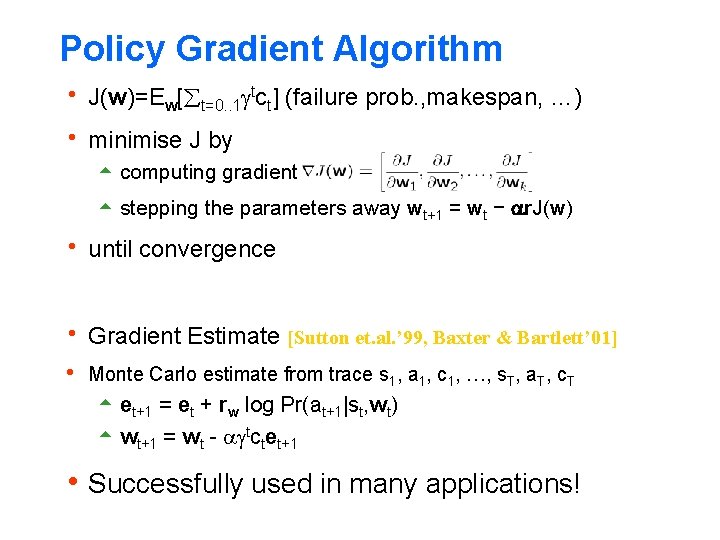

Policy Gradient Algorithm h J(w)=Ew[ t=0. . 1 tct] (failure prob. , makespan, …) h minimise J by 5 computing gradient 5 stepping the parameters away wt+1 = wt − r. J(w) h until convergence h Gradient Estimate [Sutton et. al. ’ 99, Baxter & Bartlett’ 01] h Monte Carlo estimate from trace s 1, a 1, c 1, …, s. T, a. T, c. T 5 et+1 = et + rw log Pr(at+1|st, wt) 5 wt+1 = wt - tctet+1 h Successfully used in many applications!

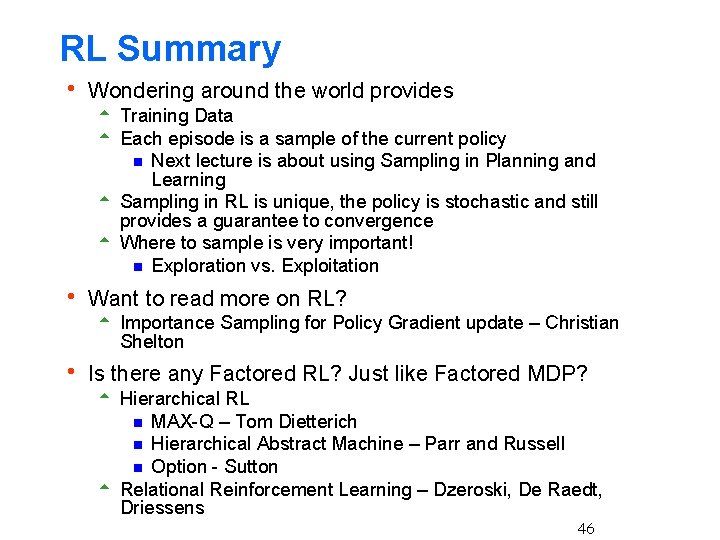

RL Summary h Wondering around the world provides 5 Training Data 5 Each episode is a sample of the current policy g Next lecture is about using Sampling in Planning and Learning 5 Sampling in RL is unique, the policy is stochastic and still provides a guarantee to convergence 5 Where to sample is very important! g Exploration vs. Exploitation h Want to read more on RL? 5 Importance Sampling for Policy Gradient update – Christian Shelton h Is there any Factored RL? Just like Factored MDP? 5 Hierarchical RL g MAX-Q – Tom Dietterich g Hierarchical Abstract Machine – Parr and Russell g Option - Sutton 5 Relational Reinforcement Learning – Dzeroski, De Raedt, Driessens 46
