REHABILITATE TAXIWAY M A CASE STUDY AIRPORT SAFETY
REHABILITATE TAXIWAY “M”: A CASE STUDY AIRPORT SAFETY AND SECURITY DURING CONSTRUCTION 2019 UNCC / CLT Fall Aviation Engineering On-Site Seminar
Panelists
Panelists Tracy Saunders, P. E. , C. M. , Delta Airport Consultants, Inc. Terry Page, P. E. , Delta Airport Consultants, Inc. Scott O’Halloran, FAA CLT ATCT Support Specialist Jeff Perry, C. M. , ACE, Airside Operations Manager, CLT Brian Mc. Mahan, C. M. , ACE, Construction Manager, Talbert, Bright & Ellington
Project Team
Project Team Owner: City of Charlotte, Aviation Department Construction Manager: Talbert, Bright & Ellington Contractor: Hi-Way Paving, Inc. Engineer: Delta Airport Consultants, Inc.
Outline
Outline 1. 2. 3. 4. 5. 6. Scope of Project Safety Risk Management Project Phasing FAA / ATC Airside Operations Development / Construction
Scope of Project Tracy Saunders, P. E. , C. M. , Delta Airport Consultants, Inc.

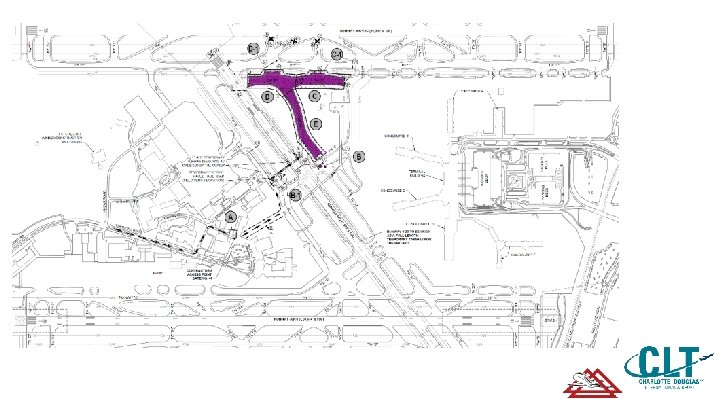

Project Area
Safety Risk Management Terry Page, P. E. Delta Airport Consultants, Inc.
Why Conduct Safety Risk Management? a. Provides a forum to brief all stakeholders on the project b. Identifies Potential Hazards Before Project Starts c. Discuss Potential Design Changes to Avoid Risks (Rather than CO’s) d. Enhances Airport Safety for Airlines and Contractor e. Satisfies requirements of FAA Order 5200. 11 f. Protects the Airport Owner* (* Consult an attorney on this one)
Current Safety Systems = Swiss Cheese
Safety Risk Management: The Steps a. b. c. d. e. f. Convene Safety Assessment Panel of Experts Define and Describe the Project Identify Preliminary List of Potential Hazards Analyze and Assess Risks with a Matrix Develop Hazard Mitigation Plan Incorporate into Project Phasing / Design
Analyze and Assess Risks: The Matrix
Safety Risk Management: CLT Taxiway M a. b. c. d. e. f. Workshop panel identified potential credible hazards Assessed where hazards could result in unacceptable risks Identified realistic mitigation measures Re-assessed risk level with mitigation in place Provided guidance to project engineers to revise plans Documented the results of the Workshop
CLT Taxiway M SRM Workshop Participants Rick Tanfero, CLT Lexie Farmer, CLT Jeffrey Perry, CLT James H. Wally, CLT Jeff Mc. Swain, CLT Ashton Watson, CLT Brian Mc. Mahan, CLT Adam White, FAA CLT ATCT Scott O’Halloran, FAA CLT ATCT Bernie Davis, American Airlines Mike Bryant, American Airlines Lori Cline, American Airlines Kenneth Moody, Delta Airport Cons. Tracy Saunders, Delta Airport Cons. Sierra Heaton, Delta Airport Cons. Terry Page, Delta Airport Cons. Kate De. Jarnette, Delta Airport Con.
Safety Risk Management: Taxiway M Results a. Stakeholders were made aware of the project work areas, impacts and schedule b. The construction phasing layout was revised to separate construction vehicles further from aircraft c. The construction phasing reduced the number of flaggers needed d. Overall, we believe aircraft efficiency and safety were enhanced
Safety Risk Management: Resources Consider Using FAA’s Hazard Assessment Tools: FAA Order 5200. 11, Safety Management Systems https: //www. faa. gov/airports/airport_safety/safety_management_ systems/ Office of Airports, FAA SMS Desk Reference – contains Safety Assessment process guidance along with a sample and blank templates
Project Phasing Tracy Saunders, P. E. , C. M. , Delta Airport Consultants, Inc.
Overall Project Phasing • Phasing Philosophy – Complete haul route / gate construction, then ‘pave’ out to the south. • Base Bid – 180 Calendar Days • Liquidated Damages: • • $10, 000 per calendar day will be assessed against the Contractor for each calendar day or portion thereof that the total contract time is exceeded. $2, 500 per calendar day will be assessed against the Contractor for each calendar day or portion thereof that specific milestones are exceeded.
CLT FAA / ATCT Surface Team Scott O’Halloran, FAA CLT ATCT Support Specialist
Mission / Efforts Established in 2012, the mission of the CLT Surface Team is to enhance the safety and efficiency of the Charlotte Douglas International Airport. Our efforts include designing new traffic flows to reduce delays associated with limited ramp space, identifying and mitigating ramp congestion, identifying strategic places to hold delayed airport, and to coordinate upcoming construction projects and temporary closures with airport personnel and stakeholders.
Makeup Members • FAA – 2 National Air Traffic Controllers Association (NATCA) and 2 Management • Industry Dedicated Support: Subject Matter Expert (SME) as requested • Support Staff specialist, Traffic Management Coordinator (TMC) and Operations Manager (OM) • Airport Operations • FAA Tech Ops
Secret to Surface Team Success a. b. c. d. Collaboration Transparency Open-minded FAA Team Members have equal authority and have approval rights for Surface Team e. AA Ramp Tower collaboration with FAA Surface Team f. Recognize and learn from partial successes g. Initiate lessons learned discussion / process
A Changing Landscape…CLT 1993
A Changing Landscape…CLT 2019
Rehabilitate Taxiway M Collaboration a. Participation in Safety Risk Management Workshop b. Identified risks with preliminary construction haul route and potential for FOD c. Final solution mitigated and reduced risk to both aircraft and construction personnel d. Potential for FOD area was also greatly reduced
Rehabilitate Taxiway M Collaboration Originally Proposed Haul Route
Rehabilitate Taxiway M Collaboration Final Haul Route
Takeaways a. The future success of our aviation industry requires a shared endeavor – We are a Team b. ATC should be viewed as a partner of the system users
Airside Operations / Security Jeff Perry, C. M. , ACE, Airside Operations Manager, CLT

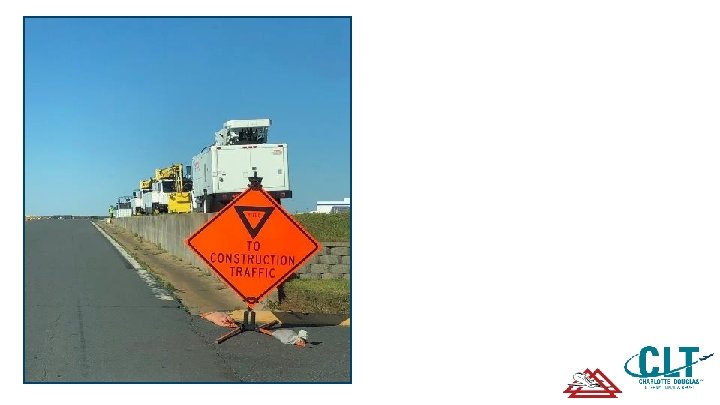

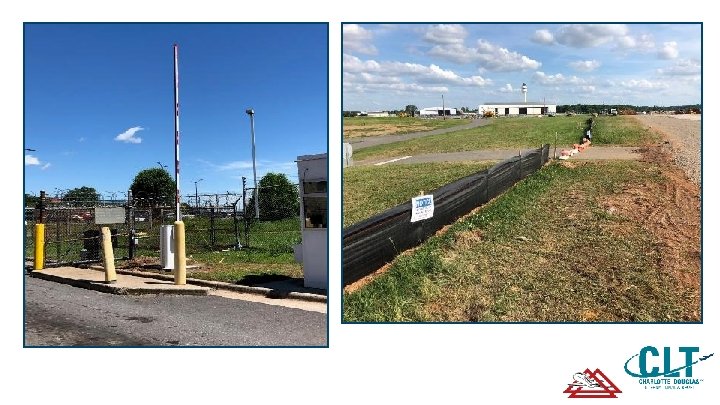

Airside Operations / Security a. b. c. d. e. Single Access Point with Security by CLT Marked Haul Route with Flaggers CLT Operations Officer at Runway 5 -23 / Taxiway A Crossing Liaison between CLT Operations / CLT Development Weekly Construction Meetings / Communication
Development / Construction Brian Mc. Mahan, C. M. , ACE, Construction Manager, Talbert, Bright and Ellington
Construction Team Owner: City of Charlotte, Aviation Department Construction Manager: Talbert, Bright & Ellington
City of Charlotte, Aviation Department James Wally, P. E. , Engineering Program Manager Shane Nixon, Engineering Project Manager Hunter Ballard, Lead Project Inspector Cody Smith, Lead Chief Airport Inspector Ryan Fairchild, Chief Airport Inspector Jeff Perry, C. M. , ACE, Airside Operations Manager Matt Freeman, Airport Ops Supervisor II
Talbert, Bright & Ellington Brian Mc. Mahan, C. M. , ACE, Construction Manager Danny Jones, Resident Project Representative Kyle Clark, Resident Project Representative
Development / Construction a. b. c. d. Phased Construction / Multiple Work Areas Weekly Construction Meetings / Communication Schedule Updates to FAA ATC / CLT Partners (airlines) Coordination with other CLT Departments (Operations, Maintenance) e. Interface / Impact to other CLT Projects
Work Area B Phasing • Work Area B: Taxiway M at Taxiway B • 10 Calendar Days • Work Area B-1: Temporary Haul Route Construction • 10 Calendar Days • Nightly From 11: 00 P. M. to 5: 30 A. M.
Work Area C Phasing • Work Area C: Taxiway F between Taxiway M and Ramp • 50 Calendar Days • Work Area C-1: Taxiway F between Taxiway M and Ramp (Inside Taxiway E TOFA) • 14 Calendar Days/Work Periods • Nightly From 11: 00 P. M. to 5: 30 A. M.

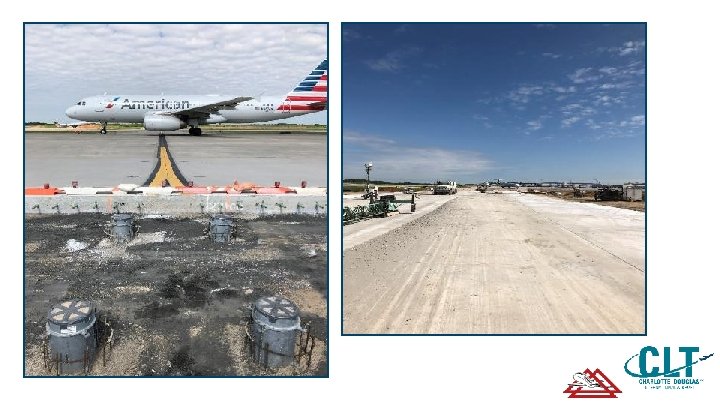

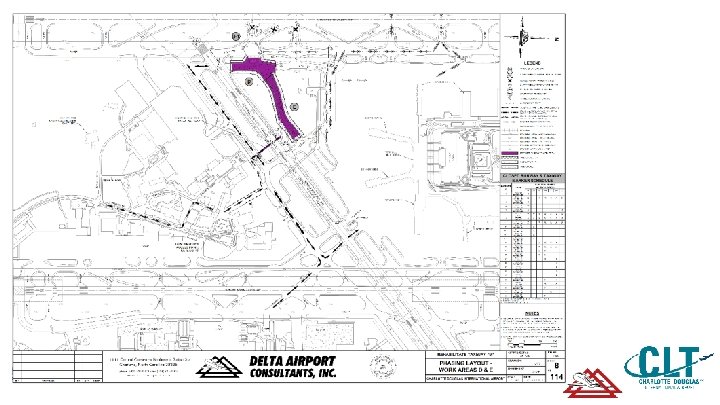

Work Area D Phasing • Work Area D: Taxiway M / Taxiway F Intersection • 100 Calendar Days • Work Area D-1: Taxiway M / Taxiway F Intersection (Inside Taxiway E TOFA) • 14 Calendar Days/Work Periods • Nightly From 11: 00 P. M. to 5: 30 A. M.

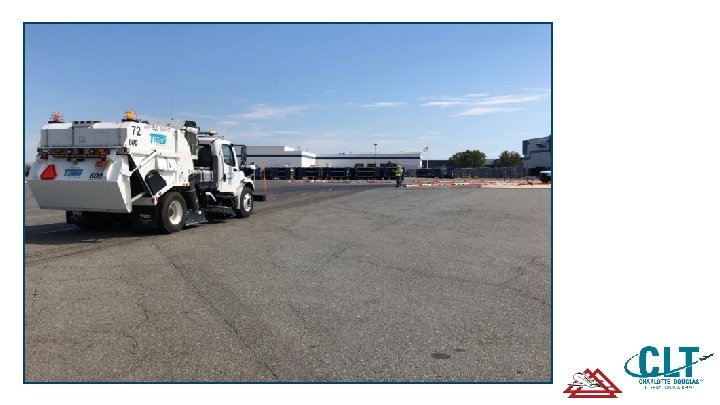

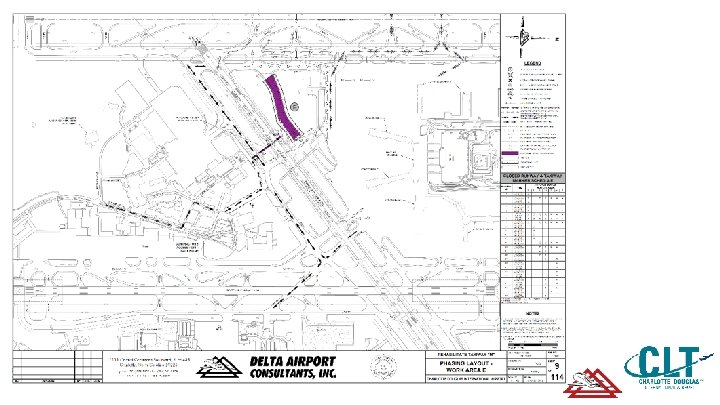

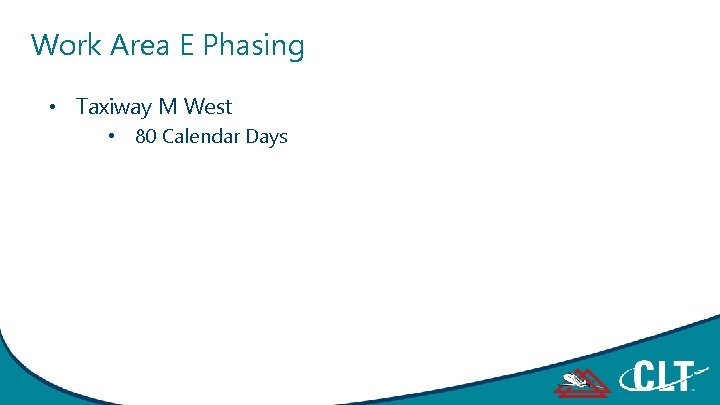

Work Area E Phasing • Taxiway M West • 80 Calendar Days
Project Schedule
Construction Milestones a. b. c. d. e. Construction NTP/Start – April 1, 2019 Work Area B Complete – April 13, 2019 Work Area C Complete – June 3, 2019 Work Area D Complete – August 1, 2019 Work Area E / Project Complete – September 30, 2019
In Summary + + + = Coordinated Project Design Collaborative SRM Proactive Construction Management Positive Working Relationships between Stakeholders Proven Track Record of Successful Project Delivery
