Regional Seminar Series CCGT Plant Optimisation using Real Time Data Mark Bate Efficiency Team Leader EON – Connah’s Quay Power Station Empowering Business in Real Time. © Copyright 2009, OSIsoft Inc. All rights Reserved.
EON: Efficiency Targets Surpassed “We beat our Efficiency target in 2007 by 2. 6%. The 2008 result was >1% against target. This equates to annual CO 2 savings of over 135, 000 Tonnes, saving enough gas to supply the annual needs of over 50, 000 homes!. ” Mark Bate, EON Efficiency Team Leader Business Challenge • Reduce Shaftline Trips • Improve Unit Efficiencies • Reduce CO 2 emissions 2 Value now. Value over time. Solution • Performance Watchdog Displays optimise Plant • Proates models with data stored in PI • Performance Equations, Process. Book and Data. Link • ‘d 4 e’ Improvement project Results / Benefits • Reduced CO 2 emissions by 135 k Tonnes • Efficiency increased by 0. 5%. Saving £ 20 k in lost generation! • Saving over £ 4 m per year © Copyright 2009, OSIsoft Inc. All rights Reserved.
Click to edit Master Hamilton North title style Lennox Connah's Quay. . . taking power generation forward Douglas Hamilton Liverpool Rhyl River Dee Burton Point Deeside Point of Ayr Connah's Quay 3 Empowering Business in Real Time. Chester © Copyright 2009, OSIsoft Inc. All rights Reserved.
Click to edit Master title style Contents of Presentation • Introduction to PI and PROATES • Early development of Plant Monitoring • Introduction of a Performance Watchdog Display • Benefits of ‘d 4 e’ Efficiency Improvement Projects • More recent developments • Summary 4 Empowering Business in Real Time. © Copyright 2009, OSIsoft Inc. All rights Reserved.

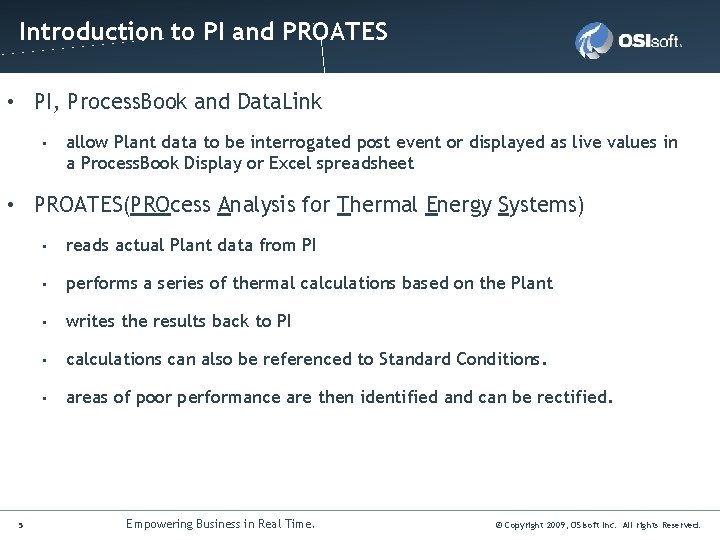

Click to edit Master title style Introduction to PI and PROATES • PI, Process. Book and Data. Link • allow Plant data to be interrogated post event or displayed as live values in a Process. Book Display or Excel spreadsheet • PROATES(PROcess Analysis for Thermal Energy Systems) 5 • reads actual Plant data from PI • performs a series of thermal calculations based on the Plant • writes the results back to PI • calculations can also be referenced to Standard Conditions. • areas of poor performance are then identified and can be rectified. Empowering Business in Real Time. © Copyright 2009, OSIsoft Inc. All rights Reserved.

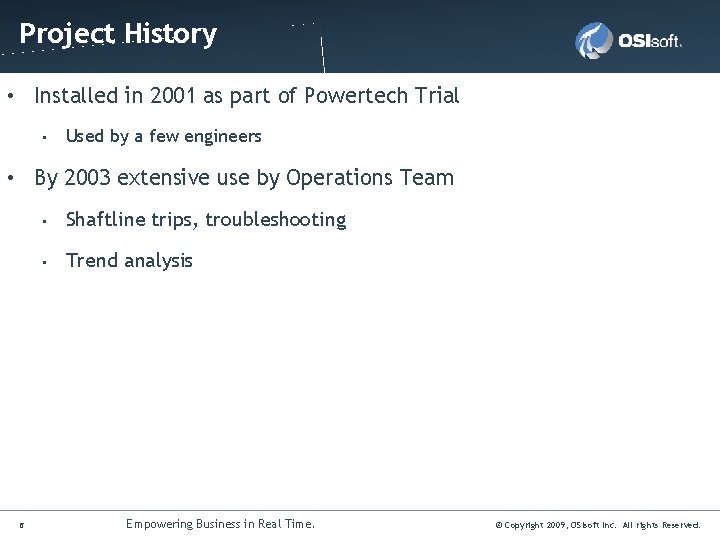

Click to edit Master title style Project History • Installed in 2001 as part of Powertech Trial • Used by a few engineers • By 2003 extensive use by Operations Team 6 • Shaftline trips, troubleshooting • Trend analysis Empowering Business in Real Time. © Copyright 2009, OSIsoft Inc. All rights Reserved.
Click to edit Master title style Trend Analysis 7 Empowering Business in Real Time. © Copyright 2009, OSIsoft Inc. All rights Reserved.
Click to edit Master title style Development of Plant Monitoring • As the use of PI flourished… • Development of ‘real time’ displays for comparing Unit Performance • Use of ‘Multistate’ symbols on displays to act as visual alarms • 8 Use of Datalink to create reports for various Plant performance issues (Condenser Tube Pick Report) Empowering Business in Real Time. © Copyright 2009, OSIsoft Inc. All rights Reserved.
Click. Comparisons Unit to edit Master title style 9 Empowering Business in Real Time. © Copyright 2009, OSIsoft Inc. All rights Reserved.
Click. Comparisons Unit to edit Master title style 10 Empowering Business in Real Time. © Copyright 2009, OSIsoft Inc. All rights Reserved.
Click U 2 Tube to edit Pick. Master Reporttitle style 11 Empowering Business in Real Time. © Copyright 2009, OSIsoft Inc. All rights Reserved.

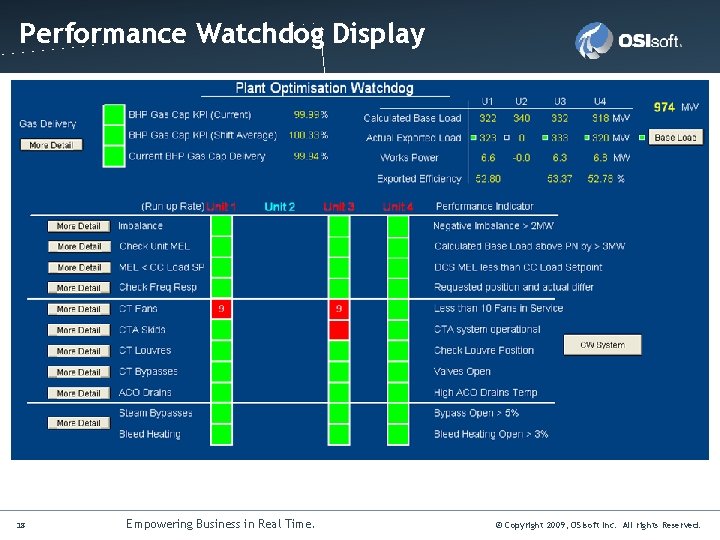

Click to edit Master title style. Display Performance Watchdog Problem with ‘GT Inlet Bleed Heating Valve’ 12 Empowering Business in Real Time. © Copyright 2009, OSIsoft Inc. All rights Reserved.
Click to edit Master title style Performance Watchdog Display • GT Air Inlet Bleed Heating Valve found open at around 8%, bleeding off warm air to the GT Air Inlet. Found out using PI Trends that this had been the case for almost 3 Days • Cycle Output increased by 7 MW • Efficiency increased by 0. 5% • This incident alone was estimated to have cost over £ 20 k in lost generation! • 13 Surely we could make use of PI Performance Equations to minimise these events and give us early warning? Empowering Business in Real Time. © Copyright 2009, OSIsoft Inc. All rights Reserved.
Click to edit Master title style Performance Watchdog Display • Digital State 14 Empowering Business in Real Time. © Copyright 2009, OSIsoft Inc. All rights Reserved.
Click to edit Master title style Performance Watchdog Display • These PI screens helps us • • 15 maintain a 0. 5% efficiency improvement on each unit, through optimising output and performance saving of over £ 4 m per year across the site. Empowering Business in Real Time. © Copyright 2009, OSIsoft Inc. All rights Reserved.
Click to edit Master title style Performance Watchdog Display 16 Empowering Business in Real Time. © Copyright 2009, OSIsoft Inc. All rights Reserved.
Click to edit Master title style Performance Watchdog Display 17 Empowering Business in Real Time. © Copyright 2009, OSIsoft Inc. All rights Reserved.
Click to edit Master title style Performance Watchdog Display 18 Empowering Business in Real Time. © Copyright 2009, OSIsoft Inc. All rights Reserved.
Click to edit Master title style Performance Watchdog Display 19 Empowering Business in Real Time. © Copyright 2009, OSIsoft Inc. All rights Reserved.
Click to edit Master title style Performance Watchdog Display 20 Empowering Business in Real Time. © Copyright 2009, OSIsoft Inc. All rights Reserved.
Click to edit Master title style Benefits of ‘d 4 e’ Efficiency Improvement Projects Cooling Water Systems +0. 7% Gas Turbine / Compressor Improvements +0. 6% • Filter upgrades and new offline wash strategy • Compressor Core Plugs fitted HRSG Pre Heater clean +0. 2% • Many others…. 21 Empowering Business in Real Time. © Copyright 2009, OSIsoft Inc. All rights Reserved.
Click to edit Master title style Benefits of ‘d 4 e’ Efficiency Improvement Projects • In 2007 we beat our Efficiency target by 2. 6% • in 2008 result was >1% against target • This equates to annual CO 2 savings of over 135, 000 Tonnes, • saving enough gas to supply the annual needs of over 50, 000 homes! 22 Empowering Business in Real Time. © Copyright 2009, OSIsoft Inc. All rights Reserved.
Click to edit Master title style More Recent Developments 23 Empowering Business in Real Time. © Copyright 2009, OSIsoft Inc. All rights Reserved.
Click to edit Master title style Live Imbalance Monitoring 24 Empowering Business in Real Time. © Copyright 2009, OSIsoft Inc. All rights Reserved.

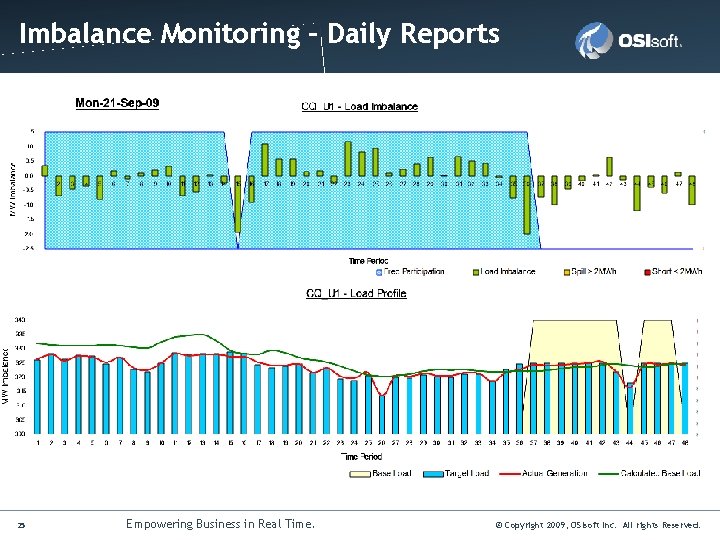

Click to edit Master title style Imbalance Monitoring – Daily Reports 25 Empowering Business in Real Time. © Copyright 2009, OSIsoft Inc. All rights Reserved.
Click to edit Master title style In Summary • Continually evolving process • The PI Watchdog screens ensure we are getting the most out of the current state of the Plant at all times • We have been able to develop and enhance our monitoring • PI has given us the confidence to address areas of: • poor plant performance • carry out effective cost / benefit analysis to obtain the necessary funding • Our PI system has become an integral part of the way we operate at Connah’s Quay. 26 Empowering Business in Real Time. © Copyright 2009, OSIsoft Inc. All rights Reserved.
