Regional Red River Project Update Brian Haggard and Thad Scott Arkansas Water Resources Center UA Division of Agriculture Arkansas Water Resources Center

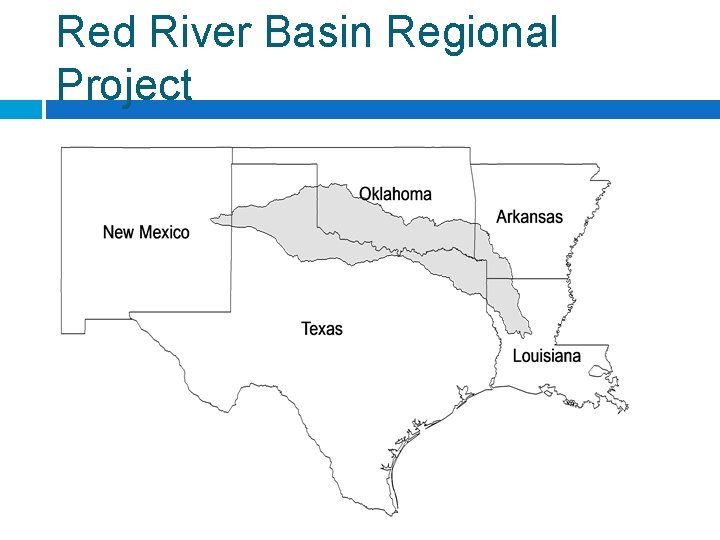

Red River Basin Regional Project

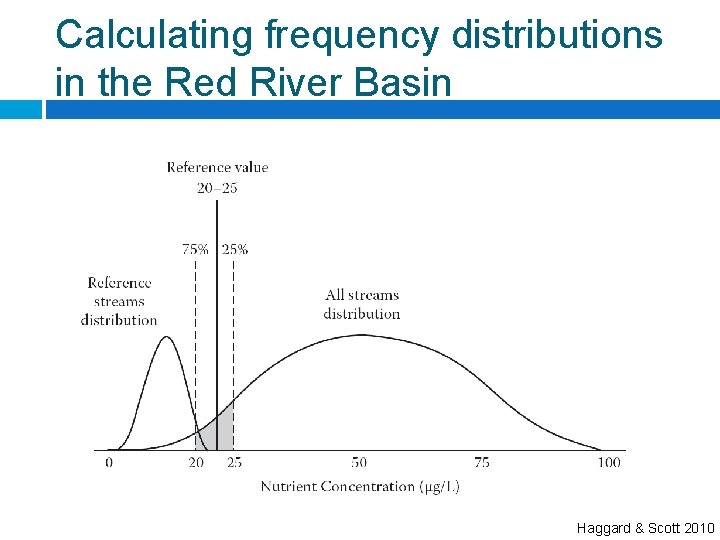

Calculating frequency distributions in the Red River Basin Haggard & Scott 2010

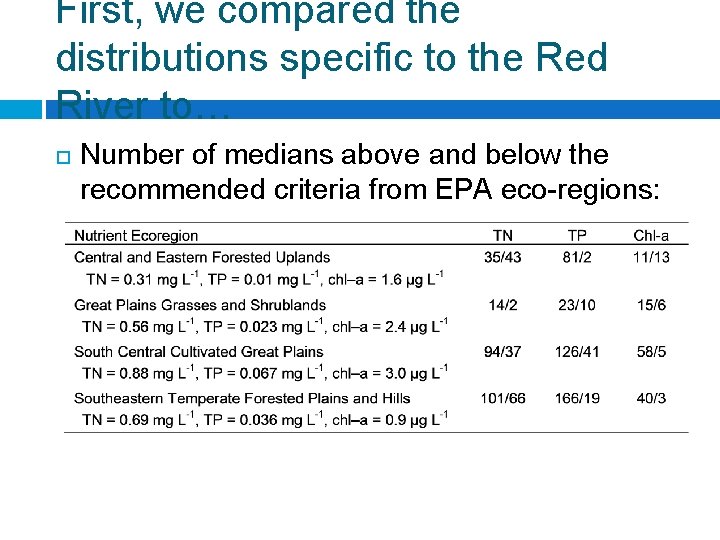

First, we compared the distributions specific to the Red River to… Number of medians above and below the recommended criteria from EPA eco-regions:

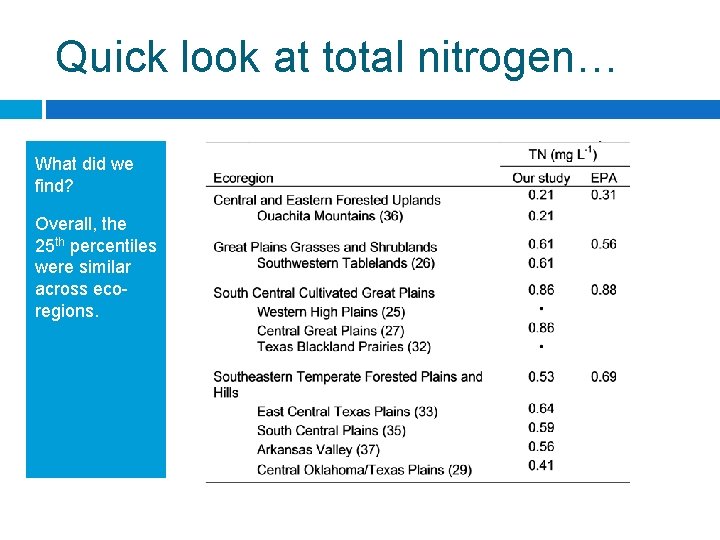

Quick look at total nitrogen… What did we find? Overall, the 25 th percentiles were similar across ecoregions.

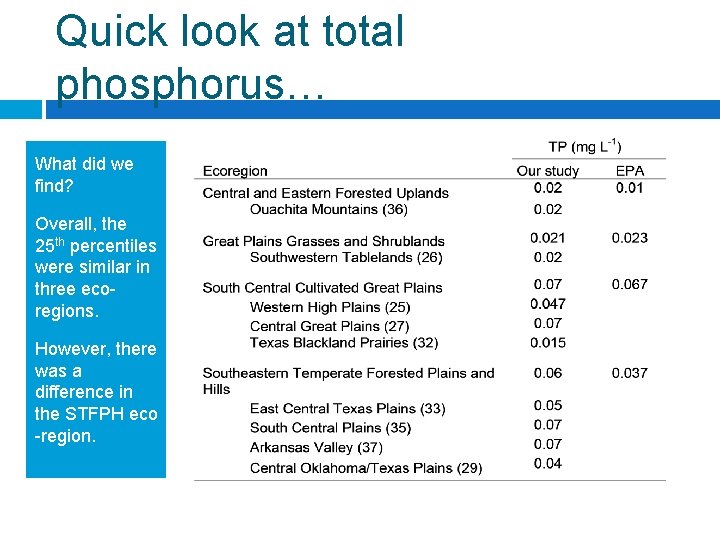

Quick look at total phosphorus… What did we find? Overall, the 25 th percentiles were similar in three ecoregions. However, there was a difference in the STFPH eco -region.

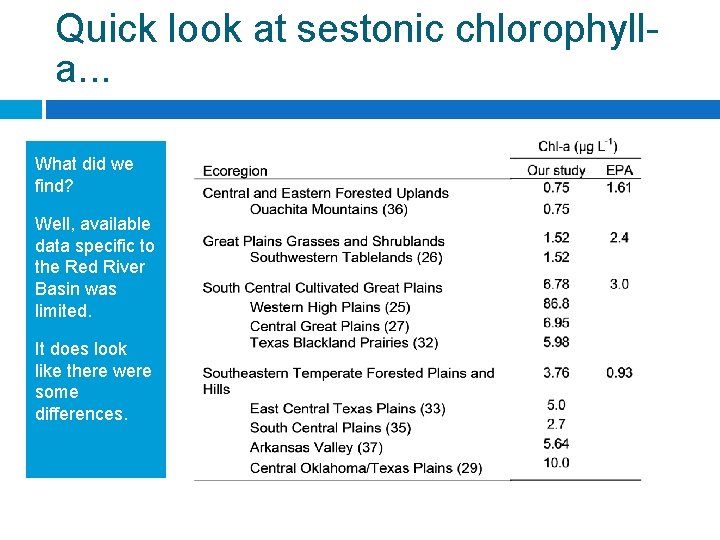

Quick look at sestonic chlorophylla. . . What did we find? Well, available data specific to the Red River Basin was limited. It does look like there were some differences.

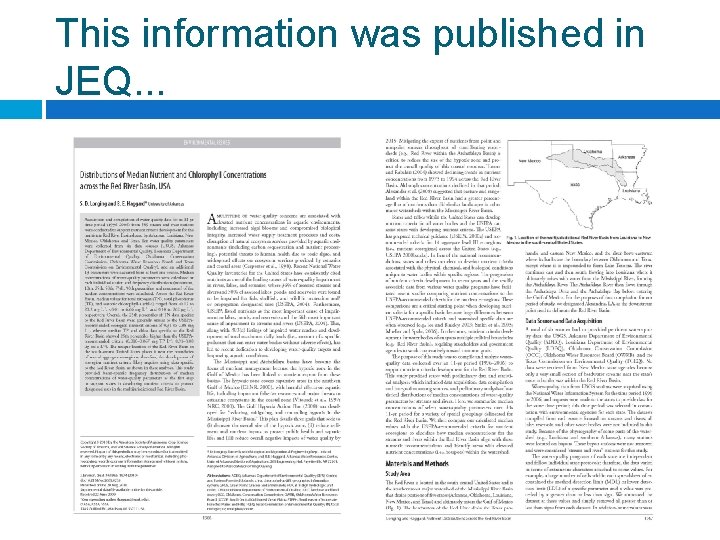

This information was published in JEQ. . .

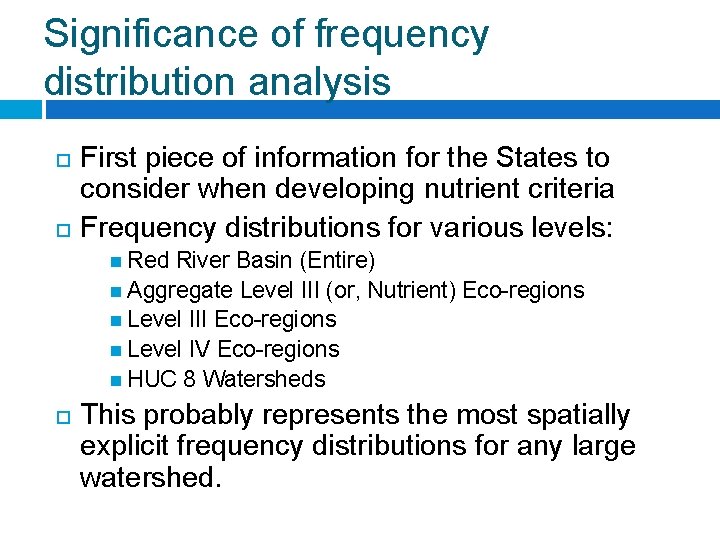

Significance of frequency distribution analysis First piece of information for the States to consider when developing nutrient criteria Frequency distributions for various levels: Red River Basin (Entire) Aggregate Level III (or, Nutrient) Eco-regions Level III Eco-regions Level IV Eco-regions HUC 8 Watersheds This probably represents the most spatially explicit frequency distributions for any large watershed.

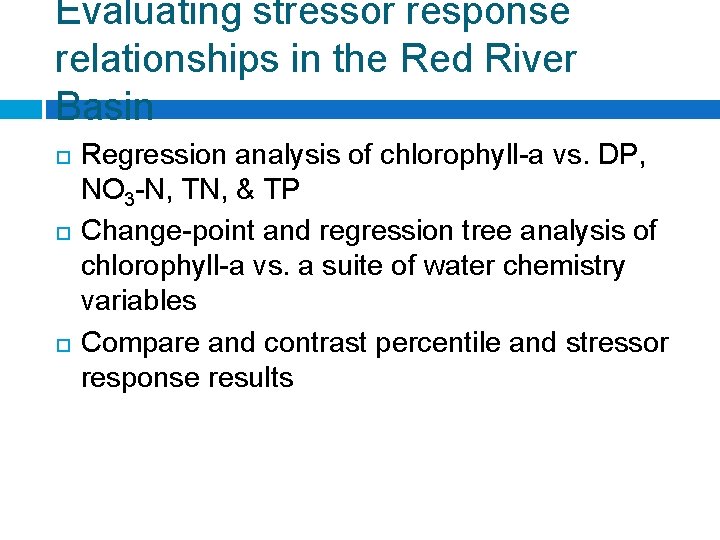

Evaluating stressor response relationships in the Red River Basin Regression analysis of chlorophyll-a vs. DP, NO 3 -N, TN, & TP Change-point and regression tree analysis of chlorophyll-a vs. a suite of water chemistry variables Compare and contrast percentile and stressor response results

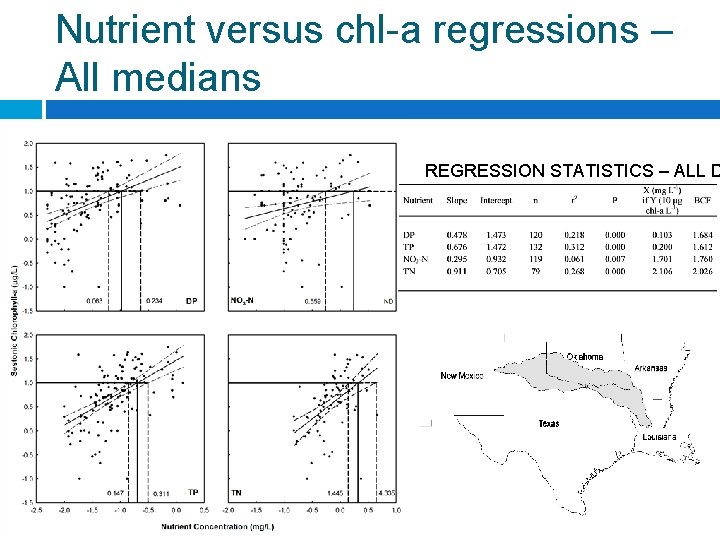

Nutrient versus chl-a regressions – All medians REGRESSION STATISTICS – ALL D

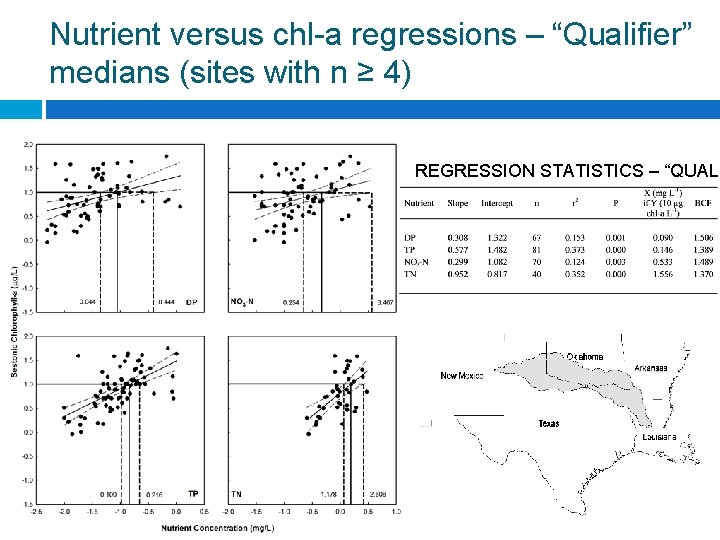

Nutrient versus chl-a regressions – “Qualifier” medians (sites with n ≥ 4) REGRESSION STATISTICS – “QUALI

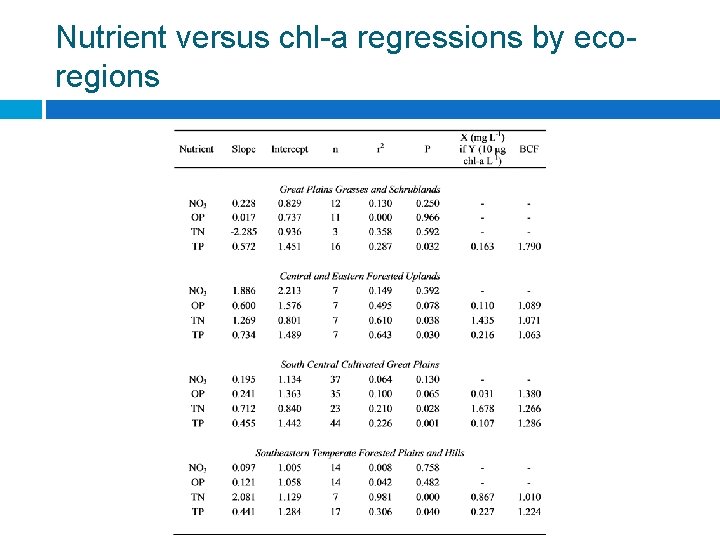

Nutrient versus chl-a regressions by ecoregions

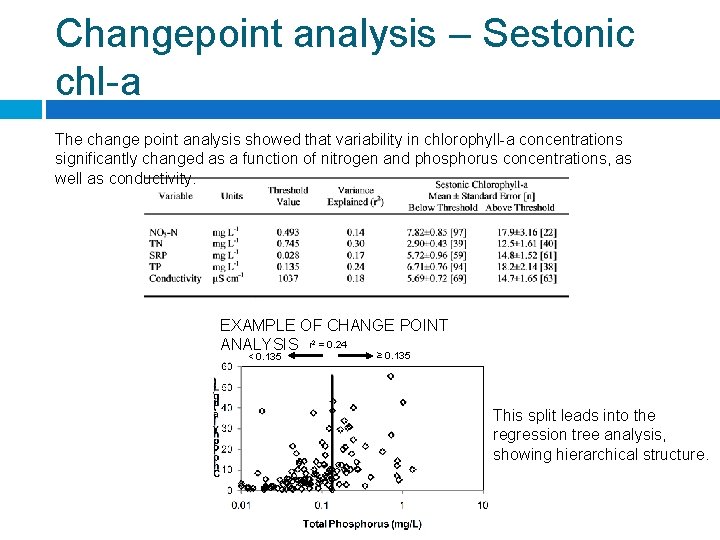

Changepoint analysis – Sestonic chl-a The change point analysis showed that variability in chlorophyll-a concentrations significantly changed as a function of nitrogen and phosphorus concentrations, as well as conductivity. EXAMPLE OF CHANGE POINT ANALYSIS r 2 = 0. 24 < 0. 135 ≥ 0. 135 This split leads into the regression tree analysis, showing hierarchical structure.

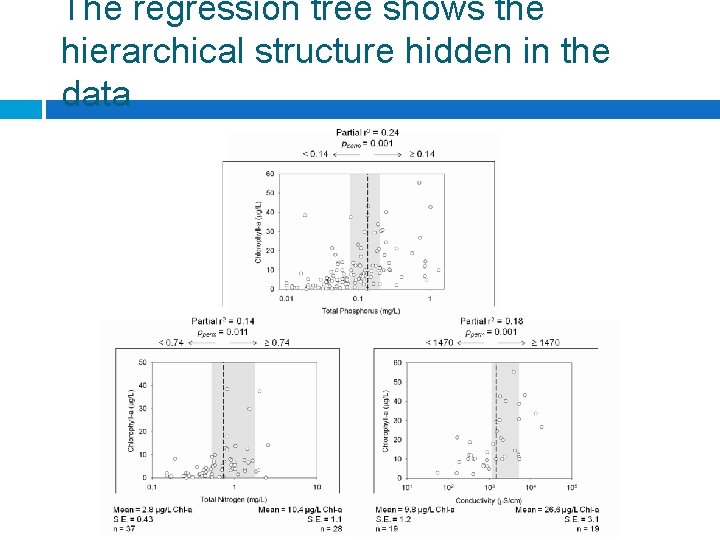

The regression tree shows the hierarchical structure hidden in the data

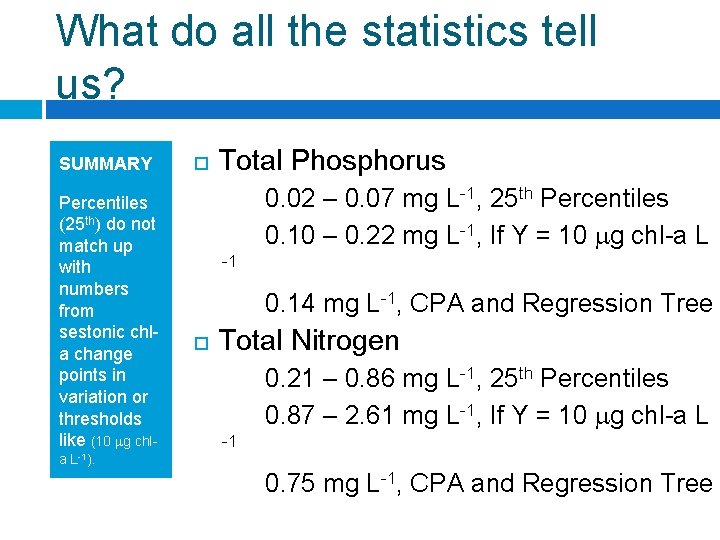

What do all the statistics tell us? SUMMARY Percentiles (25 th) do not match up with numbers from sestonic chla change points in variation or thresholds like (10 mg chla Total Phosphorus 0. 02 – 0. 07 mg L-1, 25 th Percentiles 0. 10 – 0. 22 mg L-1, If Y = 10 mg chl-a L -1 0. 14 mg L-1, CPA and Regression Tree Total Nitrogen 0. 21 – 0. 86 mg L-1, 25 th Percentiles 0. 87 – 2. 61 mg L-1, If Y = 10 mg chl-a L -1 L-1). 0. 75 mg L-1, CPA and Regression Tree
Regional Red River Project Update QUESTIONS?
