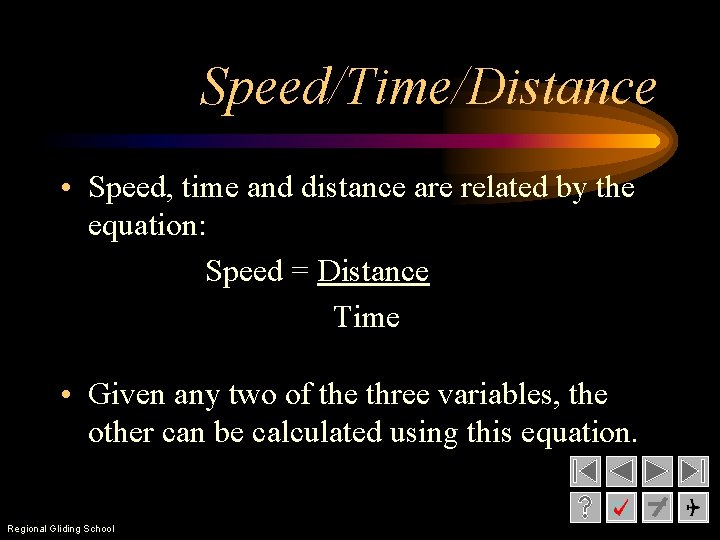

Speed/Time/Distance • Speed, time and distance are related by the equation: Speed = Distance Time • Given any two of the three variables, the other can be calculated using this equation. Regional Gliding School

Speed/Time/Distance If distance and time are given, simply place the values in the equation. • Example Speed = Distance Time Speed = 150 KM 3 HRS 50 KPH Speed = Regional Gliding School

Speed/Time/Distance If speed and time are given, the equation needs to be modified. • Example Speed = Time * Speed = Distance Time Distance * Time Speed * Time Multiply Eliminate each Writeside common newbyequation thevariables denominator Regional Gliding School

Speed/Time/Distance Now that speed and time are given for the simple equation, place the values in the equation. Distance Regional Gliding School = = = Time x Speed 3 Hrs x 75 KPH 225 KM

Speed Conversions • 66 NM = 76 SM • • Regional Gliding School Knots to MPH to Knots KPH to MPH Multiply by 1. 15 Divide by 1. 15 Multiply by. 54 Multiply by. 62

Time Conversions • Hours to Minutes Multiply by 60 • Minutes to Hours Divide by 60 Regional Gliding School

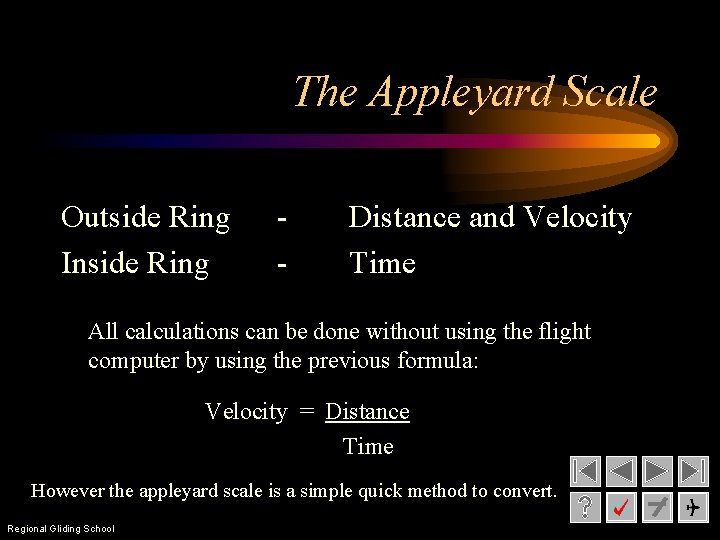

The Appleyard Scale Outside Ring Inside Ring - Distance and Velocity Time All calculations can be done without using the flight computer by using the previous formula: Velocity = Distance Time However the appleyard scale is a simple quick method to convert. Regional Gliding School

Time Scale • The number 9 stands for – 9 minutes, – 900 minutes, etc. • You must use common sense to figure out which one applies. • Notice on the time scale under the 9, 1: 30 and 15: 00 are written. They stand for 90 minutes and 900 minutes respectively. Regional Gliding School

Distance Scale • The number 6 stands for – 6 units, – 600 units, etc. • Again, you must use common sense to figure out which one applies. Regional Gliding School

Flight Computer The Appleyard Scale is the same for the CR-3 and E 6 -B Flight Computer. The CR -3 will be used to show conversions. However, as mentioned above the E 6 -B can be used as well.

Speed/Time/Distance • Given – Speed = 120 knots – Distance = 170 NM – Time = ? • If speed is given, point arrow towards the speed Regional Gliding School

Speed/Time/Distance • Remember that 12 is also 120 and 1200. Any multiple of 10. • Second, follow the outside scale to 17 for 170 NM and read inside scale. Regional Gliding School

Speed/Time/Distance • The inside scale will align with 85. • This number could mean 8. 5, 85 or 850. • Use common sense to calculate correct answer. Regional Gliding School

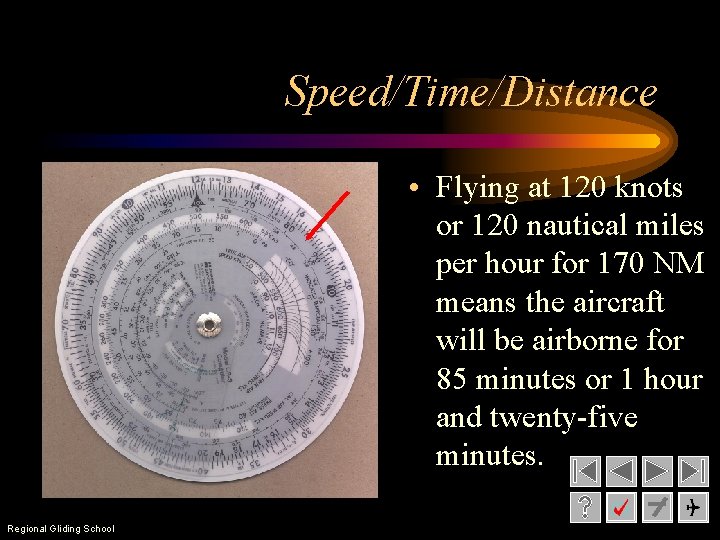

Speed/Time/Distance • Flying at 120 knots or 120 nautical miles per hour for 170 NM means the aircraft will be airborne for 85 minutes or 1 hour and twenty-five minutes. Regional Gliding School

Speed/Time/Distance • Let's try a few examples: Given Speed = 210 MPH Time = 40 minutes Distance = ? Use the flight computer to calculate. Regional Gliding School

Speed/Time/Distance Speed = 210 MPH Time = 40 min. Distance = 140 Miles Point arrow to 210 View reading aligned with 40 min Answer 140 Miles Regional Gliding School

Speed/Time/Distance • Let's try a few examples: This one is a little different than before. Give it a try! Given Speed = ? Time = 90 minutes Distance = 120 NM Use the flight computer to calculate. Regional Gliding School

Speed/Time/Distance Speed = 80 knots Time = 90 min. Distance = 120 NM Align 90 min to 120 NM Read speed from pointing arrow Answer 80 knots Regional Gliding School

Fuel • Given – Fuel = 8 GPH – Time = 45 minutes – Consumption = ? • If fuel is given, point arrow towards fuel. Regional Gliding School

Speed, Time, Distance • Remember that 80 is also 8 and 800. Any multiple of 10. • Second, follow the inside scale to 45 and read outside scale. Regional Gliding School

Speed, Time, Distance • The outside scale will align with 60. • This number could mean 6, 60 or 600. • Use common sense to calculate correct answer. Regional Gliding School

Speed, Time, Distance • Burning 8 GPH or 8 gallons per hour for 45 minutes means the aircraft will consume 6 gallons Regional Gliding School

Conversions • Many conversions are possible with the flight computer SM MPH US GAL LBS Regional Gliding School To To NM KPH IMP GAL Kg

Conversions • To convert units simply place known unit under proper location. • If 170 statute miles are given, place it under the statute mile location. Regional Gliding School

Conversions • Once SM is in the correct position, read nautical miles under the NM location. • Answer = 148 NM Regional Gliding School

Conversions • Also, you can read kilometers under the KM location. • Answer = 271 KM Regional Gliding School

Confirmation Stage NOTE: You must use the buttons in the Confirmation Stage

Navigation CR-3 or E 6 -B Flight Computer Let's try a few review questions on Navigation: Question #1 - Regional Gliding School What is on the outside ring of the Appleyard Scale? A Distance B Time C Velocity D Both A and C

Flying Scholarship Program I’m afraid that answer is incorrect Let's try again. . . Regional Gliding School

Flying Scholarship Program I’m afraid that answer is incorrect Let's try again. . . Regional Gliding School

Flying Scholarship Program I’m afraid that answer is incorrect Let's try again. . . Regional Gliding School

Flying Scholarship Program That answer is correct. Let's move on. . . Regional Gliding School

Navigation CR-3 or E 6 -B Flight Computer Let's try a few review questions on Navigation: Question #2 - Regional Gliding School If you are flying at a speed of 270 knots for a distance of 74 KM, how long would you be airborne? A 90 min B 16 min C 9 min D 1. 6 hrs

Flying Scholarship Program I’m afraid that answer is incorrect Let's try again. . . Regional Gliding School

Flying Scholarship Program I’m afraid that answer is incorrect Let's try again. . . Regional Gliding School

Flying Scholarship Program I’m afraid that answer is incorrect Let's try again. . . Regional Gliding School

Flying Scholarship Program That answer is correct. Let's move on. . . Regional Gliding School

One-in-Sixty Rule • An error in the track of one degree will cause an error in position of about one mile in a distance of 60 miles. • Example 3° off track will cause an aircraft to be 3 miles out to 3 miles the side. 3° Regional Gliding School 60 miles

Flight Computer Click on the type of Flight Computer you wish to use for the wind side of the computer. CR-3 Flight Computer E 6 -B Flight Computer

Confirmation Stage NOTE: You must use the buttons in the Confirmation Stage

Navigation CR-3 or E 6 -B Flight Computer Let's try a few review questions on Navigation: Question #3 - Regional Gliding School What distance off track would an aircraft be if it were 4° off course and flew 180 miles without corrective action? A 4 miles B 8 miles C 12 miles D 16 miles

Flying Scholarship Program I’m afraid that answer is incorrect Let's try again. . . Regional Gliding School

Flying Scholarship Program I’m afraid that answer is incorrect Let's try again. . . Regional Gliding School

Flying Scholarship Program I’m afraid that answer is incorrect Let's try again. . . Regional Gliding School

Flying Scholarship Program That answer is correct. Let's move on. . . Regional Gliding School

Navigation CR-3 or E 6 -B Flight Computer Let's try a few review questions on Navigation: Question #4 - Worksheets Exercise #1 Answer Key Exercise #2 Answer Key Regional Gliding School

Navigation CR-3 or E 6 -B Flight Computer Congratulations!! You have now completed the CR-3 or E 6 -B Flight Computer lesson and the Navigation Module. Of course, this module is always available to you for future reference if required. You are now ready to move along to the next module you wish. You can advance to the Self Test Module if you feel ready to challenge the final exam. Good Luck! Regional Gliding School
