Regional geology and tectonic history of Wyoming Geological

Regional geology and tectonic history of Wyoming Geological Field Techniques Course

Wyoming geologic history n See the summary chart in your guidebook n Begin to place events in proper context

Regional physiography n Wyoming straddles the Great Plains and Rocky Mountains

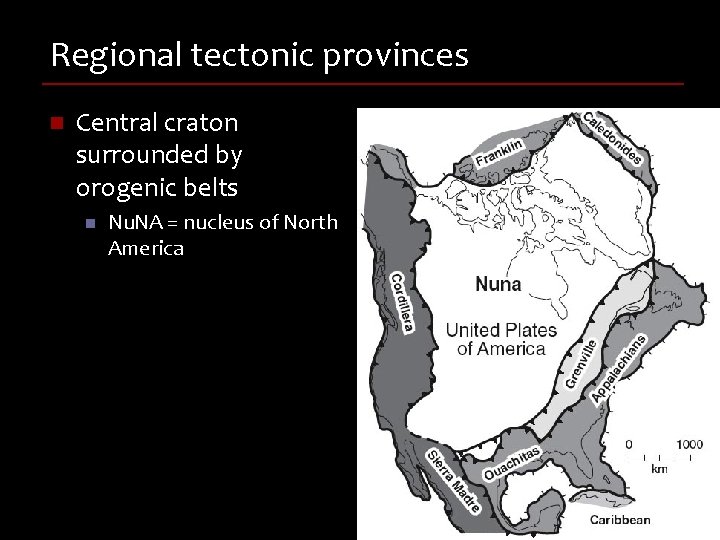

Regional tectonic provinces n Central craton surrounded by orogenic belts n Nu. NA = nucleus of North America

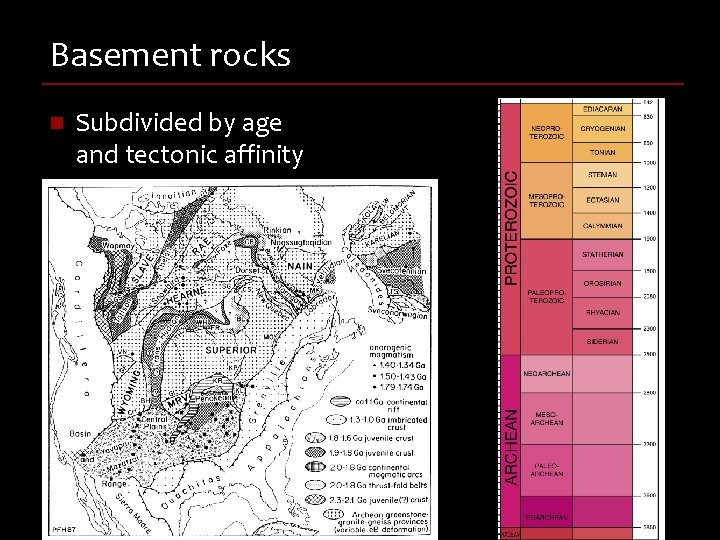

Basement rocks n Subdivided by age and tectonic affinity

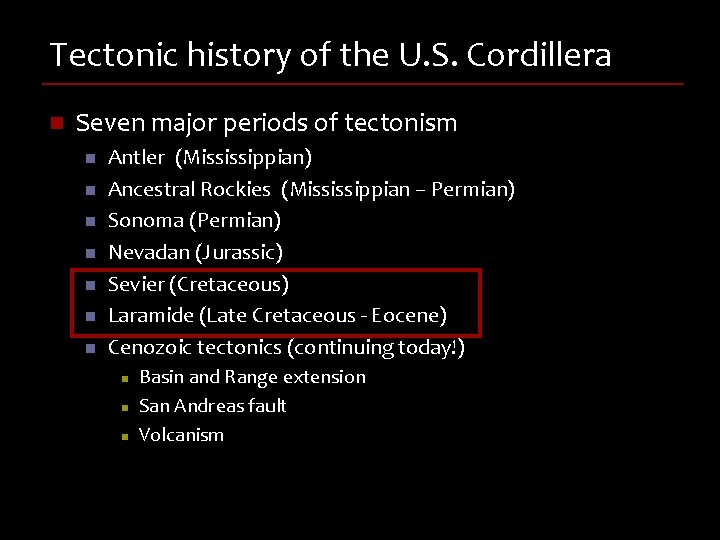

Tectonic history of the U. S. Cordillera n Seven major periods of tectonism n n n n Antler (Mississippian) Ancestral Rockies (Mississippian – Permian) Sonoma (Permian) Nevadan (Jurassic) Sevier (Cretaceous) Laramide (Late Cretaceous - Eocene) Cenozoic tectonics (continuing today!) n n n Basin and Range extension San Andreas fault Volcanism

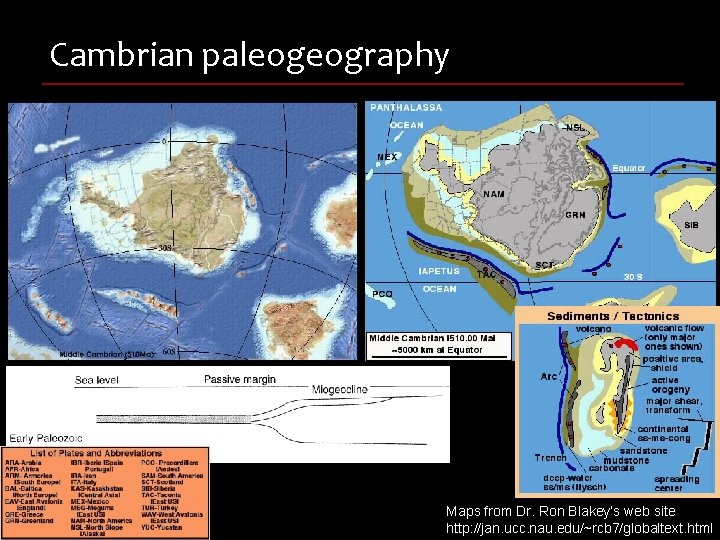

Cambrian paleogeography n Maps from Dr. Ron Blakey’s web site http: //jan. ucc. nau. edu/~rcb 7/globaltext. html

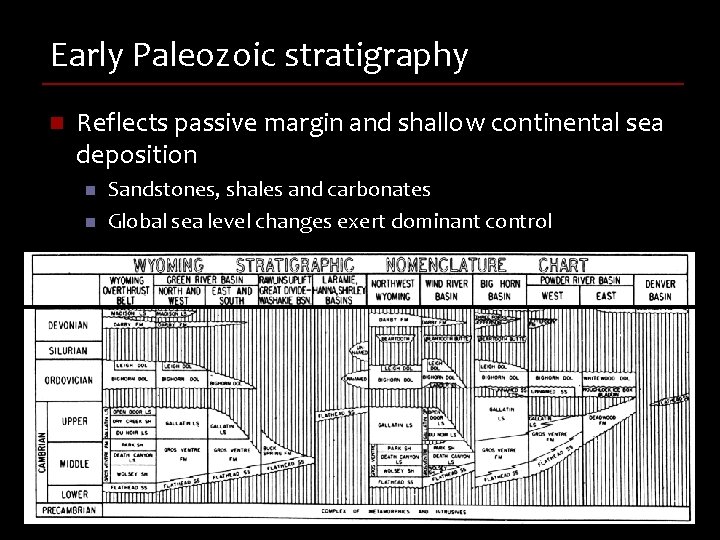

Early Paleozoic stratigraphy n Reflects passive margin and shallow continental sea deposition n n Sandstones, shales and carbonates Global sea level changes exert dominant control

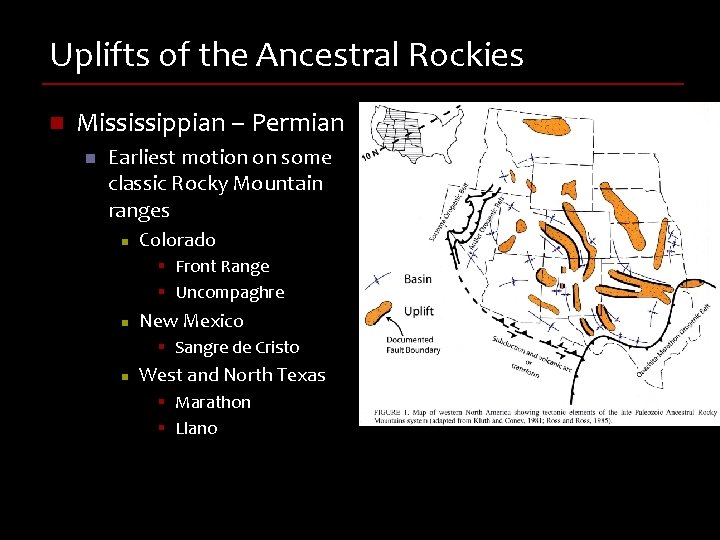

Uplifts of the Ancestral Rockies n Mississippian – Permian n Earliest motion on some classic Rocky Mountain ranges n Colorado § Front Range § Uncompaghre n New Mexico § Sangre de Cristo n West and North Texas § Marathon § Llano

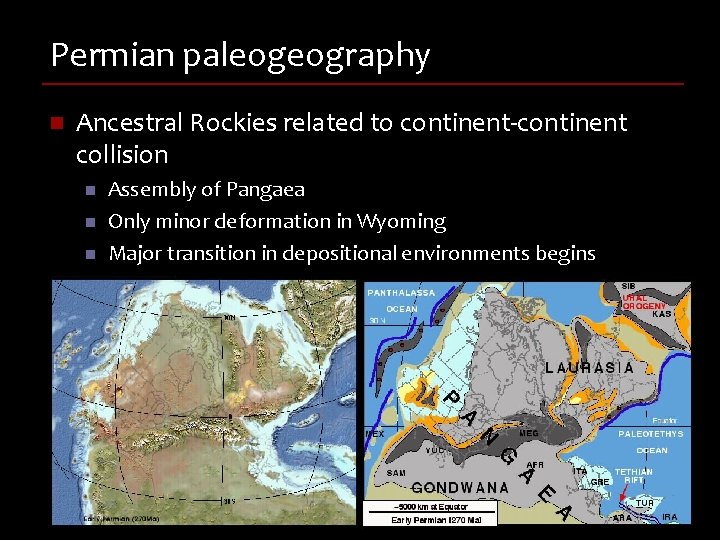

Permian paleogeography n Ancestral Rockies related to continent-continent collision n Assembly of Pangaea Only minor deformation in Wyoming Major transition in depositional environments begins

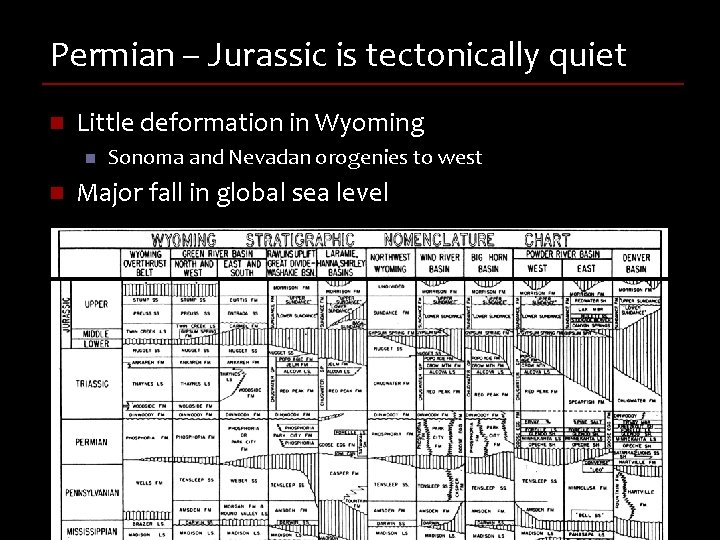

Permian – Jurassic is tectonically quiet n Little deformation in Wyoming n n Sonoma and Nevadan orogenies to west Major fall in global sea level

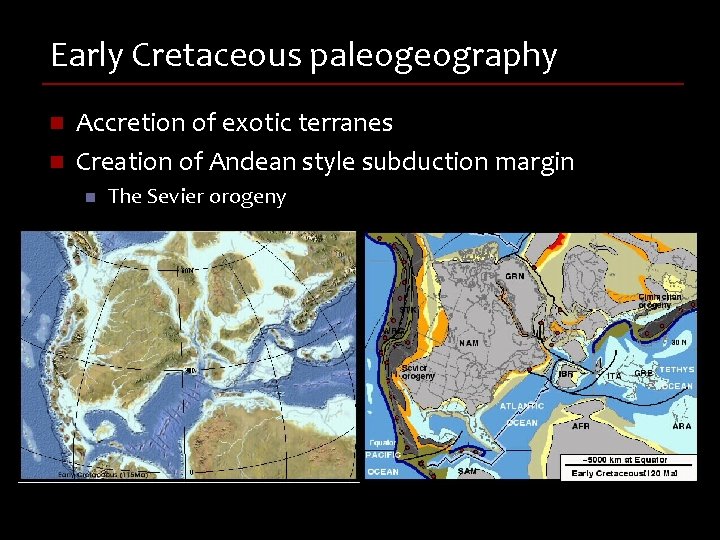

Early Cretaceous paleogeography n n Accretion of exotic terranes Creation of Andean style subduction margin n The Sevier orogeny

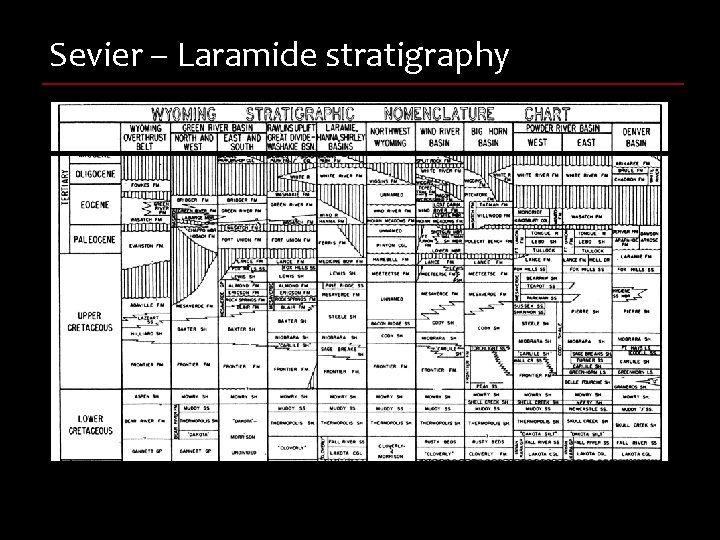

Sevier – Laramide stratigraphy

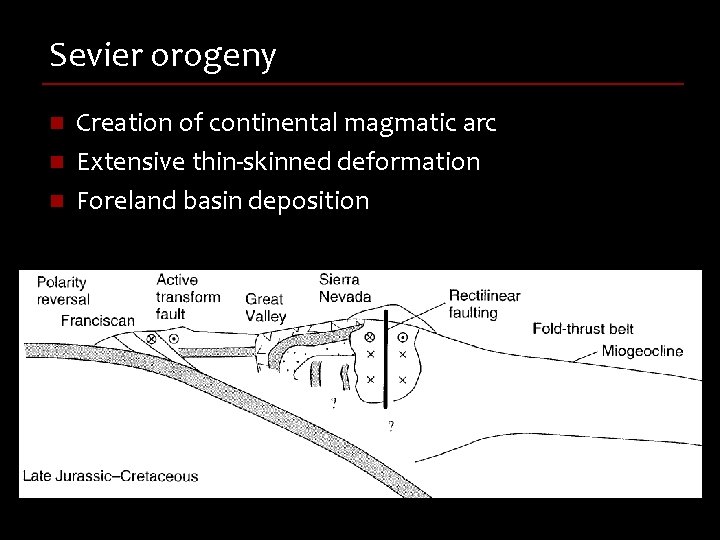

Sevier orogeny n n n Creation of continental magmatic arc Extensive thin-skinned deformation Foreland basin deposition

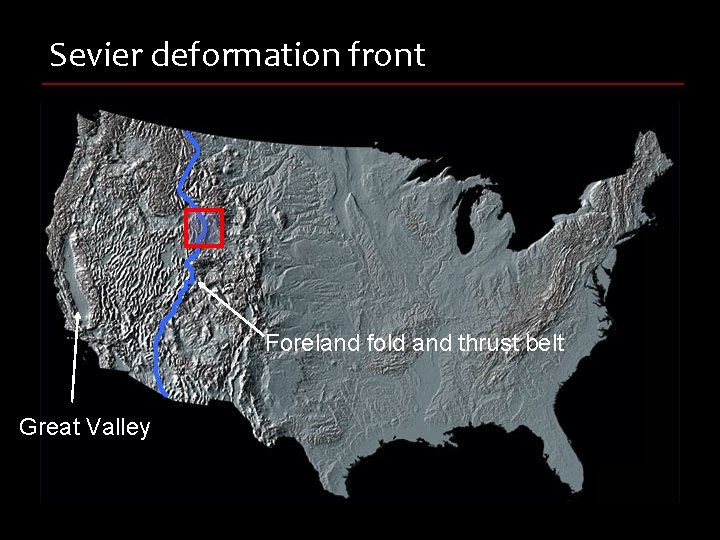

Sevier deformation front n Foreland fold and thrust belt Great Valley

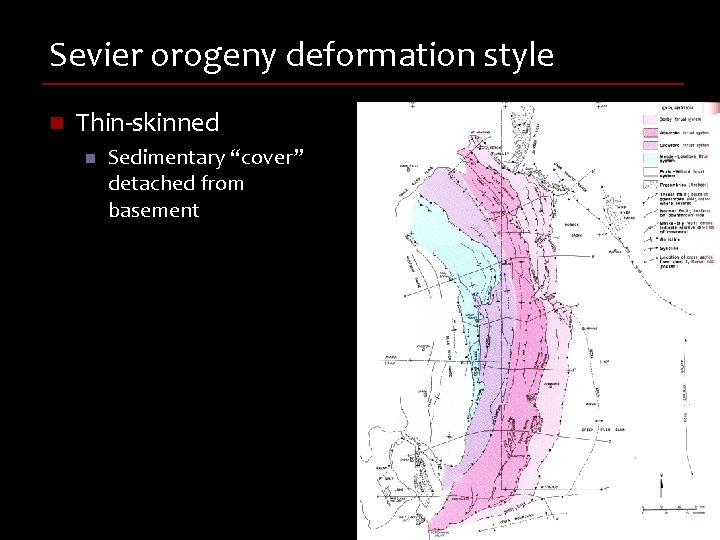

Sevier orogeny deformation style n Thin-skinned n Sedimentary “cover” detached from basement

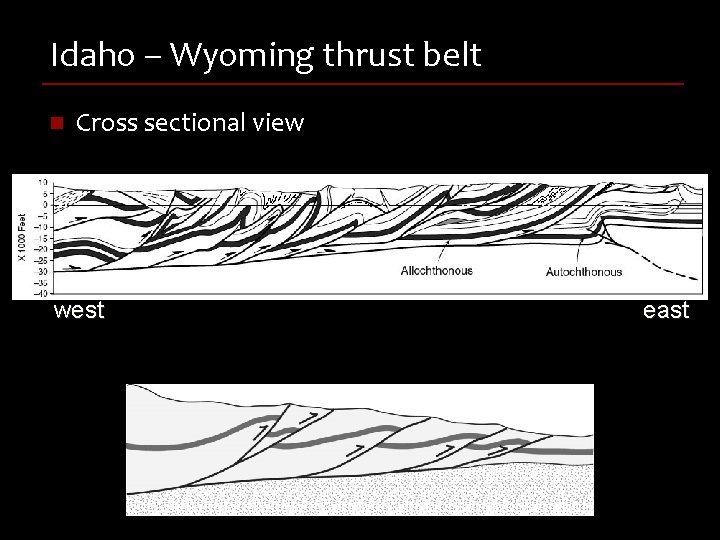

Idaho – Wyoming thrust belt n Cross sectional view west east

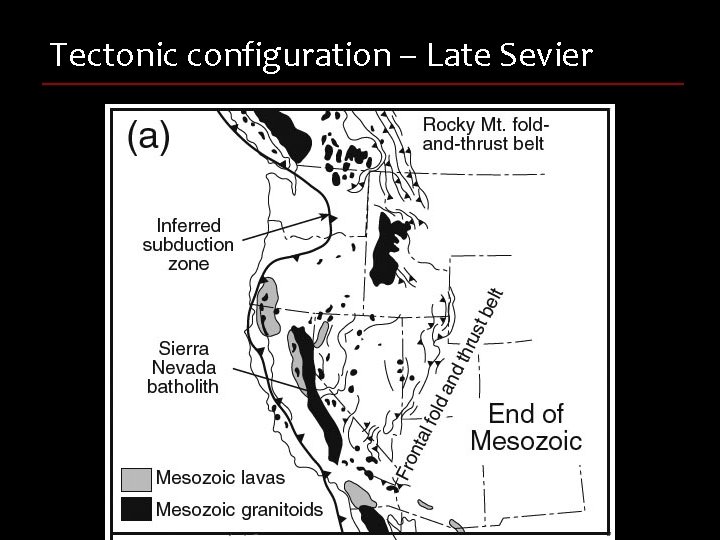

Tectonic configuration – Late Sevier

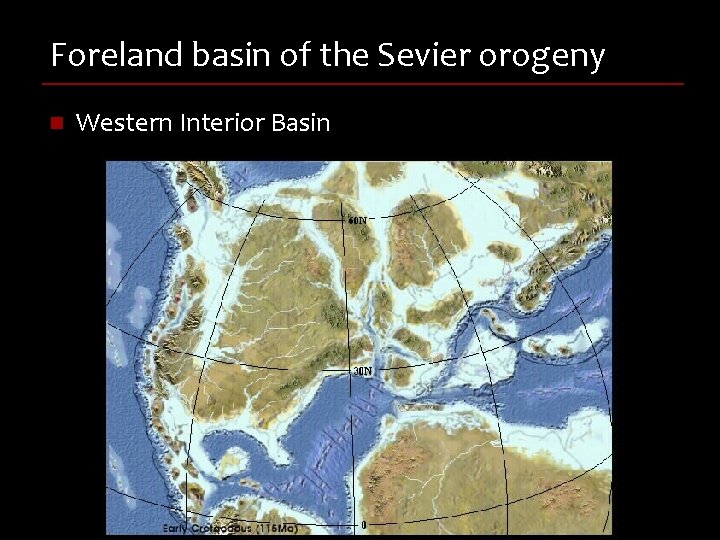

Foreland basin of the Sevier orogeny n Western Interior Basin

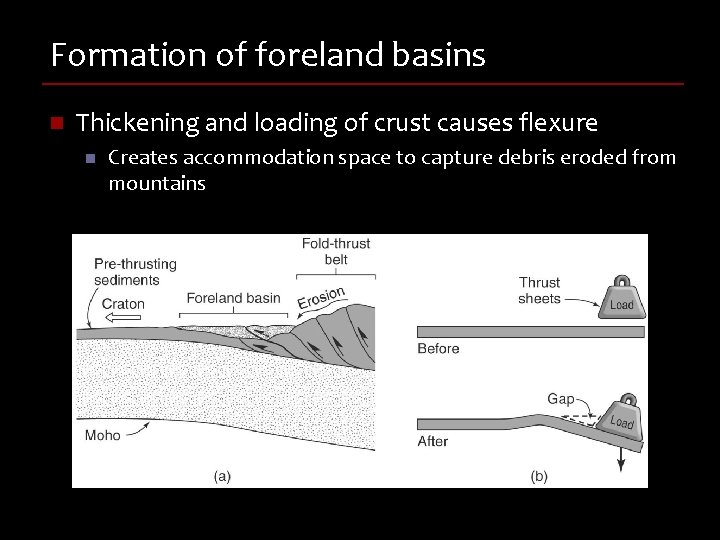

Formation of foreland basins n Thickening and loading of crust causes flexure n Creates accommodation space to capture debris eroded from mountains

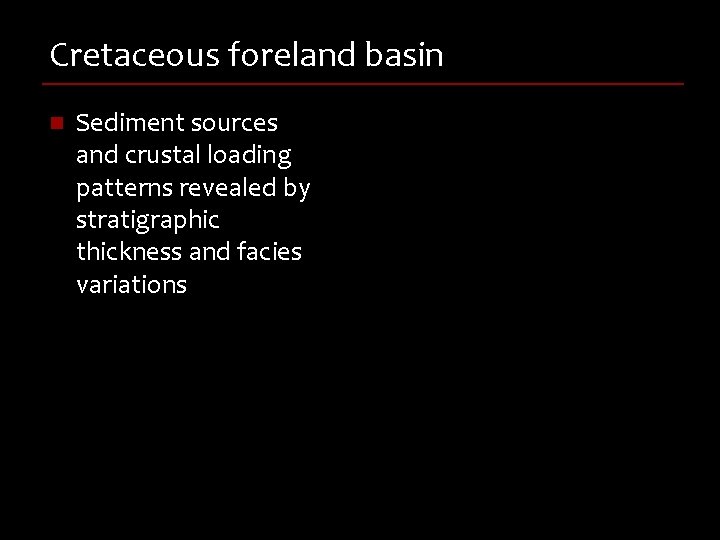

Cretaceous foreland basin n Sediment sources and crustal loading patterns revealed by stratigraphic thickness and facies variations

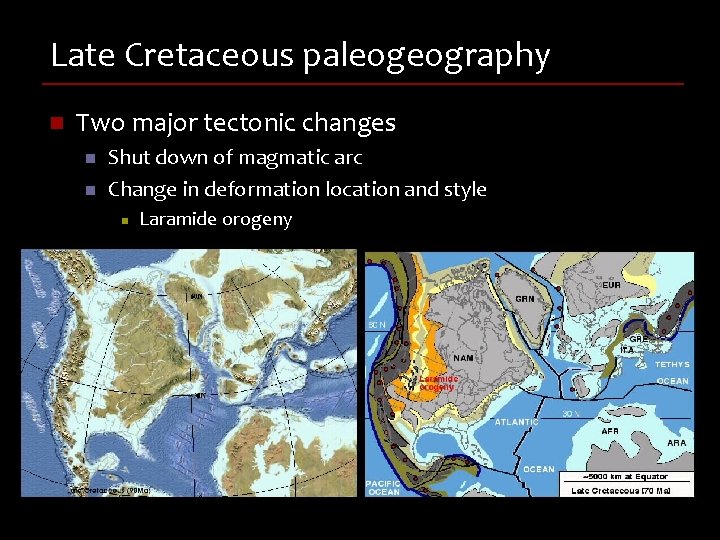

Late Cretaceous paleogeography n Two major tectonic changes n n Shut down of magmatic arc Change in deformation location and style n Laramide orogeny

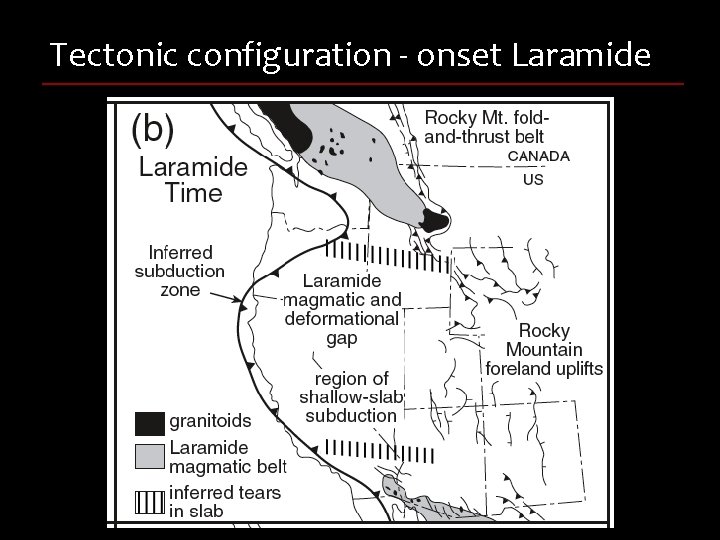

Tectonic configuration - onset Laramide

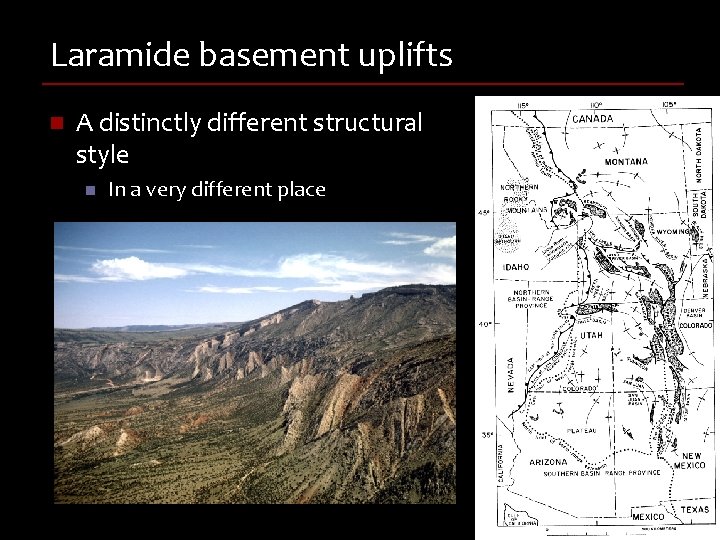

Laramide basement uplifts n A distinctly different structural style n In a very different place

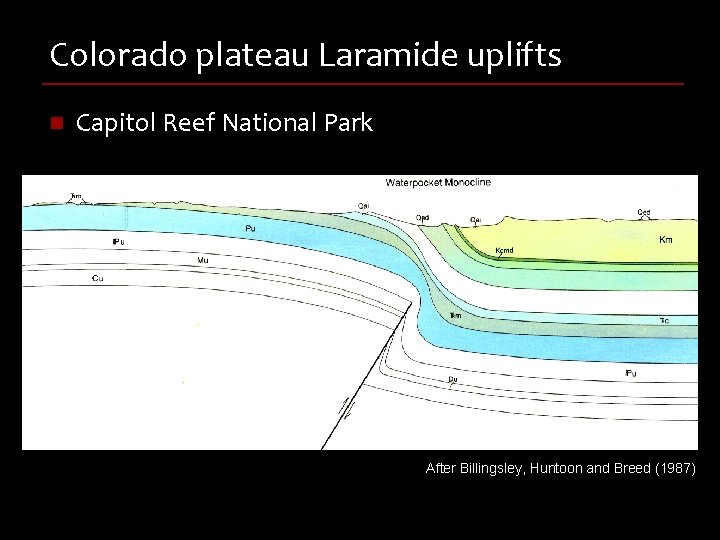

Colorado plateau Laramide uplifts n Capitol Reef National Park After Billingsley, Huntoon and Breed (1987)

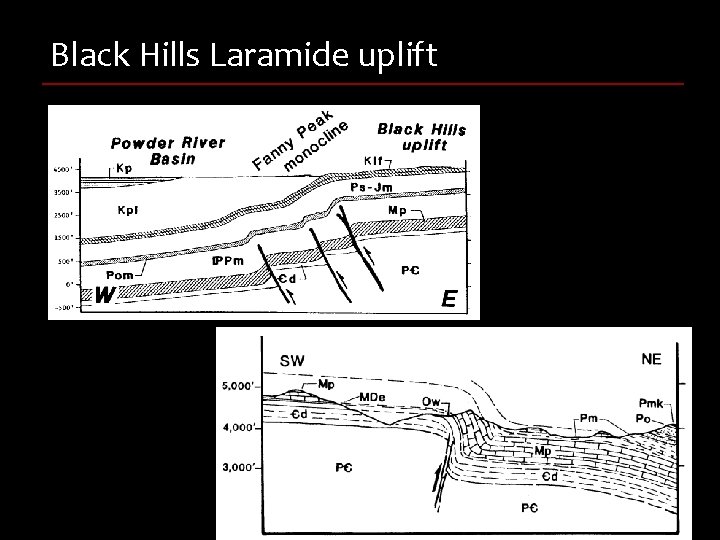

Black Hills Laramide uplift n

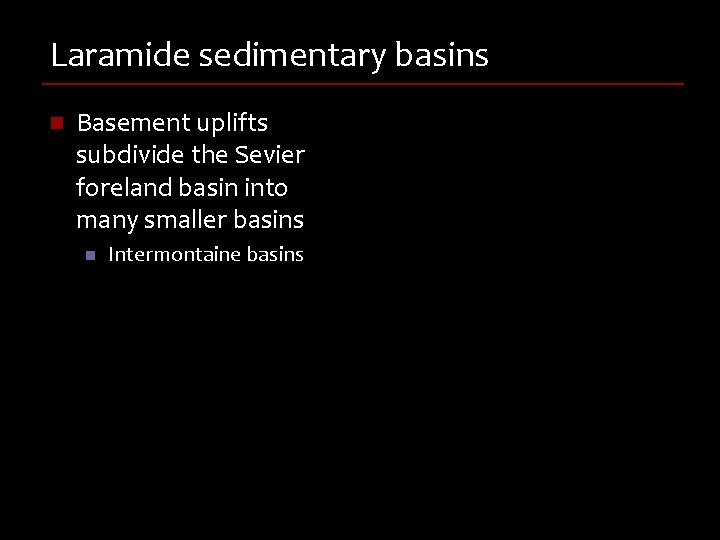

Laramide sedimentary basins n Basement uplifts subdivide the Sevier foreland basin into many smaller basins n Intermontaine basins

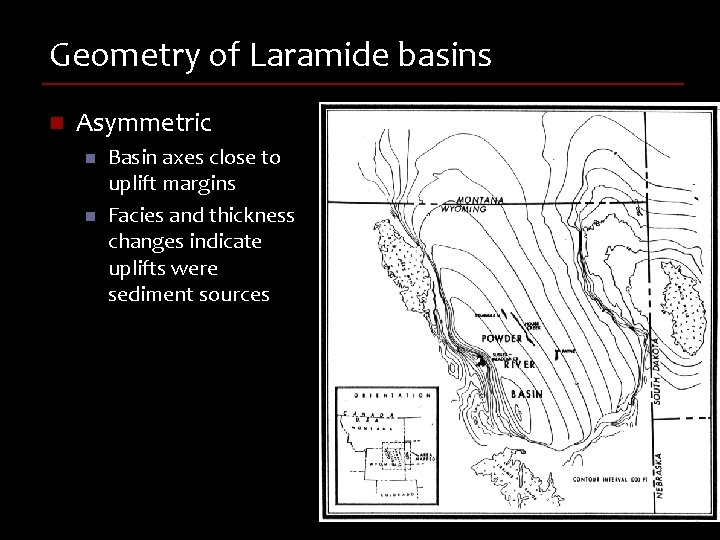

Geometry of Laramide basins n Asymmetric n n Basin axes close to uplift margins Facies and thickness changes indicate uplifts were sediment sources

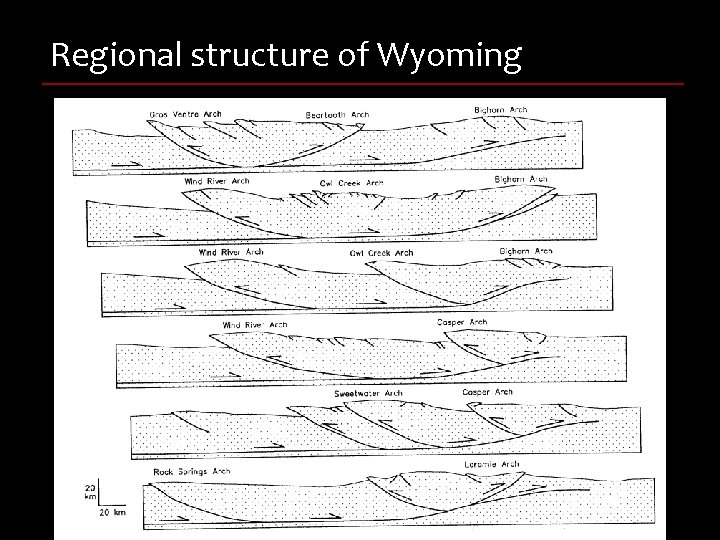

Regional structure of Wyoming

Regional structure of Wyoming

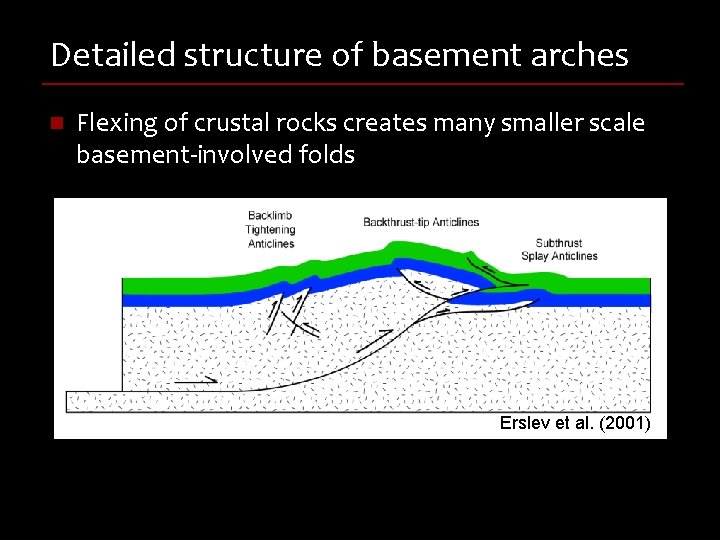

Detailed structure of basement arches n Flexing of crustal rocks creates many smaller scale basement-involved folds Erslev et al. (2001)

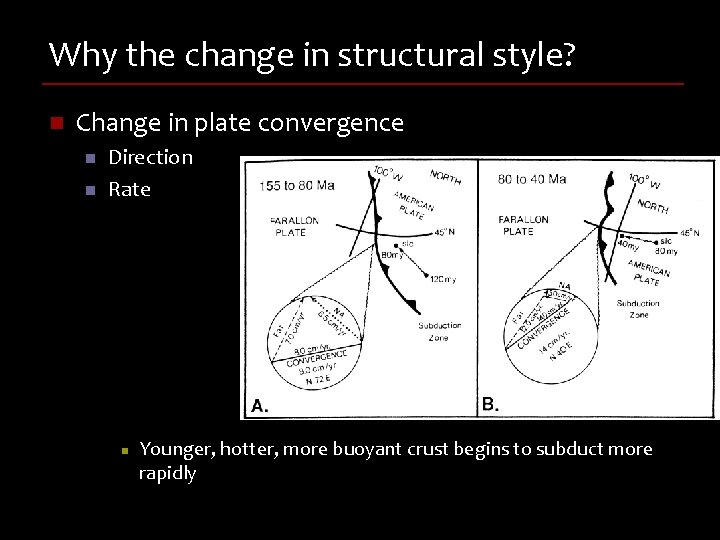

Why the change in structural style? n Change in plate convergence n n Direction Rate n Younger, hotter, more buoyant crust begins to subduct more rapidly

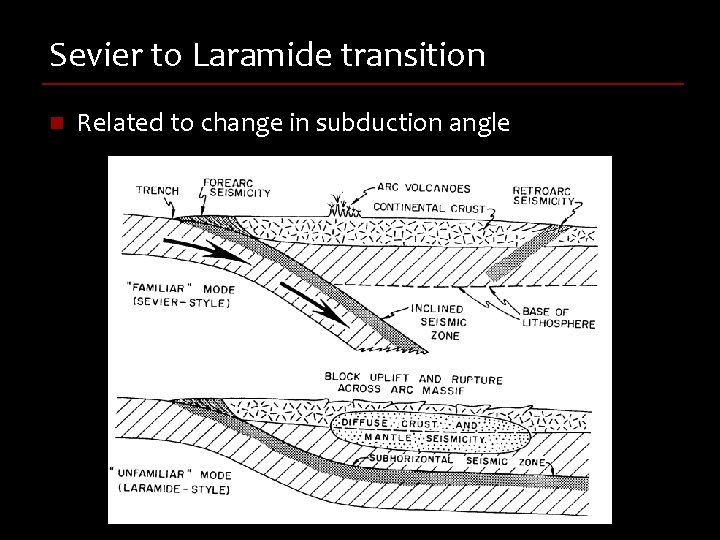

Sevier to Laramide transition n Related to change in subduction angle

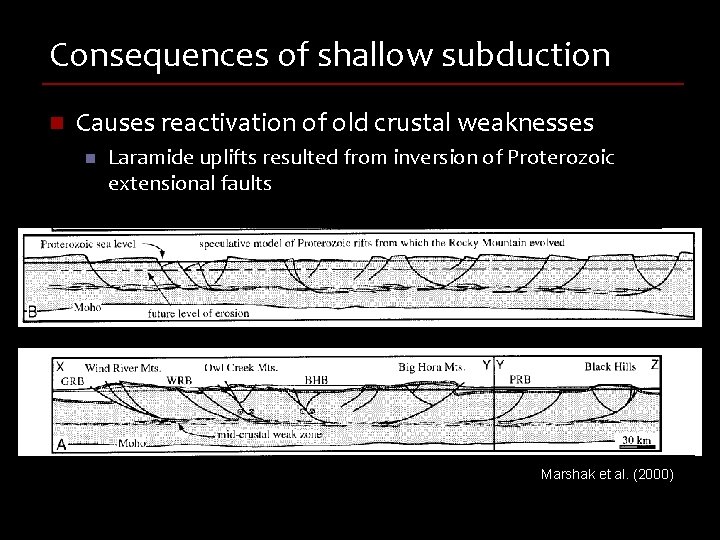

Consequences of shallow subduction n Causes reactivation of old crustal weaknesses n Laramide uplifts resulted from inversion of Proterozoic extensional faults Marshak et al. (2000)

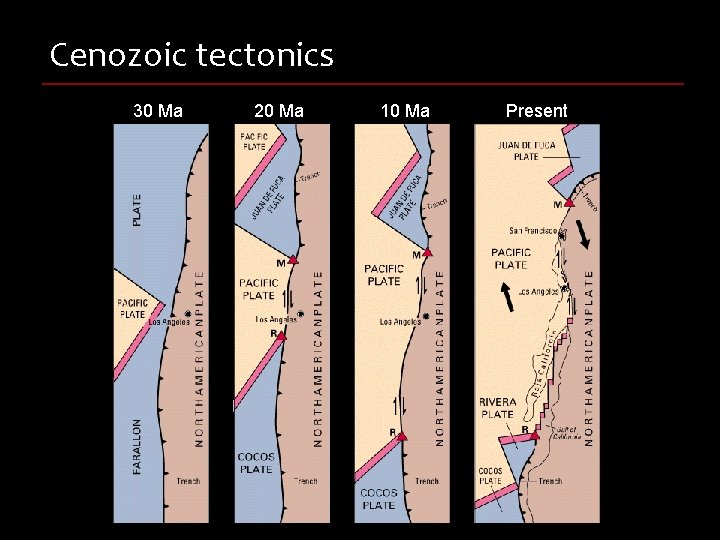

Cenozoic tectonics 30 Ma 20 Ma 10 Ma Present

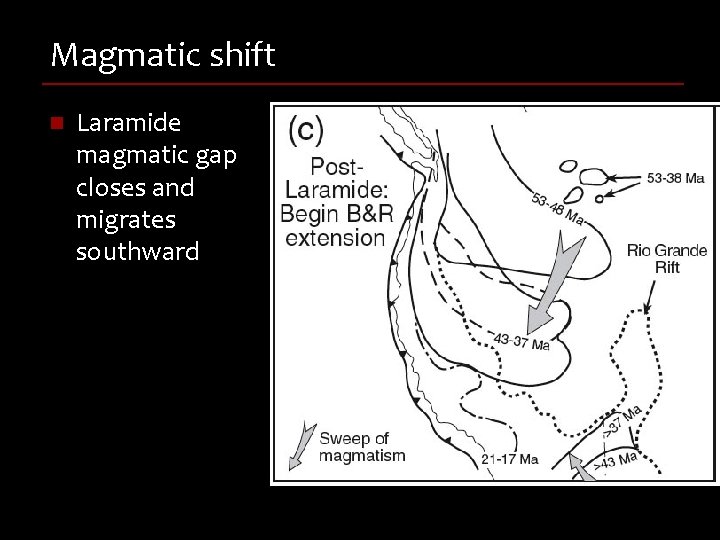

Magmatic shift n Laramide magmatic gap closes and migrates southward

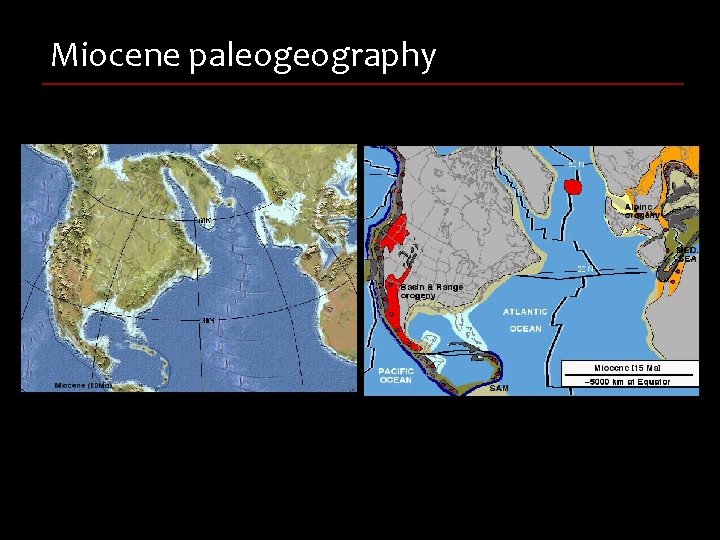

Miocene paleogeography

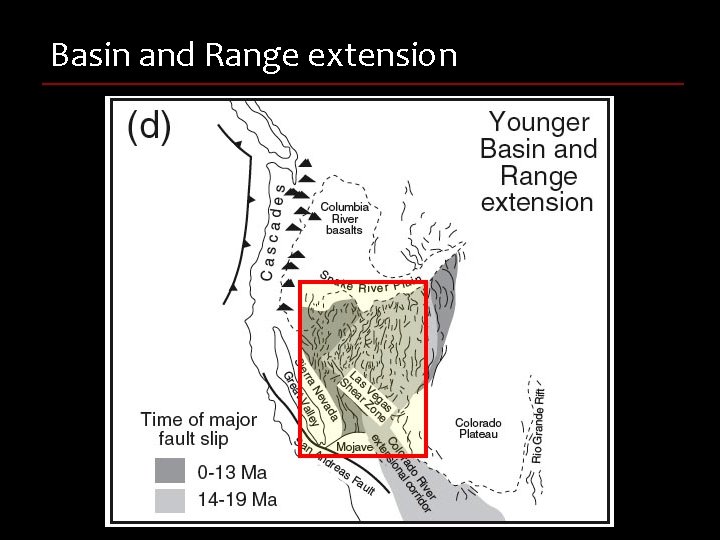

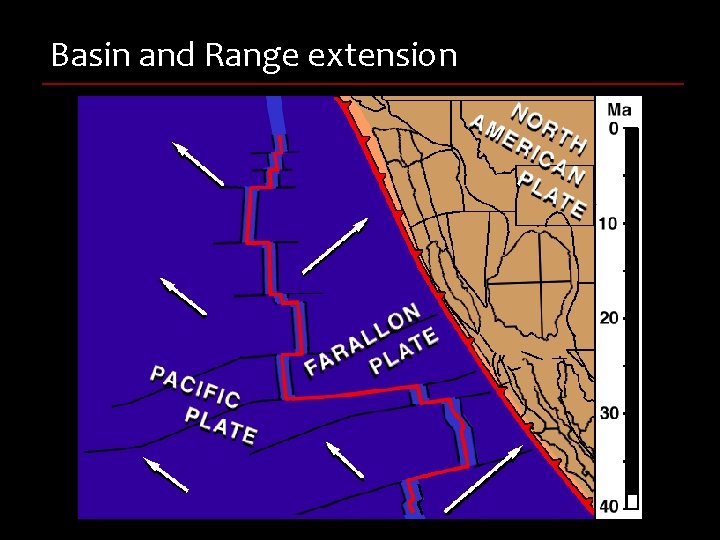

Basin and Range extension

Basin and Range extension

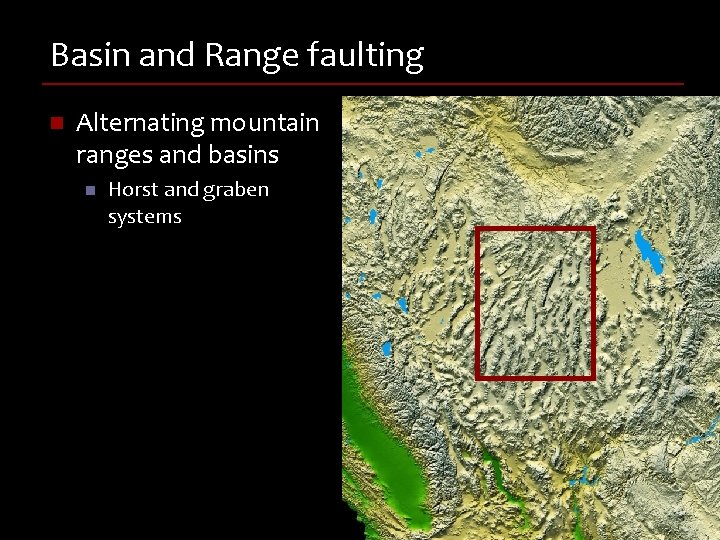

Basin and Range faulting n Alternating mountain ranges and basins n Horst and graben systems

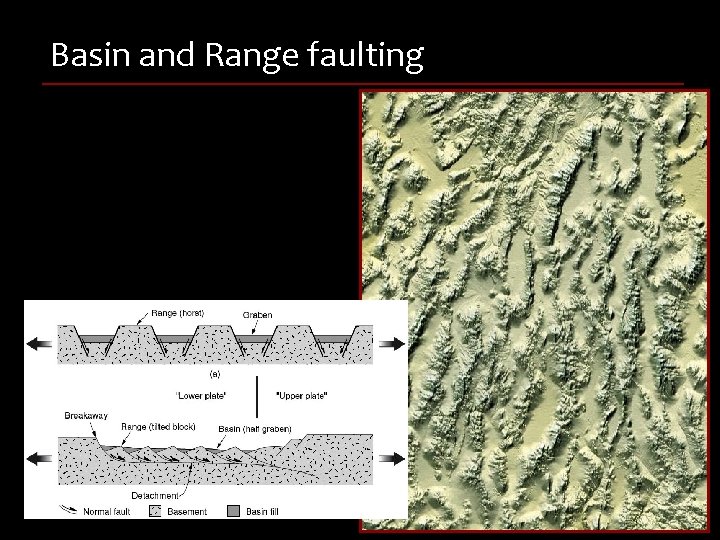

Basin and Range faulting

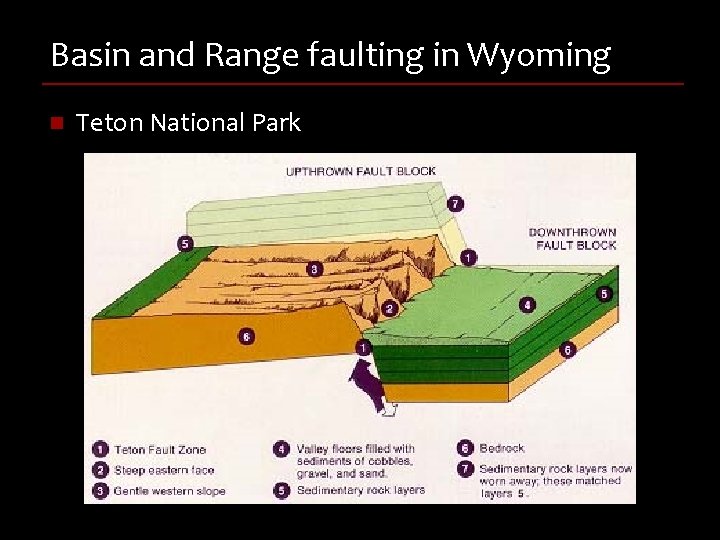

Basin and Range faulting in Wyoming n Teton National Park

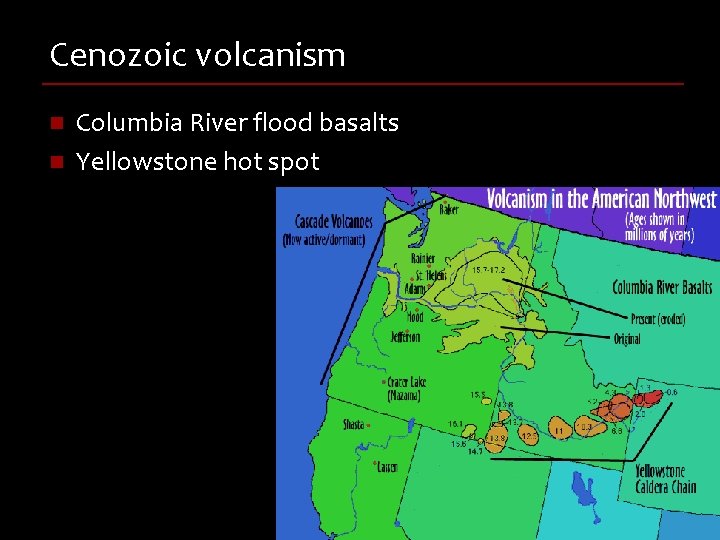

Cenozoic volcanism n n Columbia River flood basalts Yellowstone hot spot
