Regional climates Variety of different scales of climatic

  • Slides: 28
Download presentation
Regional climates Variety of different scales of climatic investigations • macroclimate- largest area of

Regional climates Variety of different scales of climatic investigations • macroclimate- largest area of study, area extends for 4 x 108 m 2, up to 6000 m vertically • (continental in scale) • mesoclimate- 103 m 2 up to 4 x 108 m 2 in area • (sub continental in scale) • Local climate - a group of microclimates that characterize a specific region; 103 to 108 m 2 in size • Microclimate - the smallest category 1 to 104 m 2 in area • An individual field or park

Schematic of climatic scales of study

Schematic of climatic scales of study

Climate classification: What, Why and How? What: Organize regions with similar climates Why: Understand

Climate classification: What, Why and How? What: Organize regions with similar climates Why: Understand what causes the climate to be what it is and when to worry about departures How: Look at moisture, temperature, evaporation, transpiration, vegetation, altitude, latitude, etc. and decide on some value that sets the boundary (threshold)commonly related to plants

Köppen climate classification scheme Uses Monthly mean temps, monthly mean precipitation, and annual mean

Köppen climate classification scheme Uses Monthly mean temps, monthly mean precipitation, and annual mean temps to establish major climatic zones • designated with capital letters Widely used but frequently criticized • no agreement between plants and climate • variability in the factors that set boundary = climate classification changes constantly

Köppen Climate table Class name A Tropical humid B C Subcategory name Af Am

Köppen Climate table Class name A Tropical humid B C Subcategory name Af Am Aw Dry BWh BSh BWk BSk Mild Mid-Latitude Csa Csb Cfa Cwa Cfb Cfc Key characteristic for sub categorization No dry season Short dry season; heavy monsoonal rains in other Tropical monsoonal months Winter dry season Tropical savanna Subtropical desert Low-latitude desert Subtropical steppe Low-latitude dry Mid-latitude desert Mid-latitude steppe Mid-latitude dry Mild with dry, hot summer Mediterranean Mild with dry, warm summer Mediterranean Mild with no dry season, hot summer Humid subtropical Mild with dry winter, hot summer Humid subtropical Mild with no dry season, Marine west coast warm summer Mild with no dry season, Marine west coast cool summer Tropical wet

D Severe Mid-Latitude Dfa Dfb Dwa Dwb Dfc E Polar H Highland Humid continental

D Severe Mid-Latitude Dfa Dfb Dwa Dwb Dfc E Polar H Highland Humid continental Subarctic Dfd Subarctic Dwc Subarctic Dwd Subarctic ET EF Tundra Ice Cap Humid with severe winter, no dry season, hot summer Humid with severe winter, no dry season, warm summer Humid with severe, dry winter, hot summer Humid with severe, dry winter, warm summer Severe winter, no dry season, cool summer Severe, very cold winter, no dry season, cool summer Severe, dry winter, cool summer Severe, very cold and dry winter, cool summer Polar tundra, no true summer Perennial ice

Climate zones of the world Divided into alphabetic categories A, B, C, D, E,

Climate zones of the world Divided into alphabetic categories A, B, C, D, E, H zones

KÖPPEN Climate classification Tropical climates designated with a capital “A” Based in part on

KÖPPEN Climate classification Tropical climates designated with a capital “A” Based in part on vegetation zones that are sensitive to moisture and temperature

Tropical (A) Climates All tropical climates are warm the subdivisions are based on differences

Tropical (A) Climates All tropical climates are warm the subdivisions are based on differences in rain Tropical Rainforest (Af) Climates located 0 -15° N/S Lat. Diurnal temperature range is greater than the difference between the warmest and coolest months (annual range). Every month has precipitation and no month is deficient in rainfall. This high amount of rainfall keeps the soil moisture at capacity. EVT occurs at potential rate

Am- Tropical monsoonal climate Diurnal temperature range is greater than the difference between the

Am- Tropical monsoonal climate Diurnal temperature range is greater than the difference between the warmest and coolest months (annual range). seasonal precipitation surplus and deficit Distinctive dry and wet season related to wind reversal Aw- Tropical savanna climate Diurnal temperature range is greater than the difference between the warmest and coolest months (annual range). precipitation deficit much of the year Distinctive dry and wet season

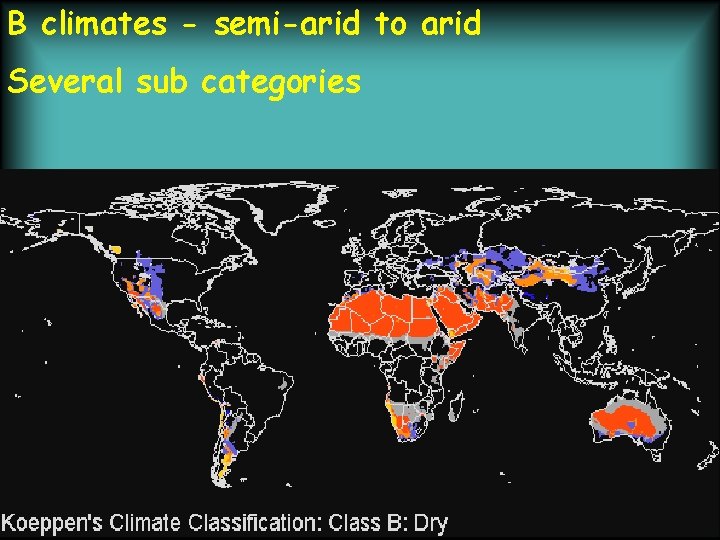

B climates - semi-arid to arid Several sub categories

B climates - semi-arid to arid Several sub categories

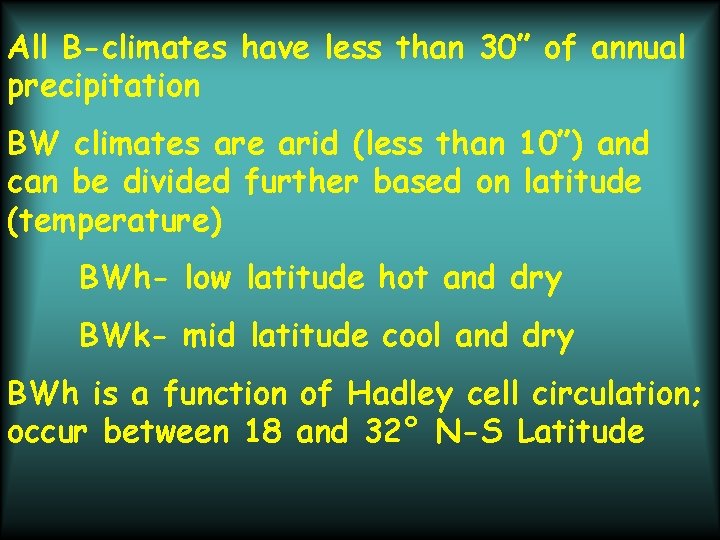

All B-climates have less than 30” of annual precipitation BW climates are arid (less

All B-climates have less than 30” of annual precipitation BW climates are arid (less than 10”) and can be divided further based on latitude (temperature) BWh- low latitude hot and dry BWk- mid latitude cool and dry BWh is a function of Hadley cell circulation; occur between 18 and 32° N-S Latitude

BS climates are semi-arid (more than 10” but less than 30” of rain) and

BS climates are semi-arid (more than 10” but less than 30” of rain) and can be divided further based on latitude (temps) BSh- low latitude hot and dry BSk- mid latitude cool and dry A gradational change from A climates on either side of the B climates

C climates- Mesothermal temperate Warm summers (<10°C); Mild Winters (between -3 to 18°C) Annual

C climates- Mesothermal temperate Warm summers (<10°C); Mild Winters (between -3 to 18°C) Annual moisture distribution determines subcategories

C-subcategories Cf = moisture evenly distributed throughout the year Cw = 10 x the

C-subcategories Cf = moisture evenly distributed throughout the year Cw = 10 x the amount of moisture in the summer as compared to the driest winter month Cs = 3 x as much moisture in the winter as compared to the driest summer month; at least 1 month with less than 3 cm of precipitation

Csa= called Mediterranean climate • western edge of mid-latitude continents Cfa= called a Humid

Csa= called Mediterranean climate • western edge of mid-latitude continents Cfa= called a Humid subtropical climate • Southeastern edge of mid latitude continents Cfb= called Marine west coast • Western edge of continents at higher latitudes

D climates- Severe Mid-latitude All have severe winters; short summers that range form hot

D climates- Severe Mid-latitude All have severe winters; short summers that range form hot in the south to cool to the north

E climates - Polar No true summer Cold all year long

E climates - Polar No true summer Cold all year long

Köppen climate regions of North America

Köppen climate regions of North America

Köppen climate regions of the US

Köppen climate regions of the US

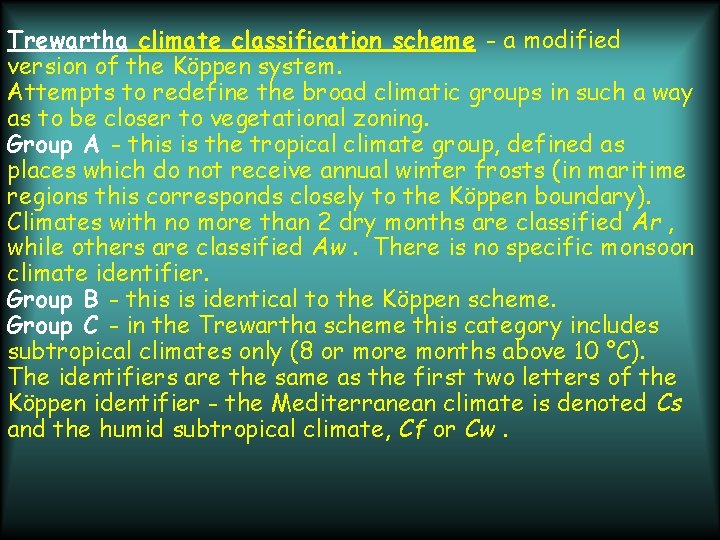

Trewartha climate classification scheme - a modified version of the Köppen system. Attempts to

Trewartha climate classification scheme - a modified version of the Köppen system. Attempts to redefine the broad climatic groups in such a way as to be closer to vegetational zoning. Group A - this is the tropical climate group, defined as places which do not receive annual winter frosts (in maritime regions this corresponds closely to the Köppen boundary). Climates with no more than 2 dry months are classified Ar , while others are classified Aw. There is no specific monsoon climate identifier. Group B - this is identical to the Köppen scheme. Group C - in the Trewartha scheme this category includes subtropical climates only (8 or more months above 10 °C). The identifiers are the same as the first two letters of the Köppen identifier - the Mediterranean climate is denoted Cs and the humid subtropical climate, Cf or Cw.

Trewartha Climate scheme (Continued) Group D - this group represents temperate climates. Continental climates

Trewartha Climate scheme (Continued) Group D - this group represents temperate climates. Continental climates are represented as Dca (Köppen Dfa, Dwa, Dsa ) and Dcb (Köppen Dfb , Dwb , Dsb ). Maritime temperate climates (Köppen Cfb , Cwb , Csb , Cfc ) are denoted Do in the Trewartha classification. The dividing point between maritime and continental climates is 0 °C in the coldest month, rather than the usual Köppen value of -3 °C. Group E - this group is undivided and contains the continental subarctic climates (Köppen Dfc , Dwc , Dfd ) Group F - this is the polar climate group, split into Ft (Köppen ET ) and Fi (Köppen EF ). Group H - Highland climates - in which altitude is the most important factor determining climate.

Other climate classification schemes Thornthwaite-based his scheme on moisture effectiveness and temperature efficiency •

Other climate classification schemes Thornthwaite-based his scheme on moisture effectiveness and temperature efficiency • mathematical relationships easy to identify from available meteorological data • Also uses info on season when rain or snow falls

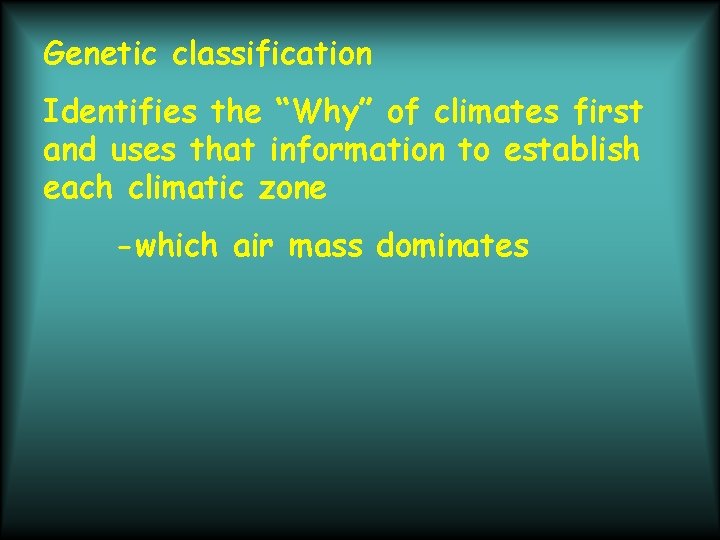

Genetic classification Identifies the “Why” of climates first and uses that information to establish

Genetic classification Identifies the “Why” of climates first and uses that information to establish each climatic zone -which air mass dominates

Air masses and climatic types Warm Cold Wet Dry Tropical wet Tropical and dry

Air masses and climatic types Warm Cold Wet Dry Tropical wet Tropical and dry (desert) mid latitude wet Mid latitude summer or winter dry mid latitude Grp dry II (desert) Polar wet and dry Polar dry (desert) Grp III

Climate zones determined by air mass

Climate zones determined by air mass

Vegetation Closely linked to climate Often used as PROXY data for lack of climate

Vegetation Closely linked to climate Often used as PROXY data for lack of climate data 5 distinct veggie zones • Forests = trees; many different types of forests • e. g. , hardwood, conifer, rainforest • Deserts = discontinuous veggies; scrub brush; cactus, etc. • Grasslands = grasses • Taiga = cold; climate evergreen conifer forests • Tundra = cold; grasses sedges mosses and lichens
