Region 10 RRT Northwest Area Committee Meeting Northwest

Region 10 RRT – Northwest Area Committee Meeting Northwest and System Emergency Resources and Planning Justin Piper, CHMM Manager, Hazardous Materials Field Operations & Emergency Response BNSF Railway 12/2/2020 1

Emergency Preparedness and Planning BNSF System Plan: 1. System Emergency Response Plan 12/2/2020 • LERP’s (Local Emergency Response Plans) 1. 2. 3. Facility Emergency Response Plans (Fixed Facilities) Umatilla Weapons Depot Geographical Response Plans • Identifies how the BNSF responds to incidents 1. 2. 3. Roles and Responsibilities Notification Procedures Health and Safety 2

Emergency Planning Community Hazardous Materials Flow Study Support: Bingen, WA – last consecutive 4 quarters: Top 10 commodities = 88% of total Security Sensitive Information – Distributed on a “need to know basis” 12/2/2020 3

Geographical Response Plan Support/Development l Public Plans l Northwest Coastal l Mississippi River + more l l Rail Specific l l l Kootenai River (MT) Colorado River (CO) Wind River (WY) Middlefork Flathead – In development (MT) Company Control Point Development (e. g Wenatchee/Columbia River) 12/2/2020 4

Existing Plan Integration 5

Training and Response - Community focus is on training responders and providing interpretative information. Training is available via instructor lead or computer based training. Number of Responders Trained Training topics include: • • • Train list / shipping papers Placards Equipment Incident Assessment Hands-on equipment in field – Instructor lead 6

Vancouver February 2012 Seattle Whitefish Portland Minot Fargo Superior Mandan Billings Hettinger Minneapolis/ St. Paul Gillette Klamath Falls La Crosse Bridger Jct Alliance Sioux City Chicago Ravenna Salt Lake City Mc. Cook Stockton Galesburg Lincoln Superior Denver Kansas City Machens St. Louis La Junta Bakersfield Mojave Needles Texline Los Angeles Oklahoma City Amarillo Texico San Bernardino Phoenix Avard Belen Arkansas City Tulsa Norris Springfield Memphis Birmingham El Paso Sweetwater Haslet Ft. Worth Teague Temple Spring New Orleans Houston BNSF HAZMAT Responder Locations 212 Responders at 60 Locations 7

Response: Oil Spills (Northwest) BNSF Owned • Moody, OR Equipment (on Flatcars) w/ containment equipment • Maupin, OR Trailer w/ containment equipment • Troy, MT Container (on Flatcar) w/ containment equipment Contracted OSRO’s • Seattle, Everett, Anacortes, Longview, Portland, Pasco, Spokane, Eugene, Libby, Whitefish, Missoula 8

Response: Fire Support 1. 2. 3. Allows the integration of private resources to help free up public resources to focus on the public’s protection (supplementing local resources NOT replacing). BNSF will fly in Contracted Industrial Firefighters on private aircraft (6 hours). Fire Trailer Program 1. 2. 3. 4. 550 Gallons of AR-AFFF foam (alcohol resistant) Storage capacity (2 x 10 K gal bladders) Pumps/equipment / nozzles Can be placed in areas not typically accessible by fire engines. 9

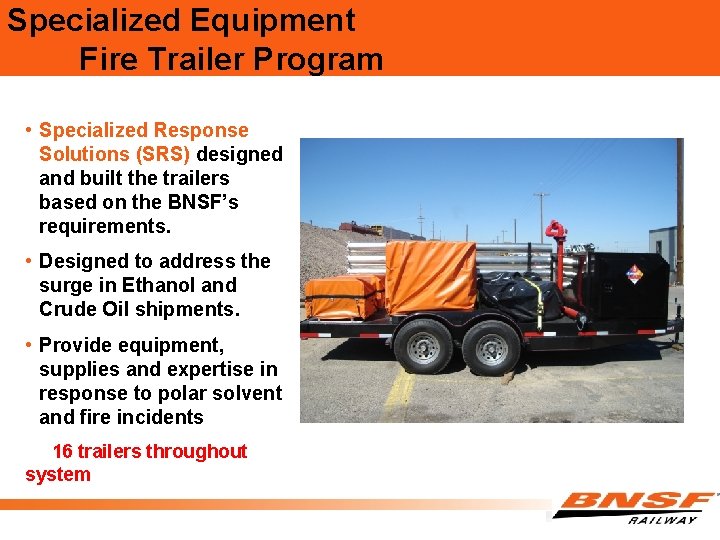

Specialized Equipment Fire Trailer Program • Specialized Response Solutions (SRS) designed and built the trailers based on the BNSF’s requirements. • Designed to address the surge in Ethanol and Crude Oil shipments. • Provide equipment, supplies and expertise in response to polar solvent and fire incidents 16 trailers throughout system

BNSF Hazmat Fire Fighting Foam Trailers

BNSF Hazmat Fire Fighting Foam Trailers 12 on the BNSF rail system

Vancouver Seattle Whitefish Spokane Havre Portland Minot Pasco Fargo Superior Billings Minneapolis/ St. Paul Gillette Klamath Falls Alliance Sioux City Chicago Galesburg Salt Lake City Richmond Lincoln Stockton Denver Newton Kansas City Flagstaff St. Louis Springfield Barstow Los Angeles Phoenix Oklahoma City Amarillo Belen Tulsa Memphis = Fire Trailer Type I (Large) Type II (Small) Contractor Trailer Birmingham El Paso Ft. Worth Teague Temple New Orleans Houston

Response: Emergency Breathing Air Trailers

Vancouver Seattle Whitefish Spokane Portland Havre Minot Pasco Fargo Superior Billings Minneapolis/ St. Paul Gillette Klamath Falls Alliance Sioux City Chicago Galesburg Salt Lake City Richmond Lincoln Stockton Denver Newton Kansas City St. Louis Springfield Rialto Barstow Flagstaff Los Angeles Phoenix Oklahoma City Amarillo Belen Tulsa Memphis = Air Trailer Birmingham El Paso Ft. Worth Teague Temple New Orleans Houston 2012

What is in the trailer? • 10 SCBAs with spare cylinders (CA, IL, WA, CO) TX=20/20 • 10 15 min escape pack “set-ups” for use with large cylinders or SCBA cylinders for wrecking equipment • 10 whips for escape packs (50 ft) • 40 Scott AV 3000 full-face respirators • Bauer portable breathing air compressor • Spare parts • PPE

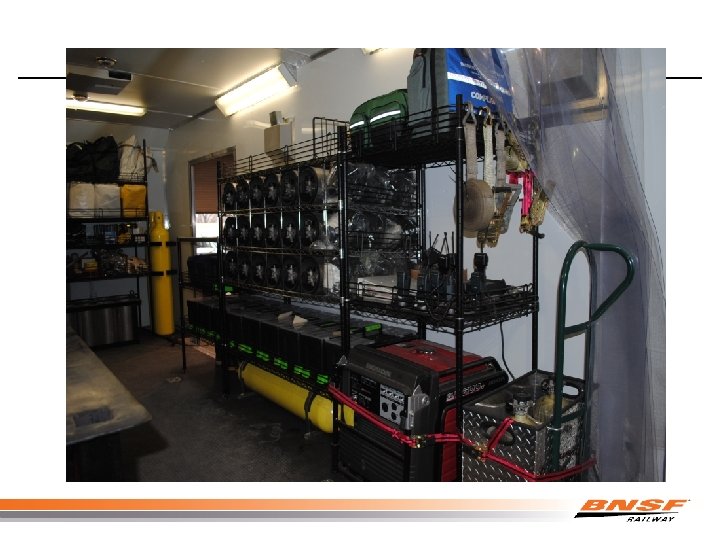

Inside of the trailer

SCBAs

PPE

Bauer Compressor

BNSF Tactical Toxicology (Tac Tox) Program 1. Utilized to provide rapid data acquisition and real time air monitoring results for incidents throughout our system. 2. CTEH • 24 hour access to Ph. D Toxicologists and Dispersion Modelers • Utilize Safer® Air Dispersion Model offering topographical model input 3. Contents: • PID, 4 gas monitor, Kestrel weather meter, Solar Irradiance meter, Detector Tubes/pump, GPS, Calibration gasses and equipment.

Vancouver Seattle Whitefish Portland Minot Fargo Superior Mandan Billings Hettinger Minneapolis/ St. Paul Gillette Klamath Falls La Crosse Bridger Jct Alliance Sioux City Chicago Ravenna Salt Lake City Mc. Cook Stockton Galesburg Lincoln Superior Denver Kansas City Machens St. Louis La Junta Bakersfield Mojave Needles Texline Los Angeles Oklahoma City Amarillo Texico San Bernardino Phoenix Avard Belen Arkansas City Springfield Tulsa Norris Memphis Birmingham Air Monitoring Assets CTEH Tac Tox CRA Tier I INet El Paso Sweetwater Haslet Ft. Worth Teague Temple Spring Houston June 8, 2012 New Orleans

Vancouver Seattle Whitefish Portland Minot Fargo Superior Mandan Billings Hettinger Minneapolis/ St. Paul Gillette Klamath Falls La Crosse Bridger Jct Alliance Sioux City Chicago Ravenna Salt Lake City Mc. Cook Stockton Galesburg Lincoln Superior Denver Kansas City Machens St. Louis La Junta Bakersfield Mojave Needles Texline Los Angeles Oklahoma City Amarillo Texico San Bernardino NRC Phoenix Avard Belen Arkansas City Tulsa Norris Springfield Memphis Birmingham El Paso Contractor Mag Patches Sweetwater Haslet Ft. Worth Teague Temple Spring Houston BNSF Mag Patches New Orleans

Vancouver Seattle Whitefish Spokane Portland Havre Minot Pasco Fargo Billings Superior 2012 Capital Minneapolis/ St. Paul Gillette Klamath Falls 2012 Capital Alliance Sioux City 2012 Capital Chicago Galesburg Salt Lake City Richmond Lincoln Stockton Denver 2012 Capital Newton Kansas City Springfield Rialto Barstow Los Angeles = ER Air Trailer St. Louis Flagstaff Phoenix Belen 2012 Oklahoma City Amarillo Tulsa Memphis = Fire Trailer Type I (Large) Type II (Small) = Chlorine Kits = Midland Kits February 2012 Birmingham El Paso Ft. Worth Teague Temple 2012 Houston. Capital New Orleans
