Regents Exam Lab Practical Review

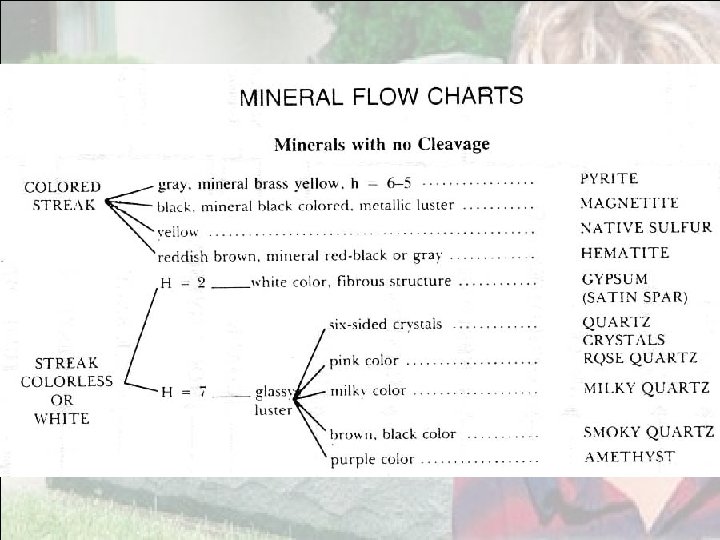

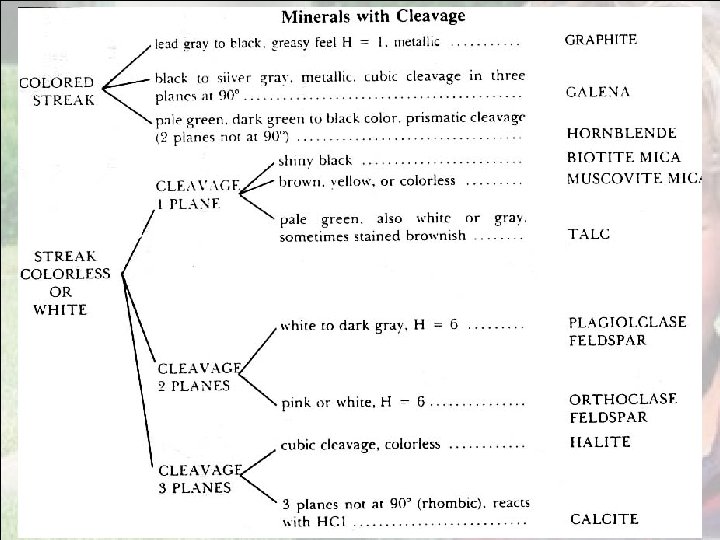

Station 1 Mineral Identification • Identify 2 minerals by name based on identification tests

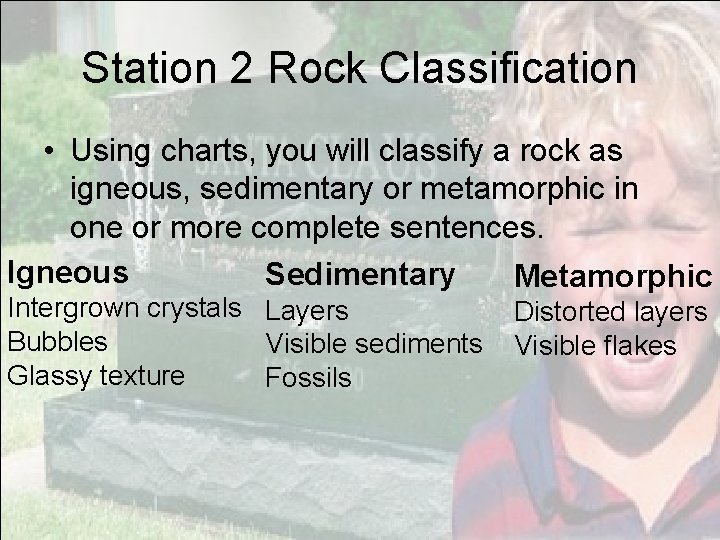

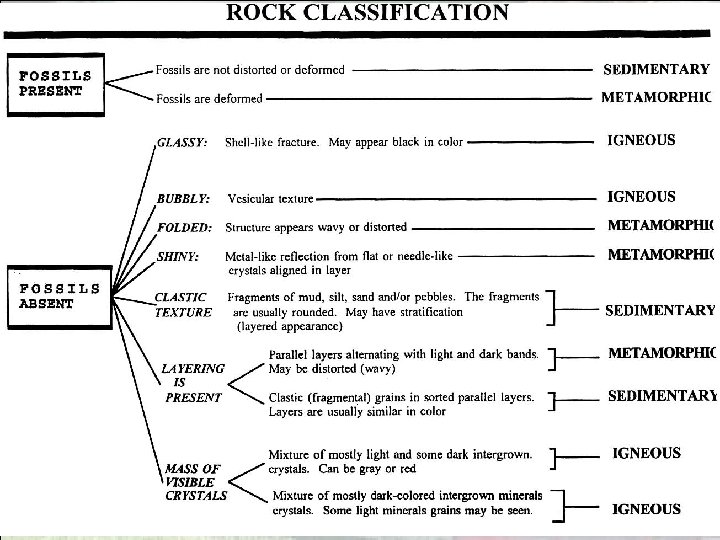

Station 2 Rock Classification • Using charts, you will classify a rock as igneous, sedimentary or metamorphic in one or more complete sentences. Igneous Sedimentary Metamorphic Intergrown crystals Layers Bubbles Visible sediments Glassy texture Fossils Distorted layers Visible flakes

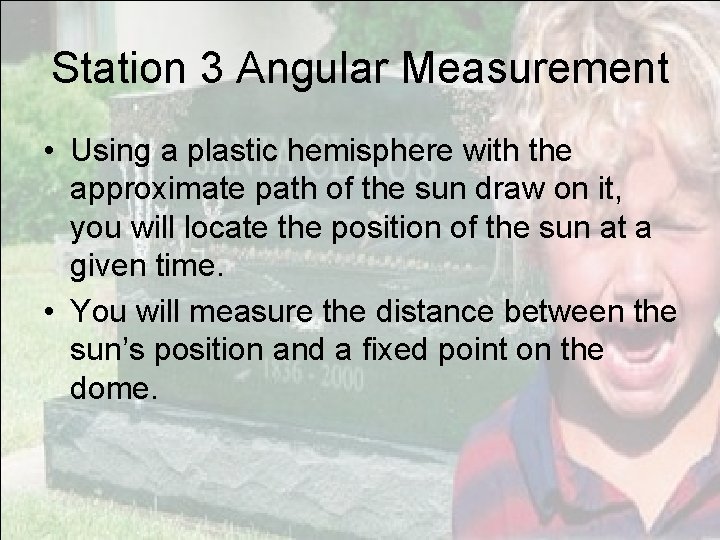

Station 3 Angular Measurement • Using a plastic hemisphere with the approximate path of the sun draw on it, you will locate the position of the sun at a given time. • You will measure the distance between the sun’s position and a fixed point on the dome.
6 am – 12 pm = ? degrees Sun moves at 15º per hour 6 hours x 15 degrees/hour= 90 degrees 12 noon 2 pm 9 am 5 pm East 6 am South 5 pm 2 pm 12 noon North 9 am 6 am West

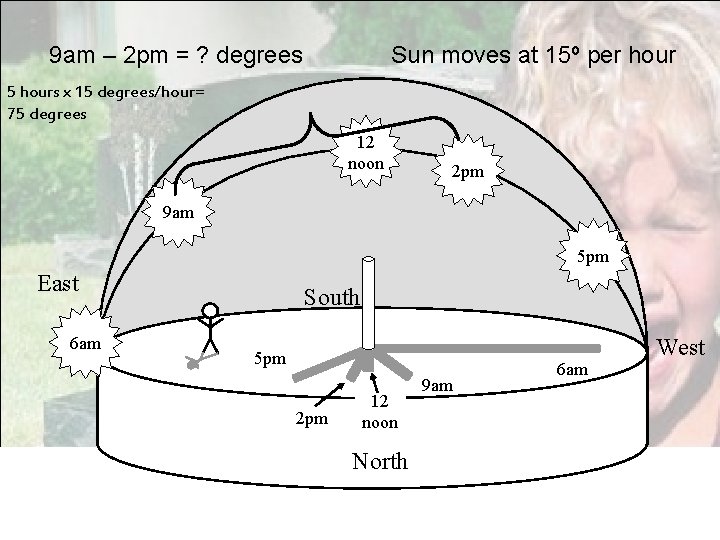

9 am – 2 pm = ? degrees Sun moves at 15º per hour 5 hours x 15 degrees/hour= 75 degrees 12 noon 2 pm 9 am 5 pm East 6 am South 5 pm 2 pm 12 noon North 9 am 6 am West
9 am – 12 pm = ? degrees Sun moves at 15º per hour 3 hours x 15 degrees/hour= 45 degrees 12 noon 2 pm 9 am 5 pm East 6 am South 5 pm 2 pm 12 noon North 9 am 6 am West
12 noon 2 pm 9 am 5 pm East 6 am South 5 pm 2 pm 12 noon North 9 am 6 am West
5. 9 cm

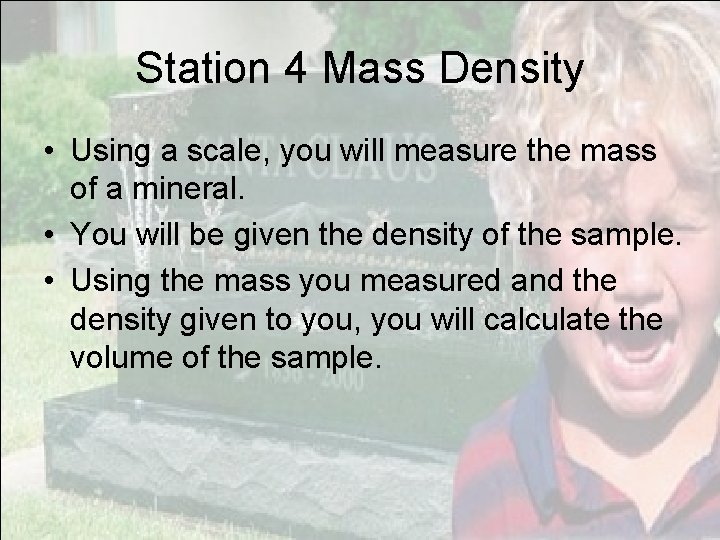

Station 4 Mass Density • Using a scale, you will measure the mass of a mineral. • You will be given the density of the sample. • Using the mass you measured and the density given to you, you will calculate the volume of the sample.

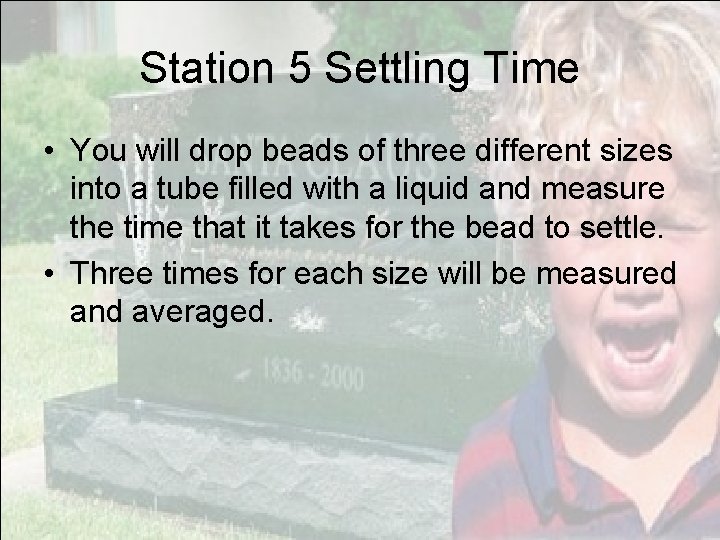

Station 5 Settling Time • You will drop beads of three different sizes into a tube filled with a liquid and measure the time that it takes for the bead to settle. • Three times for each size will be measured and averaged.
01535792037885
01568091695147

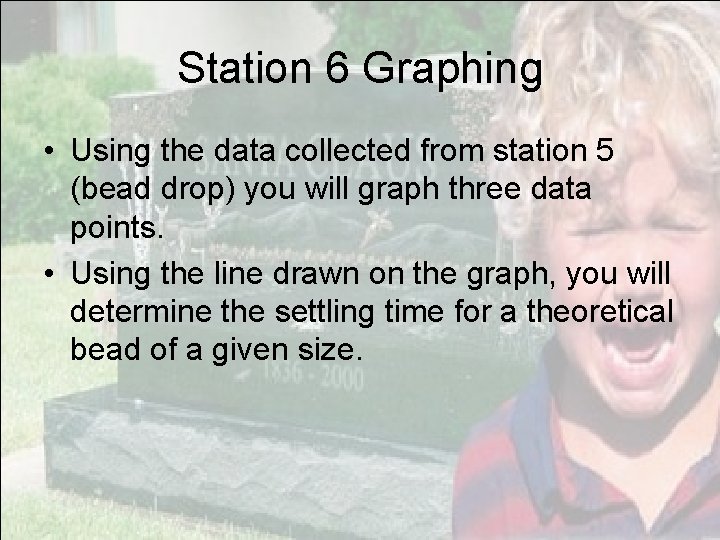

Station 6 Graphing • Using the data collected from station 5 (bead drop) you will graph three data points. • Using the line drawn on the graph, you will determine the settling time for a theoretical bead of a given size.
seconds 4 3 And what about at 2. 5? 2 3. 2 seconds And what about at 6? 1. 6 seconds 1 1 2 3 4 centimeters 5 6

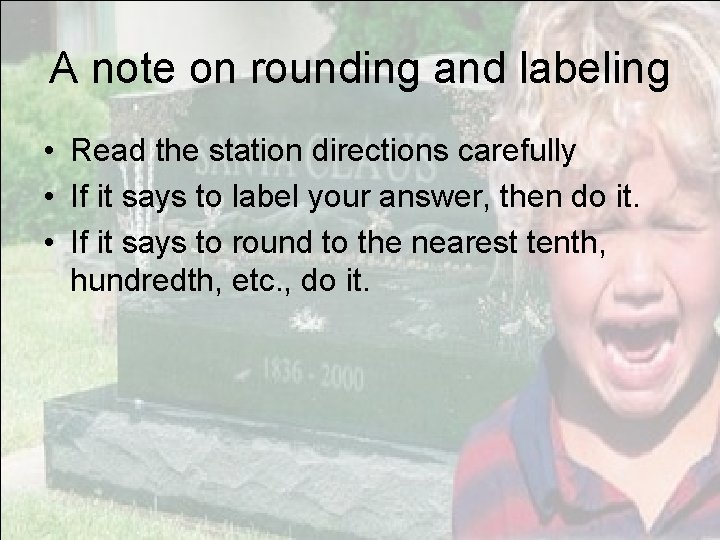

A note on rounding and labeling • Read the station directions carefully • If it says to label your answer, then do it. • If it says to round to the nearest tenth, hundredth, etc. , do it.
• • • Grams = g Centimeters = cm Degrees = º or degrees Seconds = sec Cubic centimeters = cm 3 Grams per cubic centimeter = g/cm 3

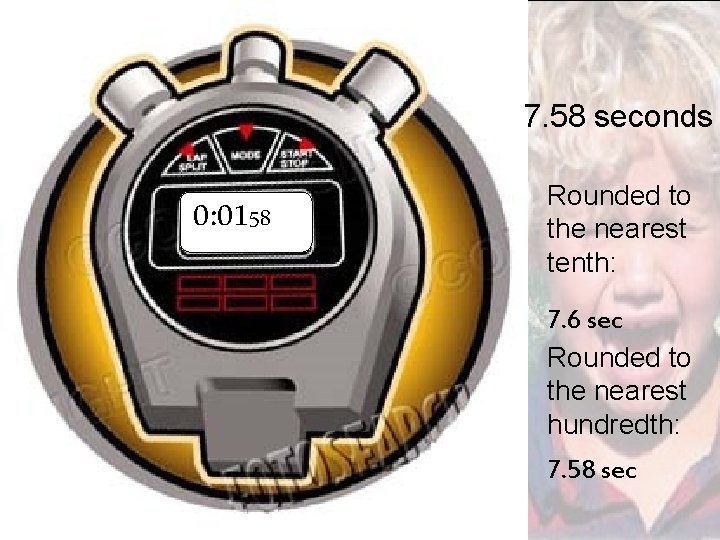

7. 58 seconds 0: 0158 Rounded to the nearest tenth: 7. 6 sec Rounded to the nearest hundredth: 7. 58 sec
4. 00 seconds 0: 0400 Rounded to the nearest tenth: 4. 0 sec Rounded to the nearest hundredth: 4. 00 sec Not roundedtotally wrong: 4 sec
