Refractories for HYDROCARBON Industry ------ Passary Minerals Ltd. , Rourkela. -----The Hydrocarbon Industry poses the toughest challenge to a refractory-maker. High physical and thermal stability, absolute inertness to the attack of gases as well as inertness to chemical attack are the benchmarks for refractories applied in this industry. PASSARY MINERALS LTD. , Rourkela, India, a pioneering company in producing technology-intensive and technologically challenging refractories, offers a basket of refractory products for the Hydrocarbon sector. The slides to follow enumerate the application wise / area wise products that PASMIN suggests for the Hydrocarbon industry.

FCC (Fluidized Catalytic Cracking) Units Required Properties: 1. High Abrasion Resistance. 2. High Resistance to Chemicals attack. Suggested Refractories: 1. Highly abrasion resistant and highly inert Castable with a high purity level : PASHEAT 95. 2. Insulation Castable : PASULYTE 09 – thermally stable.

Cyclones Required Properties: 1. High Abrasion Resistance. 2. High Resistance to Thermal Spalling. Suggested Refractories: 1. PAS ULCM 70 TA : A Mullite-Corundum Ultra Low Cement Castable that is good at abrasion resistance and exceptionally good at Spalling Resistance. 2. Insulation Castable : PASULYTE 09 – thermally stable.

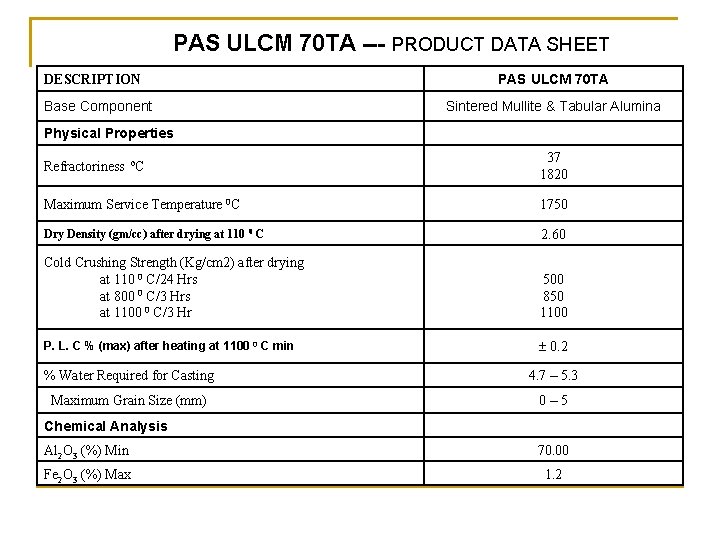

PAS ULCM 70 TA --- PRODUCT DATA SHEET DESCRIPTION Base Component PAS ULCM 70 TA Sintered Mullite & Tabular Alumina Physical Properties Refractoriness o. C 37 1820 Maximum Service Temperature 0 C 1750 Dry Density (gm/cc) after drying at 110 0 C 2. 60 Cold Crushing Strength (Kg/cm 2) after drying at 110 0 C/24 Hrs at 800 0 C/3 Hrs at 1100 0 C/3 Hr 500 850 1100 P. L. C % (max) after heating at 1100 0 C min 0. 2 % Water Required for Casting 4. 7 – 5. 3 Maximum Grain Size (mm) 0– 5 Chemical Analysis Al 2 O 3 (%) Min 70. 00 Fe 2 O 3 (%) Max 1. 2

PASULYTE – 09 -- PRODUCT DATA SHEET DESCRIPTION Base Component Recommended Service Temp. 0 C PASULYTE – 09 Insulating Aggregate 1100 Maximum Grain Size (mm) 6 Water Required for Casting 35 – 45 % Thermal Conductivity (W/m-K ) At 260 0 C At 550 0 C At 820 0 C Bulk Density, gms/cc. At 8200 C Service Temperature 0. 22 0. 25 0. 28 0. 95 max. Cold Crushing Strength (kg/cm 2) At 110 0 C/ 24 Hrs At 8200 C/ 5 Hrs. Service Temperature/ 5 Hrs. 20 min. 18 min. Modulus of Rupture (kg/cm 2) At 110 0 C/ 24 Hrs At 8200 C/ 5 Hrs. Service Temperature/ 5 Hrs. 8 min. 5 min. Al 2 O 3 (%) Min 28. 0 Fe 2 O 3 (%) Max 5. 0

Sulphur Recovery Units Required Properties: 1. Very High Refractoriness : over 1600 deg. C. Suggested Refractories: PAS ULC 95 T : A very high purity Corundum based Ultra Low Cement Castable that has exceptional Refractoriness and exceptional Spalling Resistance.

PAS ULC 95 T -- PRODUCT DATA SHEET DESCRIPTION Base Component PAS ULC 95 T Fused Alumina & Sintered Alumina Grains Physical Properties Refractoriness o. C 40+ 1885+ Maximum Service Temperature 0 C 1825 Dry Density (gm/cc) after drying at 110 0 C 2. 90 Cold Crushing Strength (Kg/cm 2) after drying at 110 0 C/24 Hrs at 800 0 C/3 Hrs at 1100 0 C/3 Hr 900 1000 1150 P. L. C % (max) after heating at 1100 0 C min 0. 2 Maximum Grain Size (mm) % Water Required for Casting 0 – 5 &0 – 10 4. 50 – 5. 00 Chemical Analysis Al 2 O 3 (%) Min 95. 00 Fe 2 O 3 (%) Max 0. 50

Naphtha Reformer Required Properties: 1. Refractories that can withstand severe working conditions like hot Hydrogen combined with very high pressure. Suggested Refractories: 1. PASHEAT 95 : A very high purity Corundum based Dense Castable capable of withstanding the severest working conditions. 2. PASULYTE 95 : Bubble Alumina based high purity high temperature insulation castable.

Vacuum Heaters / Incinerators Required Properties: 1. Very High Corrosion Resistance. 2. High Resistance to Thermal Spalling. 3. High Refractoriness. Suggested Refractories: PAS LC 70 SC : A Si. C-containing Low Cement Castable that has Excellent corrosion, high refractoriness and Spalling resistance.

Ammonia Unit Required Properties: 1. High Refractoriness. 2. High Resistance to Thermal Spalling. 3. High Resistance to Flame Impingement. 4. High Resistance to Hot Corrosive Gases. Suggested Refractories: 1. PAS LC 70 SC : A Si. C-containing Low Cement Castable that has Excellent corrosion, high refractoriness and Spalling resistance. 2. PASULYTE 11 Hi. Per : For insulation. Very strong under Hydrogenous atmosphere and very strong against CO attack.

Coal Gasifiers Required Properties: 1. High Refractoriness. 2. High Resistance to Thermal Spalling. 3. High Resistance to Hot Corrosive Gases. Suggested Refractories: 1. PAS LC 70 SC : A Si. C-containing Low Cement Castable that has Excellent corrosion, high refractoriness and Spalling resistance. 2. PASULYTE 11 Hi. Per : For insulation. Very strong under Hydrogenous atmosphere and very strong against CO attack.

PAS LC 70 SC -- PRODUCT DATA SHEET DESCRIPTION Base Component PAS LC 70 SC Corundum with Silicon Carbide Refractoriness o. C 37 1820 Maximum Service Temperature 0 C 1750 Dry Density (gm/cc) after drying at 110 0 C 2. 60 Cold Crushing Strength (Kg/cm 2) after drying at 110 0 C/24 Hrs at 800 0 C/3 Hrs at 1100 0 C/3 Hr 750 850 1000 Modulus of Rupture (Kg/cm 2), Min. 120 P. L. C % (max) after heating at 1100 0 C min % Water Required for Casting 0. 2 5. 0 – 5. 5 Maximum Grain Size (mm) 0– 5 Apparent Porosity (ASTM C 20) 16% Max. Panel Spalling Resistance, 1650°C 4. 0 Max. Al 2 O 3 (%) Min 50. 0 Si. C (%) Min 20. 0 Fe 2 O 3 (%) Max 1. 2

PASULYTE – 11 Hi. Per -- PRODUCT DATA SHEET DESCRIPTION Base Component Recommended Service Temp. 0 C PASULYTE – 11 Hi. Per Insulating Aggregate 1275 Maximum Grain Size (mm) 6 Water Required for Casting 35 – 45 % Thermal Conductivity (W/m-K ) At 260 0 C At 550 0 C At 820 0 C At 1100 0 C Bulk Density, gms/cc. At 8200 C Service Temperature 0. 20 0. 25 0. 27 0. 30 1. 05 max. Cold Crushing Strength (kg/cm 2) At 110 0 C/ 24 Hrs At 8200 C/ 5 Hrs. Service Temperature/ 5 Hrs. 30 min. Modulus of Rupture (kg/cm 2) At 110 0 C/ 24 Hrs At 8200 C/ 5 Hrs. Service Temperature/ 5 Hrs. 8 min. 10 min. Al 2 O 3 (%) Min 40. 0 Fe 2 O 3 (%) Max 0. 9
