Refraction Refraction is the bending of a wave

$Refraction • Refraction is the bending of a wave caused by the change in$

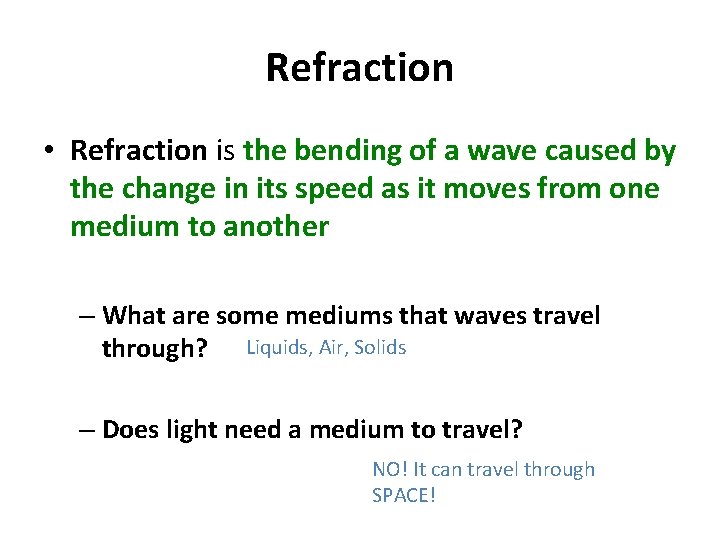

Refraction • Refraction is the bending of a wave caused by the change in its speed as it moves from one medium to another – What are some mediums that waves travel through? Liquids, Air, Solids – Does light need a medium to travel? NO! It can travel through SPACE!

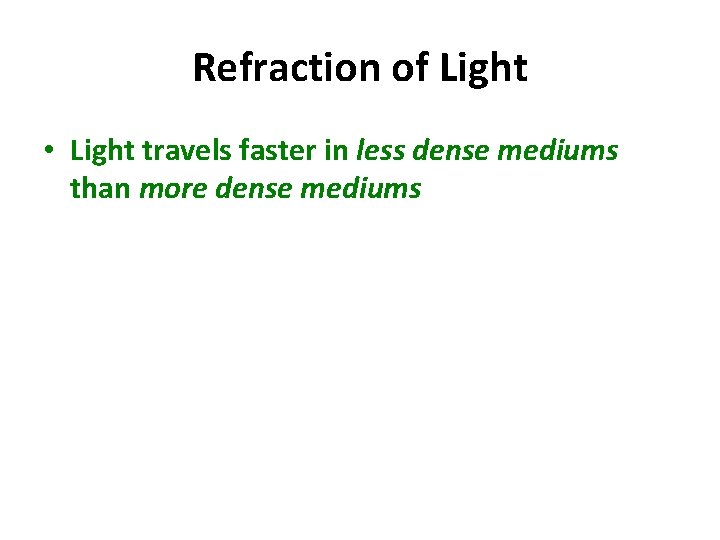

$Refraction of Light • Light travels faster in less dense mediums than more dense$

Refraction of Light • Light travels faster in less dense mediums than more dense mediums

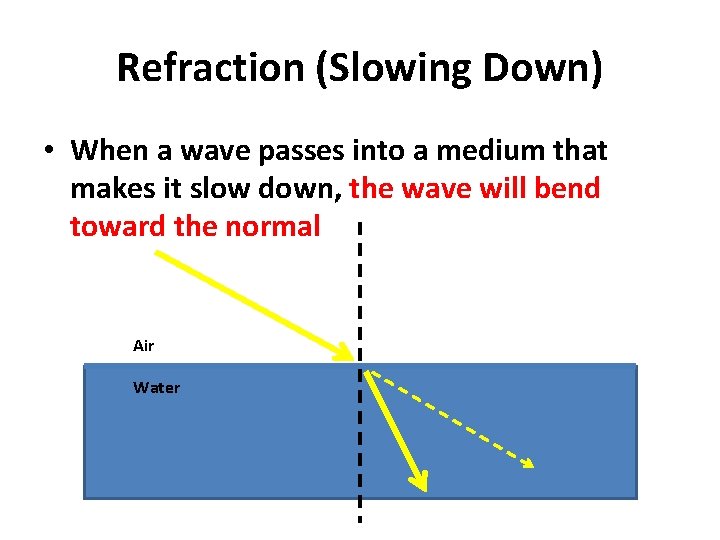

$Refraction (Slowing Down) • When a wave passes into a medium that makes it$

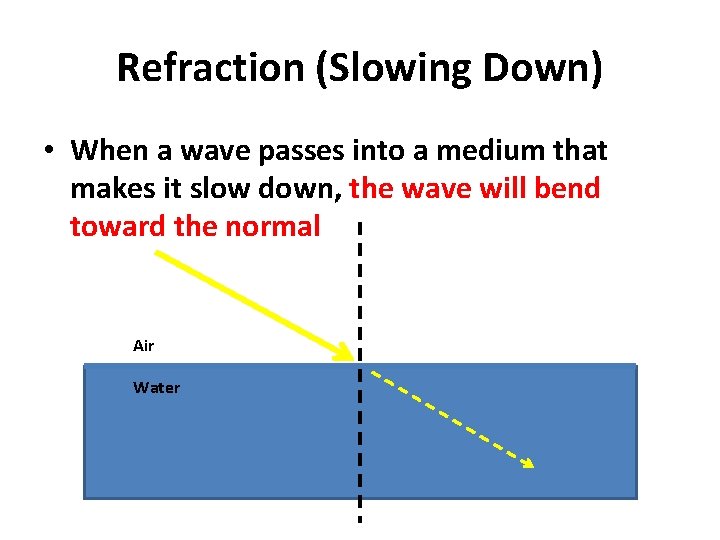

Refraction (Slowing Down) • When a wave passes into a medium that makes it slow down, the wave will bend toward the normal Air Water

$Refraction (Slowing Down) • When a wave passes into a medium that makes it$

Refraction (Slowing Down) • When a wave passes into a medium that makes it slow down, the wave will bend toward the normal Air Water

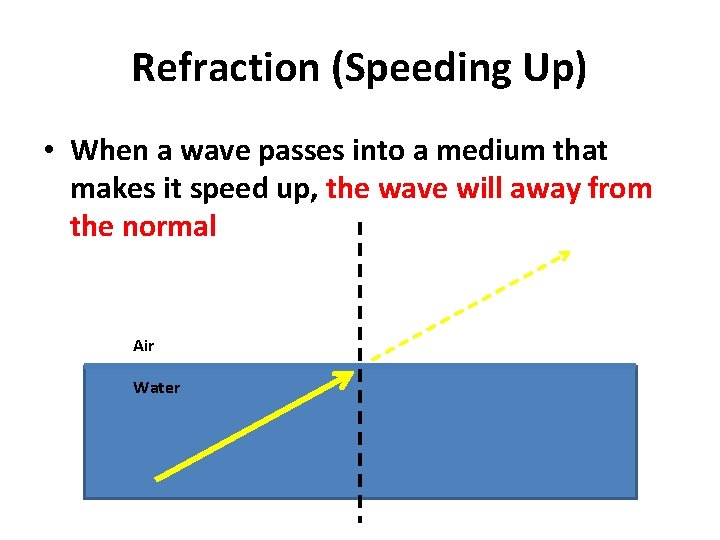

$Refraction (Speeding Up) • When a wave passes into a medium that makes it$

Refraction (Speeding Up) • When a wave passes into a medium that makes it speed up, the wave will away from the normal Air Water

$Refraction (Speeding Up) • When a wave passes into a medium that makes it$

Refraction (Speeding Up) • When a wave passes into a medium that makes it speed up, the wave will away from the normal Air Water

$• Refraction causes underwater objects to appear closer to the surface than they$

• Refraction causes underwater objects to appear closer to the surface than they really are • (in the diagram, the red dotted line is what we see because our brain interprets light as coming from a straight line path)

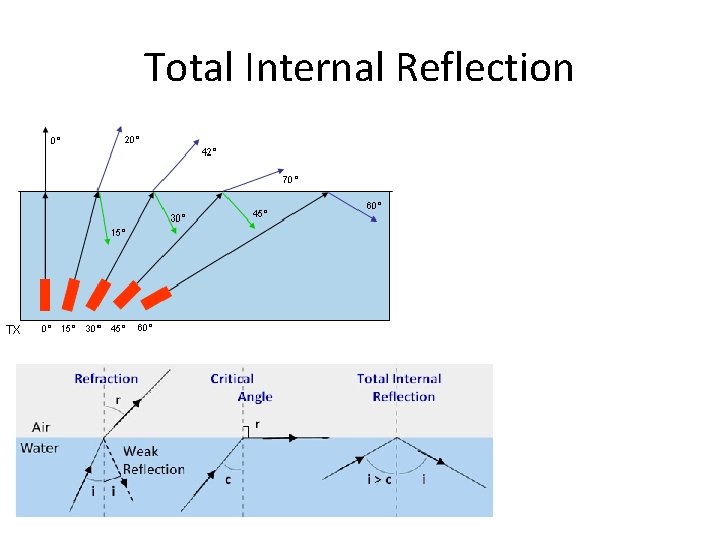

Total Internal Reflection

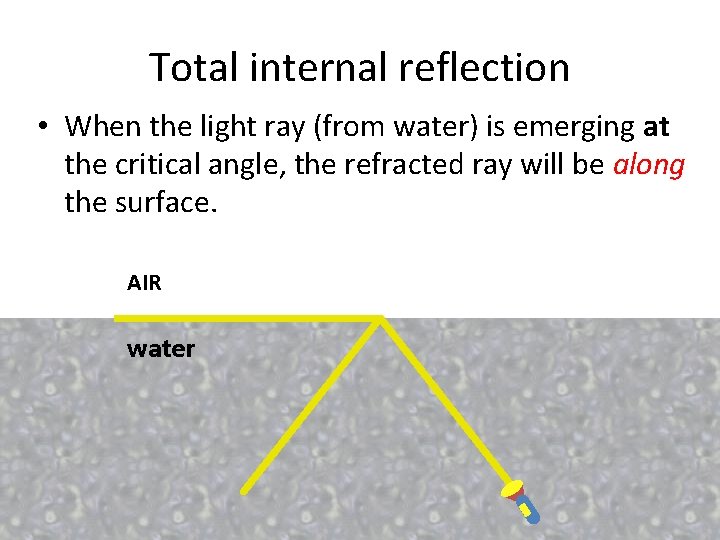

Total internal reflection • When the light ray (from water) is emerging at the critical angle, the refracted ray will be along the surface. AIR water

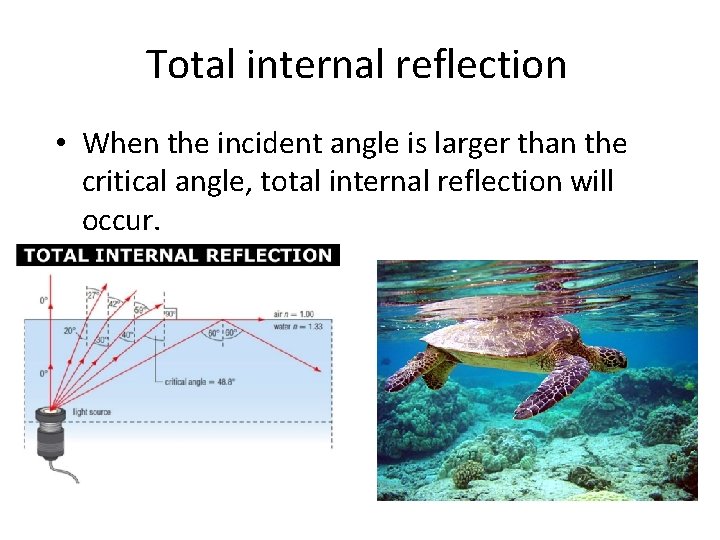

Total internal reflection • When the incident angle is larger than the critical angle, total internal reflection will occur.

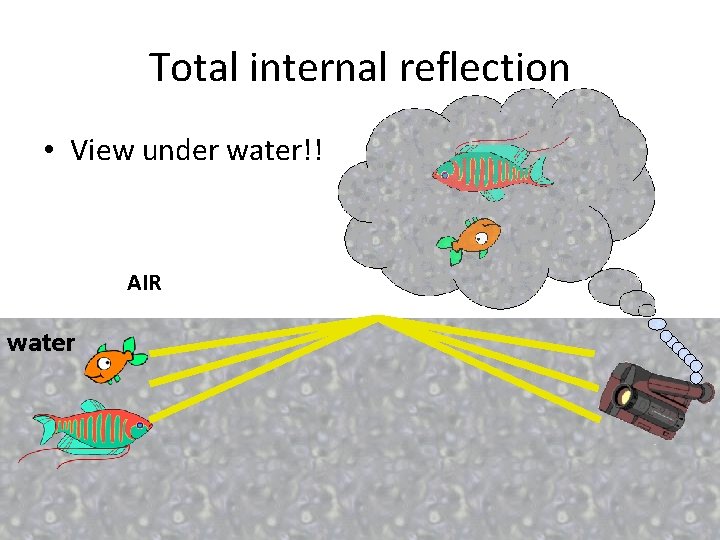

Total internal reflection • View under water!! AIR water

$Pyrex • Pyrex and vegetable oil have the same index of refraction!$

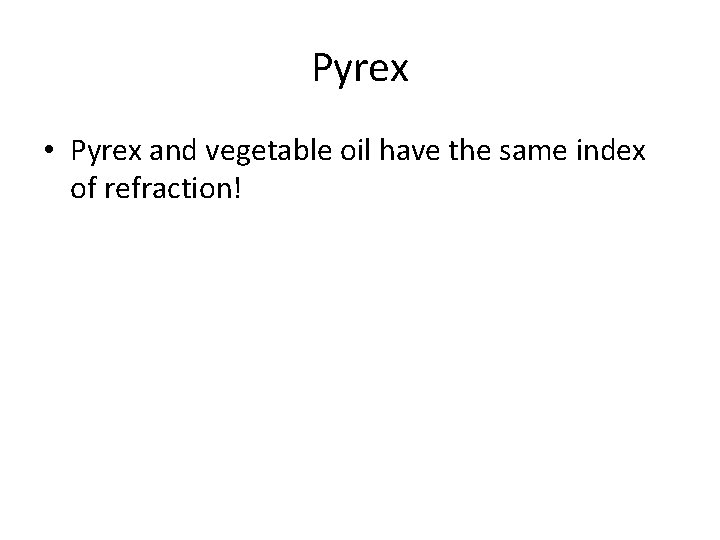

Pyrex • Pyrex and vegetable oil have the same index of refraction!

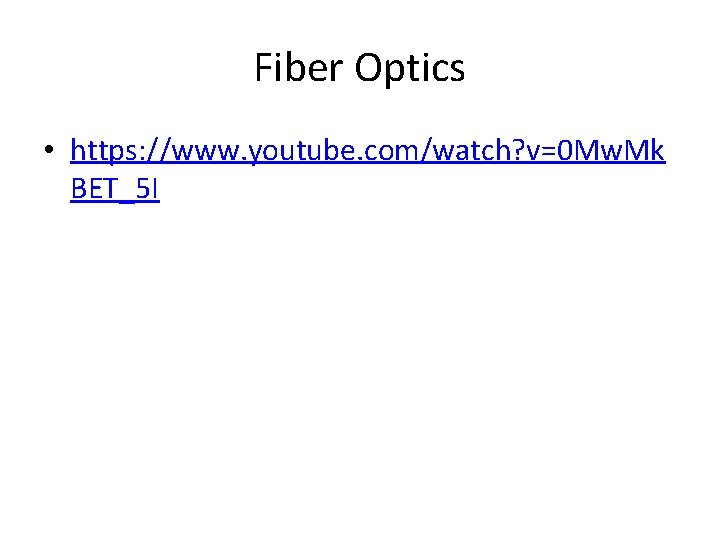

Fiber Optics • https: //www. youtube. com/watch? v=0 Mw. Mk BET_5 I

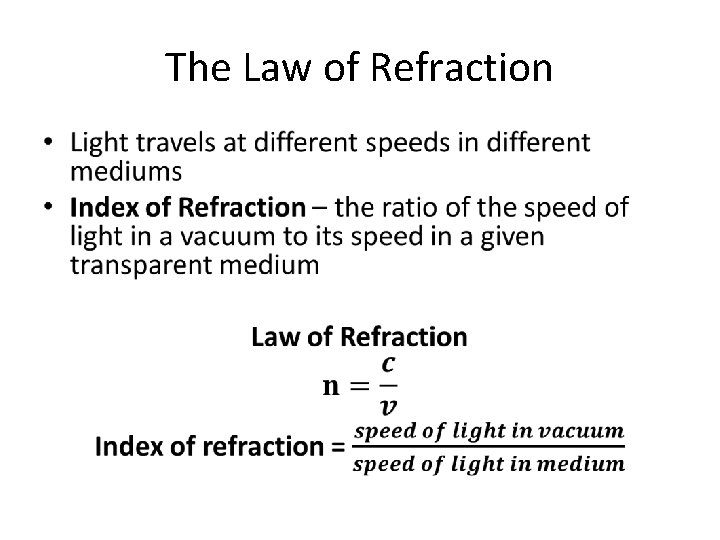

$The Law of Refraction •$

The Law of Refraction •

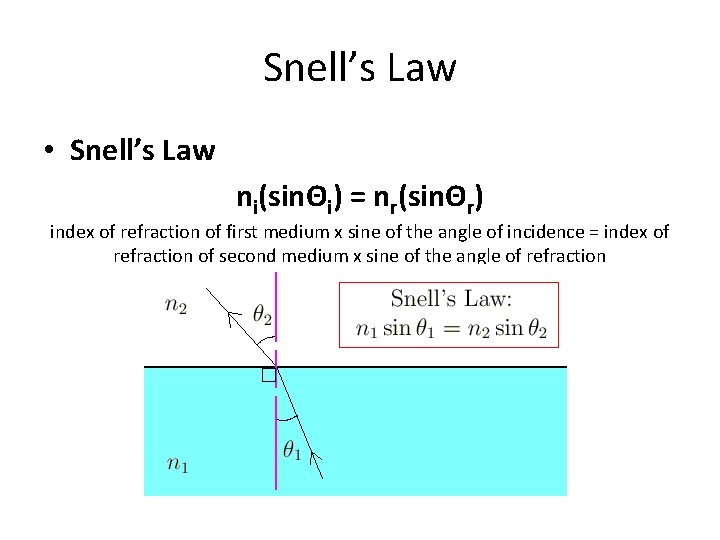

$Snell’s Law • Snell’s Law ni(sinΘi) = nr(sinΘr) index of refraction of first medium$

Snell’s Law • Snell’s Law ni(sinΘi) = nr(sinΘr) index of refraction of first medium x sine of the angle of incidence = index of refraction of second medium x sine of the angle of refraction

$Practice • Find the angle of refraction for a ray of light that enters$

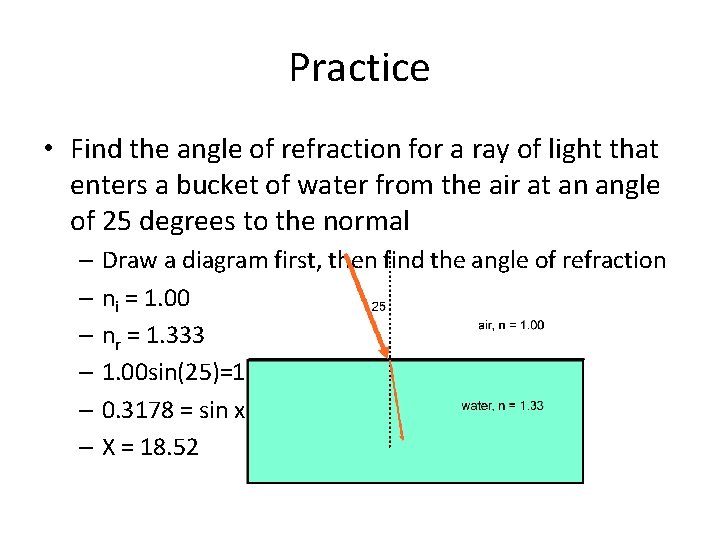

Practice • Find the angle of refraction for a ray of light that enters a bucket of water from the air at an angle of 25 degrees to the normal – Draw a diagram first, then find the angle of refraction – ni = 1. 00 – nr = 1. 333 – 1. 00 sin(25)=1. 33 sinx – 0. 3178 = sin x – X = 18. 52
