Reflection High Energy Electron Diffraction Wei-Li Chen 11/15/2007

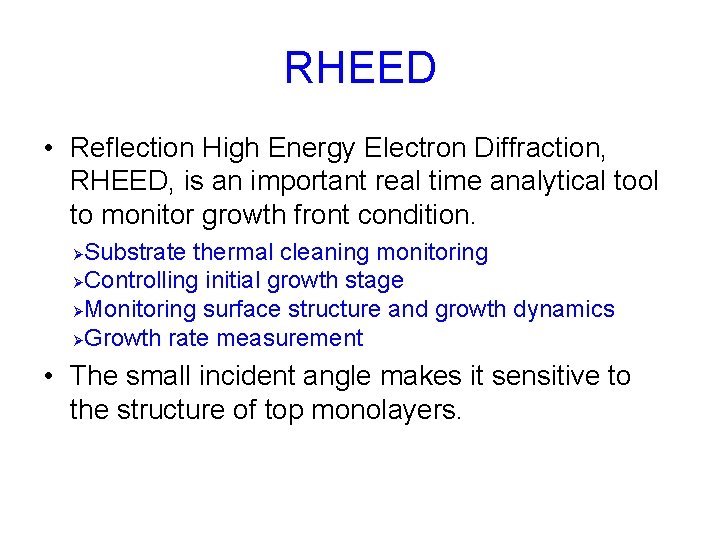

RHEED • Reflection High Energy Electron Diffraction, RHEED, is an important real time analytical tool to monitor growth front condition. Substrate thermal cleaning monitoring ØControlling initial growth stage ØMonitoring surface structure and growth dynamics ØGrowth rate measurement Ø • The small incident angle makes it sensitive to the structure of top monolayers.

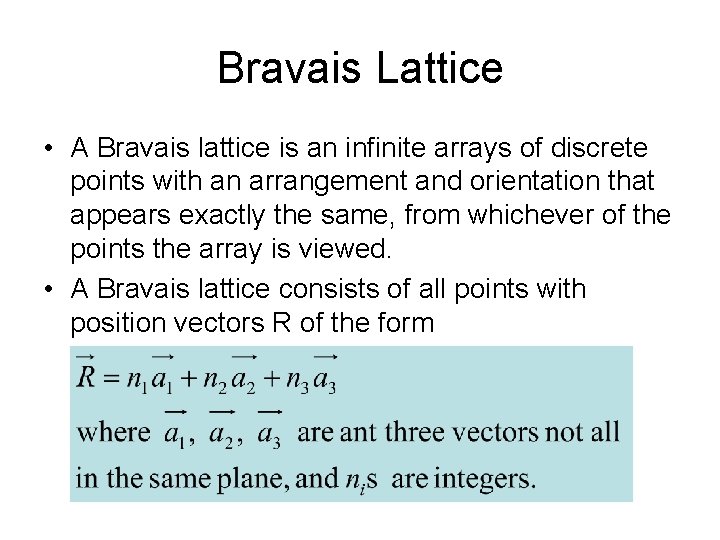

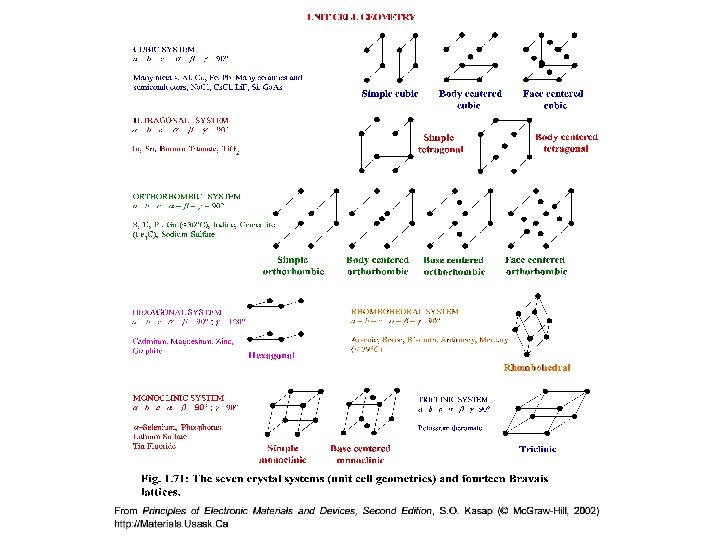

Bravais Lattice • A Bravais lattice is an infinite arrays of discrete points with an arrangement and orientation that appears exactly the same, from whichever of the points the array is viewed. • A Bravais lattice consists of all points with position vectors R of the form

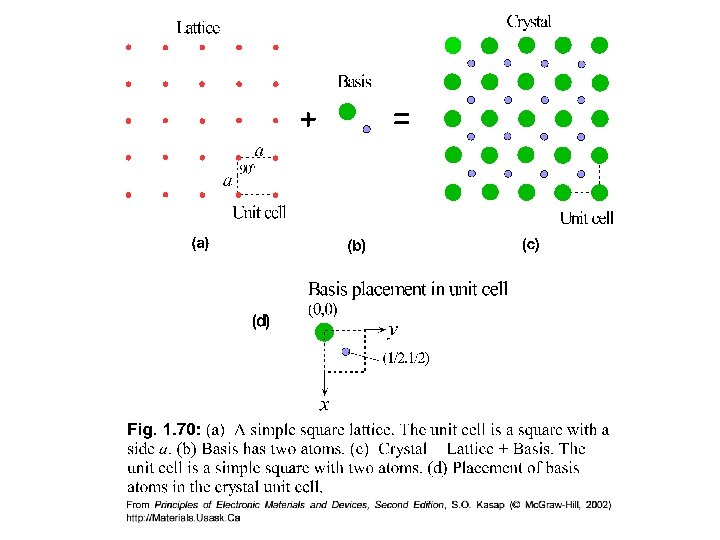

Crystal Structure • The atom group, which builds complete crystal structure by translational operations is called crystallographic unit cell • Crystal structure = Lattice + Basis In General: a ≠ b ≠ c and α≠ß≠γ
Reciprocal Lattice

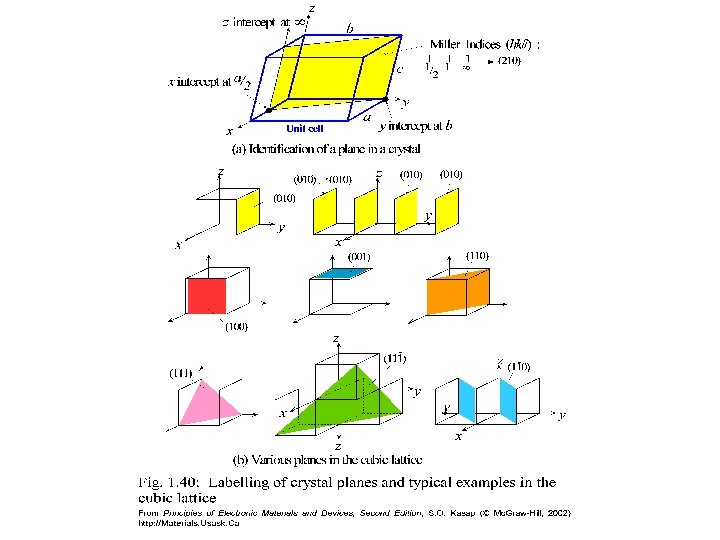

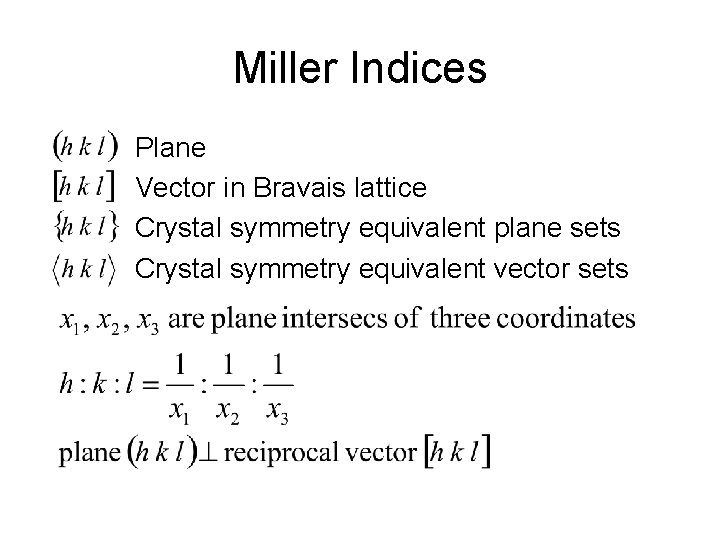

Miller Indices Plane Vector in Bravais lattice Crystal symmetry equivalent plane sets Crystal symmetry equivalent vector sets
Bragg’s and von Laue’s Formula

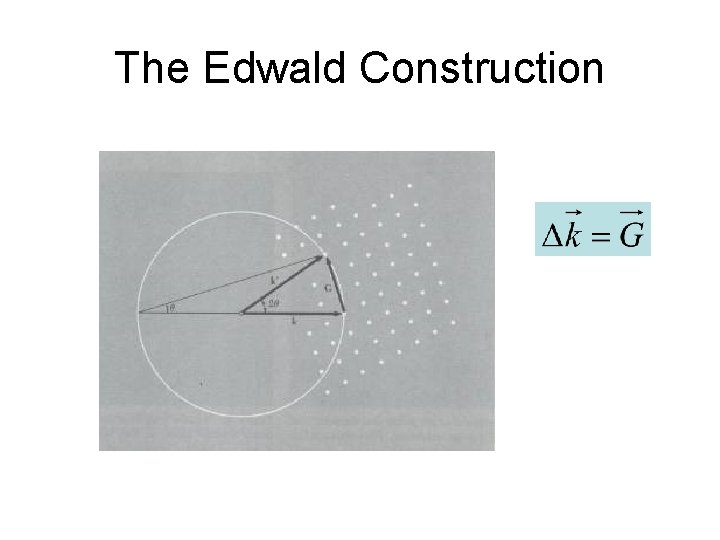

The Edwald Construction

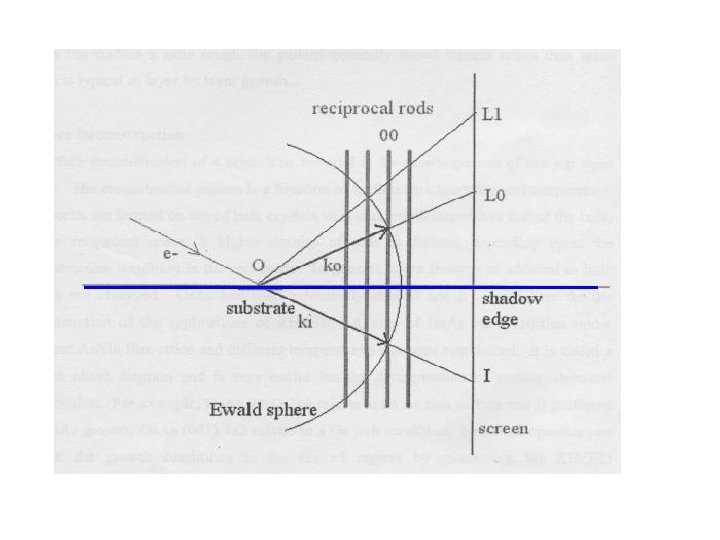

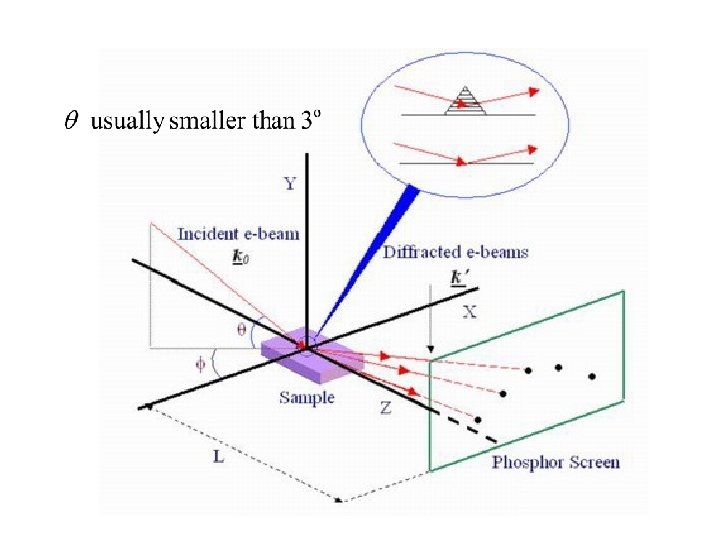

The Geometry of RHEED • The geometry of RHEED is quite simple, Fig. 1. An accelerated electron beam (5 – 100 ke. V) is incident on the surface with a glancing angle (< 3 deg) and is reflected. The high energy of the electrons would result in high penetration depth. However, because of the glancing angle of incidence, a few atomic layers are only probed. This is the reason of the high surface sensitivity of RHEED. Upon reflection, electrons diffract, forming a diffraction pattern that depends on the structure and the morphology of the probed surface.
“Molecular Beam Epitaxy “ edited by R. F. C. Farrow

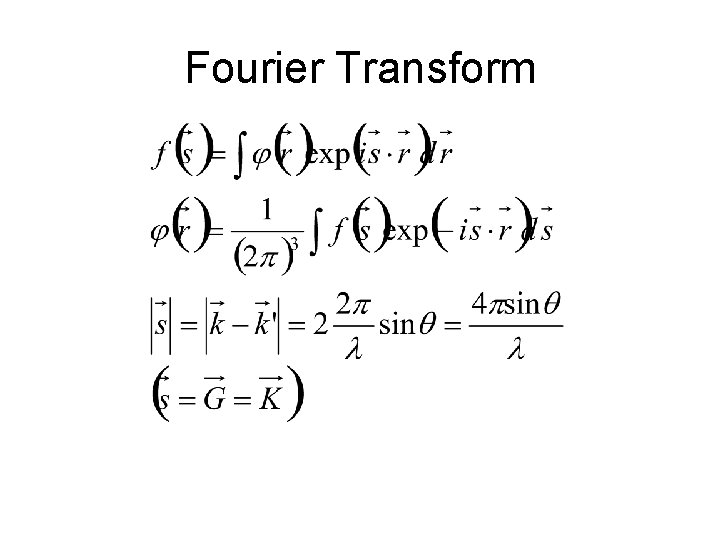

Fourier Transform

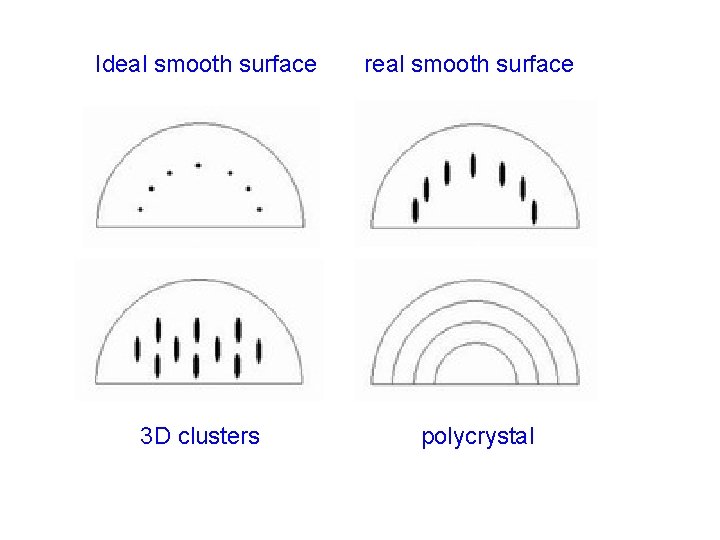

Ideal smooth surface 3 D clusters real smooth surface polycrystal

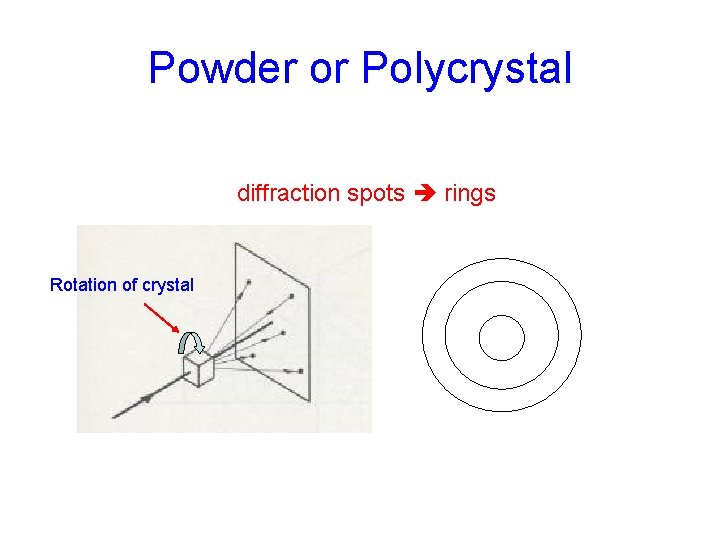

Powder or Polycrystal diffraction spots rings Rotation of crystal

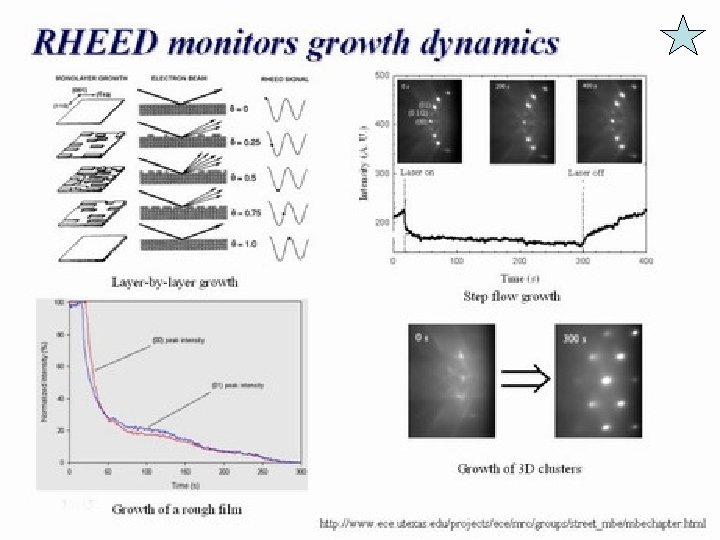

Growth Calibration by RHEED Oscillation The reflection intensity of the specular point is related to the roughness of the surface, which changes periodically with the accumulation of film thickness. “Molecular Beam Epitaxy “ edited by R. F. C. Farrow
Ga. N RHEED Oscillation Growth rate reduction due to thermal decomposition

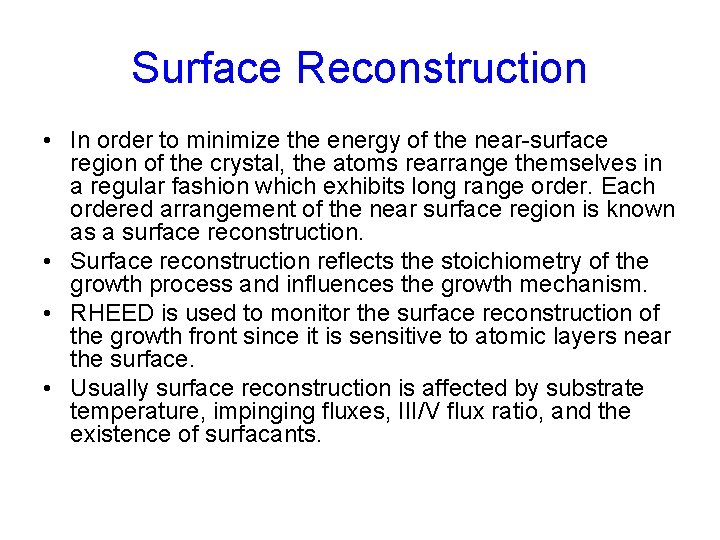

Surface Reconstruction • In order to minimize the energy of the near-surface region of the crystal, the atoms rearrange themselves in a regular fashion which exhibits long range order. Each ordered arrangement of the near surface region is known as a surface reconstruction. • Surface reconstruction reflects the stoichiometry of the growth process and influences the growth mechanism. • RHEED is used to monitor the surface reconstruction of the growth front since it is sensitive to atomic layers near the surface. • Usually surface reconstruction is affected by substrate temperature, impinging fluxes, III/V flux ratio, and the existence of surfacants.

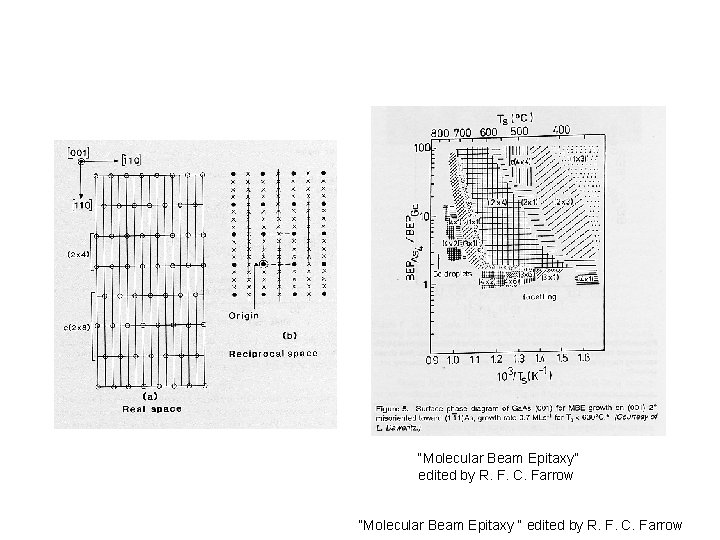

“Molecular Beam Epitaxy” edited by R. F. C. Farrow “Molecular Beam Epitaxy “ edited by R. F. C. Farrow

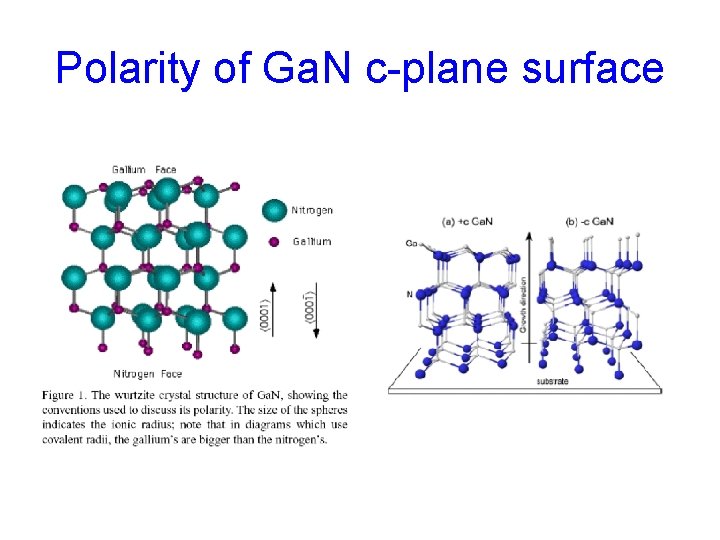

Polarity of Ga. N c-plane surface

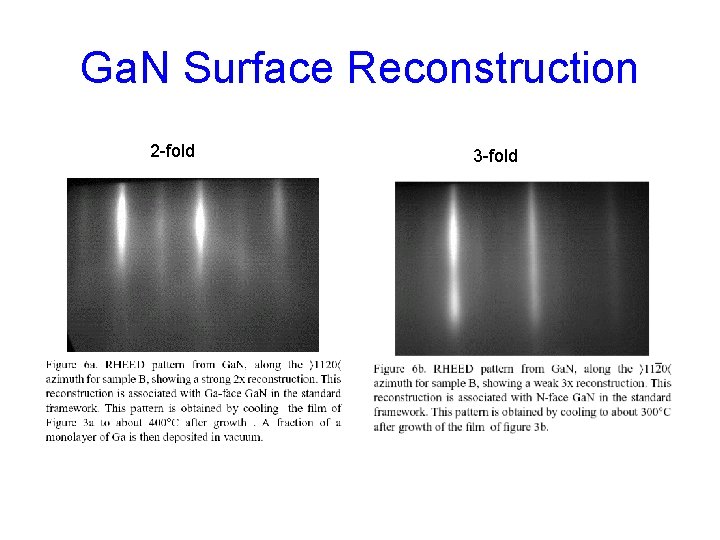

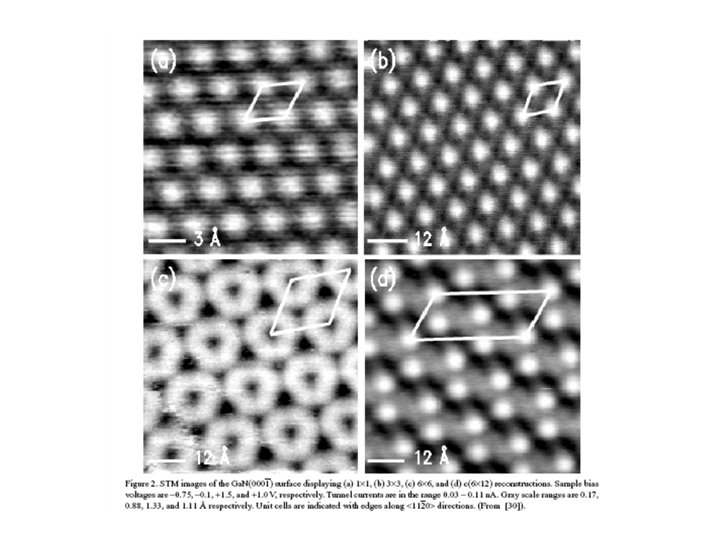

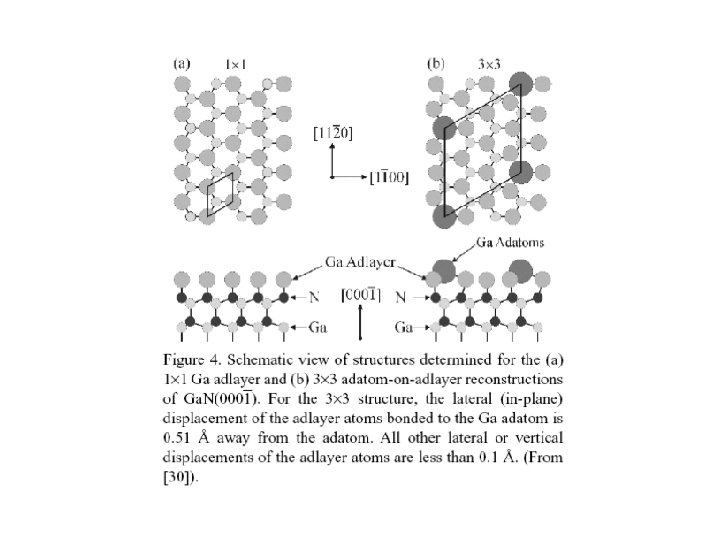

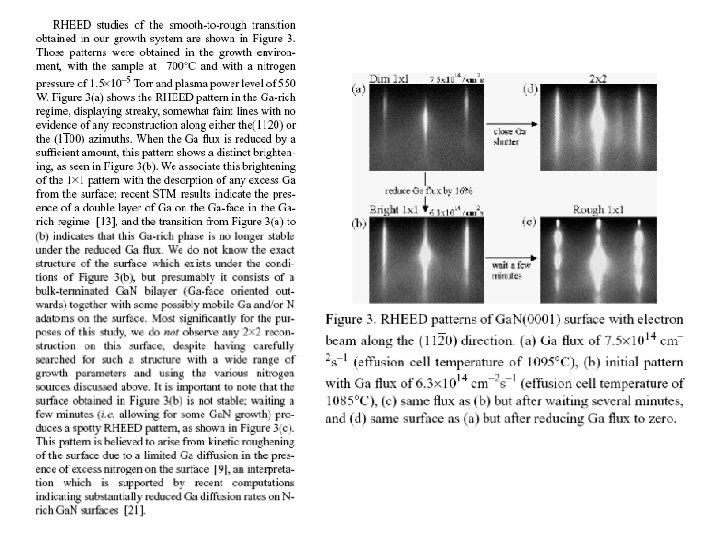

Ga. N Surface Reconstruction 2 -fold 3 -fold

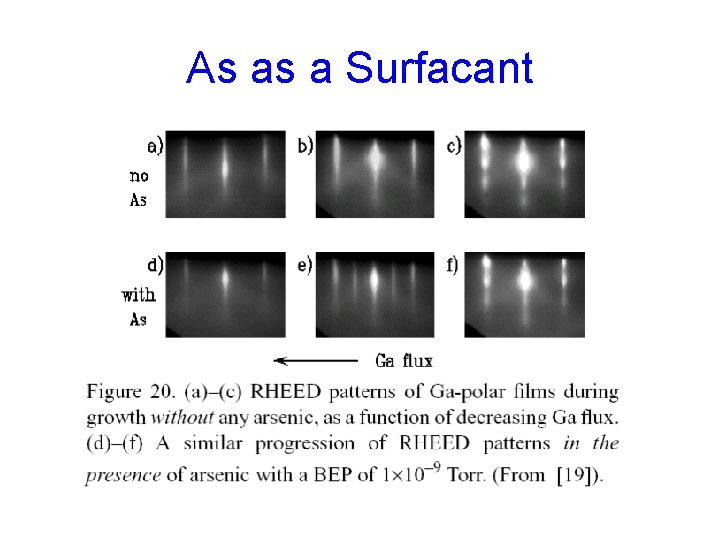

As as a Surfacant
