Reference Materials Hexavalent Chromium CrVI in Acrylonitrile Butadiene
Reference Materials Hexavalent Chromium (Cr(VI)) in Acrylonitrile Butadiene Styrene copolymer (ABS) The RM's CI RM HC 10 L ~ CI RM HC 10 H are intended for controlling the precision of analysis and confirming the validity of analytical methods or instruments during the quantitative determination of Cr(VI) in ABS or similar polymers. European Community (EC) directive (EU Directive 2002/95/EC “Restriction of Hazardous Substances”, Ro. HS) has defined specific limits for heavy metals in plastics. These sets of ABS have been designed for determining Cr(VI) to check for compliance of these limits. The property value for Cr(VI) has determined by our new extraction method, which is “organic-assisted alkaline extraction”. Our new extraction method was proposed as a new sample preparation method for the determination of Cr(VI) in IEC 62321 to the International Electrotechnical Commission’s Technical Committee 111(IEC TC 111). A new edition of IEC 62321 is currently in progress and our new method is expected to be reflected in it. Certified Values Element Cr(VI) Certified Values ( mass fraction, mg·kg-1) CI RM HC 10 L CI RM HC 10 M CI RM HC 10 H 90. 1 ± 13. 9 304 ± 63. 2 589 ± 62. 5 • Value after “±” indicates an expanded uncertainty estimated at a level of confidence of approximately 95%. The detailed information is given on the certificate. ▪ Distribution unit Pellet form: bottle (50 g/bottle) ▪ Ordering information: TEL)031 -596 -4447, FAX) 031 -596 -4443 ▪ Technical contact: Y. R. Choi (031 -596 -4447, E-mail; youngrak. choi@samsung. co. kr ) ▪ Order contact: ODLAB CRM sale: sales@odlab. co. kr, FAX+82 -2 -6405 -7848

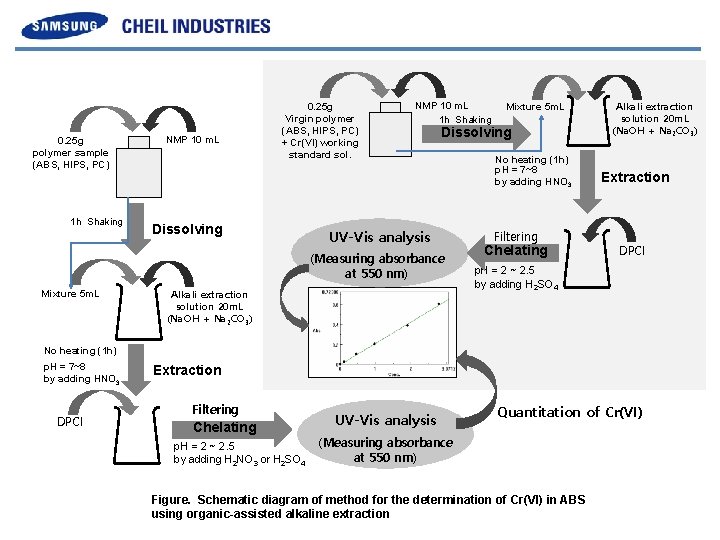

0. 25 g polymer sample (ABS, HIPS, PC) 1 h Shaking NMP 10 m. L 0. 25 g Virgin polymer (ABS, HIPS, PC) + Cr(VI) working standard sol. Dissolving NMP 10 m. L 1 h Shaking Dissolving UV-Vis analysis (Measuring absorbance at 550 nm) Mixture 5 m. L Alkali extraction solution 20 m. L (Na. OH + Na 2 CO 3) No heating (1 h) p. H = 7~8 by adding HNO 3 Filtering Chelating Alkali extraction solution 20 m. L (Na. OH + Na 2 CO 3) Extraction DPCI p. H = 2 ~ 2. 5 by adding H 2 SO 4 No heating (1 h) p. H = 7~8 by adding HNO 3 DPCI Extraction Filtering Chelating p. H = 2 ~ 2. 5 by adding H 2 NO 3 or H 2 SO 4 UV-Vis analysis Quantitation of Cr(VI) (Measuring absorbance at 550 nm) Figure. Schematic diagram of method for the determination of Cr(VI) in ABS using organic-assisted alkaline extraction
