Reţele inteligente de distribuţie a energiei electrice Retele inteligente de distributie a energiei electrice. [Smart Grids] 2 x 14 = 28 ore curs; 2 x 14 = 28 ore laborator program: miercuri 16 -18 EA 004 / Laborator (subgrupe): marti si miercuri 18 -20 EB 105 consultatii: luni 18 -20 EB 129 Examinare scrisa – probleme si teorie Nota finala: 0. 5 examen+0. 3 laborator + 0. 2 teme de casa (+ 0. 1 lucrari curs); SISTEME ELECTRICE AVANSATE – master 2019 -2020 Titular curs: Prof. dr. ing. Mihaela Albu Laborator: asist. ing. Radu Plammanescu
Reţele inteligente de distribuţie a energiei electrice noi teme in energetica: masurari sincronizate; PMU contoare inteligente (smart metering); automobile electrice; generarea intermitenta energiei electrice; stocare microretele [microgrids] retele active de distributie a energiei SISTEME ELECTRICE AVANSATE – master 2019 -2020
Smart Grids: Reţele inteligente de distribuţie a energiei electrice the interplay information- interaction- integration Data Aggregation Co mp le Pro x Ev ces ent sin ion t a g z uali s i V ge ata D d le ion w o act n K xtr e Cloud Hosting SISTEME ELECTRICE AVANSATE – master 2019 -2020
![Reţele inteligente de distribuţie a energiei electrice Contorizarea inteligenta [Smart metering] -definitii pentru sisteme](http://slidetodoc.com/presentation_image/929aba50cf8ed5e7a62112440ebc31f6/image-4.jpg "Reţele inteligente de distribuţie a energiei electrice Contorizarea inteligenta [Smart metering] -definitii pentru sisteme")

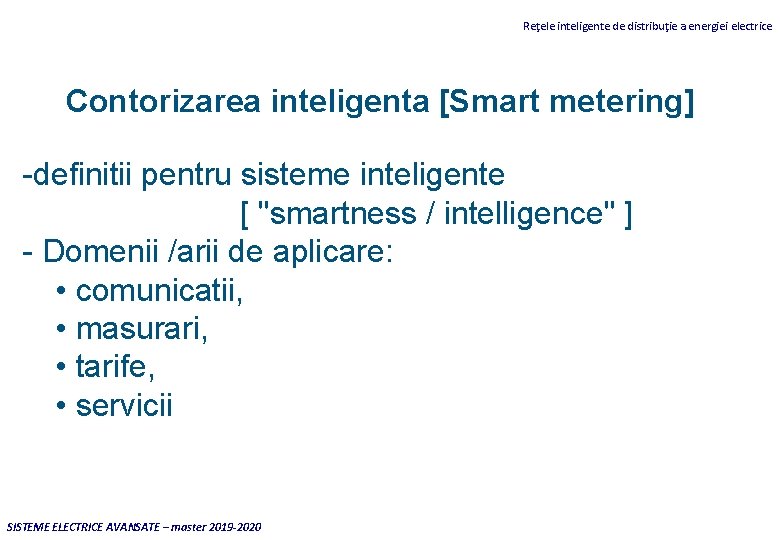

Reţele inteligente de distribuţie a energiei electrice Contorizarea inteligenta [Smart metering] -definitii pentru sisteme inteligente [ "smartness / intelligence" ] - Domenii /arii de aplicare: • comunicatii, • masurari, • tarife, • servicii SISTEME ELECTRICE AVANSATE – master 2019 -2020
Smart Metering Reţele inteligente de distribuţie a energiei electrice WAMCS Wall display SCADA GAZ SISTEME ELECTRICE AVANSATE – master 2019 -2020
Reţele inteligente de distribuţie a energiei electrice Introducere. Pozitii europene • “Without serious upgrading of existing grids and metering, renewable energy generation will be put on hold, security of the networks will be compromised, opportunities for energy saving and energy efficiency will be missed, and the internal energy market will develop at a much slower pace” Smart Grids: “an upgraded electricity network to which twoway digital communication between supplier and consumer, intelligent metering and monitoring systems have been added. Intelligent metering is usually an inherent part of Smart Grids”. [COMMUNICATION FROM THE COMMISSION TO THE EUROPEAN PARLIAMENT, THE COUNCIL, THE EUROPEAN ECONOMIC AND SOCIAL COMMITTEE AND THE COMMITTEE OF THE REGIONS Smart Grids: from innovation to deployment , 14 April 2011] SISTEME ELECTRICE AVANSATE – master 2019 -2020

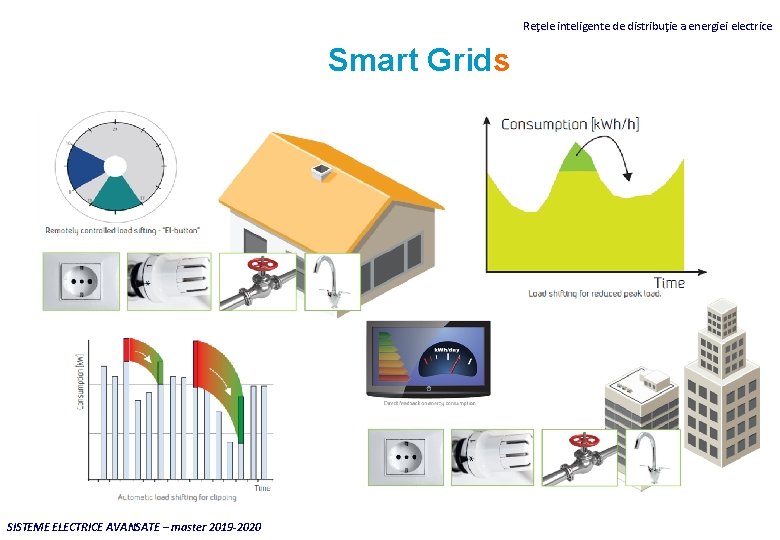

Reţele inteligente de distribuţie a energiei electrice Smart Grids SISTEME ELECTRICE AVANSATE – master 2019 -2020
Reţele inteligente de distribuţie a energiei electrice Tinte, foi de parcurs, pozitii oficiale What Technologies Qualify for Smart Grid Stimulus Funding (American Recovery and Reinvestment Act): • Deployment and integration of distributed generation, including renewable energy • Development and incorporation of demand response, demand-side resources and energy-efficiency resources; • Deployment and integration of smart technologies for metering and monitoring energy use, and of smart appliances; • Deployment of advanced electricity storage and peak-shaving technologies, including plug-in electric vehicles and thermal-storage air conditioning; and • Development of standards for grid communication and interoperability. SISTEME ELECTRICE AVANSATE – master 2019 -2020
Reţele inteligente de distribuţie a energiei electrice Tinte, foi de parcurs, pozitii oficiale SISTEME ELECTRICE AVANSATE – master 2019 -2020
Reţele inteligente de distribuţie a energiei electrice EU-DEEP: Develop innovative business models to facilitate sustainable Distributed Energy Resources integration into today’s electric system”: http: //www. eu-deep. com SISTEME ELECTRICE AVANSATE – master 2019 -2020
Reţele inteligente de distribuţie a energiei electrice SISTEME ELECTRICE AVANSATE – master 2019 -2020
Reţele inteligente de distribuţie a energiei electrice Smart Grids. Smart Metering Smart Grids is already a reference for the present not only for the future power grids. Assessing the efficiency of energy transfer needs a carefully designed instrumentation and communication layer. Smart metering stands out as a truly transformative new technology to improve energy metering and billing systems and to enable better awareness for energy end-users. Instrumentation is required by smart metering, and it is also mandatory for all processes involved by smart grids SISTEME ELECTRICE AVANSATE – master 2019 -2020
Reţele inteligente de distribuţie a energiei electrice Smart Grids. Smart Metering Power. Player PRI Home Energy Controller Eco. Meter EWE-Box SISTEME ELECTRICE AVANSATE – master 2019 -2020
Reţele inteligente de distribuţie a energiei electrice Smart Grids. Smart Metering 2012 SISTEME ELECTRICE AVANSATE – master 2019 -2020
Reţele inteligente de distribuţie a energiei electrice IEE-Smart. Regions project Smart metering has a great potential in achieving cost-efficient energy savings, and plays a crucial role in achieving the 2016 and 2020 energy saving targets. only around 10 % of EU households have some sort of smart meter installed; most do not necessarily provide the full scale of services to consumers with smart meters have reduced their energy consumption by as much as 10 %. However, smart meters themselves are only enabling technologies, which need to be coupled with innovative services to reach better energy management through the means of rewards, automation and information. The main target groups are the energy utilities, the energy service developers and providers as well as the national and EU decision makers and authorities. SISTEME ELECTRICE AVANSATE – master 2019 -2020
Reţele inteligente de distribuţie a energiei electrice Smart Metering Landscape in Europe SISTEME ELECTRICE AVANSATE – master 2019 -2020
Reţele inteligente de distribuţie a energiei electrice Smart meters functionalities In 2011 based on the 11 CBAs performed by European countries (Austria, Belgium, France, Ireland, Netherlands, Norway, Poland, Portugal, Slovenia, Sweden and UK) the EU Commission defined a Smart Metering System in terms of 13 key Functionalities: - For the Customer (1 -3) - For grid & network support (4 -7) - For commercial aspects of energy supply (8 -10) - For security and privacy (11 -12) - To allow distributed generation (13) A joint contribution of DG ENER and DG INFSO towards the Digital Agenda, Action 73: Set of common functional requirements of the SMART METER (http: //ec. europa. eu/information_society/activities /sustainable_growth /docs/smart-meters smart_meter_funtionalities_report. pdf) SISTEME ELECTRICE AVANSATE – master 2019 -2020
Reţele inteligente de distribuţie a energiei electrice Smart meters functionalities Provides readings from the meter to the customer and to equipment that he may have installed; Updates these readings frequently enough to allow the information to be used to achieve energy savings; Provides these readings in a form easily understood by the untrained consumer, and with calculations enabling final customers to better control their energy consumption Allows remote reading of meter registers by energy suppliers and by grid operators; Provides two-way communication between the meter and external networks (both supply & grid) for maintenance and control of the meter; SISTEME ELECTRICE AVANSATE – master 2019 -2020

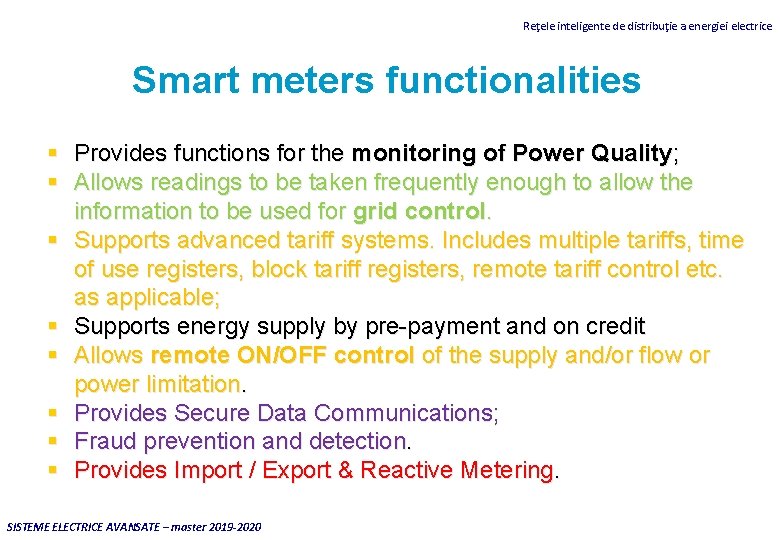

Reţele inteligente de distribuţie a energiei electrice Smart meters functionalities Provides functions for the monitoring of Power Quality; Allows readings to be taken frequently enough to allow the information to be used for grid control. Supports advanced tariff systems. Includes multiple tariffs, time of use registers, block tariff registers, remote tariff control etc. as applicable; Supports energy supply by pre-payment and on credit Allows remote ON/OFF control of the supply and/or flow or power limitation. Provides Secure Data Communications; Fraud prevention and detection. Provides Import / Export & Reactive Metering. SISTEME ELECTRICE AVANSATE – master 2019 -2020

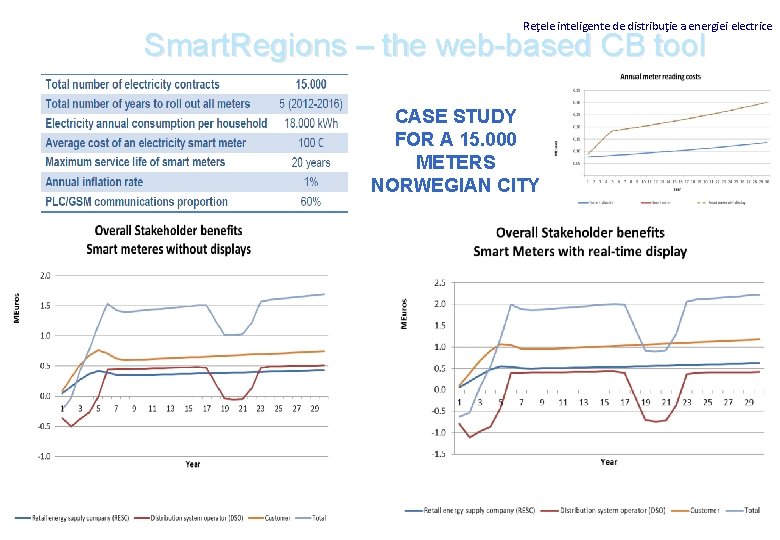

Reţele inteligente de distribuţie a energiei electrice Smart. Regions – the web-based CB tool CASE STUDY FOR A 15. 000 METERS NORWEGIAN CITY SISTEME ELECTRICE AVANSATE – master 2019 -2020
Reţele inteligente de distribuţie a energiei electrice Smart. Regions – the web-based CB tool CASE STUDY FOR 100. 000 METERS SPANISH CITY SISTEME ELECTRICE AVANSATE – master 2019 -2020
Reţele inteligente de distribuţie a energiei electrice IEE-Smart. Regions project Smart meters themselves are only enabling technologies need to be coupled with innovative services for better energy management rewards, automation and information. innovative smart metering services: informative billing and feedback, variable tariffs load control services energy savings, peak load reduction integration of renewable energy. SISTEME ELECTRICE AVANSATE – master 2019 -2020
Reţele inteligente de distribuţie a energiei electrice ESMA (2009): SISTEME ELECTRICE AVANSATE – master 2019 -2020 Smart meters
Reţele inteligente de distribuţie a energiei electrice Yes to roll out Ce este un contor inteligent? [Smart Metering for Households: Cost and Benefits for the Netherlands ] Determines and stores in real time or near-real time energy consumption, provides means to read consumption both locally and remotely and can be used remotely to limit the consumption SISTEME ELECTRICE AVANSATE – master 2019 -2020
Reţele inteligente de distribuţie a energiei electrice Ce este un contor inteligent? Analiza CBA : 2 scenarii SISTEME ELECTRICE AVANSATE – master 2019 -2020
Reţele inteligente de distribuţie a energiei electrice Ce este un contor inteligent? Analiza CBA : 2 scenarii SISTEME ELECTRICE AVANSATE – master 2019 -2020

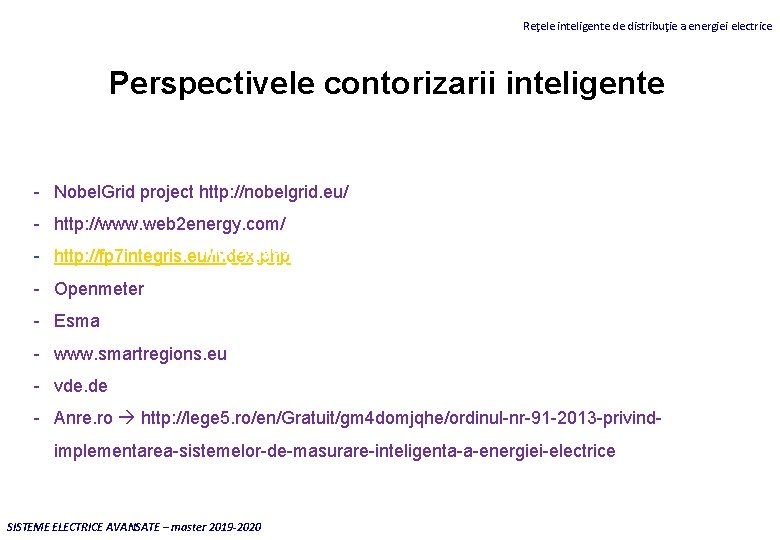

Reţele inteligente de distribuţie a energiei electrice Perspectivele contorizarii inteligente - Nobel. Grid project http: //nobelgrid. eu/ - http: //www. web 2 energy. com/ http: //lege 5. ro/en/Gratuit/gm 4 domjqhe/ordinul- http: //fp 7 integris. eu/index. php nr-91 -2013 -privind-implementarea-sistemelor- Openmeter de-masurare-inteligenta-a-energiei-electrice - Esma - www. smartregions. eu - vde. de - Anre. ro http: //lege 5. ro/en/Gratuit/gm 4 domjqhe/ordinul-nr-91 -2013 -privindimplementarea-sistemelor-de-masurare-inteligenta-a-energiei-electrice SISTEME ELECTRICE AVANSATE – master 2019 -2020
