Reducing the Risk – Hilti as your preferred partner for Health & Safety Awareness Presentation www. hilti. co. uk Health & Safety Awareness | Professional Services 2012 1

Agenda Hand-arm Vibration Tool handling and selection Alternative methods Hilti Product Selector Dust Noise Working at Height www. hilti. co. uk Health & Safety Awareness | Professional Services 2012 2

Current legislation • European and national laws regulate exposure of workers to both physical and chemical agents • It is the responsibility of the employer to ensure that these laws are adhered to 13. 7 MB (14, 367, 744 bytes) To comply with legislation, in general employers must: • Design out risks where possible • Inform workforce of health & safety risks • Assess the risks • Provide an actionable solution • Deliver training to employees • Keep health and action records This applies to the four key areas of risk: www. hilti. co. uk Health & Safety Awareness | Professional Services 2012 3

Health & Safety: Four Key Areas of Risk Hand-arm Vibration Working at Height www. hilti. co. uk Dust Noise Health & Safety Awareness | Professional Services 2012 4

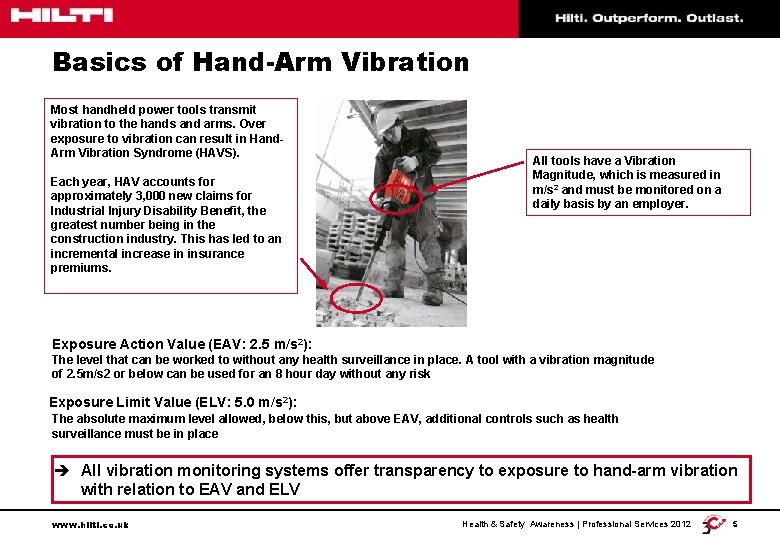

Basics of Hand-Arm Vibration Most handheld power tools transmit vibration to the hands and arms. Over exposure to vibration can result in Hand. Arm Vibration Syndrome (HAVS). Each year, HAV accounts for approximately 3, 000 new claims for Industrial Injury Disability Benefit, the greatest number being in the construction industry. This has led to an incremental increase in insurance premiums. All tools have a Vibration Magnitude, which is measured in m/s 2 and must be monitored on a daily basis by an employer. Exposure Action Value (EAV: 2. 5 m/s 2): The level that can be worked to without any health surveillance in place. A tool with a vibration magnitude of 2. 5 m/s 2 or below can be used for an 8 hour day without any risk Exposure Limit Value (ELV: 5. 0 m/s 2): The absolute maximum level allowed, below this, but above EAV, additional controls such as health surveillance must be in place è All vibration monitoring systems offer transparency to exposure to hand-arm vibration with relation to EAV and ELV www. hilti. co. uk Health & Safety Awareness | Professional Services 2012 5

Reducing the Risk of HAVS: Tool Handling – Drilling and Breaking § Hold tool in a stance which allows good balance § Hold tool below shoulder level where possible § Restrict the contact pressure to a level where the tool function most effectively § Always grip both handles and restrict grip force just sufficient to hold tool securely § Just because it doesn’t shake, it doesn’t mean that it won’t work § Let the tool do the work www. hilti. co. uk Health & Safety Awareness | Professional Services 2012 6

Hand-Arm Vibration coffebean_meter. mpg www. hilti. co. uk Hilti ATC safety system. mpg Health & Safety Awareness | Professional Services 2012 7

Reducing the Risk of HAVS: Tool Handling – Cutting & Grinding § Always use low vibration side handle § Ensure that you have been trained to use grinders and you have a valid certificate § Reciprocating Saw - an alternative method to grinding § Clamp adaptor reduces vibration www. hilti. co. uk Health & Safety Awareness | Professional Services 2012 8

Reducing the Risk of HAVS: Use the correct consumables - drill bits designed for higher speed § Watch out for signs of wear and tear www. hilti. co. uk Health & Safety Awareness | Professional Services 2012 9

Reducing the Risk of HAVS: Use the correct consumables - chisels with longer life and optimum performance § Longer and consistent performance chisels www. hilti. co. uk Health & Safety Awareness | Professional Services 2012 10

Reducing the Risk of HAVS by offering alternative Methods Conventional method Drilling Breaking Mechanical Scabbling Direct Fastening Wire Sawing Grinding Alternative Diamond coring Light Duty Drilled Fixings www. hilti. co. uk Health & Safety Awareness | Professional Services 2012 11

Reducing the Risk of HAVS: Assess the risks by working with Hilti § Hilti provides complete transparency of our products vibration and noise levels as well as the required dust solution in the Hilti Tool Selector www. hilti. co. uk/hands www. hilti. co. uk Health & Safety Awareness | Professional Services 2012 13

Reducing the Risk of HAVS: Hilti’s unique productivity-based Tool Selector Productivity figures Noise level Dust removal www. hilti. co. uk Consumable HSE Points Health & Safety Awareness | Professional Services 2012 14

Reducing the Risk of HAVS: Combining HSE Points with Productivity § The best possible way of measuring exposure to vibration § Valuable planning tool when coupled with the HSE points calculator www. hilti. co. uk Health & Safety Awareness | Professional Services 2012 15

Health & Safety: Key Areas of Risk Hand-arm Vibration Working at Height www. hilti. co. uk Dust Noise Health & Safety Awareness | Professional Services 2012 16

Reducing the Risks of Dust Types of dust Inhalable dust Gets into the mouth and nose Thoracic dust Reaches the upper respiratory area Respirable dust Reaches the finest parts of the lungs (alveola) Source: www. lungenaerzte-im-netz. de; www. atmosphere. mpg. de www. hilti. co. uk Health & Safety Awareness | Professional Services 2012 17

1´´ www. hilti. co. uk Health & Safety Awareness | Professional Services 2012 18

2´´ www. hilti. co. uk Health & Safety Awareness | Professional Services 2012 19

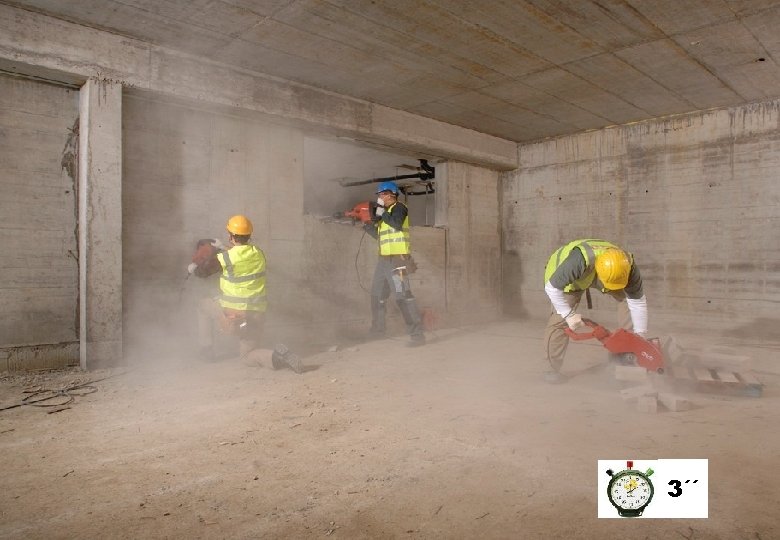

3´´ www. hilti. co. uk Health & Safety Awareness | Professional Services 2012 20

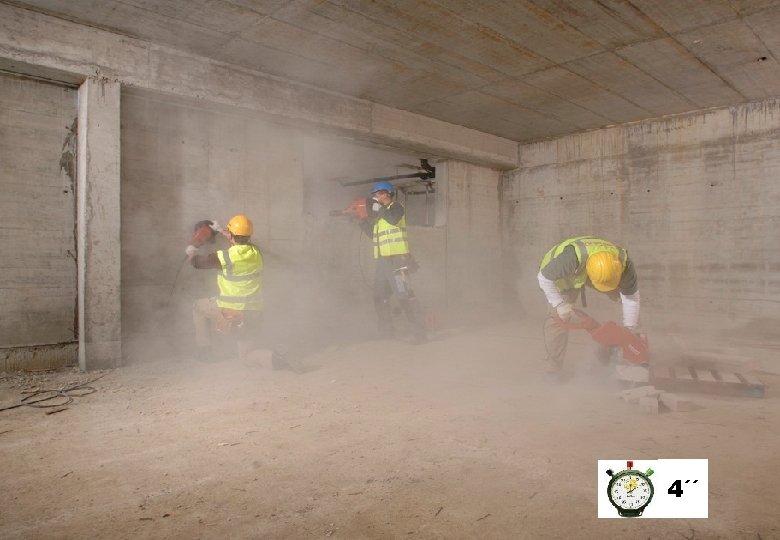

4´´ www. hilti. co. uk Health & Safety Awareness | Professional Services 2012 21

5´´ www. hilti. co. uk Health & Safety Awareness | Professional Services 2012 22

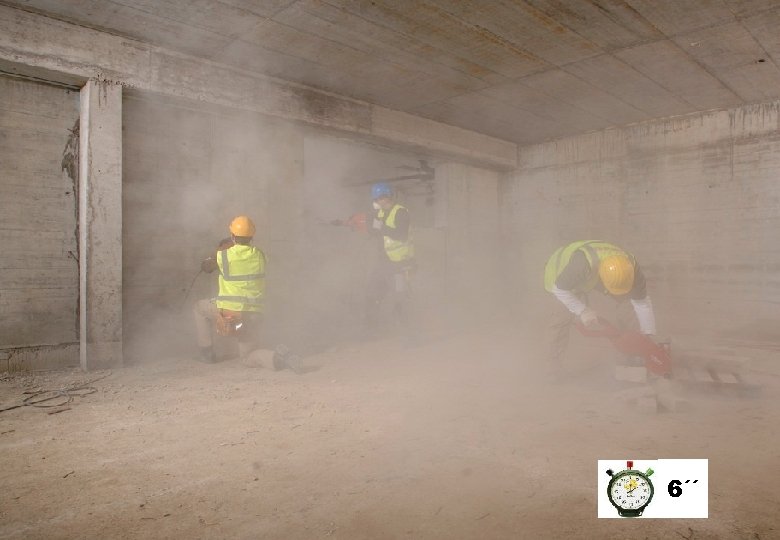

6´´ www. hilti. co. uk Health & Safety Awareness | Professional Services 2012 23

www. hilti. co. uk Health & Safety Awareness | Professional Services 2012 24

Hilti DRS improves customer productivity Tool Lifetime Inhalable Dust [mg/m 3] up to % % -9 9 % no DRS o t up 0 +6 no DRS [mg/m 3] -9 9% no DRS Worker Protection up to Cleaning Effort 0% to up 0 +2 no DRS Consumable Lifetime* Respirable Dust up Application Speed +2 to up to – 15 kg /h no DRS Longer Lifetime no DRS Labour Time Savings Results may differ based on operator technique, specific application, and tool/accessory condition. The need for additional measures must be evaluated by the responsible health and safety personnel on site. www. hilti. co. uk Health & Safety Awareness | Professional Services 2012 25

Hilti DRS with a massive reduction of the potentially hazardous dust Inhalable Dust [mg/m 3] Respirable Dust [mg/m 3] -9 527. 8 9. -9 9. 8% 107. 8 0. 58 no DRS 8% 0. 20 no DRS Tests measurements performed by TÜV with DC SE-20 and VC 40 -UM www. hilti. co. uk Health & Safety Awareness | Professional Services 2012 26

Harmonised dust removal systems must be used at construction sites no dust removal system Inhalable Dust 1000 mg/m³ 9, 2 kg Respirable Dust 220 mg/m³ Inhalable Dust 3. 6 mg/m³ DCH 180 -SL Slitting cable channels in concrete for 1 hr 120 g Respirable Dust 1 mg/m³ Workplace limits vary and are depending on local regulations and type of dust. Results may differ based on operator technique, specific application, and tool/accessory condition. The need for additional safeguards must be evaluated by the responsible health and safety personnel on site. www. hilti. co. uk Health & Safety Awareness | Professional Services 2012 27

Hilti DRS has a positive impact on both tool and consumable lifetime Tool Lifetime Consumable Lifetime 0% up t 2 o+ t up % 60 + o 140 h 85 h no DRS Proven in multiple tests that dust has a negative impact on performance and lifetime on brushes and electronics www. hilti. co. uk 510 m 620 m no DRS Proven that DRS has a positive impact on performance and lifetime on consumables Reason: Removal of old dust particles and air stream cooling improves life and speed Health & Safety Awareness | Professional Services 2012 28

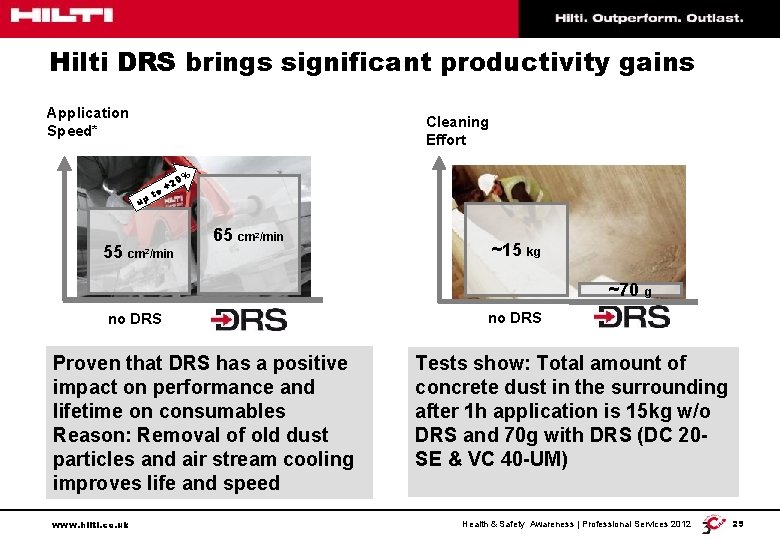

Hilti DRS brings significant productivity gains Application Speed* Cleaning Effort o+ pt % 20 u 55 cm 2/min 65 cm 2/min ~15 kg ~70 g no DRS Proven that DRS has a positive impact on performance and lifetime on consumables Reason: Removal of old dust particles and air stream cooling improves life and speed www. hilti. co. uk no DRS Tests show: Total amount of concrete dust in the surrounding after 1 h application is 15 kg w/o DRS and 70 g with DRS (DC 20 SE & VC 40 -UM) Health & Safety Awareness | Professional Services 2012 29

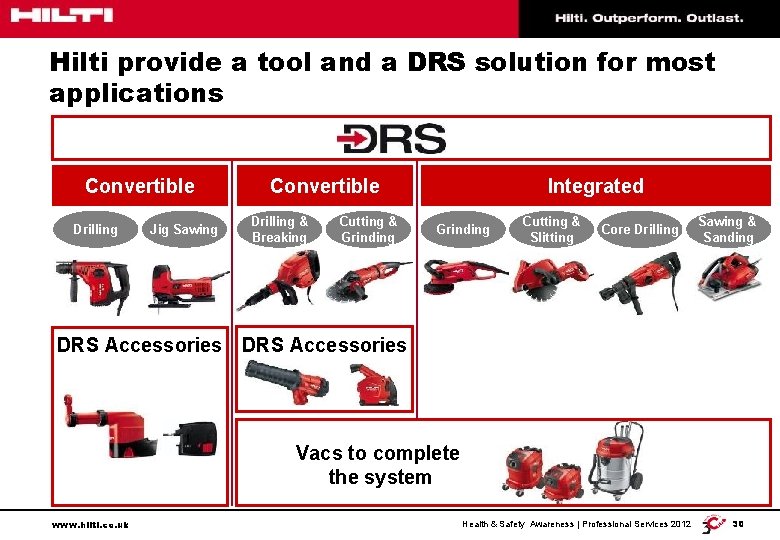

Hilti provide a tool and a DRS solution for most applications Convertible Drilling Jig Sawing Convertible Drilling & Breaking Cutting & Grinding Integrated Grinding Cutting & Slitting Core Drilling Sawing & Sanding DRS Accessories Vacs to complete the system www. hilti. co. uk Health & Safety Awareness | Professional Services 2012 30

Hilti also offer “alternative methods”, when combined with our DRS solutions we have the best offer in the market Alternative Methods Alternative to Drilling and Anchor setting DX GX Alternative to manual and breaker demolition Wet Drilling Wet Sawing Vacs to complete the system www. hilti. co. uk Health & Safety Awareness | Professional Services 2012 31

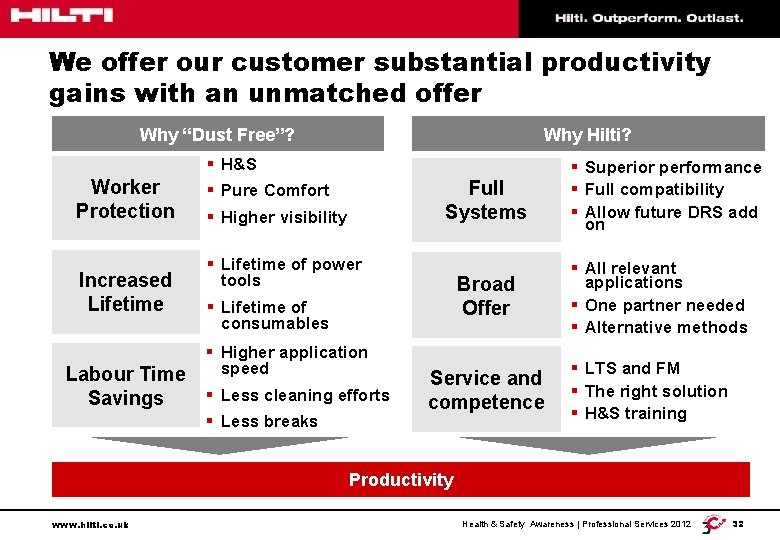

We offer our customer substantial productivity gains with an unmatched offer Why “Dust Free”? Why Hilti? § H&S Worker Protection Increased Lifetime Labour Time Savings Full Systems § Pure Comfort § Higher visibility § Lifetime of power tools Broad Offer § Lifetime of consumables § Higher application speed § Less cleaning efforts § Less breaks Service and competence § Superior performance § Full compatibility § Allow future DRS add on § All relevant applications § One partner needed § Alternative methods § LTS and FM § The right solution § H&S training Productivity www. hilti. co. uk Health & Safety Awareness | Professional Services 2012 32

One last thought on dust… Dust_chamber. avi www. hilti. co. uk Health & Safety Awareness | Professional Services 2012 33

Health & Safety: Key Areas of Risk Hand-arm Vibration Working at Height www. hilti. co. uk Dust Noise Health & Safety Awareness | Professional Services 2012 34

Reducing the Risk of Noise § Loud noise can cause permanent damage to your hearing. Once you loose your hearing, you will never recover it § A European directive has been issued to protect workers from exposure to excessive noise: The Physical Agents (Noise) Directive www. hilti. co. uk Health & Safety Awareness | Professional Services 2012 35

Reducing the Risk of Noise: What do employers need to do? § Inform and train their workforce about § Noise and the associated risk § How they can protect themselves § What measures the employer has taken § Provide suitable protective equipment for their employees’ use § Assess and manage the risk § Define who has what risk level § Provide health surveillance for their employees where risks cannot be eliminated § Consider alternative methods and job rotation The risk assessment must be recorded by the employer and kept up to date www. hilti. co. uk Health & Safety Awareness | Professional Services 2012 36

Reducing the Risk of Noise: What should workers do? § Report any signs of hearing damage immediately to their supervisor. Symptoms are: § Difficulty following a conversation, also on the phone § The family often complains that the TV is too loud § Tinnitus (constant ringing, whistling or humming) in the ears may also be a sign § Use the right kind of ear protection: § There is a wide variety of ear protection available § Pick the one best suited to the applicable job § Consider alternative methods of doing the job, e. g. § Diamond drilling instead of chiselling § Direct fastening instead of drilling www. hilti. co. uk Health & Safety Awareness | Professional Services 2012 37

Health & Safety: Key Areas of Risk Hand-arm Vibration Working at Height www. hilti. co. uk Dust Noise Health & Safety Awareness | Professional Services 2012 38

Reducing the Risk of Working at Height § Falls from Height remain the biggest single cause of workplace deaths and one of the main causes of major injury § Hilti offers a comprehensive range of tried and trusted systems to you reduce your exposure to many of the risks of working at heights. www. hilti. co. uk Health & Safety Awareness | Professional Services 2012 39

Reducing the Risk of Working at Height with Hilti systems & solutions DX pole tool Cordless power tools www. hilti. co. uk Laser measuring and alignment tools “twist and lock“ installation channel assembly systems Health & Safety Awareness | Professional Services 2012 40

Hilti Professional Services: Reducing Key Areas of Risk Hand-arm Vibration Dust Working at Height Noise Hilti Professional Services complement high quality products with the aim to support our customers business in reducing key areas of risk www. hilti. co. uk Health & Safety Awareness | Professional Services 2012 41

Reducing Health & Safety Risks: Hilti Professional Services A fixed monthly charge covers all tool service and repair costs. That greatly simplifies your financial planning and makes tool fleet administration easier. For your safety, convenience and peace of mind, this incudes: § Loan tools in the event of a breakdown, encouraging customers to return faulty or damaged tools and avoid working with potentially unsafe tools. § Tool Exchange At the end of the usage period each tool is replaced with the latest generation ensuring compliance with the latest safety standards. Each repair is completed to the highest possible standard including a full safety check. This guarantees consistent high tool performance, low vibration values and the utmost of safety. www. hilti. co. uk Health & Safety Awareness | Professional Services 2012 42
