Reducing Parallel Overhead Introduction to Parallel Programming – Part 12 INTEL CONFIDENTIAL

Reducing Parallel Overhead Introduction to Parallel Programming – Part 12 INTEL CONFIDENTIAL

Review & Objectives Previously: Use loop fusion, loop fission, and loop inversion to create

Review & Objectives Previously: Use loop fusion, loop fission, and loop inversion to create or improve opportunities for parallel execution Explain why it can be difficult both to optimize load balancing and maximize locality At the end of this part you should be able to: Explain the pros and cons of static versus dynamic loop scheduling Explain the different Open. MP schedule clauses and the situations each one is best suited for Copyright © 2009, Intel Corporation. All rights reserved. Intel and the Intel logo are trademarks or registered trademarks of Intel Corporation or its subsidiaries in the United States or other countries. * Other brands and names are the property of their respective owners. 2

Reducing Parallel Overhead Loop scheduling Replicating work Copyright © 2009, Intel Corporation. All rights

Reducing Parallel Overhead Loop scheduling Replicating work Copyright © 2009, Intel Corporation. All rights reserved. Intel and the Intel logo are trademarks or registered trademarks of Intel Corporation or its subsidiaries in the United States or other countries. * Other brands and names are the property of their respective owners. 3

Loop Scheduling Example for (i = 0; i < 12; i++) for (j =

Loop Scheduling Example for (i = 0; i < 12; i++) for (j = 0; j <= i; j++) a[i][j] =. . . ; Copyright © 2009, Intel Corporation. All rights reserved. Intel and the Intel logo are trademarks or registered trademarks of Intel Corporation or its subsidiaries in the United States or other countries. * Other brands and names are the property of their respective owners. 4

Loop Scheduling Example #pragma omp parallel for (i = 0; i < 12; i++)

Loop Scheduling Example #pragma omp parallel for (i = 0; i < 12; i++) for (j = 0; j <= i; j++) a[i][j] =. . . ; How are the iterations divided among threads? Copyright © 2009, Intel Corporation. All rights reserved. Intel and the Intel logo are trademarks or registered trademarks of Intel Corporation or its subsidiaries in the United States or other countries. * Other brands and names are the property of their respective owners. 5

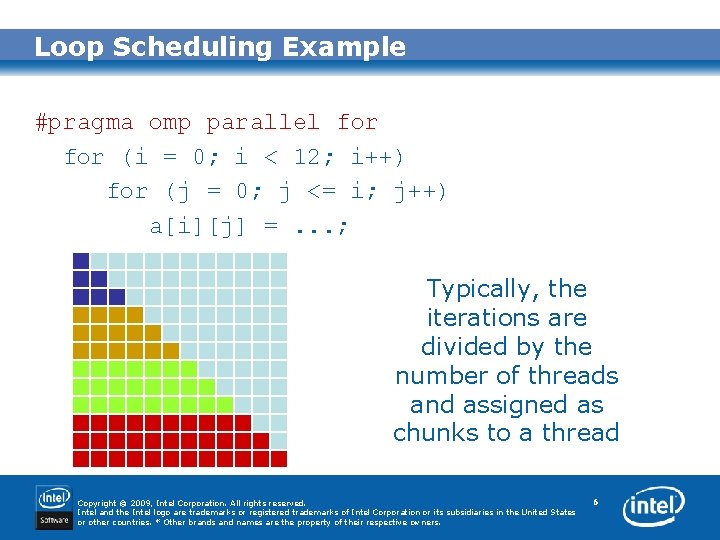

Loop Scheduling Example #pragma omp parallel for (i = 0; i < 12; i++)

Loop Scheduling Example #pragma omp parallel for (i = 0; i < 12; i++) for (j = 0; j <= i; j++) a[i][j] =. . . ; Typically, the iterations are divided by the number of threads and assigned as chunks to a thread Copyright © 2009, Intel Corporation. All rights reserved. Intel and the Intel logo are trademarks or registered trademarks of Intel Corporation or its subsidiaries in the United States or other countries. * Other brands and names are the property of their respective owners. 6

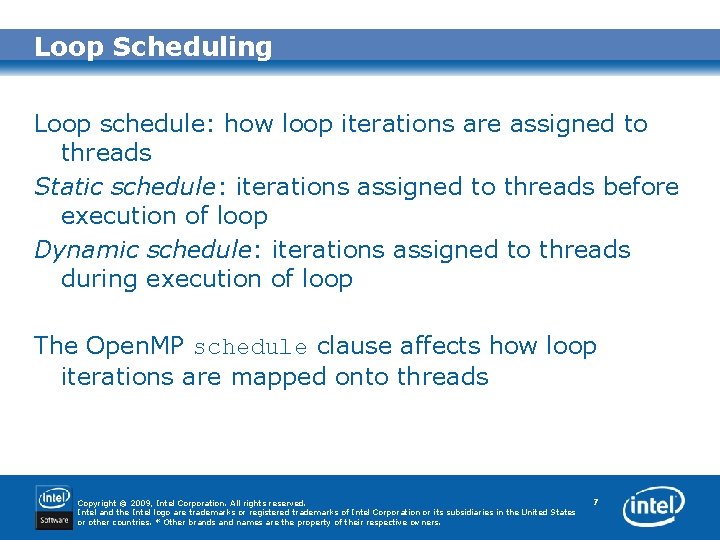

Loop Scheduling Loop schedule: how loop iterations are assigned to threads Static schedule: iterations

Loop Scheduling Loop schedule: how loop iterations are assigned to threads Static schedule: iterations assigned to threads before execution of loop Dynamic schedule: iterations assigned to threads during execution of loop The Open. MP schedule clause affects how loop iterations are mapped onto threads Copyright © 2009, Intel Corporation. All rights reserved. Intel and the Intel logo are trademarks or registered trademarks of Intel Corporation or its subsidiaries in the United States or other countries. * Other brands and names are the property of their respective owners. 7

The schedule clause schedule(static [, chunk]) • Blocks of iterations of size “chunk” to

The schedule clause schedule(static [, chunk]) • Blocks of iterations of size “chunk” to threads • Round robin distribution • Low overhead, may cause load imbalance Best used for predictable and similar work per iteration Copyright © 2009, Intel Corporation. All rights reserved. Intel and the Intel logo are trademarks or registered trademarks of Intel Corporation or its subsidiaries in the United States or other countries. * Other brands and names are the property of their respective owners. 8

Loop Scheduling Example #pragma omp parallel for schedule(static, 2) for (i = 0; i

Loop Scheduling Example #pragma omp parallel for schedule(static, 2) for (i = 0; i < 12; i++) for (j = 0; j <= i; j++) a[i][j] =. . . ; Copyright © 2009, Intel Corporation. All rights reserved. Intel and the Intel logo are trademarks or registered trademarks of Intel Corporation or its subsidiaries in the United States or other countries. * Other brands and names are the property of their respective owners. 9

The schedule clause schedule(dynamic[, chunk]) • Threads grab “chunk” iterations • When done with

The schedule clause schedule(dynamic[, chunk]) • Threads grab “chunk” iterations • When done with iterations, thread requests next set • Higher threading overhead, can reduce load imbalance Best used for unpredictable or highly variable work per iteration Copyright © 2009, Intel Corporation. All rights reserved. Intel and the Intel logo are trademarks or registered trademarks of Intel Corporation or its subsidiaries in the United States or other countries. * Other brands and names are the property of their respective owners. 10

Loop Scheduling Example #pragma omp parallel for schedule(dynamic, 2) for (i = 0; i

Loop Scheduling Example #pragma omp parallel for schedule(dynamic, 2) for (i = 0; i < 12; i++) for (j = 0; j <= i; j++) a[i][j] =. . . ; Copyright © 2009, Intel Corporation. All rights reserved. Intel and the Intel logo are trademarks or registered trademarks of Intel Corporation or its subsidiaries in the United States or other countries. * Other brands and names are the property of their respective owners. 11

The schedule clause schedule(guided[, chunk]) • Dynamic schedule starting with large block • Size

The schedule clause schedule(guided[, chunk]) • Dynamic schedule starting with large block • Size of the blocks shrink; no smaller than “chunk” Best used as a special case of dynamic to reduce scheduling overhead when the computation gets progressively more time consuming Copyright © 2009, Intel Corporation. All rights reserved. Intel and the Intel logo are trademarks or registered trademarks of Intel Corporation or its subsidiaries in the United States or other countries. * Other brands and names are the property of their respective owners. 12

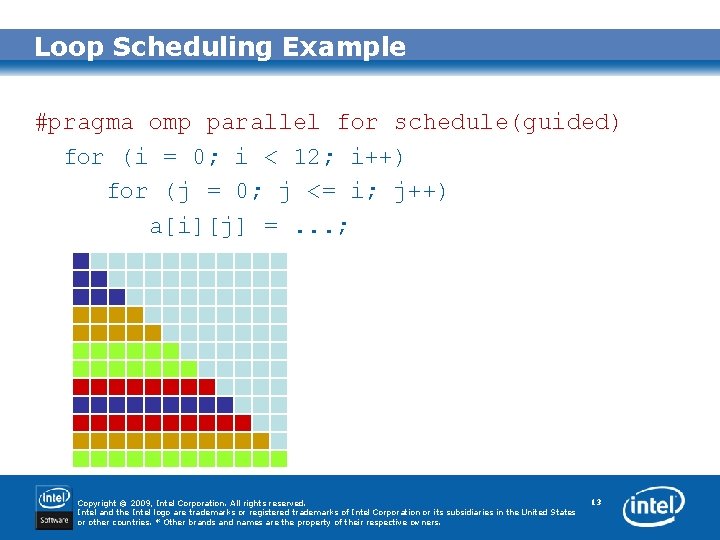

Loop Scheduling Example #pragma omp parallel for schedule(guided) for (i = 0; i <

Loop Scheduling Example #pragma omp parallel for schedule(guided) for (i = 0; i < 12; i++) for (j = 0; j <= i; j++) a[i][j] =. . . ; Copyright © 2009, Intel Corporation. All rights reserved. Intel and the Intel logo are trademarks or registered trademarks of Intel Corporation or its subsidiaries in the United States or other countries. * Other brands and names are the property of their respective owners. 13

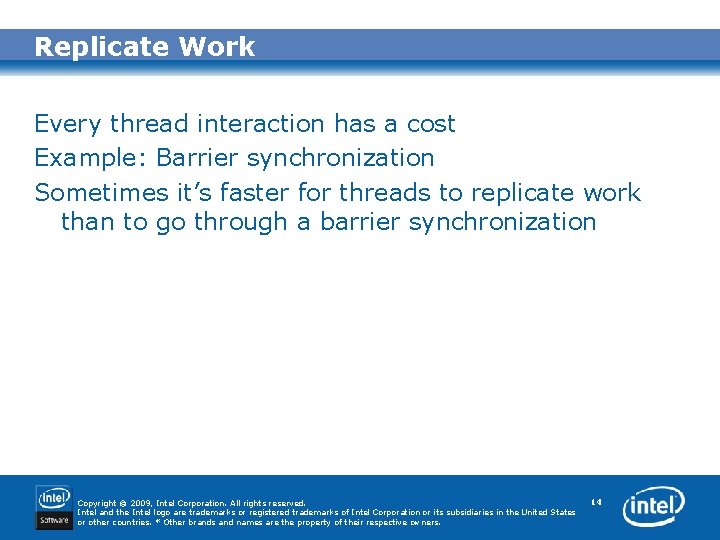

Replicate Work Every thread interaction has a cost Example: Barrier synchronization Sometimes it’s faster

Replicate Work Every thread interaction has a cost Example: Barrier synchronization Sometimes it’s faster for threads to replicate work than to go through a barrier synchronization Copyright © 2009, Intel Corporation. All rights reserved. Intel and the Intel logo are trademarks or registered trademarks of Intel Corporation or its subsidiaries in the United States or other countries. * Other brands and names are the property of their respective owners. 14

Before Work Replication for (i = 0; i < N; i++) a[i] = foo(i);

Before Work Replication for (i = 0; i < N; i++) a[i] = foo(i); x = a[0] / a[N-1]; for (i = 0; i < N; i++) b[i] = x * a[i]; Both for loops are amenable to parallelization Copyright © 2009, Intel Corporation. All rights reserved. Intel and the Intel logo are trademarks or registered trademarks of Intel Corporation or its subsidiaries in the United States or other countries. * Other brands and names are the property of their respective owners. 15

First Open. MP Attempt #pragma omp parallel { #pragma omp for (i = 0;

First Open. MP Attempt #pragma omp parallel { #pragma omp for (i = 0; i < N; i++) a[i] = foo(i); #pragma omp single x = a[0] / a[N-1]; Implicit Barrier #pragma omp for (i = 0; i < N; i++) b[i] = x * a[i]; } Synchronization among threads required if x is shared and one thread performs assignment Copyright © 2009, Intel Corporation. All rights reserved. Intel and the Intel logo are trademarks or registered trademarks of Intel Corporation or its subsidiaries in the United States or other countries. * Other brands and names are the property of their respective owners. 16

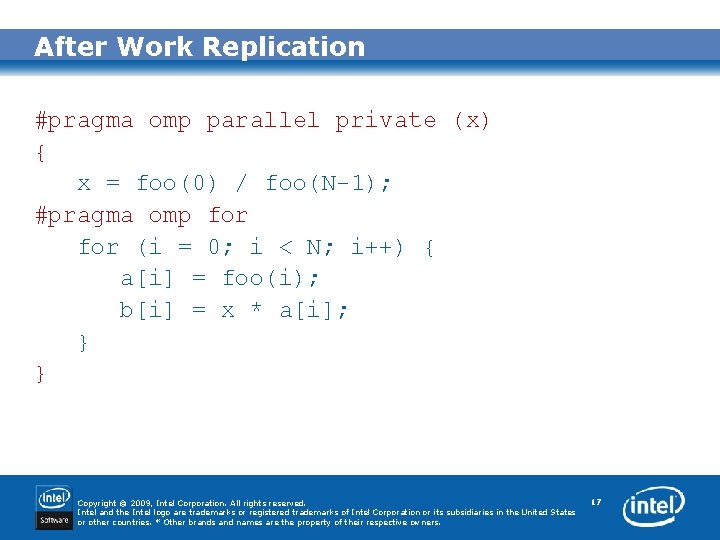

After Work Replication #pragma omp parallel private (x) { x = foo(0) / foo(N-1);

After Work Replication #pragma omp parallel private (x) { x = foo(0) / foo(N-1); #pragma omp for (i = 0; i < N; i++) { a[i] = foo(i); b[i] = x * a[i]; } } Copyright © 2009, Intel Corporation. All rights reserved. Intel and the Intel logo are trademarks or registered trademarks of Intel Corporation or its subsidiaries in the United States or other countries. * Other brands and names are the property of their respective owners. 17

References Rohit Chandra, Leonardo Dagum, Dave Kohr, Dror Maydan, Jeff Mc. Donald, and Ramesh

References Rohit Chandra, Leonardo Dagum, Dave Kohr, Dror Maydan, Jeff Mc. Donald, and Ramesh Menon, Parallel Programming in Open. MP, Morgan Kaufmann (2001). Peter Denning, “The Locality Principle, ” Naval Postgraduate School (2005). Michael J. Quinn, Parallel Programming in C with MPI and Open. MP, Mc. Graw-Hill (2004). Copyright © 2009, Intel Corporation. All rights reserved. Intel and the Intel logo are trademarks or registered trademarks of Intel Corporation or its subsidiaries in the United States or other countries. * Other brands and names are the property of their respective owners. 18
