Redesigned RTC/RTS Fiber Enclosures

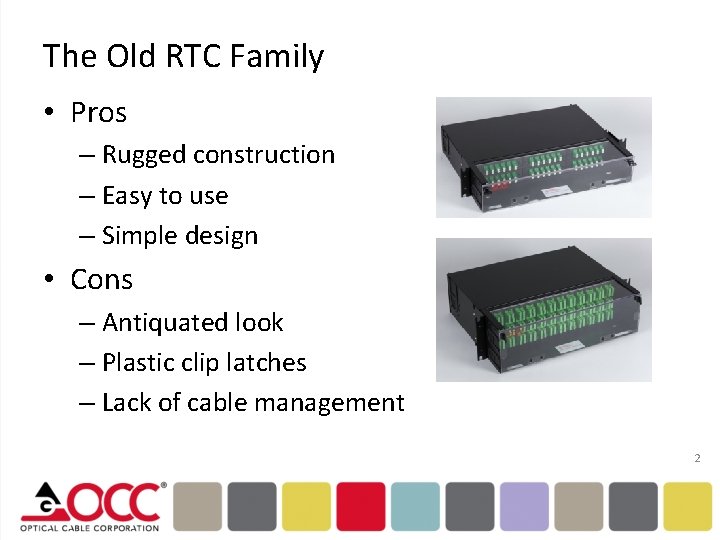

The Old RTC Family • Pros – Rugged construction – Easy to use – Simple design • Cons – Antiquated look – Plastic clip latches – Lack of cable management 2

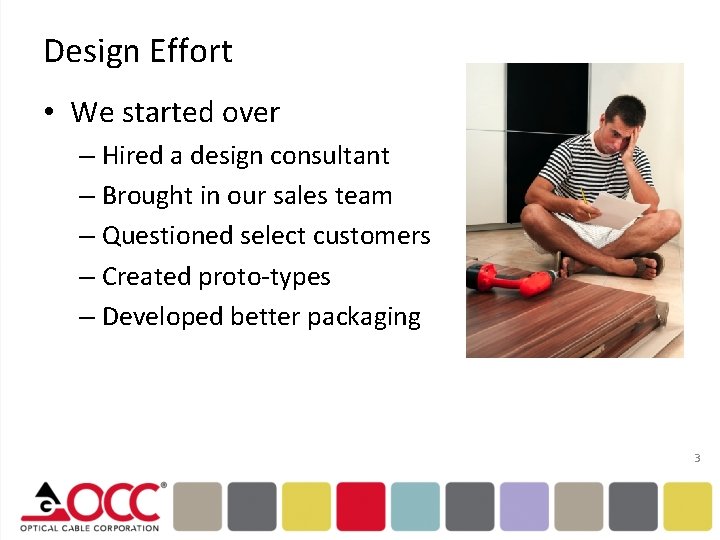

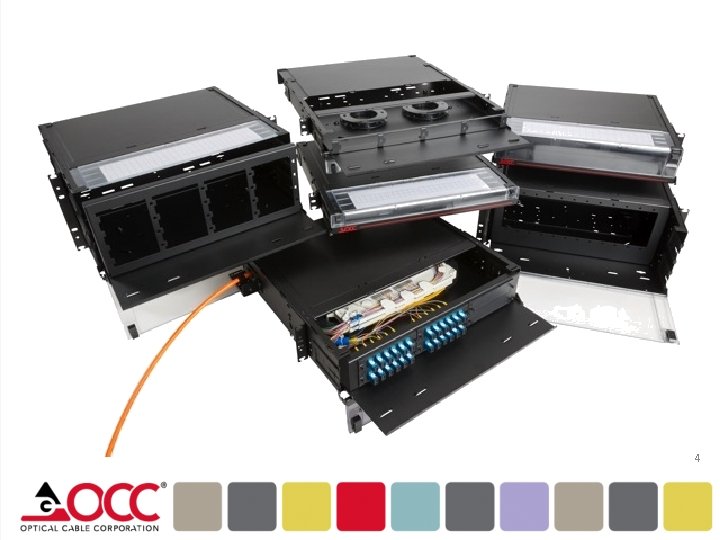

Design Effort • We started over – Hired a design consultant – Brought in our sales team – Questioned select customers – Created proto-types – Developed better packaging 3
4

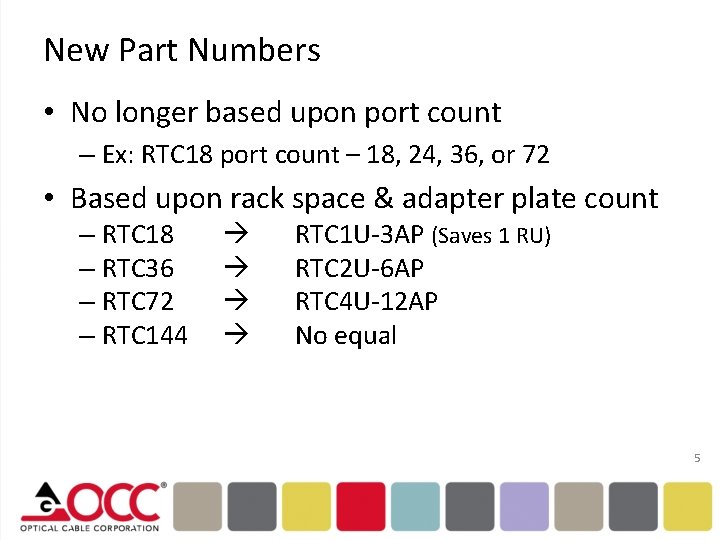

New Part Numbers • No longer based upon port count – Ex: RTC 18 port count – 18, 24, 36, or 72 • Based upon rack space & adapter plate count – RTC 18 – RTC 36 – RTC 72 – RTC 144 RTC 1 U-3 AP (Saves 1 RU) RTC 2 U-6 AP RTC 4 U-12 AP No equal 5

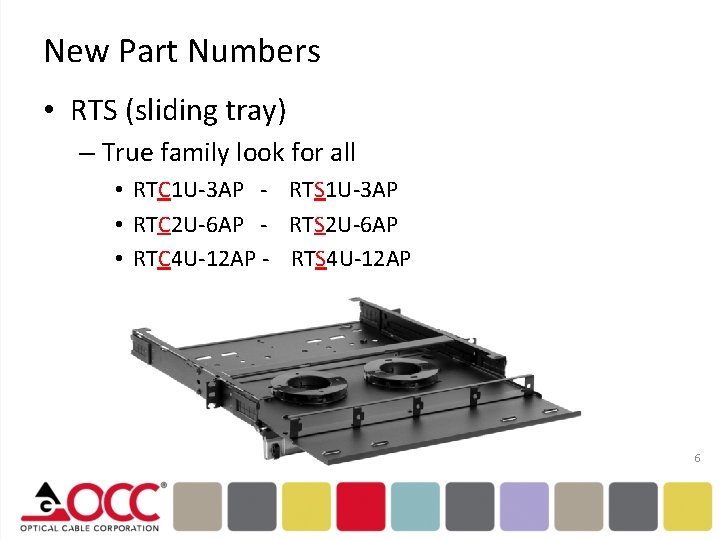

New Part Numbers • RTS (sliding tray) – True family look for all • RTC 1 U-3 AP - RTS 1 U-3 AP • RTC 2 U-6 AP - RTS 2 U-6 AP • RTC 4 U-12 AP - RTS 4 U-12 AP 6

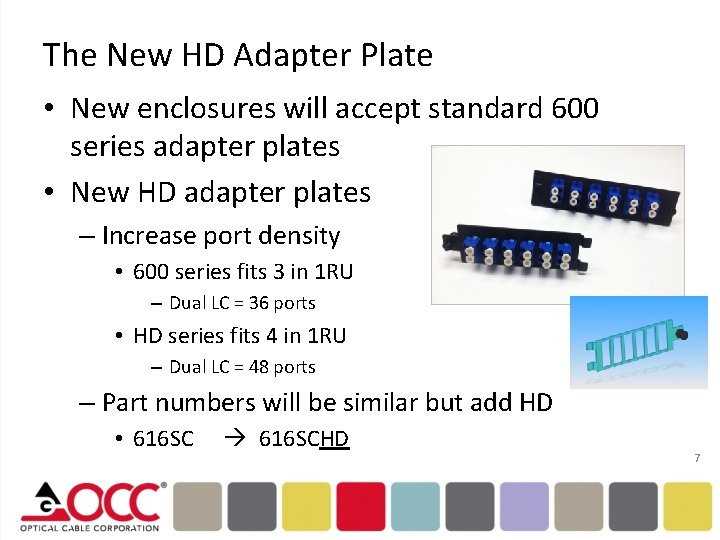

The New HD Adapter Plate • New enclosures will accept standard 600 series adapter plates • New HD adapter plates – Increase port density • 600 series fits 3 in 1 RU – Dual LC = 36 ports • HD series fits 4 in 1 RU – Dual LC = 48 ports – Part numbers will be similar but add HD • 616 SCHD 7

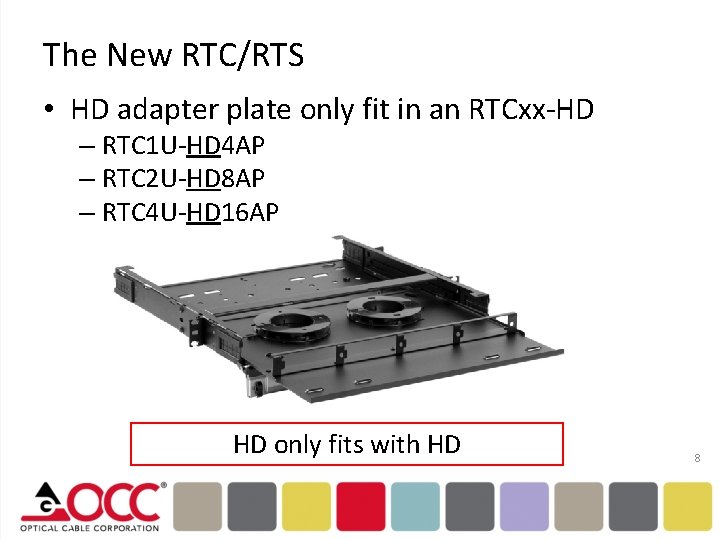

The New RTC/RTS • HD adapter plate only fit in an RTCxx-HD – RTC 1 U-HD 4 AP – RTC 2 U-HD 8 AP – RTC 4 U-HD 16 AP HD only fits with HD 8

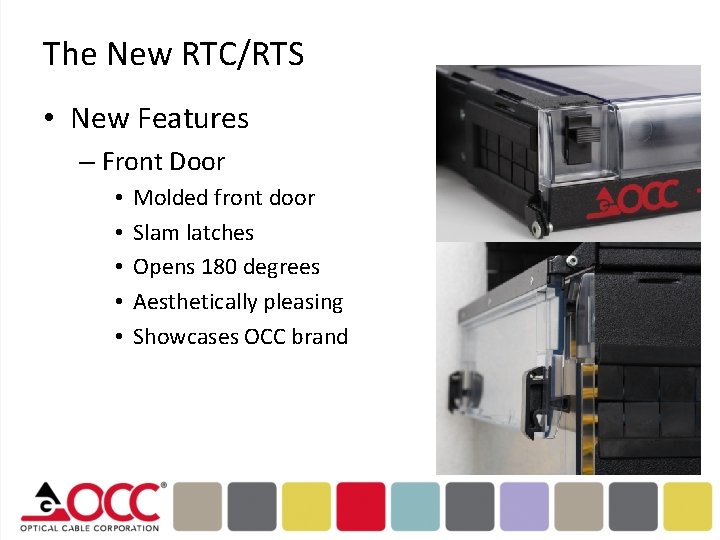

The New RTC/RTS • New Features – Front Door • • • Molded front door Slam latches Opens 180 degrees Aesthetically pleasing Showcases OCC brand

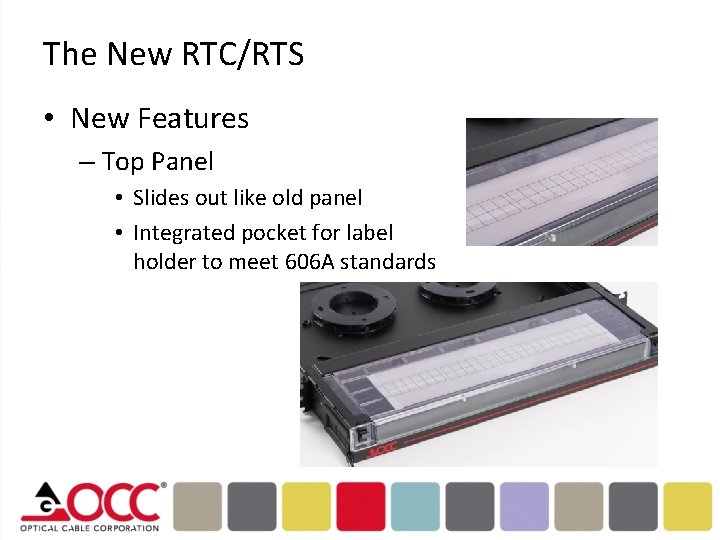

The New RTC/RTS • New Features – Top Panel • Slides out like old panel • Integrated pocket for label holder to meet 606 A standards

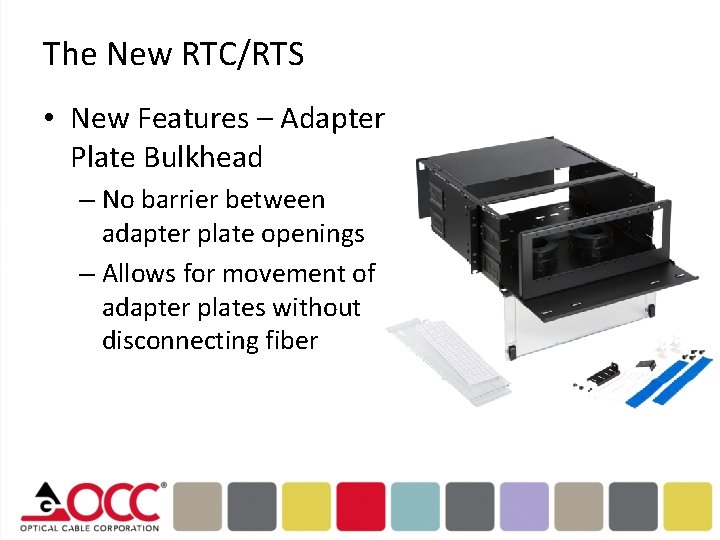

The New RTC/RTS • New Features – Adapter Plate Bulkhead – No barrier between adapter plate openings – Allows for movement of adapter plates without disconnecting fiber

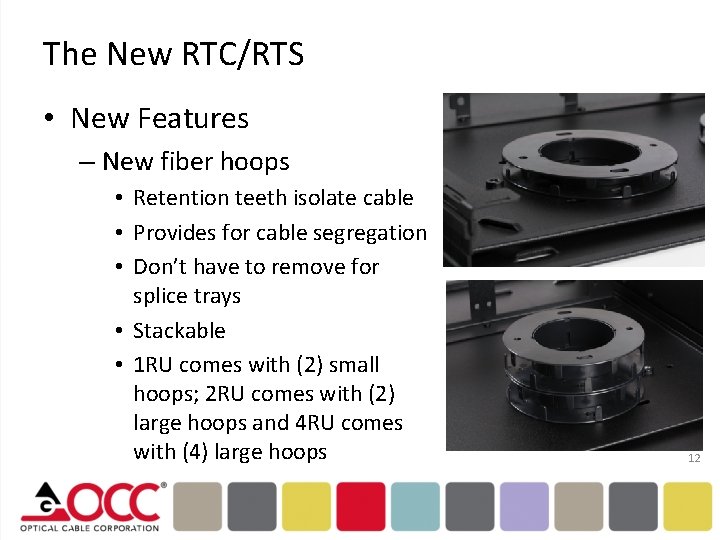

The New RTC/RTS • New Features – New fiber hoops • Retention teeth isolate cable • Provides for cable segregation • Don’t have to remove for splice trays • Stackable • 1 RU comes with (2) small hoops; 2 RU comes with (2) large hoops and 4 RU comes with (4) large hoops 12

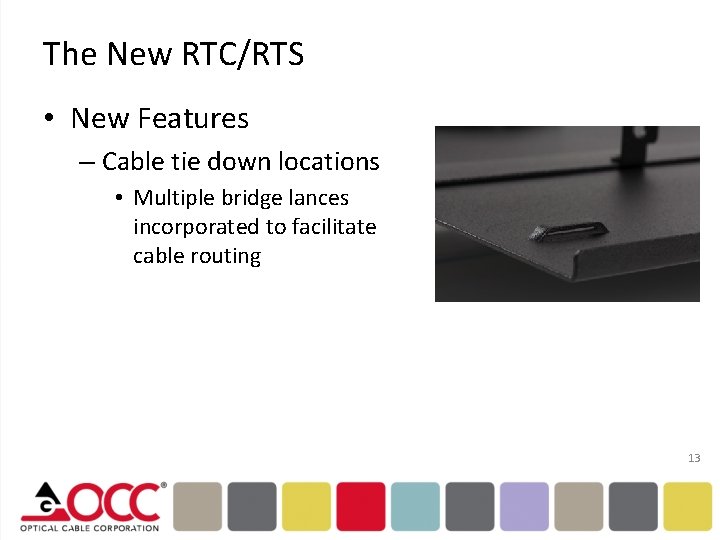

The New RTC/RTS • New Features – Cable tie down locations • Multiple bridge lances incorporated to facilitate cable routing 13

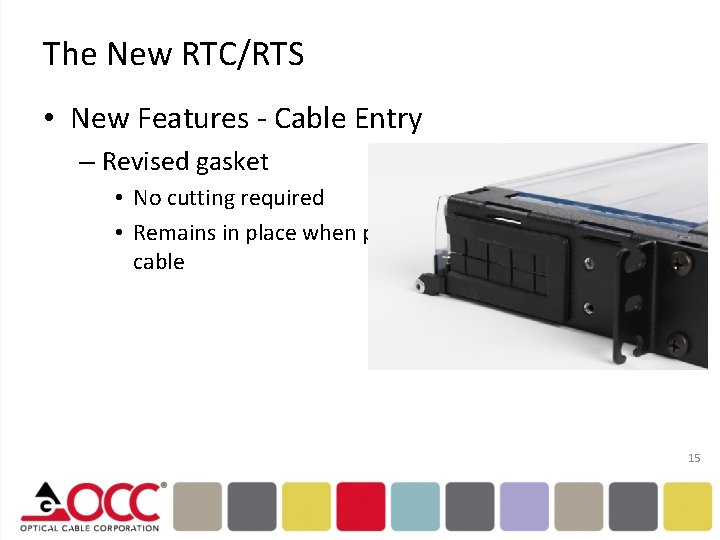

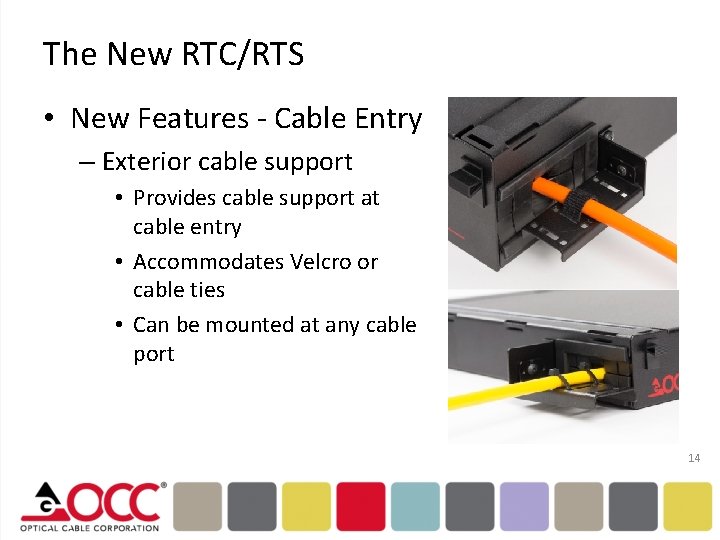

The New RTC/RTS • New Features - Cable Entry – Exterior cable support • Provides cable support at cable entry • Accommodates Velcro or cable ties • Can be mounted at any cable port 14
The New RTC/RTS • New Features - Cable Entry – Revised gasket • No cutting required • Remains in place when pulling cable 15

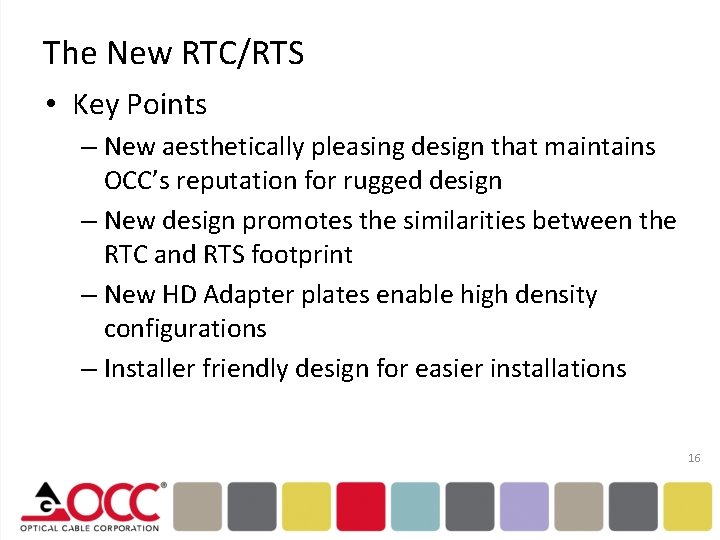

The New RTC/RTS • Key Points – New aesthetically pleasing design that maintains OCC’s reputation for rugged design – New design promotes the similarities between the RTC and RTS footprint – New HD Adapter plates enable high density configurations – Installer friendly design for easier installations 16

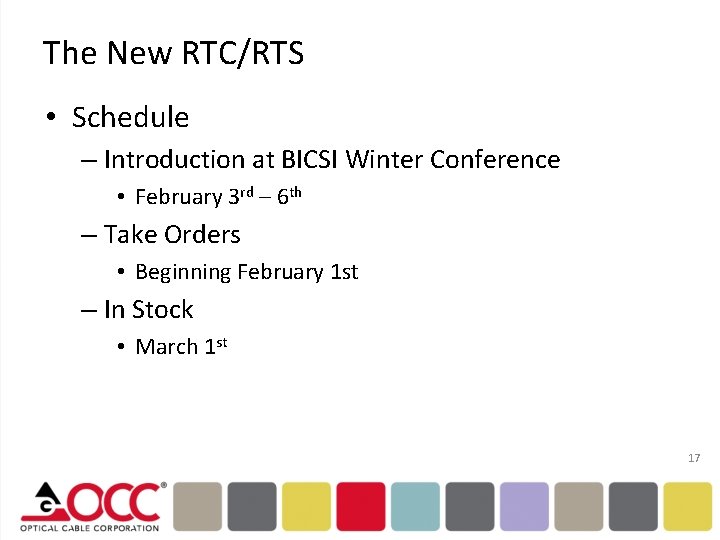

The New RTC/RTS • Schedule – Introduction at BICSI Winter Conference • February 3 rd – 6 th – Take Orders • Beginning February 1 st – In Stock • March 1 st 17

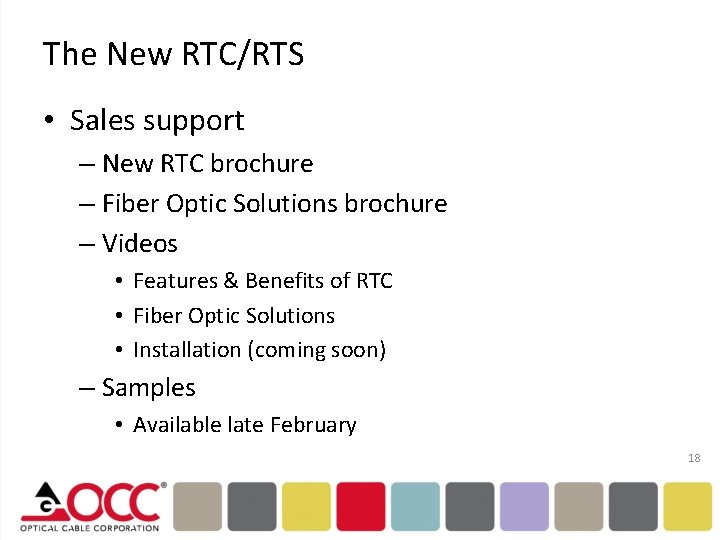

The New RTC/RTS • Sales support – New RTC brochure – Fiber Optic Solutions brochure – Videos • Features & Benefits of RTC • Fiber Optic Solutions • Installation (coming soon) – Samples • Available late February 18
