Red IRIS Red IRIS Red IRIS is a

Red. IRIS

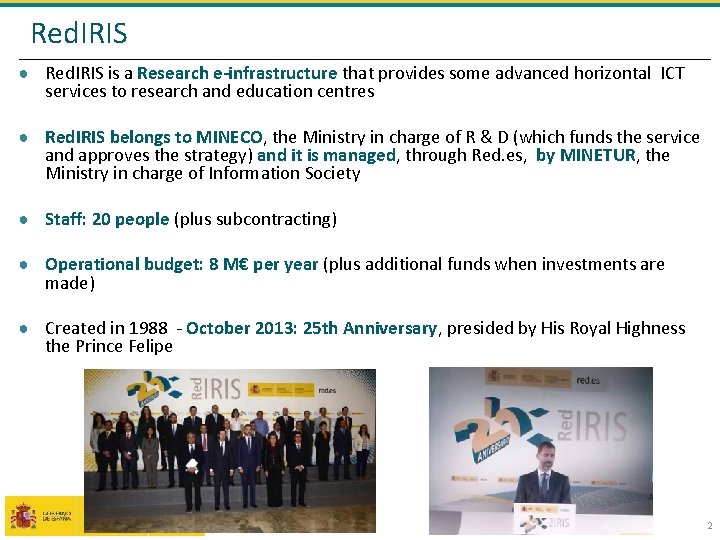

Red. IRIS ● Red. IRIS is a Research e-infrastructure that provides some advanced horizontal ICT services to research and education centres ● Red. IRIS belongs to MINECO, the Ministry in charge of R & D (which funds the service and approves the strategy) and it is managed, through Red. es, by MINETUR, the Ministry in charge of Information Society ● Staff: 20 people (plus subcontracting) ● Operational budget: 8 M€ per year (plus additional funds when investments are made) ● Created in 1988 - October 2013: 25 th Anniversary, presided by His Royal Highness the Prince Felipe 2

Information Society Technology Chemistry Engineering Physics Earth Sciences Material Sciences Biomedicine and Health Sciences Astronomy e-Science Middleware and applications Communications network Computing resources Storage resources Information resoruces Other resources 3

Information Society Technology Chemistry Engineering Physics Earth Sciences Material Sciences Biomedicine and Health Sciences Astronomy Red. IRIS and e-Science Middleware and applications Communications network Computing resources Storage resources Information resoruces Other resources 4

Red. IRIS in the Global Research Intranet Red. IRIS directly contributes to the improvement of global connectivity among researchers Red. IRIS Manages the Spanish NREN and cooperates with other NRENs (JANET, SURFnet, GARR…) Collaborates with regional networks (RICA, Anella, RECETGA, I 2 BASK… Provide services and support Pan-European, North America… Research Networks National Research and Education Networks (NRENs) Regional research network Campus network Red. IRIS Co-manages and co-funds GÉANT, which cooperates with Internet 2, CANARIE, Red. CLARA, . . . Red. IRIS collaborates with Spanish regional networks to provide high quality services to the Spanish Research Community 5

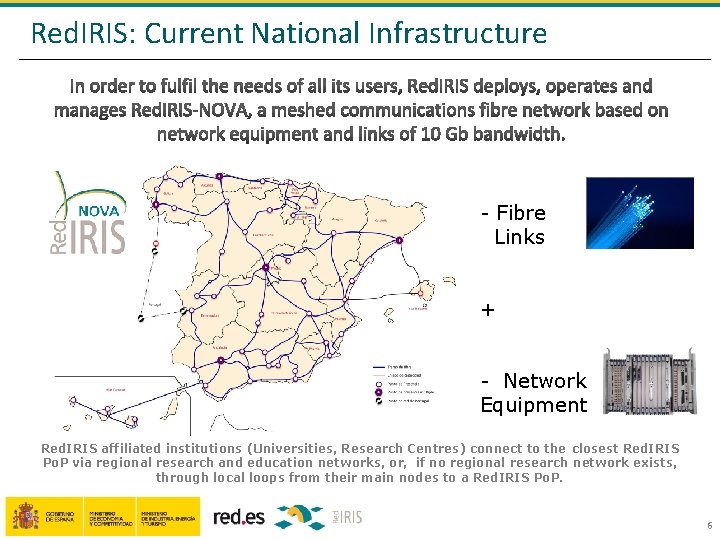

Red. IRIS: Current National Infrastructure - Fibre Links + - Network Equipment Red. IRIS affiliated institutions (Universities, Research Centres) connect to the closest Red. IRIS Po. P via regional research and education networks, or, if no regional research network exists, through local loops from their main nodes to a Red. IRIS Po. P. 6

Red. IRIS: collaboration with Regional Research Networks E 3 7

Red. IRIS contribution to European Infrastructure Pan-European Research Network Connects 34 National Research Networks Offers: § 50. 000 Km of network § 12. 000 Km of fibre § 3. 500 institutions § 40 million potential users Able to provide advanced services § Hybrid network: § IP § Dedicated circuits or lightpaths § IPv 4 / IPv 6 § Global added-value services 8

Red. IRIS: Contribution to Global Infrastructure 9

Access to Global Internet 2 x 10 G Intranet of research 0 G 1 1 x 1 x 10 G IP service 2 x 10 G R&D projects 3 x 10 G 1 x 1 G 10

Red. IRIS users: affiliated institutions Other 14, 81% R&D Centers 37, 50% R&D Management Organizations 18, 06% Universities 17, 13% Health institutions 12, 50% 11

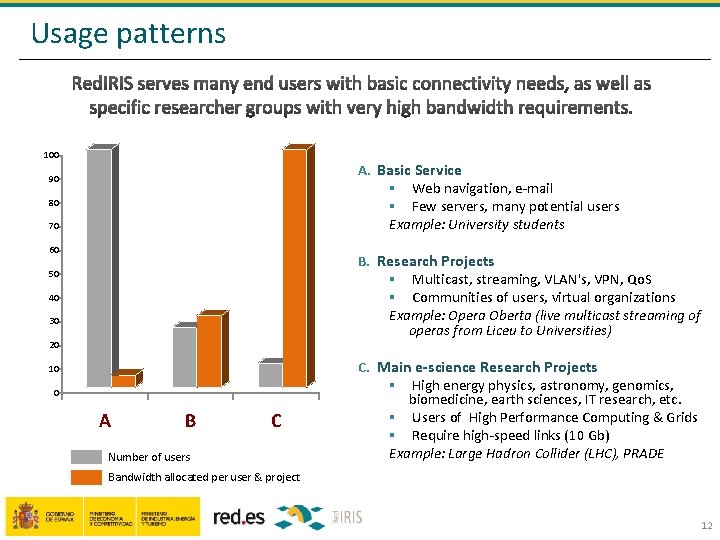

Usage patterns 100 A. Basic Service § Web navigation, e-mail § Few servers, many potential users Example: University students 90 80 70 60 B. Research Projects § Multicast, streaming, VLAN's, VPN, Qo. S § Communities of users, virtual organizations Example: Opera Oberta (live multicast streaming of operas from Liceu to Universities) 50 40 30 20 10 0 A B C Number of users C. Main e-science Research Projects § High energy physics, astronomy, genomics, biomedicine, earth sciences, IT research, etc. § Users of High Performance Computing & Grids § Require high-speed links (10 Gb) Example: Large Hadron Collider (LHC), PRADE Bandwidth allocated per user & project 12

Some e-science users of Red. IRIS High Energy Physics (LHC, MAGIC) Astronomy (remote observation, automatic observatories, networks of telescopes) High performance computing Biology (National Parks, Life. Watch) (PRACE, RES, EGI) PRACE RES 13

Red. IRIS: user satisfaction ● Red. IRIS has ISO 9000 quality certification for its main procedures ● As part of this certification, there are two annual quality surveys – with very positive results so far Source: Yearly satisfaction survey 2013 – Mx. Value: 6 – Minimum Red. es goal: 4 out of 6 ● Additional detailed on-line survey about each service in the Red. IRIS catalogue ● More feedback obtained in Red. IRIS distribution lists, Working Groups and Annual Event (approx. 400 attendees – considered by university ICT managers as their main annual event) 14

Red. IRIS activities Projects: International projects (GÉANT 3, EGI, FI-WARE…), national projects (PASITO), collaboration with partners in innovation activities Fora: TERENA, DANTE, Trusted Introducer, FIRST, MAAWG, APWG… Services 15

Research Projects Red. IRIS-NOVA (2009 -2015) GN 3+ - VIIPM (2013 -2015) Projects Deployment of the Pan-European Research Network • Monitoring • Security • Identity federations, authentication • Mobility • Cross-border fiber EGI-In. SPIRE - VIIPM (2010 -2014) Fora European Grid project • Coordination of handling of security incidents • pk. IRISGrid (e-science digital certificate) • Back- up of central services EUMEDCONNECT 3 - ENPI (2012 -2015) Services ALICE 2 - Europe. Aid (2008 -2012) ELCIRA - Europe. Aid (2012 -2014) Collaborate in the deployment of services in Latin America academic networks FI-WARE - VII PM - FI-PPP (2011 -2014) Future Internet core platform XIFI- VII PM –FI-PPP (2013 -2015) Connection of Future Internet platforms 16

Fora collaborations Participation Projects Fora Services Goal: to get ideas about new services, to gather information about new technologies, to launch collaborative projects. • ABUSES • FIRST • APWG • MAAWG • CRUE-TIC • Observatorio IPv 6 • CSIRT. es • RIPE • DANTE • Red e-Ciencia • EUGrid. PMA • TERENA (TEC, TTC, TF, TNC) • EURODIG Organization Goal: To strengthen relations with users and disseminate available services. • Working Group • Annual Event • Security Workshop • ABUSES • Mobility Workshop • Training courses • Organization of GN 3 or TERENA meetings 17

Red. IRIS Services Dissemination and Advice E-mail Quality Digital Identity RACE IRISRBL PUA SIR SCS RID Key. Server Projects Collaboration Mobility eduroam Fora Listserv BSCW gds forja e-Science Storage FTP ARCA Services pk. IRISGrid, Bck central services Security Handling of network security incidents Connectivity Internet multicast DNS NOC IP addresses Private Networks VPN-L 2 lightpaths 18

Total incoming and out coming traffic 22, 000. 00 TB 20, 000. 00 18, 000. 00 16, 000. 00 14, 000. 00 12, 000. 00 10, 000. 00 8, 000. 00 6, 000. 00 4, 000. 00 2, 000. 00 155 Mbps 2002 2003 2004 2. 5 Gbps 2005 2006 10 Gbps 2007 OUT 2008 IN 2009 19

Red. IRIS evolution Red. IRIS starts (2002) Red. IRIS IPv 6 LAN Speed Record ARPAnet project 1968 1983 1988 1989 1990 1991 1992 1993 1994 1995 1996 1997 1998 1999 2000 2001 2002 2003 2004 2005 2006 2007 2008 2009 2010 2011 2012 2013 1 de Enero de 1983 The Flag Day TCP/IP First European research networks First Spanish Web servers (1993) DANTE constitutes itself (1998) Starts TEN-155 project (2001) Starts GEANT project (2004) Starts GEANT 2 project (2008) Starts GEANT 3 project (2013) Starts GEANT 3+ project 20

Red. IRIS-NOVA : the dark fiber project 2009 2010 Competitive Dialog with 23 companies 2011 2012 2013 2014 Phase 1: start operation • 12. 000 Km dark fiber • 2. 000 Km submarine cables • Cross border fiber wth Portugal • Long-term IRU network • 21 years for the peninsula and • 30 years for Canary Islands • Much more bandwidth and more services possibilities • 80 x 10 G, 60 x 40 G ó 100 G (terrestrial links) • 128 x 10 G (submarine links) • Cost 104 M€ (49 M€ FEDER) • Save over 50 M€ over the previous model 21

Competitive dialogue for Red. IRIS-NOVA ● Pioneers (first case in the Spanish Administration – in a tender of up to ● ● ● 138 M€, with very tight schedule, for a complex contract requiring services not yet available as such “off-the-shelf” in the market) Preceded by Request for Information (RFI) Competitive Dialogue announced at the EU Official Journal 25 bidders – 2 bids were rejected, 23 bidders (9 fiber providers, 14 optical equipment providers) invited to participate § Accepted bidders could eventually reach agreements for joint bids Four rounds of negotiation took place § making it possible to ensure that Red. IRIS requested high performance solutions at affordable prices, which could be provided by enough companies to ensure adequate competition The competitive dialogue had finally three different lots: § one for dark fiber in mainland Spain, § one for dark fiber for the Canary islands, § one for optical equipment Final result was very positive as regards both technical parameters and price 22

Competitive dialogue: Need to find a balance Best service More time to look for the best solution Work with many potential providers Include more compulsory requirements Increase number of bidders Minimize bid management effort and costs Cheapest price Make procedure as short as possible for bidders 2323

Fiber Tender Results. . . ü Telefónica as peninsula fiber supplier ü Islalink fiber as Canary Islands supplier Required ( improvements as criteria selection) Achieved IRU Duration > 10 years 21 years and 30 for Canary Islands fiber ( starting when last span is delivered – 2011) Fiber Type G. 652 B/D, G. 655 and G. 656 (Subm. ) G. 652 D and G. 655 Fiber Age max. 1994 New Deployment ( terrestrial and submarine) Attenuation ≤ 0, 38 d. B/Km (@1310 nm) ≤ 0, 25 d. B/Km (@1550 nm) ≤ 0, 34 d. B/Km (@1310 nm) ≤ 0, 20 d. B/Km (@1550 nm) PMD ≤ 0. 50 ps/√km ≤ 0. 20 ps/√km Coverage üPeninsula: 48 add/drop Po. Ps mandatory and 128 add/drop Po. Ps desired but optional üCanary Islands fiber: with and within ü Peninsula: 148 add/drop Po. Ps ( 42 + 106 ) [42 Po. Ps => 10. 475 km ] üCanary Islands fiber: 3 add/drop Po. Ps => 2. 000 km of fiber Redundancy • C 1 Po. Ps ü 15 fiber rings ILA sites Space without fitting-out Guaranteed fitting-out included for all ILAs 24

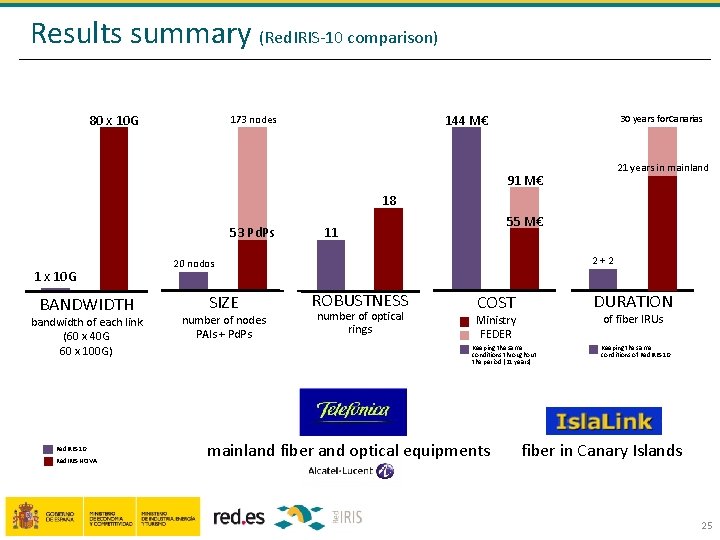

Results summary (Red. IRIS-10 comparison) 80 x 10 G 144 M€ 173 nodes 30 years for. Canarias 21 years in mainland 91 M€ 18 53 Pd. Ps 1 x 10 G BANDWIDTH bandwidth of each link (60 x 40 G 60 x 100 G) Red. IRIS-10 Red. IRIS-NOVA 55 M€ 11 2+2 20 nodos SIZE number of nodes PAIs + Pd. Ps ROBUSTNESS number of optical rings DURATION COST of fiber IRUs Ministry FEDER Keeping the same conditions throughout the period (21 years) mainland fiber and optical equipments Keeping the same conditions of Red. IRIS-10 fiber in Canary Islands 25

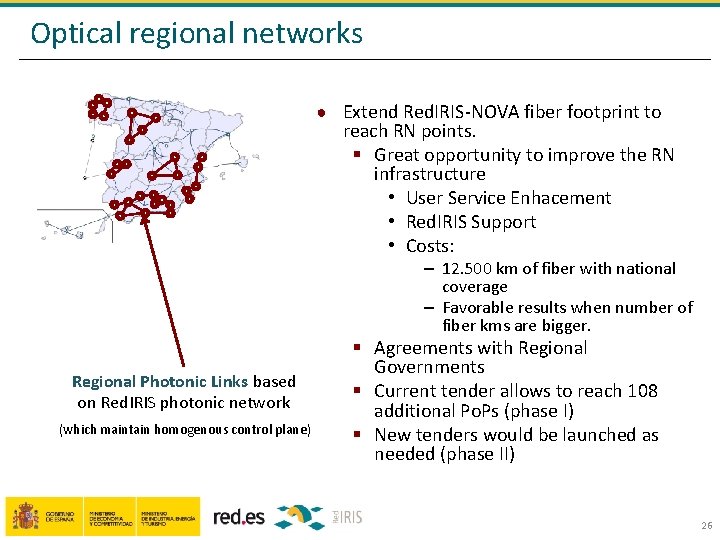

Optical regional networks ● Extend Red. IRIS-NOVA fiber footprint to reach RN points. § Great opportunity to improve the RN infrastructure • User Service Enhacement • Red. IRIS Support • Costs: – 12. 500 km of fiber with national coverage – Favorable results when number of fiber kms are bigger. Regional Photonic Links based on Red. IRIS photonic network (which maintain homogenous control plane) § Agreements with Regional Governments § Current tender allows to reach 108 additional Po. Ps (phase I) § New tenders would be launched as needed (phase II) 26

Shared cloud services Situation at the ICT institutions ● Self-provision of services ● Technologic islands ● Lack of standardization ● Complex management ● Problems to invest and evolve Possible improvements ● Identify common, standard solutions ● Cost savings ● Easier deployment and update ● Public-private partnership Tasks ahead ● Identify appropriate areas for cooperation ● Make use of the network ● Calculate savings ● Establish legal framework (for procurement and for data protection) ● Define launch phase (cost-recovery, initial take-up expected to be slow) Possible cloud services ● Hosting ● Virtualization ● Servers (Iaa. S) ● Desktop ● Voice over IP ● IRISmail ● Electronic signature ● Web conference 27

Thank you for your attention Edificio Bronce, Plaza Manuel Gómez Moreno s/n 28020 Madrid. España Tel. : 91 212 76 20 / 25, Fax: 91 212 76 35 28
