Red and Blue Shift The Doppler Effect Sound

Red and Blue Shift

The Doppler Effect

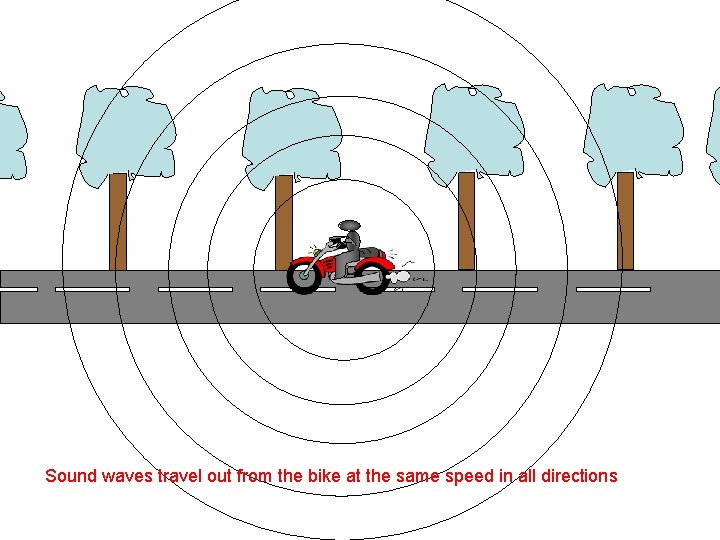

Sound waves travel out from the bike at the same speed in all directions

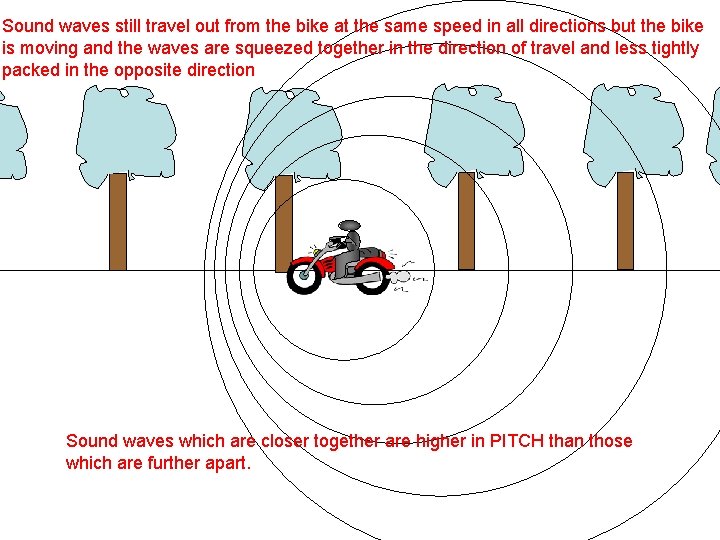

Sound waves still travel out from the bike at the same speed in all directions but the bike is moving and the waves are squeezed together in the direction of travel and less tightly packed in the opposite direction Sound waves which are closer together are higher in PITCH than those which are further apart.

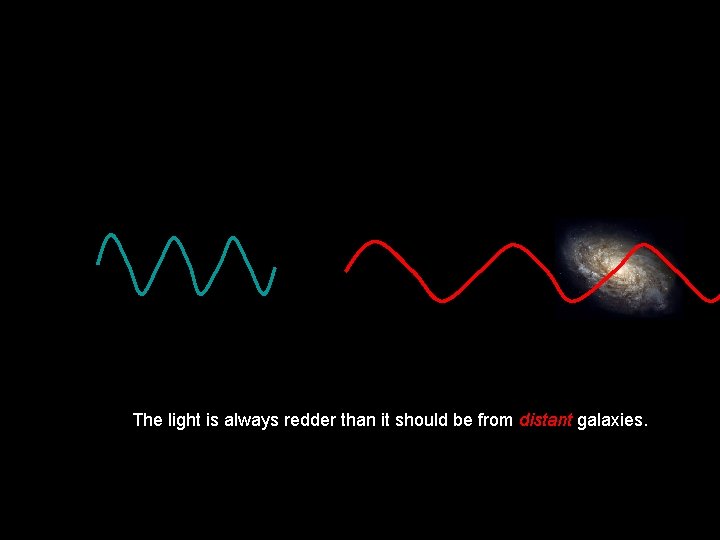

The light is always redder than it should be from distant galaxies.

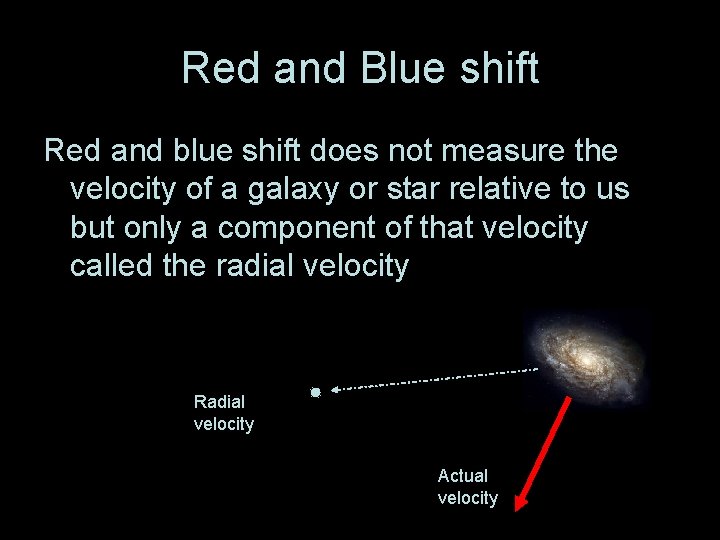

Red and Blue shift Red and blue shift does not measure the velocity of a galaxy or star relative to us but only a component of that velocity called the radial velocity Radial velocity Actual velocity

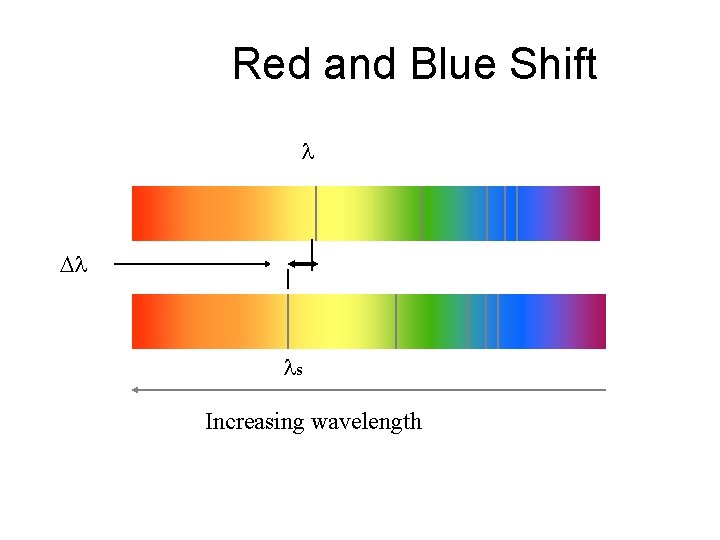

Red and Blue Shift s Increasing wavelength

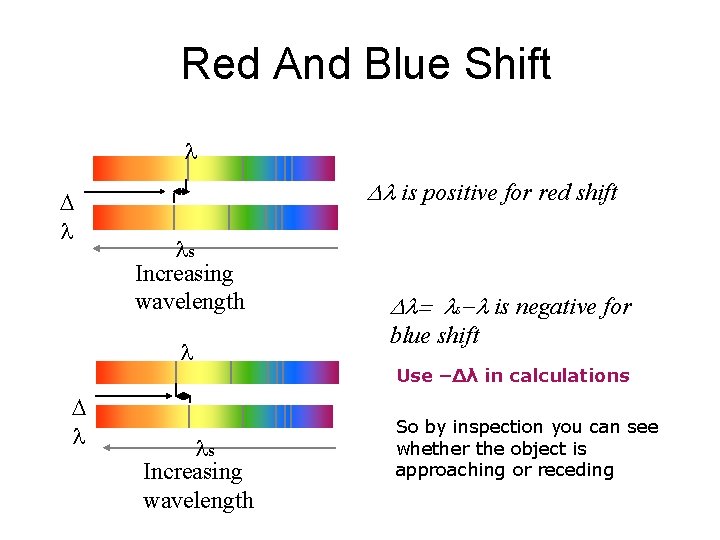

Red And Blue Shift is positive for red shift s Increasing wavelength s is negative for blue shift Use –Δλ in calculations So by inspection you can see whether the object is approaching or receding

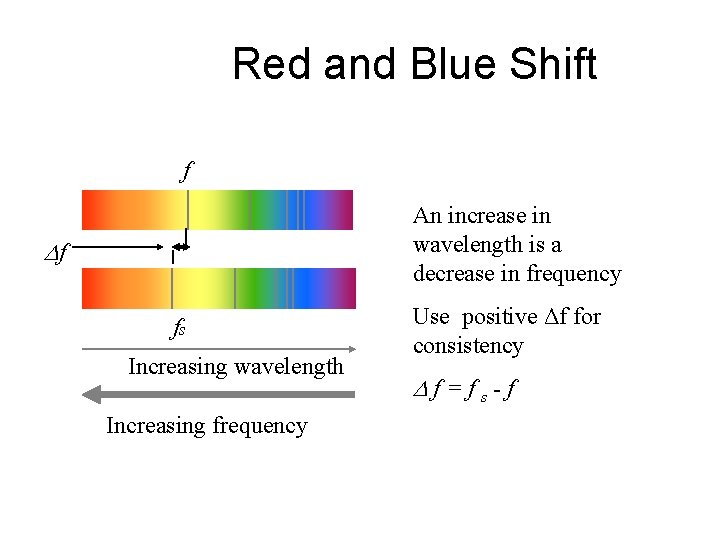

Red and Blue Shift f An increase in wavelength is a decrease in frequency f fs Increasing wavelength Increasing frequency Use positive Δf for consistency f=fs-f

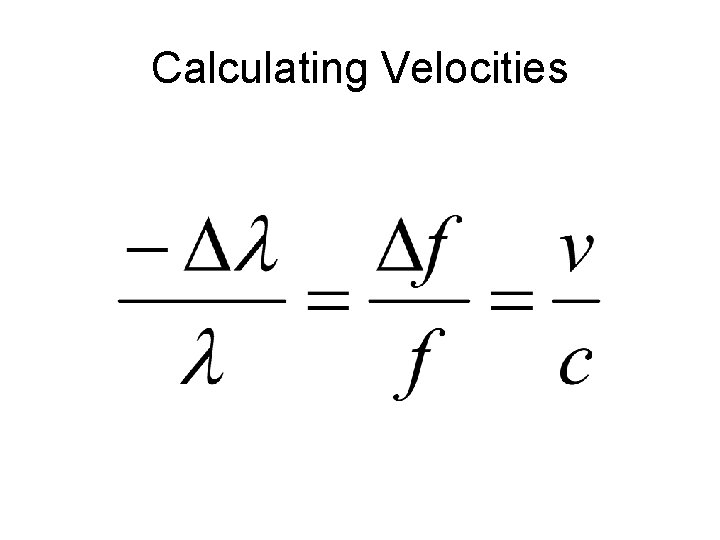

Calculating Velocities

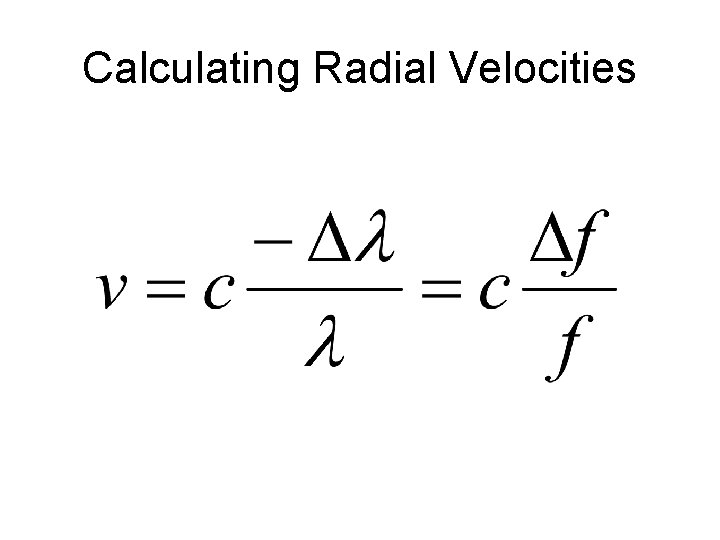

Calculating Radial Velocities

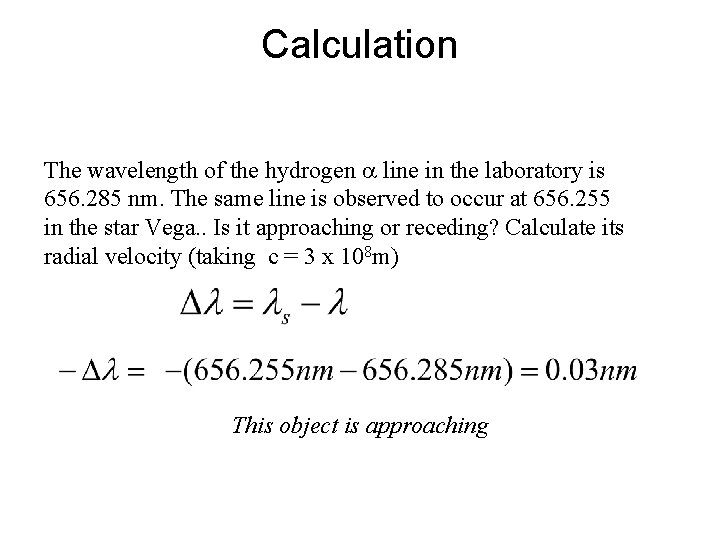

Calculation The wavelength of the hydrogen line in the laboratory is 656. 285 nm. The same line is observed to occur at 656. 255 in the star Vega. . Is it approaching or receding? Calculate its radial velocity (taking c = 3 x 108 m) This object is approaching

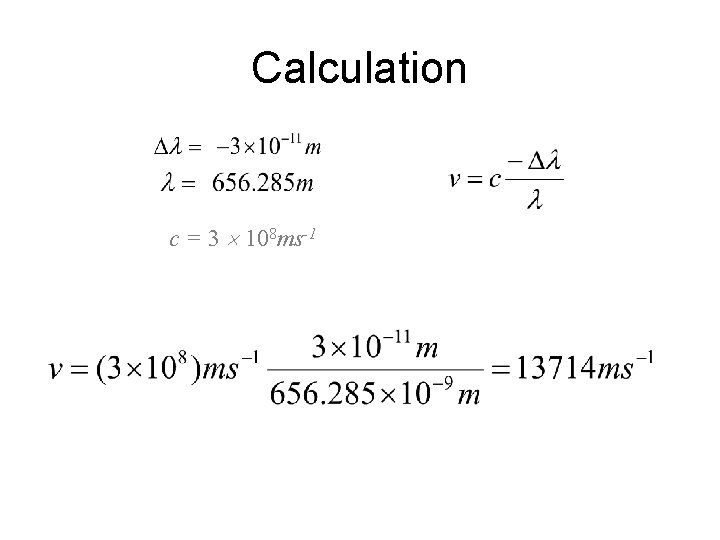

Calculation c = 3 108 ms-1

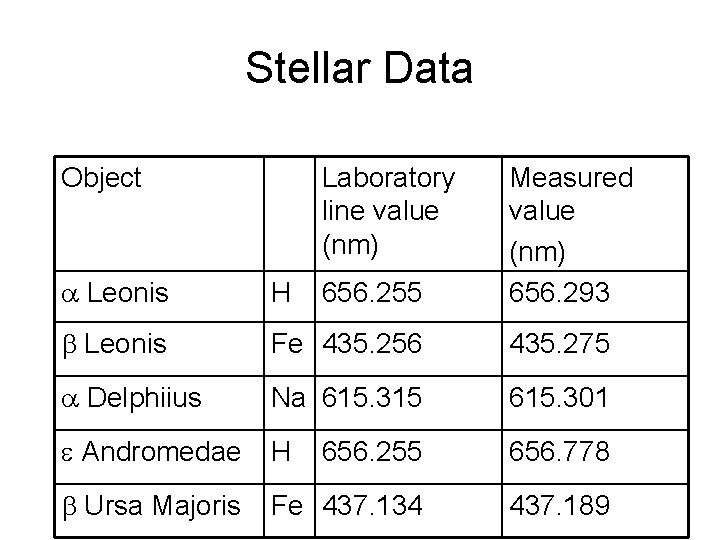

Stellar Data Object Laboratory line value (nm) Measured value (nm) 656. 293 Leonis H Leonis Fe 435. 256 435. 275 Delphiius Na 615. 315 615. 301 e Andromedae H 656. 255 656. 778 Ursa Majoris Fe 437. 134 437. 189 656. 255

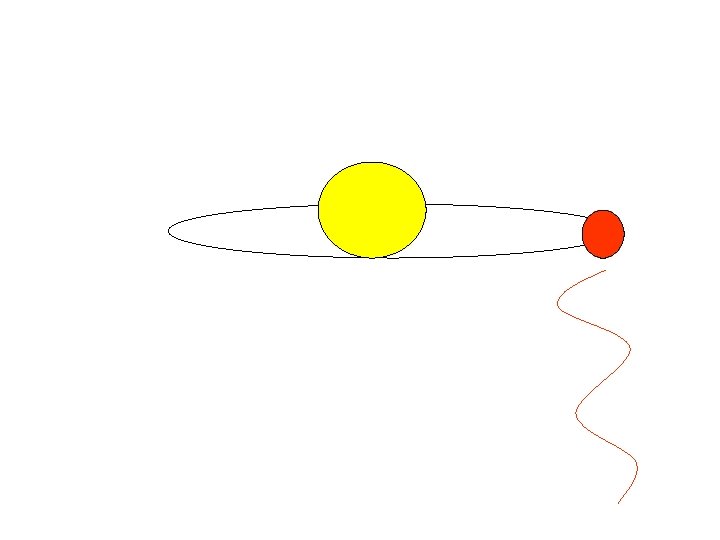

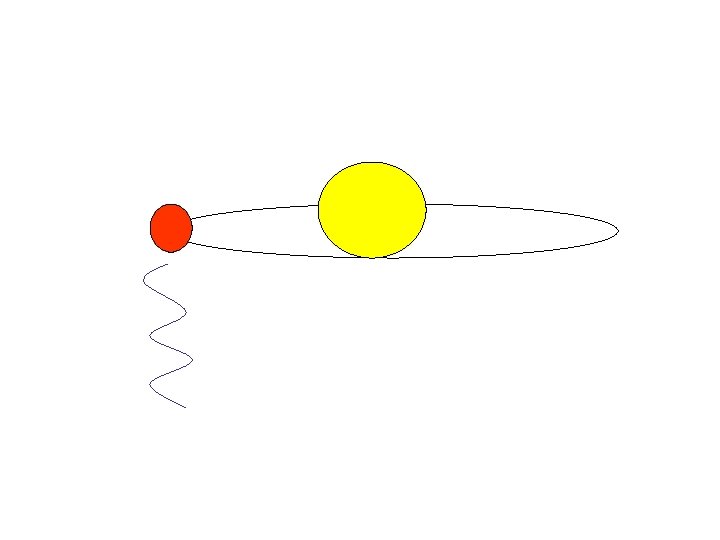

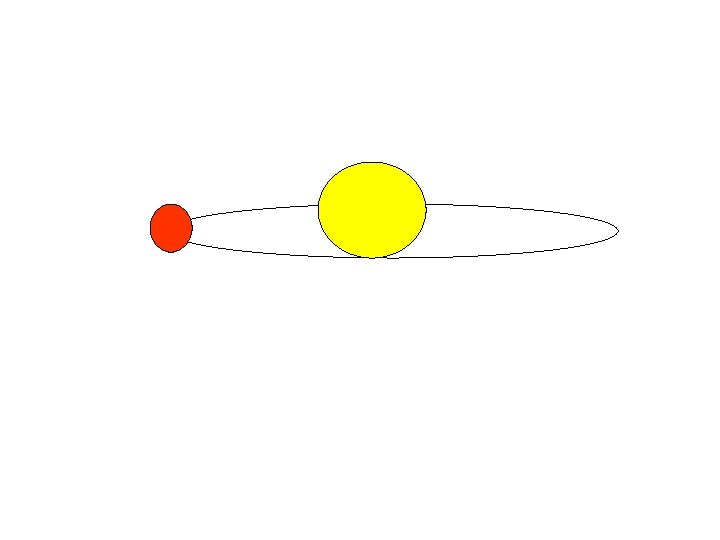

ECLIPSING BINARIES AND REDSHIFT

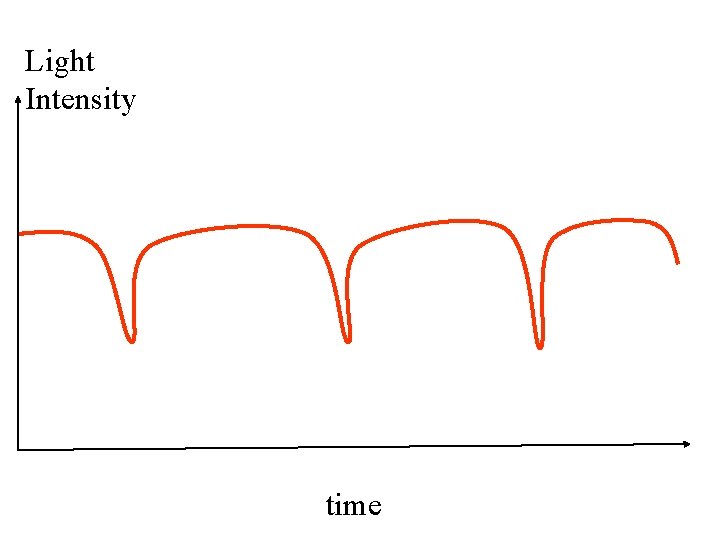

Light Intensity time

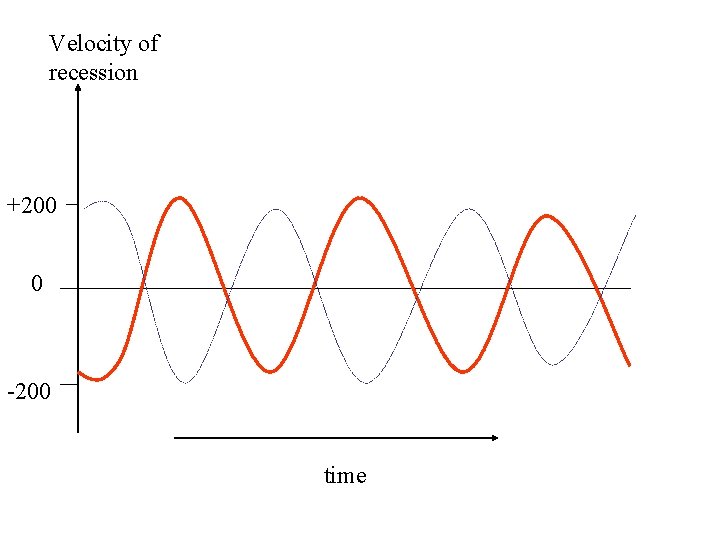

Velocity of recession +200 0 -200 time
