Recursion
Lecture Objectives • Learn about recursive definitions • Explore the base case and the general case of a recursive definition • Learn about recursive algorithms
Lecture Objectives (Cont’d) • Learn about recursive methods • Become aware of direct and indirect recursion • Explore how to use recursive methods to implement recursive algorithms

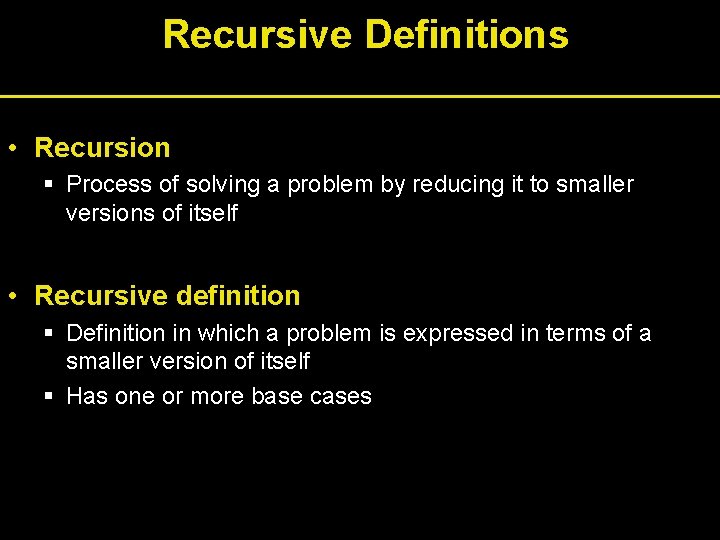

Recursive Definitions • Recursion § Process of solving a problem by reducing it to smaller versions of itself • Recursive definition § Definition in which a problem is expressed in terms of a smaller version of itself § Has one or more base cases

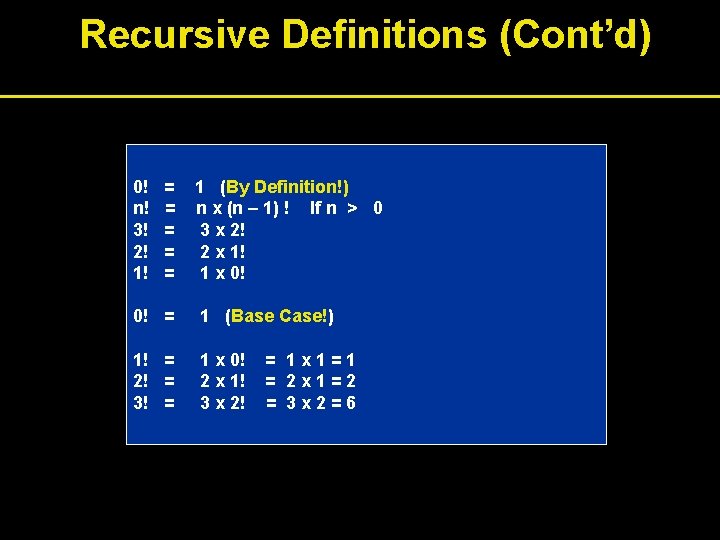

Recursive Definitions (Cont’d) 0! n! 3! 2! 1! = = = 1 (By Definition!) n x (n – 1) ! If n > 0 3 x 2! 2 x 1! 1 x 0! 0! = 1 (Base Case!) 1! = 2! = 3! = 1 x 0! 2 x 1! 3 x 2! = 1 x 1=1 = 2 x 1=2 = 3 x 2=6

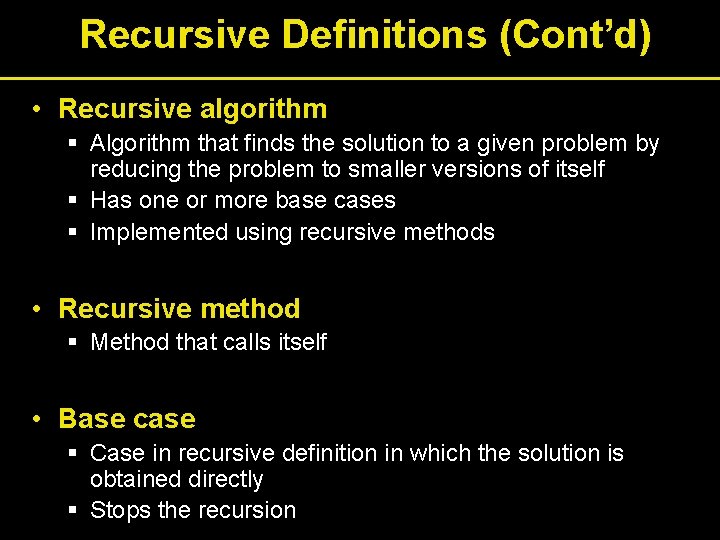

Recursive Definitions (Cont’d) • Recursive algorithm § Algorithm that finds the solution to a given problem by reducing the problem to smaller versions of itself § Has one or more base cases § Implemented using recursive methods • Recursive method § Method that calls itself • Base case § Case in recursive definition in which the solution is obtained directly § Stops the recursion

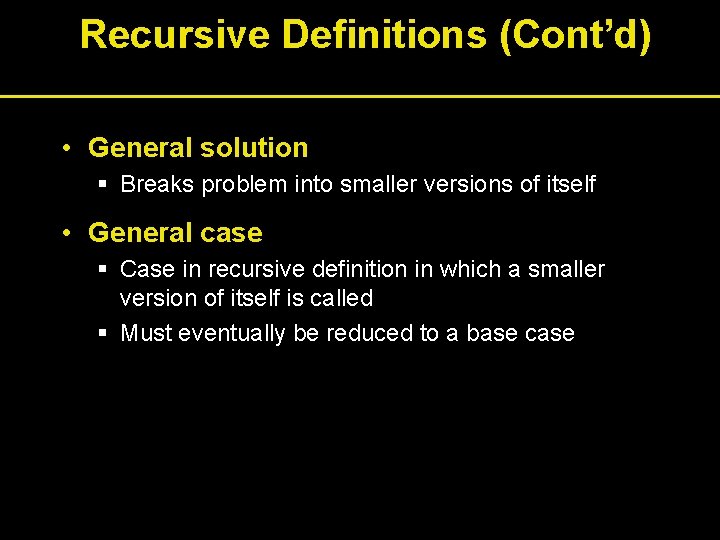

Recursive Definitions (Cont’d) • General solution § Breaks problem into smaller versions of itself • General case § Case in recursive definition in which a smaller version of itself is called § Must eventually be reduced to a base case
Recursive Definitions (Cont’d) • Directly recursive: a method that calls itself • Indirectly recursive: a method that calls another method and eventually results in the original method call • Tail recursive method: recursive method in which the last statement executed is the recursive call • Infinite recursion: the case where every recursive call results in another recursive call

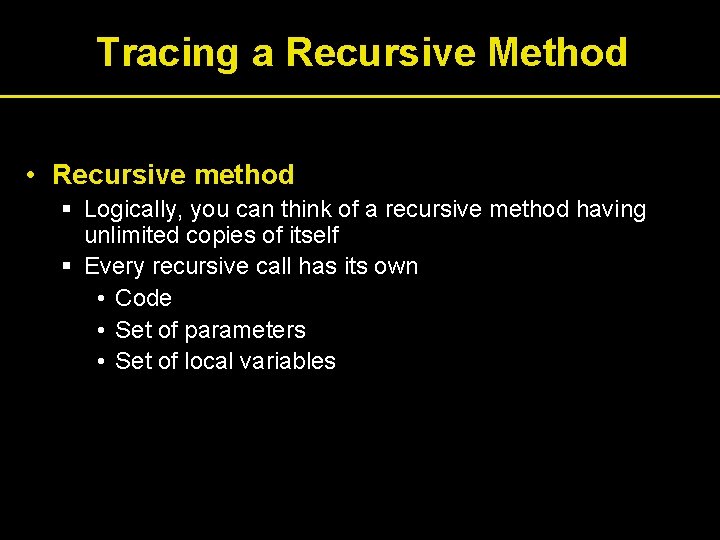

Tracing a Recursive Method • Recursive method § Logically, you can think of a recursive method having unlimited copies of itself § Every recursive call has its own • Code • Set of parameters • Set of local variables

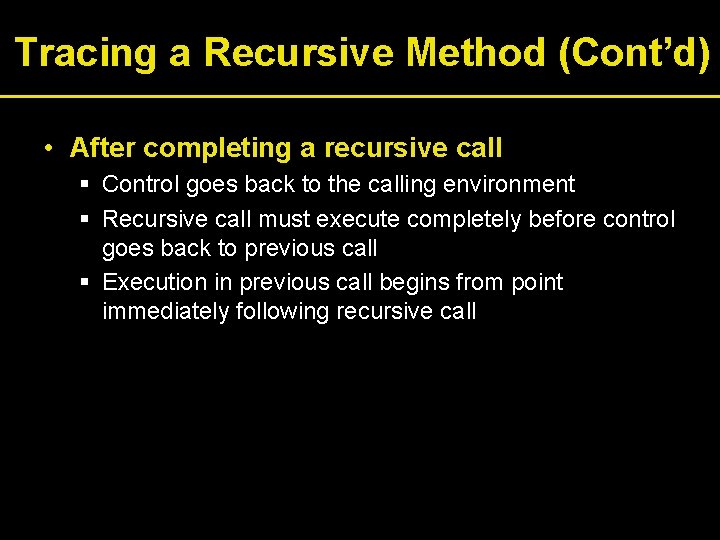

Tracing a Recursive Method (Cont’d) • After completing a recursive call § Control goes back to the calling environment § Recursive call must execute completely before control goes back to previous call § Execution in previous call begins from point immediately following recursive call
Designing Recursive Methods • Understand problem requirements • Determine limiting conditions • Identify base cases
Designing Recursive Methods (Cont’d) • Provide direct solution to each base case • Identify general case(s) • Provide solutions to general cases in terms of smaller versions of general cases
Recursive Factorial Method public static int fact(int num) { if (num = = 0) return 1; else return num * fact(num – 1); }

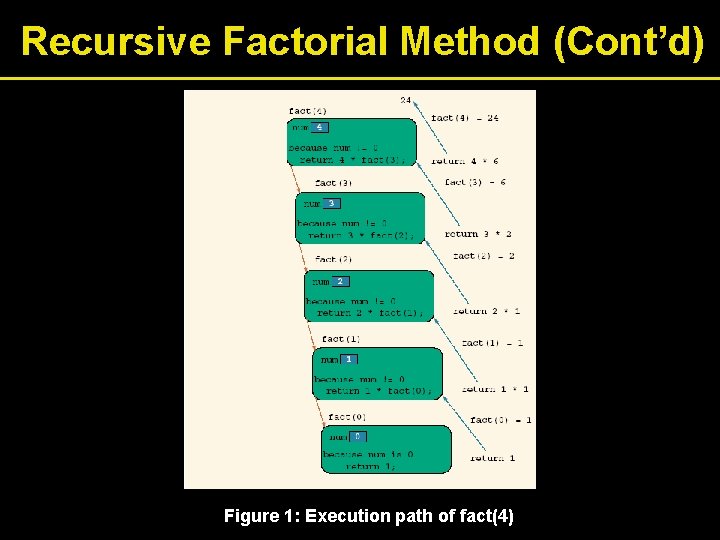

Recursive Factorial Method (Cont’d) Figure 1: Execution path of fact(4)

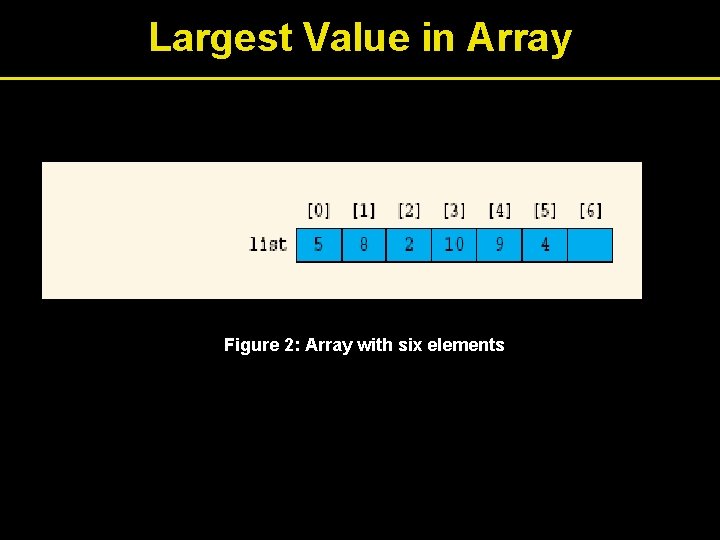

Largest Value in Array Figure 2: Array with six elements
Largest Value in Array (Cont’d) • • if the size of the list is 1 - the largest element in the list is the only element in the array else - to find the largest element in list[a]. . . list[b] a. find the largest element in list[a + 1]. . . list[b] and call it max b. compare list[a] and max if (list[a] >= max) the largest element in list[a]. . . list[b] is list[a] else the largest element in list[a]. . . list[b] is max
Largest Value in Array (Cont’d) public static int largest(int[] list, int lower. Index, int upper. Index) { int max; if (lower. Index == upper. Index) return list[lower. Index]; else { max = largest(list, lower. Index + 1, upper. Index); if (list[lower. Index] >= max) return list[lower. Index]; else return max; } }
Execution of largest(list, 0, 3) Figure 3: Array with four elements System. out. println(largest(list, 0, 3));
Execution of largest(list, 0, 3) (Cont’d) Figure 4: Execution of largest(list, 0, 3)

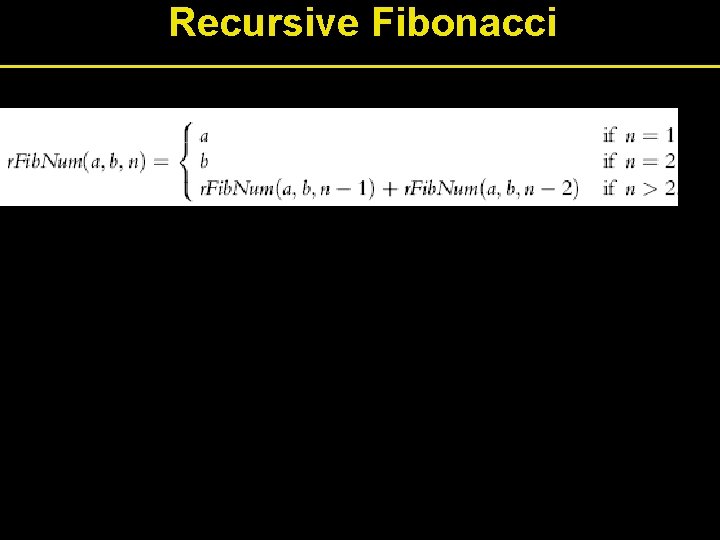

Recursive Fibonacci

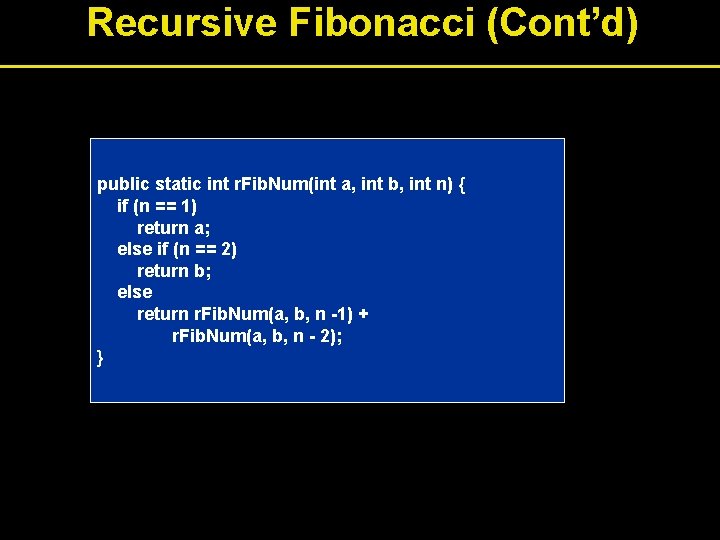

Recursive Fibonacci (Cont’d) public static int r. Fib. Num(int a, int b, int n) { if (n == 1) return a; else if (n == 2) return b; else return r. Fib. Num(a, b, n -1) + r. Fib. Num(a, b, n - 2); }

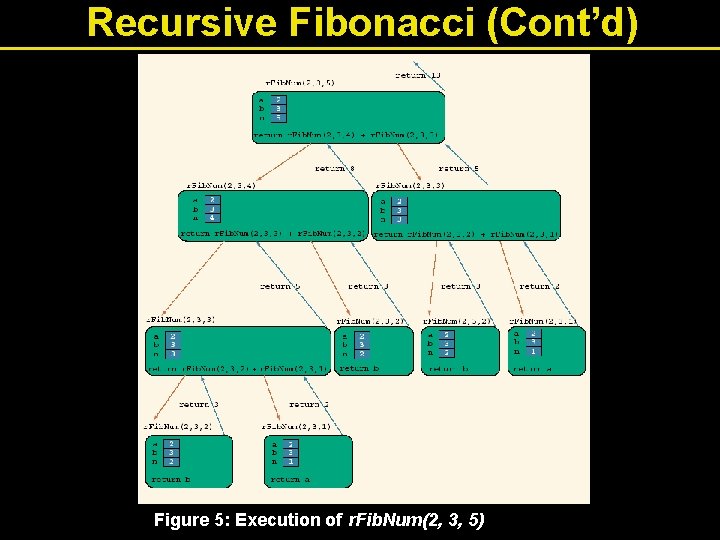

Recursive Fibonacci (Cont’d) Figure 5: Execution of r. Fib. Num(2, 3, 5)
Recursion and the Method Call Stack • Method call stack used to keep track of method calls and local variables within a method call • Just as with nonrecursive programming, recursive method calls are placed at the top of the method call stack • As recursive method calls return, their activation records are popped off the stack and the previous recursive calls continue executing • Current method executing is always method whose activation record is at top of stack
Recursion and the Method Call Stack (Cont’d) Figure 6: Method calls on the program execution stack
Towers of Hanoi Problem with Three Disks Figure 7: Tower of Hanoi Problem with three disks

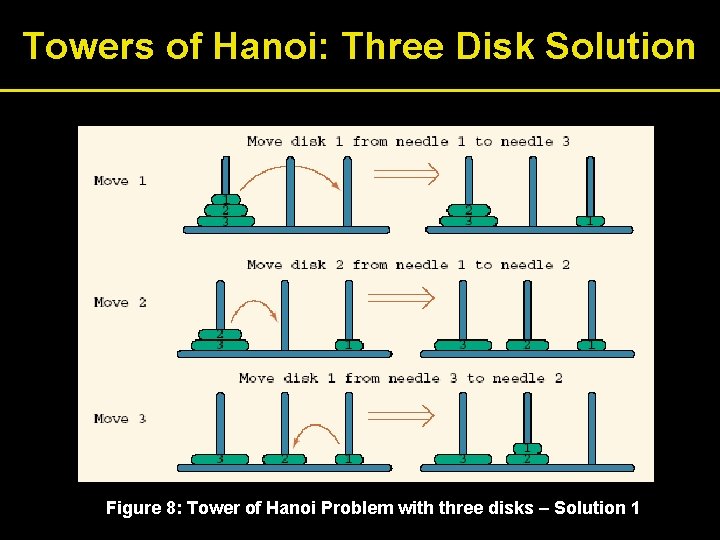

Towers of Hanoi: Three Disk Solution Figure 8: Tower of Hanoi Problem with three disks – Solution 1
Towers of Hanoi: Three Disk Solution (Cont’d) Figure 9: Tower of Hanoi Problem with three disks – Solution 2
Towers of Hanoi: Recursive Algorithm public static void move. Disks(int count, int needle 1, int needle 3, int needle 2) { if (count > 0) { move. Disks(count - 1, needle 2, needle 3); System. out. println("Move disk " + count + " from needle " + needle 1 + " to needle " + needle 3 + ". "); move. Disks(count - 1, needle 2, needle 3, needle 1); } }

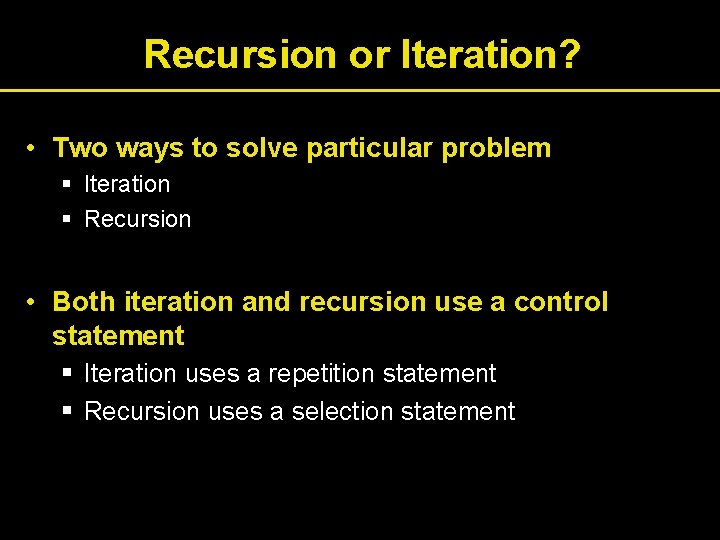

Recursion or Iteration? • Two ways to solve particular problem § Iteration § Recursion • Both iteration and recursion use a control statement § Iteration uses a repetition statement § Recursion uses a selection statement

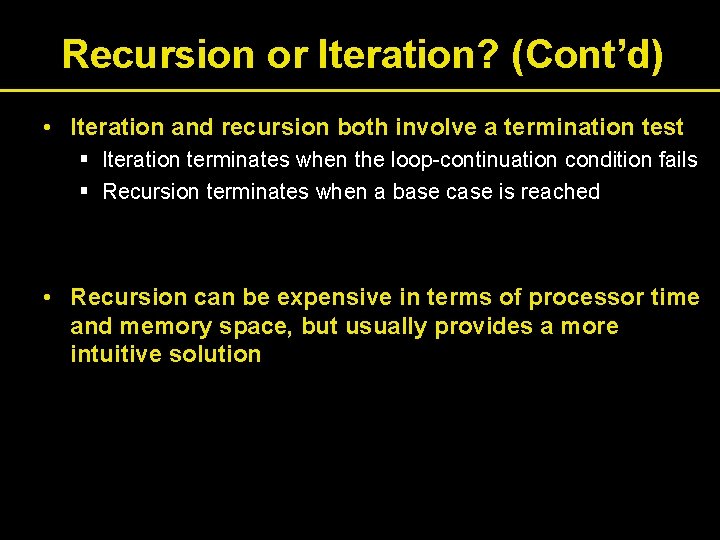

Recursion or Iteration? (Cont’d) • Iteration and recursion both involve a termination test § Iteration terminates when the loop-continuation condition fails § Recursion terminates when a base case is reached • Recursion can be expensive in terms of processor time and memory space, but usually provides a more intuitive solution
Programming Example: Decimal to Binary public static void dec. To. Bin(int num, int base) { if (num > 0) { dec. To. Bin(num / base, base); System. out. print(num % base); } }
Execution of dec. To. Bin(13, 2) Figure 10: Execution of dec. To. Bin(13, 2)

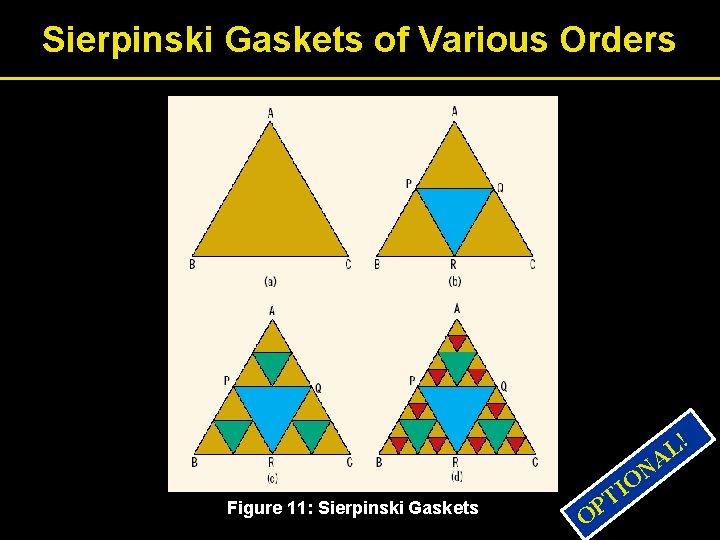

Sierpinski Gaskets of Various Orders ! L A Figure 11: Sierpinski Gaskets T P O N O I

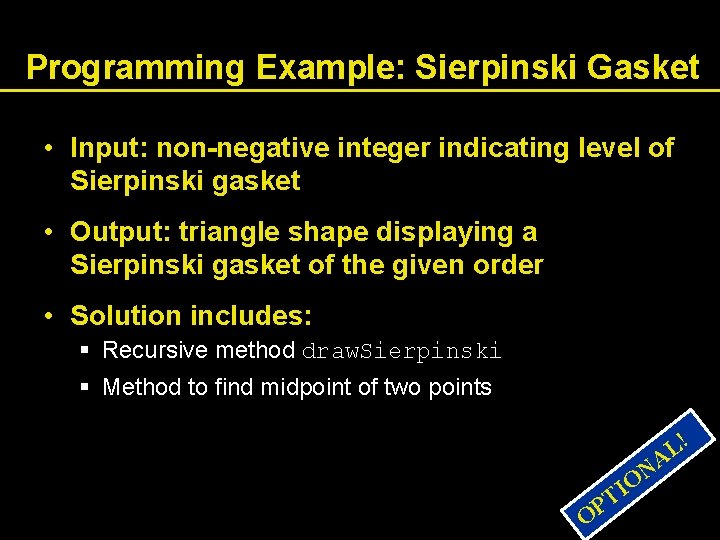

Programming Example: Sierpinski Gasket • Input: non-negative integer indicating level of Sierpinski gasket • Output: triangle shape displaying a Sierpinski gasket of the given order • Solution includes: § Recursive method draw. Sierpinski § Method to find midpoint of two points ! L A T P O N O I
Programming Example: Sierpinski Gasket (Cont’d) private void draw. Sierpinski(Graphics g, int lev, Point p 1, Point p 2, Point p 3) { Point mid. P 1 P 2; Point mid. P 2 P 3; Point mid. P 3 P 1; if (lev > 0) { g. draw. Line(p 1. x, p 1. y, p 2. x, p 2. y); g. draw. Line(p 2. x, p 2. y, p 3. x, p 3. y); g. draw. Line(p 3. x, p 3. y, p 1. x, p 1. y); mid. P 1 P 2 = mid. Point(p 1, p 2); mid. P 2 P 3 = mid. Point(p 2, p 3); mid. P 3 P 1 = mid. Point(p 3, p 1); draw. Sierpinski(g, lev - 1, p 1, mid. P 1 P 2, mid. P 3 P 1); draw. Sierpinski(g, lev - 1, p 2, mid. P 2 P 3, mid. P 1 P 2); draw. Sierpinski(g, lev - 1, p 3, mid. P 3 P 1, mid. P 2 P 3); } ! L } A T P O N O I

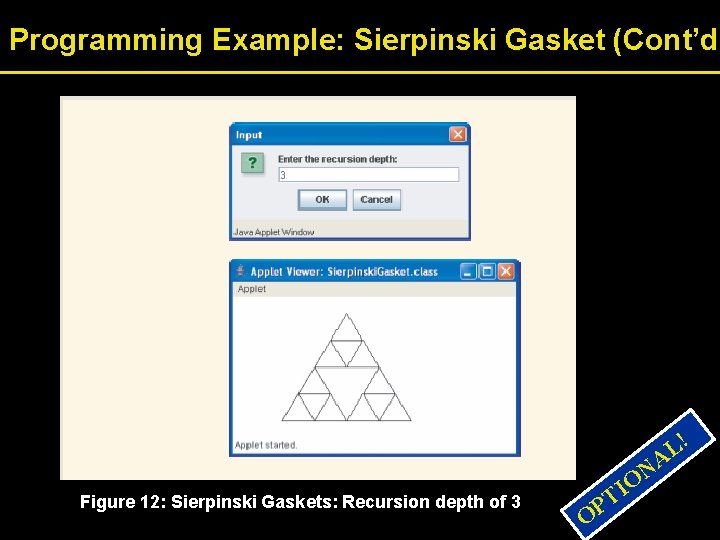

Programming Example: Sierpinski Gasket (Cont’d) ! L A Figure 12: Sierpinski Gaskets: Recursion depth of 3 T P O N O I

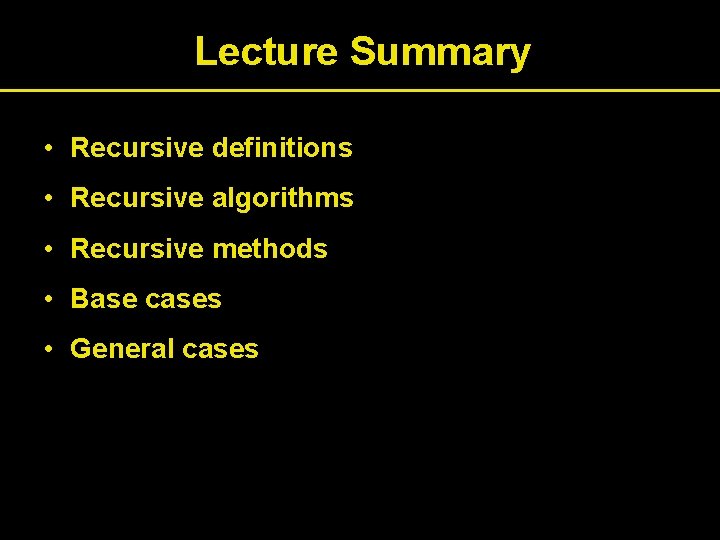

Lecture Summary • Recursive definitions • Recursive algorithms • Recursive methods • Base cases • General cases
Lecture Summary (Cont’d) • Tracing recursive methods • Designing recursive methods • Varieties of recursive methods • Recursion vs. Iteration • Various recursive functions explored
