RECORDING PROGRESS OF LABOUR PARTOGRAM PROF DR MN

RECORDING PROGRESS OF LABOUR PARTOGRAM PROF DR MN MOHD AZHAR ROYAL COLLEGE OF MEDICINE PERAK

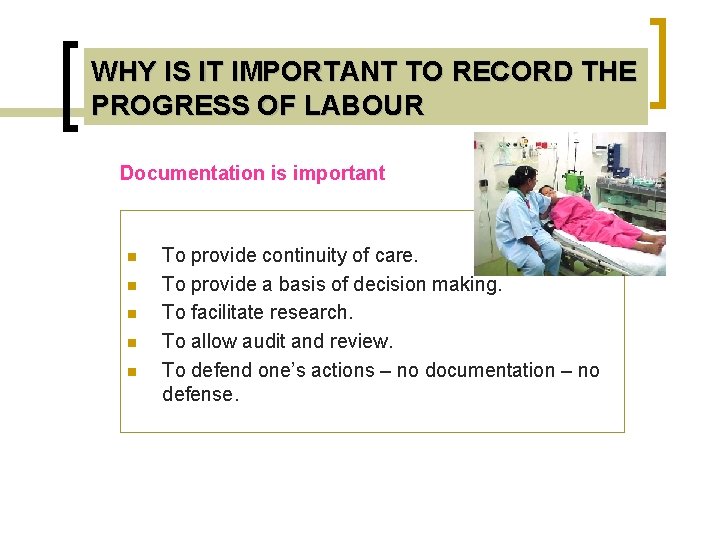

WHY IS IT IMPORTANT TO RECORD THE PROGRESS OF LABOUR Documentation is important n n n To provide continuity of care. To provide a basis of decision making. To facilitate research. To allow audit and review. To defend one’s actions – no documentation – no defense.

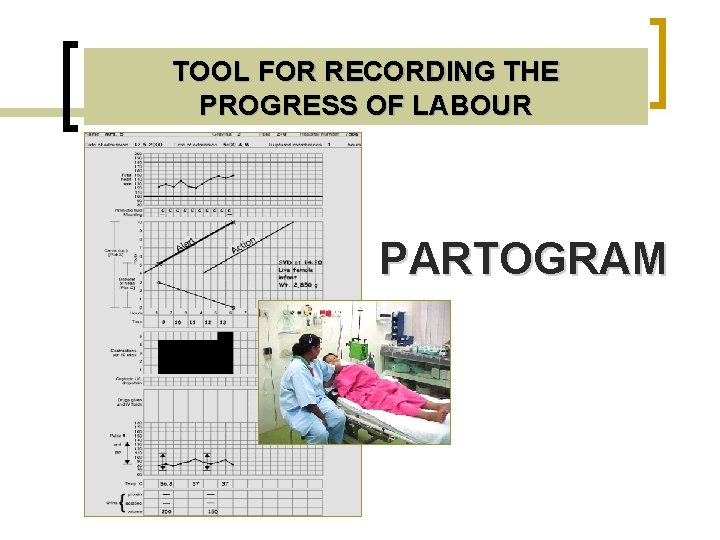

TOOL FOR RECORDING THE PROGRESS OF LABOUR PARTOGRAM

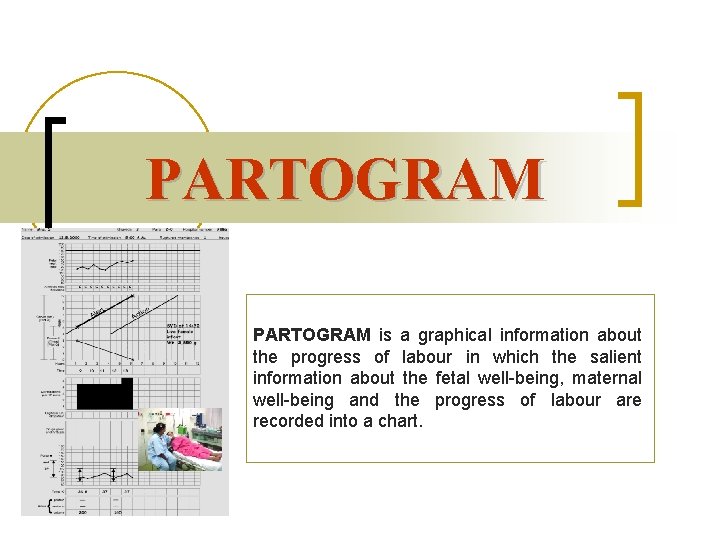

PARTOGRAM is a graphical information about the progress of labour in which the salient information about the fetal well-being, maternal well-being and the progress of labour are recorded into a chart.

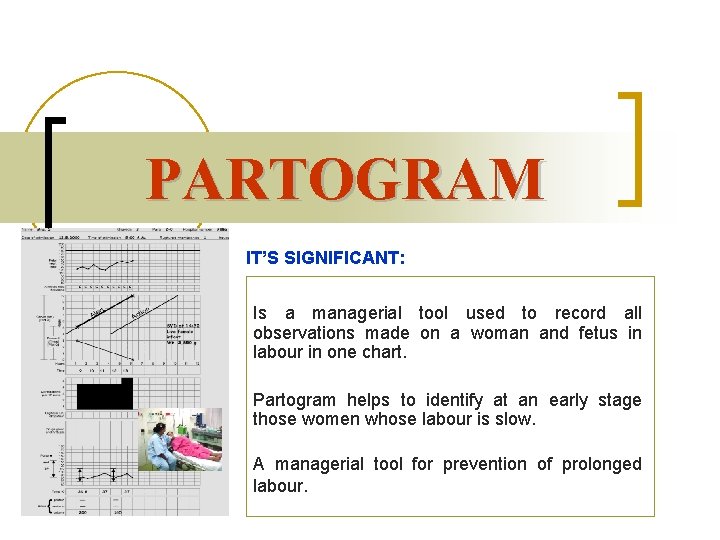

PARTOGRAM IT’S SIGNIFICANT: Is a managerial tool used to record all observations made on a woman and fetus in labour in one chart. Partogram helps to identify at an early stage those women whose labour is slow. A managerial tool for prevention of prolonged labour.

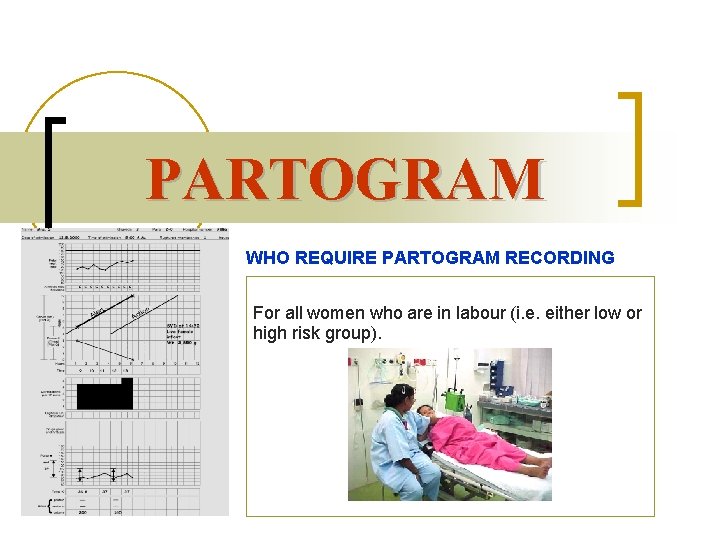

PARTOGRAM WHO REQUIRE PARTOGRAM RECORDING For all women who are in labour (i. e. either low or high risk group).

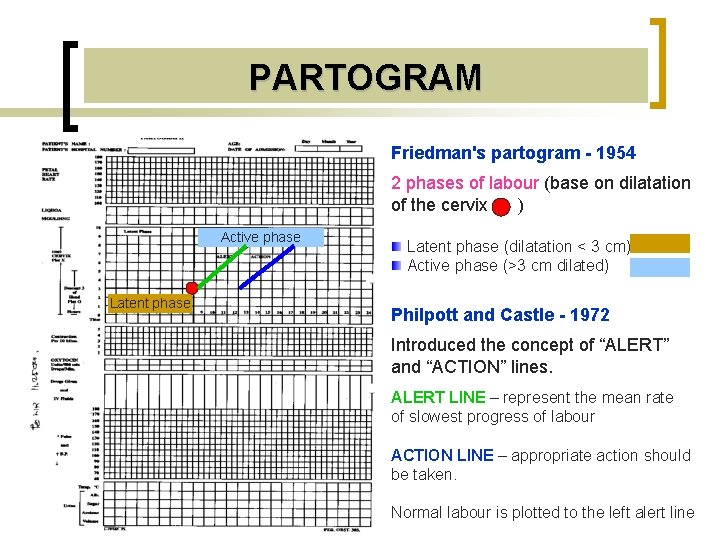

PARTOGRAM Friedman's partogram - 1954 2 phases of labour (base on dilatation of the cervix ) Active phase Latent phase (dilatation < 3 cm) Active phase (>3 cm dilated) Philpott and Castle - 1972 Introduced the concept of “ALERT” and “ACTION” lines. ALERT LINE – represent the mean rate of slowest progress of labour ACTION LINE – appropriate action should be taken. Normal labour is plotted to the left alert line

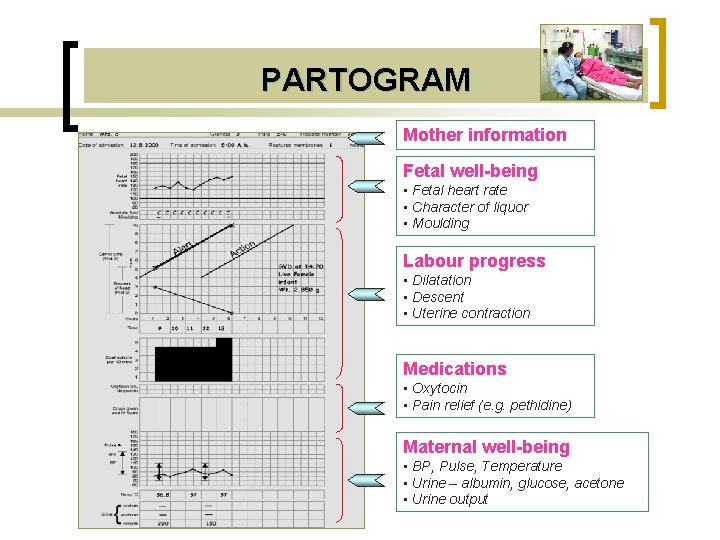

PARTOGRAM Mother information Fetal well-being • Fetal heart rate • Character of liquor • Moulding Labour progress • Dilatation • Descent • Uterine contraction Medications • Oxytocin • Pain relief (e. g. pethidine) Maternal well-being • BP, Pulse, Temperature • Urine – albumin, glucose, acetone • Urine output

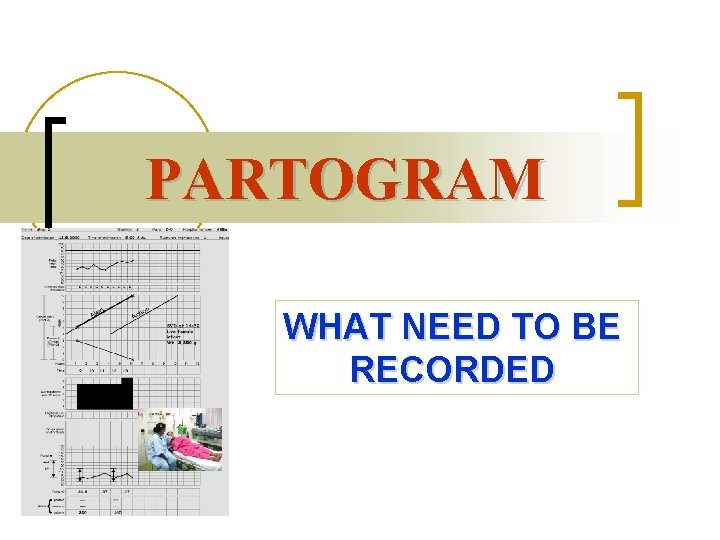

PARTOGRAM WHAT NEED TO BE RECORDED

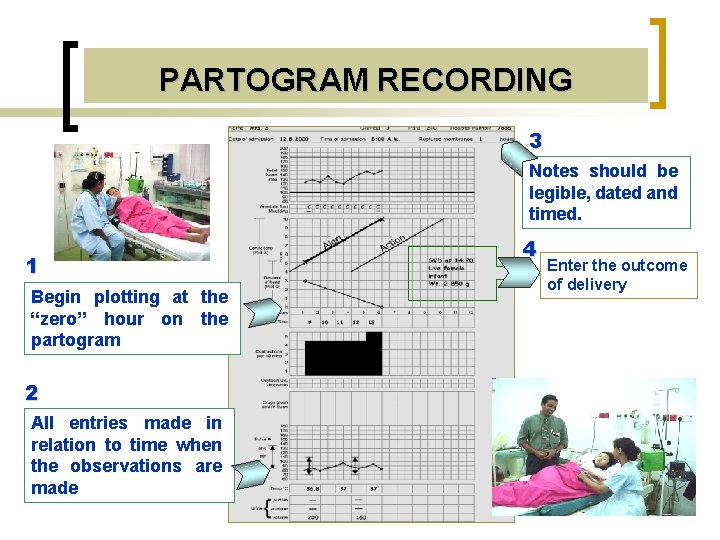

PARTOGRAM RECORDING 3 Notes should be legible, dated and timed. 1 Begin plotting at the “zero” hour on the partogram 2 All entries made in relation to time when the observations are made 4 Enter the outcome of delivery

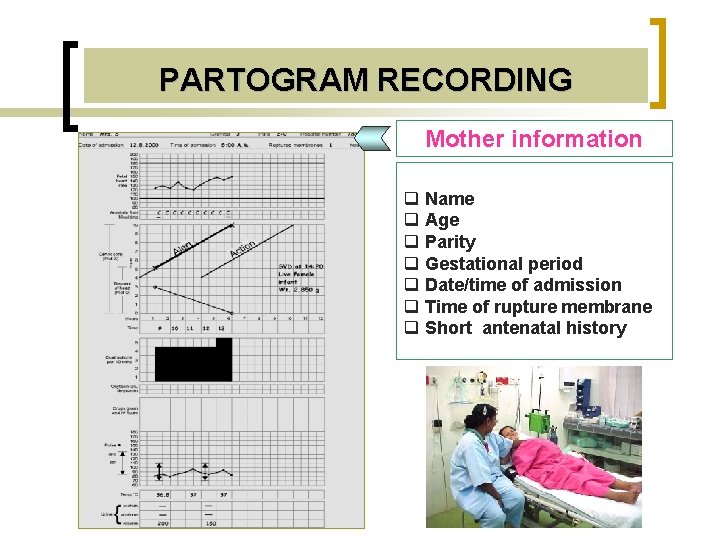

PARTOGRAM RECORDING Mother information q Name q Age q Parity q Gestational period q Date/time of admission q Time of rupture membrane q Short antenatal history

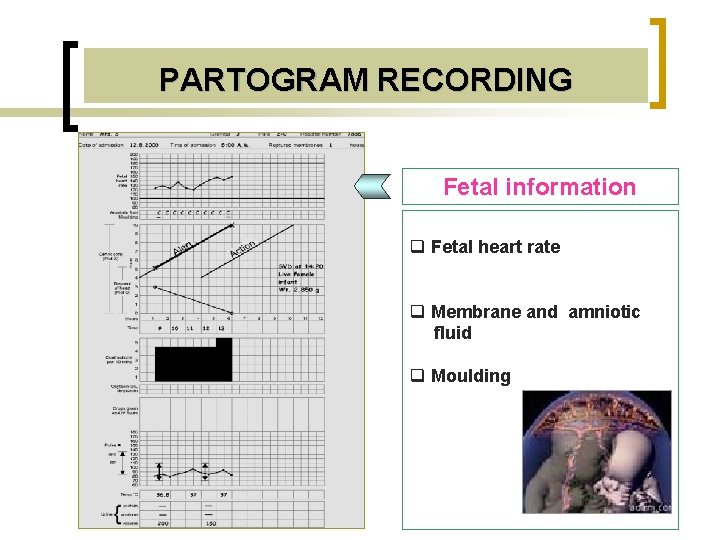

PARTOGRAM RECORDING Fetal information q Fetal heart rate q Membrane and amniotic fluid q Moulding

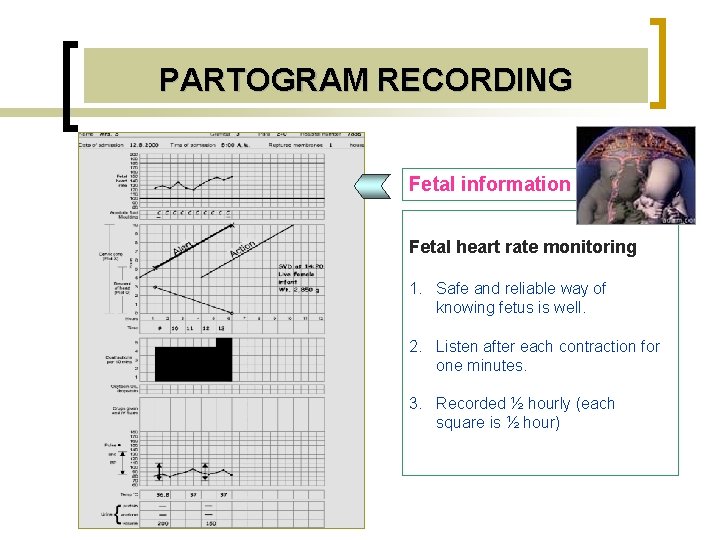

PARTOGRAM RECORDING Fetal information Fetal heart rate monitoring 1. Safe and reliable way of knowing fetus is well. 2. Listen after each contraction for one minutes. 3. Recorded ½ hourly (each square is ½ hour)

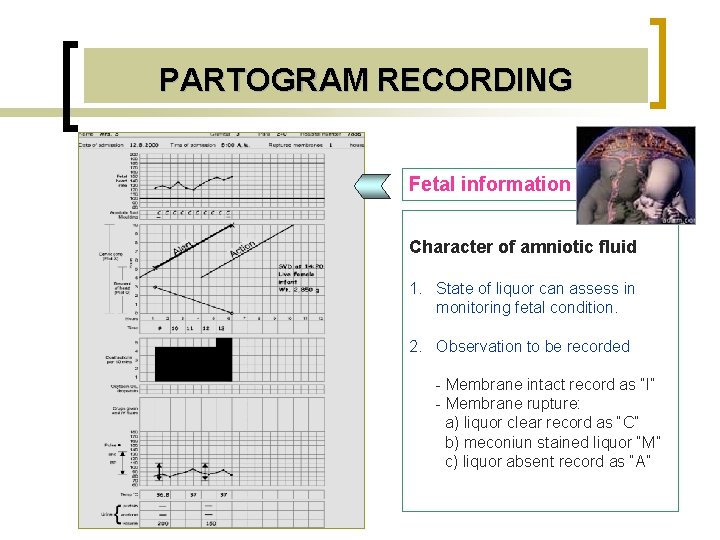

PARTOGRAM RECORDING Fetal information Character of amniotic fluid 1. State of liquor can assess in monitoring fetal condition. 2. Observation to be recorded - Membrane intact record as “I” - Membrane rupture: a) liquor clear record as “C” b) meconiun stained liquor “M” c) liquor absent record as “A”

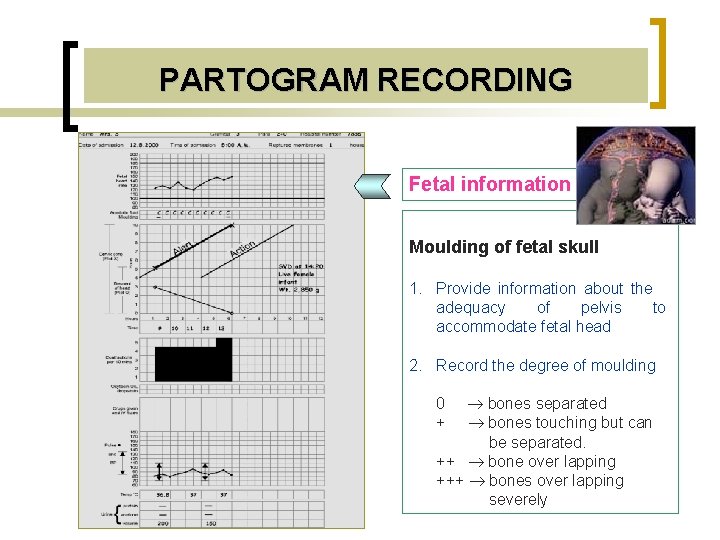

PARTOGRAM RECORDING Fetal information Moulding of fetal skull 1. Provide information about the adequacy of pelvis to accommodate fetal head 2. Record the degree of moulding bones separated bones touching but can be separated. ++ bone over lapping +++ bones over lapping severely 0 +

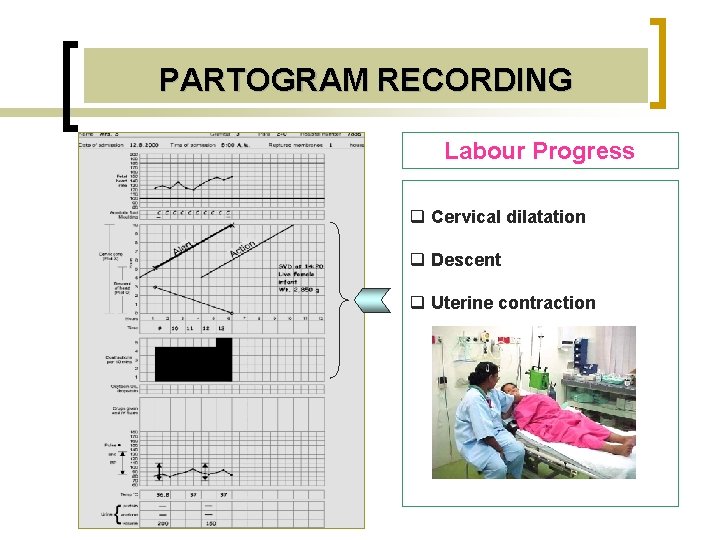

PARTOGRAM RECORDING Labour Progress q Cervical dilatation q Descent q Uterine contraction

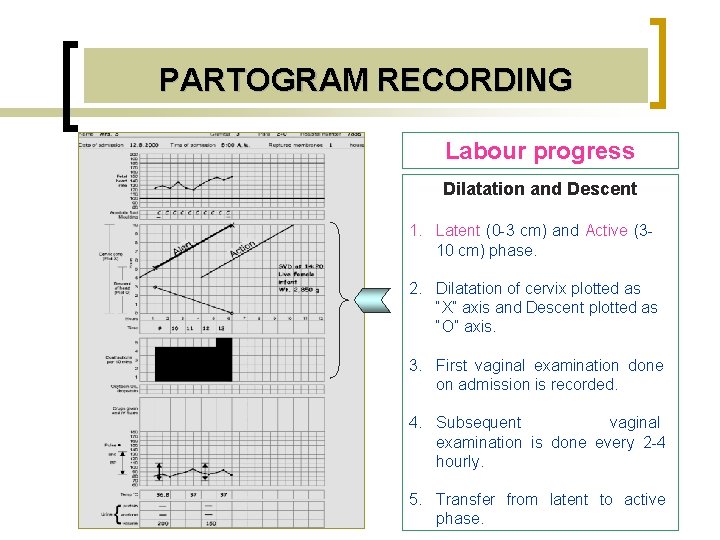

PARTOGRAM RECORDING Labour progress Dilatation and Descent 1. Latent (0 -3 cm) and Active (310 cm) phase. 2. Dilatation of cervix plotted as “X” axis and Descent plotted as “O” axis. 3. First vaginal examination done on admission is recorded. 4. Subsequent vaginal examination is done every 2 -4 hourly. 5. Transfer from latent to active phase.

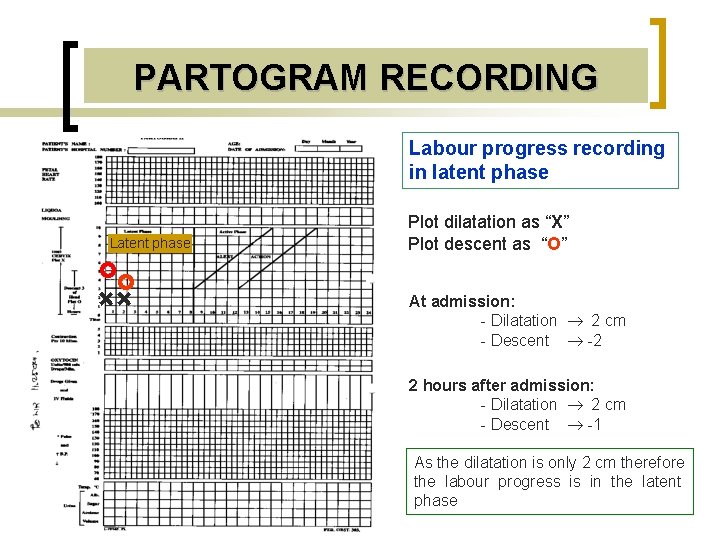

PARTOGRAM RECORDING Labour progress recording in latent phase Latent phase Plot dilatation as “X” Plot descent as “O” + + At admission: - Dilatation 2 cm - Descent -2 2 hours after admission: - Dilatation 2 cm - Descent -1 As the dilatation is only 2 cm therefore the labour progress is in the latent phase

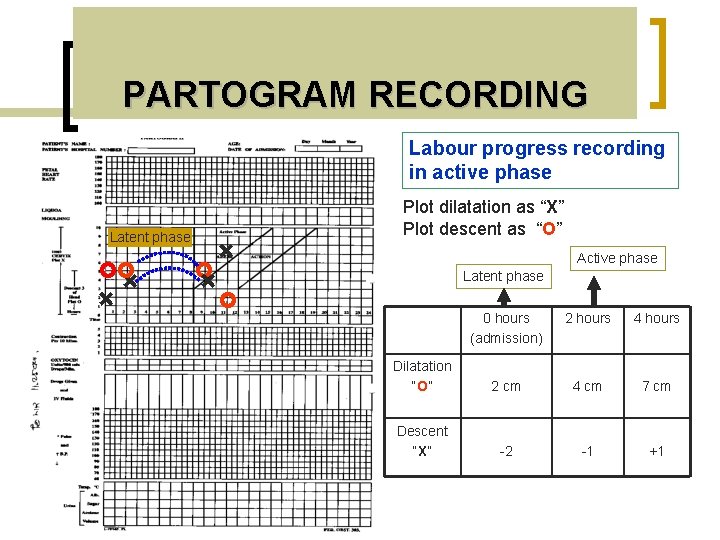

PARTOGRAM RECORDING Labour progress recording in active phase Plot dilatation as “X” Plot descent as “O” Latent phase + Active phase + + Latent phase + 0 hours (admission) 2 hours 4 hours Dilatation “O” 2 cm 4 cm 7 cm Descent “X” -2 -1 +1

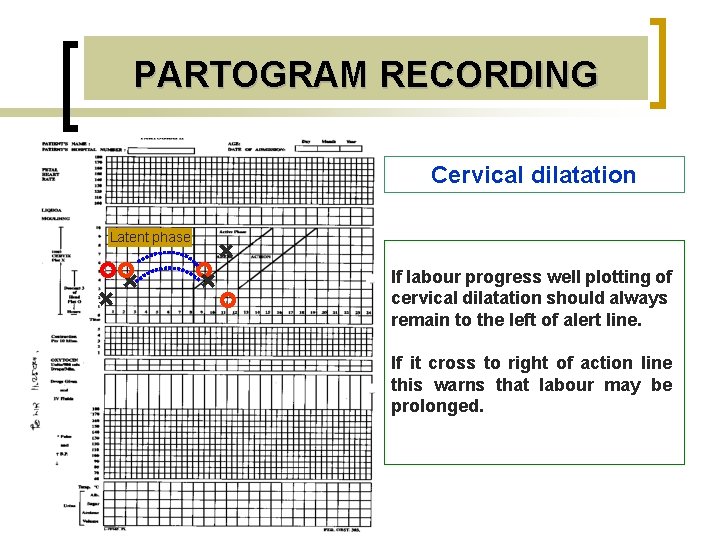

PARTOGRAM RECORDING Cervical dilatation Latent phase + + If labour progress well plotting of cervical dilatation should always remain to the left of alert line. If it cross to right of action line this warns that labour may be prolonged.

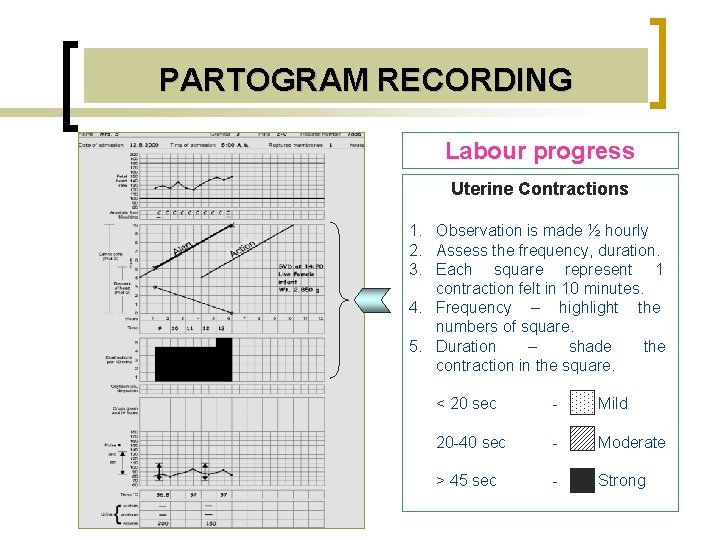

PARTOGRAM RECORDING Labour progress Uterine Contractions 1. Observation is made ½ hourly 2. Assess the frequency, duration. 3. Each square represent 1 contraction felt in 10 minutes. 4. Frequency – highlight the numbers of square. 5. Duration – shade the contraction in the square. < 20 sec - Mild 20 -40 sec - Moderate > 45 sec - Strong

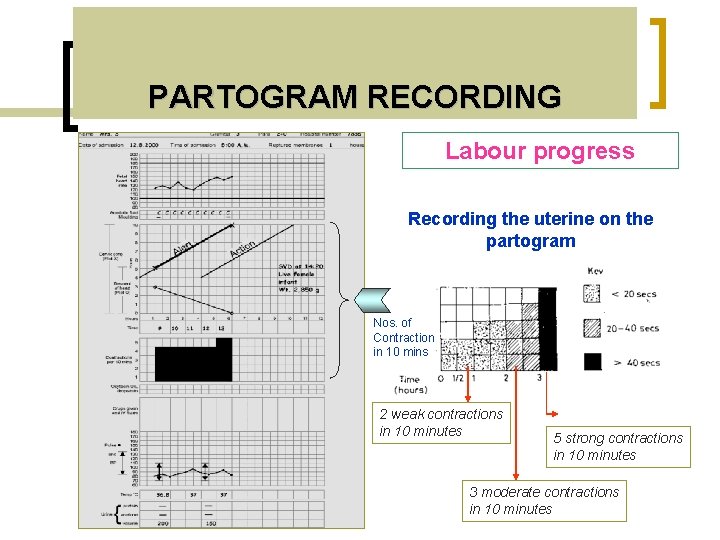

PARTOGRAM RECORDING Labour progress Recording the uterine on the partogram Nos. of Contraction in 10 mins 2 weak contractions in 10 minutes 5 strong contractions in 10 minutes 3 moderate contractions in 10 minutes

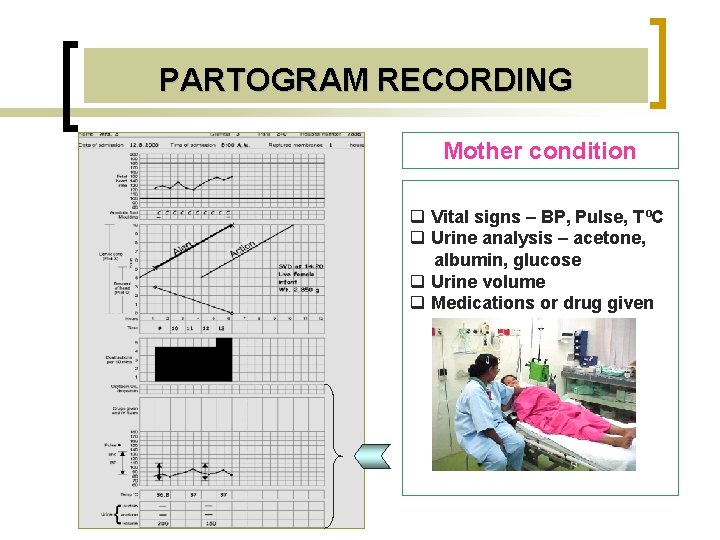

PARTOGRAM RECORDING Mother condition q Vital signs – BP, Pulse, TºC q Urine analysis – acetone, albumin, glucose q Urine volume q Medications or drug given

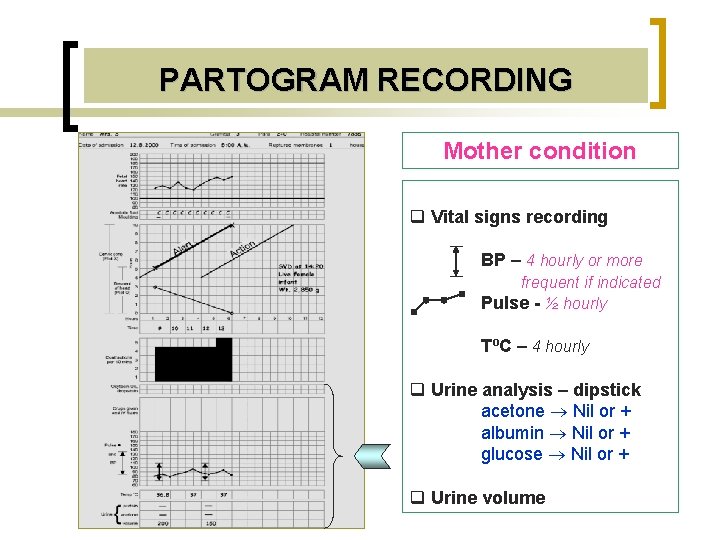

PARTOGRAM RECORDING Mother condition q Vital signs recording BP – 4 hourly or more frequent if indicated Pulse - ½ hourly TºC – 4 hourly q Urine analysis – dipstick acetone Nil or + albumin Nil or + glucose Nil or + q Urine volume

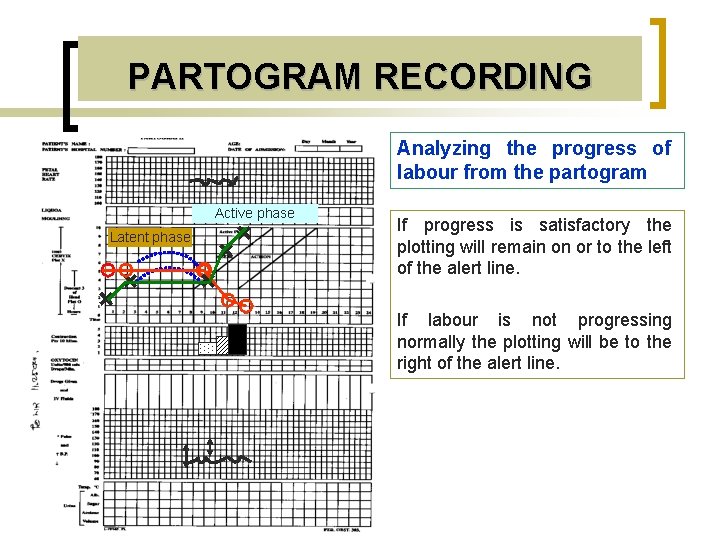

PARTOGRAM RECORDING Analyzing the progress of labour from the partogram Active phase + Latent phase + If progress is satisfactory the plotting will remain on or to the left of the alert line. + + + If labour is not progressing normally the plotting will be to the right of the alert line.

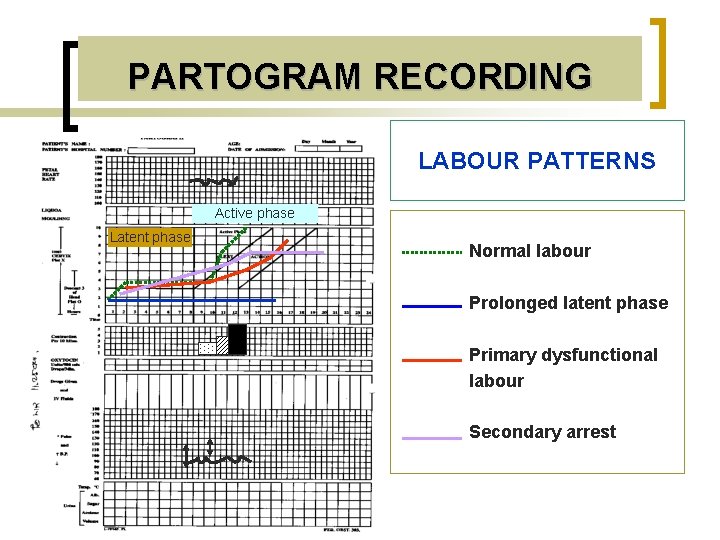

PARTOGRAM RECORDING LABOUR PATTERNS Active phase Latent phase Normal labour Prolonged latent phase Primary dysfunctional labour Secondary arrest

RECORDING PROGRESS OF LABOUR - PARTOGRAM THANK YOU PROF DR MN MOHD AZHAR ROYAL COLLEGE OF MEDICINE PERAK
