Recent Developments in Logistical Networking Micah Beck, Assoc. Prof. & Director Logistical Computing & Internetworking (Lo. CI) Lab Computer Science Department mbeck@cs. utk. edu APAN Meeting, Honolulu, HI Jan 29, 2004

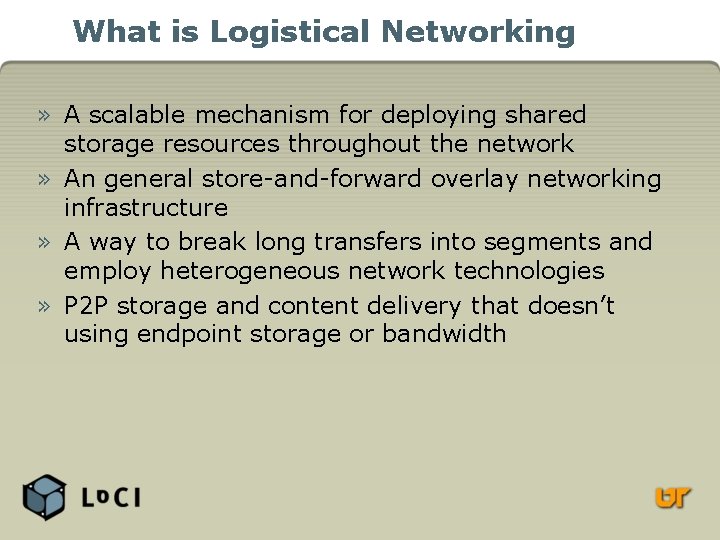

What is Logistical Networking » A scalable mechanism for deploying shared storage resources throughout the network » An general store-and-forward overlay networking infrastructure » A way to break long transfers into segments and employ heterogeneous network technologies » P 2 P storage and content delivery that doesn’t using endpoint storage or bandwidth

The Network Storage Stack • Our adaption of the network stack architecture for storage • Like the IP Stack Applications Logistical File System Logistical Tools L-Bone • Each level encapsulates details from the lower levels, while still exposing details to higher levels ex. Node IBP Local Access Physical

IBP: The Internet Backplane Protocol » Storage provisioned on community “depots” » Very primitive service (similar to block service, but more sharable) • Goal is to be a common platform (exposed) • Also part of end-to-end design » Best effort service – no heroic measures • Availability, reliability, security, performance » Allocations are time-limited! • Leases are respected, can be renewed • Permanent storage is to strong to share!

Internet Backplane Protocol (IBP) allocate! Na depot capability store! Nw data depot load! Nr depot

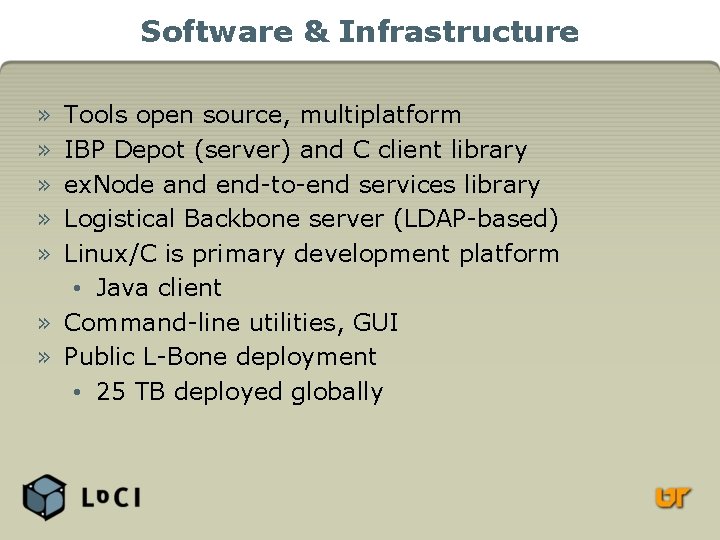

Software & Infrastructure » » » Tools open source, multiplatform IBP Depot (server) and C client library ex. Node and end-to-end services library Logistical Backbone server (LDAP-based) Linux/C is primary development platform • Java client » Command-line utilities, GUI » Public L-Bone deployment • 25 TB deployed globally

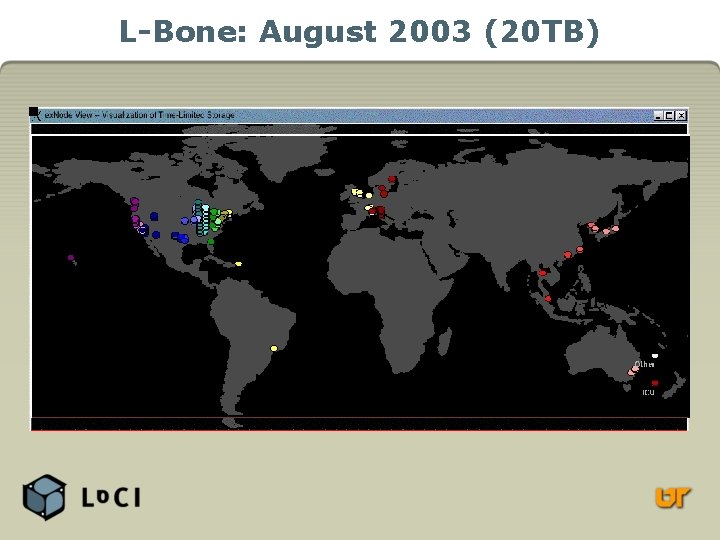

L-Bone: August 2003 (20 TB)

Current Issues in IBP 1. Separate TCP connection for each IBP operation • High latencies between dependent operations 2. Redundant DNS resolution for repetitive IBP ops • High latency, load on DNS server 3. Client access control on IBP by IP address only • Limiting, easily spoofed 4. All allocations on one depot managed uniformly • Lack of control, inefficient 5. No computational capabilities at the depot • Limiting, inefficient

New IBP Depot 1. 4 Release (Feb 2004) 1. Persistent TCP connections optionally maintained between client and depot to reduce overhead 2. Optional DNS caching eliminates redundant lookups in some OS implementations 3. Secure IBP variant supported with X. 509 certificate authentication 4. Multiple resources (File Sys, RAM) supported on one depot with optimized “cut-through” transfers Yong Zhen & Huadong Liu

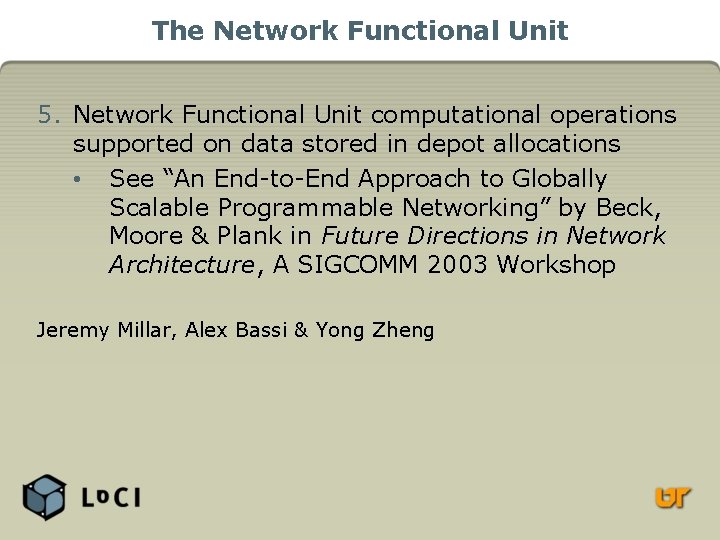

The Network Functional Unit 5. Network Functional Unit computational operations supported on data stored in depot allocations • See “An End-to-End Approach to Globally Scalable Programmable Networking” by Beck, Moore & Plank in Future Directions in Network Architecture, A SIGCOMM 2003 Workshop Jeremy Millar, Alex Bassi & Yong Zheng

Current Issues with Lo. RS 1. Replication only means of increasing data availability • Inefficient in use of storage 2. Point-to-multipoint data transfer not supported • Inefficient, cumbersome 3. Cumbersome client installation procedures • Users prefer Web-like ease-of-use

Upcoming Tool Releases 1. Reed-Solomon encoding as an end-to-end service in Logistical Runtime System (James S. Plank & Stephen Soltesz) • Reduces use of storage and controls F. T. 2. Asynchronous multicast engine with replaceable policy module (Ying Ding) • Generic framework for experimentation 3. Java Webstart implementation of Lo. RS Download • Close to zero installation, speed matches C

Conclusions » The Lo. CI Lab continues to improve and expand the Logistical Networking toolset » We are eager for more application groups and more collaborative developers » We are excited about the work you will hear about today and hope to hear about your new projects in the future » Contact me at mbeck@cs. utk. edu » http: //loci. cs. utk. edu
