Real-Time Systems Introduction Frank Drews drews@ohio. edu Frank Drews Real-Time Systems Introduction - 1
Real-time Systems • A real-time system is a system whose specification includes both logical and temporal correctness requirements. • Logical Correctness: Produces correct outputs. – Can by checked, for example, by Hoare logic. • Temporal Correctness: Produces outputs at the right time. – In this course, we spend much time on techniques and technologies for achieving and checking temporal correctness. Frank Drews Real-Time Systems Introduction - 2
Embedded Systems • [www. webopedia. com]: An embedded system is “a specialized computer system that is part of a larger system or machine. Typically, an embedded system is housed on a single microprocessor board with the programs stored in ROM. Virtually all appliances that have digital interfaces (e. g. , watches, microwaves, VCRs, cars) utilize embedded systems […]” • Many embedded systems are real-time systems Frank Drews Real-Time Systems Introduction - 3
Typical Characteristics of Real. Time Systems • • • Event-driven, reactive. High cost of failure. Concurrency/multiprogramming. Stand-alone/continuous operation. Reliability/fault-tolerance requirements. Predictable behavior. Frank Drews Real-Time Systems Introduction - 4
Misconceptions about Real-Time Systems (Stankovic ‘ 88) • There is no science in real-time-system design. – We shall see… • Advances in supercomputing hardware will take care of real-time requirements. – The old “buy a faster processor” argument… • Real-time computing is equivalent to fast computing. – Only to ad agencies. To us, it means PREDICTABLE computing. Frank Drews Real-Time Systems Introduction - 5
Misconceptions (Continued) • Real-time programming is assembly coding, – We would like to automate (as much as possible) real-time system design, instead of relying on clever hand-crafted code. • “Real time” is performance engineering. – In real-time computing, timeliness is almost always more important than raw performance … • “Real-time problems” have all been solved in other areas of CS or operations research. – OR people typically use stochastic queuing models or one-shot scheduling models to reason about systems. – In other CS areas, people are usually interested in optimizing average-case performance. Frank Drews Real-Time Systems Introduction - 6
Misconceptions (Continued) • It is not meaningful to talk about guaranteeing real-time performance when things can fail. – Though things may fail, we certainly don’t want the operating system to be the weakest link! • Real-time systems function only in a static environment. – Note true. We consider systems in which the environment may change dynamically. Frank Drews Real-Time Systems Introduction - 7
Are All Systems Real-Time Systems? • Question: Is a payroll processing system a realtime system? – It has a time constraint: Print the pay checks every two weeks. • Perhaps it is a real-time system in a definitional sense, but it doesn’t pay us to view it as such. • We are interested in systems for which it is not a priori obvious how to meet timing constraints Frank Drews Real-Time Systems Introduction - 8
The “Window of Scarcity” Resources may be categorized as: • Abundant: Virtually any system design methodology can be used to realize the timing requirements of the application. • Insufficient: The application is ahead of the technology curve; no design methodology can be used to realize the timing requirements of the application. • Sufficient but scarce: It is possible to realize the timing requirements of the application, but careful resource allocation is required. Frank Drews Real-Time Systems Introduction - 9
Example: Interactive/Multimedia Applications Frank Drews Real-Time Systems Introduction - 10
Example: Real-Time Applications Many real-time systems are control systems Example 1: A simple one-sensor, oneactuator control system Frank Drews Real-Time Systems Introduction - 11
Simple Control System (Continued) Pseudo-code for this system: T is called sampling period. T is a key design choice. Typical range for T: seconds to milliseconds. Frank Drews Real-Time Systems Introduction - 12
Time Frank Drews Real-Time Systems Introduction - 13
Multi-rate Control Systems More complicated control systems have multiple sensors and actuators and must support control loops of different rates. Example 2: Helicopter flight controller. Note: Having only harmonic rates simplifies the system Frank Drews Real-Time Systems Introduction - 14
Hierarchical Control Systems Frank Drews Real-Time Systems Introduction - 15

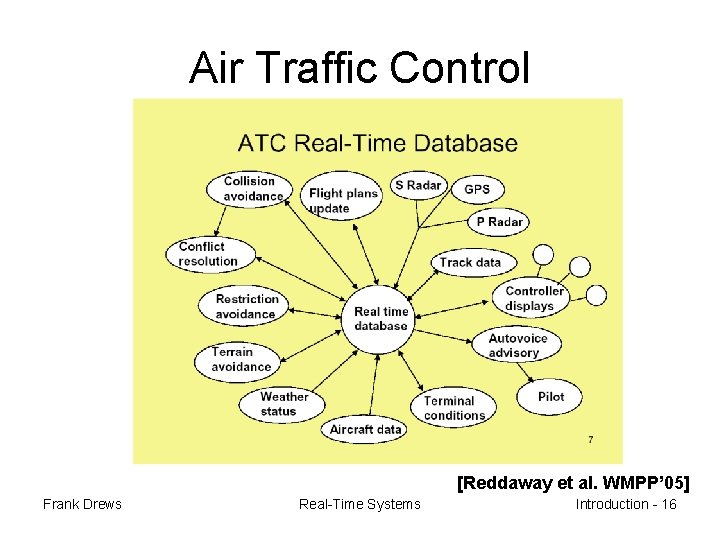

Air Traffic Control [Reddaway et al. WMPP’ 05] Frank Drews Real-Time Systems Introduction - 16
Signal-Processing System • Signal-processing systems transform data from one form to another. • Examples: – Digital filtering. – Video and voice compression/decompression. – Radar signal processing. • Response times range from a few milliseconds to a few seconds. Frank Drews Real-Time Systems Introduction - 17
Example: Radar System Frank Drews Real-Time Systems Introduction - 18
Internet/Multimedia Applications • Web farms hosting multiple web domains static dynamic streaming content video/audio – Each web domain receives a certain share of the overall resources (CPU, network, file system) – Each web domain consists of an application pool (static content, dynamic content, streaming video/audio, etc. ) • Challenges – Sharing the resource among domains (i. e. application pools) may be hard in general purpose Operating Systems – Guarantee of a uniform, steady, jitterfree execution of time critical multimedia applications while not starving other applications – Support of multiprocessor server systems Frank Drews Real-Time Systems Server Domain 1 Domain 3 Domain 2 Introduction - 19
Other Real-Time Applications • Real-time databases. – Transactions must complete by deadlines. – Main dilemma: Transaction scheduling algorithms and real-time scheduling algorithms often have conflicting goals. – Data may be subject to absolute and relative temporal consistency requirements. – Overall goal: reliable responses • Multimedia. • Want to process audio and video frames at steady rates. – TV video rate is 30 frames/sec. HDTV is 60 frames/sec. – Telephone audio is 16 Kbits/sec. CD audio is 128 Kbits/sec. • Other requirements: Lip synchronization, low jitter, low end-to-end response times (if interactive). Frank Drews Real-Time Systems Introduction - 20
Hard vs. Soft Real Time • Task: A sequential piece of code. • Job: Instance of a task • Jobs require resources to execute. – Example resources: CPU, network, disk, critical section. – We will simply call hardware resources “processors”. • Release time of a job: The time instant the job becomes ready to execute. • Deadline of a job: The time instant by which the job must complete execution. • Relative deadline of a job: “Deadline - Release time”. • Response time of a job: “Completion time - Release time”. Frank Drews Real-Time Systems Introduction - 21
Example Job is released at time 3. It’s absolute deadline is at time 10. It’s relative deadline is 7. It’s response time is 6. Frank Drews Real-Time Systems Introduction - 22

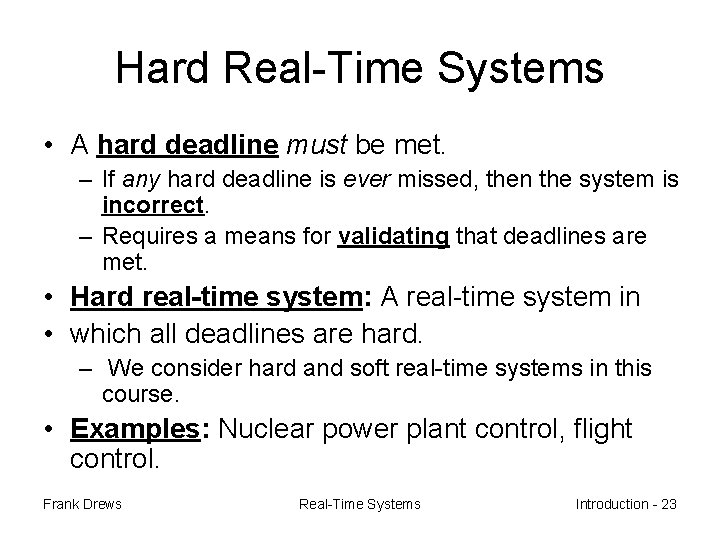

Hard Real-Time Systems • A hard deadline must be met. – If any hard deadline is ever missed, then the system is incorrect. – Requires a means for validating that deadlines are met. • Hard real-time system: A real-time system in • which all deadlines are hard. – We consider hard and soft real-time systems in this course. • Examples: Nuclear power plant control, flight control. Frank Drews Real-Time Systems Introduction - 23
Soft Real-Time Systems • A soft deadline may occasionally be missed. – Question: How to define “occasionally”? • Soft real-time system: A real-time system in which some deadlines are soft. • Examples: multimedia applications. Frank Drews Real-Time Systems Introduction - 24
Performance • Two particular factors are important – How fast does a system respond – When it fails, what happens? Frank Drews Real-Time Systems Introduction - 25
The Speed of Response • All required responses are time-critical – The designer should predict the delivered performance of the systems with the required performance – Unfortunately, it may not be possible to give 100% guarantees Frank Drews Real-Time Systems Introduction - 26
Periodic vs. Aperiodic Tasks • Periodic Tasks – Tasks run at regular, pre-defined intervals – Example: closed loop digital controller having fixed, pre-set sampling rates Execute control task Idle time Sampling interval t 0 Frank Drews t 1 Synchronous real-time clock signals Real-Time Systems t 2 Introduction - 27
Periodic vs. Aperiodic Tasks • Aperiodic Tasks – Occur when the computer must respond to (generally) external events which occur at random (asynchronous or aperiodic); have either soft or no deadlines • Sporadic Tasks – Similar to aperiodic tasks; however, the event must be serviced within a specific maximum time period; hard deadline Execute event task e 0 Frank Drews Idle time Execute event task Idle time e 1 Asynchronous events Real-Time Systems time e 2 Introduction - 28
Mixing Periodic and Aperiodic Tasks • We get into trouble in situations which involve a mix of periodic and aperiodic(sporadic) events, which are usual in real-time designs • Much thought and skill are needed to deal with the response requirements of periodic and aperiodic tasks Frank Drews Real-Time Systems Introduction - 29
Real-Time Operating Systems (RTOSs) • RTOS: specialized operating system for RTS • Main responsibilities: – Process management – Resource allocation (processor, memory, network) • They may not include regular OS facilities such as file management, virtual memory, user/kernel level separation, etc. • Manage at least two priority levels: – Interrupt level, for processes that need fast response – Clock level, for periodic processes • Typical components: real-time clock, interrupt handler, scheduler, resource manager, dispatcher Frank Drews Real-Time Systems Introduction - 30
