Real Presence Group Series backplanes and line drawings
Real. Presence Group Series backplanes and line drawings © Polycom, Inc. All rights reserved. Specifications are subject to change without notice. 1

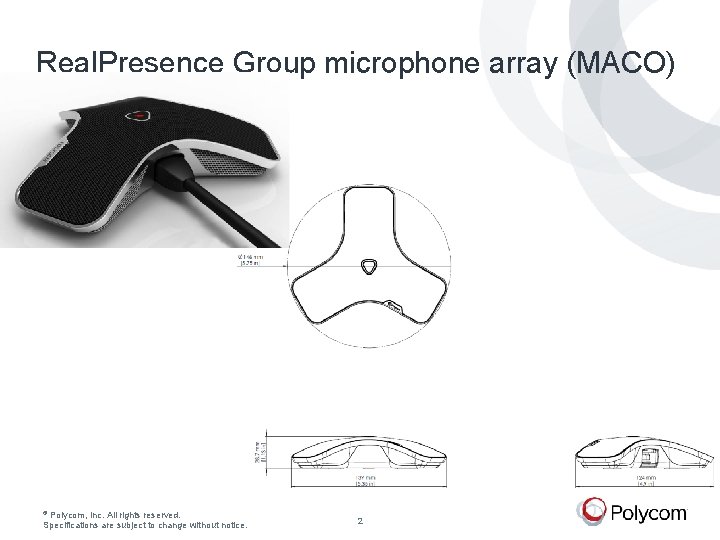

Real. Presence Group microphone array (MACO) © Polycom, Inc. All rights reserved. Specifications are subject to change without notice. 2

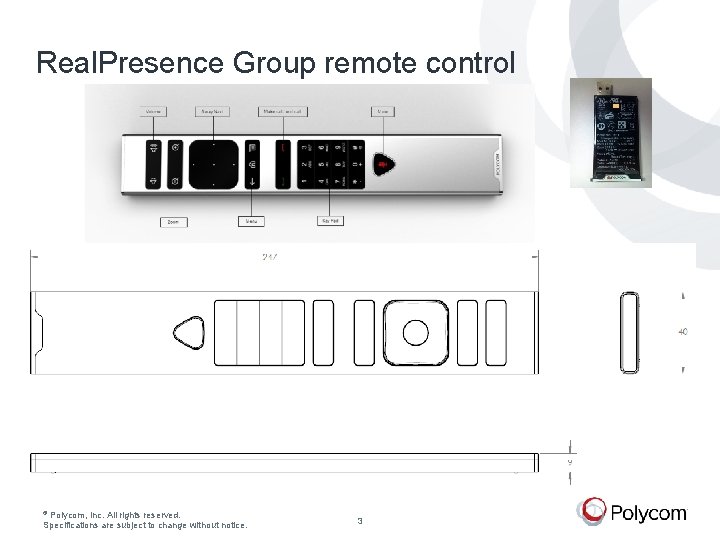

Real. Presence Group remote control © Polycom, Inc. All rights reserved. Specifications are subject to change without notice. 3

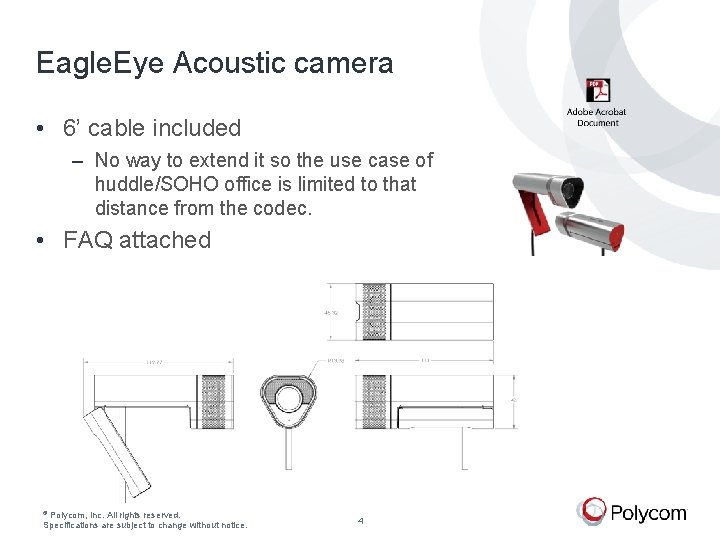

Eagle. Eye Acoustic camera • 6’ cable included ‒ No way to extend it so the use case of huddle/SOHO office is limited to that distance from the codec. • FAQ attached © Polycom, Inc. All rights reserved. Specifications are subject to change without notice. 4

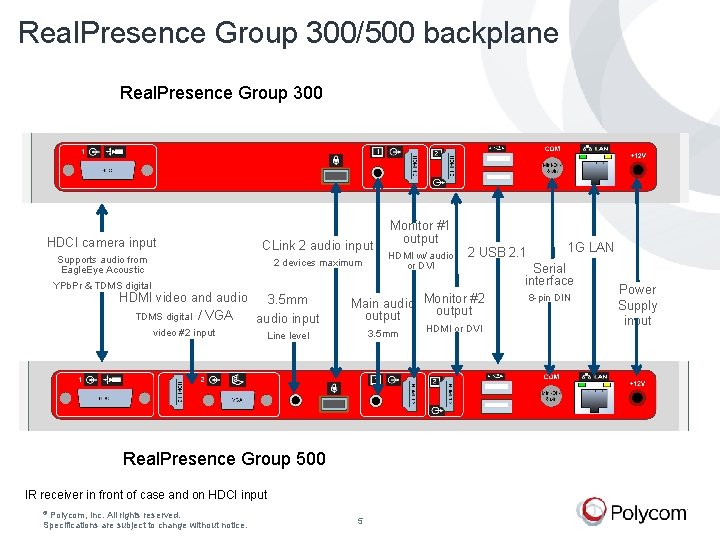

Real. Presence Group 300/500 backplane Real. Presence Group 300 HDCI camera input CLink 2 audio input Supports audio from Eagle. Eye Acoustic 2 devices maximum Monitor #1 output HDMI w/ audio or DVI 2 USB 2. 1 YPb. Pr & TDMS digital HDMI video and audio 3. 5 mm TDMS digital / VGA audio input video #2 input Main audio Monitor #2 output 3. 5 mm Line level Real. Presence Group 500 IR receiver in front of case and on HDCI input © Polycom, Inc. All rights reserved. Specifications are subject to change without notice. 5 HDMI or DVI 1 G LAN Serial interface 8 -pin DIN Power Supply input

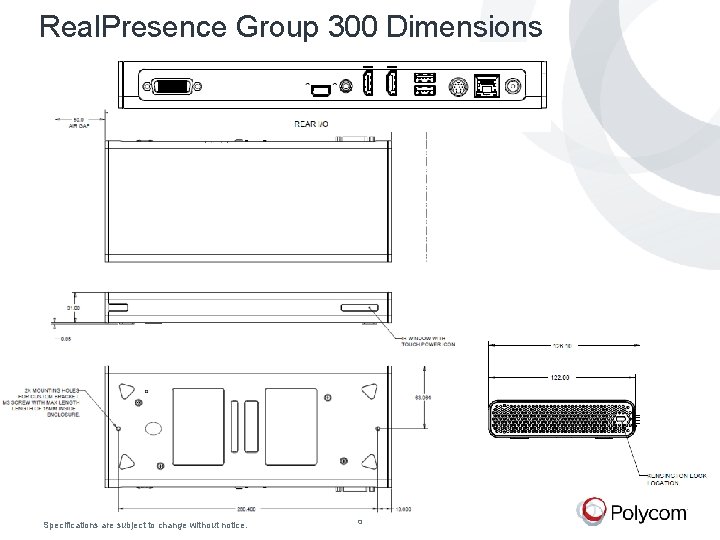

Real. Presence Group 300 Dimensions © Polycom, Inc. All rights reserved. Specifications are subject to change without notice. 6
Real. Presence Group 500 Dimensions © Polycom, Inc. All rights reserved. Specifications are subject to change without notice. 7

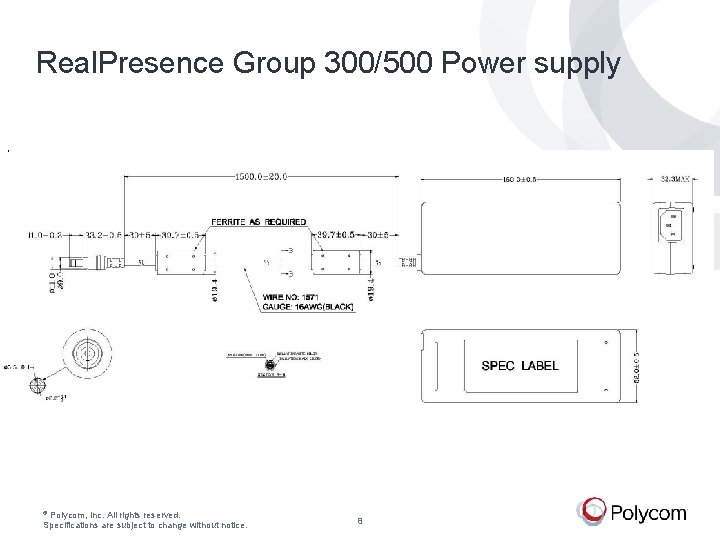

Real. Presence Group 300/500 Power supply © Polycom, Inc. All rights reserved. Specifications are subject to change without notice. 8

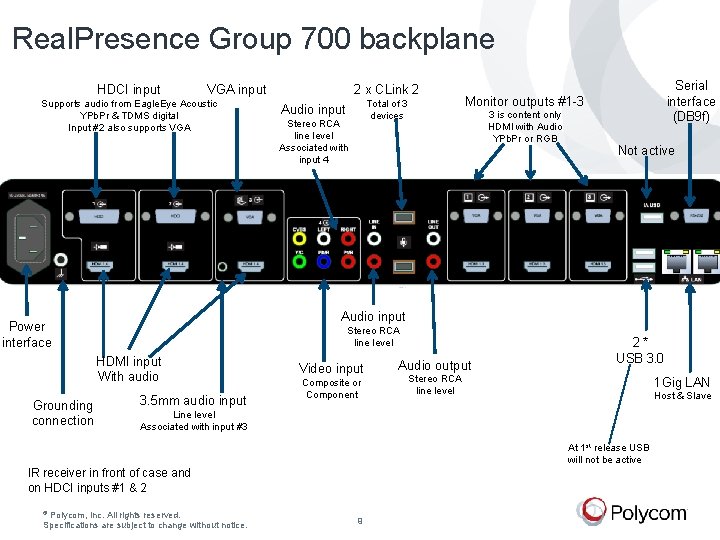

Real. Presence Group 700 backplane HDCI input VGA input Supports audio from Eagle. Eye Acoustic YPb. Pr & TDMS digital Input #2 also supports VGA 2 x CLink 2 Total of 3 devices Audio input Stereo RCA line level Associated with input 4 Serial interface (DB 9 f) Monitor outputs #1 -3 3 is content only HDMI with Audio YPb. Pr or RGB Not active Audio input Power interface Stereo RCA line level HDMI input With audio Grounding connection 3. 5 mm audio input Video input Composite or Component Audio output 2 * USB 3. 0 Stereo RCA line level 1 Gig LAN Host & Slave Line level Associated with input #3 At 1 st release USB will not be active IR receiver in front of case and on HDCI inputs #1 & 2 © Polycom, Inc. All rights reserved. Specifications are subject to change without notice. 9

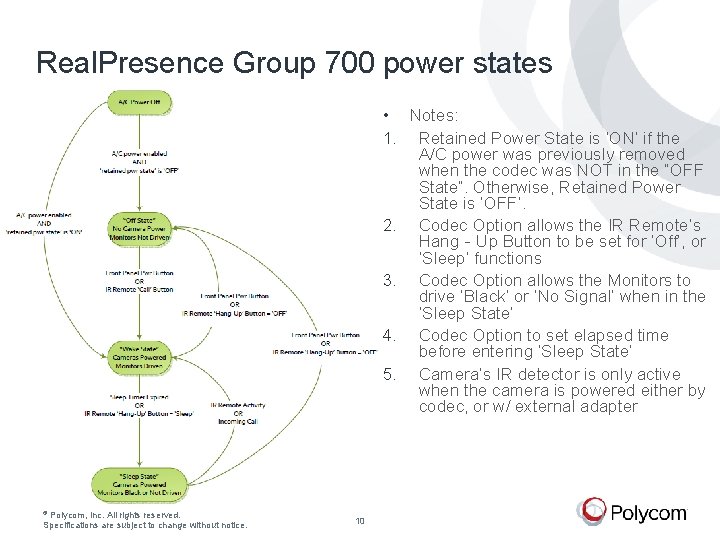

Real. Presence Group 700 power states • Notes: 1. Retained Power State is ‘ON’ if the A/C power was previously removed when the codec was NOT in the “OFF State”. Otherwise, Retained Power State is ‘OFF’. 2. Codec Option allows the IR Remote’s Hang‐Up Button to be set for ‘Off’, or ‘Sleep’ functions 3. Codec Option allows the Monitors to drive ‘Black’ or ‘No Signal’ when in the ‘Sleep State’ 4. Codec Option to set elapsed time before entering ‘Sleep State’ 5. Camera’s IR detector is only active when the camera is powered either by codec, or w/ external adapter © Polycom, Inc. All rights reserved. Specifications are subject to change without notice. 10

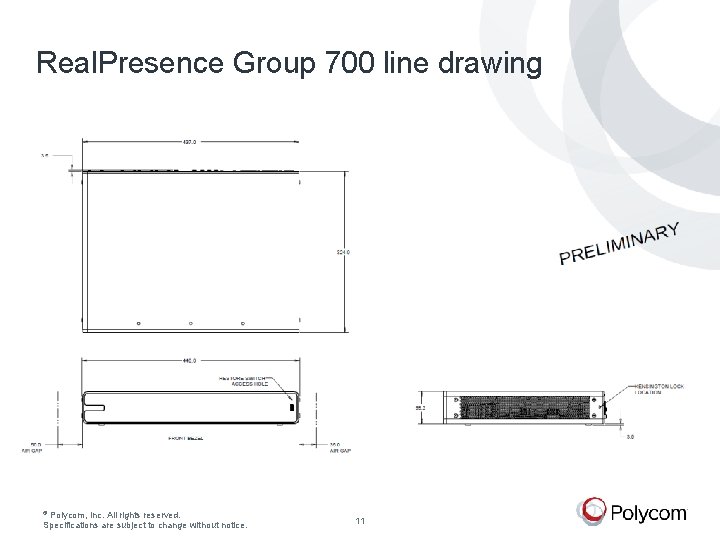

Real. Presence Group 700 line drawing © Polycom, Inc. All rights reserved. Specifications are subject to change without notice. 11

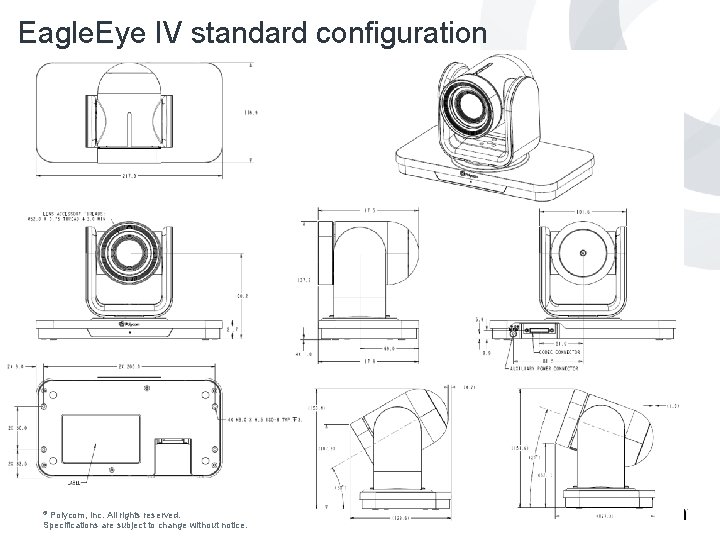

Eagle. Eye IV standard configuration © Polycom, Inc. All rights reserved. Specifications are subject to change without notice. 12

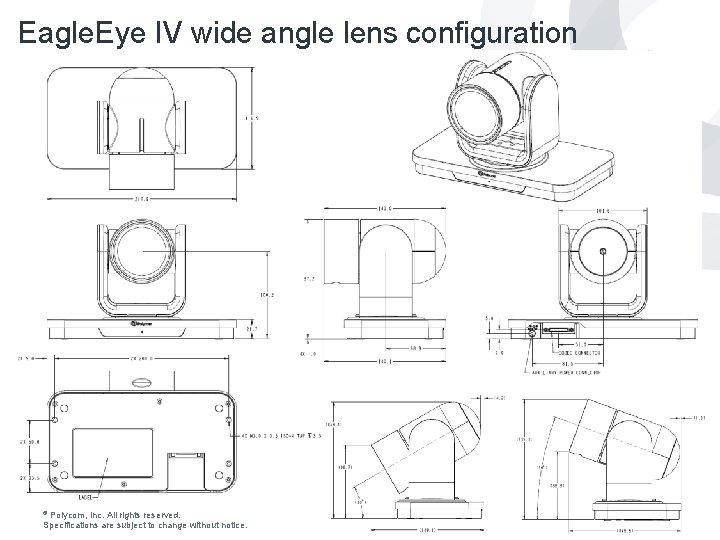

Eagle. Eye IV wide angle lens configuration © Polycom, Inc. All rights reserved. Specifications are subject to change without notice. 13

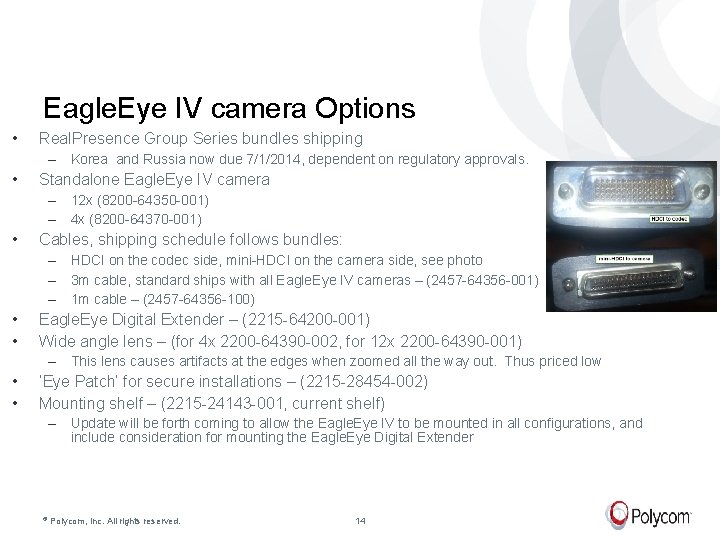

Eagle. Eye IV camera Options • Real. Presence Group Series bundles shipping ‒ Korea and Russia now due 7/1/2014, dependent on regulatory approvals. • Standalone Eagle. Eye IV camera ‒ 12 x (8200 -64350 -001) ‒ 4 x (8200 -64370 -001) • Cables, shipping schedule follows bundles: ‒ HDCI on the codec side, mini-HDCI on the camera side, see photo ‒ 3 m cable, standard ships with all Eagle. Eye IV cameras – (2457 -64356 -001) ‒ 1 m cable – (2457 -64356 -100) • • Eagle. Eye Digital Extender – (2215 -64200 -001) Wide angle lens – (for 4 x 2200 -64390 -002, for 12 x 2200 -64390 -001) ‒ This lens causes artifacts at the edges when zoomed all the way out. Thus priced low • • ‘Eye Patch’ for secure installations – (2215 -28454 -002) Mounting shelf – (2215 -24143 -001, current shelf) ‒ Update will be forth coming to allow the Eagle. Eye IV to be mounted in all configurations, and include consideration for mounting the Eagle. Eye Digital Extender © Polycom, Inc. All rights reserved. 14

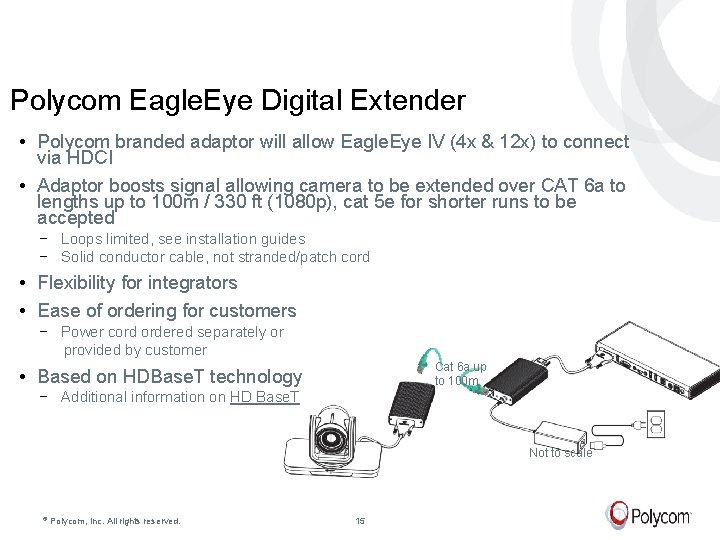

Polycom Eagle. Eye Digital Extender • Polycom branded adaptor will allow Eagle. Eye IV (4 x & 12 x) to connect via HDCI • Adaptor boosts signal allowing camera to be extended over CAT 6 a to lengths up to 100 m / 330 ft (1080 p), cat 5 e for shorter runs to be accepted − Loops limited, see installation guides − Solid conductor cable, not stranded/patch cord • Flexibility for integrators • Ease of ordering for customers − Power cord ordered separately or provided by customer Cat 6 a up to 100 m • Based on HDBase. T technology − Additional information on HD Base. T Not to scale © Polycom, Inc. All rights reserved. 15

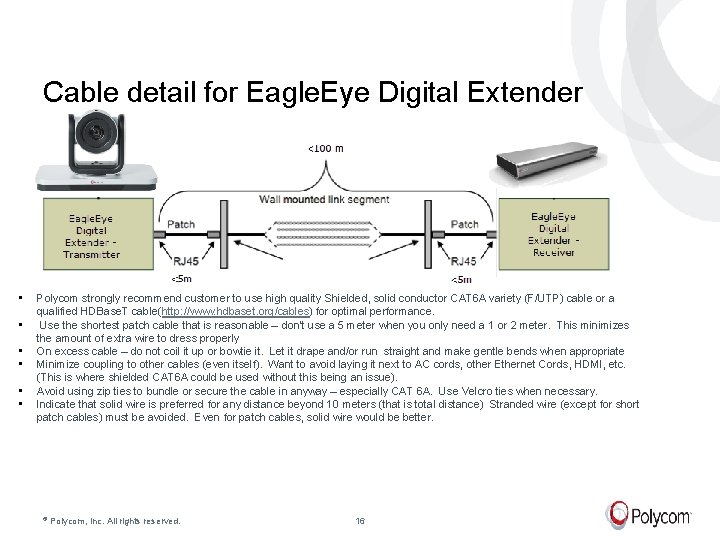

Cable detail for Eagle. Eye Digital Extender • • • Polycom strongly recommend customer to use high quality Shielded, solid conductor CAT 6 A variety (F/UTP) cable or a qualified HDBase. T cable(http: //www. hdbaset. org/cables) for optimal performance. Use the shortest patch cable that is reasonable – don’t use a 5 meter when you only need a 1 or 2 meter. This minimizes the amount of extra wire to dress properly On excess cable – do not coil it up or bowtie it. Let it drape and/or run straight and make gentle bends when appropriate Minimize coupling to other cables (even itself). Want to avoid laying it next to AC cords, other Ethernet Cords, HDMI, etc. (This is where shielded CAT 6 A could be used without this being an issue). Avoid using zip ties to bundle or secure the cable in anyway – especially CAT 6 A. Use Velcro ties when necessary. Indicate that solid wire is preferred for any distance beyond 10 meters (that is total distance) Stranded wire (except for short patch cables) must be avoided. Even for patch cables, solid wire would be better. © Polycom, Inc. All rights reserved. 16

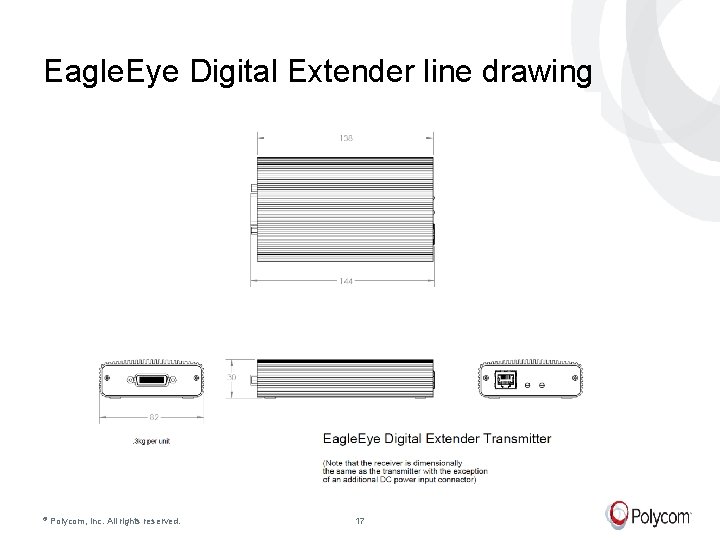

Eagle. Eye Digital Extender line drawing © Polycom, Inc. All rights reserved. 17

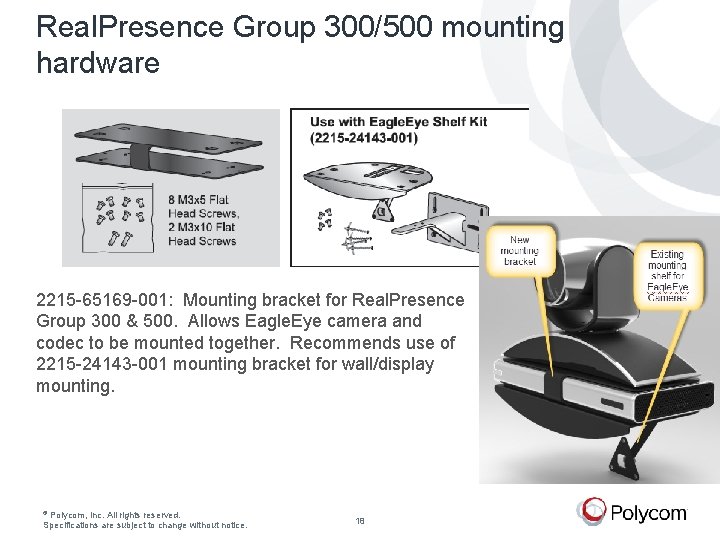

Real. Presence Group 300/500 mounting hardware 2215 -65169 -001: Mounting bracket for Real. Presence Group 300 & 500. Allows Eagle. Eye camera and codec to be mounted together. Recommends use of 2215 -24143 -001 mounting bracket for wall/display mounting. © Polycom, Inc. All rights reserved. Specifications are subject to change without notice. 18

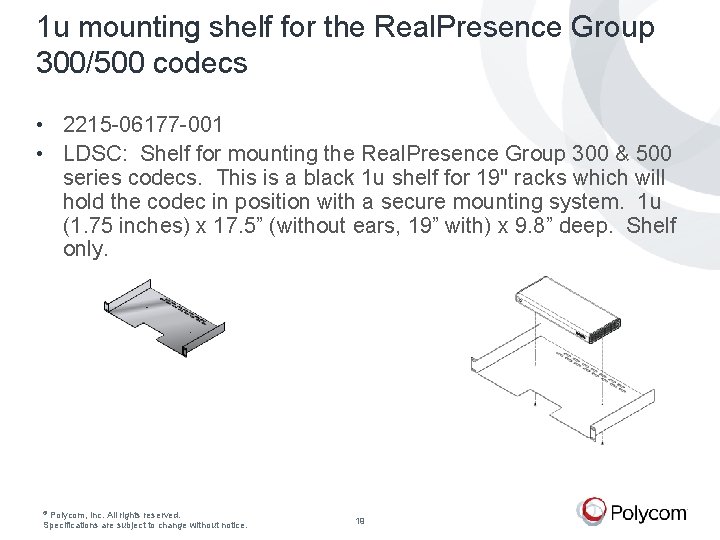

1 u mounting shelf for the Real. Presence Group 300/500 codecs • 2215 -06177 -001 • LDSC: Shelf for mounting the Real. Presence Group 300 & 500 series codecs. This is a black 1 u shelf for 19" racks which will hold the codec in position with a secure mounting system. 1 u (1. 75 inches) x 17. 5” (without ears, 19” with) x 9. 8” deep. Shelf only. © Polycom, Inc. All rights reserved. Specifications are subject to change without notice. 19

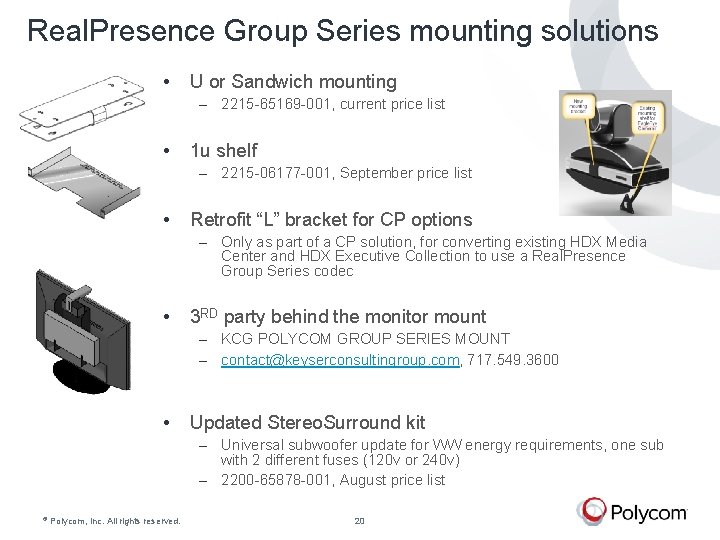

Real. Presence Group Series mounting solutions • U or Sandwich mounting ‒ 2215 -65169 -001, current price list • 1 u shelf ‒ 2215 -06177 -001, September price list • Retrofit “L” bracket for CP options ‒ Only as part of a CP solution, for converting existing HDX Media Center and HDX Executive Collection to use a Real. Presence Group Series codec • 3 RD party behind the monitor mount ‒ KCG POLYCOM GROUP SERIES MOUNT ‒ contact@keyserconsultingroup. com, 717. 549. 3600 • Updated Stereo. Surround kit ‒ Universal subwoofer update for WW energy requirements, one sub with 2 different fuses (120 v or 240 v) ‒ 2200 -65878 -001, August price list © Polycom, Inc. All rights reserved. 20

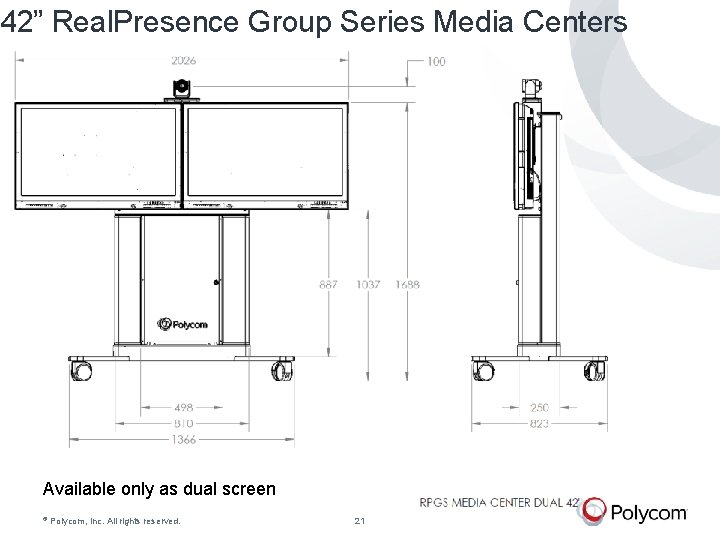

42” Real. Presence Group Series Media Centers Available only as dual screen © Polycom, Inc. All rights reserved. 21

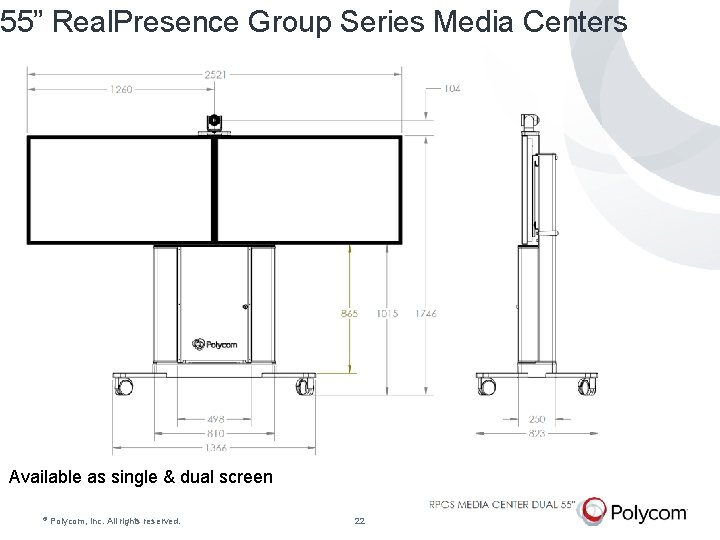

55” Real. Presence Group Series Media Centers Available as single & dual screen © Polycom, Inc. All rights reserved. 22

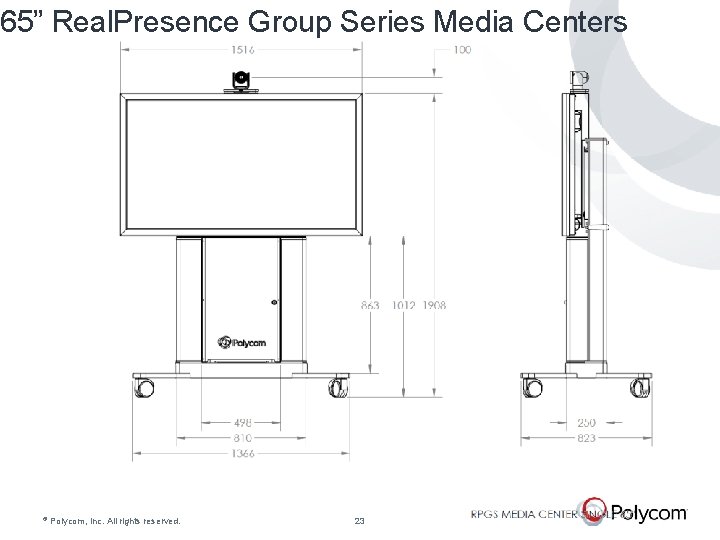

65” Real. Presence Group Series Media Centers © Polycom, Inc. All rights reserved. 23

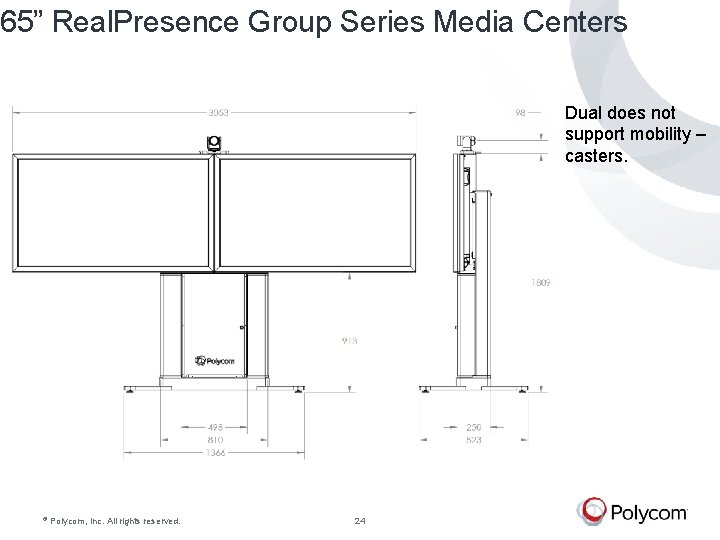

65” Real. Presence Group Series Media Centers Dual does not support mobility – casters. © Polycom, Inc. All rights reserved. 24

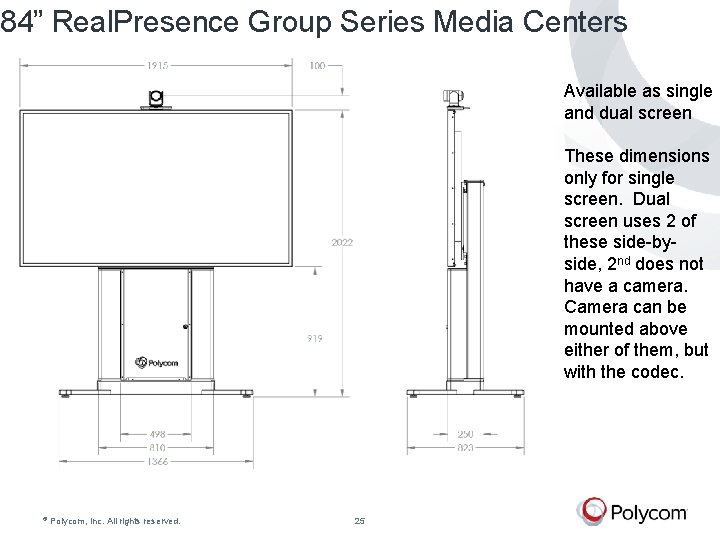

84” Real. Presence Group Series Media Centers Available as single and dual screen These dimensions only for single screen. Dual screen uses 2 of these side-byside, 2 nd does not have a camera. Camera can be mounted above either of them, but with the codec. © Polycom, Inc. All rights reserved. 25

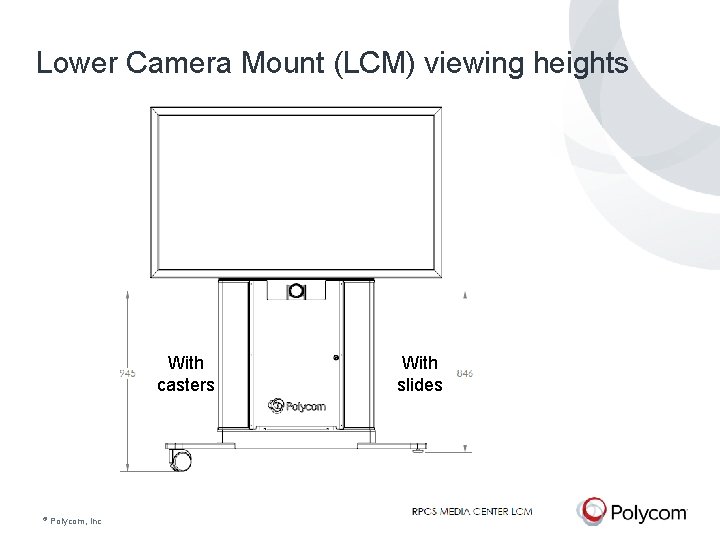

Lower Camera Mount (LCM) viewing heights With slides With casters © Polycom, Inc. All rights reserved. 26
See this web link for DXF and PDF of all the Group Video products: http: //planetpolycom/sites/sales/VSG%20 Dimensional% 20 Drawings/Forms/All. Items. aspx © Polycom, Inc. All rights reserved. Specifications are subject to change without notice. 27
