Reading the CXR Frank Schembri Pulmonary Critical Care

Reading the CXR Frank Schembri Pulmonary / Critical Care

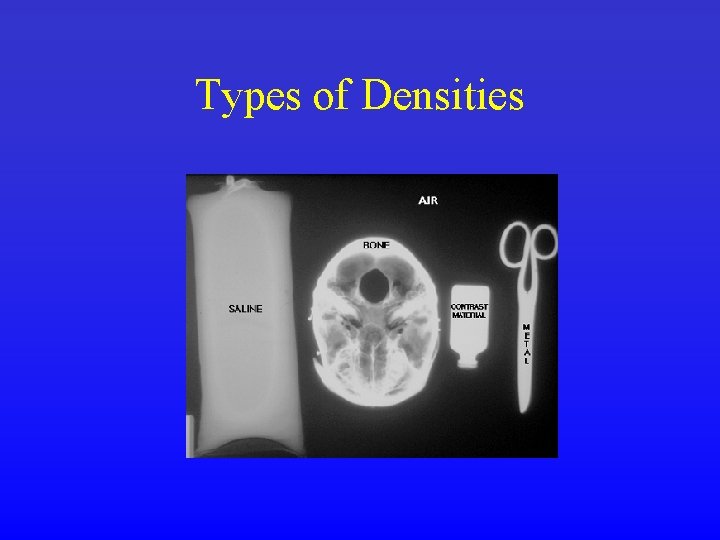

Types of Densities

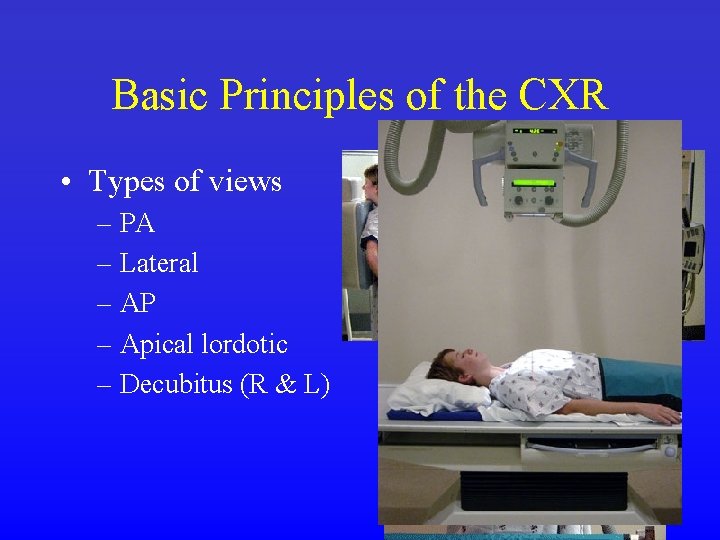

Basic Principles of the CXR • Types of views – PA – Lateral – AP – Apical lordotic – Decubitus (R & L)

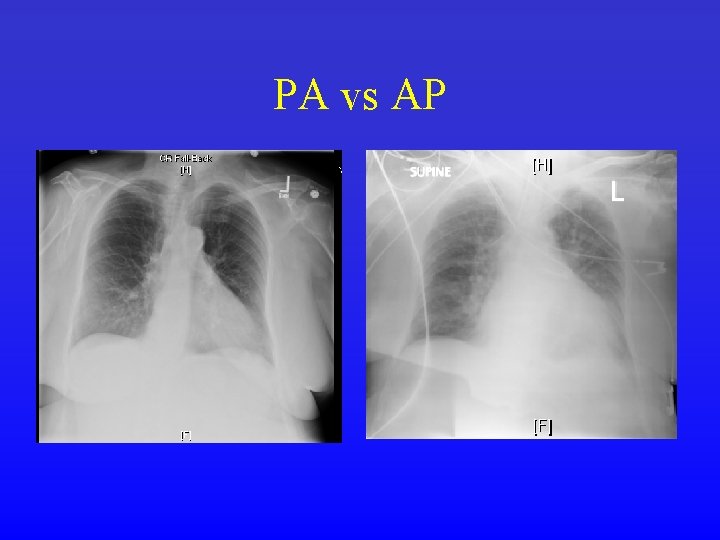

PA vs AP

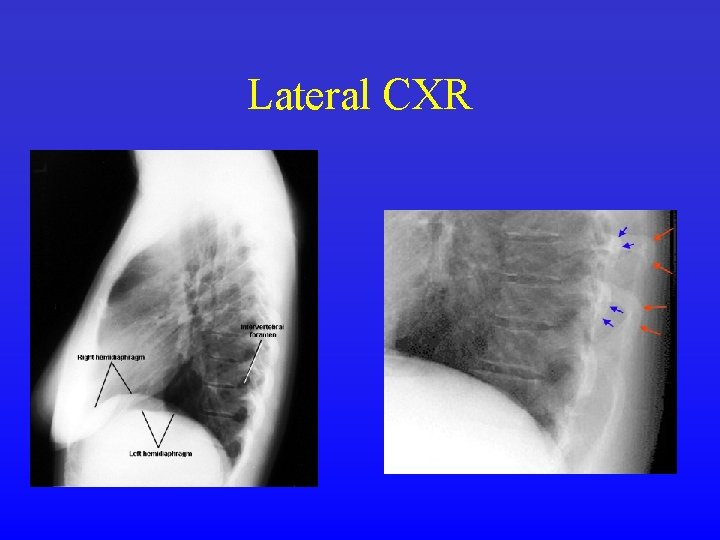

Lateral CXR

Apical Lordotic Chest

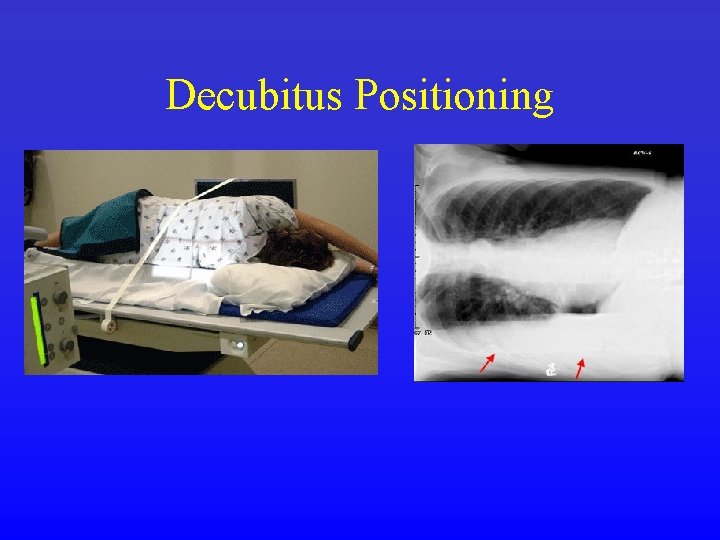

Decubitus Positioning

Approaching the CXR • • • Name, date, type of film Type of film Patient positioning / rotation Inspiration Penetration – White is underpenetrated – Black is overpenetrated

Approaching the CXR • The systematic approach 1. Tubes / Hardware 2. Bones 3. Soft tissues 4. Pleura and diaphragm 5. Trachea and mediastinum 6. Lung parenchyma

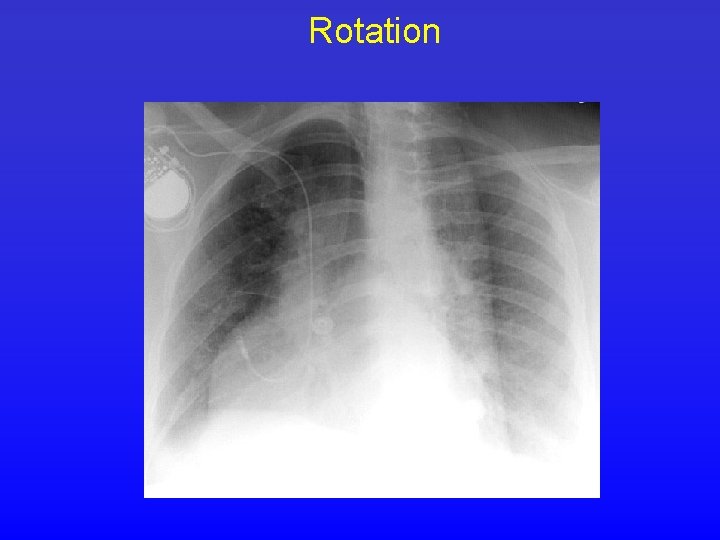

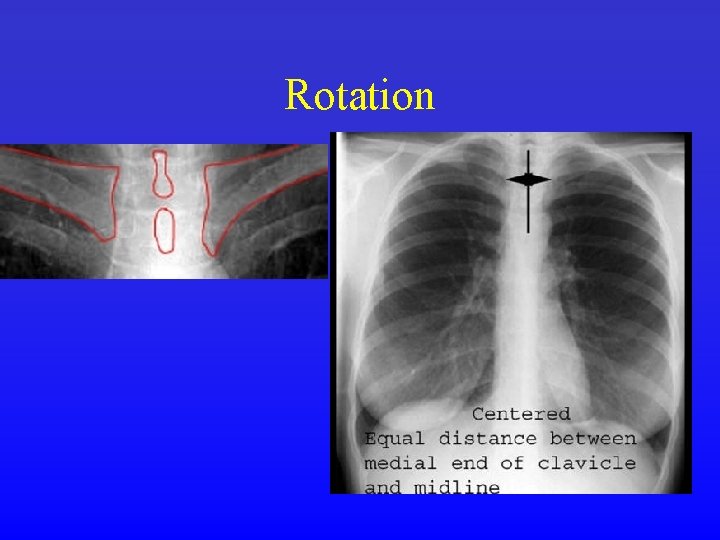

Rotation

Inspiration

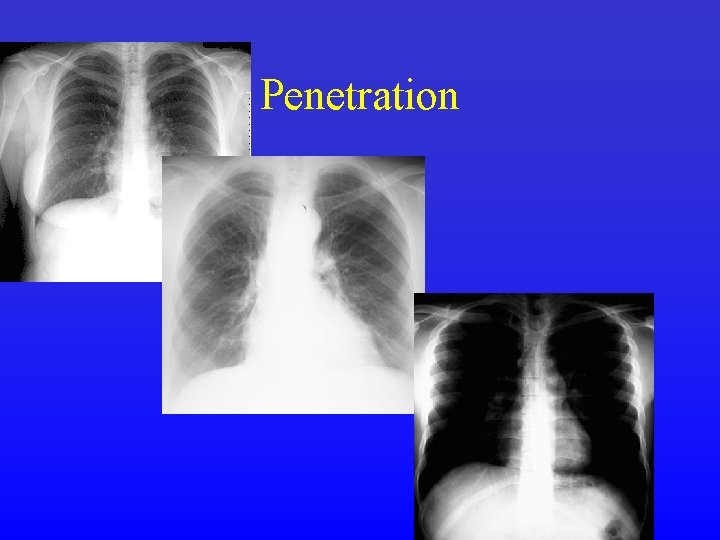

Penetration

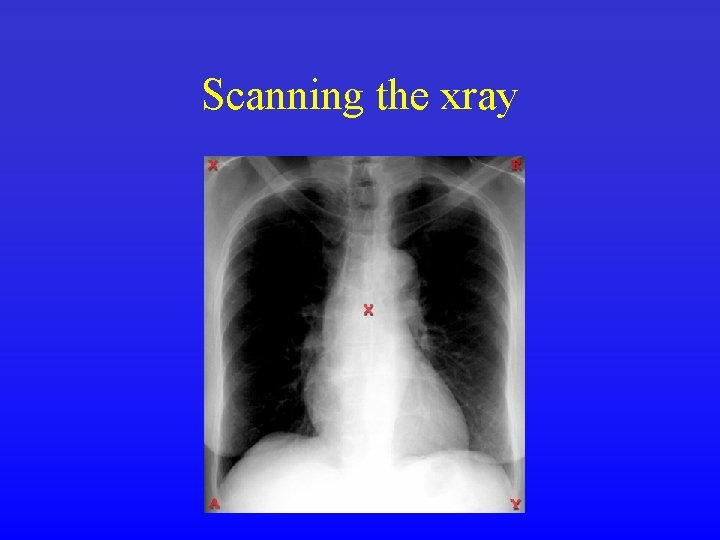

Scanning the xray

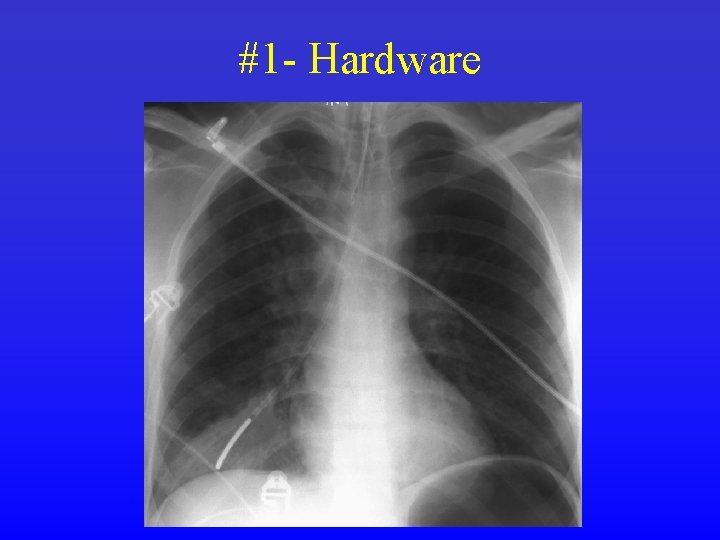

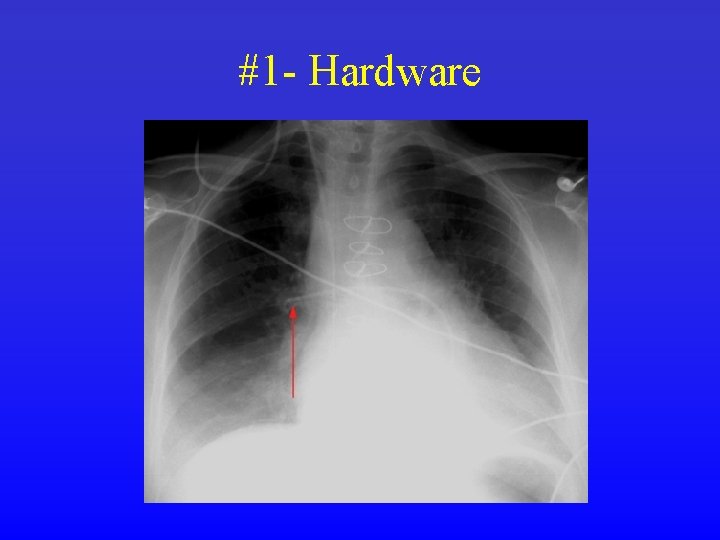

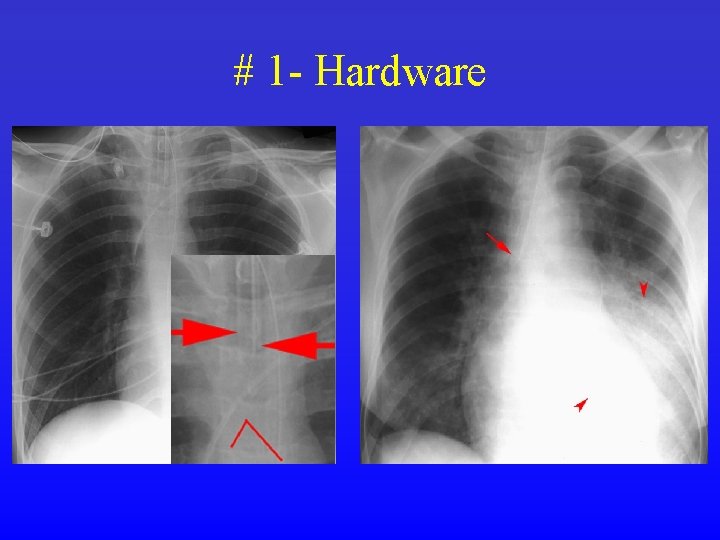

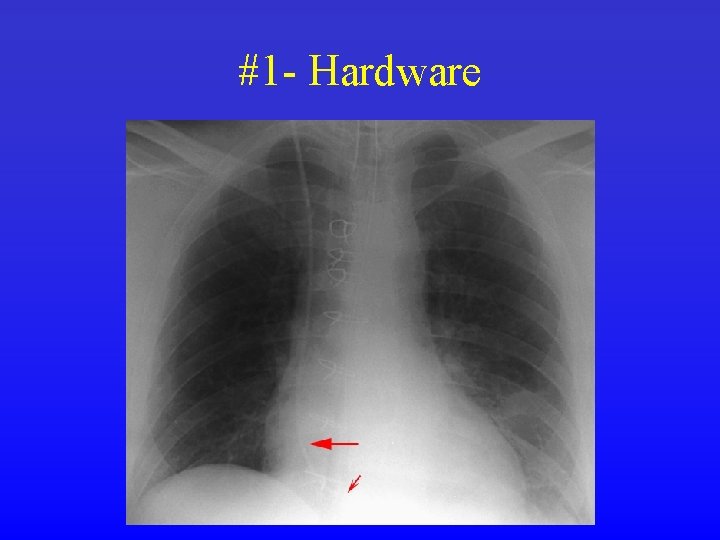

# 1 - Hardware

#1 - Hardware

2. Osseous Structures in the Chest

2. Osseous Structures of the Chest

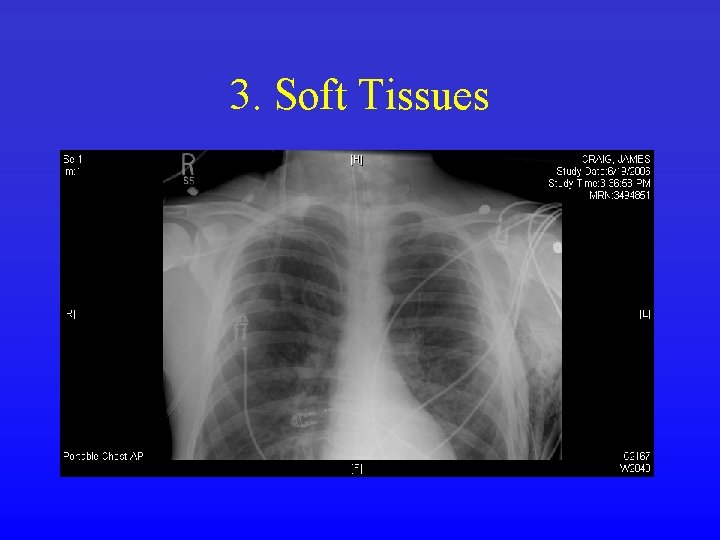

3. Soft Tissues

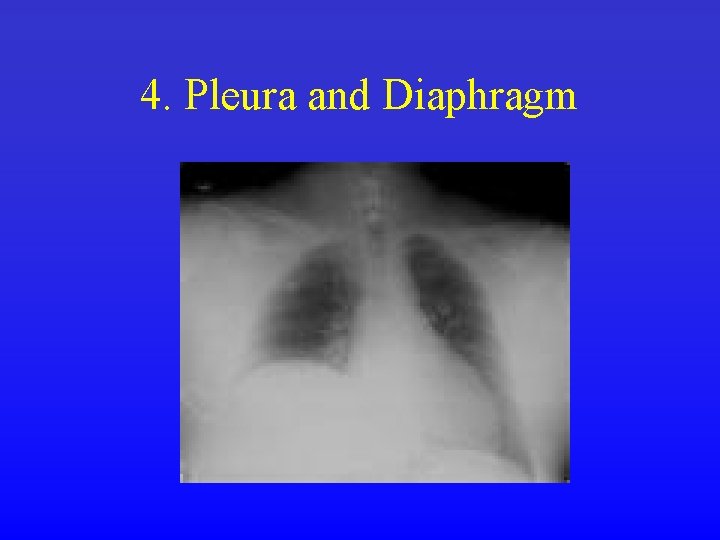

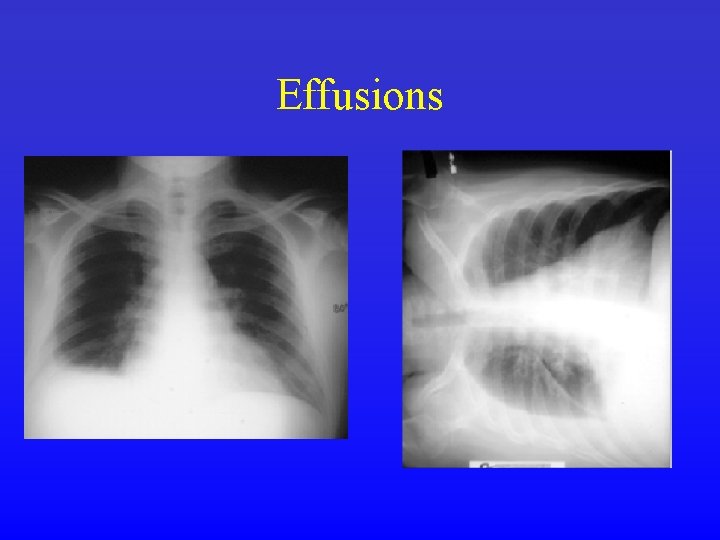

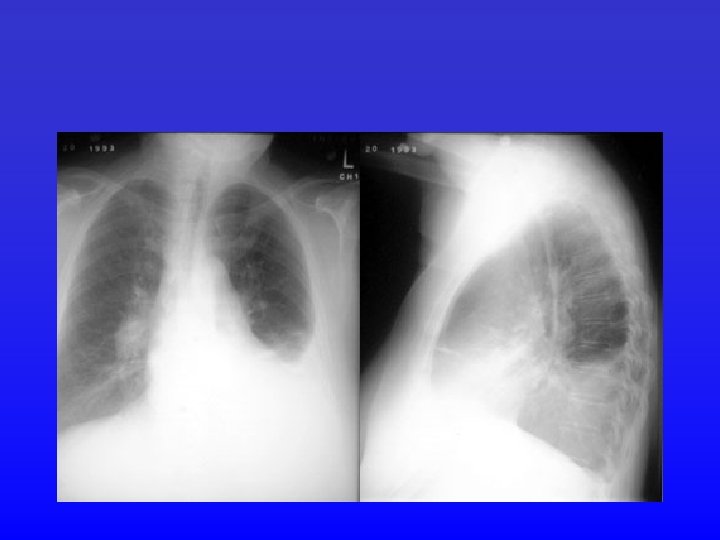

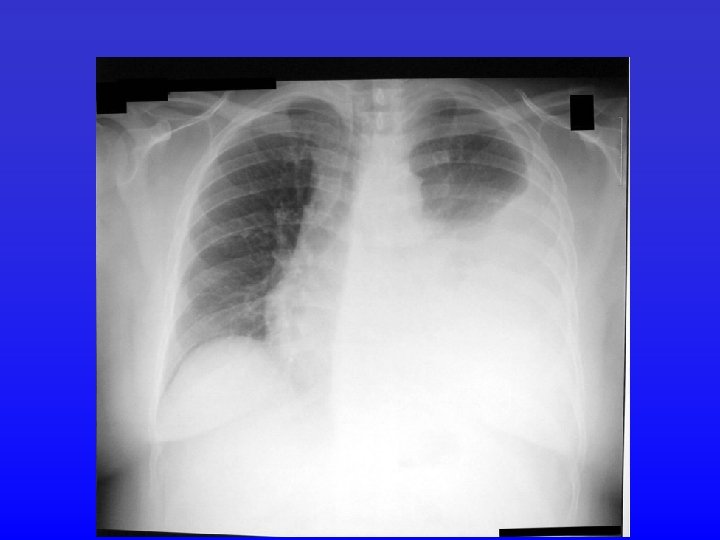

4. Pleura and Diaphragm

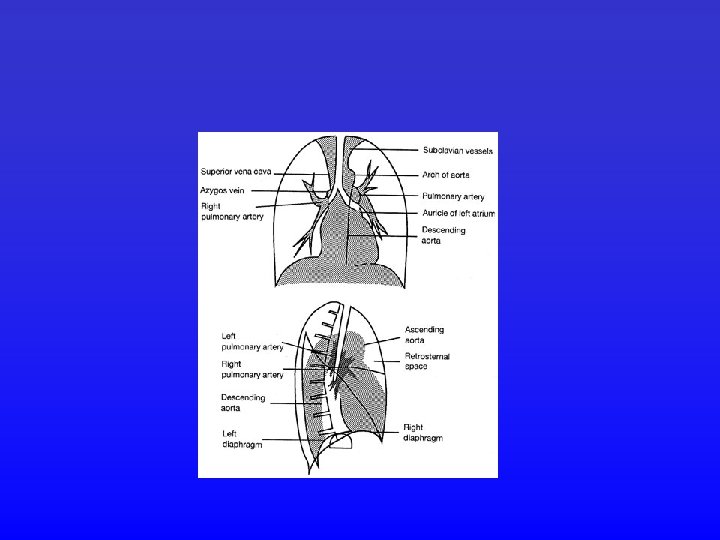

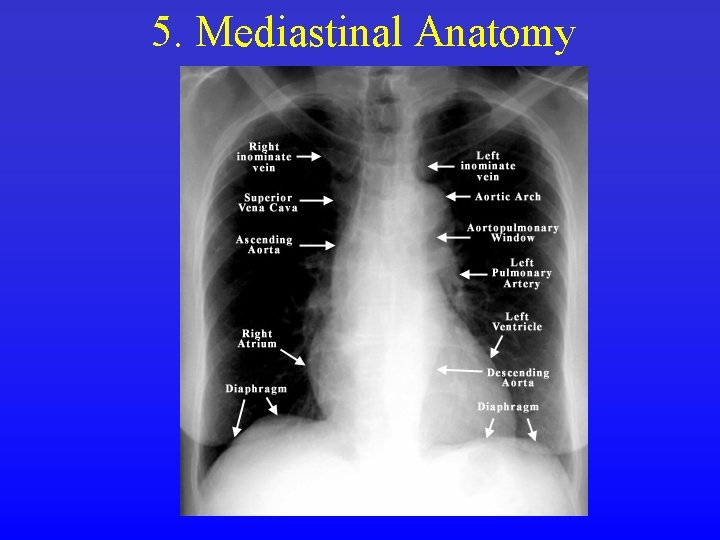

5. Mediastinal Anatomy

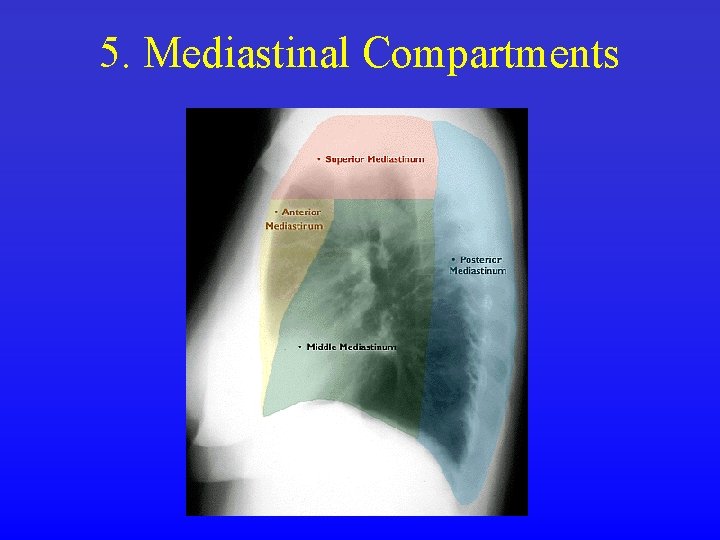

5. Mediastinal Compartments

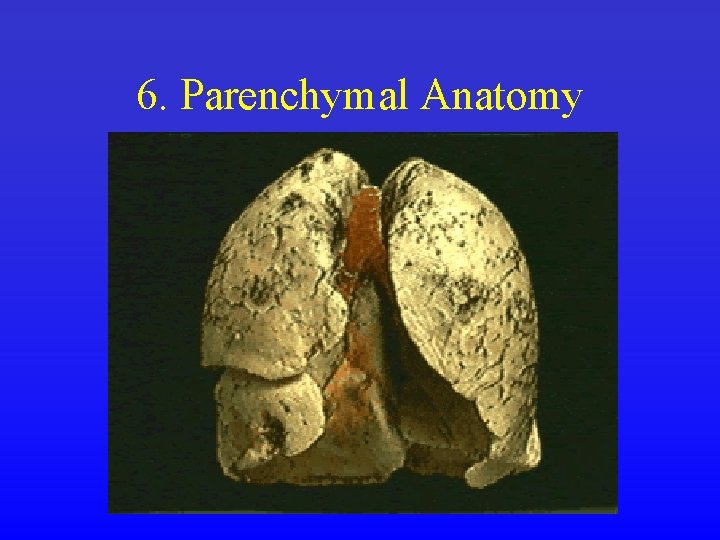

6. Parenchymal Anatomy

Lateral View Anterior View

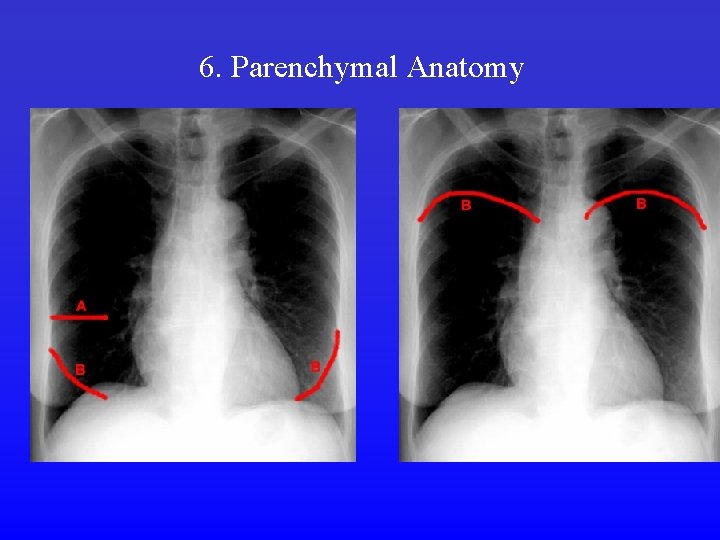

6. Parenchymal Anatomy

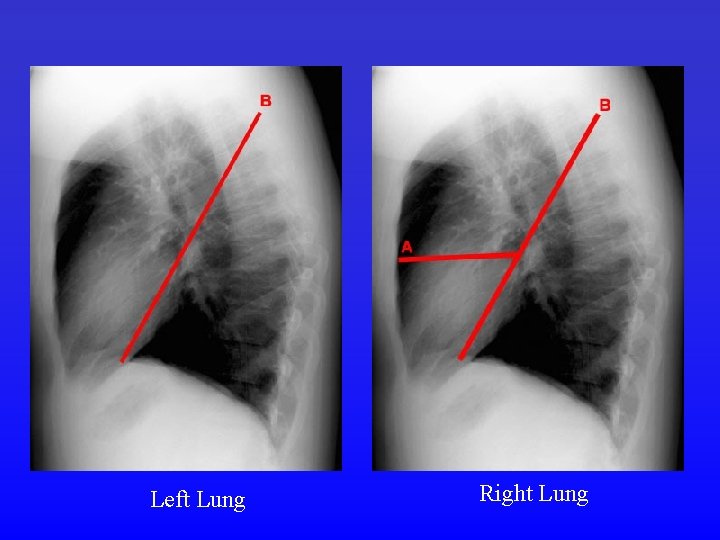

Left Lung Right Lung

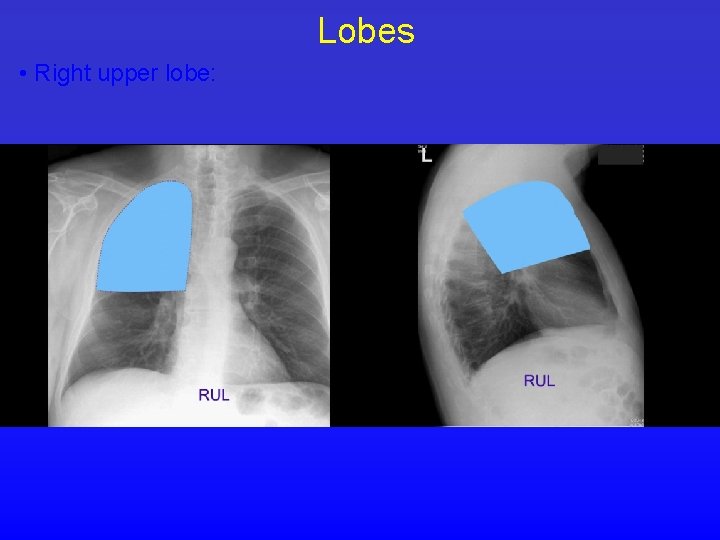

Lobes • Right upper lobe:

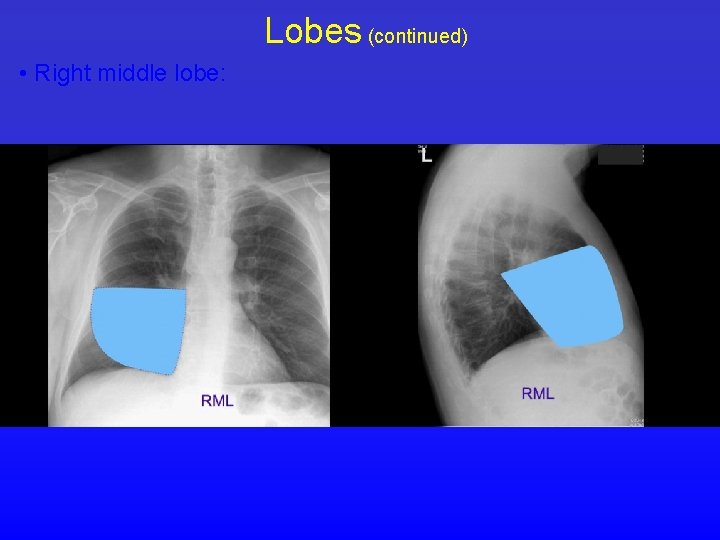

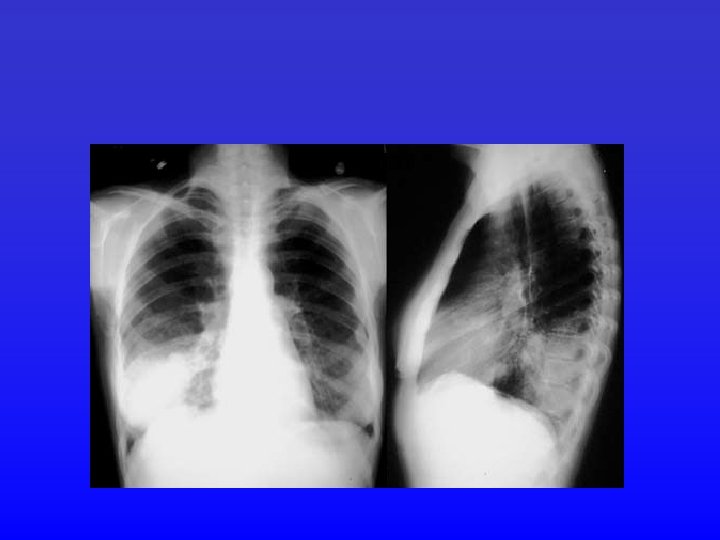

Lobes (continued) • Right middle lobe:

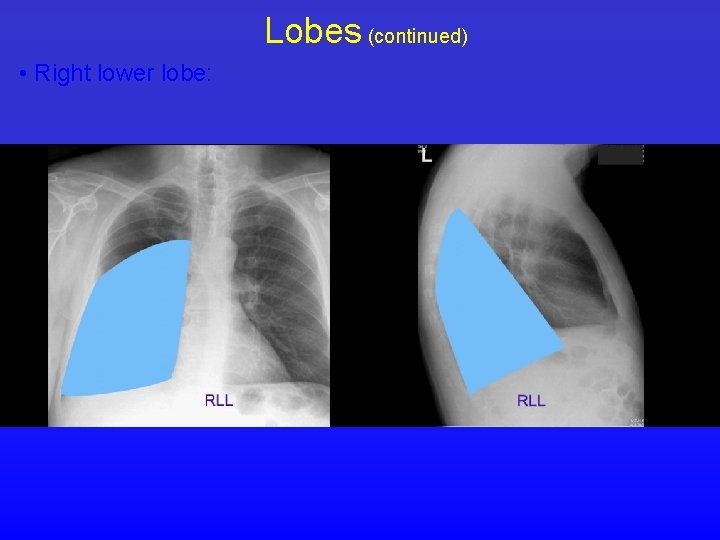

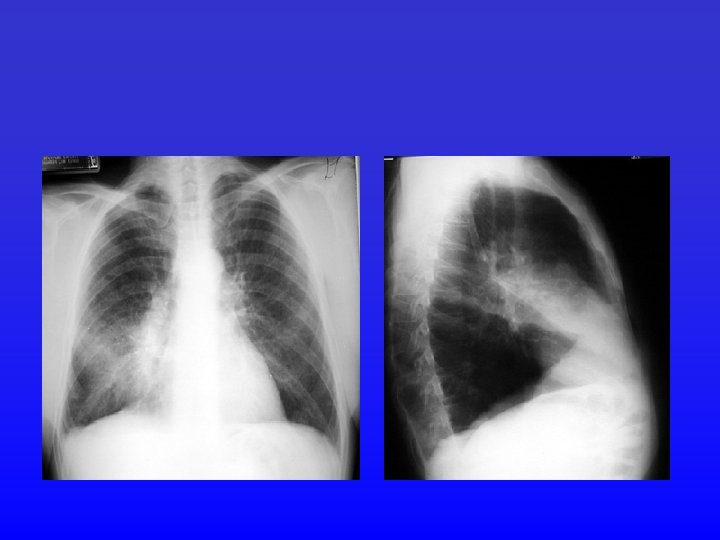

Lobes (continued) • Right lower lobe:

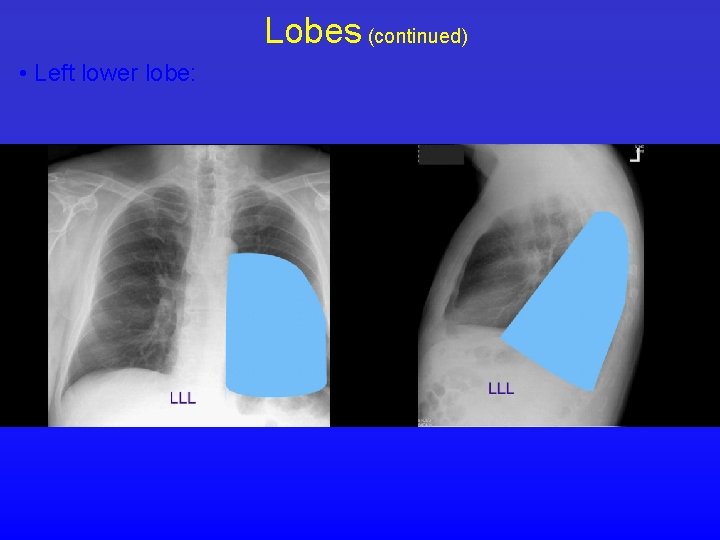

Lobes (continued) • Left lower lobe:

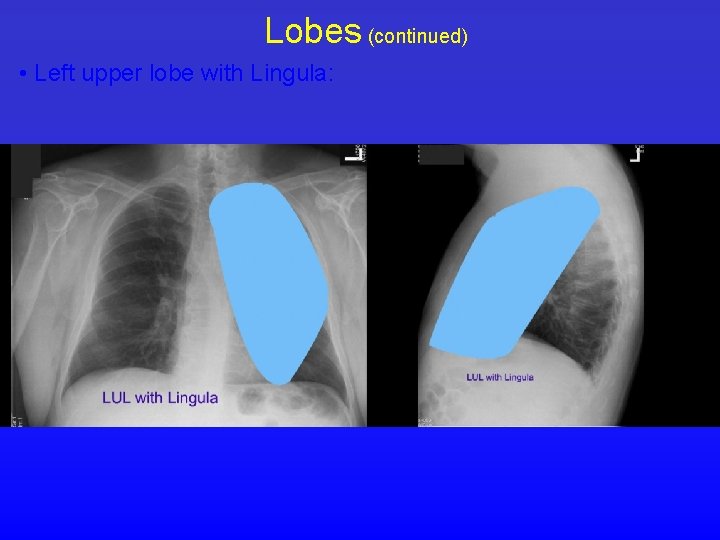

Lobes (continued) • Left upper lobe with Lingula:

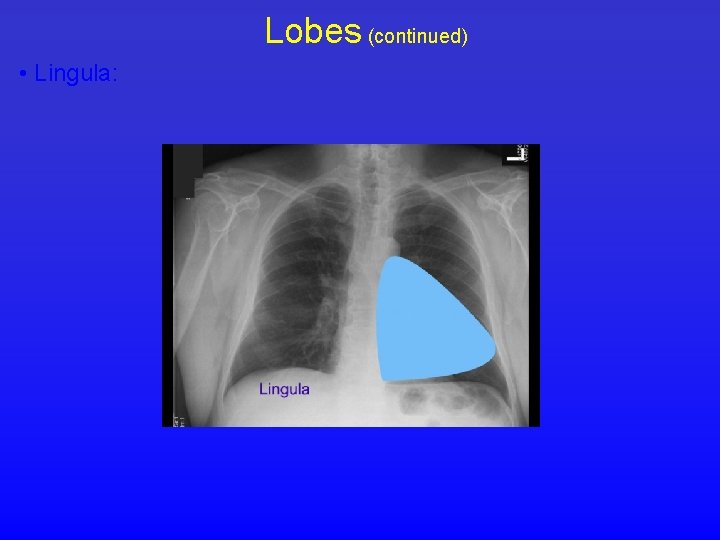

Lobes (continued) • Lingula:

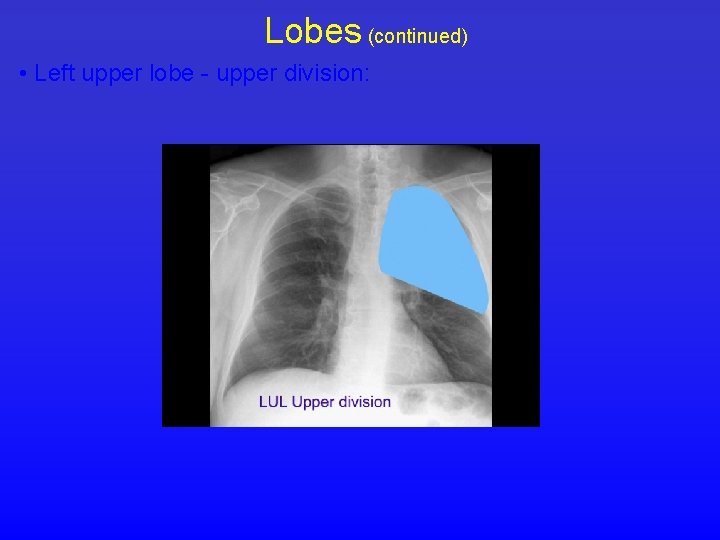

Lobes (continued) • Left upper lobe - upper division:

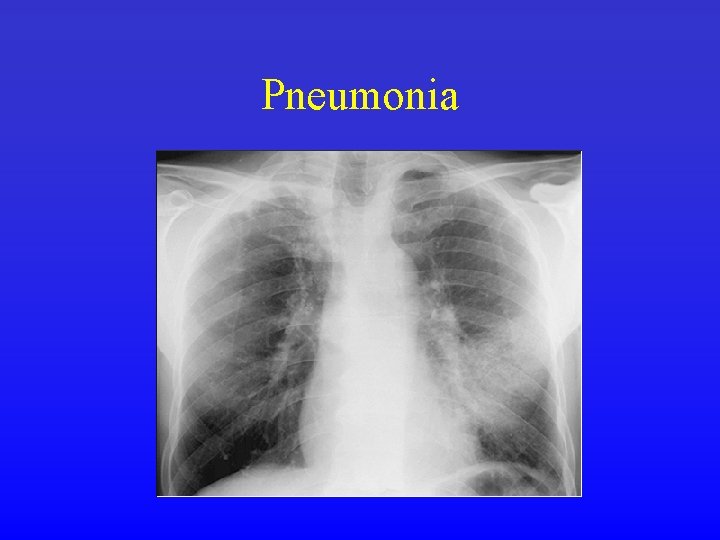

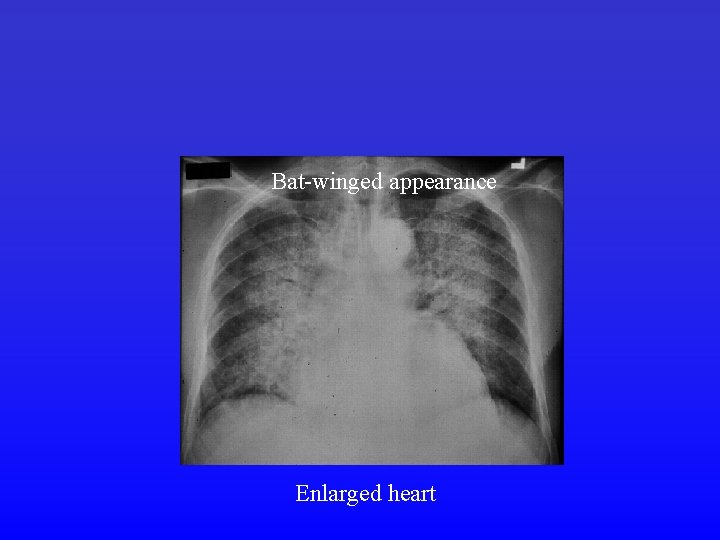

Pneumonia

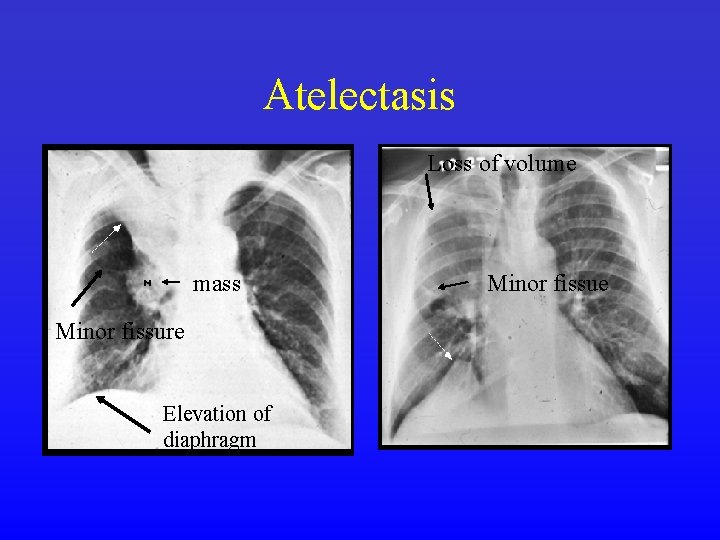

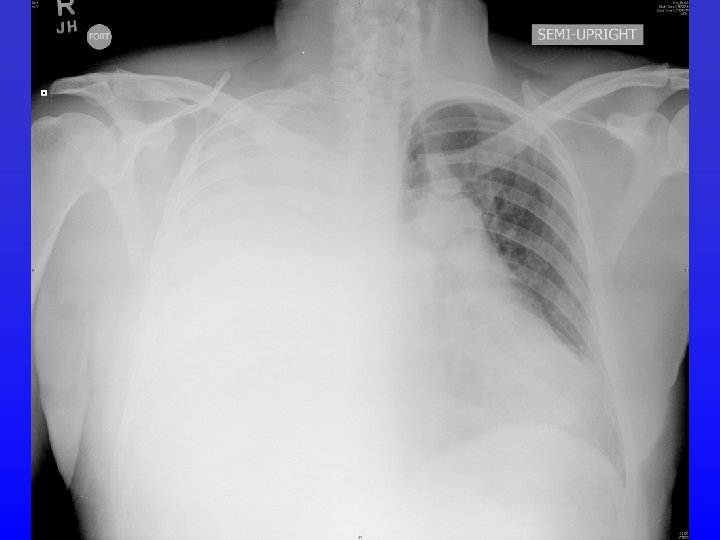

Atelectasis Loss of volume mass Minor fissure Elevation of diaphragm Minor fissue

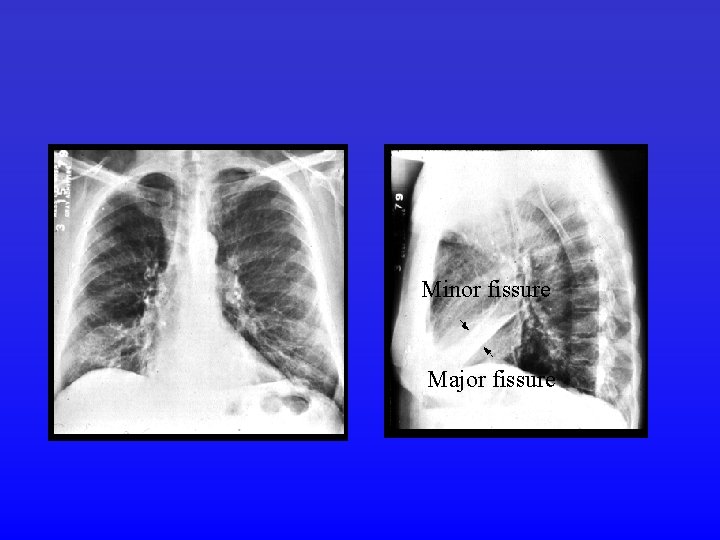

Minor fissure Major fissure

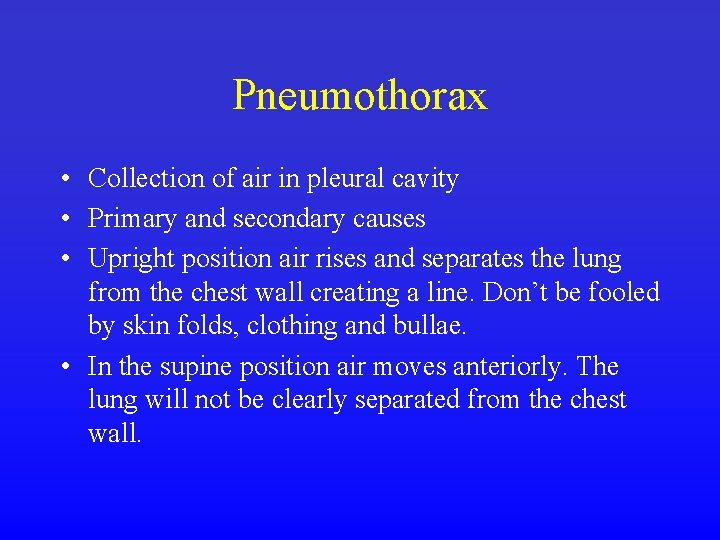

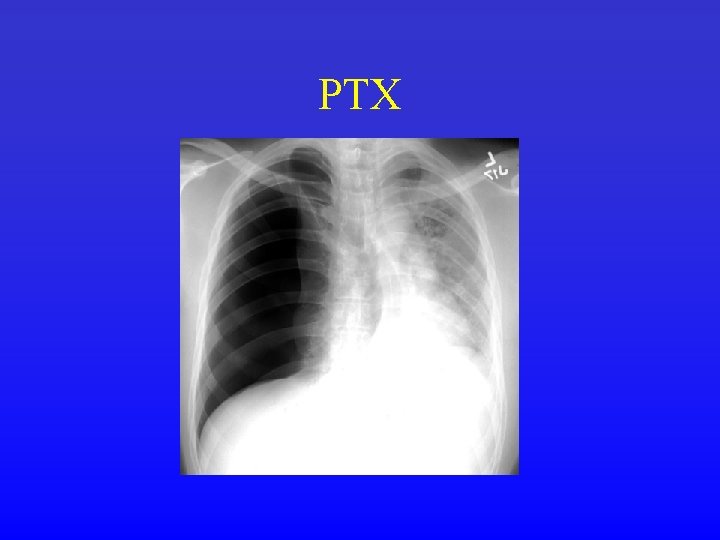

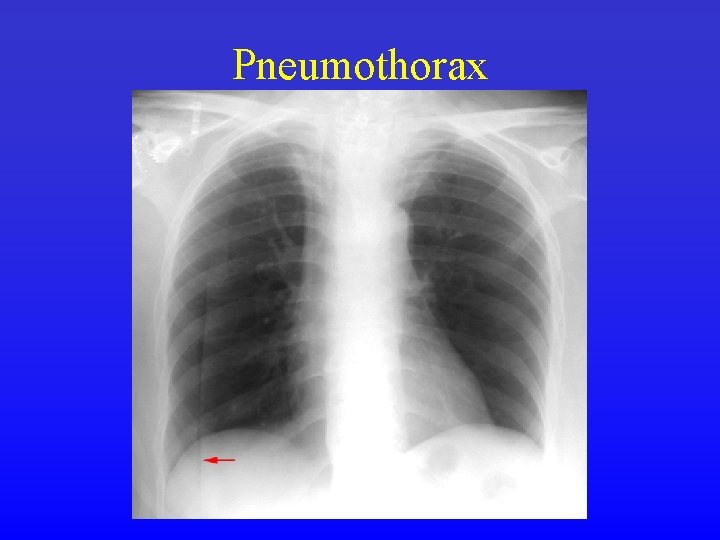

Pneumothorax • Collection of air in pleural cavity • Primary and secondary causes • Upright position air rises and separates the lung from the chest wall creating a line. Don’t be fooled by skin folds, clothing and bullae. • In the supine position air moves anteriorly. The lung will not be clearly separated from the chest wall.
