Reading Solubility Curves What is Solubility Solubility the
![Reading Solubility Curves Reading Solubility Curves](https://slidetodoc.com/presentation_image_h2/7da2986305cd2a86926a2d510fc109c1/image-1.jpg)
Reading Solubility Curves
![What is Solubility? Solubility: the maximum amount of solute that will dissolve in a What is Solubility? Solubility: the maximum amount of solute that will dissolve in a](http://slidetodoc.com/presentation_image_h2/7da2986305cd2a86926a2d510fc109c1/image-2.jpg)
What is Solubility? Solubility: the maximum amount of solute that will dissolve in a certain amount of solvent at a given temperature n Solute = substance dissolved n Solvent = does the dissolving n Example: __ grams of salt (Na. Cl) in 100 g of water at __ ˚C. n
![Temperature and Solubility n Temperature affects how much of the solute can be dissolved Temperature and Solubility n Temperature affects how much of the solute can be dissolved](http://slidetodoc.com/presentation_image_h2/7da2986305cd2a86926a2d510fc109c1/image-3.jpg)

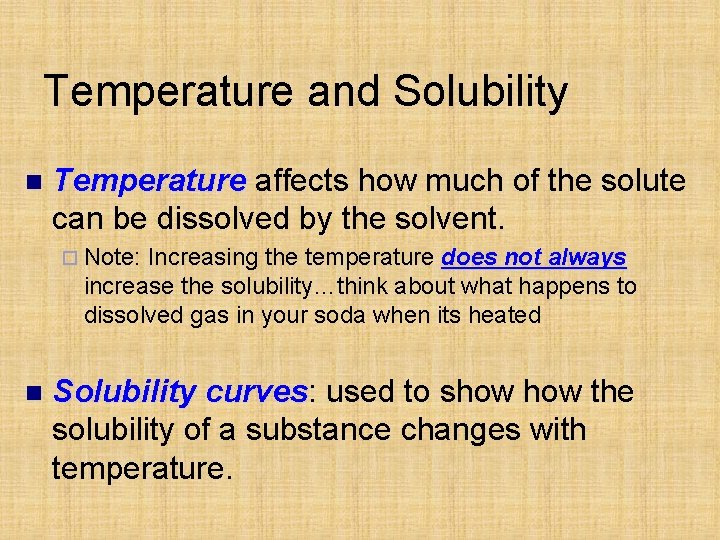

Temperature and Solubility n Temperature affects how much of the solute can be dissolved by the solvent. ¨ Note: Increasing the temperature does not always increase the solubility…think about what happens to dissolved gas in your soda when its heated n Solubility curves: curves used to show the solubility of a substance changes with temperature.
![](http://slidetodoc.com/presentation_image_h2/7da2986305cd2a86926a2d510fc109c1/image-4.jpg)
![To read the graph: 1. Find the line for the substance. 2. The amount To read the graph: 1. Find the line for the substance. 2. The amount](http://slidetodoc.com/presentation_image_h2/7da2986305cd2a86926a2d510fc109c1/image-5.jpg)
To read the graph: 1. Find the line for the substance. 2. The amount that dissolves at a given temp. is on the y-axis.
![How much KNO 3 dissolves in 100 g H 2 O at 50 o. How much KNO 3 dissolves in 100 g H 2 O at 50 o.](http://slidetodoc.com/presentation_image_h2/7da2986305cd2a86926a2d510fc109c1/image-6.jpg)

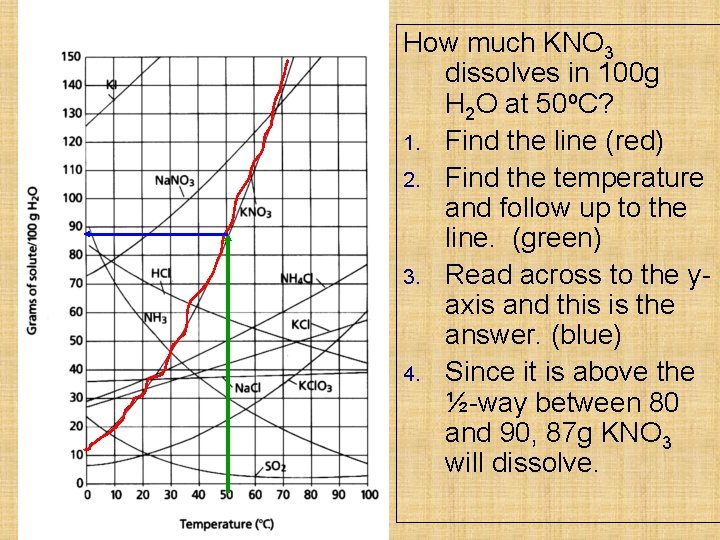

How much KNO 3 dissolves in 100 g H 2 O at 50 o. C? 1. Find the line (red) 2. Find the temperature and follow up to the line. (green) 3. Read across to the yaxis and this is the answer. (blue) 4. Since it is above the ½-way between 80 and 90, 87 g KNO 3 will dissolve.
![Types of Solutions: n Saturated solution: point on the line ¨ Contains maximum amount Types of Solutions: n Saturated solution: point on the line ¨ Contains maximum amount](http://slidetodoc.com/presentation_image_h2/7da2986305cd2a86926a2d510fc109c1/image-7.jpg)
Types of Solutions: n Saturated solution: point on the line ¨ Contains maximum amount of solute at given temp ¨ Contains what it should hold n Supersaturated: above the line ¨ Contains more solute than a saturated solution ¨ Contains more than it should hold n Unsaturated: below the line is ¨ Contains less solute than saturated solution ¨ Contains less solute than it could hold
![](http://slidetodoc.com/presentation_image_h2/7da2986305cd2a86926a2d510fc109c1/image-8.jpg)
![SOLUBILITY GRAPHS KNO 3 140 120 KBr Concentration (g/100 g water) 100 . 80 SOLUBILITY GRAPHS KNO 3 140 120 KBr Concentration (g/100 g water) 100 . 80](http://slidetodoc.com/presentation_image_h2/7da2986305cd2a86926a2d510fc109c1/image-9.jpg)

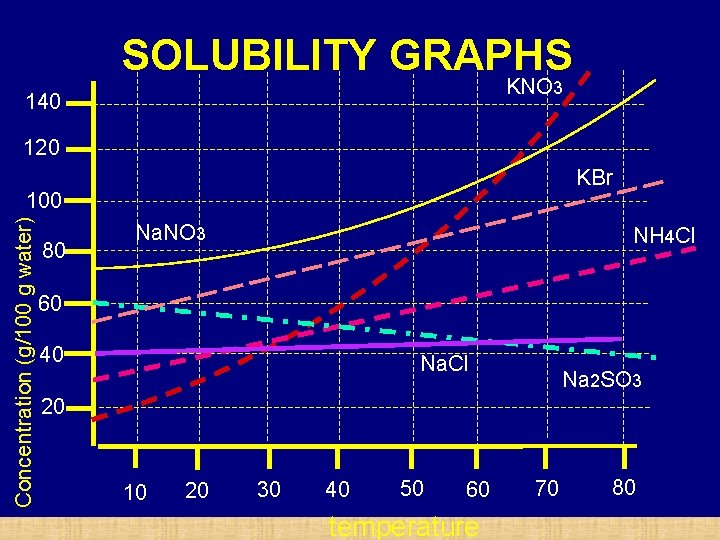

SOLUBILITY GRAPHS KNO 3 140 120 KBr Concentration (g/100 g water) 100 . 80 Na. NO 3 NH 4 Cl 60 40 Na. Cl Na 2 SO 3 20 10 20 30 40 50 60 temperature 70 80
![SOLUBILITY FORMULAS amount of solute amount of solvent Given solubility = amount of solute SOLUBILITY FORMULAS amount of solute amount of solvent Given solubility = amount of solute](http://slidetodoc.com/presentation_image_h2/7da2986305cd2a86926a2d510fc109c1/image-10.jpg)
SOLUBILITY FORMULAS amount of solute amount of solvent Given solubility = amount of solute amount of solvent unknown
![SOLUBILITY PROBLEMS 1. The solubility of a solid is 15 g / 100 g SOLUBILITY PROBLEMS 1. The solubility of a solid is 15 g / 100 g](http://slidetodoc.com/presentation_image_h2/7da2986305cd2a86926a2d510fc109c1/image-11.jpg)
SOLUBILITY PROBLEMS 1. The solubility of a solid is 15 g / 100 g of water. How many grams of the solid must be dissolved in 1 kg of water to make a saturated solution?
![SOLUBILITY PROBLEMS amount of solute = amount of solvent 15 g X ------- = SOLUBILITY PROBLEMS amount of solute = amount of solvent 15 g X ------- =](http://slidetodoc.com/presentation_image_h2/7da2986305cd2a86926a2d510fc109c1/image-12.jpg)
SOLUBILITY PROBLEMS amount of solute = amount of solvent 15 g X ------- = ------100 g 1000 g X=150 g
![SOLUBILITY EXAMPLES 2. If you have 50 g in 500 g of water, using SOLUBILITY EXAMPLES 2. If you have 50 g in 500 g of water, using](http://slidetodoc.com/presentation_image_h2/7da2986305cd2a86926a2d510fc109c1/image-13.jpg)
SOLUBILITY EXAMPLES 2. If you have 50 g in 500 g of water, using solubility from problem #1, is the solution saturated? 15 g X ------ = -----100 g 500 g X=75 g is saturated No, 50 g is not saturated!
![SOLUBILITY EXAMPLES 3. The solubility of a solute is 5 g/100 g water at SOLUBILITY EXAMPLES 3. The solubility of a solute is 5 g/100 g water at](http://slidetodoc.com/presentation_image_h2/7da2986305cd2a86926a2d510fc109c1/image-14.jpg)
SOLUBILITY EXAMPLES 3. The solubility of a solute is 5 g/100 g water at 20 C and 7. 5 g/100 g water at 50 C. How much of the solute must be dissolved in 250 g of water at 20 C to prepare a saturated solution? 5 g X ----- = ----100 g 250 g X=12. 5 g to prepare a saturated solution
![SOLUBILITY EXAMPLES 4. The solubility of a solute is 5 g/100 g water at SOLUBILITY EXAMPLES 4. The solubility of a solute is 5 g/100 g water at](http://slidetodoc.com/presentation_image_h2/7da2986305cd2a86926a2d510fc109c1/image-15.jpg)
SOLUBILITY EXAMPLES 4. The solubility of a solute is 5 g/100 g water at 20 C and 7. 5 g/100 g water at 50 C. If a saturated solution is prepared using 200 g water at 50 C, then allowed to cool to 20 C: a. Will it still be saturated? b. How much solute will precipitate out?
![SOLUBILITY EXAMPLES Will it still be saturated? @ 50 C: 7. 5 g X SOLUBILITY EXAMPLES Will it still be saturated? @ 50 C: 7. 5 g X](http://slidetodoc.com/presentation_image_h2/7da2986305cd2a86926a2d510fc109c1/image-16.jpg)
SOLUBILITY EXAMPLES Will it still be saturated? @ 50 C: 7. 5 g X ----- = ----100 g 200 g X=15 g to prepare a saturated solution @ 50 C
![SOLUBILITY EXAMPLES Will it still be saturated? Now cool it to 20 C: 5 SOLUBILITY EXAMPLES Will it still be saturated? Now cool it to 20 C: 5](http://slidetodoc.com/presentation_image_h2/7da2986305cd2a86926a2d510fc109c1/image-17.jpg)

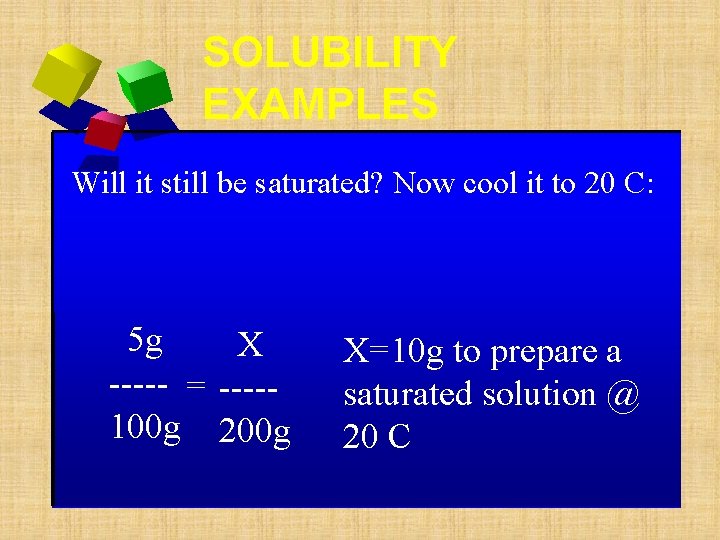

SOLUBILITY EXAMPLES Will it still be saturated? Now cool it to 20 C: 5 g X ----- = ----100 g 200 g X=10 g to prepare a saturated solution @ 20 C
![SOLUBILITY EXAMPLES Will it still be saturated? Now cool it to 20 C: 15 SOLUBILITY EXAMPLES Will it still be saturated? Now cool it to 20 C: 15](http://slidetodoc.com/presentation_image_h2/7da2986305cd2a86926a2d510fc109c1/image-18.jpg)

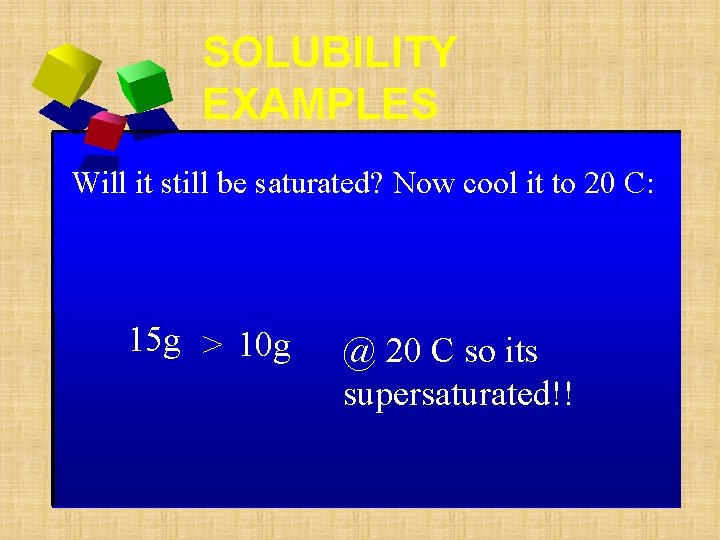

SOLUBILITY EXAMPLES Will it still be saturated? Now cool it to 20 C: 15 g > 10 g @ 20 C so its supersaturated!!
![SOLUBILITY EXAMPLES How much will precipitate out? 5 g ----- = 100 g 7. SOLUBILITY EXAMPLES How much will precipitate out? 5 g ----- = 100 g 7.](http://slidetodoc.com/presentation_image_h2/7da2986305cd2a86926a2d510fc109c1/image-19.jpg)
SOLUBILITY EXAMPLES How much will precipitate out? 5 g ----- = 100 g 7. 5 g ----- = 100 g X ----200 g X=10 g to prepare a saturated solution @ 20 C X=15 g to prepare a saturated solution @ 50 C
![SOLUBILITY EXAMPLES How much will precipitate out? 15 g - 10 g = 5 SOLUBILITY EXAMPLES How much will precipitate out? 15 g - 10 g = 5](http://slidetodoc.com/presentation_image_h2/7da2986305cd2a86926a2d510fc109c1/image-20.jpg)

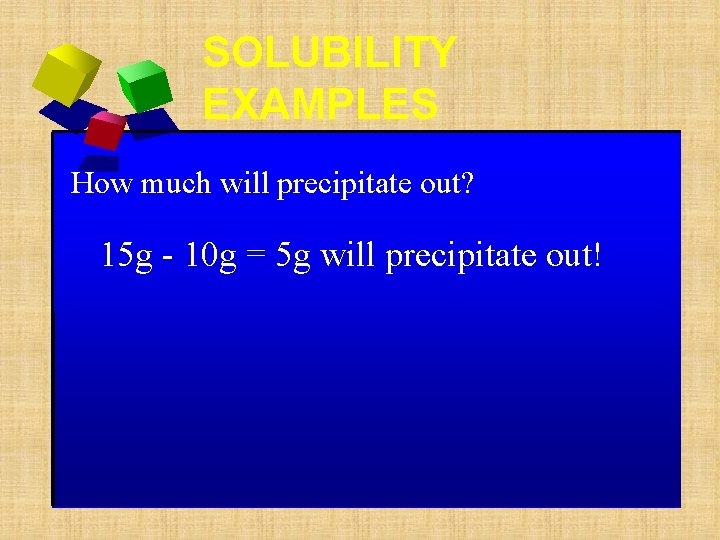

SOLUBILITY EXAMPLES How much will precipitate out? 15 g - 10 g = 5 g will precipitate out!
![To do Calculations: To calculate how much extra has been dissolved: Extra = Dissolved To do Calculations: To calculate how much extra has been dissolved: Extra = Dissolved](http://slidetodoc.com/presentation_image_h2/7da2986305cd2a86926a2d510fc109c1/image-21.jpg)

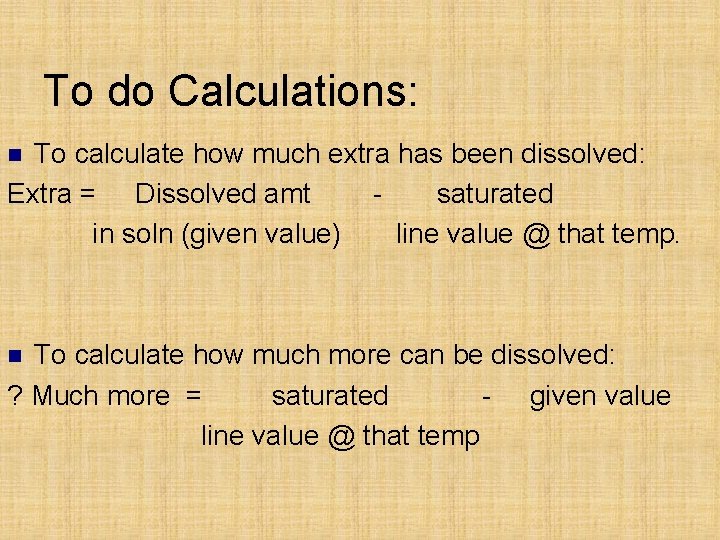

To do Calculations: To calculate how much extra has been dissolved: Extra = Dissolved amt saturated in soln (given value) line value @ that temp. n To calculate how much more can be dissolved: ? Much more = saturated - given value line value @ that temp n
![Example 1: n n n How much less KCl is dissolved at 20 o. Example 1: n n n How much less KCl is dissolved at 20 o.](http://slidetodoc.com/presentation_image_h2/7da2986305cd2a86926a2d510fc109c1/image-22.jpg)
Example 1: n n n How much less KCl is dissolved at 20 o. C than at 60 o. C in 100 g H 2 O? Read the line value: 32 g at 20 o. C Subtract it from the given value: n 45 g – 32 g = 13 g
![Example 2: n n n How much more KCl is required to saturate the Example 2: n n n How much more KCl is required to saturate the](http://slidetodoc.com/presentation_image_h2/7da2986305cd2a86926a2d510fc109c1/image-23.jpg)

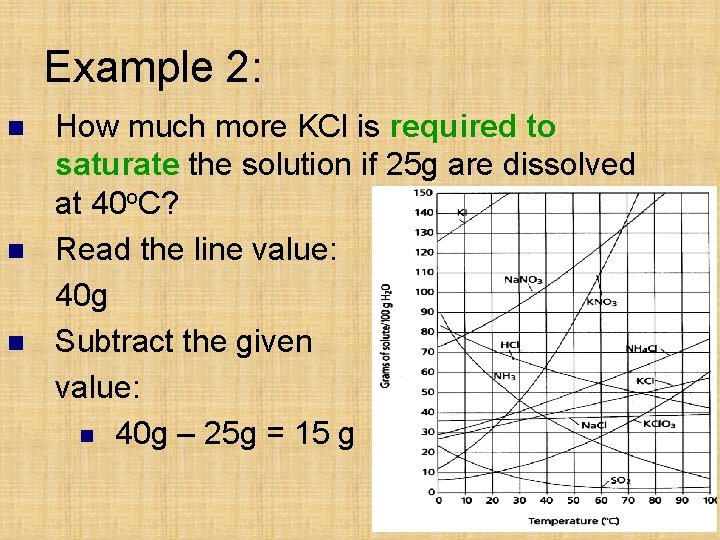

Example 2: n n n How much more KCl is required to saturate the solution if 25 g are dissolved at 40 o. C? Read the line value: 40 g Subtract the given value: n 40 g – 25 g = 15 g
![Your turn! Use your graph 1. 2. 3. 4. 5. How much Na. Cl Your turn! Use your graph 1. 2. 3. 4. 5. How much Na. Cl](http://slidetodoc.com/presentation_image_h2/7da2986305cd2a86926a2d510fc109c1/image-24.jpg)

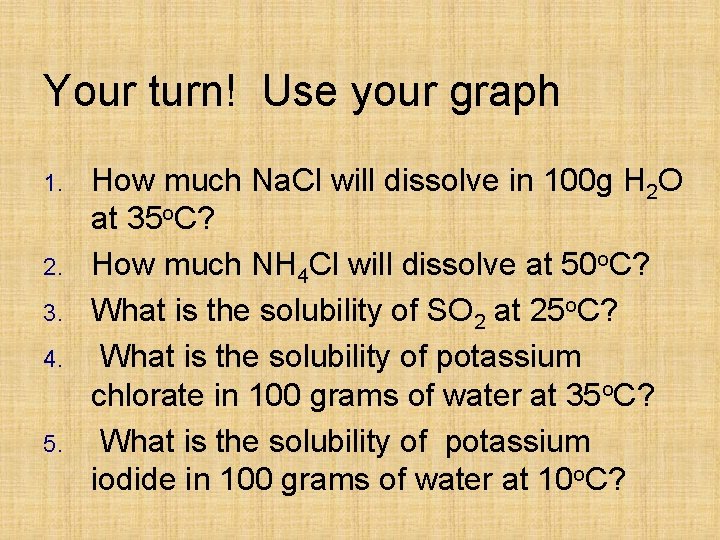

Your turn! Use your graph 1. 2. 3. 4. 5. How much Na. Cl will dissolve in 100 g H 2 O at 35 o. C? How much NH 4 Cl will dissolve at 50 o. C? What is the solubility of SO 2 at 25 o. C? What is the solubility of potassium chlorate in 100 grams of water at 35 o. C? What is the solubility of potassium iodide in 100 grams of water at 10 o. C?
![6. What minimum temperature needed to dissolve 80 grams of sodium nitrate in 100 6. What minimum temperature needed to dissolve 80 grams of sodium nitrate in 100](http://slidetodoc.com/presentation_image_h2/7da2986305cd2a86926a2d510fc109c1/image-25.jpg)
6. What minimum temperature needed to dissolve 80 grams of sodium nitrate in 100 grams of water? 7. What minimum temperature needed to dissolve 42 grams of potassium chloride in 100 grams of water? 8. What minimum temperature needed to dissolve 20 grams of KCl. O 3 in 100 grams of water? 9. If 95 grams of potassium nitrate are mixed with 100 grams of water at 45ºC, how much will not dissolve? 10. If 85 grams of potassium iodide are mixed with 100 grams of water at 0ºC, how much more must be added to saturate the solution?
![11. 12. 13. If 55 grams of potassium chlorate are mixed with 100 grams 11. 12. 13. If 55 grams of potassium chlorate are mixed with 100 grams](http://slidetodoc.com/presentation_image_h2/7da2986305cd2a86926a2d510fc109c1/image-26.jpg)
11. 12. 13. If 55 grams of potassium chlorate are mixed with 100 grams of water at 55ºC, how much will not dissolve? If 125 grams of potassium iodide are mixed with 100 grams of water at 10ºC, how much more must be added to saturate the solution? What is the solubility of potassium chlorate in 50 grams of water at 35ºC?
![14. 15. 16. 17. 18. What is the solubility of potassium chlorate in 100 14. 15. 16. 17. 18. What is the solubility of potassium chlorate in 100](http://slidetodoc.com/presentation_image_h2/7da2986305cd2a86926a2d510fc109c1/image-27.jpg)
14. 15. 16. 17. 18. What is the solubility of potassium chlorate in 100 grams of water at 35 o. C? What is the solubility of potassium iodide in 100 grams of water at 10 o. C? What is the minimum temperature needed to dissolve 80 grams of sodium nitrate in 100 grams of water? What is the minimum temperature needed to dissolve 42 grams of potassium chloride in 100 grams of water? What is the minimum temperature needed to dissolve 20 grams of KCl. O 3 in 100 grams of water?
![19. 20. 21. 22. 23. If 95 grams of potassium nitrate are mixed with 19. 20. 21. 22. 23. If 95 grams of potassium nitrate are mixed with](http://slidetodoc.com/presentation_image_h2/7da2986305cd2a86926a2d510fc109c1/image-28.jpg)
19. 20. 21. 22. 23. If 95 grams of potassium nitrate are mixed with 100 grams of water at 45 o. C, how much will not dissolve? If 55 grams of potassium chlorate are mixed with 100 grams of water at 55 o. C, how much will not dissolve? If 125 grams of potassium iodide are mixed with 100 grams of water at 10 o. C, how much more must be added to saturate the solution? If 85 grams of potassium iodide are mixed with 100 grams of water at 0 o. C, how much more must be added to saturate the solution? What is the solubility of potassium chlorate in 50 grams of water at 35 o. C?
![Factors Affecting Gas Solubility What relationship is shown in the graph? Pressure ↑ Solubility Factors Affecting Gas Solubility What relationship is shown in the graph? Pressure ↑ Solubility](http://slidetodoc.com/presentation_image_h2/7da2986305cd2a86926a2d510fc109c1/image-29.jpg)
Factors Affecting Gas Solubility What relationship is shown in the graph? Pressure ↑ Solubility ↑ n What type of relationship is Direct this? n A linear graph with a positive slope = direct relationship n Based on what we’ve discussed, what factors would you say affect gas solubility? ¨ Temperature ¨ Nature of Solvent ¨ Pressure
