READING ELECTRODES Numbering system created by AWS American
READING ELECTRODES

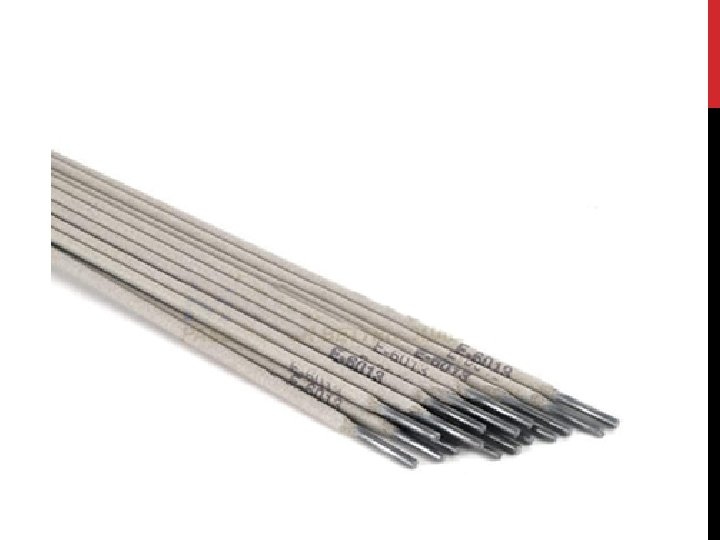

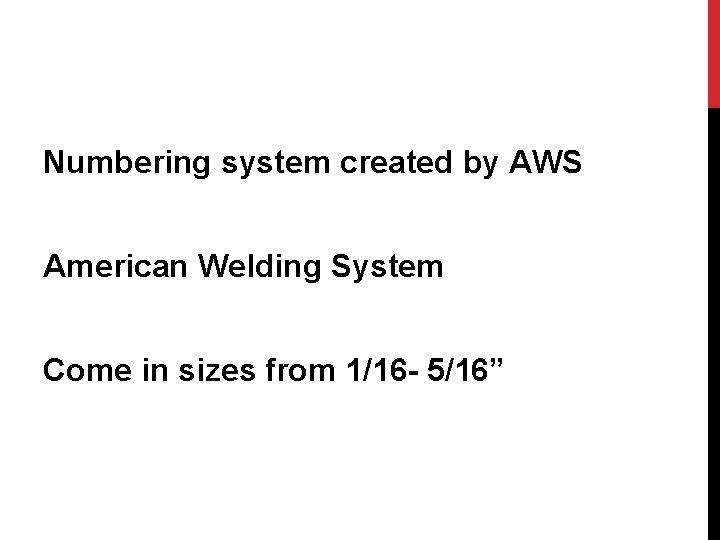

Numbering system created by AWS American Welding System Come in sizes from 1/16 - 5/16”

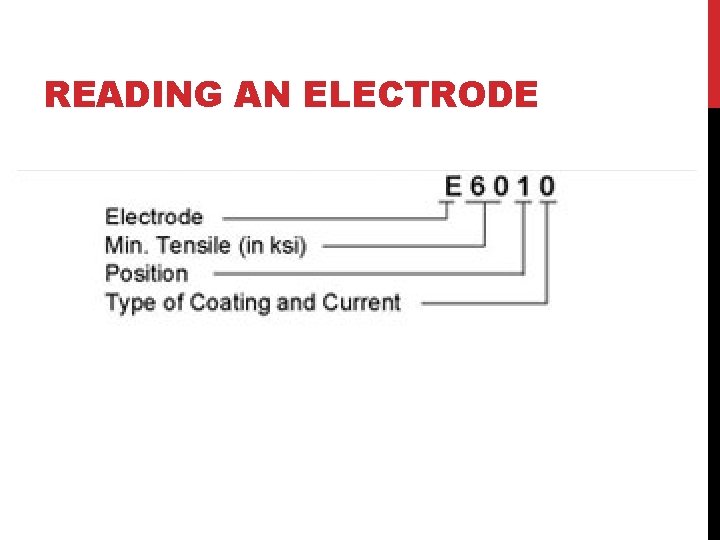

READING AN ELECTRODE
E 6010 E= Arc Welding Electrode

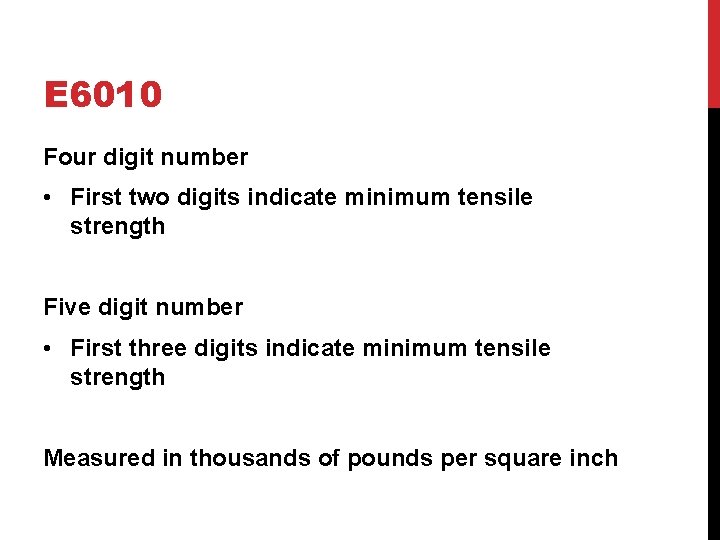

E 6010 Four digit number • First two digits indicate minimum tensile strength Five digit number • First three digits indicate minimum tensile strength Measured in thousands of pounds per square inch
TENSILE STRENGTH

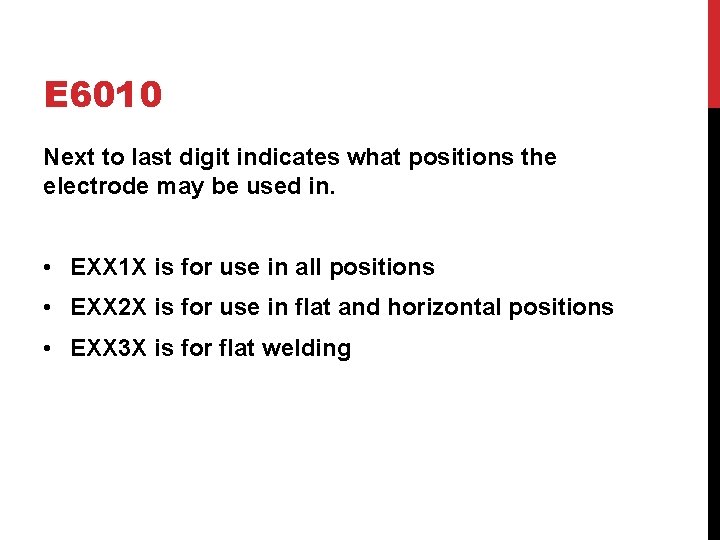

E 6010 Next to last digit indicates what positions the electrode may be used in. • EXX 1 X is for use in all positions • EXX 2 X is for use in flat and horizontal positions • EXX 3 X is for flat welding

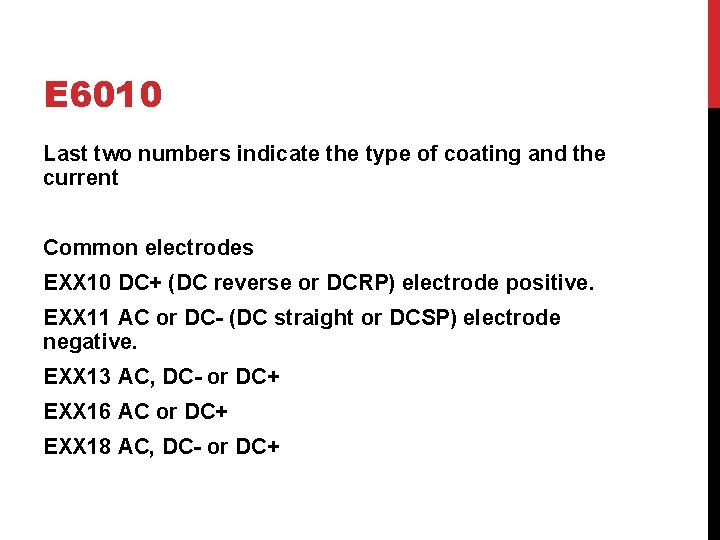

E 6010 Last two numbers indicate the type of coating and the current Common electrodes EXX 10 DC+ (DC reverse or DCRP) electrode positive. EXX 11 AC or DC- (DC straight or DCSP) electrode negative. EXX 13 AC, DC- or DC+ EXX 16 AC or DC+ EXX 18 AC, DC- or DC+
COATING MATERIALS

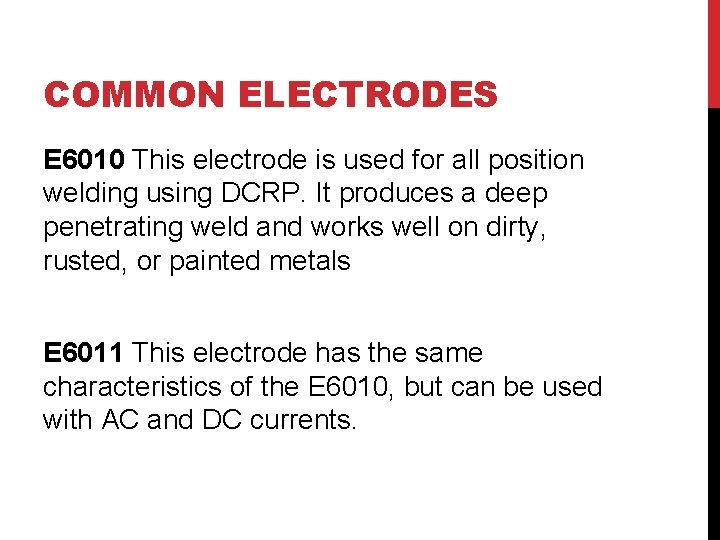

COMMON ELECTRODES E 6010 This electrode is used for all position welding using DCRP. It produces a deep penetrating weld and works well on dirty, rusted, or painted metals E 6011 This electrode has the same characteristics of the E 6010, but can be used with AC and DC currents.

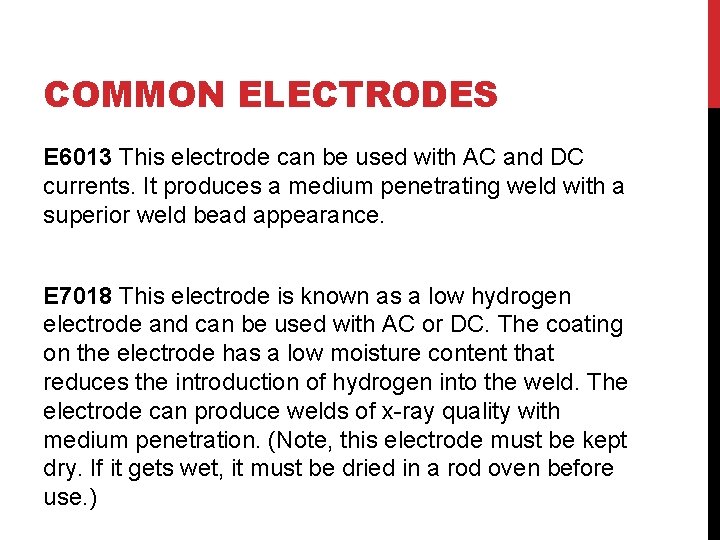

COMMON ELECTRODES E 6013 This electrode can be used with AC and DC currents. It produces a medium penetrating weld with a superior weld bead appearance. E 7018 This electrode is known as a low hydrogen electrode and can be used with AC or DC. The coating on the electrode has a low moisture content that reduces the introduction of hydrogen into the weld. The electrode can produce welds of x-ray quality with medium penetration. (Note, this electrode must be kept dry. If it gets wet, it must be dried in a rod oven before use. )

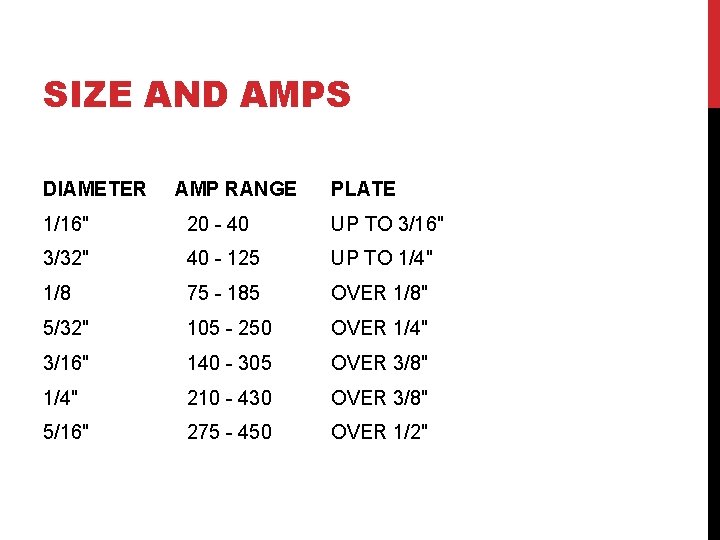

SIZE AND AMPS DIAMETER AMP RANGE PLATE 1/16" 20 - 40 UP TO 3/16" 3/32" 40 - 125 UP TO 1/4" 1/8 75 - 185 OVER 1/8" 5/32" 105 - 250 OVER 1/4" 3/16" 140 - 305 OVER 3/8" 1/4" 210 - 430 OVER 3/8" 5/16" 275 - 450 OVER 1/2"
