Reading and Interpreting Circle Graphs Vocabulary Circle graph

* Reading and Interpreting Circle Graphs

Vocabulary Circle graph- also called a pie chart, shows how a set of data is divided into parts. The entire circle contains 100% of the data. Sector- slice of the circle that represents one part of the entire data set.

The circle graph compares the number of species in each group of echinoderms. Echinoderms are marine animals that live on the ocean floor.

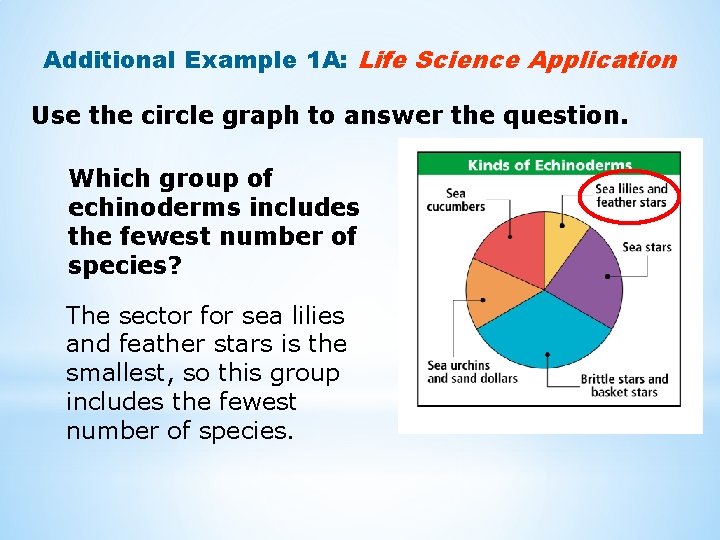

Additional Example 1 A: Life Science Application Use the circle graph to answer the question. Which group of echinoderms includes the fewest number of species? The sector for sea lilies and feather stars is the smallest, so this group includes the fewest number of species.

Additional Example 1 B: Life Science Application Use the circle graph to answer the question. Approximately what percent of echinoderm species are brittle stars and basket stars? about 1 , so approximately 33% 3

Check It Out: Example 1 A The circle graph compares the sales of different types of cars during one year. Approximately what percent of cars were midsize?

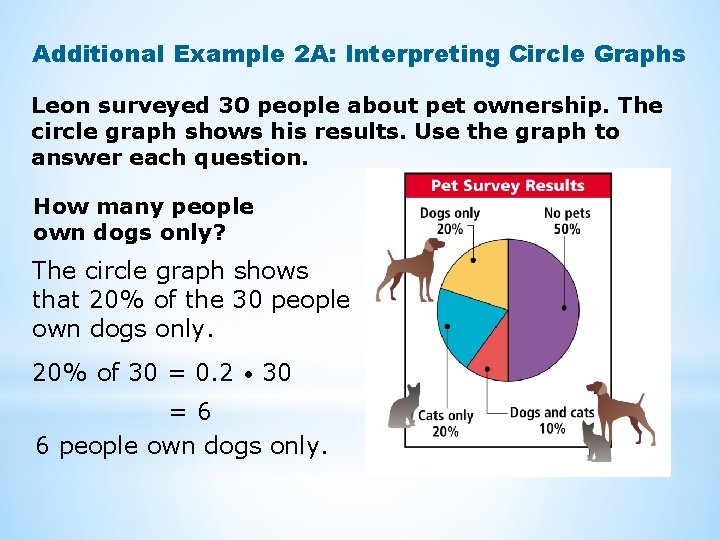

Additional Example 2 A: Interpreting Circle Graphs Leon surveyed 30 people about pet ownership. The circle graph shows his results. Use the graph to answer each question. How many people own dogs only? The circle graph shows that 20% of the 30 people own dogs only. 20% of 30 = 0. 2 • 30 =6 6 people own dogs only.

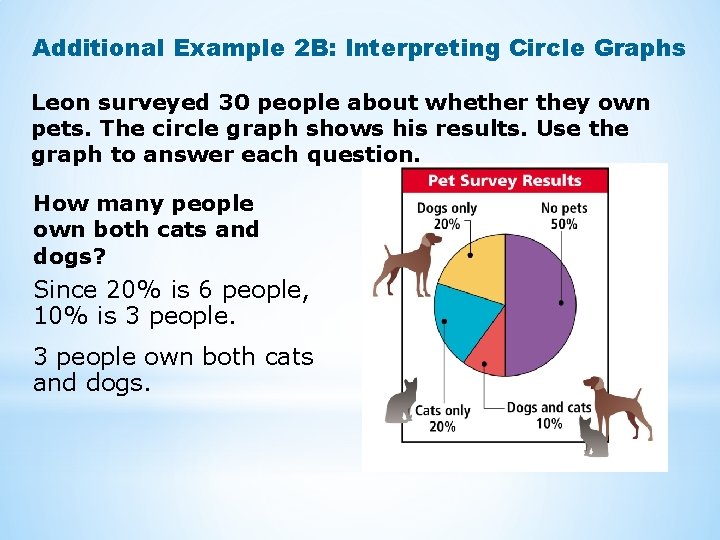

Additional Example 2 B: Interpreting Circle Graphs Leon surveyed 30 people about whether they own pets. The circle graph shows his results. Use the graph to answer each question. How many people own both cats and dogs? Since 20% is 6 people, 10% is 3 people own both cats and dogs.

Check It Out: Example 2 Fifty students were asked which instrument they could play. The circle graph shows the responses. How many play the flute?

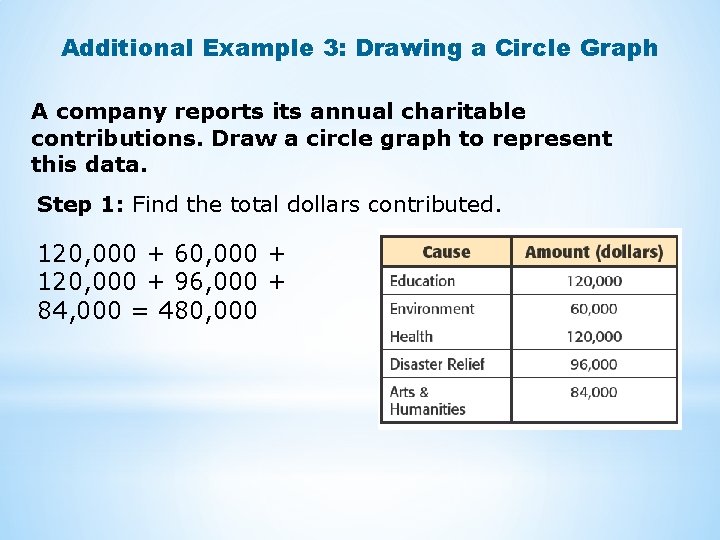

Additional Example 3: Drawing a Circle Graph A company reports its annual charitable contributions. Draw a circle graph to represent this data. Step 1: Find the total dollars contributed. 120, 000 + 60, 000 + 120, 000 + 96, 000 + 84, 000 = 480, 000

Additional Example 3 Continued Step 2: Find the percent each cause is to the whole. Step 3: Multiply the percent times 360 (the total number of degrees in a circle) for each contribution to find the measure of the central angle. Arts & Education and Health Humanties Environment Disaster Relief

Additional Example 3 Continued Step 4: Use a protractor to draw each angle inside a circle. Label each wedge with the corresponding percent.

Check It Out: Example 3 A group of track and field team members are asked which event is their favorite. Draw a circle graph to represent this data. Event Numbers Sprints 24 Hurdles 18 Relay 30 Jumping 12 Throwing 36
